4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#60052) — 130 parça

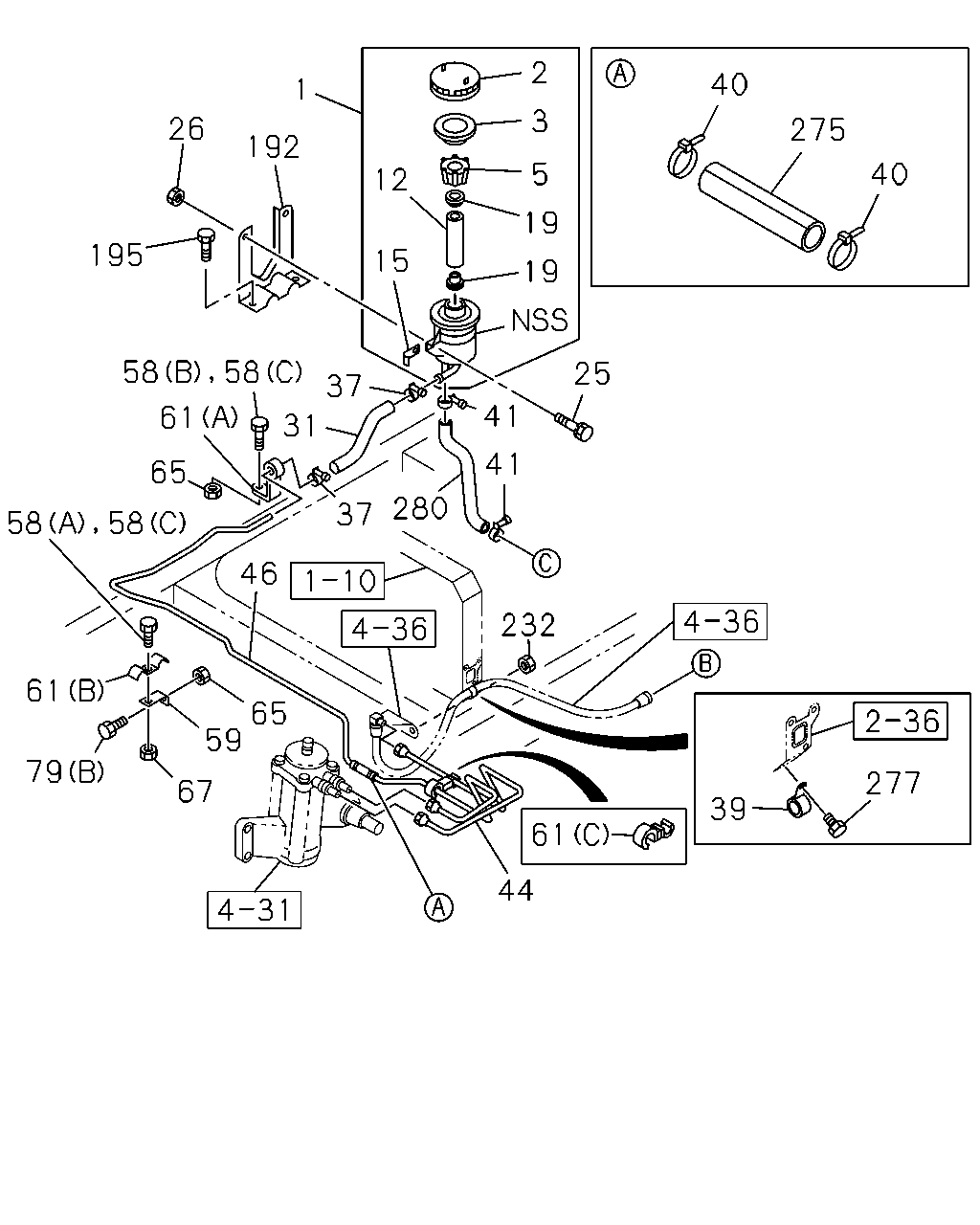

çizim 172708
2 40 1 3 26 275 192 5 40 12 19 195 15 19 25 37 41 61 31 41 65 37 280 58 58 46 232 61 65 59 79 277 67 39 61 44 58 58
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK ASM; OIL,P/S 1-21210-205-0 01 1 9510-0210 ● ●
1 TANK ASM; OIL,P/S 1-21210-205-0 01 1 0211-0508 ●
1 TANK ASM; OIL,P/S 1-21210-238-1 01 1 0509-1006 ●
1 TANK ASM; OIL,P/S 8-98166-928-0 01 1 1007- ●
2 CAP; OIL TANK,P/S 1-21241-004-4 01 1 9510-0210 ● ●
2 CAP; OIL TANK,P/S 1-21241-004-4 01 1 0211-1006 ●
2 CAP; OIL TANK,P/S 8-98166-876-0 01 1 1007- ●
3 GASKET; OIL TANK,P/S 1-21249-003-1 01 1 9510-0210 ● ●
3 GASKET; OIL TANK,P/S 1-21249-003-1 01 1 0211- ●
5 STRAINER; OIL TANK,P/S 1-21235-007-1 01 1 9510-0210 ● ●
5 STRAINER; OIL TANK,P/S 1-21235-007-1 01 1 0211- ●
12 FILTER; MICROBON,OIL TANK,P/S 1-21235-011-0 01 1 9510-0210 ● ●
12 FILTER; MICROBON,OIL TANK,P/S 1-21235-011-0 01 1 0211- ●
15 PLATE; FILTER,OIL TANK 1-21249-007-1 02 1 9510-0210 ● ●
15 PLATE; FILTER,OIL TANK 1-21249-007-1 02 1 0211-0508 ●
15 PLATE; FILTER,OIL TANK 1-21249-016-0 02 1 0509- ●
19 SEAT; OIL TANK 1-21249-004-0 02 1 9510-0210 ● ●
19 SEAT; OIL TANK 1-21249-004-0 02 1 0211- ●
25 BOLT; OIL TANK BRKT
M8X20 FLANGE 		0-28080-820-0 02 1 9510-9606 ● ●
25 BOLT; OIL TANK BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 9607-0210 ● ●
25 BOLT; OIL TANK BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0211-0512 ●
25 BOLT; OIL TANK BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
26 NUT; OIL TANK TO BRKT
M8 		9-09110-408-0 02 1 9510-9606 ● ●
26 NUT; OIL TANK TO BRKT
M8 FLANGE 		0-91150-108-0 02 1 9607-0210 ● ●
26 NUT; OIL TANK TO BRKT
M8 FLANGE 		0-91150-108-0 02 1 0211-0602 ●
26 NUT; OIL TANK TO BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
31 HOSE; P/S OIL TANK,INL 1-21113-591-1 01 1 9510-0210 ● ●
31 HOSE; P/S OIL TANK,INL 1-21113-591-1 01 1 0211- ●
37 CLIP; HOSE,P/S
ID=26 		1-09704-082-0 02 1 9510-0004 ● ●
37 CLIP; HOSE,P/S
ID=26 		1-09704-082-0 02 1 0005-0210 ● ●
37 CLIP; HOSE,P/S
ID=26 		1-09704-082-0 02 1 0005-0210 ●
37 CLIP; HOSE,P/S
ID=26 		1-09704-082-0 02 1 0211-0502 ●
37 CLIP; HOSE,P/S
ID=26 		1-09704-082-0 02 1 0211-0502 ●
37 CLIP; HOSE,P/S
ID=26 		1-09704-082-0 02 1 0503- ●
39 CLIP; FLEX HOSE
ID=40 		8-94226-553-0 01 1 9510-0210 ● ●
39 CLIP; FLEX HOSE
ID=40 		8-94226-553-0 01 1 0211- ●
40 CLIP; BAND
L=140 		5-09707-031-1 02 1 9901-0210 ● ●
40 CLIP; BAND
L=140 		5-09707-031-1 02 1 0211- ●
41 CLIP; HOSE,P/S
ID=32 		1-09704-085-0 02 1 9510-0004 ● ●
41 CLIP; HOSE,P/S
ID=32 		1-09704-085-0 02 1 0005-0210 ● ●
41 CLIP; HOSE,P/S
ID=32 		1-09704-085-0 02 1 0005-0210 ●
41 CLIP; HOSE,P/S
ID=32 		1-09704-085-0 02 1 0211-0502 ●
41 CLIP; HOSE,P/S
ID=32 		1-09704-085-0 02 1 0211-0502 ●
41 CLIP; HOSE,P/S
ID=32 		1-09704-085-0 02 1 0503- ●
44 PIPE; OIL,P/S UNIT TO NIPPLE 1-21115-366-0 01 1 9510-0210 ● ●
44 PIPE; OIL,P/S UNIT TO NIPPLE 1-21115-366-0 01 1 0211- ●
46 PIPE; OIL,P/S UNIT TO OIL TANK 1-21115-367-0 01 1 9510-9712 ● ●
46 PIPE; OIL,P/S UNIT TO OIL TANK 1-21116-023-0 01 1 9801-9802 ● ●
46 PIPE; OIL,P/S UNIT TO OIL TANK 1-21116-027-1 01 1 9803-9809 ● ●
46 PIPE; OIL,P/S UNIT TO OIL TANK 1-21116-207-0 01 1 9810-0210 ● ●
46 PIPE; OIL,P/S UNIT TO OIL TANK 1-21116-207-0 01 1 0211- ●
58 BOLT; CLIP
(A) M8X20 FLANGE 		0-28080-820-0 01 1 9510-9606 ● ●
58 BOLT; CLIP
(A) M8X25 FLANGE 		0-28680-825-0 01 1 9607-9802 ● ●
58 BOLT; CLIP
(C) M8X25 FLANGE 		0-28680-825-0 03 1 9803-0210 ● ●
58 BOLT; CLIP
(C) M8X25 FLANGE 		0-28680-825-0 03 1 0211-0512 ●
58 BOLT; CLIP
(C) M8X25 FLANGE 		0-28650-825-0 03 1 0601- ●
58 BOLT; CLIP
(B) M8X25 FLANGE 		0-28080-825-0 02 1 9510-9606 ● ●
58 BOLT; CLIP
(B) M8X30 FLANGE 		0-28680-830-0 02 1 9607-9802 ● ●
59 BRACKET; CLIP,OIL PIPE
L=60 		1-47475-455-0 01 1 9510-0210 ● ●
59 BRACKET; CLIP,OIL PIPE
L=60 		1-47475-455-0 01 1 0211- ●
61 CLIP; OIL PIPE
(A) ID=15 H=24 L=20 		1-09700-606-0 02 1 9510-0210 ● ●
61 CLIP; OIL PIPE
(A) ID=15 H=24 L=20 		1-09700-606-0 02 1 0211- ●
61 CLIP; OIL PIPE
(B) ID=16 & 13 L=18 & 17 		1-09700-658-0 01 1 9510-0210 ● ●
61 CLIP; OIL PIPE
(B) ID=16 & 13 L=18 & 17 		1-09700-658-0 01 1 0211- ●
61 CLIP; OIL PIPE
(C) ID=12 & 15 		1-09709-281-1 01 1 9510-0210 ● ●
61 CLIP; OIL PIPE
(C) ID=12 & 15 		1-09709-281-1 01 1 0211- ●
65 NUT; BRKT
M8 		9-09110-408-0 03 1 9510-9606 ● ●
65 NUT; BRKT
M8 FLANGE 		0-91150-108-0 03 1 9607-0210 ● ●
65 NUT; BRKT
M8 FLANGE 		0-91150-108-0 03 1 0211-0602 ●
65 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0603- ●
67 NUT; BRKT
M8 		9-09110-408-0 01 1 9510-9606 ● ●
67 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 9607-0210 ● ●
67 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0211-0602 ●
67 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603- ●
79 BOLT; BRKT
(A) M8X12 FLANGE 		0-28080-812-0 02 1 9510-0210 ● ●
79 BOLT; BRKT
(A) M8X12 FLANGE 		0-28080-812-0 02 1 0211-0512 ●
79 BOLT; BRKT
(A) M8X12 FLANGE 		0-28050-812-0 02 1 0601- ●
79 BOLT; BRKT
(B) M8X20 FLANGE 		0-28080-820-0 01 1 9510-9606 ● ●
79 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 01 1 9607-9801 ● ●
79 BOLT; BRKT
(B) M8X20 FLANGE 		0-28680-820-0 01 1 9802-0210 ● ●
79 BOLT; BRKT
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0211-0512 ●
79 BOLT; BRKT
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
192 BRACKET; P/S OIL TANK 1-21119-129-0 01 1 9510-0210 ● ●
192 BRACKET; P/S OIL TANK 1-21119-129-0 01 1 0211- ●
195 BOLT; BRKT
M10X25 FLANGE 		0-28081-025-0 02 1 9510-9606 ● ●
195 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 02 1 9607-0210 ● ●
195 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 02 1 0211-0512 ●
195 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0601- ●
232 NUT; BRKT
M8 		9-09110-408-0 02 1 9510-9606 ● ●
232 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9607-0210 ● ●
232 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0211-0602 ●
232 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
275 SLEEVE; RUBBER
L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 9901-0210 ● ●
275 SLEEVE; RUBBER
L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 0211- ●
277 BOLT; HOSE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9510-0210 ● ●
277 BOLT; HOSE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0211-0512 ●
277 BOLT; HOSE CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
280 HOSE; P/S OIL PUMP,INL 1-21115-230-1 01 1 9510-0004 ● ●
280 HOSE; P/S OIL PUMP,INL 1-21116-695-0 01 1 0005-0210 ● ●
280 HOSE; P/S OIL PUMP,INL 1-21116-695-0 01 1 0211- ●

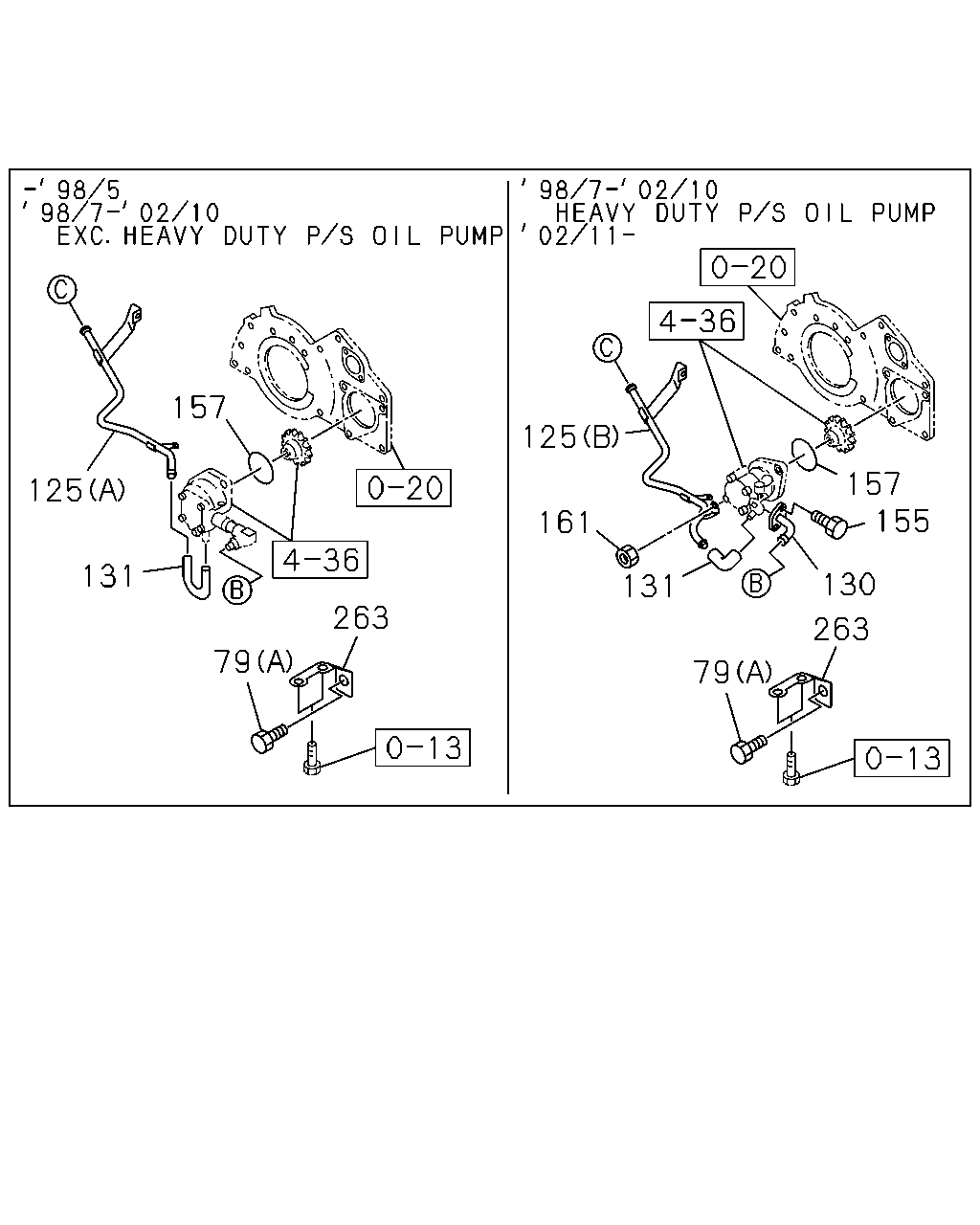

çizim 172717
157 125 157 155 125 161 131 131 130 263 263 79 79
BalonParca AdiParca NoAdetTipApplied Date A B
79 BOLT; BRKT
(A) M8X12 FLANGE 		0-28080-812-0 02 1 9510-0210 ● ●
79 BOLT; BRKT
(A) M8X12 FLANGE 		0-28080-812-0 02 1 0211-0512 ●
79 BOLT; BRKT
(A) M8X12 FLANGE 		0-28050-812-0 02 1 0601- ●
79 BOLT; BRKT
(B) M8X20 FLANGE 		0-28080-820-0 01 1 9510-9606 ● ●
79 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 01 1 9607-9801 ● ●
79 BOLT; BRKT
(B) M8X20 FLANGE 		0-28680-820-0 01 1 9802-0210 ● ●
79 BOLT; BRKT
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0211-0512 ●
79 BOLT; BRKT
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
125 CONNECTOR; P/S PUMP
HEAVY DUTY P/S OIL PUMP<E1N> (B) 		8-94390-584-1 01 1 9807-0210 ● ●
125 CONNECTOR; P/S PUMP
(B) 		8-94390-584-1 01 1 0211-0212 ●
125 CONNECTOR; P/S PUMP
(B) 		8-94391-745-0 01 1 0301- ●
125 CONNECTOR; P/S PUMP
(A) 		8-94394-319-0 01 1 9510-9605 ● ●
125 CONNECTOR; P/S PUMP
(A) 		8-94390-310-0 01 1 9606-9805 ● ●
125 CONNECTOR; P/S PUMP
EXC. HEAVY DUTY P/S OIL PUMP<E1N> (A) 		8-94390-310-0 01 1 9806-9901 ● ●
125 CONNECTOR; P/S PUMP
EXC. HEAVY DUTY P/S OIL PUMP<E1N> (A) 		8-97600-113-0 01 1 9902-0210 ● ●
130 ADAPTER; P/S PUMP
HEAVY DUTY P/S OIL PUMP<E1N> 		8-94390-583-0 01 1 9807-0210 ● ●
130 ADAPTER; P/S PUMP 8-94390-583-0 01 1 0211- ●
131 HOSE; RUBBER,P/S 8-94396-331-1 01 1 9510-0210 ● ●
131 HOSE; RUBBER,P/S 8-94396-331-1 01 1 0211- ●
155 BOLT; CONNECTOR
HEAVY DUTY P/S OIL PUMP<E1N> M8X16 FLANGE 		0-28080-816-0 02 1 9807-0210 ● ●
155 BOLT; CONNECTOR
M8X16 FLANGE 		0-28080-816-0 02 1 0211-0512 ●
155 BOLT; CONNECTOR
M8X16 FLANGE 		0-28050-816-0 02 1 0601- ●
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4 		1-09623-178-0 01 1 9510-0210 ● ●
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4 		1-09623-178-0 01 1 0211- ●
161 NUT; P/S PIPE
HEAVY DUTY P/S OIL PUMP<E1N> M10 FLANGE 		0-91150-110-0 01 1 9807-0210 ● ●
161 NUT; P/S PIPE
M10 FLANGE 		0-91150-110-0 01 1 0211-0602 ●
161 NUT; P/S PIPE
M10 FLANGE 		0-91180-110-0 01 1 0603- ●
263 BRACKET; P/S PIPE 8-94393-981-0 01 1 9510-9901 ● ●
263 BRACKET; P/S PIPE 8-97600-117-0 01 1 9902-0210 ● ●
263 BRACKET; P/S PIPE 8-97600-117-0 01 1 0211- ●
