◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11340 - FTR(MIDDLE EAST) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-31 - STEERING COLUMN AND SHAFT ▶
4-31 — STEERING COLUMN AND SHAFT (#60050) — 161 parça

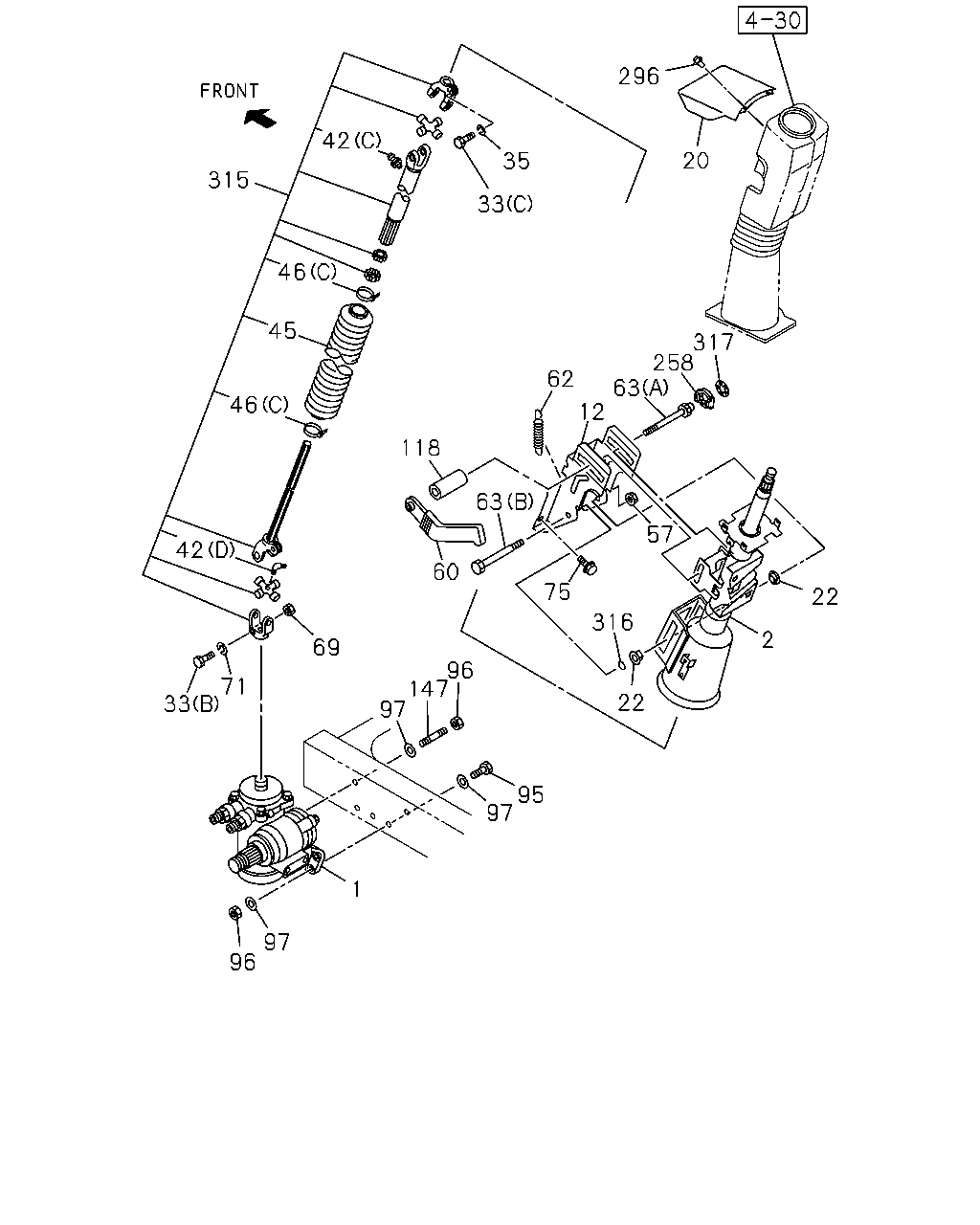

çizim 172698
296 42 35 20 315 33 46 45 317 258 63 12 62 46 118 63 57 42 60 75 22 316 2 69 96 147 97 71 33 22 95 97 1 97 96
BalonParca AdiParca NoAdetTipApplied Date A B
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-843-5 01 1 9510-0210 ● ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-843-5 01 1 0211- ●
2 SHAFT ASM; STRG 1-44130-556-1 01 1 9510-9804 ● ●
2 SHAFT ASM; STRG 1-44130-689-0 01 1 9805-0210 ● ●
2 SHAFT ASM; STRG 1-44130-689-1 01 1 0211- ●
12 BRACKET; LWR,STRG COLUMN 1-44227-143-0 01 1 9805-0210 ● ●
12 BRACKET; LWR,STRG COLUMN 1-44227-143-0 01 1 0211-0811 ●
12 BRACKET; LWR,STRG COLUMN 1-44227-167-0 01 1 0812- ●
20 COVER; STRG SHAFT 1-72438-121-3 01 1 9510-0210 ● ●
20 COVER; STRG SHAFT 1-72438-121-3 01 1 0211- ●
22 BUSHING; STRG COLUMN 1-44227-150-0 02 1 9805-0210 ● ●
22 BUSHING; STRG COLUMN 1-44227-150-0 02 1 0211- ●
33 BOLT; STRG SHAFT TO UNIT
(A) 		1-44139-141-0 01 1 9510-9804 ● ●
33 BOLT; STRG SHAFT TO UNIT
(C) 		1-44139-153-0 01 1 9805-0210 ● ●
33 BOLT; STRG SHAFT TO UNIT
(C) 		1-44139-153-0 01 1 0211- ●
33 BOLT; STRG SHAFT TO UNIT
(B) M10X50 		1-09000-489-0 01 1 9510-0210 ● ●
33 BOLT; STRG SHAFT TO UNIT
(B) M10X50 		1-09000-489-0 01 1 0211-0707 ●
33 BOLT; STRG SHAFT TO UNIT
(B) M10X50 		1-09000-786-0 01 1 0708- ●
35 WASHER; LK,STRG SHAFT 1-44139-142-0 01 1 9510-9804 ● ●
35 WASHER; LK,STRG SHAFT 1-44139-154-0 01 1 9805-0210 ● ●
35 WASHER; LK,STRG SHAFT 1-44139-154-0 01 1 0211- ●
42 NIPPLE; GREASE,SLEEVE YOKE
(C) 		1-44135-375-0 01 1 9805- ●
42 NIPPLE; GREASE,SLEEVE YOKE
(D) 		1-44135-376-0 01 1 9805- ●
42 NIPPLE; GREASE,SLEEVE YOKE
(A) M6 STRAIGHT 		9-09031-006-0 01 1 9510-9804 ● ●
42 NIPPLE; GREASE,SLEEVE YOKE
(B) PT1/8 ELBOW 		9-09031-210-0 01 1 9510-9804 ● ●
45 BOOT; STRG SHAFT 1-44139-138-0 01 1 9510-9804 ● ●
45 BOOT; STRG SHAFT 1-44139-155-0 01 1 9805-0210 ● ●
45 BOOT; STRG SHAFT 1-44139-155-0 01 1 0211- ●
46 CLIP; BOOT
(B) 		1-44139-140-0 01 1 9510-9804 ● ●
46 CLIP; BOOT
(A) 		1-44139-139-0 01 1 9510-9804 ● ●
46 CLIP; BOOT
(C) 		1-44139-156-0 02 1 9805-0210 ● ●
46 CLIP; BOOT
(C) 		1-44139-156-0 02 1 0211- ●
57 NUT; ADJ BOLT 1-44227-129-1 01 1 9510-9804 ● ●
57 NUT; ADJ BOLT 1-44227-151-0 01 1 9805-0210 ● ●
57 NUT; ADJ BOLT 1-44227-151-0 01 1 0211- ●
60 LEVER; ADJ,STRG COLUMN 1-44227-125-1 01 1 9510-9804 ● ●
60 LEVER; ADJ,STRG COLUMN 1-44227-144-0 01 1 9805-0210 ● ●
60 LEVER; ADJ,STRG COLUMN 1-44227-144-0 01 1 0211- ●
62 SPRING; LK,LEVER 1-44227-130-0 01 1 9510-9804 ● ●
62 SPRING; LK,LEVER 1-44227-153-0 02 1 9805-0111 ● ●
62 SPRING; LK,LEVER 1-44227-153-0 01 1 0112-0210 ● ●
62 SPRING; LK,LEVER 1-44227-153-0 01 1 0211- ●
63 BOLT; ADJ LEVER,TILT STRG
(B) 		1-44227-149-0 01 1 9805-0210 ● ●
63 BOLT; ADJ LEVER,TILT STRG
(B) 		1-44227-149-0 01 1 0211- ●
63 BOLT; ADJ LEVER,TILT STRG
(C) 		1-44227-126-0 01 1 9510-9804 ● ●
63 BOLT; ADJ LEVER,TILT STRG
(A) 		1-44227-145-0 01 1 9805-0210 ● ●
63 BOLT; ADJ LEVER,TILT STRG
(A) 		1-44227-145-0 01 1 0211- ●
69 NUT; TILT CENTER
M10 		9-09110-510-0 01 1 9510-0210 ● ●
69 NUT; TILT CENTER
M10 		9-09110-510-0 01 1 0211-0512 ●
69 NUT; TILT CENTER
M10 		0-91110-510-0 01 1 0601- ●
71 WASHER; LK,SHAFT TO UNIT
ID=10.2 		9-09150-810-0 01 1 9510-0210 ● ●
71 WASHER; LK,SHAFT TO UNIT
ID=10.2 		9-09150-810-0 01 1 0211-0603 ●
71 WASHER; LK,SHAFT TO UNIT
ID=10.2 		0-91510-810-0 01 1 0604- ●
75 BOLT; STRG COLUMN
M8X20 W/LK&PL WASHER 		0-50140-820-0 04 1 9510-9610 ● ●
75 BOLT; STRG COLUMN
M8X20 FLANGE 		0-28680-820-0 04 1 9611-0210 ● ●
75 BOLT; STRG COLUMN
M8X20 FLANGE 		0-28680-820-0 04 1 0211-0512 ●
75 BOLT; STRG COLUMN
M8X20 FLANGE 		0-28650-820-0 04 1 0601- ●
95 BOLT; STRG UNIT
M14X55 		9-92061-455-0 05 1 9510-0009 ● ●
95 BOLT; STRG UNIT
M14X55 		8-97301-262-0 05 1 0010-0210 ● ●
95 BOLT; STRG UNIT
M14X55 		8-97301-262-0 05 1 0211- ●
96 NUT; STRG UNIT
M14 		9-99110-514-0 06 1 9510-0009 ● ●
96 NUT; STRG UNIT
M14 		1-09440-080-0 06 1 0010-0210 ● ●
96 NUT; STRG UNIT
M14 		1-09440-080-0 06 1 0211-0805 ●
96 NUT; STRG UNIT
M14 		1-09440-097-0 06 1 0806- ●
97 WASHER; PL,STRG UNIT
ID=15 		9-09651-069-0 11 1 9510-0210 ● ●
97 WASHER; PL,STRG UNIT
ID=15 		9-09651-069-0 11 1 0211-1201 ●
97 WASHER; PL,STRG UNIT
ID=15 		8-98010-627-1 11 1 1202- ●
118 NUT; LEVER,TILT BOLT 1-44227-146-0 01 1 9805-0210 ● ●
118 NUT; LEVER,TILT BOLT 1-44227-146-0 01 1 0211-0506 ●
118 NUT; LEVER,TILT BOLT 1-44227-163-0 01 1 0507- ●
147 STUD; STRG UNIT
M14X37 L=66 		1-09300-095-1 01 1 9510-0210 ● ●
147 STUD; STRG UNIT
M14X37 L=66 		1-09300-095-1 01 1 0211- ●
258 STOPPER; STRG COLUMN,TILT & TELESCOPIC 1-44227-147-0 01 1 9805-0210 ● ●
258 STOPPER; STRG COLUMN,TILT & TELESCOPIC 1-44227-147-0 01 1 0211- ●
296 CLIP; COVER
D6X12.5 		8-94146-425-0 02 1 9510-0210 ● ●
296 CLIP; COVER
D6X12.5 		8-94146-425-0 02 1 0211- ●
315 JOINT; SPLINE 1-44135-341-1 01 1 9805-0210 ● ●
315 JOINT; SPLINE 1-44135-341-1 01 1 0211- ●
316 RING 1-44227-152-0 01 1 9805-0210 ● ●
316 RING 1-44227-152-0 01 1 0211- ●
317 NUT; PUSH 1-44227-148-0 01 1 9805-0210 ● ●
317 NUT; PUSH 1-44227-148-0 01 1 0211- ●

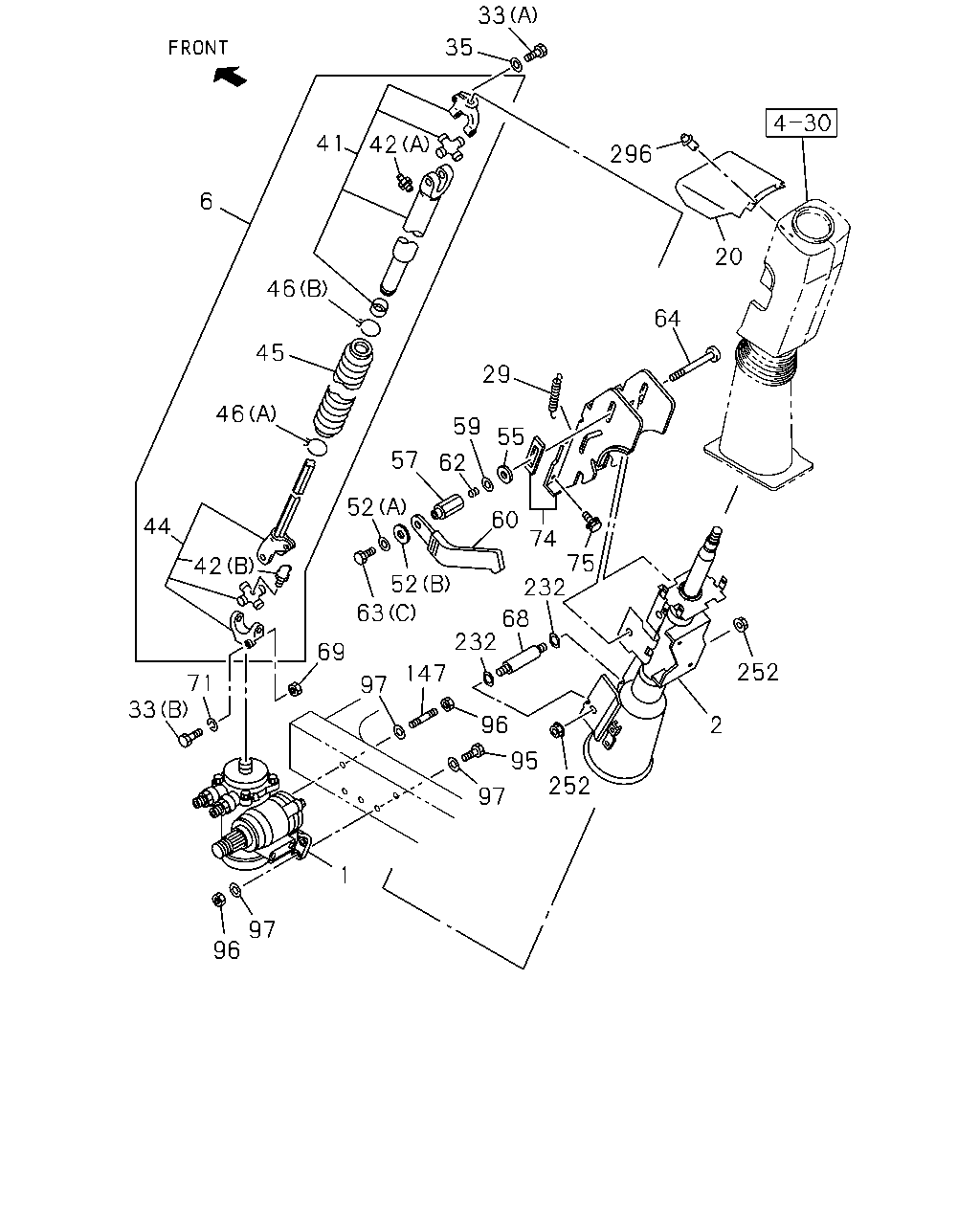

çizim 172703
29 59 57 52 52 63 69 97 232 147 68 60 62 55 74 75 232 252 95 96 97 1 97 96 33 71 44 46 45 46 41 42 35 33 296 20 64 252 2 42 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-843-5 01 1 9510-0210 ● ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-843-5 01 1 0211- ●
2 SHAFT ASM; STRG 1-44130-556-1 01 1 9510-9804 ● ●
2 SHAFT ASM; STRG 1-44130-689-0 01 1 9805-0210 ● ●
2 SHAFT ASM; STRG 1-44130-689-1 01 1 0211- ●
6 SHAFT; STRG LWR 1-44135-298-0 01 1 9510-9804 ● ●
20 COVER; STRG SHAFT 1-72438-121-3 01 1 9510-0210 ● ●
20 COVER; STRG SHAFT 1-72438-121-3 01 1 0211- ●
29 SPRING; COLUMN 1-44227-136-0 02 1 9510-9804 ● ●
33 BOLT; STRG SHAFT TO UNIT
(A) 		1-44139-141-0 01 1 9510-9804 ● ●
33 BOLT; STRG SHAFT TO UNIT
(C) 		1-44139-153-0 01 1 9805-0210 ● ●
33 BOLT; STRG SHAFT TO UNIT
(C) 		1-44139-153-0 01 1 0211- ●
33 BOLT; STRG SHAFT TO UNIT
(B) M10X50 		1-09000-489-0 01 1 9510-0210 ● ●
33 BOLT; STRG SHAFT TO UNIT
(B) M10X50 		1-09000-489-0 01 1 0211-0707 ●
33 BOLT; STRG SHAFT TO UNIT
(B) M10X50 		1-09000-786-0 01 1 0708- ●
35 WASHER; LK,STRG SHAFT 1-44139-142-0 01 1 9510-9804 ● ●
35 WASHER; LK,STRG SHAFT 1-44139-154-0 01 1 9805-0210 ● ●
35 WASHER; LK,STRG SHAFT 1-44139-154-0 01 1 0211- ●
41 YOKE; SLEEVE,STRG 1-44135-299-0 01 1 9510-9804 ● ●
42 NIPPLE; GREASE,SLEEVE YOKE
(C) 		1-44135-375-0 01 1 9805- ●
42 NIPPLE; GREASE,SLEEVE YOKE
(D) 		1-44135-376-0 01 1 9805- ●
42 NIPPLE; GREASE,SLEEVE YOKE
(A) M6 STRAIGHT 		9-09031-006-0 01 1 9510-9804 ● ●
42 NIPPLE; GREASE,SLEEVE YOKE
(B) PT1/8 ELBOW 		9-09031-210-0 01 1 9510-9804 ● ●
44 SHAFT; SPLINE,STRG 1-44135-300-0 01 1 9510-9804 ● ●
45 BOOT; STRG SHAFT 1-44139-138-0 01 1 9510-9804 ● ●
45 BOOT; STRG SHAFT 1-44139-155-0 01 1 9805-0210 ● ●
45 BOOT; STRG SHAFT 1-44139-155-0 01 1 0211- ●
46 CLIP; BOOT
(B) 		1-44139-140-0 01 1 9510-9804 ● ●
46 CLIP; BOOT
(A) 		1-44139-139-0 01 1 9510-9804 ● ●
46 CLIP; BOOT
(C) 		1-44139-156-0 02 1 9805-0210 ● ●
46 CLIP; BOOT
(C) 		1-44139-156-0 02 1 0211- ●
52 WASHER; PL,ADJ LEVER
(A) 		1-44227-127-0 01 1 9510-9804 ● ●
52 WASHER; PL,ADJ LEVER
(B) 		1-44227-137-0 01 1 9510-9804 ● ●
55 PLATE; GUIDE 1-44227-132-0 01 1 9510-9804 ● ●
57 NUT; ADJ BOLT 1-44227-129-1 01 1 9510-9804 ● ●
57 NUT; ADJ BOLT 1-44227-151-0 01 1 9805-0210 ● ●
57 NUT; ADJ BOLT 1-44227-151-0 01 1 0211- ●
59 COLLAR; DIST,ADJ BOLT 1-44227-131-0 01 1 9510-9804 ● ●
60 LEVER; ADJ,STRG COLUMN 1-44227-125-1 01 1 9510-9804 ● ●
60 LEVER; ADJ,STRG COLUMN 1-44227-144-0 01 1 9805-0210 ● ●
60 LEVER; ADJ,STRG COLUMN 1-44227-144-0 01 1 0211- ●
62 SPRING; LK,LEVER 1-44227-130-0 01 1 9510-9804 ● ●
62 SPRING; LK,LEVER 1-44227-153-0 02 1 9805-0111 ● ●
62 SPRING; LK,LEVER 1-44227-153-0 01 1 0112-0210 ● ●
62 SPRING; LK,LEVER 1-44227-153-0 01 1 0211- ●
63 BOLT; ADJ LEVER,TILT STRG
(B) 		1-44227-149-0 01 1 9805-0210 ● ●
63 BOLT; ADJ LEVER,TILT STRG
(B) 		1-44227-149-0 01 1 0211- ●
63 BOLT; ADJ LEVER,TILT STRG
(C) 		1-44227-126-0 01 1 9510-9804 ● ●
63 BOLT; ADJ LEVER,TILT STRG
(A) 		1-44227-145-0 01 1 9805-0210 ● ●
63 BOLT; ADJ LEVER,TILT STRG
(A) 		1-44227-145-0 01 1 0211- ●
64 BOLT; ADJ,PROTECTOR 1-44227-128-0 01 1 9510-9804 ● ●
68 PIN; TILT CENTER 1-44227-133-1 01 1 9510-9804 ● ●
69 NUT; TILT CENTER
M10 		9-09110-510-0 01 1 9510-0210 ● ●
69 NUT; TILT CENTER
M10 		9-09110-510-0 01 1 0211-0512 ●
69 NUT; TILT CENTER
M10 		0-91110-510-0 01 1 0601- ●
71 WASHER; LK,SHAFT TO UNIT
ID=10.2 		9-09150-810-0 01 1 9510-0210 ● ●
71 WASHER; LK,SHAFT TO UNIT
ID=10.2 		9-09150-810-0 01 1 0211-0603 ●
71 WASHER; LK,SHAFT TO UNIT
ID=10.2 		0-91510-810-0 01 1 0604- ●
74 BRACKET; SUPPORT,STRG 1-44221-075-1 01 1 9510-9804 ● ●
75 BOLT; STRG COLUMN
M8X20 W/LK&PL WASHER 		0-50140-820-0 04 1 9510-9610 ● ●
75 BOLT; STRG COLUMN
M8X20 FLANGE 		0-28680-820-0 04 1 9611-0210 ● ●
75 BOLT; STRG COLUMN
M8X20 FLANGE 		0-28680-820-0 04 1 0211-0512 ●
75 BOLT; STRG COLUMN
M8X20 FLANGE 		0-28650-820-0 04 1 0601- ●
95 BOLT; STRG UNIT
M14X55 		9-92061-455-0 05 1 9510-0009 ● ●
95 BOLT; STRG UNIT
M14X55 		8-97301-262-0 05 1 0010-0210 ● ●
95 BOLT; STRG UNIT
M14X55 		8-97301-262-0 05 1 0211- ●
96 NUT; STRG UNIT
M14 		9-99110-514-0 06 1 9510-0009 ● ●
96 NUT; STRG UNIT
M14 		1-09440-080-0 06 1 0010-0210 ● ●
96 NUT; STRG UNIT
M14 		1-09440-080-0 06 1 0211-0805 ●
96 NUT; STRG UNIT
M14 		1-09440-097-0 06 1 0806- ●
97 WASHER; PL,STRG UNIT
ID=15 		9-09651-069-0 11 1 9510-0210 ● ●
97 WASHER; PL,STRG UNIT
ID=15 		9-09651-069-0 11 1 0211-1201 ●
97 WASHER; PL,STRG UNIT
ID=15 		8-98010-627-1 11 1 1202- ●
147 STUD; STRG UNIT
M14X37 L=66 		1-09300-095-1 01 1 9510-0210 ● ●
147 STUD; STRG UNIT
M14X37 L=66 		1-09300-095-1 01 1 0211- ●
232 SPACER; STRG SHAFT 1-44227-134-0 02 1 9510-9804 ● ●
252 NUT; TILT CENTER BOLT 1-44227-135-0 02 1 9510-9804 ● ●
296 CLIP; COVER
D6X12.5 		8-94146-425-0 02 1 9510-0210 ● ●
296 CLIP; COVER
D6X12.5 		8-94146-425-0 02 1 0211- ●
