Sayfa 4-25A - Isuzu EPC

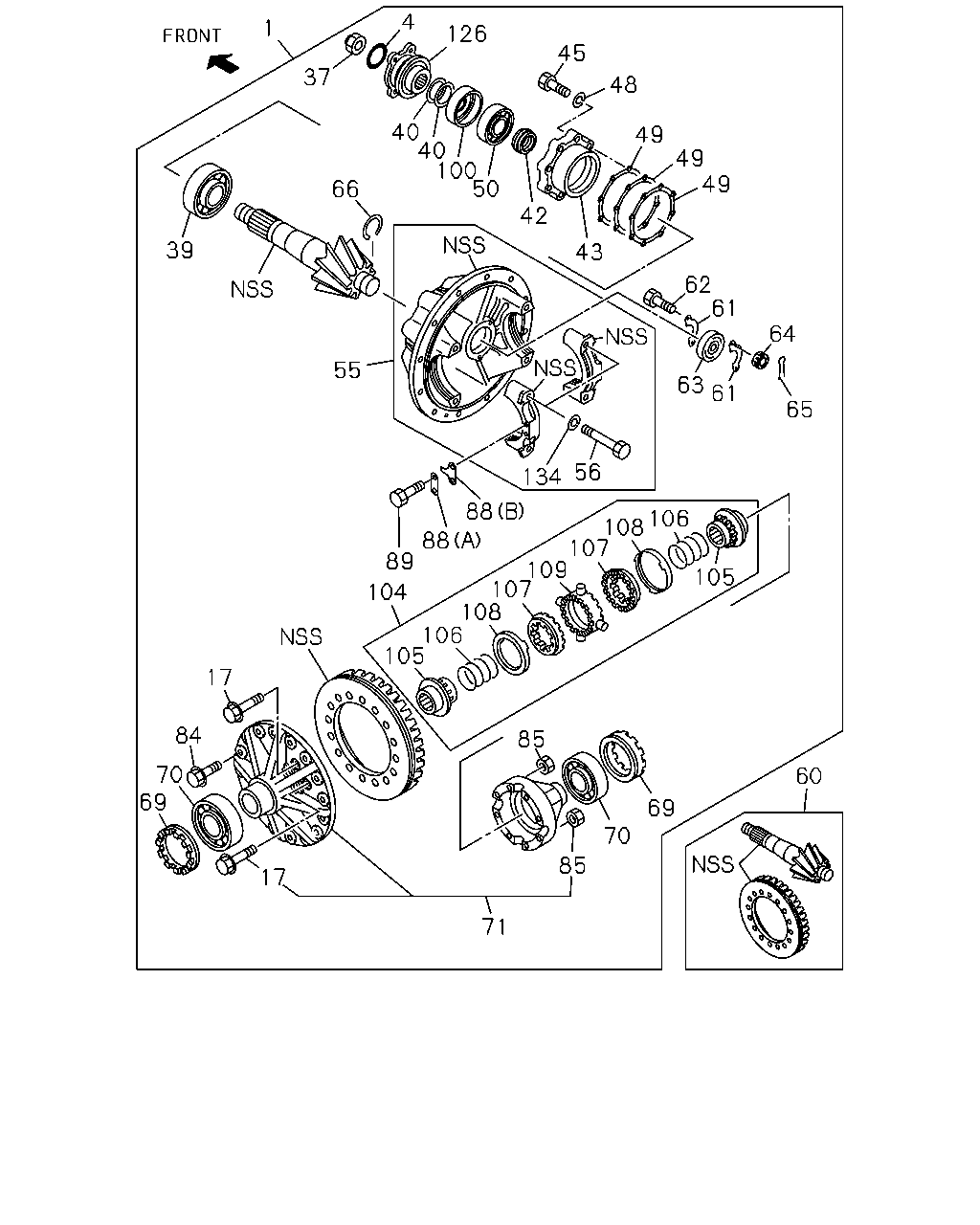

4-25A — REAR FINAL DRIVE (#60047) — 409 parça

4 1 126 45 37 48 40 40 100 50 49 49 49 66 42 39 43 62 61 64 55 63 61 65 56 134 88 106 108 107 109 107 108 106 105 88 89 105 104 17 84 85 70 69 60 69 70 85 17 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 41/6	1-41001-341-0	01	1	9803-	●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 41/6	1-41001-312-0	01	1	9803-	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 39/6	1-41001-340-0	01	1	9803-		●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 39/6	1-41001-311-0	01	1	9803-		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 39/7	1-41001-338-0	01	1	9510-			●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 39/7	1-41001-276-0	01	1	9510-			●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 41/7	1-41001-591-0	01	1	9510-				●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 41/7	1-41001-310-0	01	1	9510-				●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 41/8	1-41001-337-0	01	1	9510-					●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 41/8	1-41001-306-0	01	1	9510-					●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 43/9	1-41001-587-0	01	1	9510-						●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 43/9	1-41001-351-0	01	1	9510-						●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 43/7	1-41001-339-0	01	1	9510-							●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 43/7	1-41001-307-0	01	1	9510-							●
4	GASKET; FLANGE,FINAL PINION ID=42	1-09623-475-0	01	1	9510-9802			●	●	●	●	●
4	GASKET; FLANGE,FINAL PINION ID=42	1-09623-475-0	01	1	9803-9909	●	●	●	●	●	●	●
4	GASKET; FLANGE,FINAL PINION ID=42	1-09623-475-0	01	1	9910-0004	●	●	●	●	●	●	●
4	GASKET; FLANGE,FINAL PINION ID=42	1-09623-475-0	01	1	0005-0106	●	●	●	●	●	●	●
4	GASKET; FLANGE,FINAL PINION ID=42	1-09623-475-0	01	1	0107-0208	●	●	●	●	●	●	●
4	GASKET; FLANGE,FINAL PINION ID=42	9-09921-116-0	01	1	0209-	●	●	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	12	1	9510-9802			●	●	●	●	●
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	12	1	9803-	●	●	●	●	●	●	●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-067-0	01	1	9510-9802			●	●	●	●	●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-067-0	01	1	9803-	●	●	●	●	●	●	●
39	BEARING; FINAL PINION NTN	1-09812-007-0	01	1	9510-9612			●	●	●	●	●
39	BEARING; FINAL PINION JTEKT	1-09812-218-0	01	1	9701-9802			●	●	●	●	●
39	BEARING; FINAL PINION JTEKT	1-09812-218-0	01	1	9803-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.50	1-41229-256-0	AR	1	9510-9802			●	●	●	●	●
40	SHIM; FINAL PINION T=3.50	1-41229-256-0	AR	1	9803-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.51	1-41229-257-0	AR	1	9510-9802			●	●	●	●	●
40	SHIM; FINAL PINION T=3.51	1-41229-257-0	AR	1	9803-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.52	1-41229-258-0	AR	1	9510-9802			●	●	●	●	●
40	SHIM; FINAL PINION T=3.52	1-41229-258-0	AR	1	9803-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.53	1-41229-259-0	AR	1	9510-9802			●	●	●	●	●
40	SHIM; FINAL PINION T=3.53	1-41229-259-0	AR	1	9803-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.54	1-41229-260-0	AR	1	9510-9802			●	●	●	●	●
40	SHIM; FINAL PINION T=3.54	1-41229-260-0	AR	1	9803-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.55	1-41229-261-0	AR	1	9510-9802			●	●	●	●	●
40	SHIM; FINAL PINION T=3.55	1-41229-261-0	AR	1	9803-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.56	1-41229-262-0	AR	1	9510-9802			●	●	●	●	●
40	SHIM; FINAL PINION T=3.56	1-41229-262-0	AR	1	9803-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.57	1-41229-263-0	AR	1	9510-9802			●	●	●	●	●
40	SHIM; FINAL PINION T=3.57	1-41229-263-0	AR	1	9803-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.58	1-41229-264-0	AR	1	9510-9802			●	●	●	●	●
40	SHIM; FINAL PINION T=3.58	1-41229-264-0	AR	1	9803-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.59	1-41229-265-0	AR	1	9510-9802			●	●	●	●	●
40	SHIM; FINAL PINION T=3.59	1-41229-265-0	AR	1	9803-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.60	1-41229-266-0	AR	1	9510-9802			●	●	●	●	●
40	SHIM; FINAL PINION T=3.60	1-41229-266-0	AR	1	9803-	●	●	●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.40	1-41229-267-0	AR	1	9510-9802			●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.40	1-41229-267-0	AR	1	9803-	●	●	●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.60	1-41229-268-0	AR	1	9510-9802			●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.60	1-41229-268-0	AR	1	9803-	●	●	●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.80	1-41229-269-0	AR	1	9510-9802			●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.80	1-41229-269-0	AR	1	9803-	●	●	●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.00	1-41229-270-0	AR	1	9510-9802			●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.00	1-41229-270-0	AR	1	9803-	●	●	●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.20	1-41229-271-0	AR	1	9510-9802			●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.20	1-41229-271-0	AR	1	9803-	●	●	●	●	●	●	●
43	CAGE; FINAL PINION	1-41151-028-1	01	1	9510-9802			●	●	●	●	●
43	CAGE; FINAL PINION	1-41151-028-1	01	1	9803-	●	●	●	●	●	●	●
45	BOLT; FINAL PINION CAGE M14X50	0-16806-450-0	08	1	9510-9802			●	●	●	●	●
45	BOLT; FINAL PINION CAGE M14X50	0-16806-450-0	08	1	9803-9909	●	●	●	●	●	●	●
45	BOLT; FINAL PINION CAGE M14X50	0-16806-450-0	08	1	9910-0004	●	●	●	●	●	●	●
45	BOLT; FINAL PINION CAGE M14X50	0-16806-450-0	08	1	0005-0106	●	●	●	●	●	●	●
45	BOLT; FINAL PINION CAGE M14X50	0-16806-450-0	08	1	0107-	●	●	●	●	●	●	●
48	WASHER; LK,FINAL PINION ID=14.2	9-09150-514-0	08	1	9510-9802			●	●	●	●	●
48	WASHER; LK,FINAL PINION ID=14.2	9-09150-514-0	08	1	9803-9909	●	●	●	●	●	●	●
48	WASHER; LK,FINAL PINION ID=14.2	9-09150-514-0	08	1	9910-0004	●	●	●	●	●	●	●
48	WASHER; LK,FINAL PINION ID=14.2	9-09150-514-0	08	1	0005-0106	●	●	●	●	●	●	●
48	WASHER; LK,FINAL PINION ID=14.2	9-09150-514-0	08	1	0107-0603	●	●	●	●	●	●	●
48	WASHER; LK,FINAL PINION ID=14.2	0-91510-514-0	08	1	0604-	●	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-063-0	AR	1	9510-9802			●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-063-0	AR	1	9803-	●	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-064-0	AR	1	9510-9802			●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-064-0	AR	1	9803-	●	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=1.00	9-41154-013-0	AR	1	9510-9802			●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=1.00	9-41154-013-0	AR	1	9803-	●	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.50	9-41154-014-0	AR	1	9510-9802			●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.50	9-41154-014-0	AR	1	9803-	●	●	●	●	●	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	0612-	●	●	●	●	●	●	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	9510-9802			●	●	●	●	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	9803-	●	●	●	●	●	●	●
55	CARRIER; DIFF	1-41110-052-0	01	1	9510-9802			●	●	●	●	●
55	CARRIER; DIFF	1-41110-052-0	01	1	9803-	●	●	●	●	●	●	●
56	BOLT; BRG CAP M18X107	1-09050-002-1	04	1	9510-9802			●	●	●	●	●
56	BOLT; BRG CAP M18X107	1-09050-002-1	04	1	9803-	●	●	●	●	●	●	●
60	GEAR SET; FINAL DRIVE,RR 41/6	1-41210-275-3	01	1	9803-	●
60	GEAR SET; FINAL DRIVE,RR 39/6	1-41210-276-3	01	1	9803-		●
60	GEAR SET; FINAL DRIVE,RR 39/7	1-41210-280-3	01	1	9510-			●
60	GEAR SET; FINAL DRIVE,RR 41/7	1-41210-278-3	01	1	9510-				●
60	GEAR SET; FINAL DRIVE,RR 41/8	1-41210-279-3	01	1	9510-					●
60	GEAR SET; FINAL DRIVE,RR 43/9	1-41210-342-3	01	1	9510-						●
60	GEAR SET; FINAL DRIVE,RR 43/7	1-41210-277-3	01	1	9510-							●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	9510-9802			●	●	●	●	●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	9803-	●	●	●	●	●	●	●
62	BOLT; RET M8X36 W/PIN HOLE	1-09042-035-0	02	1	9510-9802			●	●	●	●	●
62	BOLT; RET M8X36 W/PIN HOLE	1-09042-035-0	02	1	9803-	●	●	●	●	●	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-007-0	01	1	9510-9510			●	●	●	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-229-2	01	1	9510-9802			●	●	●	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-229-2	01	1	9803-9909	●	●	●	●	●	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-229-2	01	1	9910-0004	●	●	●	●	●	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-229-2	01	1	0005-0106	●	●	●	●	●	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-229-2	01	1	0107-	●	●	●	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-015-0	01	1	9510-9510			●	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	9510-9802			●	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	9803-9909	●	●	●	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	9910-0004	●	●	●	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	0005-0106	●	●	●	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	0107-	●	●	●	●	●	●	●
64	NUT; RET M8	9-09117-408-0	02	1	9510-9707			●	●	●	●	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	9708-9802			●	●	●	●	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	9803-9909	●	●	●	●	●	●	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	9910-0004	●	●	●	●	●	●	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	0005-0106	●	●	●	●	●	●	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	0107-0512	●	●	●	●	●	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	0601-	●	●	●	●	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	9510-9802			●	●	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	9803-9909	●	●	●	●	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	9910-0004	●	●	●	●	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	0005-0106	●	●	●	●	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	0107-0805	●	●	●	●	●	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	0806-	●	●	●	●	●	●	●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	9510-9802			●	●	●	●	●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	9803-9909	●	●	●	●	●	●	●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	9910-0004	●	●	●	●	●	●	●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	0005-0106	●	●	●	●	●	●	●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	0107-	●	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE M143 H=24	1-41121-005-0	01	1	9510-9802			●	●	●	●	●
69	NUT; ADJ,DIFF CAGE M143 H=24	1-41121-005-0	01	1	9803-	●	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE M143 H=29	1-41121-006-0	01	1	9510-9802			●	●	●	●	●
69	NUT; ADJ,DIFF CAGE M143 H=29	1-41121-006-0	01	1	9803-	●	●	●	●	●	●	●
70	BEARING; DIFF CAGE NACHI ID=80 OD=140 T=35.3	1-09812-144-0	02	1	9510-9802			●	●	●	●	●
70	BEARING; DIFF CAGE NACHI ID=80 OD=140 T=35.3	1-09812-144-0	02	1	9803-0911	●	●	●	●	●	●	●
70	BEARING; DIFF CAGE JTEKT ID=80 OD=140 T=35.3	1-09812-145-0	02	1	9510-9802			●	●	●	●	●
70	BEARING; DIFF CAGE JTEKT ID=80 OD=140 T=35.3	1-09812-145-0	02	1	9803-0911	●	●	●	●	●	●	●
70	BEARING; DIFF CAGE NACHI	1-09812-151-0	02	1	0912-	●	●	●	●	●	●	●
70	BEARING; DIFF CAGE NSK ID=80 OD=140 T=35.3	1-09812-146-0	02	1	9510-9802			●	●	●	●	●
70	BEARING; DIFF CAGE NSK ID=80 OD=140 T=35.3	1-09812-146-0	02	1	9803-1002	●	●	●	●	●	●	●
70	BEARING; DIFF CAGE NSK	1-09812-150-0	02	1	1003-	●	●	●	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-127-0	01	1	9510-9802			●	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-127-0	01	1	9803-	●	●	●	●	●	●	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	9-09802-561-0	16	1	9510-9802			●	●	●	●	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	9-09802-561-0	16	1	9803-9804	●	●	●	●	●	●	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	9805-9909	●	●	●	●	●	●	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	9910-0004	●	●	●	●	●	●	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	0005-0106	●	●	●	●	●	●	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	0107-	●	●	●	●	●	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	9510-9802			●	●	●	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	9803-9909	●	●	●	●	●	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	9910-0004	●	●	●	●	●	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	0005-0106	●	●	●	●	●	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	0107-	●	●	●	●	●	●	●
88	PLATE; LK,ADJ NUT (A) T=2.3	1-41124-002-0	02	1	9510-9802			●	●	●	●	●
88	PLATE; LK,ADJ NUT (A) T=2.3	1-41124-002-0	02	1	9803-	●	●	●	●	●	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	02	1	9510-9802			●	●	●	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	02	1	9803-9909	●	●	●	●	●	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	02	1	9910-0004	●	●	●	●	●	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	02	1	0005-0106	●	●	●	●	●	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	02	1	0107-	●	●	●	●	●	●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	9510-9802			●	●	●	●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	9803-9909	●	●	●	●	●	●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	9910-0004	●	●	●	●	●	●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	0005-0106	●	●	●	●	●	●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	0107-0512	●	●	●	●	●	●	●
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	0601-	●	●	●	●	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-017-0	01	1	9510-9802			●	●	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-017-0	01	1	9803-9909	●	●	●	●	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-017-0	01	1	9910-0004	●	●	●	●	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-017-0	01	1	0005-0106	●	●	●	●	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-017-0	01	1	0107-	●	●	●	●	●	●	●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF(G86)	1-41530-032-0	01	1	9510-9802			●	●	●	●	●
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF(G86)	1-41530-032-0	01	1	9803-	●	●	●	●	●	●	●
105	GEAR; SIDE LIMITED SLIP DIFF(G86)	1-41561-083-0	02	1	9510-9802			●	●	●	●	●
105	GEAR; SIDE LIMITED SLIP DIFF(G86)	1-41561-083-0	02	1	9803-	●	●	●	●	●	●	●
106	SPRING; NO SPIN DIFF LIMITED SLIP DIFF(G86)	1-09580-314-0	02	1	9510-9802			●	●	●	●	●
106	SPRING; NO SPIN DIFF LIMITED SLIP DIFF(G86)	1-09580-314-0	02	1	9803-	●	●	●	●	●	●	●
107	CLUTCH; DRIVEN LIMITED SLIP DIFF(G86)	1-41532-003-0	02	1	9510-9802			●	●	●	●	●
107	CLUTCH; DRIVEN LIMITED SLIP DIFF(G86)	1-41532-003-0	02	1	9803-	●	●	●	●	●	●	●
108	RING; HOLD OUT LIMITED SLIP DIFF(G86)	1-41539-032-0	02	1	9510-9802			●	●	●	●	●
108	RING; HOLD OUT LIMITED SLIP DIFF(G86)	1-41539-032-0	02	1	9803-	●	●	●	●	●	●	●
109	SPIDER; DIFF LIMITED SLIP DIFF(G86)	1-41521-034-0	01	1	9510-9802			●	●	●	●	●
109	SPIDER; DIFF LIMITED SLIP DIFF(G86)	1-41521-034-0	01	1	9803-	●	●	●	●	●	●	●
126	COUPLING; DRIVING PINION	1-37245-215-2	01	1	9510-9802			●	●	●	●	●
126	COUPLING; DRIVING PINION	1-37245-215-3	01	1	9803-0208	●	●	●	●	●	●	●
126	COUPLING; DRIVING PINION	1-37245-388-0	01	1	0209-	●	●	●	●	●	●	●
134	WASHER; LK,BRG CAP ID=18.2	9-09150-518-0	04	1	9510-9802			●	●	●	●	●
134	WASHER; LK,BRG CAP ID=18.2	9-09150-518-0	04	1	9803-0603	●	●	●	●	●	●	●
134	WASHER; LK,BRG CAP ID=18.2	0-91510-518-0	04	1	0604-	●	●	●	●	●	●	●

1 4 126 45 37 48 40 40 100 50 42 49 49 49 66 39 43 62 61 64 55 63 61 56 65 134 69 70 85 88 20 25 88 89 25 24 24 21 20 21 24 85 17 25 22 24 70 25 60 69 71 84 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 41/6	1-41001-341-0	01	1	9803-	●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 41/6	1-41001-312-0	01	1	9803-	●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 39/6	1-41001-340-0	01	1	9803-		●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 39/6	1-41001-311-0	01	1	9803-		●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 39/7	1-41001-338-0	01	1	9510-			●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 39/7	1-41001-276-0	01	1	9510-			●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 41/7	1-41001-591-0	01	1	9510-				●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 41/7	1-41001-310-0	01	1	9510-				●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 41/8	1-41001-337-0	01	1	9510-					●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 41/8	1-41001-306-0	01	1	9510-					●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 43/9	1-41001-587-0	01	1	9510-						●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 43/9	1-41001-351-0	01	1	9510-						●
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 43/7	1-41001-339-0	01	1	9510-							●
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 43/7	1-41001-307-0	01	1	9510-							●
4	GASKET; FLANGE,FINAL PINION ID=42	1-09623-475-0	01	1	9510-9802			●	●	●	●	●
4	GASKET; FLANGE,FINAL PINION ID=42	1-09623-475-0	01	1	9803-9909	●	●	●	●	●	●	●
4	GASKET; FLANGE,FINAL PINION ID=42	1-09623-475-0	01	1	9910-0004	●	●	●	●	●	●	●
4	GASKET; FLANGE,FINAL PINION ID=42	1-09623-475-0	01	1	0005-0106	●	●	●	●	●	●	●
4	GASKET; FLANGE,FINAL PINION ID=42	1-09623-475-0	01	1	0107-0208	●	●	●	●	●	●	●
4	GASKET; FLANGE,FINAL PINION ID=42	9-09921-116-0	01	1	0209-	●	●	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	12	1	9510-9802			●	●	●	●	●
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	12	1	9803-	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=2.75	1-41562-139-0	AR	1	9510-9802			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=2.75	1-41562-139-0	AR	1	9803-	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=2.80	1-41562-140-0	AR	1	9510-9802			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=2.80	1-41562-140-0	AR	1	9803-	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=2.85	1-41562-141-0	AR	1	9510-9802			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=2.85	1-41562-141-0	AR	1	9803-	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=2.90	1-41562-142-0	AR	1	9510-9802			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=2.90	1-41562-142-0	AR	1	9803-	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=2.95	1-41562-143-0	AR	1	9510-9802			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=2.95	1-41562-143-0	AR	1	9803-	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.00	1-41562-144-0	AR	1	9510-9802			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.00	1-41562-144-0	AR	1	9803-	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.05	1-41562-145-0	AR	1	9510-9802			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.05	1-41562-145-0	AR	1	9803-	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.10	1-41562-146-0	AR	1	9510-9802			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.10	1-41562-146-0	AR	1	9803-	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.15	1-41562-147-0	AR	1	9510-9802			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.15	1-41562-147-0	AR	1	9803-	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.20	1-41562-148-0	AR	1	9510-9802			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.20	1-41562-148-0	AR	1	9803-	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.25	1-41562-149-0	AR	1	9510-9802			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.25	1-41562-149-0	AR	1	9803-	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.30	1-41562-150-0	AR	1	9510-9802			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.30	1-41562-150-0	AR	1	9803-	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.35	1-41562-151-0	AR	1	9510-9802			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.35	1-41562-151-0	AR	1	9803-	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.40	1-41562-152-0	AR	1	9510-9802			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.40	1-41562-152-0	AR	1	9803-	●	●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.45	1-41562-153-0	AR	1	9510-9802			●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.45	1-41562-153-0	AR	1	9803-	●	●	●	●	●	●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF(G86) Z=16	1-41561-075-0	02	1	9510-9802			●	●	●	●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF(G86) Z=16	1-41561-075-0	02	1	9803-0407	●	●	●	●	●	●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF(G86) Z=16	1-41561-127-0	02	1	0408-0903	●	●	●	●	●	●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF(G86) Z=16	1-41561-160-0	02	1	0904-	●	●	●	●	●	●	●
22	SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF(G86) OD=30	1-41521-014-1	01	1	9510-9802			●	●	●	●	●
22	SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF(G86) OD=30	1-41521-014-1	01	1	9803-0408	●	●	●	●	●	●	●
22	SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF(G86)	1-41521-061-0	01	1	0409-	●	●	●	●	●	●	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF(G86) Z=10	1-41551-010-2	04	1	9510-9802			●	●	●	●	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF(G86) Z=10	1-41551-010-2	04	1	9803-0407	●	●	●	●	●	●	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF(G86) Z=10	1-41551-041-0	04	1	0408-0903	●	●	●	●	●	●	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF(G86) Z=10	1-41551-051-0	04	1	0904-	●	●	●	●	●	●	●
25	WASHER; THRUST,PINION EXC. LIMITED SLIP DIFF(G86)	1-41552-012-0	04	1	9510-9802			●	●	●	●	●
25	WASHER; THRUST,PINION EXC. LIMITED SLIP DIFF(G86)	1-41552-012-0	04	1	9803-	●	●	●	●	●	●	●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-067-0	01	1	9510-9802			●	●	●	●	●
37	NUT; DRIVING PINION M36 FLANGE	1-09449-067-0	01	1	9803-	●	●	●	●	●	●	●
39	BEARING; FINAL PINION NTN	1-09812-007-0	01	1	9510-9612			●	●	●	●	●
39	BEARING; FINAL PINION JTEKT	1-09812-218-0	01	1	9701-9802			●	●	●	●	●
39	BEARING; FINAL PINION JTEKT	1-09812-218-0	01	1	9803-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.50	1-41229-256-0	AR	1	9510-9802			●	●	●	●	●
40	SHIM; FINAL PINION T=3.50	1-41229-256-0	AR	1	9803-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.51	1-41229-257-0	AR	1	9510-9802			●	●	●	●	●
40	SHIM; FINAL PINION T=3.51	1-41229-257-0	AR	1	9803-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.52	1-41229-258-0	AR	1	9510-9802			●	●	●	●	●
40	SHIM; FINAL PINION T=3.52	1-41229-258-0	AR	1	9803-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.53	1-41229-259-0	AR	1	9510-9802			●	●	●	●	●
40	SHIM; FINAL PINION T=3.53	1-41229-259-0	AR	1	9803-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.54	1-41229-260-0	AR	1	9510-9802			●	●	●	●	●
40	SHIM; FINAL PINION T=3.54	1-41229-260-0	AR	1	9803-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.55	1-41229-261-0	AR	1	9510-9802			●	●	●	●	●
40	SHIM; FINAL PINION T=3.55	1-41229-261-0	AR	1	9803-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.56	1-41229-262-0	AR	1	9510-9802			●	●	●	●	●
40	SHIM; FINAL PINION T=3.56	1-41229-262-0	AR	1	9803-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.57	1-41229-263-0	AR	1	9510-9802			●	●	●	●	●
40	SHIM; FINAL PINION T=3.57	1-41229-263-0	AR	1	9803-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.58	1-41229-264-0	AR	1	9510-9802			●	●	●	●	●
40	SHIM; FINAL PINION T=3.58	1-41229-264-0	AR	1	9803-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.59	1-41229-265-0	AR	1	9510-9802			●	●	●	●	●
40	SHIM; FINAL PINION T=3.59	1-41229-265-0	AR	1	9803-	●	●	●	●	●	●	●
40	SHIM; FINAL PINION T=3.60	1-41229-266-0	AR	1	9510-9802			●	●	●	●	●
40	SHIM; FINAL PINION T=3.60	1-41229-266-0	AR	1	9803-	●	●	●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.40	1-41229-267-0	AR	1	9510-9802			●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.40	1-41229-267-0	AR	1	9803-	●	●	●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.60	1-41229-268-0	AR	1	9510-9802			●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.60	1-41229-268-0	AR	1	9803-	●	●	●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.80	1-41229-269-0	AR	1	9510-9802			●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=7.80	1-41229-269-0	AR	1	9803-	●	●	●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.00	1-41229-270-0	AR	1	9510-9802			●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.00	1-41229-270-0	AR	1	9803-	●	●	●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.20	1-41229-271-0	AR	1	9510-9802			●	●	●	●	●
42	COLLAR; DIST,COLLAPSIBLE T=8.20	1-41229-271-0	AR	1	9803-	●	●	●	●	●	●	●
43	CAGE; FINAL PINION	1-41151-028-1	01	1	9510-9802			●	●	●	●	●
43	CAGE; FINAL PINION	1-41151-028-1	01	1	9803-	●	●	●	●	●	●	●
45	BOLT; FINAL PINION CAGE M14X50	0-16806-450-0	08	1	9510-9802			●	●	●	●	●
45	BOLT; FINAL PINION CAGE M14X50	0-16806-450-0	08	1	9803-9909	●	●	●	●	●	●	●
45	BOLT; FINAL PINION CAGE M14X50	0-16806-450-0	08	1	9910-0004	●	●	●	●	●	●	●
45	BOLT; FINAL PINION CAGE M14X50	0-16806-450-0	08	1	0005-0106	●	●	●	●	●	●	●
45	BOLT; FINAL PINION CAGE M14X50	0-16806-450-0	08	1	0107-	●	●	●	●	●	●	●
48	WASHER; LK,FINAL PINION ID=14.2	9-09150-514-0	08	1	9510-9802			●	●	●	●	●
48	WASHER; LK,FINAL PINION ID=14.2	9-09150-514-0	08	1	9803-9909	●	●	●	●	●	●	●
48	WASHER; LK,FINAL PINION ID=14.2	9-09150-514-0	08	1	9910-0004	●	●	●	●	●	●	●
48	WASHER; LK,FINAL PINION ID=14.2	9-09150-514-0	08	1	0005-0106	●	●	●	●	●	●	●
48	WASHER; LK,FINAL PINION ID=14.2	9-09150-514-0	08	1	0107-0603	●	●	●	●	●	●	●
48	WASHER; LK,FINAL PINION ID=14.2	0-91510-514-0	08	1	0604-	●	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-063-0	AR	1	9510-9802			●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-063-0	AR	1	9803-	●	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-064-0	AR	1	9510-9802			●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-064-0	AR	1	9803-	●	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=1.00	9-41154-013-0	AR	1	9510-9802			●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=1.00	9-41154-013-0	AR	1	9803-	●	●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.50	9-41154-014-0	AR	1	9510-9802			●	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.50	9-41154-014-0	AR	1	9803-	●	●	●	●	●	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	0612-	●	●	●	●	●	●	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	9510-9802			●	●	●	●	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	9803-	●	●	●	●	●	●	●
55	CARRIER; DIFF	1-41110-052-0	01	1	9510-9802			●	●	●	●	●
55	CARRIER; DIFF	1-41110-052-0	01	1	9803-	●	●	●	●	●	●	●
56	BOLT; BRG CAP M18X107	1-09050-002-1	04	1	9510-9802			●	●	●	●	●
56	BOLT; BRG CAP M18X107	1-09050-002-1	04	1	9803-	●	●	●	●	●	●	●
60	GEAR SET; FINAL DRIVE,RR 41/6	1-41210-275-3	01	1	9803-	●
60	GEAR SET; FINAL DRIVE,RR 39/6	1-41210-276-3	01	1	9803-		●
60	GEAR SET; FINAL DRIVE,RR 39/7	1-41210-280-3	01	1	9510-			●
60	GEAR SET; FINAL DRIVE,RR 41/7	1-41210-278-3	01	1	9510-				●
60	GEAR SET; FINAL DRIVE,RR 41/8	1-41210-279-3	01	1	9510-					●
60	GEAR SET; FINAL DRIVE,RR 43/9	1-41210-342-3	01	1	9510-						●
60	GEAR SET; FINAL DRIVE,RR 43/7	1-41210-277-3	01	1	9510-							●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	9510-9802			●	●	●	●	●
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	9803-	●	●	●	●	●	●	●
62	BOLT; RET M8X36 W/PIN HOLE	1-09042-035-0	02	1	9510-9802			●	●	●	●	●
62	BOLT; RET M8X36 W/PIN HOLE	1-09042-035-0	02	1	9803-	●	●	●	●	●	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-007-0	01	1	9510-9510			●	●	●	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-229-2	01	1	9510-9802			●	●	●	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-229-2	01	1	9803-9909	●	●	●	●	●	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-229-2	01	1	9910-0004	●	●	●	●	●	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-229-2	01	1	0005-0106	●	●	●	●	●	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-229-2	01	1	0107-	●	●	●	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-015-0	01	1	9510-9510			●	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	9510-9802			●	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	9803-9909	●	●	●	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	9910-0004	●	●	●	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	0005-0106	●	●	●	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	0107-	●	●	●	●	●	●	●
64	NUT; RET M8	9-09117-408-0	02	1	9510-9707			●	●	●	●	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	9708-9802			●	●	●	●	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	9803-9909	●	●	●	●	●	●	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	9910-0004	●	●	●	●	●	●	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	0005-0106	●	●	●	●	●	●	●
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	0107-0512	●	●	●	●	●	●	●
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	0601-	●	●	●	●	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	9510-9802			●	●	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	9803-9909	●	●	●	●	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	9910-0004	●	●	●	●	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	0005-0106	●	●	●	●	●	●	●
65	PIN; SPLIT,RET	9-08112-012-0	02	1	0107-0805	●	●	●	●	●	●	●
65	PIN; SPLIT,RET	0-81122-012-0	02	1	0806-	●	●	●	●	●	●	●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	9510-9802			●	●	●	●	●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	9803-9909	●	●	●	●	●	●	●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	9910-0004	●	●	●	●	●	●	●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	0005-0106	●	●	●	●	●	●	●
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	0107-	●	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE M143 H=24	1-41121-005-0	01	1	9510-9802			●	●	●	●	●
69	NUT; ADJ,DIFF CAGE M143 H=24	1-41121-005-0	01	1	9803-	●	●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE M143 H=29	1-41121-006-0	01	1	9510-9802			●	●	●	●	●
69	NUT; ADJ,DIFF CAGE M143 H=29	1-41121-006-0	01	1	9803-	●	●	●	●	●	●	●
70	BEARING; DIFF CAGE NACHI ID=80 OD=140 T=35.3	1-09812-144-0	02	1	9510-9802			●	●	●	●	●
70	BEARING; DIFF CAGE NACHI ID=80 OD=140 T=35.3	1-09812-144-0	02	1	9803-0911	●	●	●	●	●	●	●
70	BEARING; DIFF CAGE JTEKT ID=80 OD=140 T=35.3	1-09812-145-0	02	1	9510-9802			●	●	●	●	●
70	BEARING; DIFF CAGE JTEKT ID=80 OD=140 T=35.3	1-09812-145-0	02	1	9803-0911	●	●	●	●	●	●	●
70	BEARING; DIFF CAGE NACHI	1-09812-151-0	02	1	0912-	●	●	●	●	●	●	●
70	BEARING; DIFF CAGE NSK ID=80 OD=140 T=35.3	1-09812-146-0	02	1	9510-9802			●	●	●	●	●
70	BEARING; DIFF CAGE NSK ID=80 OD=140 T=35.3	1-09812-146-0	02	1	9803-1002	●	●	●	●	●	●	●
70	BEARING; DIFF CAGE NSK	1-09812-150-0	02	1	1003-	●	●	●	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-127-0	01	1	9510-9802			●	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-127-0	01	1	9803-	●	●	●	●	●	●	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	9-09802-561-0	16	1	9510-9802			●	●	●	●	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	9-09802-561-0	16	1	9803-9804	●	●	●	●	●	●	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	9805-9909	●	●	●	●	●	●	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	9910-0004	●	●	●	●	●	●	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	0005-0106	●	●	●	●	●	●	●
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	0107-	●	●	●	●	●	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	9510-9802			●	●	●	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	9803-9909	●	●	●	●	●	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	9910-0004	●	●	●	●	●	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	0005-0106	●	●	●	●	●	●	●
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	0107-	●	●	●	●	●	●	●
88	PLATE; LK,ADJ NUT (A) T=2.3	1-41124-002-0	02	1	9510-9802			●	●	●	●	●
88	PLATE; LK,ADJ NUT (A) T=2.3	1-41124-002-0	02	1	9803-	●	●	●	●	●	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	02	1	9510-9802			●	●	●	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	02	1	9803-9909	●	●	●	●	●	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	02	1	9910-0004	●	●	●	●	●	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	02	1	0005-0106	●	●	●	●	●	●	●
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	02	1	0107-	●	●	●	●	●	●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	9510-9802			●	●	●	●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	9803-9909	●	●	●	●	●	●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	9910-0004	●	●	●	●	●	●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	0005-0106	●	●	●	●	●	●	●
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	0107-0512	●	●	●	●	●	●	●
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	0601-	●	●	●	●	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-017-0	01	1	9510-9802			●	●	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-017-0	01	1	9803-9909	●	●	●	●	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-017-0	01	1	9910-0004	●	●	●	●	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-017-0	01	1	0005-0106	●	●	●	●	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-017-0	01	1	0107-	●	●	●	●	●	●	●
126	COUPLING; DRIVING PINION	1-37245-215-2	01	1	9510-9802			●	●	●	●	●
126	COUPLING; DRIVING PINION	1-37245-215-3	01	1	9803-0208	●	●	●	●	●	●	●
126	COUPLING; DRIVING PINION	1-37245-388-0	01	1	0209-	●	●	●	●	●	●	●
134	WASHER; LK,BRG CAP ID=18.2	9-09150-518-0	04	1	9510-9802			●	●	●	●	●
134	WASHER; LK,BRG CAP ID=18.2	9-09150-518-0	04	1	9803-0603	●	●	●	●	●	●	●
134	WASHER; LK,BRG CAP ID=18.2	0-91510-518-0	04	1	0604-	●	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
