◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11340 - FTR(MIDDLE EAST) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#60043) — 680 parça

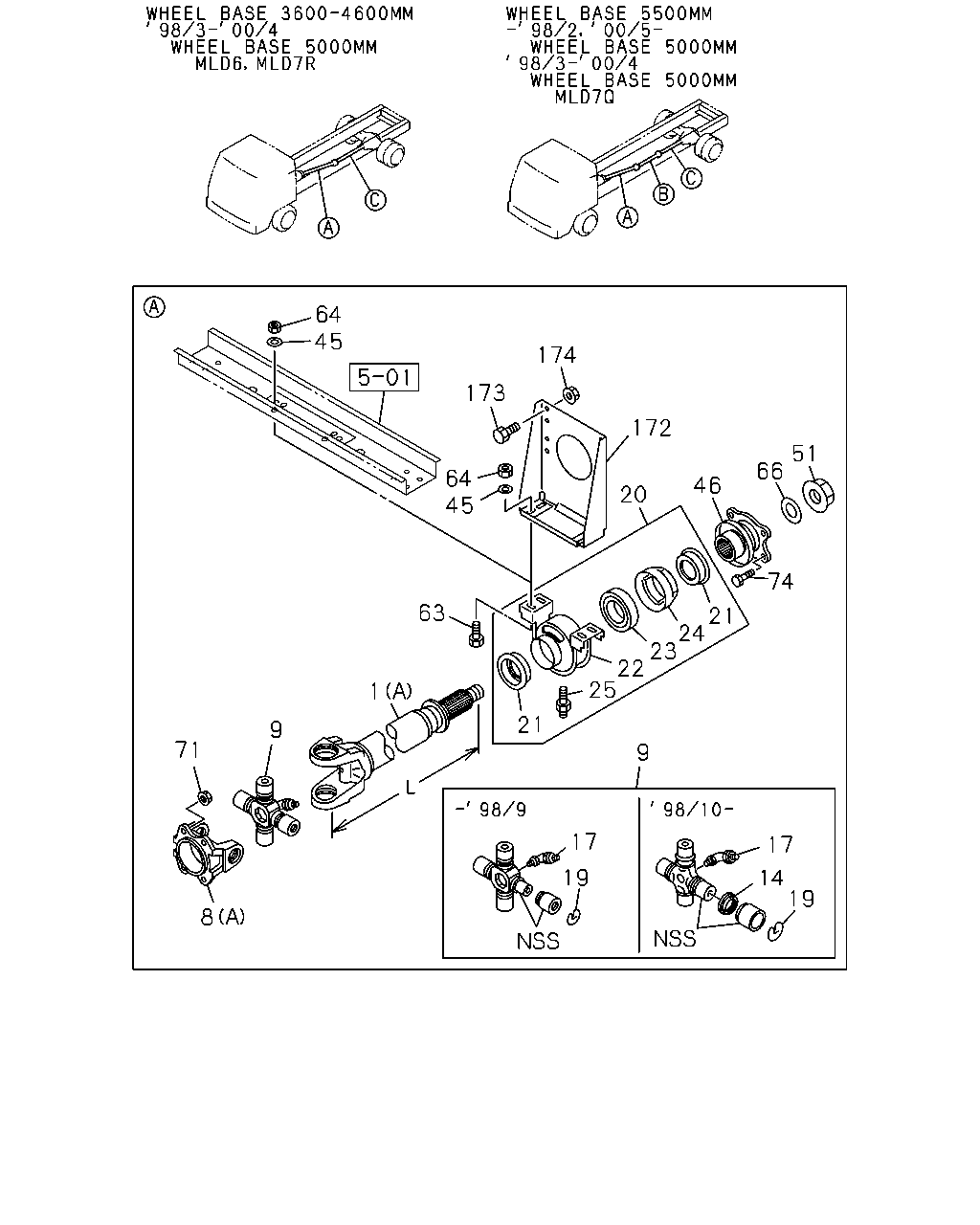

çizim 172690
64 45 174 173 172 51 66 64 45 46 20 74 63 21 24 23 22 25 1 21 9 71 9 17 17 9 14 19 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 SHAFT; PROP
MLD7R M/T(X5L) (A) L=1401 		1-37152-288-1 01 1 9803-0004 ●
1 SHAFT; PROP
FINAL GEAR 16.5"<B2Y> (C) L=766 		1-37124-306-1 01 1 9910-0106 ●
1 SHAFT; PROP
FINAL GEAR 16.5"<B2Y> (C) L=1275 		1-37123-773-1 01 1 9910- ● ● ●
1 SHAFT; PROP
(B) L=1081 		1-37151-641-1 01 1 9910- ●
1 SHAFT; PROP
FINAL GEAR 15.5"<B2X> (C) L=1286 		1-37124-066-1 01 1 9910- ●
1 SHAFT; PROP
FINAL GEAR 16.5"<B2Y> (C) L=1266 		1-37123-424-3 01 1 9910- ●
1 SHAFT; PROP
MLD6 M/T<X9Y> (A) L=861 		1-37151-943-1 01 1 9910- ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (A) L=761 		1-37151-772-1 01 1 9910- ●
1 SHAFT; PROP
MLD6 M/T<X9Y> (A) L=616 		1-37151-935-1 01 1 9510-0210 ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (A) L=516 		1-37152-004-1 01 1 9510-0210 ●
1 SHAFT; PROP
(C) L=786 		1-37124-064-1 01 1 9510-9909 ●
1 SHAFT; PROP
FINAL GEAR 15.5"<B2X> (C) L=786 		1-37124-064-1 01 1 9910-0106 ●
1 SHAFT; PROP
(C) L=786 		1-37124-064-1 01 1 0107-0210 ●
1 SHAFT; PROP
MLD6 M/T<X9Y> (A) L=701 		1-37151-939-1 01 1 9510-1111 ●
1 SHAFT; PROP
MLD6 M/T<X9Y> (A) L=694 		8-98069-611-0 01 1 1112- ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (A) L=601 		1-37152-005-1 01 1 9510-1111 ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (A) L=594 		8-98069-607-0 01 1 1112- ●
1 SHAFT; PROP
(C) L=1296 		1-37124-065-1 01 1 9510-9909 ● ● ●
1 SHAFT; PROP
FINAL GEAR 15.5"<B2X> (C) L=1296 		1-37124-065-1 01 1 9910- ● ● ●
1 SHAFT; PROP
MLD6 M/T<X9Y> (A) L=1096 		1-37151-941-1 01 1 9510-1111 ●
1 SHAFT; PROP
MLD6 M/T<X9Y> (A) L=1089 		8-98069-573-0 01 1 1112- ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (A) L=996 		1-37152-006-1 01 1 9510- ●
1 SHAFT; PROP
(B) L=816 		1-37151-390-0 01 1 9510-9802 ●
1 SHAFT; PROP
MLD7Q M/T(X5K) (B) L=816 		1-37151-390-1 01 1 9803-0004 ●
1 SHAFT; PROP
(B) L=816 		1-37151-390-1 01 1 0005- ●
1 SHAFT; PROP
MLD6 M/T<X9Y> (A) L=621 		1-37151-483-0 01 1 9510-9802 ●
1 SHAFT; PROP
MLD6A M/T(X5N) (A) L=1501 		1-37152-231-1 01 1 9803-0004 ●
1 SHAFT; PROP
MLD6 M/T<X9Y> (A) L=621 		1-37151-483-1 01 1 0005- ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (A) L=526 		1-37152-007-0 01 1 9510-9802 ●
1 SHAFT; PROP
MLD7Q M/T(X5K) (A) L=526 		1-37152-007-1 01 1 9803-0004 ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (A) L=526 		1-37152-007-1 01 1 0005- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 1ST 		1-37211-054-0 01 1 9510-9909 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 1ST 		1-37211-054-0 01 1 9910-0210 ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 1ST 		1-37211-054-0 01 1 0211-1111 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 1ST 		8-98178-052-0 01 1 1112- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) END 		1-37211-056-3 02 1 9510-9909 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) END 		1-37211-056-3 02 1 9910-0210 ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) END 		1-37211-056-3 02 1 0211- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) 2ND 		1-37211-056-2 01 1 9510-9802 ●
8 YOKE; FLANGE,PROP SHAFT
MLD7Q M/T(X5K) (B) 2ND 		1-37211-056-3 01 1 9803-9909 ●
8 YOKE; FLANGE,PROP SHAFT
MLD7Q M/T(X5K) (B) 2ND 		1-37211-056-3 01 1 9910-0004 ●
8 YOKE; FLANGE,PROP SHAFT
(B) 2ND 		1-37211-056-3 01 1 9910-0004 ●
8 YOKE; FLANGE,PROP SHAFT
(B) 2ND 		1-37211-056-3 01 1 0005- ● ●
9 JOURNAL ASM; PROP SHAFT
1ST 		8-98048-925-0 AR 1 1112-1505 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
1ST,END 		8-98048-925-1 AR 1 1506- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
1ST,END 		8-98048-925-1 AR 1 1506- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9510-9608 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9510-9608 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9510-9608 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9609-9609 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9609-9609 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9609-9609 ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9610-9802 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9610-9802 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9610-9802 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9803-9809 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9803-9809 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
MLD7Q M/T(X5K) 		1-37300-069-0 AR 1 9803-9809 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-0 AR 1 9810-9909 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-0 AR 1 9810-9909 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
MLD7Q M/T(X5K) 		1-37300-102-0 AR 1 9810-9909 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-0 AR 1 9910-0004 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-0 AR 1 9910-0004 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
MLD7Q M/T(X5K) 		1-37300-102-0 AR 1 9910-0004 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-0 AR 1 9910-0004 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-0 AR 1 0005-0210 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-0 AR 1 0005-0210 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-0 AR 1 0005-0210 ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 0211-1111 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 0211-1111 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 0211-1111 ● ●
9 JOURNAL ASM; PROP SHAFT
2ND,END 		1-37300-102-1 AR 1 1112-1505 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
2ND,END 		1-37300-102-1 AR 1 1112-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
2ND 		1-37300-102-1 AR 1 1506- ● ●
14 COVER; DUST,SPIDER
1ST 		8-98020-800-0 04 1 1112- ● ● ● ●
14 COVER; DUST,SPIDER
1ST,2ND 		1-37319-012-0 04 1 9810-9909 ● ● ● ●
14 COVER; DUST,SPIDER
MLD7Q M/T(X5K) 1ST,2ND 		1-37319-012-0 04 1 9810-9909 ●
14 COVER; DUST,SPIDER
END 		1-37319-012-0 08 1 9910-0210 ● ● ● ● ●
14 COVER; DUST,SPIDER
1ST,2ND 		1-37319-012-0 04 1 0211-1111 ● ● ● ●
14 COVER; DUST,SPIDER
1ST,2ND 		1-37319-012-0 04 1 0211-1111 ● ●
14 COVER; DUST,SPIDER
2ND 		1-37319-012-0 04 1 1112- ● ●
14 COVER; DUST,SPIDER
END 		1-37319-012-0 08 1 9810-9909 ● ● ● ●
14 COVER; DUST,SPIDER
1ST,2ND 		1-37319-012-0 04 1 9910-0004 ● ● ● ● ●
14 COVER; DUST,SPIDER
MLD7Q M/T(X5K) 1ST,2ND 		1-37319-012-0 04 1 9910-0004 ●
14 COVER; DUST,SPIDER
1ST,2ND 		1-37319-012-0 04 1 9910-0004 ●
14 COVER; DUST,SPIDER
1ST,2ND 		1-37319-012-0 04 1 0005-0210 ● ● ● ● ●
14 COVER; DUST,SPIDER
1ST,2ND 		1-37319-012-0 04 1 0005-0210 ● ●
14 COVER; DUST,SPIDER
END 		1-37319-012-0 08 1 0211-1505 ● ● ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 08 1 1506- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 01 1 9510-9802 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 01 1 9510-9802 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 01 1 9803-9909 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
MLD7Q M/T(X5K) PT1/8 ELBOW 		9-09031-210-0 01 1 9803-9909 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 02 1 9910-0210 ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 01 1 0211-0512 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 01 1 0211-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0601- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0601- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 02 1 9510-9909 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 01 1 9910-0004 ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
MLD7Q M/T(X5K) PT1/8 ELBOW 		9-09031-210-0 01 1 9910-0004 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 01 1 9910-0004 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 01 1 0005-0210 ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 01 1 0005-0210 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 02 1 0211-0512 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0601- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 9510-9802 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 9510-9802 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 9803-9909 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD7Q M/T(X5K) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 9803-9909 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 9910-0210 ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0211- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0211- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 9510-9802 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 9510-9802 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 9803-9909 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD7Q M/T(X5K) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 9803-9909 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 9910-0210 ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0211- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0211- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 9510-9802 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 9510-9802 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 9803-9909 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD7Q M/T(X5K) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 9803-9909 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 9910-0210 ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0211- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0211- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 9510-9909 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 9910-0004 ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD7Q M/T(X5K) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 9910-0004 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 9910-0004 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0005-0210 ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0005-0210 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 0211- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 9510-9909 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 9910-0004 ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD7Q M/T(X5K) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 9910-0004 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 9910-0004 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0005-0210 ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0005-0210 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 0211- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 9510-9909 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 9910-0004 ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD7Q M/T(X5K) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 9910-0004 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 9910-0004 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0005-0210 ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0005-0210 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 0211- ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
1ST 		8-98020-881-0 01 1 1112- ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 9510-9802 ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 9510-9802 ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 9803-9909 ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
MLD7Q M/T(X5K) 		1-37510-105-0 01 1 9803-9909 ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 9910-0004 ● ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
MLD7Q M/T(X5K) 		1-37510-105-0 01 1 9910-0004 ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 9910-0004 ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 0005-0210 ● ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 0005-0210 ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 0211-1111 ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 0211-1111 ● ●
20 BEARING ASM; CTR,PROP SHAFT
2ND 		1-37510-105-0 01 1 1112- ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 9510-9802 ● ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 9510-9802 ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 9803-9909 ● ● ● ●
21 SEAL; OIL,CENTER BRG
MLD7Q M/T(X5K) ID=54 		1-09625-161-0 02 1 9803-9909 ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 9910-0004 ● ● ● ● ●
21 SEAL; OIL,CENTER BRG
MLD7Q M/T(X5K) ID=54 		1-09625-161-0 02 1 9910-0004 ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 9910-0004 ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0005-0210 ● ● ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0005-0210 ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0211- ● ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0211- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 9510-9802 ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 9510-9802 ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 9803-9909 ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MLD7Q M/T(X5K) 		1-37516-059-0 01 1 9803-9909 ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 9910-0004 ● ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MLD7Q M/T(X5K) 		1-37516-059-0 01 1 9910-0004 ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 9910-0004 ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0005-0210 ● ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0005-0210 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0211- ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0211- ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 9510-9802 ● ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 9510-9802 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 9803-9909 ● ● ● ●
23 BEARING; CENTER,PROP SHAFT
MLD7Q M/T(X5K) 		9-00090-071-0 01 1 9803-9909 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 9910-0004 ● ● ● ● ●
23 BEARING; CENTER,PROP SHAFT
MLD7Q M/T(X5K) 		9-00090-071-0 01 1 9910-0004 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 9910-0004 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0005-0210 ● ● ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0005-0210 ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0211- ● ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0211- ● ●
24 RETAINER; CENTER BRG,1ST
1ST 		8-98020-882-0 01 1 1112- ● ● ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 9510-9802 ● ● ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 9510-9802 ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 9803-9909 ● ● ● ●
24 RETAINER; CENTER BRG,1ST
MLD7Q M/T(X5K) 		1-37529-068-0 01 1 9803-9909 ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 9910-0004 ● ● ● ● ●
24 RETAINER; CENTER BRG,1ST
MLD7Q M/T(X5K) 		1-37529-068-0 01 1 9910-0004 ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 9910-0004 ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 0005-0210 ● ● ● ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 0005-0210 ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 0211-1111 ● ● ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 0211-1111 ● ●
24 RETAINER; CENTER BRG,1ST
2ND 		1-37529-068-0 01 1 1112- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9510-9802 ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9510-9802 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9803-9909 ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MLD7Q M/T(X5K) MT6 STRAIGHT 		1-09380-006-0 01 1 9803-9909 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9910-0004 ● ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MLD7Q M/T(X5K) MT6 STRAIGHT 		1-09380-006-0 01 1 9910-0004 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9910-0004 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0005-0210 ● ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0005-0210 ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0211- ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0211- ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		9-09164-610-0 04 1 9510-0210 ● ● ● ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		9-09164-610-0 04 1 0211-0605 ● ● ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0606- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
1ST 		8-98020-815-0 01 1 1112- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 9510-9802 ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 9510-9802 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 9803-9909 ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
MLD7Q M/T(X5K) 		1-37245-071-0 01 1 9803-9909 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 9910-0004 ● ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
MLD7Q M/T(X5K) 		1-37245-071-0 01 1 9910-0004 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 9910-0004 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 0005-0210 ● ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 0005-0210 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 0211-1111 ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 0211-1111 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
2ND 		1-37245-071-0 01 1 1112- ● ●
51 NUT; FLANGE,SPLINED
M30 H=23 		1-09449-068-0 01 1 9510-9801 ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 H=23 		1-09449-068-0 01 1 9510-9801 ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 9802-9802 ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 9802-9802 ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 9803-9909 ● ● ● ●
51 NUT; FLANGE,SPLINED
MLD7Q M/T(X5K) M30 		8-97160-857-0 01 1 9803-9909 ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 9910-0004 ● ● ● ● ●
51 NUT; FLANGE,SPLINED
MLD7Q M/T(X5K) M30 		8-97160-857-0 01 1 9910-0004 ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 9910-0004 ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0005-0210 ● ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0005-0210 ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0211- ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0211- ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 9510-9802 ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 9510-9802 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 9803-9909 ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
MLD7Q M/T(X5K) M10X35 FLANGE 		0-28681-035-0 04 1 9803-9909 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 9910-0004 ● ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
MLD7Q M/T(X5K) M10X35 FLANGE 		0-28681-035-0 04 1 9910-0004 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 9910-0004 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 0005-0210 ● ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 0005-0210 ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 0211-0512 ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 0211-0512 ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0601- ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0601- ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-110-0 04 1 9510-9608 ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-110-0 04 1 9510-9608 ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 9609-9802 ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 9609-9802 ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 9803-9909 ● ● ● ●
64 NUT; RET TO BRKT
MLD7Q M/T(X5K) M10 FLANGE 		0-91150-210-0 04 1 9803-9909 ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 9910-0004 ● ● ● ● ●
64 NUT; RET TO BRKT
MLD7Q M/T(X5K) M10 FLANGE 		0-91150-210-0 04 1 9910-0004 ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 9910-0004 ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 0005-0210 ● ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 0005-0210 ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 0211-0602 ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 0211-0602 ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603- ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603- ● ●
66 WASHER
ID=30.5 		1-09503-025-0 01 1 9510-9801 ● ● ● ●
66 WASHER
ID=30.5 		1-09503-025-0 01 1 9510-9801 ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 9510-0210 ● ● ● ● ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0211- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 9510-9802 ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 9510-9802 ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 9803-9909 ● ● ● ●
74 BOLT; YOKE,TRANS
MLD7Q M/T(X5K) M14X37 		1-09000-121-0 04 1 9803-9909 ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 9910-0004 ● ● ● ● ●
74 BOLT; YOKE,TRANS
MLD7Q M/T(X5K) M14X37 		1-09000-121-0 04 1 9910-0004 ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 9910-0004 ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0005-0210 ● ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0005-0210 ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0211- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0211- ● ●
172 BRACKET; CENTER BRG
MLD7R M/T(X5L),MLD6A M/T(X5N) 1ST 		1-37515-136-0 01 1 9803-0004 ●
172 BRACKET; CENTER BRG
2ND 		1-37515-101-0 01 1 9910- ●
172 BRACKET; CENTER BRG
1ST 		1-37515-102-0 01 1 9510-9909 ●
172 BRACKET; CENTER BRG
1ST 		1-37515-102-0 01 1 9910- ● ●
172 BRACKET; CENTER BRG
4600MM 1ST,5000MM 2ND 		1-37515-071-2 01 1 9510-9802 ● ●
172 BRACKET; CENTER BRG
4600MM 1ST,5000MM 2ND 		1-37515-071-2 01 1 9803-0004 ●
172 BRACKET; CENTER BRG
MLD7Q M/T(X5K) 4600MM 1ST,5000MM 2ND 		1-37515-071-2 01 1 9803-0004 ●
172 BRACKET; CENTER BRG
4600MM 1ST,5000MM 2ND 		1-37515-071-2 01 1 0005- ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28081-025-0 04 1 9510-9510 ● ● ●
173 BOLT; BRKT
M10X20 FLANGE 		0-28081-020-0 04 1 9512-9602 ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28081-025-0 04 1 9603-9606 ● ● ●
173 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 04 1 9607-9712 ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 9801-9909 ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 9910-0512 ● ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 9910-0512 ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0601- ● ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0601- ●
174 NUT; BRKT
M10 		9-09110-510-0 04 1 9510-9606 ● ●
174 NUT; BRKT 0-91150-216-0 04 1 9607-9701 ● ●
174 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 9702-9802 ● ●
174 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 9803-9909 ● ●
174 NUT; BRKT
MLD7R M/T(X5L),MLD6A M/T(X5N) M10 FLANGE 		0-91150-210-0 04 1 9803-9909 ●
174 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 9910-0004 ● ● ●
174 NUT; BRKT
MLD7R M/T(X5L),MLD6A M/T(X5N) M10 FLANGE 		0-91150-210-0 04 1 9910-0004 ●
174 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 0005-0602 ● ● ●
174 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603- ● ● ●

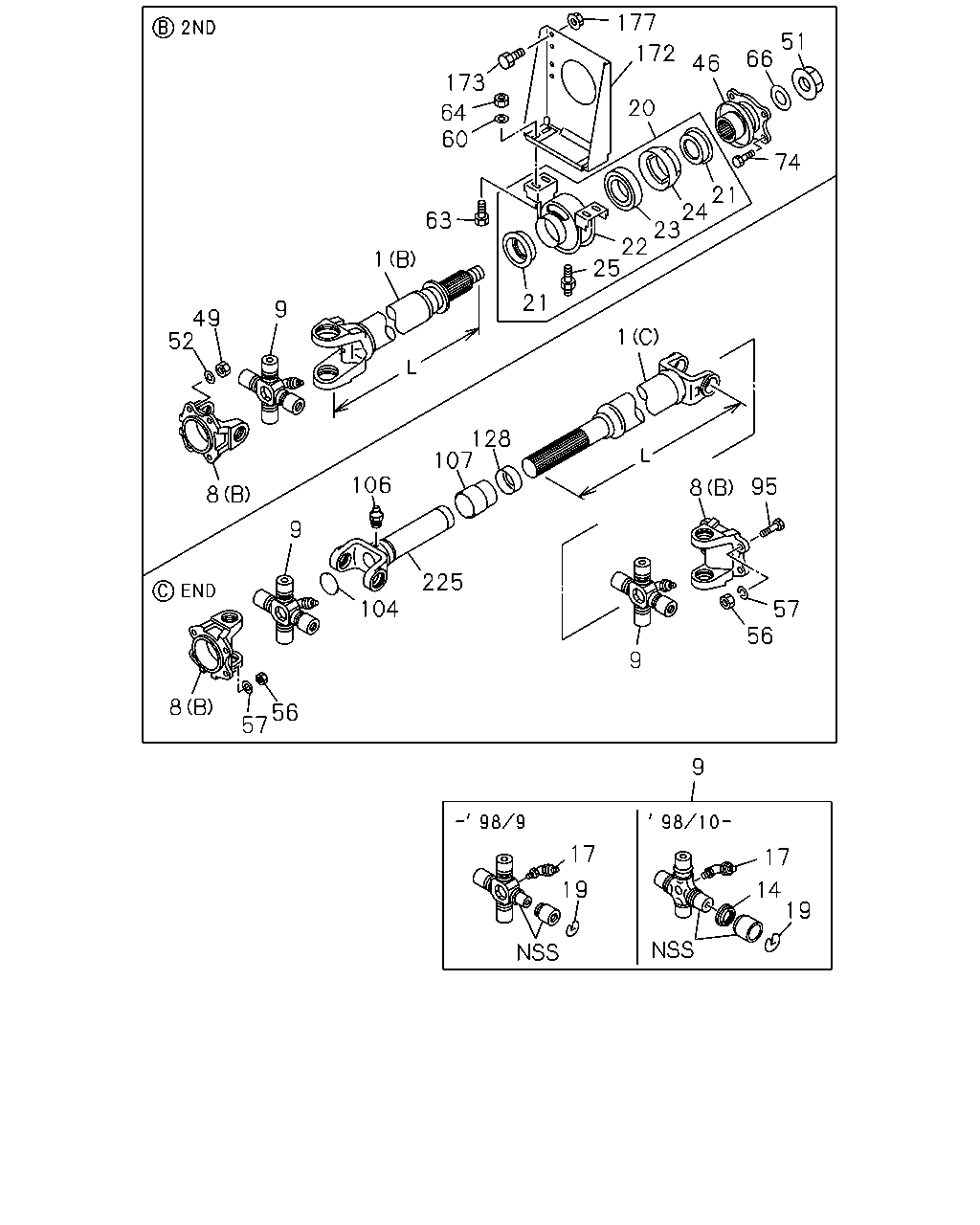

çizim 172700
177 51 66 172 46 173 20 64 60 74 21 24 23 22 25 63 1 21 9 49 52 1 128 107 106 95 8 8 9 225 104 57 56 9 8 56 57 9 17 17 19 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 SHAFT; PROP
MLD7R M/T(X5L) (A) L=1401 		1-37152-288-1 01 1 9803-0004 ●
1 SHAFT; PROP
FINAL GEAR 16.5"<B2Y> (C) L=766 		1-37124-306-1 01 1 9910-0106 ●
1 SHAFT; PROP
FINAL GEAR 16.5"<B2Y> (C) L=1275 		1-37123-773-1 01 1 9910- ● ● ●
1 SHAFT; PROP
(B) L=1081 		1-37151-641-1 01 1 9910- ●
1 SHAFT; PROP
FINAL GEAR 15.5"<B2X> (C) L=1286 		1-37124-066-1 01 1 9910- ●
1 SHAFT; PROP
FINAL GEAR 16.5"<B2Y> (C) L=1266 		1-37123-424-3 01 1 9910- ●
1 SHAFT; PROP
MLD6 M/T<X9Y> (A) L=861 		1-37151-943-1 01 1 9910- ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (A) L=761 		1-37151-772-1 01 1 9910- ●
1 SHAFT; PROP
MLD6 M/T<X9Y> (A) L=616 		1-37151-935-1 01 1 9510-0210 ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (A) L=516 		1-37152-004-1 01 1 9510-0210 ●
1 SHAFT; PROP
(C) L=786 		1-37124-064-1 01 1 9510-9909 ●
1 SHAFT; PROP
FINAL GEAR 15.5"<B2X> (C) L=786 		1-37124-064-1 01 1 9910-0106 ●
1 SHAFT; PROP
(C) L=786 		1-37124-064-1 01 1 0107-0210 ●
1 SHAFT; PROP
MLD6 M/T<X9Y> (A) L=701 		1-37151-939-1 01 1 9510-1111 ●
1 SHAFT; PROP
MLD6 M/T<X9Y> (A) L=694 		8-98069-611-0 01 1 1112- ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (A) L=601 		1-37152-005-1 01 1 9510-1111 ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (A) L=594 		8-98069-607-0 01 1 1112- ●
1 SHAFT; PROP
(C) L=1296 		1-37124-065-1 01 1 9510-9909 ● ● ●
1 SHAFT; PROP
FINAL GEAR 15.5"<B2X> (C) L=1296 		1-37124-065-1 01 1 9910- ● ● ●
1 SHAFT; PROP
MLD6 M/T<X9Y> (A) L=1096 		1-37151-941-1 01 1 9510-1111 ●
1 SHAFT; PROP
MLD6 M/T<X9Y> (A) L=1089 		8-98069-573-0 01 1 1112- ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (A) L=996 		1-37152-006-1 01 1 9510- ●
1 SHAFT; PROP
(B) L=816 		1-37151-390-0 01 1 9510-9802 ●
1 SHAFT; PROP
MLD7Q M/T(X5K) (B) L=816 		1-37151-390-1 01 1 9803-0004 ●
1 SHAFT; PROP
(B) L=816 		1-37151-390-1 01 1 0005- ●
1 SHAFT; PROP
MLD6 M/T<X9Y> (A) L=621 		1-37151-483-0 01 1 9510-9802 ●
1 SHAFT; PROP
MLD6A M/T(X5N) (A) L=1501 		1-37152-231-1 01 1 9803-0004 ●
1 SHAFT; PROP
MLD6 M/T<X9Y> (A) L=621 		1-37151-483-1 01 1 0005- ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (A) L=526 		1-37152-007-0 01 1 9510-9802 ●
1 SHAFT; PROP
MLD7Q M/T(X5K) (A) L=526 		1-37152-007-1 01 1 9803-0004 ●
1 SHAFT; PROP
MLD7 M/T<X9Z> (A) L=526 		1-37152-007-1 01 1 0005- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 1ST 		1-37211-054-0 01 1 9510-9909 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 1ST 		1-37211-054-0 01 1 9910-0210 ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 1ST 		1-37211-054-0 01 1 0211-1111 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 1ST 		8-98178-052-0 01 1 1112- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) END 		1-37211-056-3 02 1 9510-9909 ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) END 		1-37211-056-3 02 1 9910-0210 ● ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) END 		1-37211-056-3 02 1 0211- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) 2ND 		1-37211-056-2 01 1 9510-9802 ●
8 YOKE; FLANGE,PROP SHAFT
MLD7Q M/T(X5K) (B) 2ND 		1-37211-056-3 01 1 9803-9909 ●
8 YOKE; FLANGE,PROP SHAFT
MLD7Q M/T(X5K) (B) 2ND 		1-37211-056-3 01 1 9910-0004 ●
8 YOKE; FLANGE,PROP SHAFT
(B) 2ND 		1-37211-056-3 01 1 9910-0004 ●
8 YOKE; FLANGE,PROP SHAFT
(B) 2ND 		1-37211-056-3 01 1 0005- ● ●
9 JOURNAL ASM; PROP SHAFT
1ST 		8-98048-925-0 AR 1 1112-1505 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
1ST,END 		8-98048-925-1 AR 1 1506- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
1ST,END 		8-98048-925-1 AR 1 1506- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9510-9608 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9510-9608 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9510-9608 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9609-9609 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9609-9609 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9609-9609 ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9610-9802 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9610-9802 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9610-9802 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9803-9809 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-069-0 AR 1 9803-9809 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
MLD7Q M/T(X5K) 		1-37300-069-0 AR 1 9803-9809 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-0 AR 1 9810-9909 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-0 AR 1 9810-9909 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
MLD7Q M/T(X5K) 		1-37300-102-0 AR 1 9810-9909 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-0 AR 1 9910-0004 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-0 AR 1 9910-0004 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
MLD7Q M/T(X5K) 		1-37300-102-0 AR 1 9910-0004 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-0 AR 1 9910-0004 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-0 AR 1 0005-0210 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-0 AR 1 0005-0210 ● ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-0 AR 1 0005-0210 ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 0211-1111 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 0211-1111 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 0211-1111 ● ●
9 JOURNAL ASM; PROP SHAFT
2ND,END 		1-37300-102-1 AR 1 1112-1505 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
2ND,END 		1-37300-102-1 AR 1 1112-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
2ND 		1-37300-102-1 AR 1 1506- ● ●
14 COVER; DUST,SPIDER
1ST 		8-98020-800-0 04 1 1112- ● ● ● ●
14 COVER; DUST,SPIDER
1ST,2ND 		1-37319-012-0 04 1 9810-9909 ● ● ● ●
14 COVER; DUST,SPIDER
MLD7Q M/T(X5K) 1ST,2ND 		1-37319-012-0 04 1 9810-9909 ●
14 COVER; DUST,SPIDER
END 		1-37319-012-0 08 1 9910-0210 ● ● ● ● ●
14 COVER; DUST,SPIDER
1ST,2ND 		1-37319-012-0 04 1 0211-1111 ● ● ● ●
14 COVER; DUST,SPIDER
1ST,2ND 		1-37319-012-0 04 1 0211-1111 ● ●
14 COVER; DUST,SPIDER
2ND 		1-37319-012-0 04 1 1112- ● ●
14 COVER; DUST,SPIDER
END 		1-37319-012-0 08 1 9810-9909 ● ● ● ●
14 COVER; DUST,SPIDER
1ST,2ND 		1-37319-012-0 04 1 9910-0004 ● ● ● ● ●
14 COVER; DUST,SPIDER
MLD7Q M/T(X5K) 1ST,2ND 		1-37319-012-0 04 1 9910-0004 ●
14 COVER; DUST,SPIDER
1ST,2ND 		1-37319-012-0 04 1 9910-0004 ●
14 COVER; DUST,SPIDER
1ST,2ND 		1-37319-012-0 04 1 0005-0210 ● ● ● ● ●
14 COVER; DUST,SPIDER
1ST,2ND 		1-37319-012-0 04 1 0005-0210 ● ●
14 COVER; DUST,SPIDER
END 		1-37319-012-0 08 1 0211-1505 ● ● ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 08 1 1506- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 01 1 9510-9802 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 01 1 9510-9802 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 01 1 9803-9909 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
MLD7Q M/T(X5K) PT1/8 ELBOW 		9-09031-210-0 01 1 9803-9909 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 02 1 9910-0210 ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 01 1 0211-0512 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 01 1 0211-0512 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0601- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 0601- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 02 1 9510-9909 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 01 1 9910-0004 ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
MLD7Q M/T(X5K) PT1/8 ELBOW 		9-09031-210-0 01 1 9910-0004 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 01 1 9910-0004 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 01 1 0005-0210 ● ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 01 1 0005-0210 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 02 1 0211-0512 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0601- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 9510-9802 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 9510-9802 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 9803-9909 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD7Q M/T(X5K) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 9803-9909 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 9910-0210 ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0211- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0211- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 9510-9802 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 9510-9802 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 9803-9909 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD7Q M/T(X5K) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 9803-9909 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 9910-0210 ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0211- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0211- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 9510-9802 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 9510-9802 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 9803-9909 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD7Q M/T(X5K) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 9803-9909 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 9910-0210 ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0211- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0211- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 9510-9909 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 9910-0004 ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD7Q M/T(X5K) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 9910-0004 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 9910-0004 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0005-0210 ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 0005-0210 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 0211- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 9510-9909 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 9910-0004 ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD7Q M/T(X5K) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 9910-0004 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 9910-0004 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0005-0210 ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 0005-0210 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 0211- ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 9510-9909 ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 9910-0004 ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
MLD7Q M/T(X5K) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 9910-0004 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 9910-0004 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0005-0210 ● ● ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 0005-0210 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 0211- ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
1ST 		8-98020-881-0 01 1 1112- ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 9510-9802 ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 9510-9802 ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 9803-9909 ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
MLD7Q M/T(X5K) 		1-37510-105-0 01 1 9803-9909 ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 9910-0004 ● ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
MLD7Q M/T(X5K) 		1-37510-105-0 01 1 9910-0004 ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 9910-0004 ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 0005-0210 ● ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 0005-0210 ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 0211-1111 ● ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 0211-1111 ● ●
20 BEARING ASM; CTR,PROP SHAFT
2ND 		1-37510-105-0 01 1 1112- ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 9510-9802 ● ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 9510-9802 ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 9803-9909 ● ● ● ●
21 SEAL; OIL,CENTER BRG
MLD7Q M/T(X5K) ID=54 		1-09625-161-0 02 1 9803-9909 ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 9910-0004 ● ● ● ● ●
21 SEAL; OIL,CENTER BRG
MLD7Q M/T(X5K) ID=54 		1-09625-161-0 02 1 9910-0004 ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 9910-0004 ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0005-0210 ● ● ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0005-0210 ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0211- ● ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0211- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 9510-9802 ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 9510-9802 ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 9803-9909 ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MLD7Q M/T(X5K) 		1-37516-059-0 01 1 9803-9909 ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 9910-0004 ● ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MLD7Q M/T(X5K) 		1-37516-059-0 01 1 9910-0004 ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 9910-0004 ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0005-0210 ● ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0005-0210 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0211- ● ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0211- ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 9510-9802 ● ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 9510-9802 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 9803-9909 ● ● ● ●
23 BEARING; CENTER,PROP SHAFT
MLD7Q M/T(X5K) 		9-00090-071-0 01 1 9803-9909 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 9910-0004 ● ● ● ● ●
23 BEARING; CENTER,PROP SHAFT
MLD7Q M/T(X5K) 		9-00090-071-0 01 1 9910-0004 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 9910-0004 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0005-0210 ● ● ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0005-0210 ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0211- ● ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0211- ● ●
24 RETAINER; CENTER BRG,1ST
1ST 		8-98020-882-0 01 1 1112- ● ● ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 9510-9802 ● ● ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 9510-9802 ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 9803-9909 ● ● ● ●
24 RETAINER; CENTER BRG,1ST
MLD7Q M/T(X5K) 		1-37529-068-0 01 1 9803-9909 ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 9910-0004 ● ● ● ● ●
24 RETAINER; CENTER BRG,1ST
MLD7Q M/T(X5K) 		1-37529-068-0 01 1 9910-0004 ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 9910-0004 ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 0005-0210 ● ● ● ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 0005-0210 ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 0211-1111 ● ● ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 0211-1111 ● ●
24 RETAINER; CENTER BRG,1ST
2ND 		1-37529-068-0 01 1 1112- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9510-9802 ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9510-9802 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9803-9909 ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MLD7Q M/T(X5K) MT6 STRAIGHT 		1-09380-006-0 01 1 9803-9909 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9910-0004 ● ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MLD7Q M/T(X5K) MT6 STRAIGHT 		1-09380-006-0 01 1 9910-0004 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 9910-0004 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0005-0210 ● ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0005-0210 ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0211- ● ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0211- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
1ST 		8-98020-815-0 01 1 1112- ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 9510-9802 ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 9510-9802 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 9803-9909 ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
MLD7Q M/T(X5K) 		1-37245-071-0 01 1 9803-9909 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 9910-0004 ● ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
MLD7Q M/T(X5K) 		1-37245-071-0 01 1 9910-0004 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 9910-0004 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 0005-0210 ● ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 0005-0210 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 0211-1111 ● ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 0211-1111 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
2ND 		1-37245-071-0 01 1 1112- ● ●
49 NUT; YOKE
M14 		9-99110-514-0 04 1 9510-9802 ●
49 NUT; YOKE
MLD7Q M/T(X5K) M14 		9-99110-514-0 04 1 9803-9909 ●
49 NUT; YOKE
MLD7Q M/T(X5K) M14 		9-99110-514-0 04 1 9910-0004 ●
49 NUT; YOKE
M14 		9-99110-514-0 04 1 9910-0004 ●
49 NUT; YOKE
M14 		9-99110-514-0 04 1 0005-0512 ● ●
49 NUT; YOKE
M14 		0-91110-514-0 04 1 0601- ● ●
51 NUT; FLANGE,SPLINED
M30 H=23 		1-09449-068-0 01 1 9510-9801 ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 H=23 		1-09449-068-0 01 1 9510-9801 ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 9802-9802 ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 9802-9802 ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 9803-9909 ● ● ● ●
51 NUT; FLANGE,SPLINED
MLD7Q M/T(X5K) M30 		8-97160-857-0 01 1 9803-9909 ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 9910-0004 ● ● ● ● ●
51 NUT; FLANGE,SPLINED
MLD7Q M/T(X5K) M30 		8-97160-857-0 01 1 9910-0004 ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 9910-0004 ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0005-0210 ● ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0005-0210 ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0211- ● ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0211- ● ●
52 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 04 1 9510-9802 ●
52 WASHER; LK,YOKE
MLD7Q M/T(X5K) ID=14.2 		9-09150-614-0 04 1 9803-9909 ●
52 WASHER; LK,YOKE
MLD7Q M/T(X5K) ID=14.2 		9-09150-614-0 04 1 9910-0004 ●
52 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 04 1 9910-0004 ●
52 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 04 1 0005-0603 ● ●
52 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 0604- ● ●
56 NUT; YOKE
M14 		9-99110-514-0 08 1 9510-9608 ● ● ● ● ●
56 NUT; YOKE
M14 		9-99110-514-0 04 1 9609-9802 ● ● ● ● ●
56 NUT; YOKE
M14 		9-99110-514-0 04 1 9609-9802 ● ● ● ● ●
56 NUT; YOKE
M14 		9-99110-514-0 08 1 9803-0210 ● ● ● ● ●
56 NUT; YOKE
M14 		9-99110-514-0 08 1 0211-0512 ● ● ● ●
56 NUT; YOKE
M14 		0-91110-514-0 08 1 0601- ● ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 08 1 9510-9608 ● ● ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 04 1 9609-9802 ● ● ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 04 1 9609-9802 ● ● ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 08 1 9803-0210 ● ● ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 08 1 0211-0603 ● ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 08 1 0604- ● ● ● ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		9-09164-610-0 04 1 9510-9802 ●
60 WASHER; PL,RET TO BRKT
MLD7Q M/T(X5K) ID=10.5 OD=22 		9-09164-610-0 04 1 9803-9909 ●
60 WASHER; PL,RET TO BRKT
MLD7Q M/T(X5K) ID=10.5 OD=22 		9-09164-610-0 04 1 9910-0004 ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		9-09164-610-0 04 1 9910-0004 ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		9-09164-610-0 04 1 0005-0605 ● ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0606- ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 9510-9802 ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 9510-9802 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 9803-9909 ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
MLD7Q M/T(X5K) M10X35 FLANGE 		0-28681-035-0 04 1 9803-9909 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 9910-0004 ● ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
MLD7Q M/T(X5K) M10X35 FLANGE 		0-28681-035-0 04 1 9910-0004 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 9910-0004 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 0005-0210 ● ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 0005-0210 ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 0211-0512 ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 0211-0512 ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0601- ● ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0601- ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-110-0 04 1 9510-9608 ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-110-0 04 1 9510-9608 ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 9609-9802 ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 9609-9802 ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 9803-9909 ● ● ● ●
64 NUT; RET TO BRKT
MLD7Q M/T(X5K) M10 FLANGE 		0-91150-210-0 04 1 9803-9909 ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 9910-0004 ● ● ● ● ●
64 NUT; RET TO BRKT
MLD7Q M/T(X5K) M10 FLANGE 		0-91150-210-0 04 1 9910-0004 ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 9910-0004 ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 0005-0210 ● ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 0005-0210 ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 0211-0602 ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 0211-0602 ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603- ● ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603- ● ●
66 WASHER
ID=30.5 		1-09503-025-0 01 1 9510-9801 ● ● ● ●
66 WASHER
ID=30.5 		1-09503-025-0 01 1 9510-9801 ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 9510-9802 ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 9510-9802 ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 9803-9909 ● ● ● ●
74 BOLT; YOKE,TRANS
MLD7Q M/T(X5K) M14X37 		1-09000-121-0 04 1 9803-9909 ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 9910-0004 ● ● ● ● ●
74 BOLT; YOKE,TRANS
MLD7Q M/T(X5K) M14X37 		1-09000-121-0 04 1 9910-0004 ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 9910-0004 ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0005-0210 ● ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0005-0210 ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0211- ● ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0211- ● ●
95 BOLT; YOKE,FINAL
M14X37 		1-09000-121-0 04 1 9510-0210 ● ● ● ● ●
95 BOLT; YOKE,FINAL
M14X37 		1-09000-121-0 04 1 0211- ● ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 9510-9909 ● ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 9910-0210 ● ● ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 0211- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9510-9909 ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9910-0210 ● ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0211-0512 ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ● ● ●
107 COVER; RET,SLEEVE 1-37249-060-0 01 1 9510-9909 ● ● ● ●
107 COVER; RET,SLEEVE 1-37249-060-0 01 1 9910-0210 ● ● ● ● ●
107 COVER; RET,SLEEVE 1-37249-060-1 01 1 0211- ● ● ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 9810-9811 ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 9812-9909 ● ● ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 9910-0210 ● ● ● ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 0211- ● ● ● ●
128 SEAL; SLEEVE 1-37247-015-0 01 1 9510-9809 ● ● ● ●
128 SEAL; SLEEVE 1-37247-015-0 01 1 9810-9811 ● ● ●
172 BRACKET; CENTER BRG
MLD7R M/T(X5L),MLD6A M/T(X5N) 1ST 		1-37515-136-0 01 1 9803-0004 ●
172 BRACKET; CENTER BRG
2ND 		1-37515-101-0 01 1 9910- ●
172 BRACKET; CENTER BRG
1ST 		1-37515-102-0 01 1 9510-9909 ●
172 BRACKET; CENTER BRG
1ST 		1-37515-102-0 01 1 9910- ● ●
172 BRACKET; CENTER BRG
4600MM 1ST,5000MM 2ND 		1-37515-071-2 01 1 9510-9802 ● ●
172 BRACKET; CENTER BRG
4600MM 1ST,5000MM 2ND 		1-37515-071-2 01 1 9803-0004 ●
172 BRACKET; CENTER BRG
MLD7Q M/T(X5K) 4600MM 1ST,5000MM 2ND 		1-37515-071-2 01 1 9803-0004 ●
172 BRACKET; CENTER BRG
4600MM 1ST,5000MM 2ND 		1-37515-071-2 01 1 0005- ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28081-025-0 04 1 9510-9510 ● ● ●
173 BOLT; BRKT
M10X20 FLANGE 		0-28081-020-0 04 1 9512-9602 ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28081-025-0 04 1 9603-9606 ● ● ●
173 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 04 1 9607-9712 ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 9801-9909 ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 9910-0512 ● ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 9910-0512 ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0601- ● ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0601- ●
177 NUT
M10 		9-09110-510-0 04 1 9510-9606 ●
177 NUT
M10 FLANGE 		0-91150-210-0 04 1 9607-9802 ●
177 NUT
MLD7Q M/T(X5K) M10 FLANGE 		0-91150-210-0 04 1 9803-9909 ●
177 NUT
MLD7Q M/T(X5K) M10 FLANGE 		0-91150-210-0 04 1 9910-0004 ●
177 NUT
M10 FLANGE 		0-91150-210-0 04 1 9910-0004 ●
177 NUT
M10 FLANGE 		0-91150-210-0 04 1 0005-0602 ● ●
177 NUT
M10 FLANGE 		0-91180-210-0 04 1 0603- ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=271 		1-37241-129-0 01 1 9810-9811 ●
225 YOKE; SLEEVE,PROP SHAFT
L=271 		1-37241-129-0 01 1 9812-9902 ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=271 		1-37241-099-2 01 1 9903-9909 ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=271 		1-37241-099-2 01 1 9910-0210 ● ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=271 		1-37241-099-2 01 1 0211- ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=271 		1-37241-099-1 01 1 9510-9809 ● ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=271 		1-37241-099-2 01 1 9810-9811 ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
