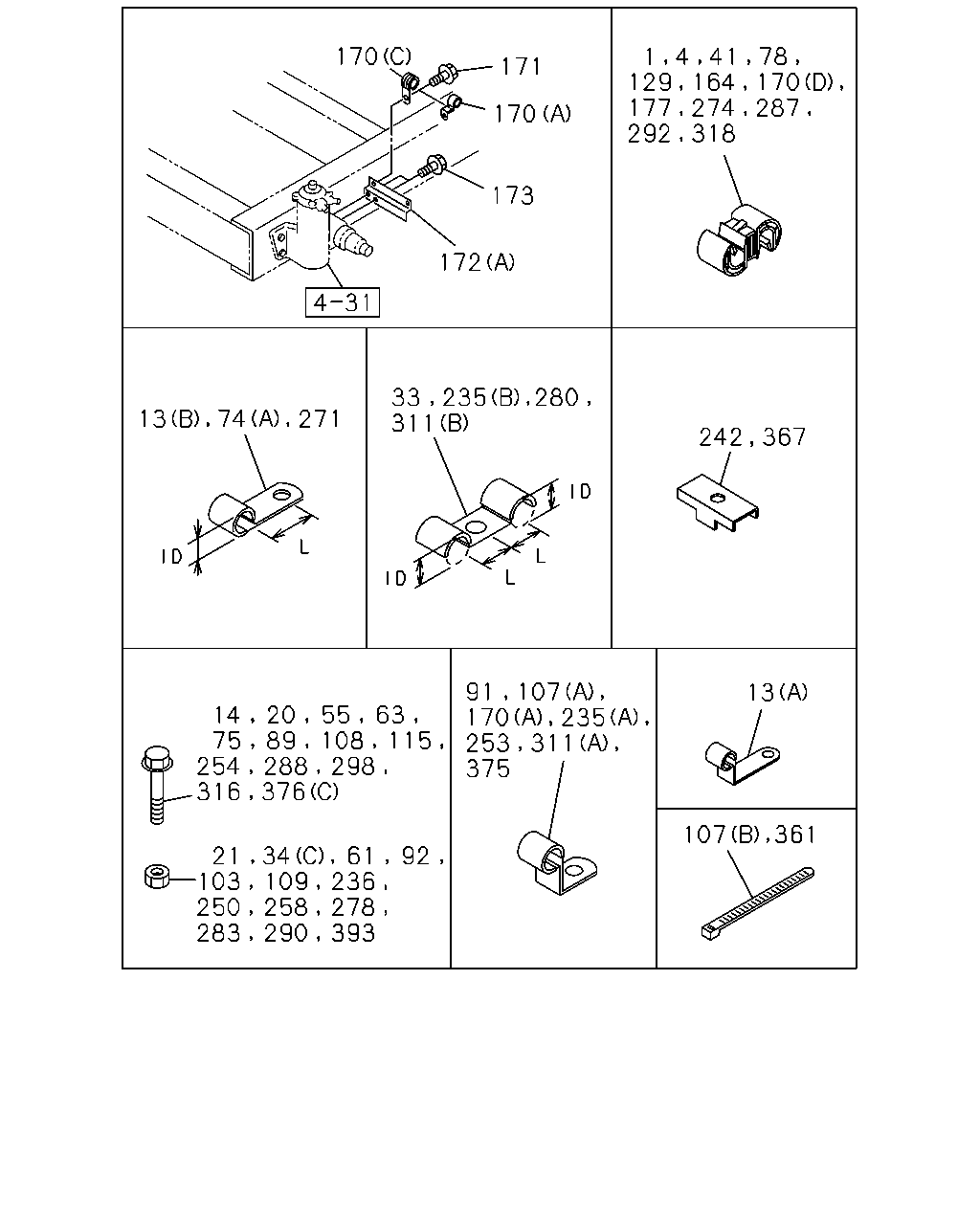

1 |
CLIP; AIR PIPE
ID=6.35 & 6.35
|
1-09709-273-1 |
01 |
1 |
9510-9802 |
● |
● |
| |
4 |
CLIP; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
ID=10 & 12
|
1-09709-278-1 |
01 |
1 |
9510-9802 |
● |
● |
| |
13 |
CLIP; AIR PIPE
(A)
ID=7 L=38 H=21
|
1-09700-916-0 |
01 |
1 |
9510-0210 |
● |
● |
| |
13 |
CLIP; AIR PIPE
(A)
ID=7 L=38 H=21
|
1-09700-916-0 |
01 |
1 |
0211- |
|
● |
| |
13 |
CLIP; AIR PIPE
(B)
ID=7 L=40
|
9-09524-675-0 |
01 |
1 |
9510-0210 |
● |
● |
| |
13 |
CLIP; AIR PIPE
(B)
ID=7 L=40
|
9-09524-675-0 |
01 |
1 |
0211-0606 |
|
● |
| |
13 |
CLIP; AIR PIPE
(B)
ID=7 L=40
|
0-95234-675-0 |
01 |
1 |
0607- |
|
● |
| |
14 |
BOLT; PIPE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X20 FLANGE
|
0-28080-820-0 |
01 |
1 |
9510-9606 |
● |
|
| |
14 |
BOLT; PIPE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
9607-9702 |
● |
|
| |
14 |
BOLT; PIPE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
9703-9802 |
● |
● |
| |
14 |
BOLT; PIPE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X25 FLANGE
|
0-28080-825-0 |
02 |
1 |
9510-9606 |
● |
● |
| |
14 |
BOLT; PIPE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
9607-9802 |
● |
● |
| |
20 |
BOLT; CLIP
M8X30 FLANGE
|
0-28680-830-0 |
01 |
1 |
0005-0009 |
|
● |
| |
21 |
NUT; CLIP
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0005-0009 |
|
● |
| |
33 |
CLIP; BOLT
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5000MM(50W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ID=16 & 16 L=21.5 & 21.5
|
1-09700-674-0 |
01 |
1 |
0107- |
|
● |
| |
33 |
CLIP; BOLT
ID=16 & 7 L=21 & 17
|
1-09700-675-0 |
01 |
1 |
9510-0106 |
● |
● |
| |
33 |
CLIP; BOLT
ID=16 & 7 L=21 & 17
|
1-09700-675-0 |
01 |
1 |
0107-0109 |
● |
|
| |
33 |
CLIP; BOLT
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5000MM(50W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ID=16 & 7 L=21 & 17
|
1-09700-675-0 |
01 |
1 |
0107-0109 |
|
● |
| |
33 |
CLIP; BOLT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. AIR DRYER<PS7>
ID=16 & 7 L=21 & 17
|
1-09700-675-0 |
01 |
1 |
0107-0109 |
|
● |
| |
33 |
CLIP; BOLT
EXC. AIR DRYER<PS7>
ID=16 & 7 L=21 & 17
|
1-09700-675-0 |
01 |
1 |
0110-0210 |
● |
|
| |
33 |
CLIP; BOLT
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5000MM(50W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ID=16 & 7 L=21 & 17
|
1-09700-675-0 |
01 |
1 |
0110-0210 |
|
● |
| |
33 |
CLIP; BOLT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. AIR DRYER<PS7>
ID=16 & 7 L=21 & 17
|
1-09700-675-0 |
01 |
1 |
0110-0210 |
|
● |
| |
33 |
CLIP; BOLT
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5000MM(50W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ID=16 & 7 L=21 & 17
|
1-09700-675-0 |
01 |
1 |
0211- |
|
● |
| |
33 |
CLIP; BOLT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. AIR DRYER<PS7>
ID=16 & 7 L=21 & 17
|
1-09700-675-0 |
01 |
1 |
0211- |
|
● |
| |

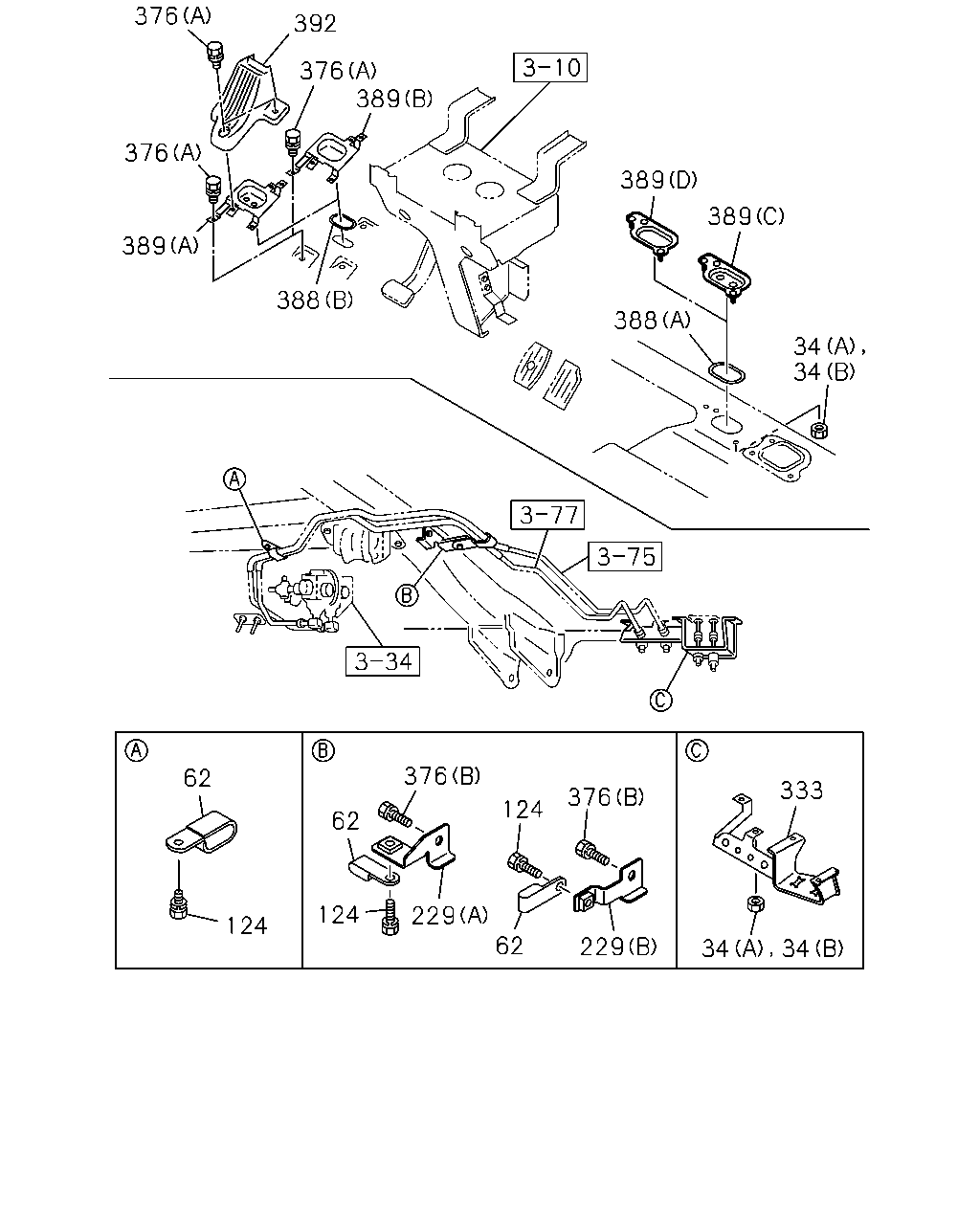

34 |
NUT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5000MM(50W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(C)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0107-0602 |
|
● |
| |
34 |
NUT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5000MM(50W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(C)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0603- |
|
● |
| |
34 |
NUT; BRKT
(B)
M8 FLANGE
|
8-94279-517-0 |
01 |
1 |
9510-9611 |
● |
● |
| |
34 |
NUT; BRKT
(A)
M8 CUTTING NUT W/FLANGE
|
1-09985-340-0 |
01 |
1 |
9612-0210 |
● |
● |
| |
34 |
NUT; BRKT
(A)
M8 CUTTING NUT W/FLANGE
|
1-09985-340-0 |
01 |
1 |
0211-0605 |
|
● |
| |
34 |
NUT; BRKT
(A)
M8 CUTTING NUT W/FLANGE
|
1-09985-340-0 |
04 |
1 |
0606- |
|
● |
| |
34 |
NUT; BRKT
(B)
M8 FLANGE
|
8-94279-517-0 |
03 |
1 |
9510-9611 |
● |
● |
| |
34 |
NUT; BRKT
(A)
M8 CUTTING NUT W/FLANGE
|
1-09985-340-0 |
03 |
1 |
9612-0210 |
● |
● |
| |
34 |
NUT; BRKT
(A)
M8 CUTTING NUT W/FLANGE
|
1-09985-340-0 |
03 |
1 |
0211-0605 |
|
● |
| |
41 |
CLIP; AIR PIPE
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5000MM(50W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ID=6.35 & 15
|
1-09709-276-1 |
03 |
1 |
0107- |
|
● |
| |
41 |
CLIP; AIR PIPE
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5000MM(50W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ID=15 & 15
|
1-09709-282-1 |
01 |
1 |
0107- |
|
● |
| |
55 |
BOLT; PIPE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X30 FLANGE
|
0-28680-830-0 |
04 |
1 |
0107-0512 |
|
● |
| |
55 |
BOLT; PIPE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X30 FLANGE
|
0-28650-830-0 |
04 |
1 |
0601- |
|
● |
| |
61 |
NUT; CLIP FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8
|
9-09110-408-0 |
03 |
1 |
9510-9606 |
● |
● |
| |
61 |
NUT; CLIP FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
9607-9802 |
● |
● |
| |
61 |
NUT; CLIP FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8
|
9-09110-408-0 |
04 |
1 |
9510-9606 |
● |
● |
| |
61 |
NUT; CLIP FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
9607-9802 |
● |
● |
| |
63 |
BOLT; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X25 FLANGE
|
0-28080-825-0 |
01 |
1 |
9510-9606 |
● |
● |
| |
63 |
BOLT; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X30 FLANGE
|
0-28680-830-0 |
01 |
1 |
9607-9802 |
● |
● |
| |
63 |
BOLT; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X16 FLANGE
|
0-28080-816-0 |
01 |
1 |
9510-9702 |
● |
● |
| |
63 |
BOLT; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X45 FLANGE
|
0-28080-845-0 |
01 |
1 |
9703-9802 |
● |
● |
| |
74 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
ID=16 L=28
|
1-09700-872-0 |
01 |
1 |
0107-0611 |
|
● |
| |
74 |
CLIP; NYLON TUBE
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5000MM(50W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
ID=16 L=28
|
1-09700-872-0 |
01 |
1 |
0612- |
|
● |
| |
74 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
L=250
|
1-09707-126-0 |
05 |
1 |
0107-0611 |
|
● |
| |
74 |
CLIP; NYLON TUBE
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5000MM(50W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
L=250
|
1-09707-126-0 |
05 |
1 |
0612- |
|
● |
| |
75 |
BOLT; CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X20 FLANGE
|
0-28680-820-0 |
01 |
1 |
0107-0512 |
|
● |
| |
75 |
BOLT; CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X20 FLANGE
|
0-28650-820-0 |
01 |
1 |
0601-0611 |
|
● |
| |
75 |
BOLT; CLIP
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5000MM(50W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X20 FLANGE
|
0-28650-820-0 |
01 |
1 |
0612- |
|
● |
| |
75 |
BOLT; CLIP
AIR SUSP DRIVER SEAT<A56>
M8X20 FLANGE
|
0-28080-820-0 |
01 |
1 |
9510-9606 |
● |
● |
| |
75 |
BOLT; CLIP
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2>
M8X20 FLANGE
|
0-28080-820-0 |
01 |
1 |
9510-9606 |
● |
● |
| |
75 |
BOLT; CLIP
AIR SUSP DRIVER SEAT<A56>
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
9607-9802 |
● |
● |
| |
75 |
BOLT; CLIP
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2>
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
9607-9802 |
● |
● |
| |
75 |
BOLT; CLIP
AIR SUSP DRIVER SEAT<A56>
M8X25 FLANGE
|
0-28080-825-0 |
03 |
1 |
9510-9606 |
● |
● |
| |
75 |
BOLT; CLIP
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2>
M8X25 FLANGE
|
0-28080-825-0 |
03 |
1 |
9510-9606 |
● |
● |
| |
75 |
BOLT; CLIP
AIR SUSP DRIVER SEAT<A56>
M8X30 FLANGE
|
0-28680-830-0 |
03 |
1 |
9607-9802 |
● |
● |
| |
75 |
BOLT; CLIP
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2>
M8X30 FLANGE
|
0-28680-830-0 |
03 |
1 |
9607-9802 |
● |
● |
| |
75 |
BOLT; CLIP
AIR SUSP DRIVER SEAT<A56>
M8X16 FLANGE
|
0-28080-816-0 |
01 |
1 |
9510-9802 |
● |
● |
| |
75 |
BOLT; CLIP
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2>
M8X16 FLANGE
|
0-28080-816-0 |
01 |
1 |
9510-9802 |
● |
● |
| |
78 |
CLIP; AIR PIPE
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5000MM(50W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ID=6.35 & 15
|
1-09709-276-1 |
03 |
1 |
0107- |
|
● |
| |
89 |
BOLT; PIPE CLIP
M8X16 FLANGE
|
0-28080-816-0 |
01 |
1 |
9510-9802 |
● |
● |
| |
91 |
CLIP; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ID=11 H=20 L=20
|
5-09700-351-0 |
04 |
1 |
0107-0707 |
|
● |
| |
91 |
CLIP; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ID=11 H=20 L=20
|
8-98033-780-0 |
04 |
1 |
0708- |
|
● |
| |
92 |
NUT; PIPE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0107-0602 |
|
● |
| |
92 |
NUT; PIPE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
|
● |
| |
103 |
NUT; PIPE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0107-0602 |
|
● |
| |
103 |
NUT; PIPE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
|
● |
| |
107 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
ID=28 H=45 L=30
|
1-09700-948-0 |
01 |
1 |
0107- |
|
● |
| |
107 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
ID=24.5 H=35 L=25
|
1-09700-990-0 |
02 |
1 |
0107- |
|
● |
| |
107 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
ID=31 H=30 L=35
|
1-09700-994-0 |
01 |
1 |
0107- |
|
● |
| |
107 |
CLIP; NYLON TUBE
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5000MM(50W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
0107-0208 |
|
● |
| |
107 |
CLIP; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
0209- |
|
● |
| |
107 |
CLIP; NYLON TUBE
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5000MM(50W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
0209- |
|
● |
| |
108 |
BOLT; TUBE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X20 FLANGE
|
0-28680-820-0 |
04 |
1 |
0107-0512 |
|
● |
| |
108 |
BOLT; TUBE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8X20 FLANGE
|
0-28650-820-0 |
04 |
1 |
0601- |
|
● |
| |
109 |
NUT; TUBE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
0107-0602 |
|
● |
| |
109 |
NUT; TUBE CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
0603- |
|
● |
| |
115 |
BOLT; CLIP BRKT
M8X20 FLANGE
|
0-28080-820-0 |
02 |
1 |
9510-9606 |
● |
● |
| |
115 |
BOLT; CLIP BRKT
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9607-9801 |
● |
● |
| |
115 |
BOLT; CLIP BRKT
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
9802-9802 |
● |
● |
| |
129 |
CLIP; AIR PIPE
ID=6.35 & 10.0
|
1-09709-274-1 |
01 |
1 |
9510-9802 |
● |
● |
| |
164 |
CLIP; AIR PIPE
ID=10 & 15
|
1-09709-279-1 |
01 |
1 |
9510-9802 |
● |
● |
| |

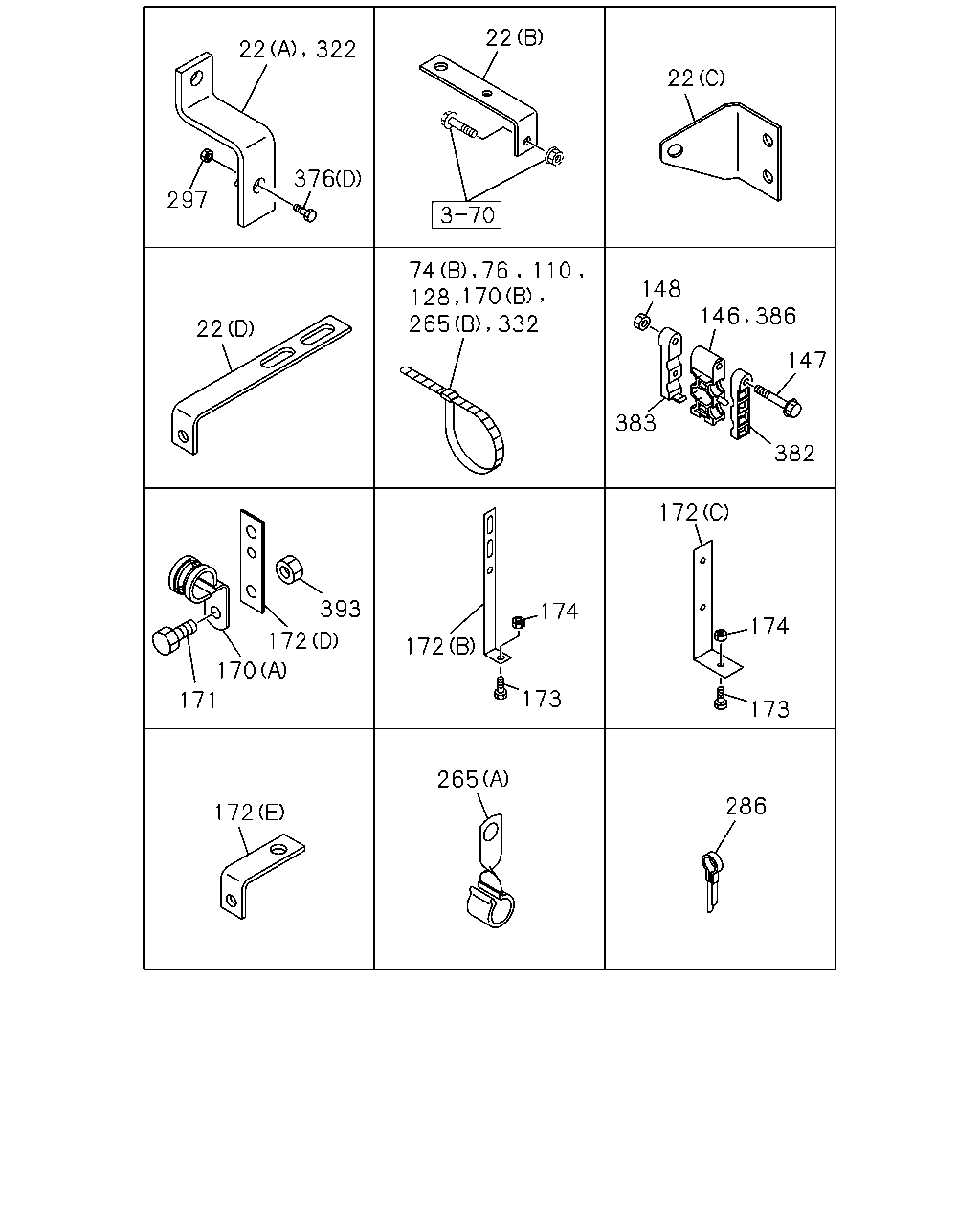

170 |
CLIP; NYLON TUBE
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
9901-9903 |
|
● |
| |
170 |
CLIP; NYLON TUBE
(B)
L=250
|
1-09707-126-0 |
03 |
1 |
9904-0106 |
|
● |
| |
170 |
CLIP; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
L=250
|
1-09707-126-0 |
03 |
1 |
0107-0108 |
|
● |
| |
170 |
CLIP; NYLON TUBE
(B)
L=250
|
1-09707-126-0 |
03 |
1 |
0109-0210 |
● |
|
| |
170 |
CLIP; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
L=250
|
1-09707-126-0 |
03 |
1 |
0109-0210 |
|
● |
| |
170 |
CLIP; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
L=250
|
1-09707-126-0 |
03 |
1 |
0211- |
|
● |
| |
170 |
CLIP; NYLON TUBE
(D)
ID=12 & 15
|
1-09709-281-1 |
01 |
1 |
0001-0106 |
● |
● |
| |
170 |
CLIP; NYLON TUBE
(D)
ID=12 & 15
|
1-09709-281-1 |
01 |
1 |
0107-0210 |
● |
|
| |
170 |
CLIP; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(D)
ID=12 & 15
|
1-09709-281-1 |
01 |
1 |
0107-0210 |
|
● |
| |
170 |
CLIP; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(D)
ID=12 & 15
|
1-09709-281-1 |
01 |
1 |
0211- |
|
● |
| |
170 |
CLIP; NYLON TUBE
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
0001-0108 |
|
● |
| |
170 |
CLIP; NYLON TUBE
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
0109-0210 |
● |
● |
| |
170 |
CLIP; NYLON TUBE
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
0211-0211 |
|
● |
| |
170 |
CLIP; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
L=250
|
1-09707-126-0 |
01 |
1 |
0212- |
|
● |
| |
170 |
CLIP; NYLON TUBE
(B)
L=250
|
1-09707-126-0 |
14 |
1 |
9803-0001 |
● |
● |
| |
170 |
CLIP; NYLON TUBE
(B)
L=250
|
1-09707-126-0 |
17 |
1 |
0002-0004 |
● |
● |
| |
170 |
CLIP; NYLON TUBE
(B)
L=250
|
1-09707-126-0 |
15 |
1 |
0005-0106 |
● |
● |
| |
170 |
CLIP; NYLON TUBE
(B)
L=250
|
1-09707-126-0 |
15 |
1 |
0107-0210 |
● |
|
| |
170 |
CLIP; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
L=250
|
1-09707-126-0 |
15 |
1 |
0107-0210 |
|
● |
| |
170 |
CLIP; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
L=250
|
1-09707-126-0 |
15 |
1 |
0211-1303 |
|
● |
| |
170 |
CLIP; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
L=250
|
1-09707-126-0 |
16 |
1 |
1304- |
|
● |
| |
170 |
CLIP; NYLON TUBE
(A)
ID=24.5 H=35 L=25
|
1-09700-990-0 |
01 |
1 |
9510-9804 |
● |
● |
| |
170 |
CLIP; NYLON TUBE
(A)
ID=24.5 H=35 L=25
|
1-09700-990-0 |
02 |
1 |
9805-0106 |
● |
● |
| |
170 |
CLIP; NYLON TUBE
(A)
ID=24.5 H=35 L=25
|
1-09700-990-0 |
02 |
1 |
0107-0210 |
● |
|
| |
170 |
CLIP; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
ID=24.5 H=35 L=25
|
1-09700-990-0 |
02 |
1 |
0107-0210 |
|
● |
| |
170 |
CLIP; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
ID=24.5 H=35 L=25
|
1-09700-990-0 |
02 |
1 |
0211- |
|
● |
| |
170 |
CLIP; NYLON TUBE
(C)
ID=26 L=27
|
1-09701-006-0 |
01 |
1 |
9510-9802 |
● |
● |
| |
170 |
CLIP; NYLON TUBE
(A)
ID=28 H=45 L=30
|
1-09700-948-0 |
01 |
1 |
9803-0106 |
● |
● |
| |
170 |
CLIP; NYLON TUBE
(A)
ID=28 H=45 L=30
|
1-09700-948-0 |
01 |
1 |
0107-0210 |
● |
|
| |
170 |
CLIP; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
ID=28 H=45 L=30
|
1-09700-948-0 |
01 |
1 |
0107-0210 |
|
● |
| |
170 |
CLIP; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
ID=28 H=45 L=30
|
1-09700-948-0 |
01 |
1 |
0211- |
|
● |
| |
171 |
BOLT; TUBE CLIP
M8X16 FLANGE
|
0-28080-816-0 |
02 |
1 |
9510-9802 |
● |
● |
| |
171 |
BOLT; TUBE CLIP
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
9803-9903 |
● |
● |
| |
171 |
BOLT; TUBE CLIP
M8X20 FLANGE
|
0-28680-820-0 |
03 |
1 |
9904-0106 |
● |
● |
| |
171 |
BOLT; TUBE CLIP
M8X20 FLANGE
|
0-28680-820-0 |
03 |
1 |
0107-0210 |
● |
|
| |
171 |
BOLT; TUBE CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X20 FLANGE
|
0-28680-820-0 |
03 |
1 |
0107-0210 |
|
● |
| |
171 |
BOLT; TUBE CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X20 FLANGE
|
0-28680-820-0 |
03 |
1 |
0211-0512 |
|
● |
| |
171 |
BOLT; TUBE CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
0601- |
|
● |
| |
172 |
BRACKET; TUBE CLIP
(E)
L=60 H=30
|
1-47477-716-1 |
01 |
1 |
0005-0106 |
● |
● |
| |
172 |
BRACKET; TUBE CLIP
(E)
L=60 H=30
|
1-47477-716-1 |
01 |
1 |
0107-0210 |
● |
|
| |
172 |
BRACKET; TUBE CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(E)
L=60 H=30
|
1-47477-716-1 |
01 |
1 |
0107-0210 |
|
● |
| |
172 |
BRACKET; TUBE CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(E)
L=60 H=30
|
1-47477-716-1 |
01 |
1 |
0211- |
|
● |
| |
172 |
BRACKET; TUBE CLIP
(C)
L=59 B=20
|
1-47479-048-0 |
01 |
1 |
0007-0106 |
● |
● |
| |
172 |
BRACKET; TUBE CLIP
(C)
L=59 B=20
|
1-47479-048-0 |
01 |
1 |
0107-0210 |
● |
|
| |
172 |
BRACKET; TUBE CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(C)
L=59 B=20
|
1-47479-048-0 |
01 |
1 |
0107-0210 |
|
● |
| |
172 |
BRACKET; TUBE CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(C)
L=59 B=20
|
1-47479-048-0 |
01 |
1 |
0211- |
|
● |
| |
172 |
BRACKET; TUBE CLIP
(B)
L=100 H=30
|
1-47477-645-2 |
03 |
1 |
9803-0006 |
● |
● |
| |
172 |
BRACKET; TUBE CLIP
(B)
L=100 H=30
|
1-47477-645-2 |
02 |
1 |
0007-0106 |
● |
● |
| |
172 |
BRACKET; TUBE CLIP
(B)
L=100 H=30
|
1-47477-645-2 |
02 |
1 |
0107-0210 |
● |
|
| |
172 |
BRACKET; TUBE CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
L=100 H=30
|
1-47477-645-2 |
02 |
1 |
0107-0210 |
|
● |
| |
172 |
BRACKET; TUBE CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
L=100 H=30
|
1-47477-645-2 |
02 |
1 |
0211- |
|
● |
| |
172 |
BRACKET; TUBE CLIP
(C)
L=90
|
1-47477-755-1 |
01 |
1 |
9803-0106 |
● |
● |
| |
172 |
BRACKET; TUBE CLIP
(C)
L=90
|
1-47477-755-1 |
01 |
1 |
0107-0210 |
● |
|
| |
172 |
BRACKET; TUBE CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(C)
L=90
|
1-47477-755-1 |
01 |
1 |
0107-0210 |
|
● |
| |
172 |
BRACKET; TUBE CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(C)
L=90
|
1-47477-755-1 |
01 |
1 |
0211- |
|
● |
| |
172 |
BRACKET; TUBE CLIP
(D)
L=125
|
1-47477-975-1 |
02 |
1 |
9803-0106 |
● |
● |
| |
172 |
BRACKET; TUBE CLIP
(D)
L=125
|
1-47477-975-1 |
02 |
1 |
0107-0210 |
● |
|
| |
172 |
BRACKET; TUBE CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(D)
L=125
|
1-47477-975-1 |
02 |
1 |
0107-0210 |
|
● |
| |
172 |
BRACKET; TUBE CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(D)
L=125
|
1-47477-975-1 |
02 |
1 |
0211- |
|
● |
| |
172 |
BRACKET; TUBE CLIP
(A)
|
1-47477-650-0 |
01 |
1 |
9510-0106 |
● |
● |
| |
172 |
BRACKET; TUBE CLIP
(A)
|
1-47477-650-0 |
01 |
1 |
0107-0210 |
● |
|
| |
172 |
BRACKET; TUBE CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
|
1-47477-650-0 |
01 |
1 |
0107-0210 |
|
● |
| |
172 |
BRACKET; TUBE CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
|
1-47477-650-0 |
01 |
1 |
0211- |
|
● |
| |
173 |
BOLT; CLIP BRKT
M8X30 FLANGE
|
0-28680-830-0 |
01 |
1 |
0005-0106 |
● |
● |
| |
173 |
BOLT; CLIP BRKT
M8X30 FLANGE
|
0-28680-830-0 |
01 |
1 |
0107-0210 |
● |
|
| |
173 |
BOLT; CLIP BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X30 FLANGE
|
0-28680-830-0 |
01 |
1 |
0107-0210 |
|
● |
| |
173 |
BOLT; CLIP BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X30 FLANGE
|
0-28680-830-0 |
01 |
1 |
0211-0512 |
|
● |
| |
173 |
BOLT; CLIP BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
0601- |
|
● |
| |
173 |
BOLT; CLIP BRKT
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
9803-0001 |
● |
● |
| |
173 |
BOLT; CLIP BRKT
FRAME EQUIPMENT HEAVY DUTY(F03)
M8X25 FLANGE
|
0-28680-825-0 |
04 |
1 |
0002-0106 |
● |
● |
| |
173 |
BOLT; CLIP BRKT
FRAME EQUIPMENT HEAVY DUTY(F03)
M8X25 FLANGE
|
0-28680-825-0 |
04 |
1 |
0107-0107 |
|
● |
| |
173 |
BOLT; CLIP BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FRAME EQUIPMENT HEAVY DUTY(F03)
M8X25 FLANGE
|
0-28680-825-0 |
04 |
1 |
0107-0512 |
|
● |
| |
173 |
BOLT; CLIP BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FRAME EQUIPMENT HEAVY DUTY(F03)
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
0601- |
|
● |
| |
173 |
BOLT; CLIP BRKT
M8X25 FLANGE
|
0-28680-825-0 |
05 |
1 |
9803-0001 |
● |
● |
| |
173 |
BOLT; CLIP BRKT
EXC. FRAME EQUIPMENT HEAVY DUTY(F03)
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0002-0004 |
● |
● |
| |
173 |
BOLT; CLIP BRKT
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0005-0106 |
● |
● |
| |
173 |
BOLT; CLIP BRKT
EXC. FRAME EQUIPMENT HEAVY DUTY(F03)
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0005-0106 |
● |
● |
| |
173 |
BOLT; CLIP BRKT
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0107-0107 |
● |
● |
| |
173 |
BOLT; CLIP BRKT
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0107-0107 |
● |
|
| |
173 |
BOLT; CLIP BRKT
EXC. FRAME EQUIPMENT HEAVY DUTY(F03)
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0107-0107 |
|
● |
| |
173 |
BOLT; CLIP BRKT
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0107-0210 |
● |
|
| |
173 |
BOLT; CLIP BRKT
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0107-0210 |
● |
|
| |
173 |
BOLT; CLIP BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0107-0210 |
|
● |
| |
173 |
BOLT; CLIP BRKT
EXC. FRAME EQUIPMENT HEAVY DUTY(F03)
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0107-0210 |
|
● |
| |
173 |
BOLT; CLIP BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0211-0211 |
|
● |
| |
173 |
BOLT; CLIP BRKT
EXC. FRAME EQUIPMENT HEAVY DUTY(F03)
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0211-0211 |
|
● |
| |
173 |
BOLT; CLIP BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. FRAME EQUIPMENT HEAVY DUTY(F03)
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0212-0512 |
|
● |
| |
173 |
BOLT; CLIP BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. FRAME EQUIPMENT HEAVY DUTY(F03)
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0601- |
|
● |
| |
173 |
BOLT; CLIP BRKT
FRAME EQUIPMENT HEAVY DUTY(F03)
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
0002-0106 |
● |
● |
| |
173 |
BOLT; CLIP BRKT
FRAME EQUIPMENT HEAVY DUTY(F03)
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
0107-0107 |
|
● |
| |
173 |
BOLT; CLIP BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FRAME EQUIPMENT HEAVY DUTY(F03)
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
0107-0512 |
|
● |
| |
173 |
BOLT; CLIP BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
FRAME EQUIPMENT HEAVY DUTY(F03)
M8X30 FLANGE
|
0-28650-830-0 |
02 |
1 |
0601- |
|
● |
| |
173 |
BOLT; CLIP BRKT
EXC. FRAME EQUIPMENT HEAVY DUTY(F03)
M8X25 FLANGE
|
0-28680-825-0 |
05 |
1 |
0002-0004 |
● |
● |
| |
173 |
BOLT; CLIP BRKT
M8X25 FLANGE
|
0-28680-825-0 |
05 |
1 |
0005-0106 |
● |
● |
| |
173 |
BOLT; CLIP BRKT
EXC. FRAME EQUIPMENT HEAVY DUTY(F03)
M8X25 FLANGE
|
0-28680-825-0 |
05 |
1 |
0005-0106 |
● |
● |
| |
173 |
BOLT; CLIP BRKT
M8X25 FLANGE
|
0-28680-825-0 |
05 |
1 |
0107-0107 |
● |
● |
| |
173 |
BOLT; CLIP BRKT
M8X25 FLANGE
|
0-28680-825-0 |
05 |
1 |
0107-0107 |
● |
|
| |
173 |
BOLT; CLIP BRKT
EXC. FRAME EQUIPMENT HEAVY DUTY(F03)
M8X25 FLANGE
|
0-28680-825-0 |
05 |
1 |
0107-0107 |
|
● |
| |
173 |
BOLT; CLIP BRKT
M8X25 FLANGE
|
0-28680-825-0 |
05 |
1 |
0107-0210 |
● |
|
| |
173 |
BOLT; CLIP BRKT
M8X25 FLANGE
|
0-28680-825-0 |
05 |
1 |
0107-0210 |
● |
|
| |
173 |
BOLT; CLIP BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X25 FLANGE
|
0-28680-825-0 |
05 |
1 |
0107-0210 |
|
● |
| |
173 |
BOLT; CLIP BRKT
EXC. FRAME EQUIPMENT HEAVY DUTY(F03)
M8X25 FLANGE
|
0-28680-825-0 |
05 |
1 |
0107-0210 |
|
● |
| |
173 |
BOLT; CLIP BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X25 FLANGE
|
0-28680-825-0 |
05 |
1 |
0211-0512 |
|
● |
| |
173 |
BOLT; CLIP BRKT
EXC. FRAME EQUIPMENT HEAVY DUTY(F03)
M8X25 FLANGE
|
0-28680-825-0 |
05 |
1 |
0211-0512 |
|
● |
| |
173 |
BOLT; CLIP BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X25 FLANGE
|
0-28650-825-0 |
05 |
1 |
0601- |
|
● |
| |
173 |
BOLT; CLIP BRKT
EXC. FRAME EQUIPMENT HEAVY DUTY(F03)
M8X25 FLANGE
|
0-28650-825-0 |
05 |
1 |
0601- |
|
● |
| |
173 |
BOLT; CLIP BRKT
M10X16 FLANGE
|
0-28181-016-0 |
02 |
1 |
9510-9802 |
● |
● |
| |
173 |
BOLT; CLIP BRKT
M10X16 FLANGE
|
0-28081-016-0 |
02 |
1 |
9803-9806 |
● |
● |
| |
173 |
BOLT; CLIP BRKT
M10X16 FLANGE
|
0-28181-016-0 |
02 |
1 |
9807-0106 |
● |
● |
| |
173 |
BOLT; CLIP BRKT
M10X16 FLANGE
|
0-28181-016-0 |
02 |
1 |
0107-0210 |
● |
|
| |
173 |
BOLT; CLIP BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M10X16 FLANGE
|
0-28181-016-0 |
02 |
1 |
0107-0210 |
|
● |
| |
173 |
BOLT; CLIP BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M10X16 FLANGE
|
0-28181-016-0 |
02 |
1 |
0211-0512 |
|
● |
| |
173 |
BOLT; CLIP BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M10X16 FLANGE
|
0-28151-016-0 |
02 |
1 |
0601- |
|
● |
| |
177 |
CLIP; AIR PIPE
ID=10 & 10
|
1-09709-277-1 |
01 |
1 |
9510-9802 |
● |
● |
| |
235 |
CLIP; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
ID=9 & 9 L=17 & 17
|
1-09700-651-0 |
01 |
1 |
9510-9802 |
● |
● |
| |
235 |
CLIP; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. AIR SUSP DRIVER SEAT<A56>
(B)
ID=9 & 9 L=17 & 17
|
1-09700-651-0 |
01 |
1 |
9510-9802 |
● |
● |
| |
235 |
CLIP; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
ID=8 H=20 L=20
|
1-09700-604-0 |
01 |
1 |
9510-9802 |
● |
● |
| |
235 |
CLIP; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
ID=9 & 9 L=17 & 17
|
1-09700-651-0 |
04 |
1 |
9510-9802 |
● |
● |
| |
236 |
NUT; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8
|
9-09110-408-0 |
01 |
1 |
9510-9606 |
● |
● |
| |
236 |
NUT; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9607-9702 |
● |
● |
| |
236 |
NUT; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9703-9802 |
● |
● |
| |
236 |
NUT; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9703-9802 |
● |
● |
| |
242 |
BRACKET; PIPE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47475-427-1 |
03 |
1 |
9510-9802 |
● |
● |
| |
250 |
NUT; PIPE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8
|
9-09110-408-0 |
01 |
1 |
9510-9606 |
● |
|
| |
250 |
NUT; PIPE CLIP
WHEEL BASE 4600MM(46W)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8
|
9-09110-408-0 |
01 |
1 |
9510-9606 |
|
● |
| |
250 |
NUT; PIPE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9607-9802 |
● |
|
| |
250 |
NUT; PIPE CLIP
WHEEL BASE 4600MM(46W)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9607-9802 |
|
● |
| |
250 |
NUT; PIPE CLIP
WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8
|
9-09110-408-0 |
02 |
1 |
9510-9606 |
|
● |
| |
250 |
NUT; PIPE CLIP
WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9607-9802 |
|
● |
| |
250 |
NUT; PIPE CLIP
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8
|
9-09110-408-0 |
03 |
1 |
9510-9606 |
|
● |
| |
250 |
NUT; PIPE CLIP
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
9607-9802 |
|
● |
| |
253 |
CLIP; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
ID=8 H=20 L=20
|
1-09700-604-0 |
03 |
1 |
9510-9802 |
● |
● |
| |
253 |
CLIP; AIR PIPE
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
ID=8 H=20 L=20
|
1-09700-604-0 |
03 |
1 |
9510-9802 |
|
● |
| |
253 |
CLIP; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
ID=8 H=20 L=20
|
1-09700-604-0 |
01 |
1 |
9510-9802 |
● |
|
| |
253 |
CLIP; AIR PIPE
WHEEL BASE 4600MM(46W)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
ID=8 H=20 L=20
|
1-09700-604-0 |
01 |
1 |
9510-9802 |
|
● |
| |
253 |
CLIP; AIR PIPE
WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
ID=8 H=20 L=20
|
1-09700-604-0 |
02 |
1 |
9510-9802 |
|
● |
| |
254 |
BOLT; PIPE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X25 FLANGE
|
0-28080-825-0 |
01 |
1 |
9510-9606 |
● |
|
| |
254 |
BOLT; PIPE CLIP
WHEEL BASE 4600MM(46W)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X25 FLANGE
|
0-28080-825-0 |
01 |
1 |
9510-9606 |
|
● |
| |
254 |
BOLT; PIPE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X30 FLANGE
|
0-28680-830-0 |
01 |
1 |
9607-9802 |
● |
|
| |
254 |
BOLT; PIPE CLIP
WHEEL BASE 4600MM(46W)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X30 FLANGE
|
0-28680-830-0 |
01 |
1 |
9607-9802 |
|
● |
| |
254 |
BOLT; PIPE CLIP
WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X25 FLANGE
|
0-28080-825-0 |
02 |
1 |
9510-9606 |
|
● |
| |
254 |
BOLT; PIPE CLIP
WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
9607-9802 |
|
● |
| |
254 |
BOLT; PIPE CLIP
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X25 FLANGE
|
0-28080-825-0 |
03 |
1 |
9510-9606 |
|
● |
| |
254 |
BOLT; PIPE CLIP
WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X30 FLANGE
|
0-28680-830-0 |
03 |
1 |
9607-9802 |
|
● |
| |
258 |
NUT; PIPE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8
|
9-09110-408-0 |
03 |
1 |
9510-9606 |
● |
● |
| |
258 |
NUT; PIPE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
9607-9802 |
● |
● |
| |
271 |
CLIP; AIR PIPE FIX
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
ID=9
|
9-09524-872-0 |
01 |
1 |
9510-9802 |
● |
● |
| |
271 |
CLIP; AIR PIPE FIX
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
ID=9
|
9-09524-872-0 |
01 |
1 |
9803-0106 |
● |
● |
| |
271 |
CLIP; AIR PIPE FIX
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
ID=9
|
9-09524-872-0 |
01 |
1 |
0107- |
● |
● |
| |
274 |
CLIP; AIR PIPE
ID=6.35 & 6.35
|
1-09709-273-1 |
01 |
1 |
9510-9802 |
● |
● |
| |
274 |
CLIP; AIR PIPE
ID=6.35 & 10.0
|
1-09709-274-1 |
02 |
1 |
9510-9802 |
● |
● |
| |
278 |
NUT; CLIP,AIR PIPE
M8
|
9-09110-408-0 |
02 |
1 |
9510-9606 |
● |
● |
| |
278 |
NUT; CLIP,AIR PIPE
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9607-9802 |
● |
● |
| |
280 |
CLIP; AIR PIPE
ID=7 & 9 L=17.5 & 17.5
|
1-09700-746-0 |
01 |
1 |
9510-9802 |
● |
● |
| |
283 |
NUT; CLIP
AIR SUSP DRIVER SEAT<A56>
M8
|
9-09110-408-0 |
04 |
1 |
9510-9606 |
● |
● |
| |
283 |
NUT; CLIP
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2>
M8
|
9-09110-408-0 |
04 |
1 |
9510-9606 |
● |
● |
| |
283 |
NUT; CLIP
AIR SUSP DRIVER SEAT<A56>
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
9607-9802 |
● |
● |
| |
283 |
NUT; CLIP
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2>
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
9607-9802 |
● |
● |
| |
287 |
CLIP; AIR PIPE
ID=6.35 & 15
|
1-09709-276-1 |
01 |
1 |
9904-0106 |
● |
● |
| |
287 |
CLIP; AIR PIPE
ID=6.35 & 15
|
1-09709-276-1 |
01 |
1 |
0107-0210 |
● |
|
| |
287 |
CLIP; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
ID=6.35 & 15
|
1-09709-276-1 |
01 |
1 |
0107-0210 |
|
● |
| |
287 |
CLIP; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
ID=6.35 & 15
|
1-09709-276-1 |
01 |
1 |
0211- |
|
● |
| |
288 |
BOLT; CLIP,AIR PIPE
M8X20 FLANGE
|
0-28080-820-0 |
02 |
1 |
9510-9606 |
● |
● |
| |
288 |
BOLT; CLIP,AIR PIPE
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9607-9712 |
● |
● |
| |
288 |
BOLT; CLIP,AIR PIPE
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
9801-0210 |
● |
● |
| |
288 |
BOLT; CLIP,AIR PIPE
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
0211-0512 |
|
● |
| |
288 |
BOLT; CLIP,AIR PIPE
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
0601- |
|
● |
| |
290 |
NUT; CLIP,AIR PIPE
M8
|
9-09110-408-0 |
02 |
1 |
9510-9606 |
● |
● |
| |
290 |
NUT; CLIP,AIR PIPE
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9607-0210 |
● |
● |
| |
290 |
NUT; CLIP,AIR PIPE
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0211-0602 |
|
● |
| |
290 |
NUT; CLIP,AIR PIPE
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
|
● |
| |
292 |
CLIP; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
AIR DRYER<PS7>
ID=6.35 & 15
|
1-09709-276-1 |
01 |
1 |
0107-0109 |
|
● |
| |
292 |
CLIP; AIR PIPE
AIR DRYER<PS7>
ID=6.35 & 15
|
1-09709-276-1 |
01 |
1 |
0110-0210 |
● |
|
| |
292 |
CLIP; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
AIR DRYER<PS7>
ID=6.35 & 15
|
1-09709-276-1 |
01 |
1 |
0110-0210 |
|
● |
| |
292 |
CLIP; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
AIR DRYER<PS7>
ID=6.35 & 15
|
1-09709-276-1 |
01 |
1 |
0211- |
|
● |
| |
298 |
BOLT; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X40 FLANGE
|
0-28080-840-0 |
03 |
1 |
9510-9606 |
● |
● |
| |
298 |
BOLT; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X45 FLANGE
|
0-28080-845-0 |
03 |
1 |
9607-9802 |
● |
● |
| |
298 |
BOLT; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M8X16 FLANGE
|
0-28080-816-0 |
01 |
1 |
9510-9802 |
● |
● |
| |
298 |
BOLT; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
EXC. AIR SUSP DRIVER SEAT<A56>
M8X16 FLANGE
|
0-28080-816-0 |
01 |
1 |
9510-9802 |
● |
● |
| |
311 |
CLIP; AIR PIPE
AIR SUSP DRIVER SEAT<A56>
(A)
ID=6 H=20 L=20
|
1-09700-603-0 |
04 |
1 |
9510-9802 |
● |
● |
| |
311 |
CLIP; AIR PIPE
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2>
(A)
ID=6 H=20 L=20
|
1-09700-603-0 |
04 |
1 |
9510-9802 |
● |
● |
| |
311 |
CLIP; AIR PIPE
AIR SUSP DRIVER SEAT<A56>
(B)
ID=7 & 9 L=17.5 & 17.5
|
1-09700-746-0 |
01 |
1 |
9510-9802 |
● |
● |
| |
311 |
CLIP; AIR PIPE
EXC. AIR SUSP DRIVER SEAT<A56>,DUAL AIR GAUGE<UG2>
(B)
ID=7 & 9 L=17.5 & 17.5
|
1-09700-746-0 |
01 |
1 |
9510-9802 |
● |
● |
| |
316 |
BOLT; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M6X12 W/LK WASHER
|
0-50040-612-0 |
01 |
1 |
9510-9802 |
● |
● |
| |
316 |
BOLT; CLIP
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M6X12 W/LK WASHER
|
0-50040-612-0 |
01 |
1 |
9803-0106 |
● |
● |
| |
316 |
BOLT; CLIP
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M6X12 W/LK WASHER
|
0-50040-612-0 |
01 |
1 |
0107-0210 |
● |
● |
| |
316 |
BOLT; CLIP
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M6X12 W/LK WASHER
|
0-50040-612-0 |
01 |
1 |
0211-0512 |
|
● |
| |
316 |
BOLT; CLIP
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M6X12 W/LK WASHER
|
0-50540-612-0 |
01 |
1 |
0601- |
|
● |
| |
318 |
CLIP; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
AIR DRYER<PS7>
ID=6.35 & 15
|
1-09709-276-1 |
01 |
1 |
0107-0109 |
|
● |
| |
318 |
CLIP; AIR PIPE
AIR DRYER<PS7>
ID=6.35 & 15
|
1-09709-276-1 |
01 |
1 |
0110-0210 |
● |
|
| |
318 |
CLIP; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
AIR DRYER<PS7>
ID=6.35 & 15
|
1-09709-276-1 |
01 |
1 |
0110-0210 |
|
● |
| |
318 |
CLIP; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
AIR DRYER<PS7>
ID=6.35 & 15
|
1-09709-276-1 |
01 |
1 |
0211- |
|
● |
| |
318 |
CLIP; AIR PIPE
ID=6.35 & 10.0
|
1-09709-274-1 |
01 |
1 |
9510-9903 |
● |
● |
| |
318 |
CLIP; AIR PIPE
ID=6.35 & 6.35
|
1-09709-273-1 |
01 |
1 |
9904-0106 |
● |
● |
| |
318 |
CLIP; AIR PIPE
ID=6.35 & 6.35
|
1-09709-273-1 |
01 |
1 |
0107-0210 |
● |
|
| |
318 |
CLIP; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
ID=6.35 & 6.35
|
1-09709-273-1 |
01 |
1 |
0107-0210 |
|
● |
| |
318 |
CLIP; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
ID=6.35 & 6.35
|
1-09709-273-1 |
01 |
1 |
0211- |
|
● |
| |
318 |
CLIP; AIR PIPE
ID=6.35 & 15
|
1-09709-276-1 |
03 |
1 |
9510-9903 |
● |
● |
| |
318 |
CLIP; AIR PIPE
ID=6.35 & 15
|
1-09709-276-1 |
02 |
1 |
9904-0106 |
● |
● |
| |
318 |
CLIP; AIR PIPE
ID=6.35 & 15
|
1-09709-276-1 |
02 |
1 |
0107-0109 |
● |
|
| |
318 |
CLIP; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. AIR DRYER<PS7>
ID=6.35 & 15
|
1-09709-276-1 |
02 |
1 |
0107-0109 |
|
● |
| |
318 |
CLIP; AIR PIPE
EXC. AIR DRYER<PS7>
ID=6.35 & 15
|
1-09709-276-1 |
02 |
1 |
0110-0210 |
● |
|
| |
318 |
CLIP; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. AIR DRYER<PS7>
ID=6.35 & 15
|
1-09709-276-1 |
02 |
1 |
0110-0210 |
|
● |
| |
318 |
CLIP; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. AIR DRYER<PS7>
ID=6.35 & 15
|
1-09709-276-1 |
02 |
1 |
0211- |
|
● |
| |
361 |
CLIP; FLEX HOSE,AIR PRESS GAGE
DUAL AIR GAUGE<UG2>
L=140
|
5-09707-031-1 |
01 |
1 |
9510-0210 |
● |
● |
| |
361 |
CLIP; FLEX HOSE,AIR PRESS GAGE
DUAL AIR GAUGE<UG2>
L=140
|
5-09707-031-1 |
01 |
1 |
0211- |
|
● |
| |
367 |
BRACKET ASM
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5000MM(50W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-47475-427-1 |
02 |
1 |
0107- |
|
● |
| |
367 |
BRACKET ASM
|
1-47475-427-1 |
01 |
1 |
9510-9702 |
● |
● |
| |
367 |
BRACKET ASM
|
1-47475-427-1 |
01 |
1 |
9703-9802 |
● |
● |
| |
367 |
BRACKET ASM
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47475-427-1 |
01 |
1 |
9703-9802 |
● |
● |
| |
367 |
BRACKET ASM
|
1-47475-427-1 |
01 |
1 |
9803-0106 |
● |
● |
| |
367 |
BRACKET ASM
|
1-47475-427-1 |
01 |
1 |
0107-0109 |
● |
|
| |
367 |
BRACKET ASM
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. AIR DRYER<PS7>
|
1-47475-427-1 |
01 |
1 |
0107-0109 |
|
● |
| |
367 |
BRACKET ASM
EXC. AIR DRYER<PS7>
|
1-47475-427-1 |
01 |
1 |
0110-0210 |
● |
|
| |
367 |
BRACKET ASM
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. AIR DRYER<PS7>
|
1-47475-427-1 |
01 |
1 |
0110-0210 |
|
● |
| |
367 |
BRACKET ASM
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. AIR DRYER<PS7>
|
1-47475-427-1 |
01 |
1 |
0211- |
|
● |
| |
375 |
CLIP; AIR PIPE
ID=13 H=75 L=25
|
1-09700-601-0 |
01 |
1 |
0005-0009 |
|
● |
| |
375 |
CLIP; AIR PIPE
DUAL AIR GAUGE<UG2>
EXC. AIR SUSP DRIVER SEAT<A56>
L=250
|
1-09707-126-0 |
01 |
1 |
0010-0010 |
● |
● |
| |
375 |
CLIP; AIR PIPE
L=250
|
1-09707-126-0 |
01 |
1 |
0010-0010 |
|
● |
| |
375 |
CLIP; AIR PIPE
DUAL AIR GAUGE<UG2>
EXC. AIR SUSP DRIVER SEAT<A56>
L=250
|
1-09707-126-0 |
01 |
1 |
0011-0106 |
● |
● |
| |
375 |
CLIP; AIR PIPE
L=250
|
1-09707-126-0 |
01 |
1 |
0011-0106 |
● |
● |
| |
375 |
CLIP; AIR PIPE
L=250
|
1-09707-126-0 |
01 |
1 |
0107-0210 |
● |
● |
| |
375 |
CLIP; AIR PIPE
DUAL AIR GAUGE<UG2>
EXC. AIR SUSP DRIVER SEAT<A56>
L=250
|
1-09707-126-0 |
01 |
1 |
0107-0210 |
● |
|
| |
375 |
CLIP; AIR PIPE
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5000MM(50W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AIR SUSP DRIVER SEAT<A56>,PTO CONTROL<SV6>
L=250
|
1-09707-126-0 |
01 |
1 |
0107-0210 |
|
● |
| |
375 |
CLIP; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
DUAL AIR GAUGE<UG2>
EXC. AIR SUSP DRIVER SEAT<A56>
L=250
|
1-09707-126-0 |
01 |
1 |
0107-0210 |
|
● |
| |
375 |
CLIP; AIR PIPE
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5000MM(50W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AIR SUSP DRIVER SEAT<A56>,PTO CONTROL<SV6>
L=250
|
1-09707-126-0 |
01 |
1 |
0211- |
|
● |
| |
375 |
CLIP; AIR PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
DUAL AIR GAUGE<UG2>
EXC. AIR SUSP DRIVER SEAT<A56>
L=250
|
1-09707-126-0 |
01 |
1 |
0211- |
|
● |
| |
375 |
CLIP; AIR PIPE
L=250
|
1-09707-126-0 |
01 |
1 |
0211- |
|
● |
| |
376 |
BOLT; BRKT
(D)
M8X30 FLANGE
|
0-28680-830-0 |
01 |
1 |
0010-0010 |
|
● |
| |
376 |
BOLT; BRKT
(D)
M8X30 FLANGE
|
0-28680-830-0 |
01 |
1 |
0011-0210 |
● |
● |
| |
376 |
BOLT; BRKT
(D)
M8X30 FLANGE
|
0-28680-830-0 |
01 |
1 |
0211-0512 |
|
● |
| |
376 |
BOLT; BRKT
(D)
M8X30 FLANGE
|
0-28650-830-0 |
01 |
1 |
0601- |
|
● |
| |
376 |
BOLT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5000MM(50W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(C)
M8X45 FLANGE
|
0-28080-845-0 |
02 |
1 |
0107-0512 |
|
● |
| |
376 |
BOLT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W),
WHEEL BASE 5000MM(50W)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(C)
M8X45 FLANGE
|
0-28050-845-0 |
02 |
1 |
0601- |
|
● |
| |
376 |
BOLT; BRKT
DUAL AIR GAUGE<UG2>
(A)
M6X19.5 W/LK&PL WASHER
|
8-94279-201-0 |
02 |
1 |
9510-0210 |
● |
● |
| |
376 |
BOLT; BRKT
DUAL AIR GAUGE<UG2>
(A)
M6X19.5 W/LK&PL WASHER
|
8-94279-201-0 |
02 |
1 |
0211- |
|
● |
| |
376 |
BOLT; BRKT
(A)
M6X19.5 W/LK&PL WASHER
|
8-94279-201-0 |
03 |
1 |
9510-0210 |
● |
● |
| |
376 |
BOLT; BRKT
(A)
M6X19.5 W/LK&PL WASHER
|
8-94279-201-0 |
03 |
1 |
0211- |
|
● |
| |
376 |
BOLT; BRKT
(C)
M8X40 FLANGE
|
0-28080-840-0 |
01 |
1 |
9510-9606 |
● |
● |
| |
376 |
BOLT; BRKT
(C)
M8X45 FLANGE
|
0-28080-845-0 |
01 |
1 |
9607-0106 |
● |
● |
| |
376 |
BOLT; BRKT
(C)
M8X45 FLANGE
|
0-28080-845-0 |
01 |
1 |
0107-0109 |
● |
|
| |
376 |
BOLT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. AIR DRYER<PS7>
(C)
M8X45 FLANGE
|
0-28080-845-0 |
01 |
1 |
0107-0109 |
|
● |
| |
376 |
BOLT; BRKT
EXC. AIR DRYER<PS7>
(C)
M8X45 FLANGE
|
0-28080-845-0 |
01 |
1 |
0110-0210 |
● |
|
| |
376 |
BOLT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. AIR DRYER<PS7>
(C)
M8X45 FLANGE
|
0-28080-845-0 |
01 |
1 |
0110-0210 |
|
● |
| |
376 |
BOLT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. AIR DRYER<PS7>
(C)
M8X45 FLANGE
|
0-28080-845-0 |
01 |
1 |
0211-0512 |
|
● |
| |
376 |
BOLT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. AIR DRYER<PS7>
(C)
M8X45 FLANGE
|
0-28050-845-0 |
01 |
1 |
0601- |
|
● |
| |
376 |
BOLT; BRKT
(B)
M8X24.5 W/LK&PL WASHER
|
8-94279-208-0 |
01 |
1 |
9510-0210 |
● |
● |
| |
376 |
BOLT; BRKT
(B)
M8X24.5 W/LK&PL WASHER
|
8-94279-208-0 |
01 |
1 |
0211-0904 |
|
● |
| |
376 |
BOLT; BRKT
(B)
M8X24.5 W/LK&PL WASHER
|
8-98059-720-0 |
01 |
1 |
0905- |
|
● |
| |
393 |
NUT; UNION
M8
|
9-09110-408-0 |
02 |
1 |
9510-9606 |
● |
● |
| |
393 |
NUT; UNION
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9607-9903 |
● |
● |
| |
393 |
NUT; UNION
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
9904-0106 |
● |
● |
| |
393 |
NUT; UNION
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
0107-0210 |
● |
|
| |
393 |
NUT; UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
0107-0210 |
|
● |
| |
393 |
NUT; UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
0211-0602 |
|
● |
| |
393 |
NUT; UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8 FLANGE
|
0-91180-108-0 |
03 |
1 |
0603- |
|
● |
