Sayfa 3-77 - Isuzu EPC

3-77 — BRAKE PIPING; AIR,REAR (#60041) — 428 parça

118 87 192 102 96 102 96 98 278 97 37 192 91 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
37	UNION; AIR PIPE (B)	1-09660-807-2	01	1	9510-9802	●	●
37	UNION; AIR PIPE (A) M16 ELBOW	9-09235-210-1	02	1	9510-9802	●	●
87	PIPE; AIR,AIR TANK TO UNION	1-49116-276-0	01	1	9510-9802	●	●
91	NUT; PIPE UNION M16	9-99111-416-0	02	1	9510-9802	●	●
96	PIPE; AIR,UNION TO UNION L=2919 SERVICED BY L=3300	1-47426-426-0	01	1	9510-9605	●	●
96	PIPE; AIR,UNION TO UNION L=2919 SERVICED BY L=3300	1-47426-426-0	01	1	9606-9802	●	●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14 & M16 STRAIGHT	1-09654-316-1	01	1	9510-9802	●	●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	9510-9802	●	●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	1-09660-913-1	02	1	9510-9802	●	●
97	UNION; AIR PIPE (A)	1-09660-807-2	01	1	9510-9802	●	●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M14 STRAIGHT	9-09223-008-1	01	1	9510-9802	●	●
98	NUT; PIPE UNION M16	9-99111-416-0	01	1	9510-9802	●	●
102	PIPE; AIR,UNION TO UNION L=2641 SERVICED BY L=2900	1-47426-425-0	01	1	9510-9605	●	●
102	PIPE; AIR,UNION TO UNION L=2641 SERVICED BY L=2900	1-47426-425-0	01	1	9606-9802	●	●
118	PIPE; AIR,UNION TO AIR MASTER	1-49114-892-0	01	1	9510-9802	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	9510-	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	9510-	●	●
192	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	9510-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	9510-	●	●
278	NUT; UNION M16	9-99111-416-0	01	1	9510-9802	●	●

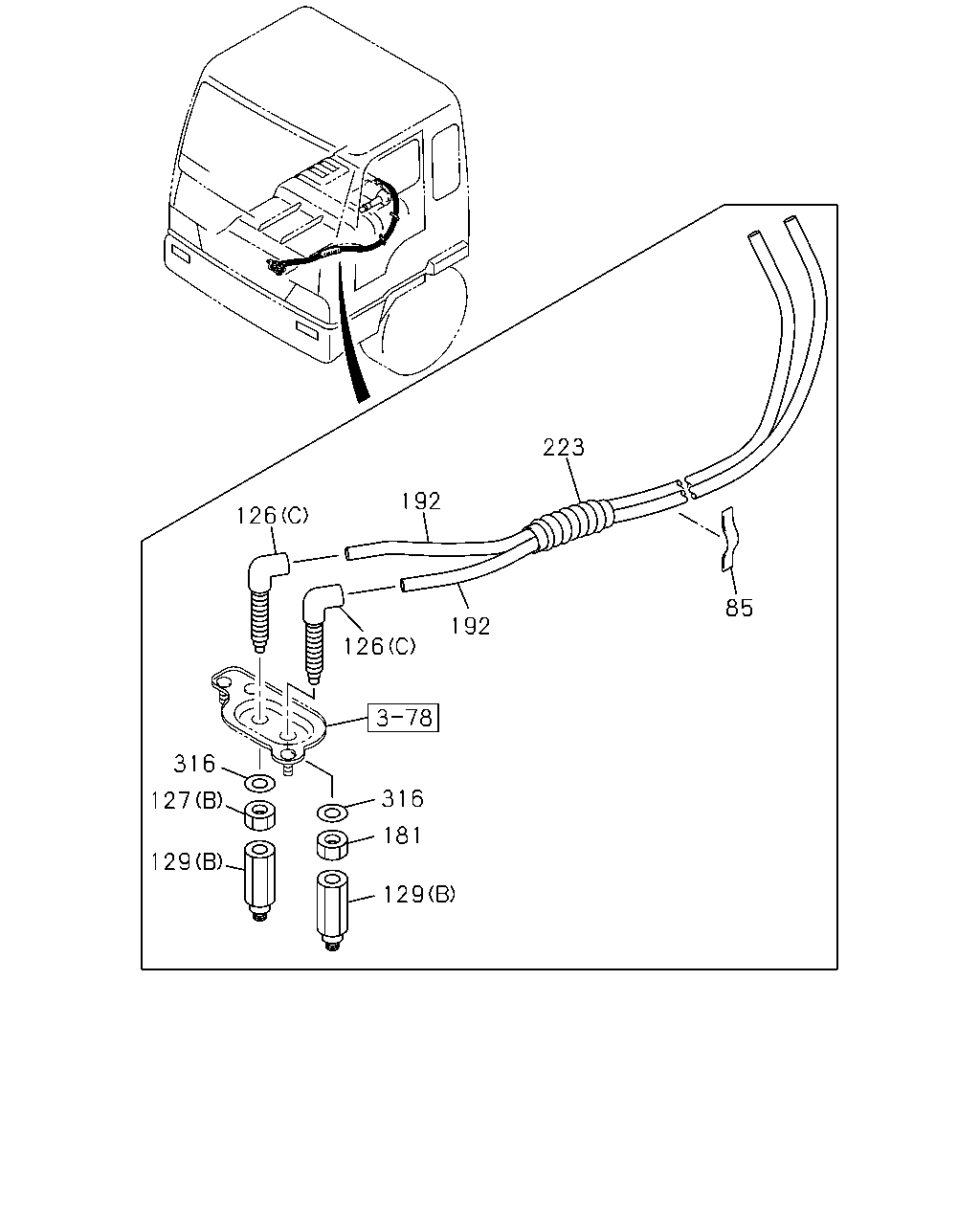

223 192 126 85 192 126 316 316 127 181 129 129

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
85	GASKET; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 100X30	1-72498-014-1	05	1	9510-9903	●	●
85	GASKET; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 100X40	1-72498-022-1	05	1	9904-0210	●	●
85	GASKET; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 100X40	1-72498-022-1	05	1	0211-		●
126	UNION; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & M20 ELBOW	1-09661-015-0	02	1	0708-		●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & M20 ELBOW	1-09661-015-0	01	1	9803-0004	●	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & M20 ELBOW	1-09661-015-0	01	1	9803-0004	●	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	0005-0106	●	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	0107-0210	●
126	UNION; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	0107-0210		●
126	UNION; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	0211-		●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-09660-743-0	02	1	9510-9802	●	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	9803-0106	●	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0107-0210	●
126	UNION; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0107-0210		●
126	UNION; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0211-		●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN8 R1/4 STRAIGHT	1-09660-647-1	02	1	9510-9802	●	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN12 RC3/8 & M8 3WAY	1-09660-758-1	01	1	9803-0004	●	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & M20 ELBOW	1-09661-015-0	02	1	0005-0210	●	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & M20 ELBOW	1-09661-015-0	02	1	0211-0706		●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & M20 ELBOW	8-98078-117-0	02	1	0707-0707		●
126	UNION; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & M20 ELBOW	8-98078-117-0	02	1	0708-		●
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14	9-99111-414-0	02	1	9510-9802	●	●
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M20	9-99111-420-0	01	1	9803-0210	●	●
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M20	9-99111-420-0	01	1	0211-0512		●
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M20	0-91111-520-0	01	1	0601-		●
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M18	9-99111-418-0	01	1	9510-9802	●	●
129	CONNECTOR; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN8 & M20 STRAIGHT	1-09661-381-0	02	1	0107-0706		●
129	CONNECTOR; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0107-		●
129	CONNECTOR; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0107-		●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	9812-0004	●	●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	9812-0004	●	●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT	1-09661-097-0	02	1	0005-0007	●	●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0008-0106	●	●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0107-0210	●
129	CONNECTOR; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0107-0210		●
129	CONNECTOR; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0211-		●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	9803-0004	●	●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	9803-0004	●	●
129	CONNECTOR; NYLON TUBE (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9803-0007	●	●
129	CONNECTOR; NYLON TUBE (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-0106	●	●
129	CONNECTOR; NYLON TUBE (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-0106	●	●
129	CONNECTOR; NYLON TUBE (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0107-0210	●	●
129	CONNECTOR; NYLON TUBE (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0107-0210	●
129	CONNECTOR; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0107-0210		●
129	CONNECTOR; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0211-		●
129	CONNECTOR; NYLON TUBE (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0211-		●
129	CONNECTOR; NYLON TUBE (A)	1-09660-728-1	01	1	9510-9512	●	●
129	CONNECTOR; NYLON TUBE (A)	1-09660-728-1	01	1	9601-9802	●	●
129	CONNECTOR; NYLON TUBE (A)	1-09660-728-1	01	1	9601-9802	●	●
129	CONNECTOR; NYLON TUBE (A)	1-09660-728-1	01	1	9803-9811	●	●
129	CONNECTOR; NYLON TUBE (A) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9812-0007	●	●
181	NUT; TUBE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M18	9-99111-418-0	01	1	9510-9802	●	●
181	NUT; TUBE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20	9-99111-420-0	01	1	9803-0210	●	●
181	NUT; TUBE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20	9-99111-420-0	01	1	0211-0512		●
181	NUT; TUBE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20	0-91111-520-0	01	1	0601-		●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	9510-	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	9510-	●	●
192	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	9510-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	9510-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	9510-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	9510-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	9510-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	AR	1	9510-	●	●
316	WASHER; PL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=21	9-09160-520-0	02	1	9804-0210	●	●
316	WASHER; PL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=21	9-09160-520-0	02	1	0211-0605		●
316	WASHER; PL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=21	0-91610-520-0	02	1	0606-		●

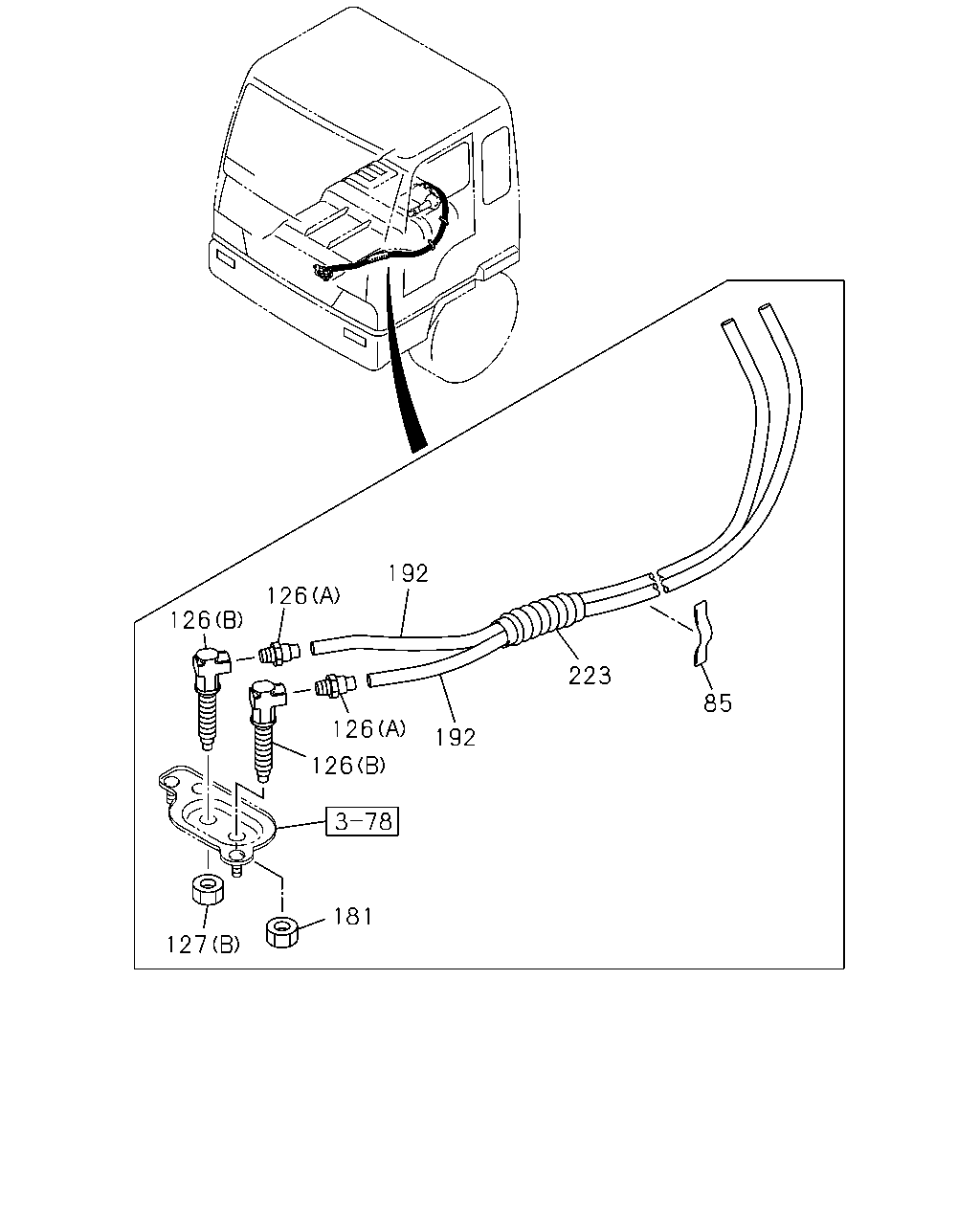

192 126 126 223 85 126 192 126 181 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
85	GASKET; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 100X30	1-72498-014-1	05	1	9510-9903	●	●
85	GASKET; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 100X40	1-72498-022-1	05	1	9904-0210	●	●
85	GASKET; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 100X40	1-72498-022-1	05	1	0211-		●
126	UNION; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & M20 ELBOW	1-09661-015-0	02	1	0708-		●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & M20 ELBOW	1-09661-015-0	01	1	9803-0004	●	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & M20 ELBOW	1-09661-015-0	01	1	9803-0004	●	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	0005-0106	●	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	0107-0210	●
126	UNION; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	0107-0210		●
126	UNION; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	0211-		●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-09660-743-0	02	1	9510-9802	●	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	9803-0106	●	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0107-0210	●
126	UNION; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0107-0210		●
126	UNION; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0211-		●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN8 R1/4 STRAIGHT	1-09660-647-1	02	1	9510-9802	●	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN12 RC3/8 & M8 3WAY	1-09660-758-1	01	1	9803-0004	●	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & M20 ELBOW	1-09661-015-0	02	1	0005-0210	●	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & M20 ELBOW	1-09661-015-0	02	1	0211-0706		●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & M20 ELBOW	8-98078-117-0	02	1	0707-0707		●
126	UNION; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & M20 ELBOW	8-98078-117-0	02	1	0708-		●
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14	9-99111-414-0	02	1	9510-9802	●	●
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M20	9-99111-420-0	01	1	9803-0210	●	●
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M20	9-99111-420-0	01	1	0211-0512		●
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M20	0-91111-520-0	01	1	0601-		●
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M18	9-99111-418-0	01	1	9510-9802	●	●
181	NUT; TUBE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M18	9-99111-418-0	01	1	9510-9802	●	●
181	NUT; TUBE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20	9-99111-420-0	01	1	9803-0210	●	●
181	NUT; TUBE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20	9-99111-420-0	01	1	0211-0512		●
181	NUT; TUBE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20	0-91111-520-0	01	1	0601-		●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	9510-	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	9510-	●	●
192	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	9510-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	9510-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	9510-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	9510-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	9510-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	AR	1	9510-	●	●

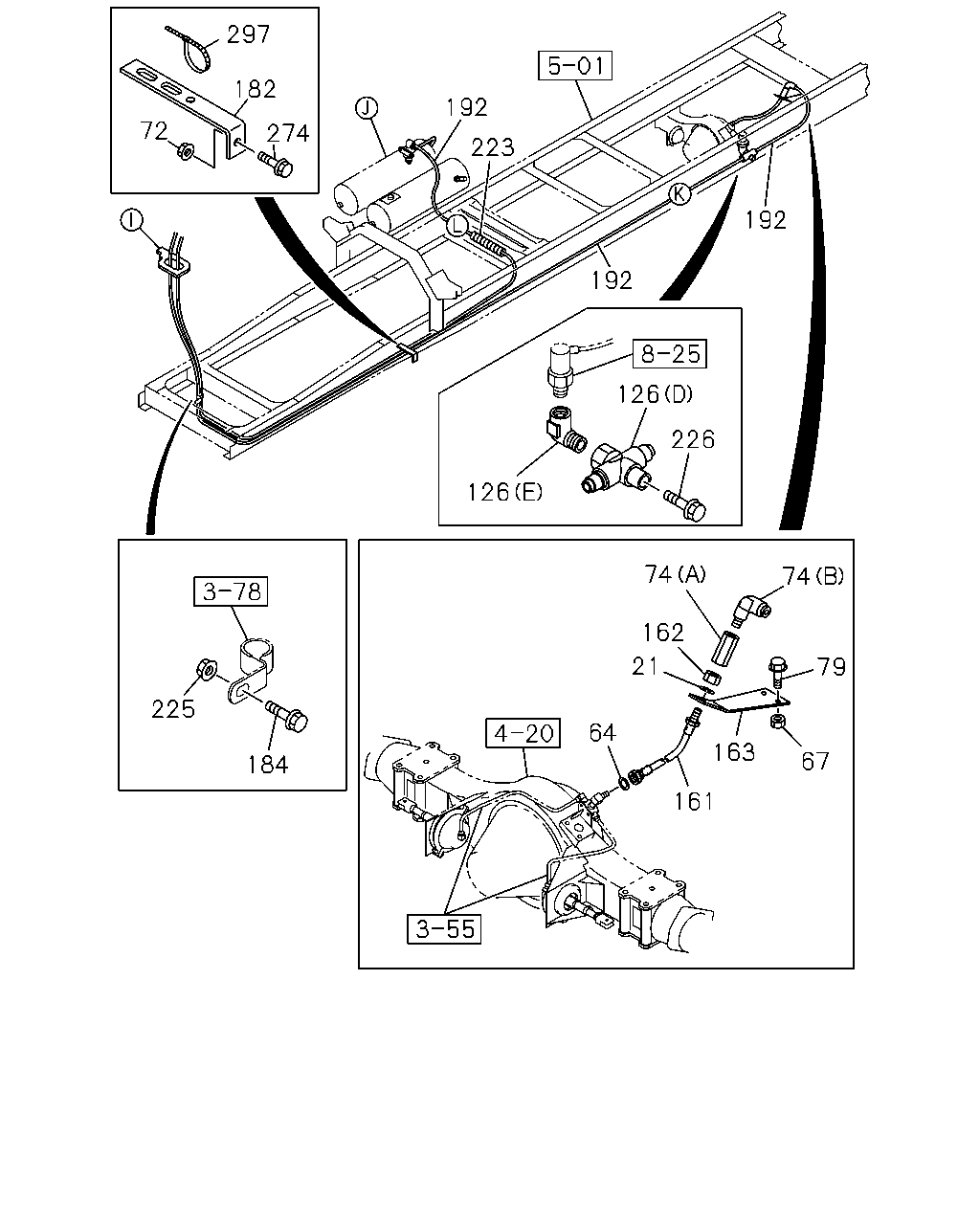

297 182 192 72 274 223 192 192 126 226 126 74 74 162 21 79 225 64 163 67 184 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
21	WASHER; LK,UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	9-09150-514-0	01	1	9510-0106	●	●
21	WASHER; LK,UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	9-09150-514-0	01	1	0107-0210	●
21	WASHER; LK,UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	9-09150-514-0	01	1	0107-0210		●
21	WASHER; LK,UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	9-09150-514-0	01	1	0211-0603		●
21	WASHER; LK,UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	0-91510-514-0	01	1	0604-		●
64	GASKET; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 OD=18	9-09572-510-0	01	1	9510-0106	●	●
64	GASKET; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 OD=18	9-09572-510-0	01	1	0107-0210	●
64	GASKET; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 OD=18	9-09572-510-0	01	1	0107-0210		●
64	GASKET; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 OD=18	9-09572-510-0	01	1	0211-		●
67	NUT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	03	1	0107-0602		●
67	NUT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	03	1	0603-		●
67	NUT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	9510-9606	●	●
67	NUT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	9607-0106	●	●
67	NUT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	0107-0210	●
67	NUT; HOSE BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	0107-0210		●
67	NUT; HOSE BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	0211-0602		●
67	NUT; HOSE BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	0603-		●
72	NUT; BRKT WHEEL BASE 5000MM(50W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	0008-0106		●
72	NUT; BRKT WHEEL BASE 5000MM(50W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	0107-0602		●
72	NUT; BRKT WHEEL BASE 5000MM(50W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	0603-		●
74	ADAPTER; UNION TO NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-09660-881-0	01	1	9803-0106	●	●
74	ADAPTER; UNION TO NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-09660-881-0	01	1	0107-0210	●
74	ADAPTER; UNION TO NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-09660-881-0	01	1	0107-0210		●
74	ADAPTER; UNION TO NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-09660-881-0	01	1	0211-		●
74	ADAPTER; UNION TO NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9803-0106	●	●
74	ADAPTER; UNION TO NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0107-0210	●
74	ADAPTER; UNION TO NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0107-0210		●
74	ADAPTER; UNION TO NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0211-		●
79	BOLT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28680-825-0	03	1	0107-0512		●
79	BOLT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	03	1	0601-		●
79	BOLT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28080-820-0	02	1	9510-9606	●	●
79	BOLT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28680-825-0	02	1	9607-0106	●	●
79	BOLT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28680-825-0	02	1	0107-0210	●
79	BOLT; HOSE BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28680-825-0	02	1	0107-0210		●
79	BOLT; HOSE BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28680-825-0	02	1	0211-0512		●
79	BOLT; HOSE BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
126	UNION; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & M20 ELBOW	1-09661-015-0	02	1	0708-		●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & M20 ELBOW	1-09661-015-0	01	1	9803-0004	●	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & M20 ELBOW	1-09661-015-0	01	1	9803-0004	●	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	0005-0106	●	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	0107-0210	●
126	UNION; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	0107-0210		●
126	UNION; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	0211-		●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-09660-743-0	02	1	9510-9802	●	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	9803-0106	●	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0107-0210	●
126	UNION; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0107-0210		●
126	UNION; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0211-		●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN8 R1/4 STRAIGHT	1-09660-647-1	02	1	9510-9802	●	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN12 RC3/8 & M8 3WAY	1-09660-758-1	01	1	9803-0004	●	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & M20 ELBOW	1-09661-015-0	02	1	0005-0210	●	●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & M20 ELBOW	1-09661-015-0	02	1	0211-0706		●
126	UNION; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & M20 ELBOW	8-98078-117-0	02	1	0707-0707		●
126	UNION; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & M20 ELBOW	8-98078-117-0	02	1	0708-		●
161	HOSE; FLEX,QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=580	0-07462-580-1	01	1	9510-0106	●	●
161	HOSE; FLEX,QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=580	0-07462-580-1	01	1	0107-0210	●
161	HOSE; FLEX,QUICK RELEASE VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=580	0-07462-580-1	01	1	0107-0210		●
161	HOSE; FLEX,QUICK RELEASE VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=580	0-07462-580-1	01	1	0211-0605		●
161	HOSE; FLEX,QUICK RELEASE VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=580	0-57462-580-1	01	1	0606-		●
162	NUT; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99111-414-0	01	1	9510-0106	●	●
162	NUT; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99111-414-0	01	1	0107-0210	●
162	NUT; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99111-414-0	01	1	0107-0210		●
162	NUT; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99111-414-0	01	1	0211-0512		●
162	NUT; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	0-91111-514-0	01	1	0601-		●
163	BRACKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47477-997-1	01	1	0107-		●
163	BRACKET; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47475-464-0	01	1	9510-0106	●	●
163	BRACKET; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47475-464-0	01	1	0107-0210	●
163	BRACKET; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47475-464-0	01	1	0107-0210		●
163	BRACKET; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47475-464-0	01	1	0211-		●
182	BRACKET; TUBE CLIP WHEEL BASE 5000MM(50W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=150 H=30	1-47477-629-2	02	1	0008-0106		●
182	BRACKET; TUBE CLIP WHEEL BASE 5000MM(50W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=150 H=30	1-47477-629-2	02	1	0107-		●
184	BOLT; TUBE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28680-820-0	01	1	9803-0106	●	●
184	BOLT; TUBE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28680-820-0	01	1	0107-0210	●
184	BOLT; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28680-820-0	01	1	0107-0210		●
184	BOLT; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28680-820-0	01	1	0211-0512		●
184	BOLT; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28650-820-0	01	1	0601-		●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	9510-	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	9510-	●	●
192	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	9510-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	9510-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	9510-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	9510-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	9510-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	AR	1	9510-	●	●
225	NUT; TUBE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	01	1	9803-0106	●	●
225	NUT; TUBE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	01	1	0107-0210	●
225	NUT; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	01	1	0107-0210		●
225	NUT; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	01	1	0211-0602		●
225	NUT; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	01	1	0603-		●
226	BOLT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28680-820-0	01	1	9803-0106	●	●
226	BOLT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28680-820-0	01	1	0107-0210	●
226	BOLT; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28680-820-0	01	1	0107-0210		●
226	BOLT; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28680-820-0	01	1	0211-0512		●
226	BOLT; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28650-820-0	01	1	0601-		●
274	BOLT; BRKT WHEEL BASE 5000MM(50W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28680-825-0	02	1	0008-0106		●
274	BOLT; BRKT WHEEL BASE 5000MM(50W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28680-825-0	02	1	0107-0512		●
274	BOLT; BRKT WHEEL BASE 5000MM(50W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
297	CLIP; BAND WHEEL BASE 5000MM(50W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250	1-09707-126-0	02	1	0008-0106		●
297	CLIP; BAND WHEEL BASE 5000MM(50W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250	1-09707-126-0	02	1	0107-		●

254 187 144 29 144 159 31 31 31 144 97 127 60 97 192 127 97 192 159 79 162 21 97 161 19 67 163 64 46 97

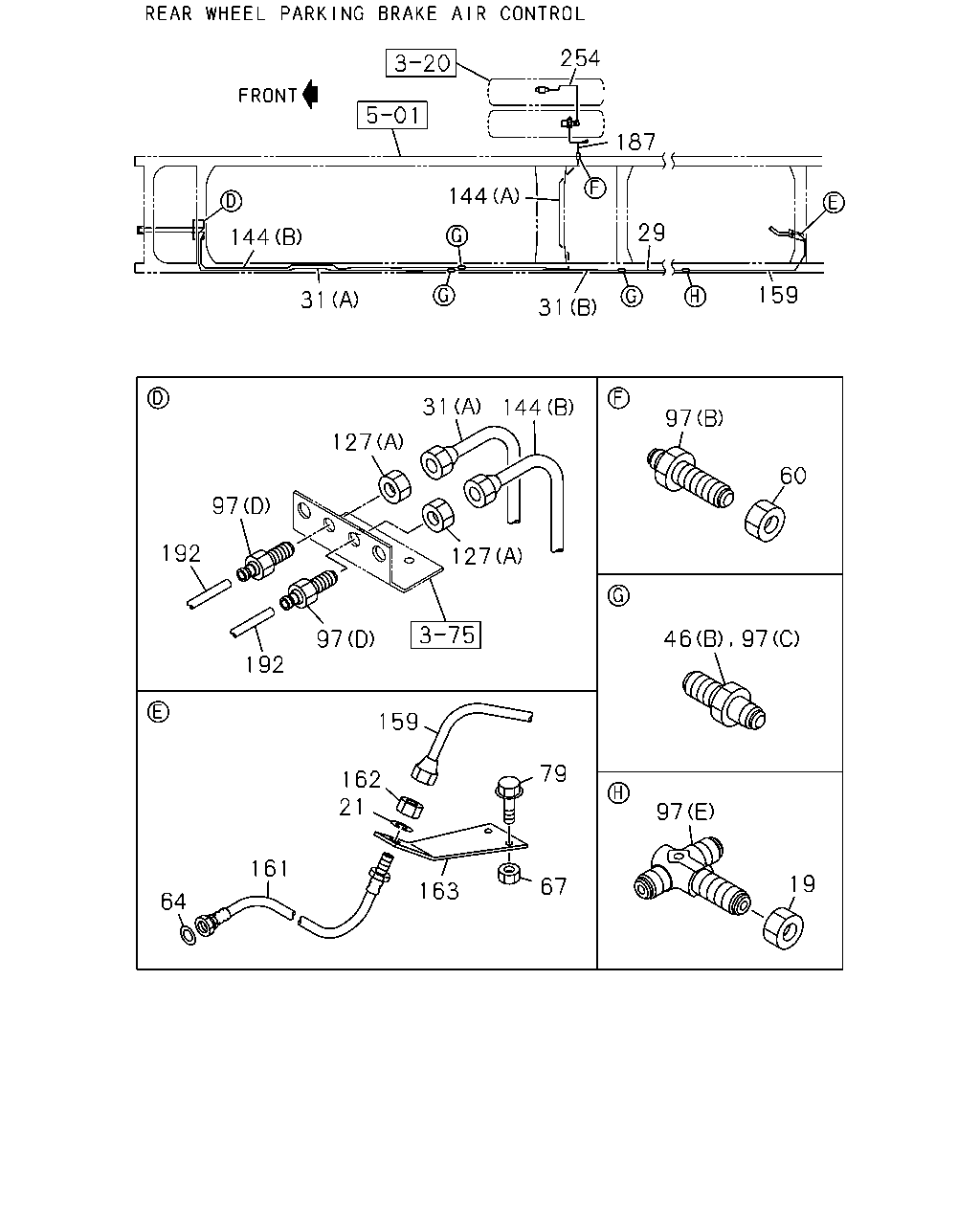

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	NUT; PIPE UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M12	9-99111-412-0	01	1	9510-9802	●	●
21	WASHER; LK,UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	9-09150-514-0	01	1	9510-0106	●	●
21	WASHER; LK,UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	9-09150-514-0	01	1	0107-0210	●
21	WASHER; LK,UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	9-09150-514-0	01	1	0107-0210		●
21	WASHER; LK,UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	9-09150-514-0	01	1	0211-0603		●
21	WASHER; LK,UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	0-91510-514-0	01	1	0604-		●
29	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1477 SERVICED BY L=1550	1-47426-390-0	01	1	9510-9802	●
29	PIPE; AIR,UNION TO UNION WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=2008 SERVICED BY L=2150	1-47426-394-0	01	1	9510-9802		●
29	PIPE; AIR,UNION TO UNION WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1229 SERVICED BY L=1250	1-47426-388-0	01	1	9510-9802		●
31	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=2568 SERVICED BY L=2700	1-47426-396-0	01	1	9510-9802	●	●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 4600MM(46W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1145 SERVICED BY L=1250	1-47426-388-0	01	1	9510-9802		●
31	PIPE; AIR,UNION TO UNION WHEEL BASE 5000MM(50W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1616 SERVICED BY L=1700	1-47426-391-0	01	1	9510-9802		●
46	NIPPLE; AIR PIPE (A)	1-09660-807-1	01	1	9510-9512	●	●
46	NIPPLE; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14 STRAIGHT	9-09223-008-1	01	1	9510-9802	●	●
46	NIPPLE; AIR PIPE WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14 STRAIGHT	9-09223-008-1	01	1	9510-9802		●
60	NUT; NIPPLE,AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16	9-99111-416-0	01	1	9510-9512	●	●
60	NUT; NIPPLE,AIR PIPE M16	9-99111-416-0	01	1	9510-9512	●	●
60	NUT; NIPPLE,AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16	9-99111-416-0	01	1	9601-9802	●	●
64	GASKET; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 OD=18	9-09572-510-0	01	1	9510-0106	●	●
64	GASKET; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 OD=18	9-09572-510-0	01	1	0107-0210	●
64	GASKET; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 OD=18	9-09572-510-0	01	1	0107-0210		●
64	GASKET; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 OD=18	9-09572-510-0	01	1	0211-		●
67	NUT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	03	1	0107-0602		●
67	NUT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	03	1	0603-		●
67	NUT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	9510-9606	●	●
67	NUT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	9607-0106	●	●
67	NUT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	0107-0210	●
67	NUT; HOSE BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	0107-0210		●
67	NUT; HOSE BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	0211-0602		●
67	NUT; HOSE BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	0603-		●
79	BOLT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28680-825-0	03	1	0107-0512		●
79	BOLT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	03	1	0601-		●
79	BOLT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28080-820-0	02	1	9510-9606	●	●
79	BOLT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28680-825-0	02	1	9607-0106	●	●
79	BOLT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28680-825-0	02	1	0107-0210	●
79	BOLT; HOSE BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28680-825-0	02	1	0107-0210		●
79	BOLT; HOSE BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28680-825-0	02	1	0211-0512		●
79	BOLT; HOSE BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14 & M16 STRAIGHT	1-09654-316-1	01	1	9510-9802	●	●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	9510-9802	●	●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	1-09660-913-1	02	1	9510-9802	●	●
97	UNION; AIR PIPE (A)	1-09660-807-2	01	1	9510-9802	●	●
97	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M14 STRAIGHT	9-09223-008-1	01	1	9510-9802	●	●
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14	9-99111-414-0	02	1	9510-9802	●	●
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M20	9-99111-420-0	01	1	9803-0210	●	●
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M20	9-99111-420-0	01	1	0211-0512		●
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M20	0-91111-520-0	01	1	0601-		●
127	NUT; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M18	9-99111-418-0	01	1	9510-9802	●	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=1528 SERVICED BY L=1550	1-47426-390-0	01	1	9510-9802	●	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=2551 SERVICED BY L=3300	1-47426-398-0	01	1	9510-9605	●	●
144	PIPE; AIR,UNION TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=2551 SERVICED BY L=2700	1-47426-396-0	01	1	9606-9802	●	●
159	PIPE; AIR,UNION TO FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1945 SERVICED BY L=1950	1-47426-393-0	01	1	9510-9802	●	●
161	HOSE; FLEX,QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=580	0-07462-580-1	01	1	9510-0106	●	●
161	HOSE; FLEX,QUICK RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=580	0-07462-580-1	01	1	0107-0210	●
161	HOSE; FLEX,QUICK RELEASE VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=580	0-07462-580-1	01	1	0107-0210		●
161	HOSE; FLEX,QUICK RELEASE VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=580	0-07462-580-1	01	1	0211-0605		●
161	HOSE; FLEX,QUICK RELEASE VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=580	0-57462-580-1	01	1	0606-		●
162	NUT; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99111-414-0	01	1	9510-0106	●	●
162	NUT; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99111-414-0	01	1	0107-0210	●
162	NUT; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99111-414-0	01	1	0107-0210		●
162	NUT; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	9-99111-414-0	01	1	0211-0512		●
162	NUT; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14	0-91111-514-0	01	1	0601-		●
163	BRACKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47477-997-1	01	1	0107-		●
163	BRACKET; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47475-464-0	01	1	9510-0106	●	●
163	BRACKET; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47475-464-0	01	1	0107-0210	●
163	BRACKET; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47475-464-0	01	1	0107-0210		●
163	BRACKET; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47475-464-0	01	1	0211-		●
187	PIPE; AIR,AIR VLV TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-49114-899-0	01	1	9510-9802	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	9510-	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	9510-	●	●
192	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	9510-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	9510-	●	●
254	PIPE; AIR,TANK TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-49114-898-0	01	1	9510-9802	●	●

192 192 192 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	9510-	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	9510-	●	●
192	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	9510-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	9510-	●	●

7 6 206 10 42 129 129 129 1 7 60 285 6 10 46 42 129

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; AIR,FLEX HOSE TO BRK VLV DUAL AIR GAUGE<UG2> L=423	1-49113-428-2	01	1	9510-0210	●	●
1	PIPE; AIR,FLEX HOSE TO BRK VLV DUAL AIR GAUGE<UG2> L=423	1-49113-428-2	01	1	0211-		●
1	PIPE; AIR,FLEX HOSE TO BRK VLV EXC. DUAL AIR GAUGE<UG2>	1-49116-436-1	01	1	9510-0210	●	●
1	PIPE; AIR,FLEX HOSE TO BRK VLV EXC. DUAL AIR GAUGE<UG2>	1-49116-436-1	01	1	0211-		●
6	WASHER; LK,FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=20.2	9-09150-520-0	02	1	0107-0603		●
6	WASHER; LK,FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=20.2	0-91510-520-0	02	1	0604-		●
6	WASHER; LK,FLEX HOSE (A) ID=16.2	9-09150-516-0	01	1	9510-9512	●	●
6	WASHER; LK,FLEX HOSE (A) ID=16.2	9-09150-516-0	02	1	9601-0210	●	●
6	WASHER; LK,FLEX HOSE (A) ID=16.2	9-09150-516-0	02	1	0211-0603		●
6	WASHER; LK,FLEX HOSE (A) ID=16.2	0-91510-516-0	02	1	0604-		●
7	NUT; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M20	9-99111-420-0	02	1	0107-0512		●
7	NUT; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M20	0-91111-520-0	02	1	0601-		●
7	NUT; FLEX HOSE (A) M16	9-99111-416-0	01	1	9510-9512	●	●
7	NUT; FLEX HOSE (A) M16	9-99111-416-0	02	1	9601-0210	●	●
7	NUT; FLEX HOSE (A) M16	9-99111-416-0	02	1	0211-0512		●
7	NUT; FLEX HOSE (A) M16	0-91111-516-0	02	1	0601-		●
10	CONNECTOR; FLEX HOSE (A)	1-09656-700-0	01	1	9510-9811	●	●
10	CONNECTOR; FLEX HOSE (A) M16X2 & PT1/4 3WAY	1-09656-329-1	01	1	9812-0210	●	●
10	CONNECTOR; FLEX HOSE (A) M16X2 & PT1/4 3WAY	1-09656-329-1	01	1	0211-		●
10	CONNECTOR; FLEX HOSE (B)	1-09654-324-0	01	1	9601-9802	●	●
10	CONNECTOR; FLEX HOSE (B) M16 STRAIGHT	1-09654-380-0	01	1	9803-0210	●	●
10	CONNECTOR; FLEX HOSE (B) M16 STRAIGHT	1-09654-380-0	01	1	0211-		●
42	GASKET; CONNECTOR ID=11 OD=18	9-09572-510-0	01	1	9510-9512	●	●
42	GASKET; CONNECTOR ID=11 OD=18	9-09572-510-0	02	1	9601-9802	●	●
42	GASKET; CONNECTOR ID=11 OD=18	9-09572-510-0	01	1	9803-9811	●	●
46	NIPPLE; AIR PIPE (A)	1-09660-807-1	01	1	9510-9512	●	●
46	NIPPLE; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14 STRAIGHT	9-09223-008-1	01	1	9510-9802	●	●
46	NIPPLE; AIR PIPE WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14 STRAIGHT	9-09223-008-1	01	1	9510-9802		●
60	NUT; NIPPLE,AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16	9-99111-416-0	01	1	9510-9512	●	●
60	NUT; NIPPLE,AIR PIPE M16	9-99111-416-0	01	1	9510-9512	●	●
60	NUT; NIPPLE,AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16	9-99111-416-0	01	1	9601-9802	●	●
129	CONNECTOR; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN8 & M20 STRAIGHT	1-09661-381-0	02	1	0107-0706		●
129	CONNECTOR; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0107-		●
129	CONNECTOR; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0107-		●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	9812-0004	●	●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	9812-0004	●	●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT	1-09661-097-0	02	1	0005-0007	●	●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0008-0106	●	●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0107-0210	●
129	CONNECTOR; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0107-0210		●
129	CONNECTOR; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0211-		●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	9803-0004	●	●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	9803-0004	●	●
129	CONNECTOR; NYLON TUBE (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9803-0007	●	●
129	CONNECTOR; NYLON TUBE (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-0106	●	●
129	CONNECTOR; NYLON TUBE (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-0106	●	●
129	CONNECTOR; NYLON TUBE (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0107-0210	●	●
129	CONNECTOR; NYLON TUBE (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0107-0210	●
129	CONNECTOR; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0107-0210		●
129	CONNECTOR; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0211-		●
129	CONNECTOR; NYLON TUBE (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0211-		●
129	CONNECTOR; NYLON TUBE (A)	1-09660-728-1	01	1	9510-9512	●	●
129	CONNECTOR; NYLON TUBE (A)	1-09660-728-1	01	1	9601-9802	●	●
129	CONNECTOR; NYLON TUBE (A)	1-09660-728-1	01	1	9601-9802	●	●
129	CONNECTOR; NYLON TUBE (A)	1-09660-728-1	01	1	9803-9811	●	●
129	CONNECTOR; NYLON TUBE (A) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9812-0007	●	●
206	PIPE; AIR,BRK VLV TO FLEX HOSE L=1145	1-49116-438-0	01	1	9510-0004	●	●
206	PIPE; AIR,BRK VLV TO FLEX HOSE L=1267	1-49121-665-0	01	1	0005-0210	●	●
206	PIPE; AIR,BRK VLV TO FLEX HOSE L=1267	1-49121-665-0	01	1	0211-		●
285	WASHER; PL,CONNECTOR ID=17	9-09160-516-0	01	1	9510-9512	●	●

170 192 129 7 6 76 55 7 6 79 105 79 192 192 163 170 55 67 105 67 192 105 105 180 105 180 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	WASHER; LK,FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=20.2	9-09150-520-0	02	1	0107-0603		●
6	WASHER; LK,FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=20.2	0-91510-520-0	02	1	0604-		●
6	WASHER; LK,FLEX HOSE (A) ID=16.2	9-09150-516-0	01	1	9510-9512	●	●
6	WASHER; LK,FLEX HOSE (A) ID=16.2	9-09150-516-0	02	1	9601-0210	●	●
6	WASHER; LK,FLEX HOSE (A) ID=16.2	9-09150-516-0	02	1	0211-0603		●
6	WASHER; LK,FLEX HOSE (A) ID=16.2	0-91510-516-0	02	1	0604-		●
7	NUT; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M20	9-99111-420-0	02	1	0107-0512		●
7	NUT; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M20	0-91111-520-0	02	1	0601-		●
7	NUT; FLEX HOSE (A) M16	9-99111-416-0	01	1	9510-9512	●	●
7	NUT; FLEX HOSE (A) M16	9-99111-416-0	02	1	9601-0210	●	●
7	NUT; FLEX HOSE (A) M16	9-99111-416-0	02	1	0211-0512		●
7	NUT; FLEX HOSE (A) M16	0-91111-516-0	02	1	0601-		●
55	PIPE; AIR,RELAY VLV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=426	1-49118-958-0	01	1	0107-		●
67	NUT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	03	1	0107-0602		●
67	NUT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	03	1	0603-		●
67	NUT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	9510-9606	●	●
67	NUT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	9607-0106	●	●
67	NUT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	0107-0210	●
67	NUT; HOSE BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	0107-0210		●
67	NUT; HOSE BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	0211-0602		●
67	NUT; HOSE BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	0603-		●
76	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0107-		●
79	BOLT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28680-825-0	03	1	0107-0512		●
79	BOLT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	03	1	0601-		●
79	BOLT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28080-820-0	02	1	9510-9606	●	●
79	BOLT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28680-825-0	02	1	9607-0106	●	●
79	BOLT; HOSE BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28680-825-0	02	1	0107-0210	●
79	BOLT; HOSE BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28680-825-0	02	1	0107-0210		●
79	BOLT; HOSE BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28680-825-0	02	1	0211-0512		●
79	BOLT; HOSE BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
105	HOSE; FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=610	0-07807-610-1	02	1	0107-0605		●
105	HOSE; FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=610	0-57807-610-1	02	1	0606-		●
129	CONNECTOR; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN8 & M20 STRAIGHT	1-09661-381-0	02	1	0107-0706		●
129	CONNECTOR; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0107-		●
129	CONNECTOR; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0107-		●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	9812-0004	●	●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	9812-0004	●	●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT	1-09661-097-0	02	1	0005-0007	●	●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0008-0106	●	●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0107-0210	●
129	CONNECTOR; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0107-0210		●
129	CONNECTOR; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0211-		●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	9803-0004	●	●
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	9803-0004	●	●
129	CONNECTOR; NYLON TUBE (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9803-0007	●	●
129	CONNECTOR; NYLON TUBE (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-0106	●	●
129	CONNECTOR; NYLON TUBE (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-0106	●	●
129	CONNECTOR; NYLON TUBE (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0107-0210	●	●
129	CONNECTOR; NYLON TUBE (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0107-0210	●
129	CONNECTOR; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0107-0210		●
129	CONNECTOR; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0211-		●
129	CONNECTOR; NYLON TUBE (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0211-		●
129	CONNECTOR; NYLON TUBE (A)	1-09660-728-1	01	1	9510-9512	●	●
129	CONNECTOR; NYLON TUBE (A)	1-09660-728-1	01	1	9601-9802	●	●
129	CONNECTOR; NYLON TUBE (A)	1-09660-728-1	01	1	9601-9802	●	●
129	CONNECTOR; NYLON TUBE (A)	1-09660-728-1	01	1	9803-9811	●	●
129	CONNECTOR; NYLON TUBE (A) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9812-0007	●	●
163	BRACKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47477-997-1	01	1	0107-		●
163	BRACKET; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47475-464-0	01	1	9510-0106	●	●
163	BRACKET; FLEX HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47475-464-0	01	1	0107-0210	●
163	BRACKET; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47475-464-0	01	1	0107-0210		●
163	BRACKET; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-47475-464-0	01	1	0211-		●
170	PIPE; AIR,RELAY VLV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=510	1-49118-957-0	01	1	0107-		●
180	GASKET; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=11 OD=18	9-09572-510-0	02	1	0107-		●
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	9510-	●	●
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	9510-	●	●
192	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	9510-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	9510-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
