◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10739 - FSR-LHD(BUS CHASSIS) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#6004) — 94 parça

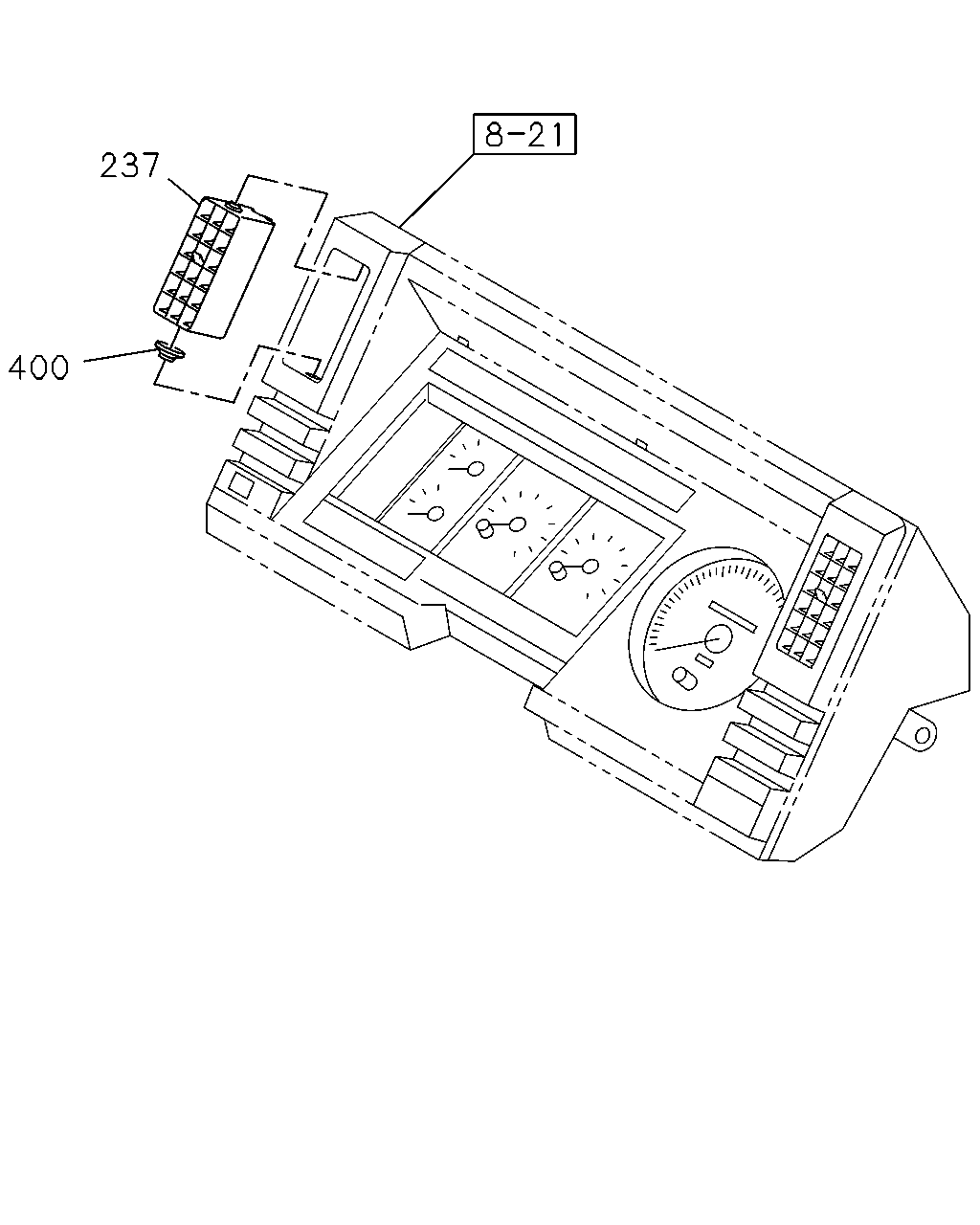

çizim 6688
237 400
BalonParca AdiParca NoAdetTipApplied Date
237 GRILLE; OUTLET 1-76367-050-1 02 1 9606-9810
400 BUSHING; AIR OUTLET GRILLE 1-72547-048-1 02 1 9606-9810

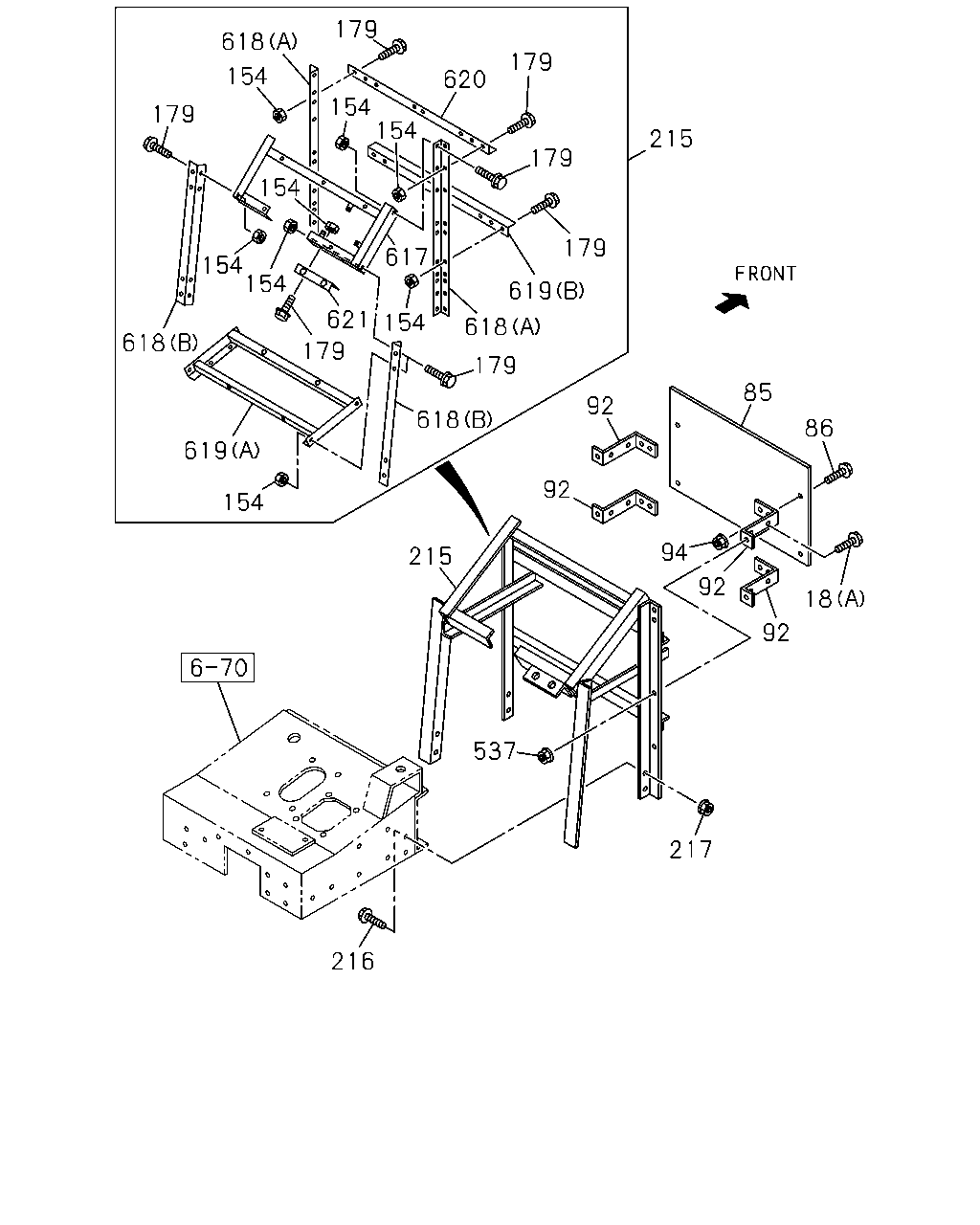

çizim 6690
179 618 179 154 154 154 620 179 215 179 154 179 617 154 154 154 619 621 618 618 179 179 85 92 618 86 619 92 154 94 215 92 18 92 537 217 216
BalonParca AdiParca NoAdetTipApplied Date
18 BOLT; BRKT
(A) M8X25 FLANGE 		0-28680-825-0 04 1 9610-9810
18 BOLT; BRKT
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 9901-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 9901-
85 PANEL; ELEC 1-65600-484-0 01 1 9610-9810
86 BOLT; ELEC PNL
M8X25 FLANGE 		0-28680-825-0 04 1 9610-9810
92 BRACKET; ELEC PANEL 8-94300-644-3 04 1 9610-9810
94 NUT; PANEL BRKT
M8 FLANGE 		0-91150-108-0 04 1 9610-9810
154 NUT
M10 		9-09110-510-0 14 1 9610-9810
179 BOLT; STAY,INST PANEL
M10X20 FLANGE 		0-28081-020-0 14 1 9610-9810
215 BOARD ASM; DASH 1-65600-462-1 01 1 9610-9810
216 BOLT; DASH BOARD
M10X30 FLANGE 		0-28681-030-0 08 1 9610-9810
217 NUT; DASH BOARD
M10 FLANGE 		0-91150-210-0 08 1 9610-9810
537 NUT; BRKT
M8 FLANGE 		0-91150-108-0 04 1 9610-9810
537 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 9901-0602
537 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0603-
617 STAY; DASH BOARD 1-65600-464-0 01 1 9610-9810
618 STAY; PEDAL BOARD
(A) 		1-65600-468-0 02 1 9610-9810
618 STAY; PEDAL BOARD
(B) 		1-65600-469-0 02 1 9610-9810
619 STAY; PEDAL BRKT
(A) 		1-65600-465-2 01 1 9610-9810
619 STAY; PEDAL BRKT
(B) 		1-65600-467-0 01 1 9610-9810
620 STAY; BACK MIRROR 1-65600-467-0 01 1 9610-9810
621 PEDAL; IDLING CONT 1-65600-470-0 01 1 9610-9810

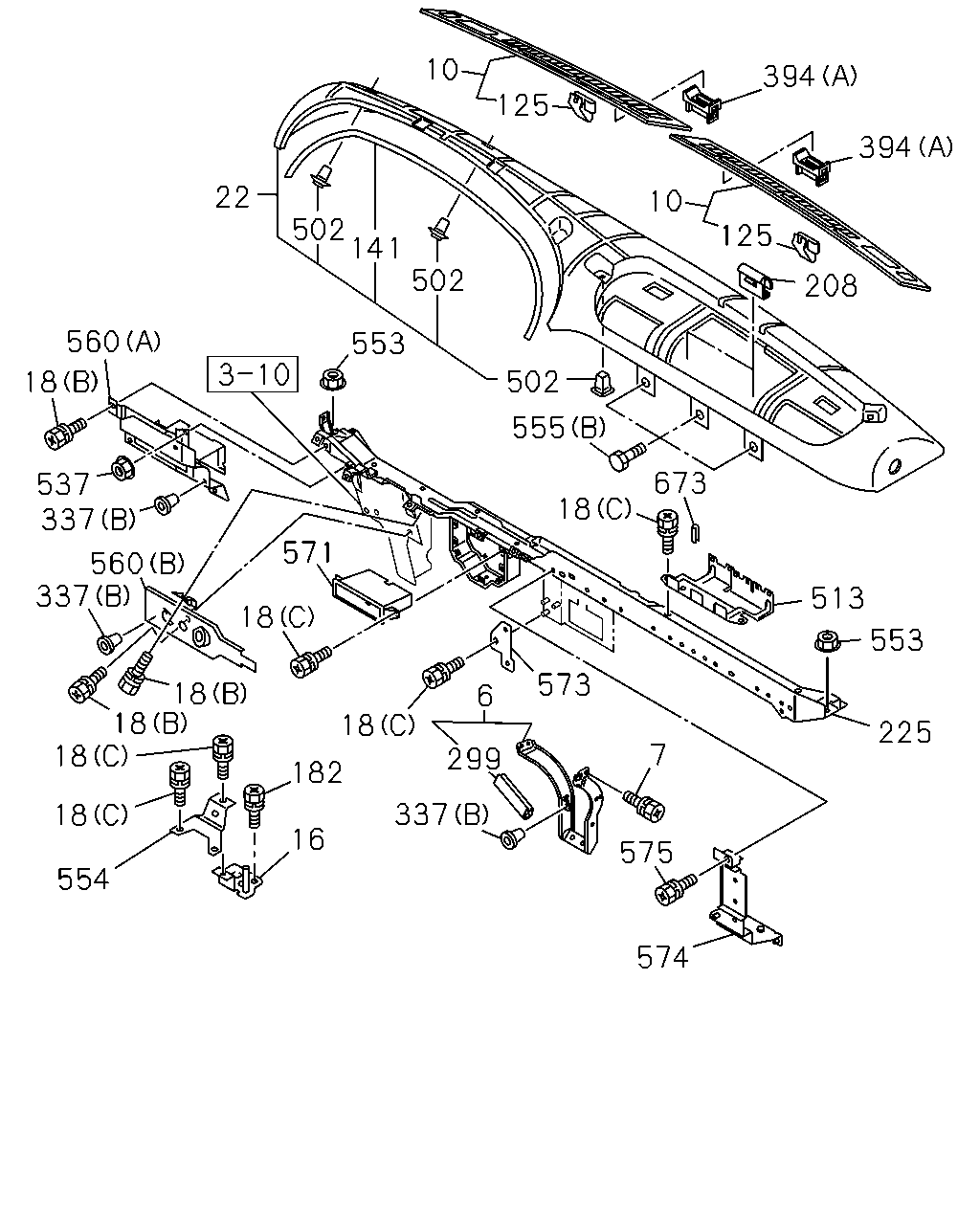

çizim 8777
10 394 125 394 22 10 502 141 125 502 208 560 553 502 18 555 673 537 337 18 571 560 337 513 18 553 573 18 18 18 6 18 225 7 299 182 337 18 16 575 554 574
BalonParca AdiParca NoAdetTipApplied Date
6 SUPPORT; INST PANEL 1-65681-035-6 01 1 9901-
7 BOLT; SUPPORT,INST PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9901-
10 PANEL ASM; GARNISH 1-72438-158-1 01 1 9901-
10 PANEL ASM; GARNISH 1-72438-157-1 01 1 9901-
16 BRACKET; INST PNL 1-79738-802-1 01 1 9901-
18 BOLT; BRKT
(A) M8X25 FLANGE 		0-28680-825-0 04 1 9610-9810
18 BOLT; BRKT
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 9901-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 9901-
22 PAD; INST 1-72318-415-4 01 1 9901-
125 CLIP; INST PANEL 8-97217-066-0 09 1 9901-
141 PROTECTOR; EDGE 1-72318-430-0 01 1 9901-
182 BOLT; BRKT,INST PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9901-
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 9901-
225 FRAME; FACIA 1-65681-028-8 01 1 9901-
299 FINISHER; STAY,INST CENTER
L=150 SERVICED BY L=190 		1-71998-300-0 01 1 0009-
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 9901-
337 FASTENER; COVER
(C) 		1-72438-137-0 06 1 9901-
337 FASTENER; COVER
(B) 		1-72438-138-0 06 1 9901-
394 HOLDER; PANEL
(A) 		1-72438-066-0 06 1 9901-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 9901-
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 9901-
513 BRACKET; RELAY 8-97865-168-3 01 1 9901-
537 NUT; BRKT
M8 FLANGE 		0-91150-108-0 04 1 9610-9810
537 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 9901-0602
537 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0603-
553 NUT; FRAME
M8 FLANGE 		0-91150-108-0 04 1 9901-0602
553 NUT; FRAME
M8 FLANGE 		0-91180-108-0 04 1 0603-
554 BRACKET; CENTER BEZEL 1-65681-039-2 01 1 9901-
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 07 1 9901-0512
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28251-025-0 07 1 0601-0604
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 07 1 0605-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9901-
560 BRACKET
(A) 		1-65681-045-6 01 1 9901-
560 BRACKET
(B) 		1-65681-043-2 01 1 9901-
571 BEZEL; POCKET 1-72438-151-3 02 1 9901-
573 BRACKET; PANEL,RELAY BOX 1-73908-200-0 01 1 9901-
574 PANEL; RELAY BOX 1-73908-058-6 01 1 9901-
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9901-
673 FINISHER; BRKT,RELAY
L=30 		8-94273-221-0 01 1 0006-0009
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 0010-

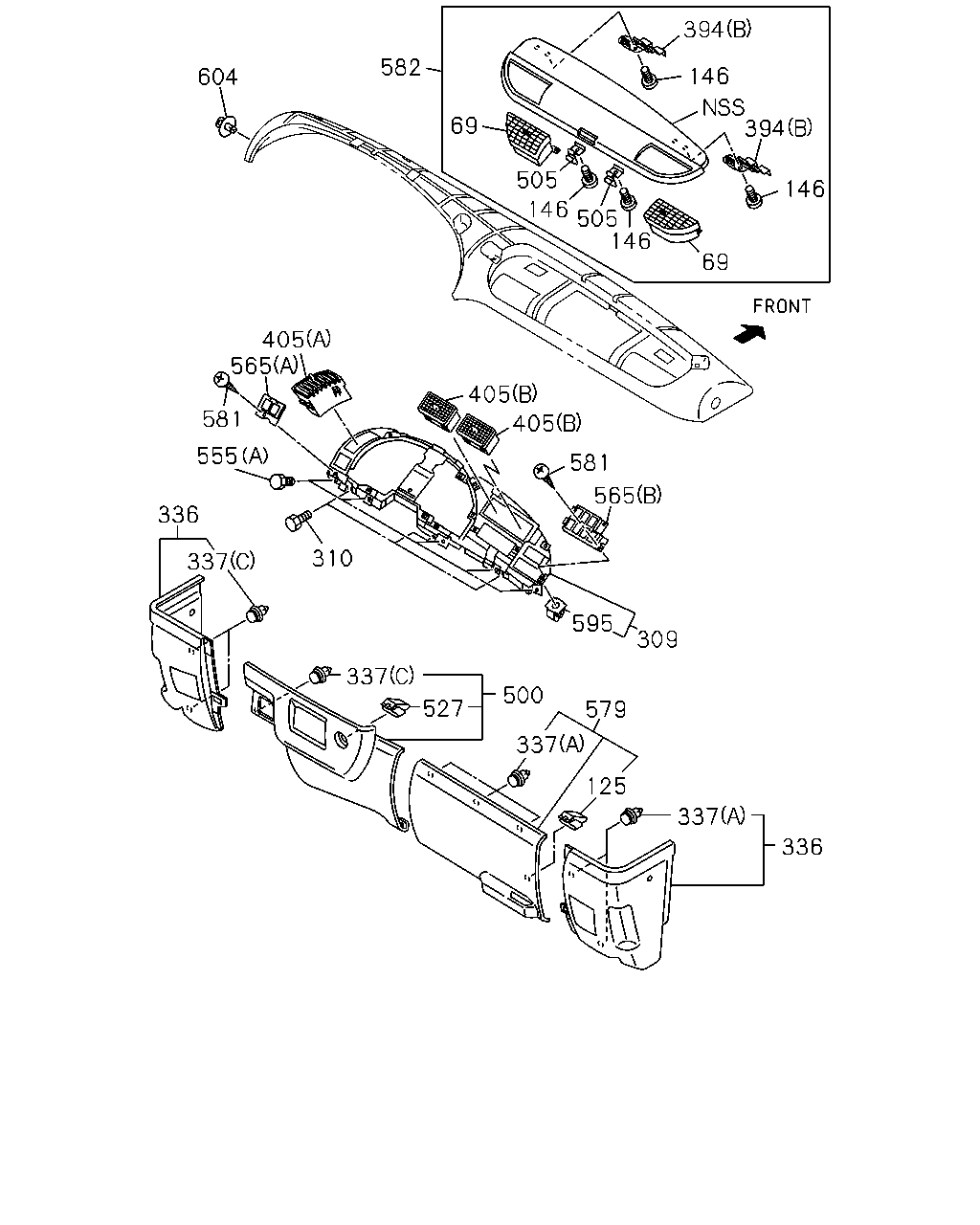

çizim 42518
394 582 146 604 394 69 505 146 146 505 146 69 405 565 405 581 405 555 581 565 336 310 337 595 309 337 500 527 579 337 125 337 336
BalonParca AdiParca NoAdetTipApplied Date
69 GRILLE; SIDE,AIR OUTLET 1-76368-029-5 01 1 9901-
69 GRILLE; SIDE,AIR OUTLET 1-76368-028-5 01 1 9901-
125 CLIP; INST PANEL 8-97217-066-0 09 1 9901-
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 9901-
309 PANEL; SW,INST 1-72418-018-3 01 1 9901-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9901-
336 COVER; INST PANEL SIDE 1-72438-132-0 01 1 9901-
336 COVER; INST PANEL SIDE 1-72438-130-1 01 1 9901-
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 9901-
337 FASTENER; COVER
(C) 		1-72438-137-0 06 1 9901-
337 FASTENER; COVER
(B) 		1-72438-138-0 06 1 9901-
394 HOLDER; PANEL
(A) 		1-72438-066-0 06 1 9901-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 9901-
405 GRILLE ASM; METER VENT
(A) 		1-76368-062-0 01 1 9901-
405 GRILLE ASM; METER VENT
(B) BLACK 		8-94333-730-4 02 1 9901-
500 CLUSTER; INST CENTER 1-72438-126-3 01 1 9901-
505 LOCK; LID 1-72558-024-2 02 1 9901-
527 CLIP; INST CLUSTER 8-97217-066-0 04 1 9901-
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 07 1 9901-0512
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28251-025-0 07 1 0601-0604
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 07 1 0605-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9901-
565 BEZEL; SW PANEL
(A) 		1-72418-021-1 01 1 9901-
565 BEZEL; SW PANEL
(B) 		1-72418-020-1 01 1 9901-
579 COVER; INST PNL 1-72438-128-1 01 1 9901-
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 9901-0604
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0605-
582 LID; FUSE & RELAY 1-72548-140-1 01 1 9901-
595 NUT; HOOK 1-72418-013-0 10 1 9901-
604 CLIP; INST PAD 1-09983-123-0 01 1 9901-
