Sayfa 3-46 - Isuzu EPC

3-46 — AIR DRYER (#60035) — 299 parça

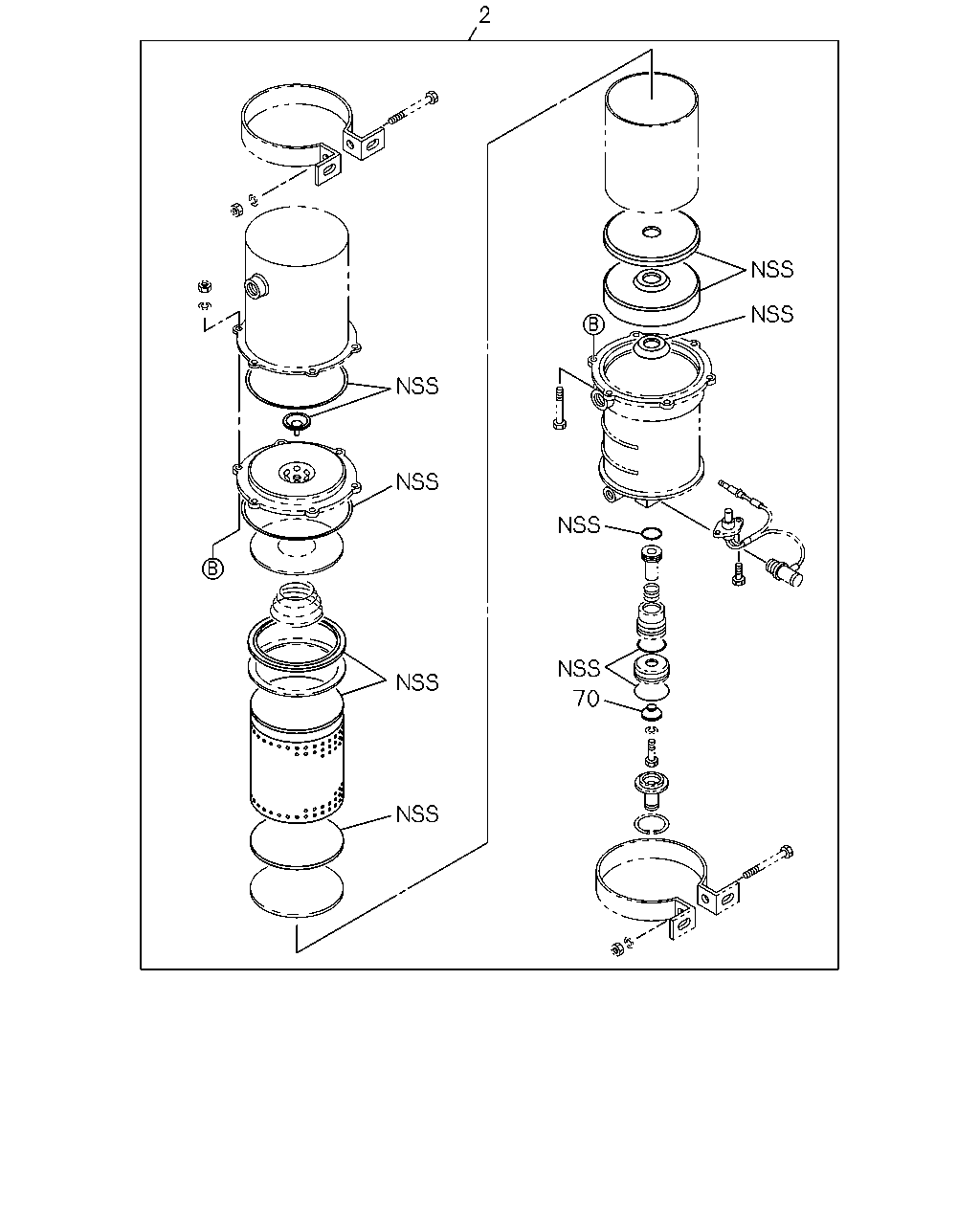

2 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	REPAIR KIT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-85576-083-0	01	1	0107-0109	●
2	REPAIR KIT; AIR DRYER AIR DRYER<PS7>	1-85576-083-0	01	1	0110-0210		●
2	REPAIR KIT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-85576-083-0	01	1	0110-0210	●
2	REPAIR KIT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-85576-083-0	01	1	0211-1001	●
2	REPAIR KIT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-85576-229-0	01	1	1002-	●
2	REPAIR KIT; AIR DRYER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-85576-055-1	01	1	0107-1001	●
2	REPAIR KIT; AIR DRYER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-85576-226-0	01	1	1002-	●
70	VALVE; AIR DRYER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-105-0	01	1	0107-0109	●
70	VALVE; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-105-0	01	1	0107-0109	●
70	VALVE; AIR DRYER AIR DRYER<PS7>	1-48199-105-0	01	1	0110-0210		●
70	VALVE; AIR DRYER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-105-0	01	1	0110-0210	●
70	VALVE; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-105-0	01	1	0110-0210	●
70	VALVE; AIR DRYER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-105-0	01	1	0211-	●
70	VALVE; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-105-0	01	1	0211-	●

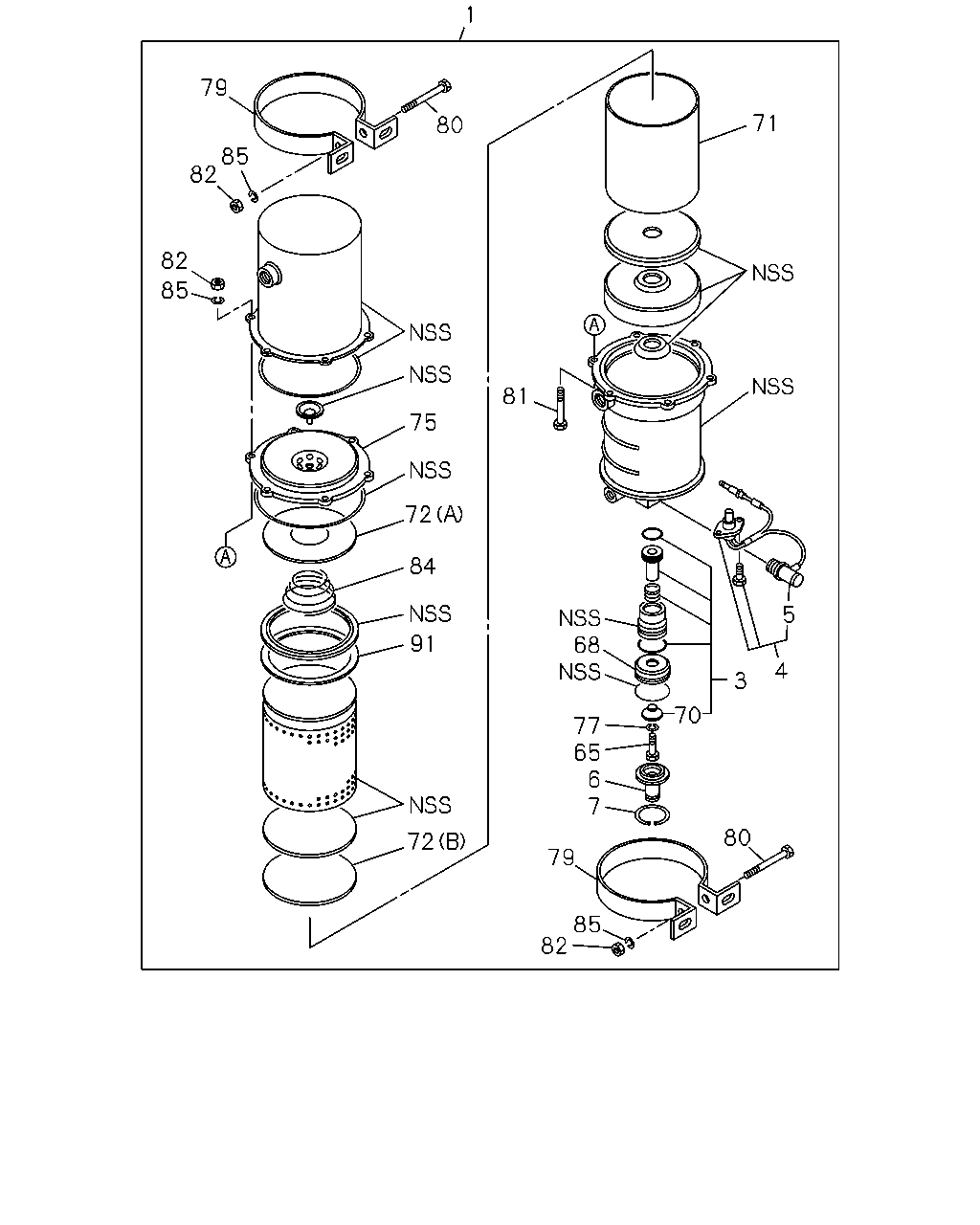

1 79 71 80 85 82 82 85 81 75 72 84 5 68 91 4 3 70 77 65 6 7 80 72 79 85 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRYER; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48190-114-1	01	1	0107-0109	●
1	DRYER; AIR AIR DRYER<PS7>	1-48190-114-1	01	1	0110-0210		●
1	DRYER; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48190-114-1	01	1	0110-0210	●
1	DRYER; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48190-114-2	01	1	0211-	●
1	DRYER; AIR WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48190-105-3	01	1	0107-1001	●
1	DRYER; AIR WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48190-373-0	01	1	1002-	●
3	PISTON KIT; AIR DRYER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-85576-057-1	01	1	0107-	●
3	PISTON KIT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-85576-084-0	01	1	0107-0109	●
3	PISTON KIT; AIR DRYER AIR DRYER<PS7>	1-85576-084-0	01	1	0110-0210		●
3	PISTON KIT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-85576-084-0	01	1	0110-0210	●
3	PISTON KIT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-85576-084-0	01	1	0211-	●
4	THERMOSTAT KIT; AIR DRYER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-85576-129-0	01	1	0107-	●
4	THERMOSTAT KIT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-85576-121-0	01	1	0107-0109	●
4	THERMOSTAT KIT; AIR DRYER AIR DRYER<PS7>	1-85576-121-0	01	1	0110-0210		●
4	THERMOSTAT KIT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-85576-121-0	01	1	0110-0210	●
4	THERMOSTAT KIT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-85576-121-0	01	1	0211-	●
5	HEATER ASM; AIR DRYER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-085-0	02	1	0107-	●
5	HEATER ASM; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-200-0	01	1	0107-0109	●
5	HEATER ASM; AIR DRYER AIR DRYER<PS7>	1-48199-200-0	01	1	0110-0210		●
5	HEATER ASM; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-200-0	01	1	0110-0210	●
5	HEATER ASM; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-200-0	01	1	0211-	●
6	COVER; EXH,AIR DRYER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-101-0	01	1	0107-0109	●
6	COVER; EXH,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-101-0	01	1	0107-0109	●
6	COVER; EXH,AIR DRYER AIR DRYER<PS7>	1-48199-101-0	01	1	0110-0210		●
6	COVER; EXH,AIR DRYER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-101-0	01	1	0110-0210	●
6	COVER; EXH,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-101-0	01	1	0110-0210	●
6	COVER; EXH,AIR DRYER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-101-0	01	1	0211-	●
6	COVER; EXH,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-101-0	01	1	0211-	●
7	RING; SNAP,AIR DRYER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-154-0	01	1	0107-	●
7	RING; SNAP,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-100-0	01	1	0107-0109	●
7	RING; SNAP,AIR DRYER AIR DRYER<PS7>	1-48199-100-0	01	1	0110-0210		●
7	RING; SNAP,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-100-0	01	1	0110-0210	●
7	RING; SNAP,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-100-0	01	1	0211-	●
65	BOLT; PURGE VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-102-0	01	1	0107-0109	●
65	BOLT; PURGE VLV AIR DRYER<PS7>	1-48199-102-0	01	1	0110-0210		●
65	BOLT; PURGE VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-102-0	01	1	0110-0210	●
65	BOLT; PURGE VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-102-0	01	1	0211-1001	●
65	BOLT; PURGE VLV WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-413-0	01	1	0107-1001	●
65	BOLT; PURGE VLV WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-393-0	01	1	1002-	●
65	BOLT; PURGE VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-393-0	01	1	1002-	●
68	BODY; VALVE WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-216-0	01	1	0107-0109	●
68	BODY; VALVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-216-0	01	1	0107-0109	●
68	BODY; VALVE AIR DRYER<PS7>	1-48199-216-0	01	1	0110-0210		●
68	BODY; VALVE WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-216-0	01	1	0110-0210	●
68	BODY; VALVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-216-0	01	1	0110-0210	●
68	BODY; VALVE WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-216-0	01	1	0211-	●
68	BODY; VALVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-216-0	01	1	0211-	●
70	VALVE; AIR DRYER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-105-0	01	1	0107-0109	●
70	VALVE; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-105-0	01	1	0107-0109	●
70	VALVE; AIR DRYER AIR DRYER<PS7>	1-48199-105-0	01	1	0110-0210		●
70	VALVE; AIR DRYER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-105-0	01	1	0110-0210	●
70	VALVE; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-105-0	01	1	0110-0210	●
70	VALVE; AIR DRYER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-105-0	01	1	0211-	●
70	VALVE; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-105-0	01	1	0211-	●
71	CASE; INNER,AIR DRYER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-156-1	01	1	0107-	●
71	CASE; INNER,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-099-0	01	1	0107-0109	●
71	CASE; INNER,AIR DRYER AIR DRYER<PS7>	1-48199-099-0	01	1	0110-0210		●
71	CASE; INNER,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-099-0	01	1	0110-0210	●
71	CASE; INNER,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-099-0	01	1	0211-	●
72	PLATE; FILTER,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A)	1-48199-097-0	01	1	0107-0109	●
72	PLATE; FILTER,AIR DRYER AIR DRYER<PS7> (A)	1-48199-097-0	01	1	0110-0210		●
72	PLATE; FILTER,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A)	1-48199-097-0	01	1	0110-0210	●
72	PLATE; FILTER,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A)	1-48199-097-0	01	1	0211-	●
72	PLATE; FILTER,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B)	1-48199-098-0	01	1	0107-0109	●
72	PLATE; FILTER,AIR DRYER AIR DRYER<PS7> (B)	1-48199-098-0	01	1	0110-0210		●
72	PLATE; FILTER,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B)	1-48199-098-0	01	1	0110-0210	●
72	PLATE; FILTER,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B)	1-48199-098-0	01	1	0211-	●
75	COVER; CASE,AIR DRYER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-167-0	01	1	0107-	●
75	COVER; CASE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-201-0	01	1	0107-0109	●
75	COVER; CASE,AIR DRYER AIR DRYER<PS7>	1-48199-201-0	01	1	0110-0210		●
75	COVER; CASE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-201-0	01	1	0110-0210	●
75	COVER; CASE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-201-0	01	1	0211-	●
77	WASHER; LK,VALVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-103-0	01	1	0107-0109	●
77	WASHER; LK,VALVE AIR DRYER<PS7>	1-48199-103-0	01	1	0110-0210		●
77	WASHER; LK,VALVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-103-0	01	1	0110-0210	●
77	WASHER; LK,VALVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-103-0	01	1	0211-1001	●
79	BRACKET; AIR DRYER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-189-0	02	1	0107-	●
79	BRACKET; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-209-0	02	1	0107-0109	●
79	BRACKET; AIR DRYER AIR DRYER<PS7>	1-48199-209-0	02	1	0110-0210		●
79	BRACKET; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-209-0	02	1	0110-0210	●
79	BRACKET; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-209-0	02	1	0211-	●
80	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-190-0	02	1	0107-	●
80	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-212-0	02	1	0107-0109	●
80	BOLT; BRKT AIR DRYER<PS7>	1-48199-212-0	02	1	0110-0210		●
80	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-212-0	02	1	0110-0210	●
80	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-212-0	02	1	0211-	●
81	BOLT; CASE,AIR DRYER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-177-0	02	1	0107-	●
81	BOLT; CASE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-208-0	06	1	0107-0109	●
81	BOLT; CASE,AIR DRYER AIR DRYER<PS7>	1-48199-208-0	06	1	0110-0210		●
81	BOLT; CASE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-208-0	06	1	0110-0210	●
81	BOLT; CASE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-208-0	06	1	0211-	●
82	NUT; CASE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-211-0	08	1	0107-0109	●
82	NUT; CASE,AIR DRYER AIR DRYER<PS7>	1-48199-211-0	08	1	0110-0210		●
82	NUT; CASE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-211-0	08	1	0110-0210	●
82	NUT; CASE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-211-0	08	1	0211-1001	●
82	NUT; CASE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-320-0	08	1	1002-	●
84	SPRING; AIR DRYER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-166-0	01	1	0107-	●
84	SPRING; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-092-0	01	1	0107-0109	●
84	SPRING; AIR DRYER AIR DRYER<PS7>	1-48199-092-0	01	1	0110-0210		●
84	SPRING; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-092-0	01	1	0110-0210	●
84	SPRING; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-092-0	01	1	0211-	●
85	WASHER; CASE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-024-0	08	1	0107-0109	●
85	WASHER; CASE,AIR DRYER AIR DRYER<PS7>	1-48199-024-0	08	1	0110-0210		●
85	WASHER; CASE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-024-0	08	1	0110-0210	●
85	WASHER; CASE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-024-0	08	1	0211-1001	●
91	GUIDE; CASE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-091-0	01	1	0107-0109	●
91	GUIDE; CASE,AIR DRYER AIR DRYER<PS7>	1-48199-091-0	01	1	0110-0210		●
91	GUIDE; CASE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-091-0	01	1	0110-0210	●
91	GUIDE; CASE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-091-0	01	1	0211-	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	REPAIR KIT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-85576-083-0	01	1	0107-0109	●
2	REPAIR KIT; AIR DRYER AIR DRYER<PS7>	1-85576-083-0	01	1	0110-0210		●
2	REPAIR KIT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-85576-083-0	01	1	0110-0210	●
2	REPAIR KIT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-85576-083-0	01	1	0211-1001	●
2	REPAIR KIT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-85576-229-0	01	1	1002-	●
2	REPAIR KIT; AIR DRYER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-85576-055-1	01	1	0107-1001	●
2	REPAIR KIT; AIR DRYER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-85576-226-0	01	1	1002-	●

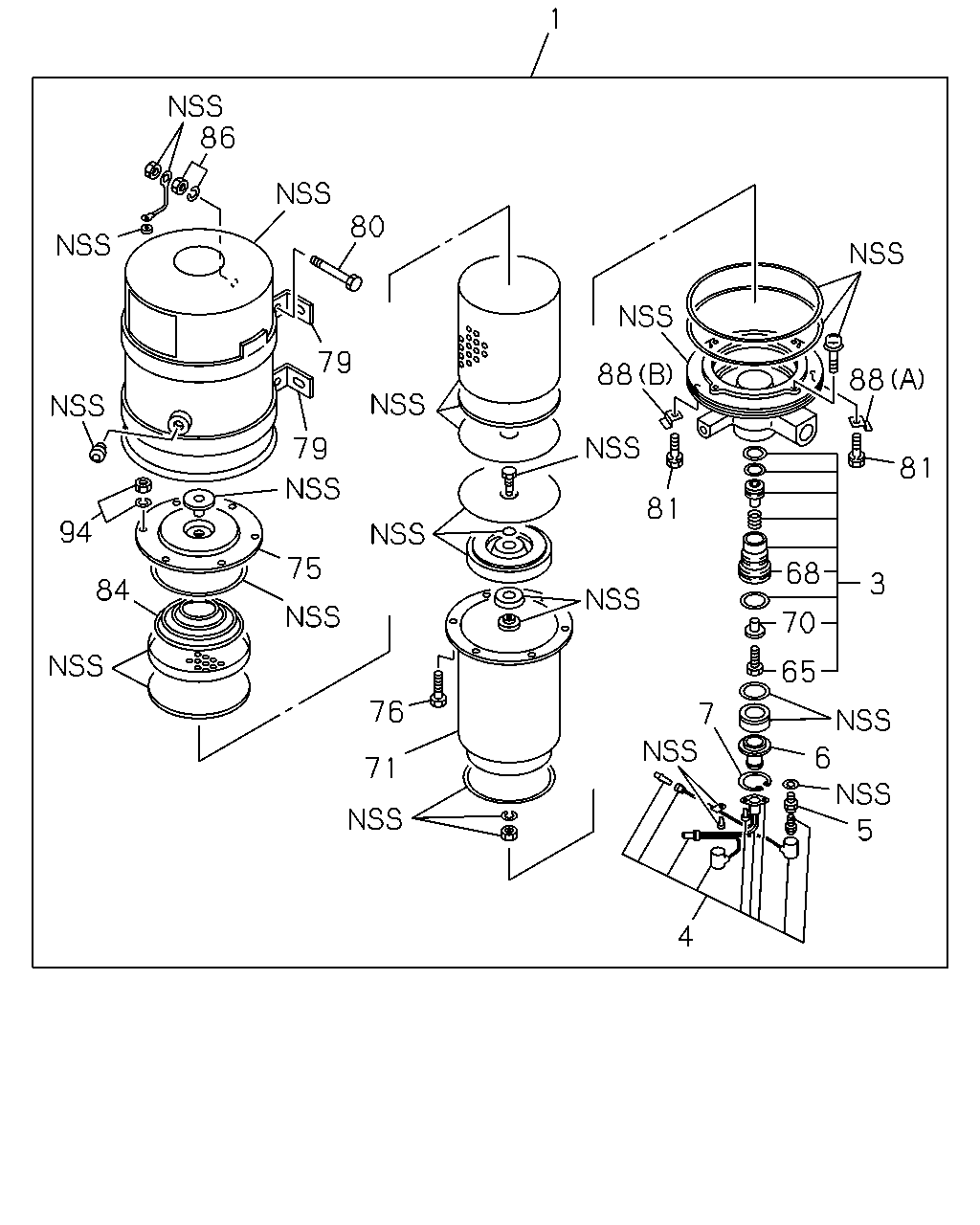

1 86 80 79 88 88 79 81 81 94 75 68 3 84 70 65 76 7 6 5 71 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRYER; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48190-114-1	01	1	0107-0109	●
1	DRYER; AIR AIR DRYER<PS7>	1-48190-114-1	01	1	0110-0210		●
1	DRYER; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48190-114-1	01	1	0110-0210	●
1	DRYER; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48190-114-2	01	1	0211-	●
1	DRYER; AIR WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48190-105-3	01	1	0107-1001	●
1	DRYER; AIR WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48190-373-0	01	1	1002-	●
3	PISTON KIT; AIR DRYER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-85576-057-1	01	1	0107-	●
3	PISTON KIT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-85576-084-0	01	1	0107-0109	●
3	PISTON KIT; AIR DRYER AIR DRYER<PS7>	1-85576-084-0	01	1	0110-0210		●
3	PISTON KIT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-85576-084-0	01	1	0110-0210	●
3	PISTON KIT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-85576-084-0	01	1	0211-	●
4	THERMOSTAT KIT; AIR DRYER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-85576-129-0	01	1	0107-	●
4	THERMOSTAT KIT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-85576-121-0	01	1	0107-0109	●
4	THERMOSTAT KIT; AIR DRYER AIR DRYER<PS7>	1-85576-121-0	01	1	0110-0210		●
4	THERMOSTAT KIT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-85576-121-0	01	1	0110-0210	●
4	THERMOSTAT KIT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-85576-121-0	01	1	0211-	●
5	HEATER ASM; AIR DRYER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-085-0	02	1	0107-	●
5	HEATER ASM; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-200-0	01	1	0107-0109	●
5	HEATER ASM; AIR DRYER AIR DRYER<PS7>	1-48199-200-0	01	1	0110-0210		●
5	HEATER ASM; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-200-0	01	1	0110-0210	●
5	HEATER ASM; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-200-0	01	1	0211-	●
6	COVER; EXH,AIR DRYER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-101-0	01	1	0107-0109	●
6	COVER; EXH,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-101-0	01	1	0107-0109	●
6	COVER; EXH,AIR DRYER AIR DRYER<PS7>	1-48199-101-0	01	1	0110-0210		●
6	COVER; EXH,AIR DRYER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-101-0	01	1	0110-0210	●
6	COVER; EXH,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-101-0	01	1	0110-0210	●
6	COVER; EXH,AIR DRYER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-101-0	01	1	0211-	●
6	COVER; EXH,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-101-0	01	1	0211-	●
7	RING; SNAP,AIR DRYER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-154-0	01	1	0107-	●
7	RING; SNAP,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-100-0	01	1	0107-0109	●
7	RING; SNAP,AIR DRYER AIR DRYER<PS7>	1-48199-100-0	01	1	0110-0210		●
7	RING; SNAP,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-100-0	01	1	0110-0210	●
7	RING; SNAP,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-100-0	01	1	0211-	●
65	BOLT; PURGE VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-102-0	01	1	0107-0109	●
65	BOLT; PURGE VLV AIR DRYER<PS7>	1-48199-102-0	01	1	0110-0210		●
65	BOLT; PURGE VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-102-0	01	1	0110-0210	●
65	BOLT; PURGE VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-102-0	01	1	0211-1001	●
65	BOLT; PURGE VLV WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-413-0	01	1	0107-1001	●
65	BOLT; PURGE VLV WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-393-0	01	1	1002-	●
65	BOLT; PURGE VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-393-0	01	1	1002-	●
68	BODY; VALVE WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-216-0	01	1	0107-0109	●
68	BODY; VALVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-216-0	01	1	0107-0109	●
68	BODY; VALVE AIR DRYER<PS7>	1-48199-216-0	01	1	0110-0210		●
68	BODY; VALVE WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-216-0	01	1	0110-0210	●
68	BODY; VALVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-216-0	01	1	0110-0210	●
68	BODY; VALVE WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-216-0	01	1	0211-	●
68	BODY; VALVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-216-0	01	1	0211-	●
70	VALVE; AIR DRYER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-105-0	01	1	0107-0109	●
70	VALVE; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-105-0	01	1	0107-0109	●
70	VALVE; AIR DRYER AIR DRYER<PS7>	1-48199-105-0	01	1	0110-0210		●
70	VALVE; AIR DRYER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-105-0	01	1	0110-0210	●
70	VALVE; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-105-0	01	1	0110-0210	●
70	VALVE; AIR DRYER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-105-0	01	1	0211-	●
70	VALVE; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-105-0	01	1	0211-	●
71	CASE; INNER,AIR DRYER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-156-1	01	1	0107-	●
71	CASE; INNER,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-099-0	01	1	0107-0109	●
71	CASE; INNER,AIR DRYER AIR DRYER<PS7>	1-48199-099-0	01	1	0110-0210		●
71	CASE; INNER,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-099-0	01	1	0110-0210	●
71	CASE; INNER,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-099-0	01	1	0211-	●
75	COVER; CASE,AIR DRYER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-167-0	01	1	0107-	●
75	COVER; CASE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-201-0	01	1	0107-0109	●
75	COVER; CASE,AIR DRYER AIR DRYER<PS7>	1-48199-201-0	01	1	0110-0210		●
75	COVER; CASE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-201-0	01	1	0110-0210	●
75	COVER; CASE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-201-0	01	1	0211-	●
76	BOLT; COVER,AIR DRYER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-478-0	06	1	0107-	●
79	BRACKET; AIR DRYER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-189-0	02	1	0107-	●
79	BRACKET; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-209-0	02	1	0107-0109	●
79	BRACKET; AIR DRYER AIR DRYER<PS7>	1-48199-209-0	02	1	0110-0210		●
79	BRACKET; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-209-0	02	1	0110-0210	●
79	BRACKET; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-209-0	02	1	0211-	●
80	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-190-0	02	1	0107-	●
80	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-212-0	02	1	0107-0109	●
80	BOLT; BRKT AIR DRYER<PS7>	1-48199-212-0	02	1	0110-0210		●
80	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-212-0	02	1	0110-0210	●
80	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-212-0	02	1	0211-	●
81	BOLT; CASE,AIR DRYER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-177-0	02	1	0107-	●
81	BOLT; CASE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-208-0	06	1	0107-0109	●
81	BOLT; CASE,AIR DRYER AIR DRYER<PS7>	1-48199-208-0	06	1	0110-0210		●
81	BOLT; CASE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-208-0	06	1	0110-0210	●
81	BOLT; CASE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-208-0	06	1	0211-	●
84	SPRING; AIR DRYER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-166-0	01	1	0107-	●
84	SPRING; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-092-0	01	1	0107-0109	●
84	SPRING; AIR DRYER AIR DRYER<PS7>	1-48199-092-0	01	1	0110-0210		●
84	SPRING; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-092-0	01	1	0110-0210	●
84	SPRING; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48199-092-0	01	1	0211-	●
86	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-320-0	02	1	0107-	●
88	PLATE; STOPPER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A)	1-48199-178-0	01	1	0107-	●
88	PLATE; STOPPER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B)	1-48199-179-0	01	1	0107-	●
94	NUT; COVER,AIR DRYER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48199-479-0	07	1	0107-	●

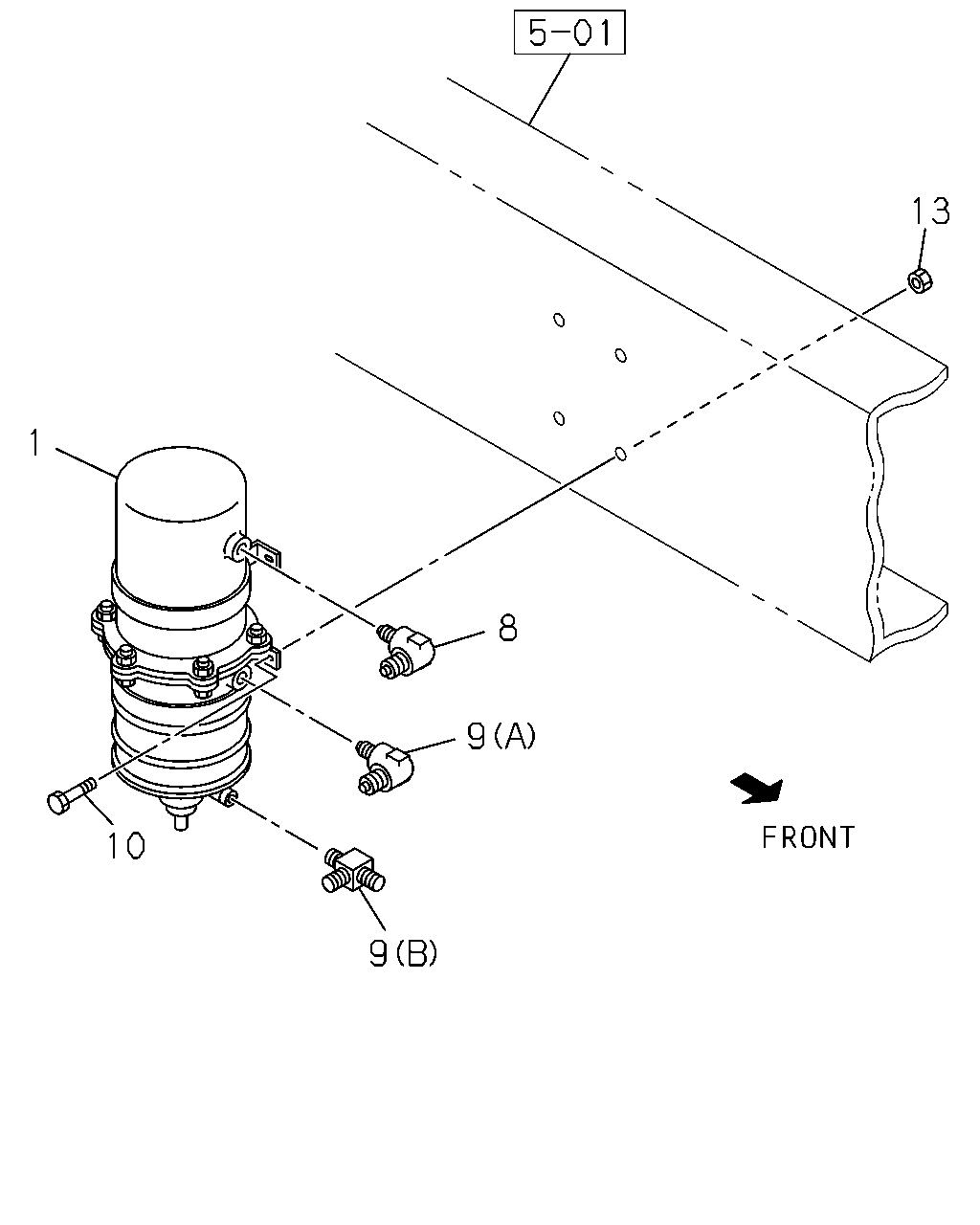

13 1 8 9 10 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRYER; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48190-114-1	01	1	0107-0109	●
1	DRYER; AIR AIR DRYER<PS7>	1-48190-114-1	01	1	0110-0210		●
1	DRYER; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48190-114-1	01	1	0110-0210	●
1	DRYER; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48190-114-2	01	1	0211-	●
1	DRYER; AIR WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48190-105-3	01	1	0107-1001	●
1	DRYER; AIR WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48190-373-0	01	1	1002-	●
8	CONNECTOR; OUT,AIR DRYER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M22 & PT1/2 ELBOW	1-09650-444-0	01	1	0107-0109	●
8	CONNECTOR; OUT,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> M22 & PT1/2 ELBOW	1-09650-444-0	01	1	0107-0109	●
8	CONNECTOR; OUT,AIR DRYER AIR DRYER<PS7> M22 & PT1/2 ELBOW	1-09650-444-0	01	1	0110-0210		●
8	CONNECTOR; OUT,AIR DRYER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M22 & PT1/2 ELBOW	1-09650-444-0	01	1	0110-0210	●
8	CONNECTOR; OUT,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> M22 & PT1/2 ELBOW	1-09650-444-0	01	1	0110-0210	●
8	CONNECTOR; OUT,AIR DRYER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M22 & PT1/2 ELBOW	1-09650-444-0	01	1	0211-0607	●
8	CONNECTOR; OUT,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> M22 & PT1/2 ELBOW	1-09650-444-0	01	1	0211-0607	●
8	CONNECTOR; OUT,AIR DRYER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M22 & PT1/2 ELBOW	0-92134-315-0	01	1	0608-	●
8	CONNECTOR; OUT,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> M22 & PT1/2 ELBOW	0-92134-315-0	01	1	0608-	●
9	CONNECTOR; PIPE,AIR DRYER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (C) M12X2 & PT1/4 3WAY	1-09656-229-1	01	1	0107-	●
9	CONNECTOR; PIPE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0107-0109	●
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> (B) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0110-0210		●
9	CONNECTOR; PIPE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0110-0210	●
9	CONNECTOR; PIPE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0211-	●
9	CONNECTOR; PIPE,AIR DRYER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) M22 & R1/2 W/VALVE	1-48320-026-2	01	1	0107-0109	●
9	CONNECTOR; PIPE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) M22 & R1/2 W/VALVE	1-48320-026-2	01	1	0107-0109	●
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> (A) M22 & R1/2 W/VALVE	1-48320-026-2	01	1	0110-0210		●
9	CONNECTOR; PIPE,AIR DRYER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) M22 & R1/2 W/VALVE	1-48320-026-2	01	1	0110-0210	●
9	CONNECTOR; PIPE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) M22 & R1/2 W/VALVE	1-48320-026-2	01	1	0110-0210	●
9	CONNECTOR; PIPE,AIR DRYER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) M22 & R1/2 W/VALVE	1-48320-026-2	01	1	0211-	●
9	CONNECTOR; PIPE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) M22 & R1/2 W/VALVE	1-48320-026-2	01	1	0211-	●
10	BOLT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> M10X35 FLANGE	0-28681-035-0	04	1	0107-0109	●
10	BOLT; AIR DRYER AIR DRYER<PS7> M10X35 FLANGE	0-28681-035-0	04	1	0110-0210		●
10	BOLT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> M10X35 FLANGE	0-28681-035-0	04	1	0110-0210	●
10	BOLT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> M10X35 FLANGE	0-28681-035-0	04	1	0211-0512	●
10	BOLT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> M10X35 FLANGE	0-28651-035-0	04	1	0601-	●
10	BOLT; AIR DRYER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M10X25 FLANGE	0-28681-025-0	04	1	0107-0512	●
10	BOLT; AIR DRYER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M10X25 FLANGE	0-28651-025-0	04	1	0601-	●
13	NUT; AIR DRYER AIR DRYER<PS7> M10 FLANGE	0-91150-210-0	04	1	0107-0109	●
13	NUT; AIR DRYER AIR DRYER<PS7> M10 FLANGE	0-91150-210-0	04	1	0110-0210	●	●
13	NUT; AIR DRYER AIR DRYER<PS7> M10 FLANGE	0-91150-210-0	04	1	0211-0602	●
13	NUT; AIR DRYER AIR DRYER<PS7> M10 FLANGE	0-91180-210-0	04	1	0603-	●

16 11 1 9 9 12 13 8 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRYER; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48190-114-1	01	1	0107-0109	●
1	DRYER; AIR AIR DRYER<PS7>	1-48190-114-1	01	1	0110-0210		●
1	DRYER; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48190-114-1	01	1	0110-0210	●
1	DRYER; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7>	1-48190-114-2	01	1	0211-	●
1	DRYER; AIR WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48190-105-3	01	1	0107-1001	●
1	DRYER; AIR WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48190-373-0	01	1	1002-	●
8	CONNECTOR; OUT,AIR DRYER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M22 & PT1/2 ELBOW	1-09650-444-0	01	1	0107-0109	●
8	CONNECTOR; OUT,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> M22 & PT1/2 ELBOW	1-09650-444-0	01	1	0107-0109	●
8	CONNECTOR; OUT,AIR DRYER AIR DRYER<PS7> M22 & PT1/2 ELBOW	1-09650-444-0	01	1	0110-0210		●
8	CONNECTOR; OUT,AIR DRYER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M22 & PT1/2 ELBOW	1-09650-444-0	01	1	0110-0210	●
8	CONNECTOR; OUT,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> M22 & PT1/2 ELBOW	1-09650-444-0	01	1	0110-0210	●
8	CONNECTOR; OUT,AIR DRYER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M22 & PT1/2 ELBOW	1-09650-444-0	01	1	0211-0607	●
8	CONNECTOR; OUT,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> M22 & PT1/2 ELBOW	1-09650-444-0	01	1	0211-0607	●
8	CONNECTOR; OUT,AIR DRYER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M22 & PT1/2 ELBOW	0-92134-315-0	01	1	0608-	●
8	CONNECTOR; OUT,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> M22 & PT1/2 ELBOW	0-92134-315-0	01	1	0608-	●
9	CONNECTOR; PIPE,AIR DRYER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (C) M12X2 & PT1/4 3WAY	1-09656-229-1	01	1	0107-	●
9	CONNECTOR; PIPE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0107-0109	●
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> (B) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0110-0210		●
9	CONNECTOR; PIPE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0110-0210	●
9	CONNECTOR; PIPE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0211-	●
9	CONNECTOR; PIPE,AIR DRYER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) M22 & R1/2 W/VALVE	1-48320-026-2	01	1	0107-0109	●
9	CONNECTOR; PIPE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) M22 & R1/2 W/VALVE	1-48320-026-2	01	1	0107-0109	●
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> (A) M22 & R1/2 W/VALVE	1-48320-026-2	01	1	0110-0210		●
9	CONNECTOR; PIPE,AIR DRYER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) M22 & R1/2 W/VALVE	1-48320-026-2	01	1	0110-0210	●
9	CONNECTOR; PIPE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) M22 & R1/2 W/VALVE	1-48320-026-2	01	1	0110-0210	●
9	CONNECTOR; PIPE,AIR DRYER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) M22 & R1/2 W/VALVE	1-48320-026-2	01	1	0211-	●
9	CONNECTOR; PIPE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) M22 & R1/2 W/VALVE	1-48320-026-2	01	1	0211-	●
10	BOLT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> M10X35 FLANGE	0-28681-035-0	04	1	0107-0109	●
10	BOLT; AIR DRYER AIR DRYER<PS7> M10X35 FLANGE	0-28681-035-0	04	1	0110-0210		●
10	BOLT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> M10X35 FLANGE	0-28681-035-0	04	1	0110-0210	●
10	BOLT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> M10X35 FLANGE	0-28681-035-0	04	1	0211-0512	●
10	BOLT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> M10X35 FLANGE	0-28651-035-0	04	1	0601-	●
10	BOLT; AIR DRYER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M10X25 FLANGE	0-28681-025-0	04	1	0107-0512	●
10	BOLT; AIR DRYER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M10X25 FLANGE	0-28651-025-0	04	1	0601-	●
11	BRACKET; AIR DRYER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7>	1-48195-108-0	01	1	0107-	●
12	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M10X30 FLANGE	0-28681-030-0	02	1	0107-0512	●
12	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M10X30 FLANGE	0-28651-030-0	02	1	0601-	●
13	NUT; AIR DRYER AIR DRYER<PS7> M10 FLANGE	0-91150-210-0	04	1	0107-0109	●
13	NUT; AIR DRYER AIR DRYER<PS7> M10 FLANGE	0-91150-210-0	04	1	0110-0210	●	●
13	NUT; AIR DRYER AIR DRYER<PS7> M10 FLANGE	0-91150-210-0	04	1	0211-0602	●
13	NUT; AIR DRYER AIR DRYER<PS7> M10 FLANGE	0-91180-210-0	04	1	0603-	●
16	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M10 FLANGE	0-91180-210-0	04	1	0802-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
