Sayfa 3-41 - Isuzu EPC

3-41 — REAR BRAKE POWER CHAMBER (#60034) — 215 parça

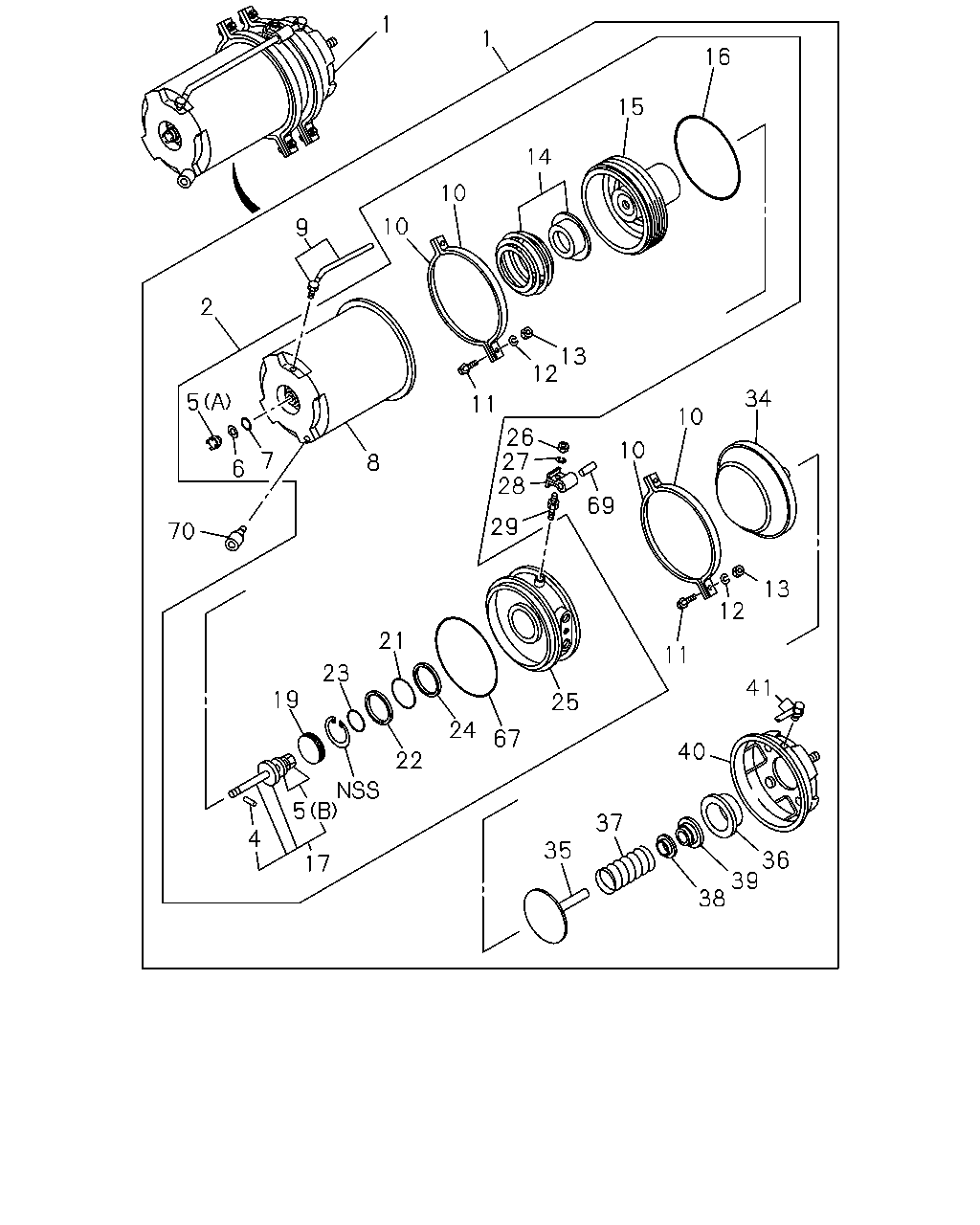

1 1 16 15 14 10 10 9 2 13 12 34 5 11 10 26 27 28 10 7 8 6 69 29 70 13 12 21 11 23 41 19 25 24 67 40 22 5 37 4 35 36 39 38 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48250-640-0	01	1	0107-0211	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48250-640-1	01	1	0212-	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48250-641-0	01	1	0107-0211	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48250-641-1	01	1	0212-	●
1	CHAMBER ASM; SPRING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48250-217-3	01	1	9510-9802	●	●
1	CHAMBER ASM; SPRING FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48250-217-3	01	1	9803-0106	●	●
1	CHAMBER ASM; SPRING FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48250-217-3	01	1	0107-	●	●
1	CHAMBER ASM; SPRING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48250-218-3	01	1	9510-9802	●	●
1	CHAMBER ASM; SPRING FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48250-218-3	01	1	9803-0106	●	●
1	CHAMBER ASM; SPRING FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48250-218-3	01	1	0107-	●	●
2	CHAMBER; EMERGENCY FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48252-014-0	01	1	0107-0211	●
2	CHAMBER; EMERGENCY FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48252-014-0	01	1	0212-	●
2	CHAMBER; EMERGENCY FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48252-015-0	01	1	0107-0211	●
2	CHAMBER; EMERGENCY FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48252-015-0	01	1	0212-	●
4	PIN; STRAIGHT,SPR CHAMBER FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-056-0	04	1	0107-0211	●
4	PIN; STRAIGHT,SPR CHAMBER FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-056-0	04	1	0212-	●
5	NUT; SHELL FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-054-0	02	1	0107-0211	●
5	NUT; SHELL FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48259-054-0	02	1	0212-	●
5	NUT; SHELL FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48259-074-0	02	1	0107-0211	●
5	NUT; SHELL FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48259-074-0	02	1	0212-	●
6	GASKET; SHELL FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-09920-268-0	02	1	0107-0211	●
6	GASKET; SHELL FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-09920-268-0	02	1	0212-	●
7	GASKET FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-055-0	02	1	0107-0211	●
7	GASKET FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-055-0	02	1	0212-	●
8	SHELL; CYL,SPR CHAMBER FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-069-0	01	1	0107-0211	●
8	SHELL; CYL,SPR CHAMBER FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-069-0	01	1	0212-	●
8	SHELL; CYL,SPR CHAMBER FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-070-0	01	1	0107-0211	●
8	SHELL; CYL,SPR CHAMBER FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-070-0	01	1	0212-	●
8	SHELL; CYL,SPR CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48251-031-0	02	1	9510-9802	●	●
8	SHELL; CYL,SPR CHAMBER FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48251-031-0	02	1	9803-0106	●	●
8	SHELL; CYL,SPR CHAMBER FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48251-031-0	02	1	0107-	●	●
9	PIPE ASM; SHELL FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-076-0	02	1	0107-0211	●
9	PIPE ASM; SHELL FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-076-0	02	1	0212-	●
10	RING; CLAMP,SPR CHAMBER FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-016-0	08	1	0107-0211	●
10	RING; CLAMP,SPR CHAMBER FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-016-0	08	1	0212-	●
10	RING; CLAMP,SPR CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48259-016-0	04	1	9510-9802	●	●
10	RING; CLAMP,SPR CHAMBER FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48259-016-0	04	1	9803-0106	●	●
10	RING; CLAMP,SPR CHAMBER FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48259-016-0	04	1	0107-	●	●
11	BOLT; CLAMP RING FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-092-0	08	1	0107-0211	●
11	BOLT; CLAMP RING FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-092-0	08	1	0212-	●
11	BOLT; CLAMP RING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48259-035-0	04	1	9510-9802	●	●
11	BOLT; CLAMP RING FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48259-035-0	04	1	9803-0106	●	●
11	BOLT; CLAMP RING FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48259-035-0	04	1	0107-	●	●
12	WASHER; LK,CLAMP RING FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10.2	9-09150-510-0	08	1	0107-0211	●
12	WASHER; LK,CLAMP RING FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10.2	9-09150-510-0	08	1	0212-	●
12	WASHER; LK,CLAMP RING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10.2	9-09150-510-0	04	1	9510-9802	●	●
12	WASHER; LK,CLAMP RING FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10.2	9-09150-510-0	04	1	9803-0106	●	●
12	WASHER; LK,CLAMP RING FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10.2	9-09150-510-0	04	1	0107-	●	●
13	NUT; CLAMP RING FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-83315-080-0	08	1	0107-0211	●
13	NUT; CLAMP RING FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-83315-080-0	08	1	0212-	●
13	NUT; CLAMP RING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-83315-080-0	04	1	9510-9802	●	●
13	NUT; CLAMP RING FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-83315-080-0	04	1	9803-0106	●	●
13	NUT; CLAMP RING FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-83315-080-0	04	1	0107-	●	●
14	SPRING & SEAT SET FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-037-0	02	1	0107-0211	●
14	SPRING & SEAT SET FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-037-1	02	1	0212-	●
15	PISTON FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48262-005-0	02	1	0107-0211	●
15	PISTON FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48262-005-0	02	1	0212-	●
16	GASKET FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-048-0	02	1	0107-0211	●
16	GASKET FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-048-0	02	1	0212-	●
17	BOLT ASM; EMERGENCY FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-073-0	02	1	0107-0211	●
17	BOLT ASM; EMERGENCY FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-073-0	02	1	0212-	●
19	COVER; PISTON FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48269-011-0	02	1	0107-0211	●
19	COVER; PISTON FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48269-011-0	02	1	0212-	●
21	GASKET; SPR CHAMBER FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-049-0	02	1	0107-0211	●
21	GASKET; SPR CHAMBER FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-049-0	02	1	0212-	●
22	RING; BACKUP,SPR CHAMBER FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-019-0	02	1	0107-0211	●
22	RING; BACKUP,SPR CHAMBER FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-019-0	02	1	0212-	●
23	GASKET; SPR CHAMBER FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-047-0	02	1	0107-0211	●
23	GASKET; SPR CHAMBER FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-047-0	02	1	0212-	●
24	BEARING; SPR CHAMBER FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-020-0	02	1	0107-0211	●
24	BEARING; SPR CHAMBER FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-020-0	02	1	0212-	●
25	PLATE; PRESSURE,SPR CHAMBER FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-077-0	01	1	0107-0211	●
25	PLATE; PRESSURE,SPR CHAMBER FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-077-0	01	1	0212-	●
25	PLATE; PRESSURE,SPR CHAMBER FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-078-0	01	1	0107-0211	●
25	PLATE; PRESSURE,SPR CHAMBER FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-078-0	01	1	0212-	●
26	NUT; PRESSURE PLATE FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-058-0	04	1	0107-0211	●
26	NUT; PRESSURE PLATE FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-058-0	04	1	0212-	●
27	WASHER; PRESSURE PLATE FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=8.2	9-09150-508-0	02	1	0107-0211	●
27	WASHER; PRESSURE PLATE FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=8.2	9-09150-508-0	02	1	0212-	●
28	BRACKET; PRESSURE PLATE,HOSE FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-059-0	02	1	0107-0211	●
28	BRACKET; PRESSURE PLATE,HOSE FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-059-0	02	1	0212-	●
29	STUD; PRESSURE PLATE FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-050-0	02	1	0107-0211	●
29	STUD; PRESSURE PLATE FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-050-0	02	1	0212-	●
34	DIAPHRAGM FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48252-056-0	02	1	0107-0211	●
34	DIAPHRAGM FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48252-056-0	02	1	0212-	●
34	DIAPHRAGM REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48252-026-0	02	1	9510-9802	●	●
34	DIAPHRAGM FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48252-026-0	02	1	9803-0106	●	●
34	DIAPHRAGM FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48252-026-0	02	1	0107-	●	●
35	PLATE; ROD END,SPR CHAMBER FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48253-010-0	02	1	0107-0211	●
35	PLATE; ROD END,SPR CHAMBER FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48253-010-0	02	1	0212-	●
35	PLATE; ROD END,SPR CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48253-024-0	02	1	9510-9802	●	●
35	PLATE; ROD END,SPR CHAMBER FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48253-024-0	02	1	9803-0106	●	●
35	PLATE; ROD END,SPR CHAMBER FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48253-024-0	02	1	0107-	●	●
36	RETAINER; SPR CHAMBER FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-043-0	02	1	0107-0211	●
36	RETAINER; SPR CHAMBER FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-043-0	02	1	0212-	●
37	SPRING; LWR,SPR CHAMBER FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48255-016-0	02	1	0107-0211	●
37	SPRING; LWR,SPR CHAMBER FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48255-016-0	02	1	0212-	●
37	SPRING; LWR,SPR CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48255-008-0	02	1	9510-9802	●	●
37	SPRING; LWR,SPR CHAMBER FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48255-008-0	02	1	9803-0106	●	●
37	SPRING; LWR,SPR CHAMBER FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48255-008-0	02	1	0107-	●	●
38	COVER; ROD & PLATE FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-066-0	02	1	0107-0211	●
38	COVER; ROD & PLATE FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-066-0	02	1	0212-	●
39	COVER; ROD & PLATE FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-065-0	02	1	0107-0211	●
39	COVER; ROD & PLATE FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-065-0	02	1	0212-	●
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-067-1	01	1	0107-0211	●
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-067-1	01	1	0212-	●
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-068-1	01	1	0107-0211	●
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-068-1	01	1	0212-	●
40	COVER ASM; LWR,SPR CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48251-032-0	02	1	9510-9802	●	●
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48251-032-0	02	1	9803-0106	●	●
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48251-032-0	02	1	0107-	●	●
41	PIPE ASM; LWR COVER FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-075-0	02	1	0107-0211	●
41	PIPE ASM; LWR COVER FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-075-0	02	1	0212-	●
67	GASKET; SPR CHAMBER FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-053-0	02	1	0107-0211	●
67	GASKET; SPR CHAMBER FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-053-0	02	1	0212-	●
69	HOSE; PRESSURE PLATE FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-051-0	02	1	0107-0211	●
69	HOSE; PRESSURE PLATE FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-051-0	02	1	0212-	●
70	COVER; EXH,SPR CHAMBER FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-052-0	02	1	0107-0211	●
70	COVER; EXH,SPR CHAMBER FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-052-0	02	1	0212-	●

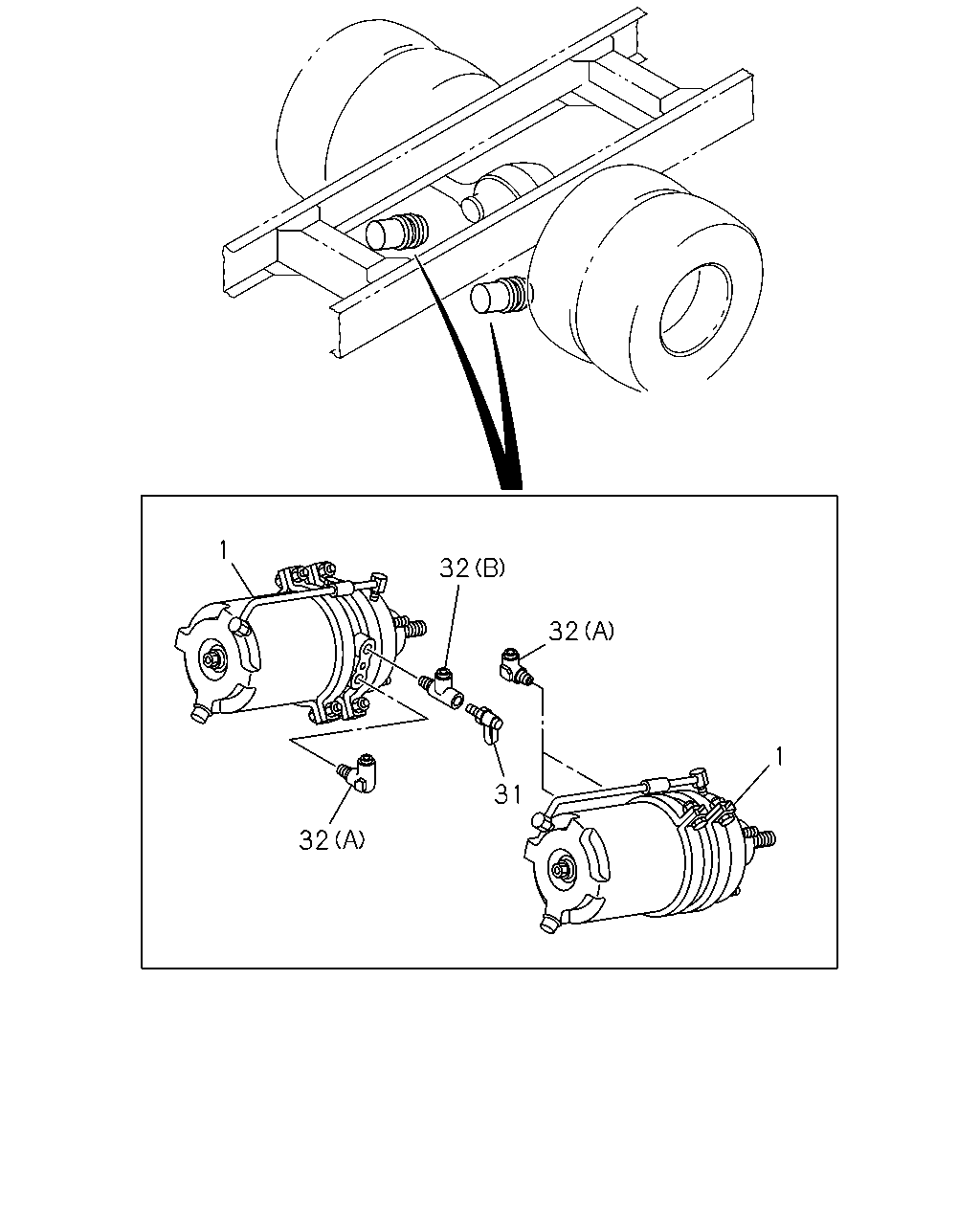

1 32 32 1 31 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48250-640-0	01	1	0107-0211	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48250-640-1	01	1	0212-	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48250-641-0	01	1	0107-0211	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48250-641-1	01	1	0212-	●
1	CHAMBER ASM; SPRING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48250-217-3	01	1	9510-9802	●	●
1	CHAMBER ASM; SPRING FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48250-217-3	01	1	9803-0106	●	●
1	CHAMBER ASM; SPRING FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48250-217-3	01	1	0107-	●	●
1	CHAMBER ASM; SPRING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48250-218-3	01	1	9510-9802	●	●
1	CHAMBER ASM; SPRING FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48250-218-3	01	1	9803-0106	●	●
1	CHAMBER ASM; SPRING FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48250-218-3	01	1	0107-	●	●
31	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	0107-	●
32	CONNECTOR; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0107-	●
32	CONNECTOR; SPR CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	01	1	0107-	●

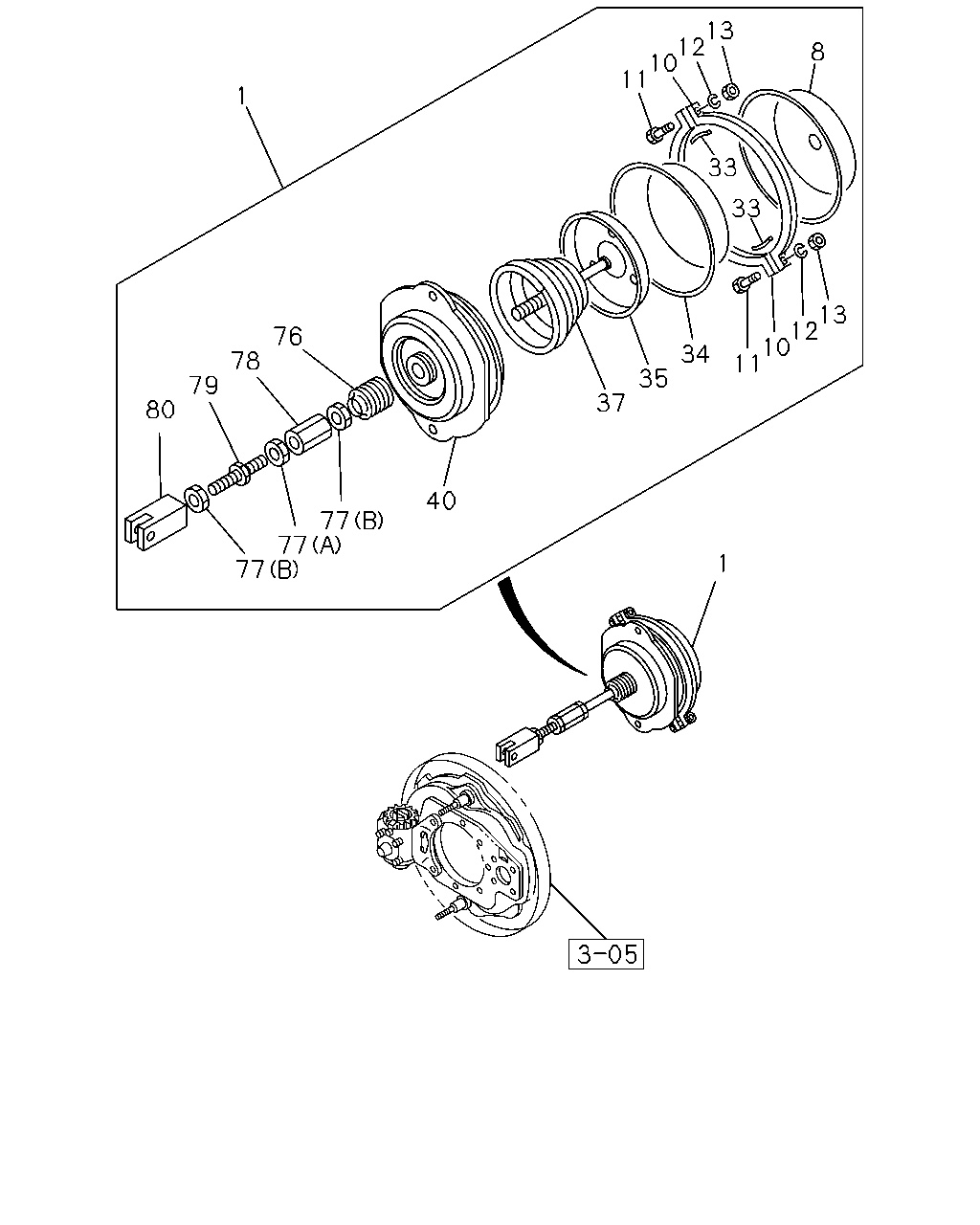

13 12 10 11 8 1 33 33 13 12 10 11 76 34 78 35 79 37 80 40 77 77 77 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48250-640-0	01	1	0107-0211	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48250-640-1	01	1	0212-	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48250-641-0	01	1	0107-0211	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48250-641-1	01	1	0212-	●
1	CHAMBER ASM; SPRING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48250-217-3	01	1	9510-9802	●	●
1	CHAMBER ASM; SPRING FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48250-217-3	01	1	9803-0106	●	●
1	CHAMBER ASM; SPRING FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48250-217-3	01	1	0107-	●	●
1	CHAMBER ASM; SPRING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48250-218-3	01	1	9510-9802	●	●
1	CHAMBER ASM; SPRING FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48250-218-3	01	1	9803-0106	●	●
1	CHAMBER ASM; SPRING FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48250-218-3	01	1	0107-	●	●
8	SHELL; CYL,SPR CHAMBER FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-069-0	01	1	0107-0211	●
8	SHELL; CYL,SPR CHAMBER FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-069-0	01	1	0212-	●
8	SHELL; CYL,SPR CHAMBER FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-070-0	01	1	0107-0211	●
8	SHELL; CYL,SPR CHAMBER FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-070-0	01	1	0212-	●
8	SHELL; CYL,SPR CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48251-031-0	02	1	9510-9802	●	●
8	SHELL; CYL,SPR CHAMBER FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48251-031-0	02	1	9803-0106	●	●
8	SHELL; CYL,SPR CHAMBER FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48251-031-0	02	1	0107-	●	●
10	RING; CLAMP,SPR CHAMBER FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-016-0	08	1	0107-0211	●
10	RING; CLAMP,SPR CHAMBER FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-016-0	08	1	0212-	●
10	RING; CLAMP,SPR CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48259-016-0	04	1	9510-9802	●	●
10	RING; CLAMP,SPR CHAMBER FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48259-016-0	04	1	9803-0106	●	●
10	RING; CLAMP,SPR CHAMBER FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48259-016-0	04	1	0107-	●	●
11	BOLT; CLAMP RING FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-092-0	08	1	0107-0211	●
11	BOLT; CLAMP RING FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-092-0	08	1	0212-	●
11	BOLT; CLAMP RING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48259-035-0	04	1	9510-9802	●	●
11	BOLT; CLAMP RING FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48259-035-0	04	1	9803-0106	●	●
11	BOLT; CLAMP RING FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48259-035-0	04	1	0107-	●	●
12	WASHER; LK,CLAMP RING FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10.2	9-09150-510-0	08	1	0107-0211	●
12	WASHER; LK,CLAMP RING FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10.2	9-09150-510-0	08	1	0212-	●
12	WASHER; LK,CLAMP RING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10.2	9-09150-510-0	04	1	9510-9802	●	●
12	WASHER; LK,CLAMP RING FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10.2	9-09150-510-0	04	1	9803-0106	●	●
12	WASHER; LK,CLAMP RING FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10.2	9-09150-510-0	04	1	0107-	●	●
13	NUT; CLAMP RING FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-83315-080-0	08	1	0107-0211	●
13	NUT; CLAMP RING FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-83315-080-0	08	1	0212-	●
13	NUT; CLAMP RING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-83315-080-0	04	1	9510-9802	●	●
13	NUT; CLAMP RING FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-83315-080-0	04	1	9803-0106	●	●
13	NUT; CLAMP RING FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-83315-080-0	04	1	0107-	●	●
33	RETAINER; DIAPH REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48259-044-0	04	1	9510-9802	●	●
33	RETAINER; DIAPH FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48259-044-0	04	1	9803-0106	●	●
33	RETAINER; DIAPH FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48259-044-0	04	1	0107-0210	●	●
33	RETAINER; DIAPH FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-044-0	04	1	0107-0210	●
33	RETAINER; DIAPH FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48259-044-0	04	1	0211-	●
33	RETAINER; DIAPH FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-044-0	04	1	0211-	●
34	DIAPHRAGM FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48252-056-0	02	1	0107-0211	●
34	DIAPHRAGM FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48252-056-0	02	1	0212-	●
34	DIAPHRAGM REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48252-026-0	02	1	9510-9802	●	●
34	DIAPHRAGM FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48252-026-0	02	1	9803-0106	●	●
34	DIAPHRAGM FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48252-026-0	02	1	0107-	●	●
35	PLATE; ROD END,SPR CHAMBER FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48253-010-0	02	1	0107-0211	●
35	PLATE; ROD END,SPR CHAMBER FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48253-010-0	02	1	0212-	●
35	PLATE; ROD END,SPR CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48253-024-0	02	1	9510-9802	●	●
35	PLATE; ROD END,SPR CHAMBER FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48253-024-0	02	1	9803-0106	●	●
35	PLATE; ROD END,SPR CHAMBER FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48253-024-0	02	1	0107-	●	●
37	SPRING; LWR,SPR CHAMBER FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48255-016-0	02	1	0107-0211	●
37	SPRING; LWR,SPR CHAMBER FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48255-016-0	02	1	0212-	●
37	SPRING; LWR,SPR CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48255-008-0	02	1	9510-9802	●	●
37	SPRING; LWR,SPR CHAMBER FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48255-008-0	02	1	9803-0106	●	●
37	SPRING; LWR,SPR CHAMBER FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48255-008-0	02	1	0107-	●	●
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-067-1	01	1	0107-0211	●
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-067-1	01	1	0212-	●
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-068-1	01	1	0107-0211	●
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5" HYPOID(W4H) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-068-1	01	1	0212-	●
40	COVER ASM; LWR,SPR CHAMBER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48251-032-0	02	1	9510-9802	●	●
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48251-032-0	02	1	9803-0106	●	●
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48251-032-0	02	1	0107-	●	●
76	GUARD; SPR CHAMBER BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48259-096-0	02	1	9510-9802	●	●
76	GUARD; SPR CHAMBER BRK FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48259-096-0	02	1	9803-0106	●	●
76	GUARD; SPR CHAMBER BRK FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48259-096-0	02	1	0107-	●	●
77	NUT; SPR CHAMBER BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-48253-021-0	02	1	9510-9802	●	●
77	NUT; SPR CHAMBER BRK FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-48253-021-0	02	1	9803-0106	●	●
77	NUT; SPR CHAMBER BRK FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-48253-021-0	02	1	0107-	●	●
77	NUT; SPR CHAMBER BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	9-88510-432-0	04	1	9510-9802	●	●
77	NUT; SPR CHAMBER BRK FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	9-88510-432-0	04	1	9803-0106	●	●
77	NUT; SPR CHAMBER BRK FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	9-88510-432-0	04	1	0107-	●	●
78	TURNBACKLE; SPR CHAMBER BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48253-023-0	02	1	9510-9802	●	●
78	TURNBACKLE; SPR CHAMBER BRK FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48253-023-0	02	1	9803-0106	●	●
78	TURNBACKLE; SPR CHAMBER BRK FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48253-023-0	02	1	0107-	●	●
79	STUD; SPR CHAMBER BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48253-022-0	02	1	9510-9802	●	●
79	STUD; SPR CHAMBER BRK FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48253-022-0	02	1	9803-0106	●	●
79	STUD; SPR CHAMBER BRK FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48253-022-0	02	1	0107-	●	●
80	CLEVIS; SPR CHAMBER BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48253-020-0	02	1	9510-9802	●	●
80	CLEVIS; SPR CHAMBER BRK FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48253-020-0	02	1	9803-0106	●	●
80	CLEVIS; SPR CHAMBER BRK FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48253-020-0	02	1	0107-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
