Sayfa 3-22 - Isuzu EPC

3-22 — AIR CONTROL PARTS (#60029) — 378 parça

13 157 216 158

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	VALVE ASM; QUICK RELEASE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48410-320-0	02	1	0107-0109	●
13	VALVE ASM; QUICK RELEASE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48410-659-0	02	1	0110-	●
13	VALVE ASM; QUICK RELEASE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48410-320-0	01	1	9510-9802	●	●
13	VALVE ASM; QUICK RELEASE FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48410-320-0	01	1	9803-0106	●	●
13	VALVE ASM; QUICK RELEASE FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48410-320-0	01	1	0107-0109	●	●
13	VALVE ASM; QUICK RELEASE FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48410-659-0	01	1	0110-	●	●
157	RETAINER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48419-020-0	03	1	0110-	●
157	RETAINER; VALVE FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48419-020-0	01	1	0110-	●	●
157	RETAINER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48213-002-0	03	1	0107-0211	●
157	RETAINER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48213-002-0	01	1	0212-	●
157	RETAINER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48213-002-0	02	1	0212-	●
158	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	9-48419-003-0	03	1	0110-	●
158	SPRING; VALVE FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	9-48419-003-0	01	1	0110-	●	●
158	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47819-089-0	03	1	0107-0211	●
158	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47819-089-0	01	1	0212-	●
158	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47819-089-0	02	1	0212-	●
216	REPAIR KIT; QUICK RELEASE VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-85576-235-0	03	1	0110-	●
216	REPAIR KIT; QUICK RELEASE VLV FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-85576-235-0	01	1	0110-	●	●

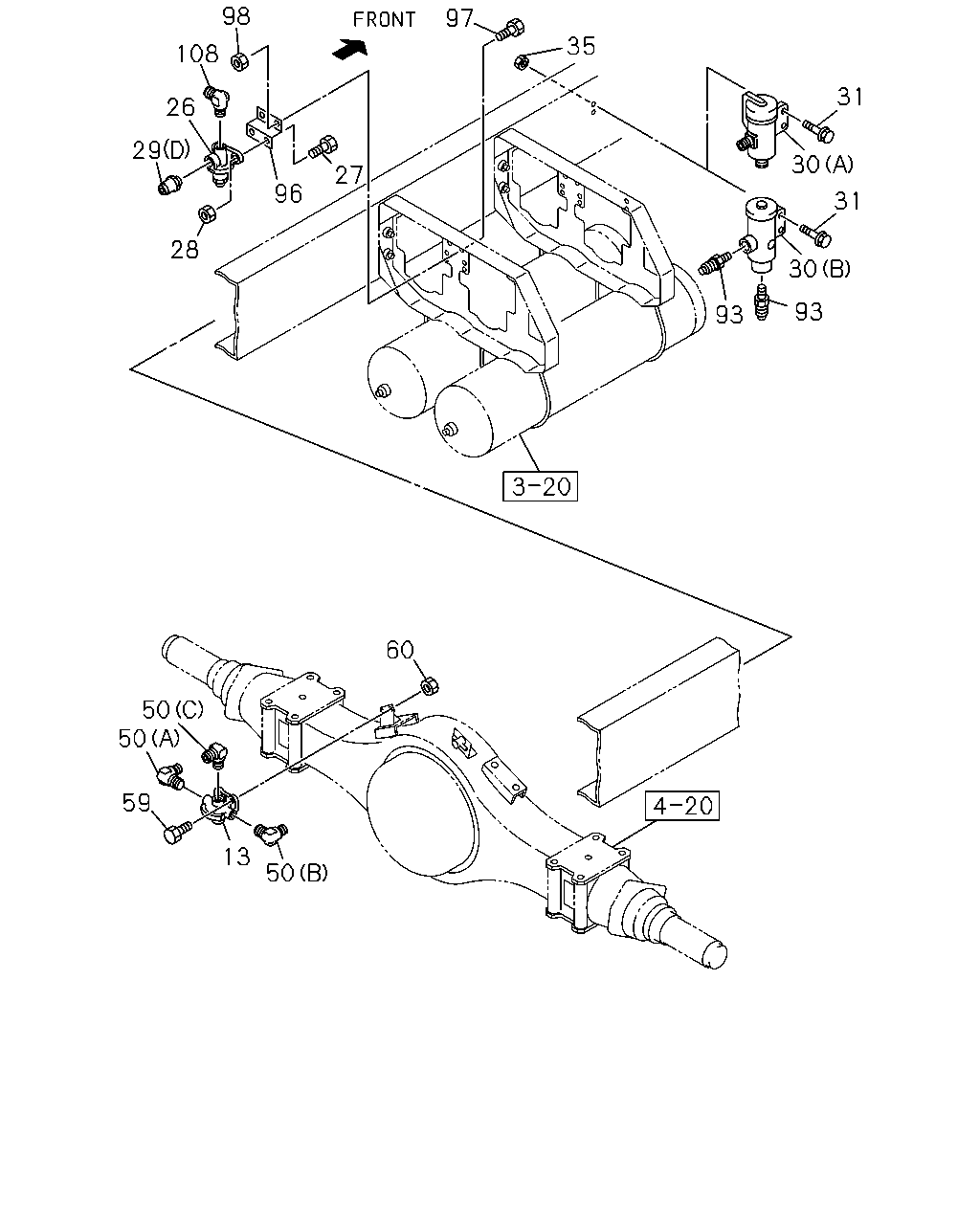

38 34 35 93 33 30 93 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
30	GOVERNOR; AIR CONT (A)	1-48350-059-0	01	1	9510-9910	●	●
30	GOVERNOR; AIR CONT (B)	1-48350-063-2	01	1	9911-0210	●	●
30	GOVERNOR; AIR CONT (B)	1-48350-063-2	01	1	0211-	●
31	BOLT; GOV TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28680-825-0	02	1	0107-0512	●
31	BOLT; GOV TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28080-825-0	02	1	9510-9606	●	●
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28680-825-0	02	1	9607-9802	●	●
31	BOLT; GOV TO FRAME M8X30 FLANGE	0-28680-830-0	02	1	9803-9911	●	●
31	BOLT; GOV TO FRAME M8X35 FLANGE	0-28680-835-0	02	1	9912-0106	●	●
31	BOLT; GOV TO FRAME M8X35 FLANGE	0-28680-835-0	02	1	0107-0210		●
31	BOLT; GOV TO FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 FLANGE	0-28680-835-0	02	1	0107-0210	●
31	BOLT; GOV TO FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 FLANGE	0-28680-835-0	02	1	0211-0512	●
31	BOLT; GOV TO FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 FLANGE	0-28650-835-0	02	1	0601-	●
33	BRACKET; GOV,AIR CONT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48359-106-1	01	1	0107-	●
34	BOLT; BRKT,GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28680-830-0	02	1	0107-0512	●
34	BOLT; BRKT,GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●
35	NUT; GOV TO FRAME M8	9-09110-408-0	02	1	9510-9606	●	●
35	NUT; GOV TO FRAME M8 FLANGE	0-91150-108-0	02	1	9607-0210	●	●
35	NUT; GOV TO FRAME M8 FLANGE	0-91150-108-0	02	1	0211-0602	●
35	NUT; GOV TO FRAME M8 FLANGE	0-91180-108-0	02	1	0603-	●
38	NUT; BRKT,GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	02	1	0107-0602	●
38	NUT; BRKT,GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	02	1	0603-	●
93	CONNECTOR; GOV M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	9911-0210	●	●
93	CONNECTOR; GOV M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0211-	●

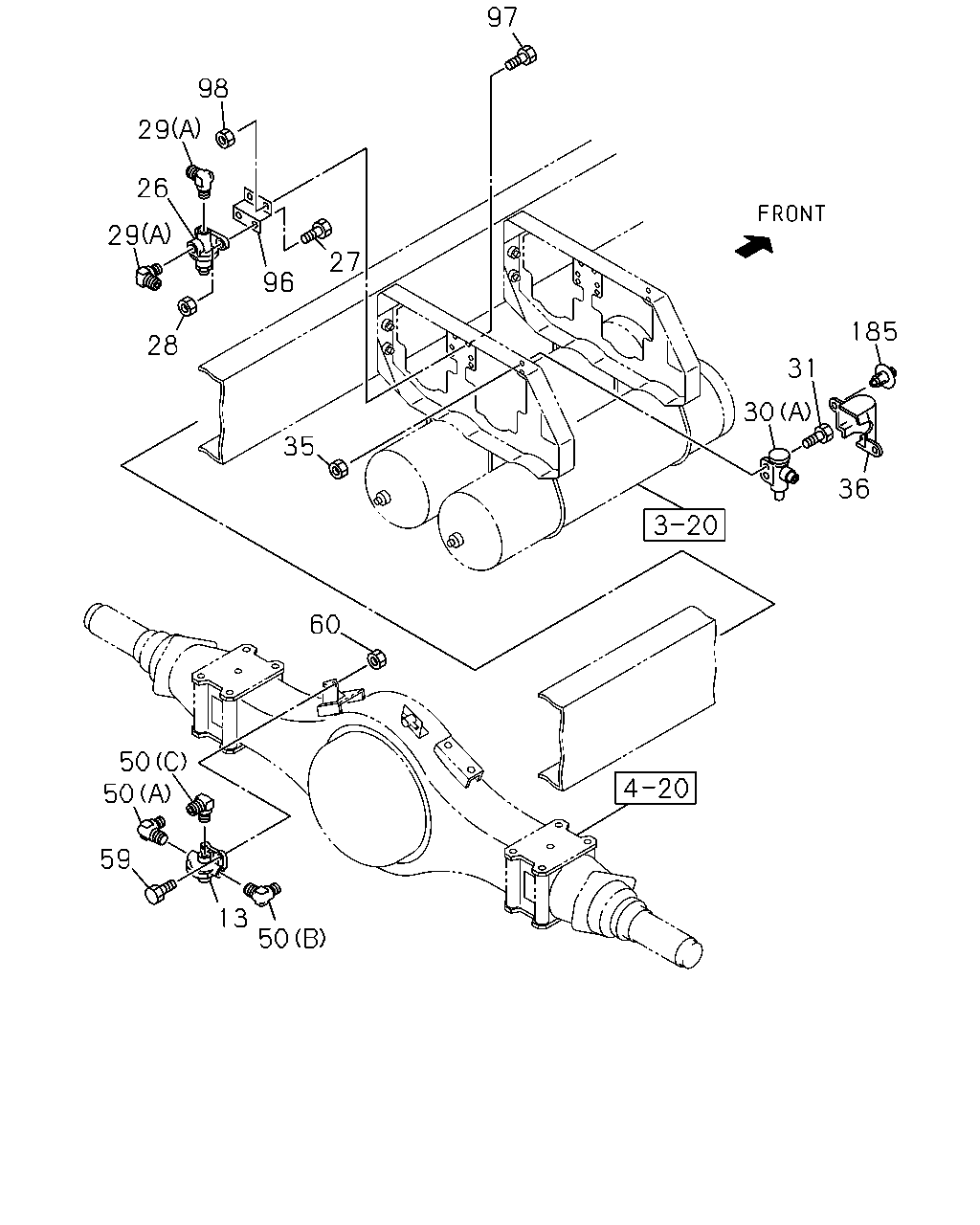

97 98 29 26 29 27 96 185 28 31 30 35 36 60 50 50 59 13 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	VALVE ASM; QUICK RELEASE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48410-320-0	02	1	0107-0109	●
13	VALVE ASM; QUICK RELEASE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48410-659-0	02	1	0110-	●
13	VALVE ASM; QUICK RELEASE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48410-320-0	01	1	9510-9802	●	●
13	VALVE ASM; QUICK RELEASE FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48410-320-0	01	1	9803-0106	●	●
13	VALVE ASM; QUICK RELEASE FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48410-320-0	01	1	0107-0109	●	●
13	VALVE ASM; QUICK RELEASE FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48410-659-0	01	1	0110-	●	●
26	VALVE; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48110-006-0	01	1	9510-9802	●	●
26	VALVE; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48110-006-0	01	1	9803-0004	●
26	VALVE; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48110-006-1	01	1	0005-0106	●	●
26	VALVE; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48110-006-1	01	1	0107-0210		●
26	VALVE; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48110-006-1	01	1	0107-0210	●
26	VALVE; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48110-006-1	01	1	0211-	●
27	BOLT; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28080-825-0	02	1	9510-9606	●	●
27	BOLT; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X30 FLANGE	0-28680-830-0	02	1	9607-0106	●	●
27	BOLT; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X30 FLANGE	0-28680-830-0	02	1	0107-0210		●
27	BOLT; AIR VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X30 FLANGE	0-28680-830-0	02	1	0107-0210	●
27	BOLT; AIR VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X30 FLANGE	0-28680-830-0	02	1	0211-0512	●
27	BOLT; AIR VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●
28	NUT; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	9510-9606	●	●
28	NUT; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	9607-0106	●	●
28	NUT; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	0107-0210		●
28	NUT; AIR VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	0107-0210	●
28	NUT; AIR VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	0211-0602	●
28	NUT; AIR VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	0603-	●
29	CONNECTOR; AIR VLV WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	04	1	0107-	●
29	CONNECTOR; AIR VLV WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> (C) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	0107-	●
29	CONNECTOR; AIR VLV WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR ASSIST CLUTCH<PK1> (E) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0107-	●
29	CONNECTOR; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT1/4 ELBOW	1-09650-434-0	02	1	9510-9802	●	●
29	CONNECTOR; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	9803-0004	●
29	CONNECTOR; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	0005-0106	●	●
29	CONNECTOR; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	0107-0210		●
29	CONNECTOR; AIR VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	0107-0210	●
29	CONNECTOR; AIR VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	0211-	●
30	GOVERNOR; AIR CONT (A)	1-48350-059-0	01	1	9510-9910	●	●
30	GOVERNOR; AIR CONT (B)	1-48350-063-2	01	1	9911-0210	●	●
30	GOVERNOR; AIR CONT (B)	1-48350-063-2	01	1	0211-	●
31	BOLT; GOV TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28680-825-0	02	1	0107-0512	●
31	BOLT; GOV TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28080-825-0	02	1	9510-9606	●	●
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28680-825-0	02	1	9607-9802	●	●
31	BOLT; GOV TO FRAME M8X30 FLANGE	0-28680-830-0	02	1	9803-9911	●	●
31	BOLT; GOV TO FRAME M8X35 FLANGE	0-28680-835-0	02	1	9912-0106	●	●
31	BOLT; GOV TO FRAME M8X35 FLANGE	0-28680-835-0	02	1	0107-0210		●
31	BOLT; GOV TO FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 FLANGE	0-28680-835-0	02	1	0107-0210	●
31	BOLT; GOV TO FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 FLANGE	0-28680-835-0	02	1	0211-0512	●
31	BOLT; GOV TO FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 FLANGE	0-28650-835-0	02	1	0601-	●
35	NUT; GOV TO FRAME M8	9-09110-408-0	02	1	9510-9606	●	●
35	NUT; GOV TO FRAME M8 FLANGE	0-91150-108-0	02	1	9607-0210	●	●
35	NUT; GOV TO FRAME M8 FLANGE	0-91150-108-0	02	1	0211-0602	●
35	NUT; GOV TO FRAME M8 FLANGE	0-91180-108-0	02	1	0603-	●
36	COVER; GOV	1-48359-077-1	01	1	9510-9510	●	●
36	COVER; GOV	1-48359-081-0	01	1	9510-9802	●	●
50	CONNECTOR; RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14 & PT3/8 STRAIGHT	1-09650-085-1	01	1	9510-9802	●	●
50	CONNECTOR; RELEASE VLV FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14 & PT3/8 STRAIGHT	1-09650-085-1	01	1	9803-0106	●	●
50	CONNECTOR; RELEASE VLV FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14 & PT3/8 STRAIGHT	1-09650-085-1	01	1	0107-	●	●
50	CONNECTOR; RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14 & PT3/8 ELBOW	1-09650-437-0	01	1	9510-9802	●	●
50	CONNECTOR; RELEASE VLV FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14 & PT3/8 ELBOW	1-09650-437-0	01	1	9803-0106	●	●
50	CONNECTOR; RELEASE VLV FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14 & PT3/8 ELBOW	1-09650-437-0	01	1	0107-	●	●
50	CONNECTOR; RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M20 & PT3/8 ELBOW	1-09660-684-0	01	1	9510-9802	●	●
50	CONNECTOR; RELEASE VLV FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M20 & PT3/8 ELBOW	1-09660-684-0	01	1	9803-0106	●	●
50	CONNECTOR; RELEASE VLV FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M20 & PT3/8 ELBOW	1-09660-684-0	01	1	0107-	●	●
59	BOLT; RELEASE VALVE FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28080-820-0	04	1	0107-0211	●
59	BOLT; RELEASE VALVE FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X16 FLANGE	0-28080-816-0	04	1	0212-0512	●
59	BOLT; RELEASE VALVE FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X16 FLANGE	0-28050-816-0	04	1	0601-	●
59	BOLT; RELEASE VALVE FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER	0-50040-820-0	02	1	9510-9802	●	●
59	BOLT; RELEASE VALVE FIX FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER	0-50040-820-0	02	1	9803-0106	●	●
59	BOLT; RELEASE VALVE FIX FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER	0-50040-820-0	02	1	0107-0210	●	●
59	BOLT; RELEASE VALVE FIX FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER	0-50040-820-0	02	1	0211-0906	●
59	BOLT; RELEASE VALVE FIX FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER	0-50540-820-0	02	1	0907-	●
60	NUT; RELEASE VALVE FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	9510-9802	●	●
60	NUT; RELEASE VALVE FIX FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	9803-0106	●	●
60	NUT; RELEASE VALVE FIX FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	0107-0210	●	●
60	NUT; RELEASE VALVE FIX FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	0211-0512	●
60	NUT; RELEASE VALVE FIX FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	0-91110-508-0	02	1	0601-	●
96	BRACKET REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48495-053-1	01	1	9510-9802	●	●
96	BRACKET REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48495-201-0	01	1	9803-0001	●	●
96	BRACKET REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48495-224-0	01	1	0002-0106	●	●
96	BRACKET REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48495-224-0	01	1	0107-0210		●
96	BRACKET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48495-224-0	01	1	0107-0210	●
96	BRACKET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48495-224-0	01	1	0211-	●
97	BOLT; VLV BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28080-820-0	02	1	9510-9606	●	●
97	BOLT; VLV BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28680-825-0	02	1	9607-0106	●	●
97	BOLT; VLV BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28680-825-0	02	1	0107-0210		●
97	BOLT; VLV BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28680-825-0	02	1	0107-0210	●
97	BOLT; VLV BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28680-825-0	02	1	0211-0512	●
97	BOLT; VLV BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
98	NUT; VLV BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	9510-9606	●	●
98	NUT; VLV BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	9607-0106	●	●
98	NUT; VLV BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	0107-0210		●
98	NUT; VLV BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	0107-0210	●
98	NUT; VLV BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	0211-0602	●
98	NUT; VLV BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	0603-	●
185	FASTENER; COVER	1-09470-006-0	02	1	9510-9802	●	●

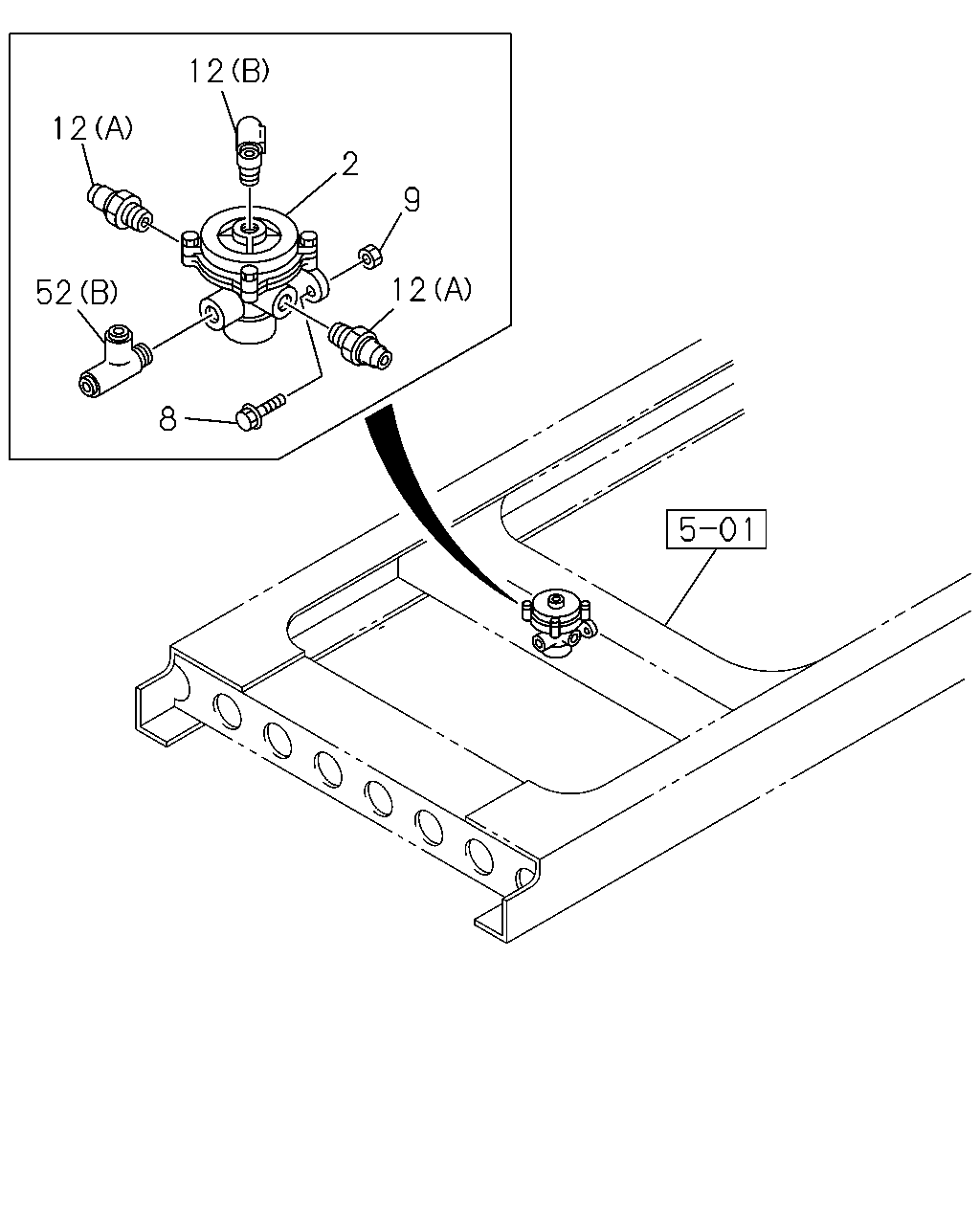

12 12 2 9 12 52 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-755-0	02	1	0107-	●
8	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X30 FLANGE	0-28681-030-0	02	1	0107-0512	●
8	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X30 FLANGE	0-28651-030-0	02	1	0601-	●
9	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91150-210-0	02	1	0107-0602	●
9	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	02	1	0603-	●
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M16 & PT1/2 STRAIGHT	1-09650-245-1	02	1	0107-	●
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0107-	●
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0107-	●
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	0107-	●
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0107-	●
52	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09656-476-0	01	1	0107-	●
52	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12X2 & R1/2 3WAY	1-09661-019-0	01	1	0107-	●

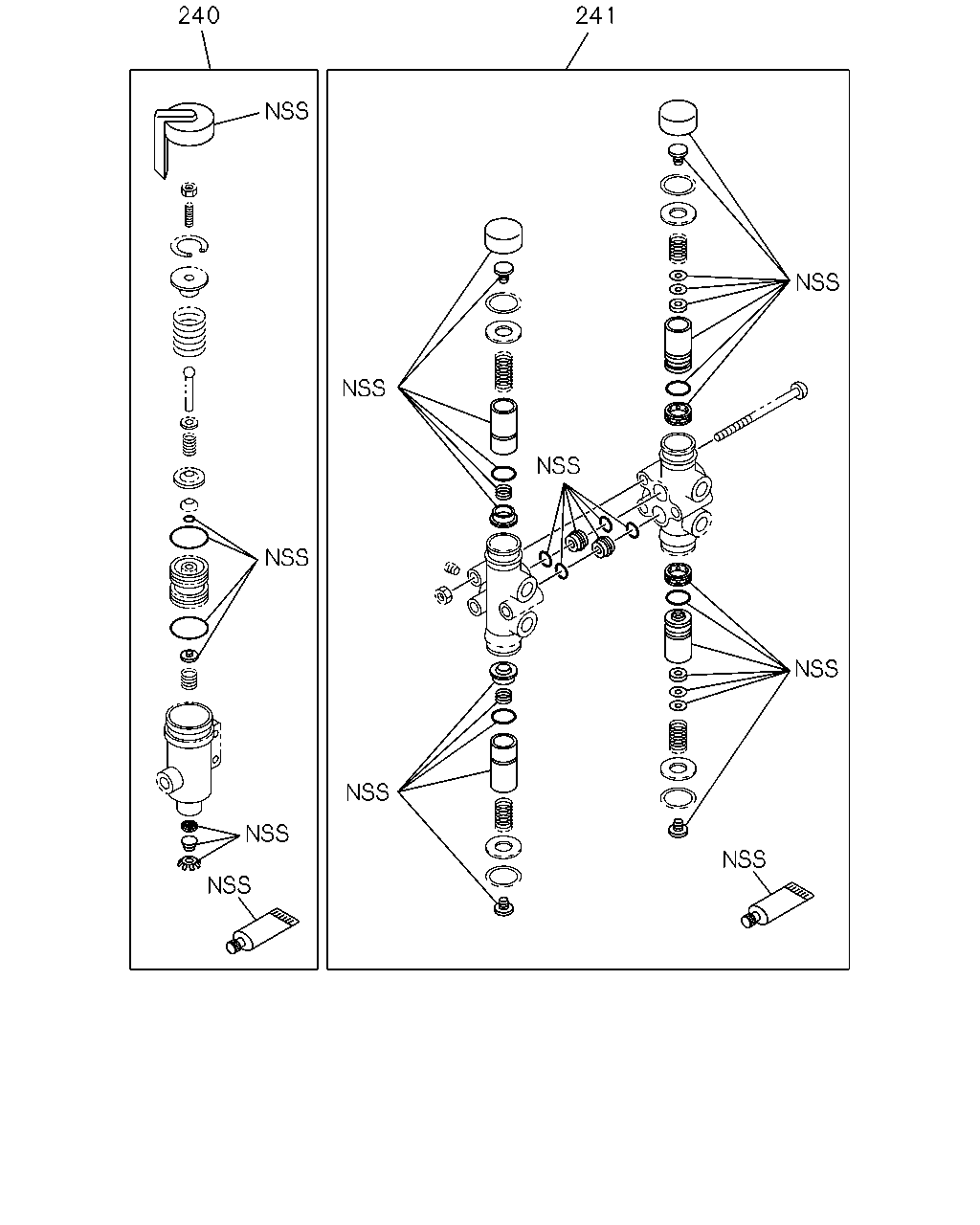

240 241

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
240	REPAIR KIT; AIR CONT GOV	1-85576-466-0	01	1	9510-9910	●	●
240	REPAIR KIT; AIR CONT GOV	1-85576-467-0	01	1	9911-0210	●	●
240	REPAIR KIT; AIR CONT GOV	1-85576-467-0	01	1	0211-	●
241	REPAIR KIT; PROTECTION VALVE WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-85576-224-0	01	1	0107-	●

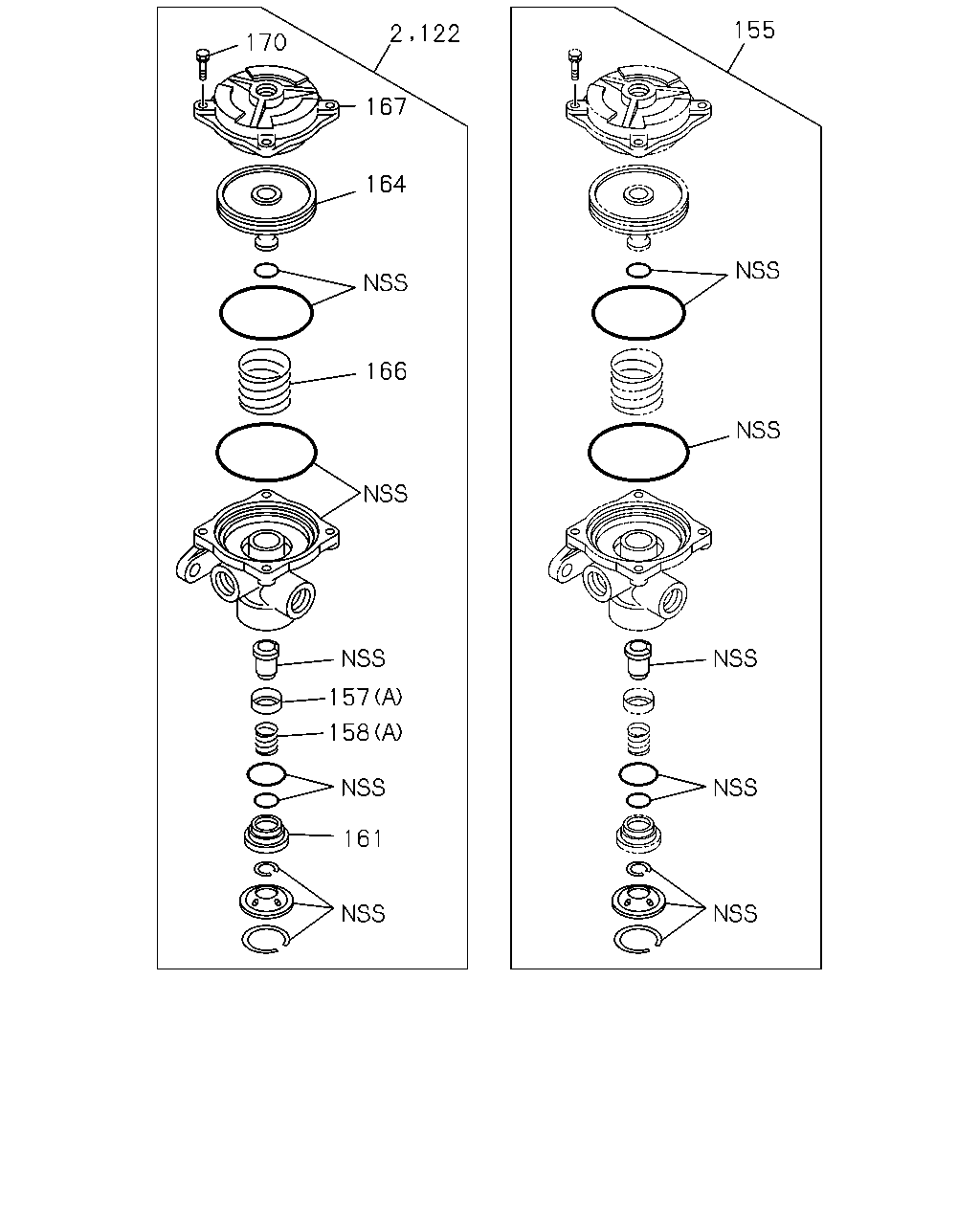

155 170 167 164 166 157 158 161 2 122

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-755-0	02	1	0107-	●
122	VALVE ASM; CONT,WHEEL PARKING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-755-0	01	1	0107-	●
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-85576-033-0	03	1	0107-0211	●
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-85576-033-0	01	1	0212-	●
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-85576-033-0	02	1	0212-	●
157	RETAINER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48419-020-0	03	1	0110-	●
157	RETAINER; VALVE FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48419-020-0	01	1	0110-	●	●
157	RETAINER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48213-002-0	03	1	0107-0211	●
157	RETAINER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48213-002-0	01	1	0212-	●
157	RETAINER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48213-002-0	02	1	0212-	●
158	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	9-48419-003-0	03	1	0110-	●
158	SPRING; VALVE FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	9-48419-003-0	01	1	0110-	●	●
158	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47819-089-0	03	1	0107-0211	●
158	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47819-089-0	01	1	0212-	●
158	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47819-089-0	02	1	0212-	●
161	GUIDE; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48129-014-0	03	1	0107-0211	●
161	GUIDE; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48129-014-0	01	1	0212-	●
161	GUIDE; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48129-014-0	02	1	0212-	●
164	PISTON; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-071-0	03	1	0107-0211	●
164	PISTON; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-071-0	01	1	0212-	●
164	PISTON; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-071-0	02	1	0212-	●
166	SPRING; PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47819-090-0	03	1	0107-0211	●
166	SPRING; PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47819-090-0	01	1	0212-	●
166	SPRING; PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47819-090-0	02	1	0212-	●
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-070-0	03	1	0107-0211	●
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-070-0	01	1	0212-	●
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-070-0	02	1	0212-	●
170	SCREW; COVER TO BODY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-039-0	12	1	0107-0211	●
170	SCREW; COVER TO BODY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-039-0	04	1	0212-	●
170	SCREW; COVER TO BODY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-039-0	08	1	0212-	●

98 97 35 108 31 26 29 30 27 96 31 28 30 93 93 60 50 50 59 13 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	VALVE ASM; QUICK RELEASE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48410-320-0	02	1	0107-0109	●
13	VALVE ASM; QUICK RELEASE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48410-659-0	02	1	0110-	●
13	VALVE ASM; QUICK RELEASE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48410-320-0	01	1	9510-9802	●	●
13	VALVE ASM; QUICK RELEASE FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48410-320-0	01	1	9803-0106	●	●
13	VALVE ASM; QUICK RELEASE FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48410-320-0	01	1	0107-0109	●	●
13	VALVE ASM; QUICK RELEASE FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48410-659-0	01	1	0110-	●	●
26	VALVE; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48110-006-0	01	1	9510-9802	●	●
26	VALVE; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48110-006-0	01	1	9803-0004	●
26	VALVE; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48110-006-1	01	1	0005-0106	●	●
26	VALVE; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48110-006-1	01	1	0107-0210		●
26	VALVE; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48110-006-1	01	1	0107-0210	●
26	VALVE; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48110-006-1	01	1	0211-	●
27	BOLT; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28080-825-0	02	1	9510-9606	●	●
27	BOLT; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X30 FLANGE	0-28680-830-0	02	1	9607-0106	●	●
27	BOLT; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X30 FLANGE	0-28680-830-0	02	1	0107-0210		●
27	BOLT; AIR VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X30 FLANGE	0-28680-830-0	02	1	0107-0210	●
27	BOLT; AIR VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X30 FLANGE	0-28680-830-0	02	1	0211-0512	●
27	BOLT; AIR VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●
28	NUT; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	9510-9606	●	●
28	NUT; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	9607-0106	●	●
28	NUT; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	0107-0210		●
28	NUT; AIR VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	0107-0210	●
28	NUT; AIR VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	0211-0602	●
28	NUT; AIR VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	0603-	●
29	CONNECTOR; AIR VLV WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	04	1	0107-	●
29	CONNECTOR; AIR VLV WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> (C) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	0107-	●
29	CONNECTOR; AIR VLV WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR ASSIST CLUTCH<PK1> (E) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0107-	●
29	CONNECTOR; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT1/4 ELBOW	1-09650-434-0	02	1	9510-9802	●	●
29	CONNECTOR; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	9803-0004	●
29	CONNECTOR; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	0005-0106	●	●
29	CONNECTOR; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	0107-0210		●
29	CONNECTOR; AIR VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	0107-0210	●
29	CONNECTOR; AIR VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	0211-	●
30	GOVERNOR; AIR CONT (A)	1-48350-059-0	01	1	9510-9910	●	●
30	GOVERNOR; AIR CONT (B)	1-48350-063-2	01	1	9911-0210	●	●
30	GOVERNOR; AIR CONT (B)	1-48350-063-2	01	1	0211-	●
31	BOLT; GOV TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28680-825-0	02	1	0107-0512	●
31	BOLT; GOV TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28080-825-0	02	1	9510-9606	●	●
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28680-825-0	02	1	9607-9802	●	●
31	BOLT; GOV TO FRAME M8X30 FLANGE	0-28680-830-0	02	1	9803-9911	●	●
31	BOLT; GOV TO FRAME M8X35 FLANGE	0-28680-835-0	02	1	9912-0106	●	●
31	BOLT; GOV TO FRAME M8X35 FLANGE	0-28680-835-0	02	1	0107-0210		●
31	BOLT; GOV TO FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 FLANGE	0-28680-835-0	02	1	0107-0210	●
31	BOLT; GOV TO FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 FLANGE	0-28680-835-0	02	1	0211-0512	●
31	BOLT; GOV TO FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 FLANGE	0-28650-835-0	02	1	0601-	●
35	NUT; GOV TO FRAME M8	9-09110-408-0	02	1	9510-9606	●	●
35	NUT; GOV TO FRAME M8 FLANGE	0-91150-108-0	02	1	9607-0210	●	●
35	NUT; GOV TO FRAME M8 FLANGE	0-91150-108-0	02	1	0211-0602	●
35	NUT; GOV TO FRAME M8 FLANGE	0-91180-108-0	02	1	0603-	●
50	CONNECTOR; RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14 & PT3/8 STRAIGHT	1-09650-085-1	01	1	9510-9802	●	●
50	CONNECTOR; RELEASE VLV FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14 & PT3/8 STRAIGHT	1-09650-085-1	01	1	9803-0106	●	●
50	CONNECTOR; RELEASE VLV FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14 & PT3/8 STRAIGHT	1-09650-085-1	01	1	0107-	●	●
50	CONNECTOR; RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14 & PT3/8 ELBOW	1-09650-437-0	01	1	9510-9802	●	●
50	CONNECTOR; RELEASE VLV FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14 & PT3/8 ELBOW	1-09650-437-0	01	1	9803-0106	●	●
50	CONNECTOR; RELEASE VLV FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14 & PT3/8 ELBOW	1-09650-437-0	01	1	0107-	●	●
50	CONNECTOR; RELEASE VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M20 & PT3/8 ELBOW	1-09660-684-0	01	1	9510-9802	●	●
50	CONNECTOR; RELEASE VLV FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M20 & PT3/8 ELBOW	1-09660-684-0	01	1	9803-0106	●	●
50	CONNECTOR; RELEASE VLV FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M20 & PT3/8 ELBOW	1-09660-684-0	01	1	0107-	●	●
59	BOLT; RELEASE VALVE FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28080-820-0	04	1	0107-0211	●
59	BOLT; RELEASE VALVE FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X16 FLANGE	0-28080-816-0	04	1	0212-0512	●
59	BOLT; RELEASE VALVE FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X16 FLANGE	0-28050-816-0	04	1	0601-	●
59	BOLT; RELEASE VALVE FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER	0-50040-820-0	02	1	9510-9802	●	●
59	BOLT; RELEASE VALVE FIX FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER	0-50040-820-0	02	1	9803-0106	●	●
59	BOLT; RELEASE VALVE FIX FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER	0-50040-820-0	02	1	0107-0210	●	●
59	BOLT; RELEASE VALVE FIX FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER	0-50040-820-0	02	1	0211-0906	●
59	BOLT; RELEASE VALVE FIX FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER	0-50540-820-0	02	1	0907-	●
60	NUT; RELEASE VALVE FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	9510-9802	●	●
60	NUT; RELEASE VALVE FIX FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	9803-0106	●	●
60	NUT; RELEASE VALVE FIX FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	0107-0210	●	●
60	NUT; RELEASE VALVE FIX FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	0211-0512	●
60	NUT; RELEASE VALVE FIX FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	0-91110-508-0	02	1	0601-	●
93	CONNECTOR; GOV M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	9911-0210	●	●
93	CONNECTOR; GOV M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0211-	●
96	BRACKET REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48495-053-1	01	1	9510-9802	●	●
96	BRACKET REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48495-201-0	01	1	9803-0001	●	●
96	BRACKET REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48495-224-0	01	1	0002-0106	●	●
96	BRACKET REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48495-224-0	01	1	0107-0210		●
96	BRACKET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48495-224-0	01	1	0107-0210	●
96	BRACKET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48495-224-0	01	1	0211-	●
97	BOLT; VLV BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28080-820-0	02	1	9510-9606	●	●
97	BOLT; VLV BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28680-825-0	02	1	9607-0106	●	●
97	BOLT; VLV BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28680-825-0	02	1	0107-0210		●
97	BOLT; VLV BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28680-825-0	02	1	0107-0210	●
97	BOLT; VLV BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28680-825-0	02	1	0211-0512	●
97	BOLT; VLV BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
98	NUT; VLV BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	9510-9606	●	●
98	NUT; VLV BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	9607-0106	●	●
98	NUT; VLV BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	0107-0210		●
98	NUT; VLV BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	0107-0210	●
98	NUT; VLV BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	02	1	0211-0602	●
98	NUT; VLV BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	0603-	●
108	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0107-	●
108	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	9803-0004	●
108	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	0005-0106	●	●
108	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	0107-0210		●
108	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	0107-0210	●
108	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	0211-	●

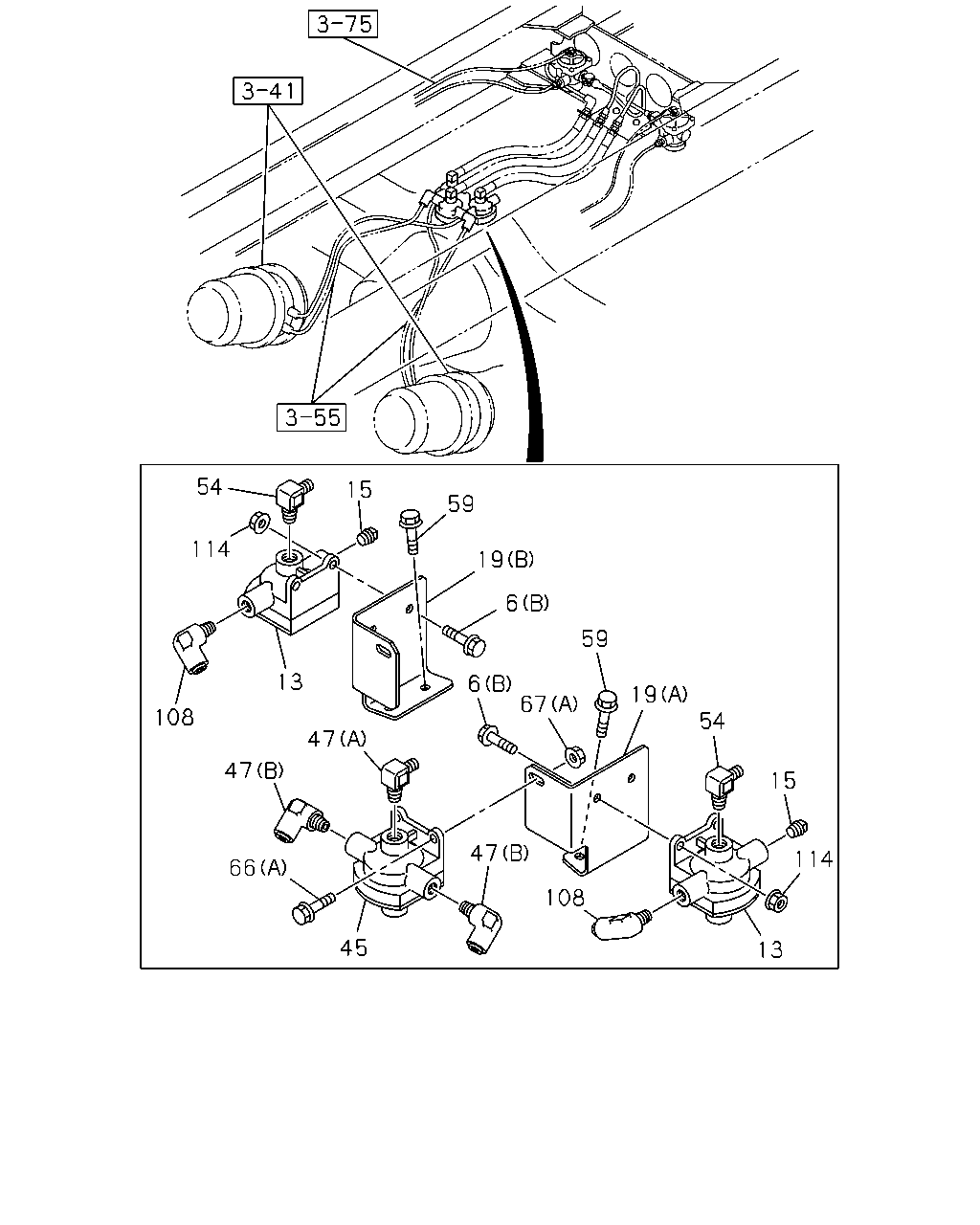

54 15 59 114 19 6 59 13 6 67 19 108 54 47 47 15 47 114 66 108 45 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	BOLT; VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X25 FLANGE	0-28680-825-0	04	1	0107-0512	●
6	BOLT; VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●
6	BOLT; VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M10X30 FLANGE	0-28681-030-0	02	1	0107-0512	●
6	BOLT; VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M10X30 FLANGE	0-28651-030-0	02	1	0601-	●
13	VALVE ASM; QUICK RELEASE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48410-320-0	02	1	0107-0109	●
13	VALVE ASM; QUICK RELEASE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48410-659-0	02	1	0110-	●
13	VALVE ASM; QUICK RELEASE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48410-320-0	01	1	9510-9802	●	●
13	VALVE ASM; QUICK RELEASE FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48410-320-0	01	1	9803-0106	●	●
13	VALVE ASM; QUICK RELEASE FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48410-320-0	01	1	0107-0109	●	●
13	VALVE ASM; QUICK RELEASE FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48410-659-0	01	1	0110-	●	●
15	PLUG; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT3/8	9-09204-517-0	02	1	0107-	●
19	BRACKET; QUICK RELEASE VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48495-220-0	01	1	0107-	●
19	BRACKET; QUICK RELEASE VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48495-221-0	01	1	0107-	●
45	VALVE; QUICK RELEASE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48410-320-0	01	1	0107-0109	●
45	VALVE; QUICK RELEASE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48410-659-0	01	1	0110-	●
47	CONNECTOR; RELAY VLV,CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M20 & PT3/8 ELBOW	1-09660-684-0	01	1	0107-	●
47	CONNECTOR; RELAY VLV,CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0107-	●
54	CONNECTOR; QUICK RELEASE VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M20 & PT3/8 ELBOW	1-09660-684-0	02	1	0107-	●
59	BOLT; RELEASE VALVE FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28080-820-0	04	1	0107-0211	●
59	BOLT; RELEASE VALVE FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X16 FLANGE	0-28080-816-0	04	1	0212-0512	●
59	BOLT; RELEASE VALVE FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X16 FLANGE	0-28050-816-0	04	1	0601-	●
59	BOLT; RELEASE VALVE FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER	0-50040-820-0	02	1	9510-9802	●	●
59	BOLT; RELEASE VALVE FIX FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER	0-50040-820-0	02	1	9803-0106	●	●
59	BOLT; RELEASE VALVE FIX FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER	0-50040-820-0	02	1	0107-0210	●	●
59	BOLT; RELEASE VALVE FIX FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER	0-50040-820-0	02	1	0211-0906	●
59	BOLT; RELEASE VALVE FIX FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5" HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR 41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5" HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER	0-50540-820-0	02	1	0907-	●
66	BOLT; BRKT,RELAY VLV RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X25 FLANGE	0-28680-825-0	02	1	0107-0512	●
66	BOLT; BRKT,RELAY VLV RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
66	BOLT; BRKT,RELAY VLV RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M10X25 FLANGE	0-28681-025-0	02	1	0107-0512	●
66	BOLT; BRKT,RELAY VLV RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M10X25 FLANGE	0-28651-025-0	02	1	0601-	●
67	NUT; BRKT,RELAY VLV RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8 FLANGE	0-91150-108-0	02	1	0107-0602	●
67	NUT; BRKT,RELAY VLV RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●
67	NUT; BRKT,RELAY VLV RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M10 FLANGE	0-91150-210-0	02	1	0107-0602	●
67	NUT; BRKT,RELAY VLV RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M10 FLANGE	0-91180-210-0	02	1	0603-	●
108	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0107-	●
108	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	9803-0004	●
108	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	0005-0106	●	●
108	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	0107-0210		●
108	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	0107-0210	●
108	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	0211-	●
114	NUT; VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	04	1	0107-0602	●
114	NUT; VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	04	1	0603-	●

29 99 29 12 105 103 104 274 274 65 68 2 12 67 224 66 29 12 52 55 4 29 10 25 81 122 7 14 154 82 10 134 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-755-0	02	1	0107-	●
4	BOLT; RELAY VLV TO BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X30 FLANGE	0-28681-030-0	02	1	0107-0512	●
4	BOLT; RELAY VLV TO BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X30 FLANGE	0-28651-030-0	02	1	0601-	●
6	BOLT; VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X25 FLANGE	0-28680-825-0	04	1	0107-0512	●
6	BOLT; VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●
6	BOLT; VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M10X30 FLANGE	0-28681-030-0	02	1	0107-0512	●
6	BOLT; VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M10X30 FLANGE	0-28651-030-0	02	1	0601-	●
7	NUT; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91150-210-0	02	1	0107-0602	●
7	NUT; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	02	1	0603-	●
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0107-	●
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0107-	●
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M16 & PT1/2 STRAIGHT	1-09650-245-1	02	1	0107-	●
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0107-	●
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0107-	●
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	0107-	●
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0107-	●
14	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09656-476-0	01	1	0107-	●
25	SWITCH; PRESSURE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-82410-163-1	01	1	0107-	●
29	CONNECTOR; AIR VLV WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	04	1	0107-	●
29	CONNECTOR; AIR VLV WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR ASSIST CLUTCH<PK1> (C) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	0107-	●
29	CONNECTOR; AIR VLV WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR ASSIST CLUTCH<PK1> (E) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0107-	●
29	CONNECTOR; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 & PT1/4 ELBOW	1-09650-434-0	02	1	9510-9802	●	●
29	CONNECTOR; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	9803-0004	●
29	CONNECTOR; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	0005-0106	●	●
29	CONNECTOR; AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	0107-0210		●
29	CONNECTOR; AIR VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	0107-0210	●
29	CONNECTOR; AIR VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	0211-	●
52	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09656-476-0	01	1	0107-	●
52	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12X2 & R1/2 3WAY	1-09661-019-0	01	1	0107-	●
55	PLUG; SUPPLY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT1/4	9-99204-513-0	01	1	0107-	●
65	BRACKET; RELAY VLV RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47477-964-0	01	1	0107-	●
66	BOLT; BRKT,RELAY VLV RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X25 FLANGE	0-28680-825-0	02	1	0107-0512	●
66	BOLT; BRKT,RELAY VLV RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
66	BOLT; BRKT,RELAY VLV RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M10X25 FLANGE	0-28681-025-0	02	1	0107-0512	●
66	BOLT; BRKT,RELAY VLV RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M10X25 FLANGE	0-28651-025-0	02	1	0601-	●
67	NUT; BRKT,RELAY VLV RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8 FLANGE	0-91150-108-0	02	1	0107-0602	●
67	NUT; BRKT,RELAY VLV RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●
67	NUT; BRKT,RELAY VLV RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M10 FLANGE	0-91150-210-0	02	1	0107-0602	●
67	NUT; BRKT,RELAY VLV RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M10 FLANGE	0-91180-210-0	02	1	0603-	●
68	NUT; RELAY VLV TO BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91150-210-0	02	1	0107-0602	●
68	NUT; RELAY VLV TO BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	02	1	0603-	●
81	BRACKET; RELAY VLV,PARKING BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47477-964-0	01	1	0107-	●
82	BOLT; BRKT,RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X25 FLANGE	0-28681-025-0	02	1	0107-0512	●
82	BOLT; BRKT,RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X25 FLANGE	0-28651-025-0	02	1	0601-	●
99	VALVE; PROTECTION WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48110-135-5	01	1	0107-	●
103	BRACKET; PROTECTION VALVE WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47478-694-0	01	1	0107-	●
104	BOLT; BRKT,VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28680-830-0	02	1	0107-0512	●
104	BOLT; BRKT,VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●
105	NUT; BRKT,VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	02	1	0107-0602	●
105	NUT; BRKT,VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	02	1	0603-	●
122	VALVE ASM; CONT,WHEEL PARKING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-755-0	01	1	0107-	●
134	PLUG; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT1/2	9-09204-521-0	01	1	0107-	●
154	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91150-210-0	02	1	0107-0602	●
154	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	02	1	0603-	●
224	NUT; PROTECTION VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91150-108-0	03	1	0107-0602	●
224	NUT; PROTECTION VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	03	1	0603-	●
274	COVER; DUST WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48119-450-0	02	1	0107-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
