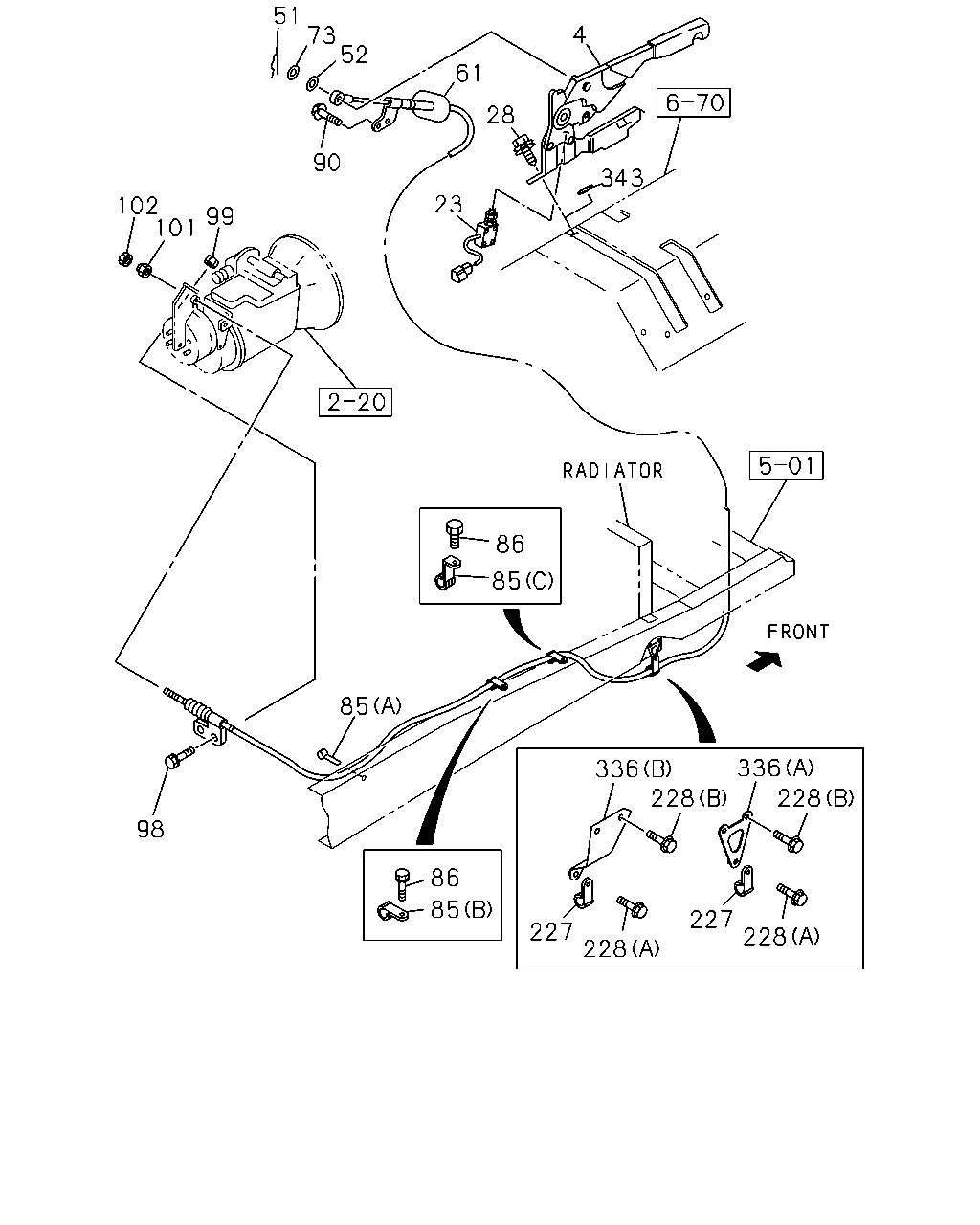

3-11 — PARKING BRAKE CONTROL (#60027) — 84 parça

51 4 73 52 61 28 90 343 23 102 101 99 86 85 85 336 336 228 228 98 86 85 227 228 227 228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	STEM; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-79996-295-0	01	1	9510-9809	●	●
4	STEM; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-79996-423-0	01	1	9810-9908	●	●
4	STEM; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-79996-485-0	01	1	9909-9911	●	●
4	STEM; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-79996-505-0	01	1	9912-0010	●	●
4	STEM; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-79996-565-0	01	1	0011-0210	●	●
4	STEM; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-79996-565-0	01	1	0211-		●
23	SWITCH; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-82440-100-0	01	1	9510-0210	●	●
23	SWITCH; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-82440-100-0	01	1	0211-		●
28	BOLT; HAND BRK LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9510-0210	●	●
28	BOLT; HAND BRK LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0211-0904		●
28	BOLT; HAND BRK LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	0905-		●
51	PIN; JOINT,RELAY LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09987-243-1	01	1	9510-0210	●	●
51	PIN; JOINT,RELAY LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09987-243-1	01	1	0211-		●
52	WASHER; CURVED RELAY LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=19	8-94206-429-1	02	1	9510-0210	●	●
52	WASHER; CURVED RELAY LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=19	8-94206-429-1	02	1	0211-		●
61	CABLE; PARKING BRK MLD6 M/T<X9Y> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4794	1-79996-227-1	01	1	9510-9601	●	●
61	CABLE; PARKING BRK MLD6 M/T<X9Y> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4405	1-79996-275-0	01	1	9602-9909	●	●
61	CABLE; PARKING BRK MLD6 M/T<X9Y> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4694	1-79996-461-2	01	1	9910-0210	●	●
61	CABLE; PARKING BRK MLD6 M/T<X9Y> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4694	1-79996-461-3	01	1	0211-		●
61	CABLE; PARKING BRK MLD7 M/T<X9Z> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4894	1-79996-238-1	01	1	9510-9601	●	●
61	CABLE; PARKING BRK MLD7 M/T<X9Z> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4794	1-79996-227-1	01	1	9602-9909	●	●
61	CABLE; PARKING BRK MLD7 M/T<X9Z> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4794	1-79996-459-2	01	1	9910-0210	●	●
61	CABLE; PARKING BRK MLD7 M/T<X9Z> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4794	1-79996-459-3	01	1	0211-		●
73	WASHER; PL,CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=17	9-09160-516-0	01	1	9510-0210	●	●
73	WASHER; PL,CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=17	9-09160-516-0	01	1	0211-0605		●
73	WASHER; PL,CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=17 OD=30	0-91610-516-0	01	1	0606-		●
85	CLIP; BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=16 H=30 L=30	1-09701-080-0	01	1	9510-0210	●	●
85	CLIP; BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=16 H=30 L=30	1-09701-080-0	01	1	0211-		●
85	CLIP; BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=24 L=40	1-09701-139-0	01	1	9510-0210	●	●
85	CLIP; BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=24 L=40	1-09701-139-0	01	1	0211-1101		●
85	CLIP; BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=14.5 L=40	1-09701-014-0	01	1	1102-		●
85	CLIP; BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=15 L=65	1-09700-466-0	01	1	9510-9612	●	●
85	CLIP; BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=15 L=65	1-09700-466-0	02	1	9701-0210	●	●
85	CLIP; BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=15 L=65	1-09700-466-0	02	1	0211-		●
86	BOLT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28080-825-0	02	1	9510-9606	●	●
86	BOLT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28680-825-0	02	1	9607-0210	●	●
86	BOLT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28680-825-0	02	1	0211-0512		●
86	BOLT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
90	BOLT; CABLE TO BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9510-0210	●	●
90	BOLT; CABLE TO BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0211-0904		●
90	BOLT; CABLE TO BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-		●
98	BOLT; RR COVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X25 FLANGE	0-28081-025-0	02	1	9510-9606	●	●
98	BOLT; RR COVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28681-030-0	02	1	9607-0210	●	●
98	BOLT; RR COVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28681-030-0	02	1	0211-0512		●
98	BOLT; RR COVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28651-030-0	02	1	0601-		●
99	NUT; CONT CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10	9-09110-510-0	02	1	9510-9702	●	●
99	NUT; CONT CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91150-210-0	02	1	9703-0210	●	●
99	NUT; CONT CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91150-210-0	02	1	0211-0602		●
99	NUT; CONT CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91180-210-0	02	1	0603-		●
101	NUT; CABLE TO LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	1-46259-007-0	01	1	9510-0210	●	●
101	NUT; CABLE TO LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	1-46259-007-0	01	1	0211-		●
102	NUT; LK,CABLE TO LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	01	1	9510-9709	●	●
102	NUT; LK,CABLE TO LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	01	1	9710-0210	●	●
102	NUT; LK,CABLE TO LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91150-108-0	01	1	0211-0602		●
102	NUT; LK,CABLE TO LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	01	1	0603-		●
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=13 L=20	9-09525-235-0	01	1	9510-0210	●	●
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=13 L=20	9-09525-235-0	01	1	0211-0606		●
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=13 L=20	0-95235-235-0	01	1	0607-		●
228	BOLT; CLIP RAD MTG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	9510-0210	●	●
228	BOLT; CLIP RAD MTG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	0211-		●
228	BOLT; CLIP RAD MTG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X16 FLANGE	0-28080-816-0	01	1	9510-0210	●	●
228	BOLT; CLIP RAD MTG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X16 FLANGE	0-28080-816-0	01	1	0211-0512		●
228	BOLT; CLIP RAD MTG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-		●
336	BRACKET; RADIATOR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-36183-162-1	01	1	9510-0004	●	●
336	BRACKET; RADIATOR PARKING BRAKE DRUM 10"(B1T) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-36183-162-1	01	1	0005-0210	●	●
336	BRACKET; RADIATOR PARKING BRAKE DRUM 10"(B1T) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-36183-162-1	01	1	0211-0212		●
336	BRACKET; RADIATOR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-36183-199-0	01	1	0301-		●
343	SEAL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 100X30	1-74998-068-0	01	1	9510-9510	●	●
343	SEAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK	1-76798-019-0	03	1	9510-0210	●	●
343	SEAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK	1-76798-019-0	03	1	0211-		●

97 46 45 324 218 46 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
45	BOLT; CABLE TO FLOOR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9510-9812	●	●
45	BOLT; CABLE TO FLOOR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	9901-0210	●	●
45	BOLT; CABLE TO FLOOR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0211-		●
46	CLIP; FRT CABLE TO FLOOR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16 L=20	9-09525-535-0	02	1	9510-0210	●	●
46	CLIP; FRT CABLE TO FLOOR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16 L=20	9-09525-535-0	02	1	0211-0606		●
46	CLIP; FRT CABLE TO FLOOR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16 L=20	0-95235-535-0	02	1	0607-		●
97	GROMMET; PARKING BRK CABLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09983-078-0	01	1	9811-0210	●	●
97	GROMMET; PARKING BRK CABLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09983-078-0	01	1	0211-		●
97	GROMMET; PARKING BRK CABLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09983-078-0	01	1	9510-9802	●	●
218	NUT; BRKT,PARKING BRK CABLE M8 FLANGE	8-94279-517-0	02	1	9510-9611	●	●
218	NUT; BRKT,PARKING BRK CABLE M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	9612-0210	●	●
218	NUT; BRKT,PARKING BRK CABLE M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	0211-		●
324	BRACKET	1-79996-260-2	01	1	9510-0210	●	●
324	BRACKET	1-79996-260-2	01	1	0211-		●
