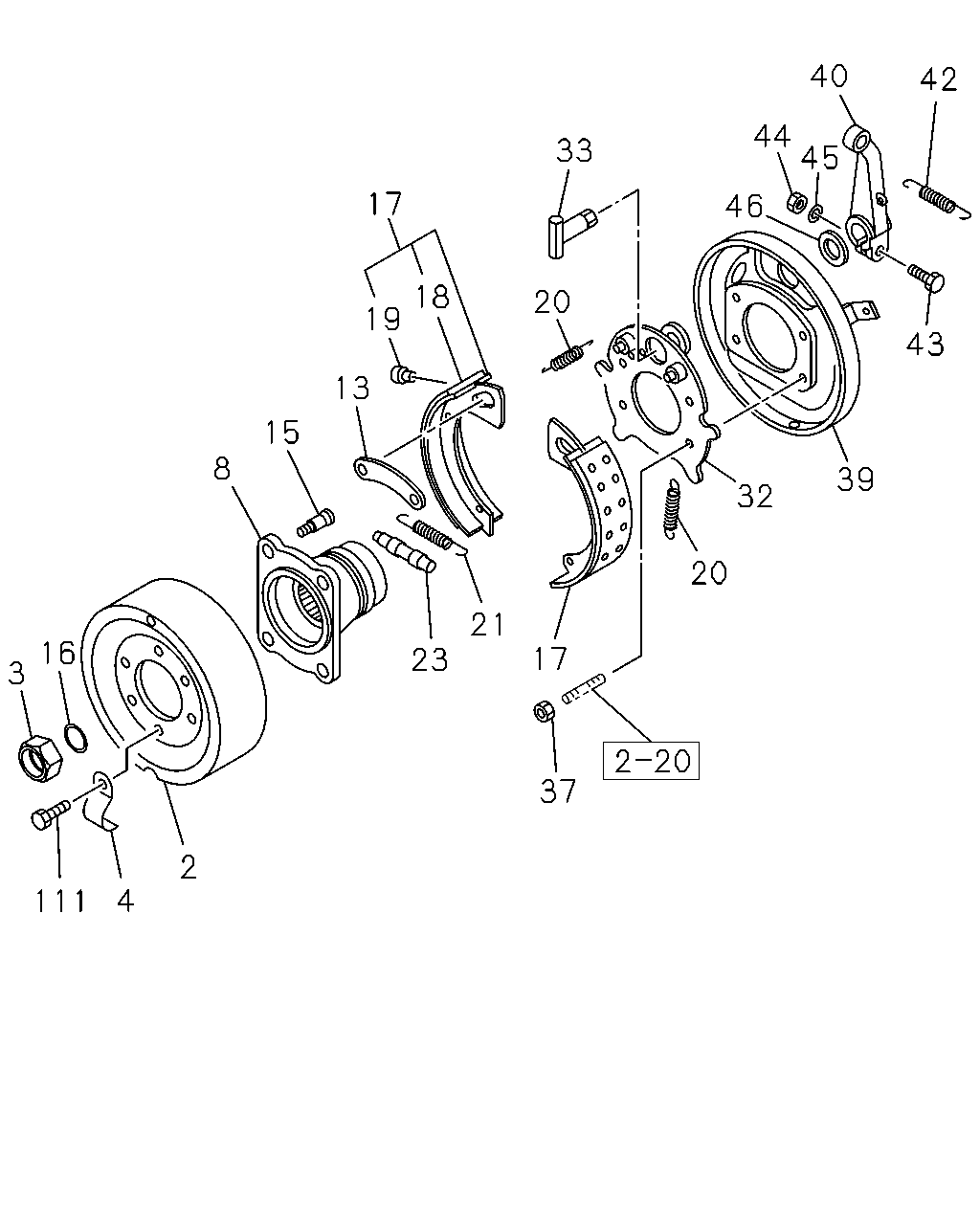

3-08 — PARKING BRAKE (#60025) — 50 parça

40 42 44 45 33 17 46 18 20 19 43 13 15 8 39 32 20 21 16 17 23 3 37 2 4 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	DRUM; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46211-019-0	01	1	9510-	●	●
3	NUT; LK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M36 FLANGE	1-09449-063-0	01	1	9510-0805	●	●
3	NUT; LK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M36 FLANGE	8-98014-140-0	01	1	0806-	●	●
4	COVER; ADJ HOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46219-030-0	02	1	9510-	●	●
8	FLANGE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-37243-235-0	01	1	9510-1002	●	●
8	FLANGE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98153-193-0	01	1	1003-	●	●
13	BRACE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-46239-002-0	01	1	0412-	●	●
13	BRACE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-46239-002-0	01	1	9510-0410	●	●
15	BOLT; FLANGE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16X55	1-46219-039-0	04	1	9510-0707	●	●
15	BOLT; FLANGE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16X55	8-98023-172-0	04	1	0708-	●	●
16	GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T). EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=47 T=5	1-09623-380-0	01	1	9510-	●	●
17	SHOE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46220-022-1	02	1	0412-	●	●
17	SHOE; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46220-022-0	02	1	9510-0410	●	●
18	LINING; BRK,PARKING EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46225-023-0	02	1	0412-	●	●
18	LINING; BRK,PARKING EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46225-023-0	02	1	9510-0410	●	●
19	RIVET; LINING,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09732-012-0	32	1	0412-0807	●	●
19	RIVET; LINING,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09732-058-0	32	1	0808-	●	●
19	RIVET; LINING,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09732-012-0	32	1	9510-0410	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09942-434-0	02	1	0412-	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09942-434-0	02	1	9510-0410	●	●
21	SPRING; RETURN,PARKING BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09942-516-0	01	1	0412-	●	●
21	SPRING; RETURN,PARKING BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09942-516-0	01	1	9510-0410	●	●
23	SCREW; ADJ,PARKING BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46240-003-0	01	1	0412-	●	●
23	SCREW; ADJ,PARKING BRK SHOE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46240-003-0	01	1	9510-0410	●	●
32	PLATE; SUPPORT,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46213-039-0	01	1	0412-	●	●
32	PLATE; SUPPORT,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46213-039-0	01	1	9510-0410	●	●
33	SHAFT; CAM,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46251-010-0	01	1	0412-	●	●
33	SHAFT; CAM,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46251-006-0	01	1	9510-0410	●	●
37	NUT; SUPPORT PLATE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 FLANGE	1-09440-048-0	04	1	9510-0604	●	●
37	NUT; SUPPORT PLATE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14 FLANGE	8-97365-444-0	04	1	0605-	●	●
39	COVER; DUST,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46213-038-0	01	1	0412-	●	●
39	COVER; DUST,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46213-038-0	01	1	9510-0410	●	●
40	LEVER; CM/SHF,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46252-046-0	01	1	0412-	●	●
40	LEVER; CM/SHF,PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-46252-013-0	01	1	9510-0410	●	●
42	SPRING; RETURN,LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09583-104-0	01	1	9510-	●	●
43	BOLT; LEVER TO CM/SHF EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	0-10811-040-0	01	1	0412-0710	●	●
43	BOLT; LEVER TO CM/SHF EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98061-595-0	01	1	0711-	●	●
43	BOLT; LEVER TO CM/SHF EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	0-10811-040-0	01	1	9510-0410	●	●
44	NUT; LEVER TO CM/SHF EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10	9-09111-410-0	01	1	0412-0512	●	●
44	NUT; LEVER TO CM/SHF EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10	0-91111-510-0	01	1	0601-	●	●
44	NUT; LEVER TO CM/SHF EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10	9-09111-410-0	01	1	9510-0410	●	●
45	WASHER; LK,LEVER TO CM/SHF EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10.2	9-09150-510-0	01	1	0412-0603	●	●
45	WASHER; LK,LEVER TO CM/SHF EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10.2	0-91510-510-0	01	1	0604-	●	●
45	WASHER; LK,LEVER TO CM/SHF EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10.2	9-09150-510-0	01	1	9609-0410	●	●
45	WASHER; LK,LEVER TO CM/SHF EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=10.2	9-09150-010-0	01	1	9510-9608	●	●
46	WASHER; LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09855-362-0	01	1	0412-	●	●
46	WASHER; LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	9-09855-362-0	01	1	9510-0410	●	●
111	BOLT; COVER,CHECK HOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER	0-50040-820-0	02	1	9510-0906	●	●
111	BOLT; COVER,CHECK HOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER	0-50540-820-0	02	1	0907-1009	●	●
111	BOLT; COVER,CHECK HOLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 W/LK WASHER	0-50740-820-0	02	1	1010-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
