1 |
SHOE; BRK,RR
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
|
1-47120-708-0 |
04 |
1 |
0107- |
● |
|
| |
1 |
SHOE; BRK,RR
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
LEADING
|
1-47120-713-0 |
01 |
1 |
0107-0211 |
● |
|
| |
1 |
SHOE; BRK,RR
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7
15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5"
HYPOID(W4H)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
LEADING
|
1-47120-713-0 |
01 |
1 |
0212- |
● |
|
| |
1 |
SHOE; BRK,RR
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TRAILING
|
1-47120-714-0 |
01 |
1 |
0107-0211 |
● |
|
| |
1 |
SHOE; BRK,RR
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7
15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5"
HYPOID(W4H)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TRAILING
|
1-47120-714-0 |
01 |
1 |
0212- |
● |
|
| |
1 |
SHOE; BRK,RR
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
LEADING
|
1-47120-715-0 |
01 |
1 |
0107-0211 |
● |
|
| |
1 |
SHOE; BRK,RR
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7
15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5"
HYPOID(W4H)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
LEADING
|
1-47120-715-0 |
01 |
1 |
0212- |
● |
|
| |
1 |
SHOE; BRK,RR
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TRAILING
|
1-47120-716-0 |
01 |
1 |
0107-0211 |
● |
|
| |
1 |
SHOE; BRK,RR
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7
15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5"
HYPOID(W4H)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TRAILING
|
1-47120-716-0 |
01 |
1 |
0212- |
● |
|
| |
1 |
SHOE; BRK,RR
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
|
1-47120-708-0 |
04 |
1 |
9910-0004 |
● |
● |
| |
1 |
SHOE; BRK,RR

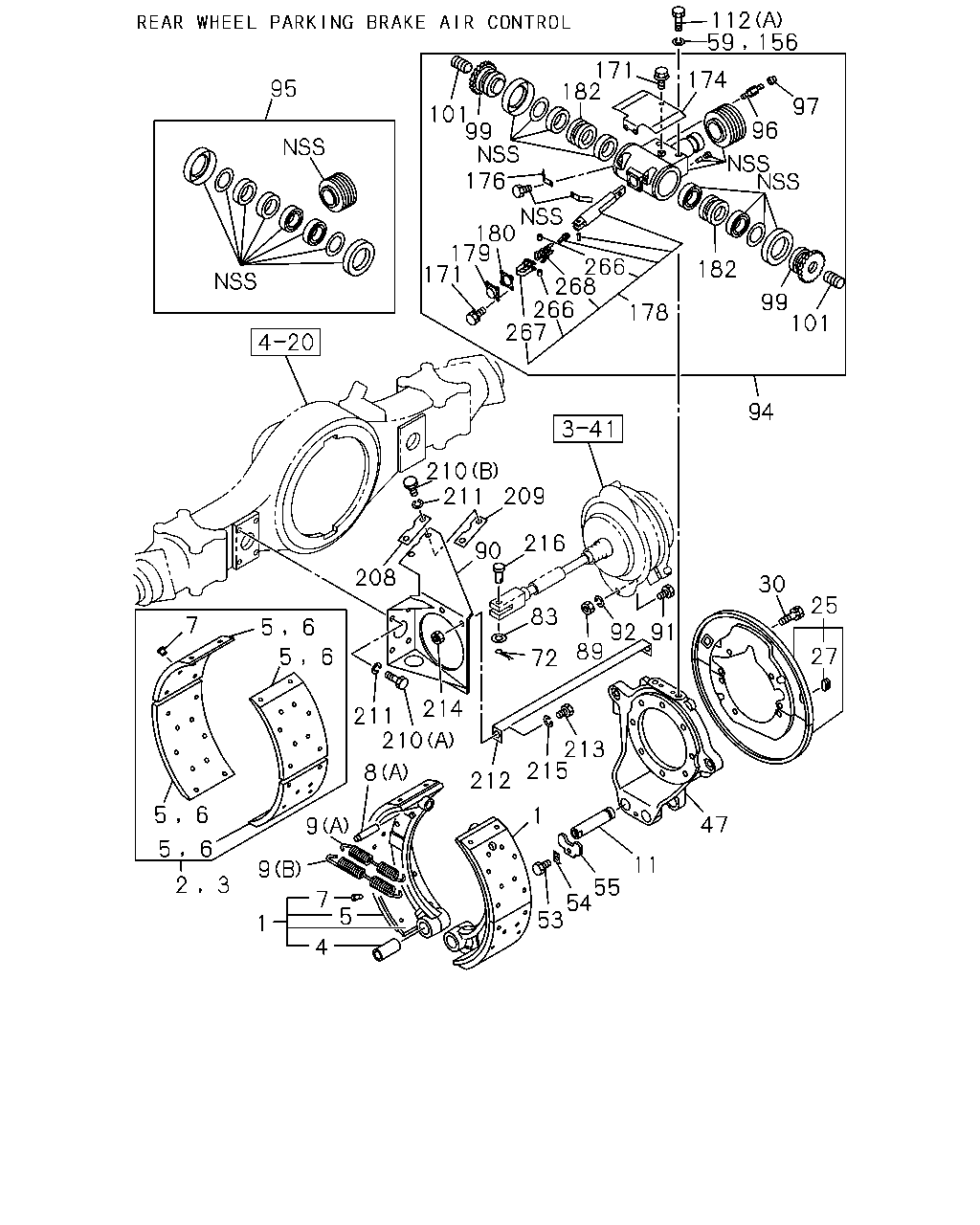

REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47110-988-0 |
04 |
1 |
9510-9802 |
● |
● |
| |
1 |
SHOE; BRK,RR
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47120-707-0 |
04 |
1 |
9803-0106 |
● |
● |
| |
1 |
SHOE; BRK,RR
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47120-707-0 |
04 |
1 |
0107- |
● |
● |
| |
1 |
SHOE; BRK,RR

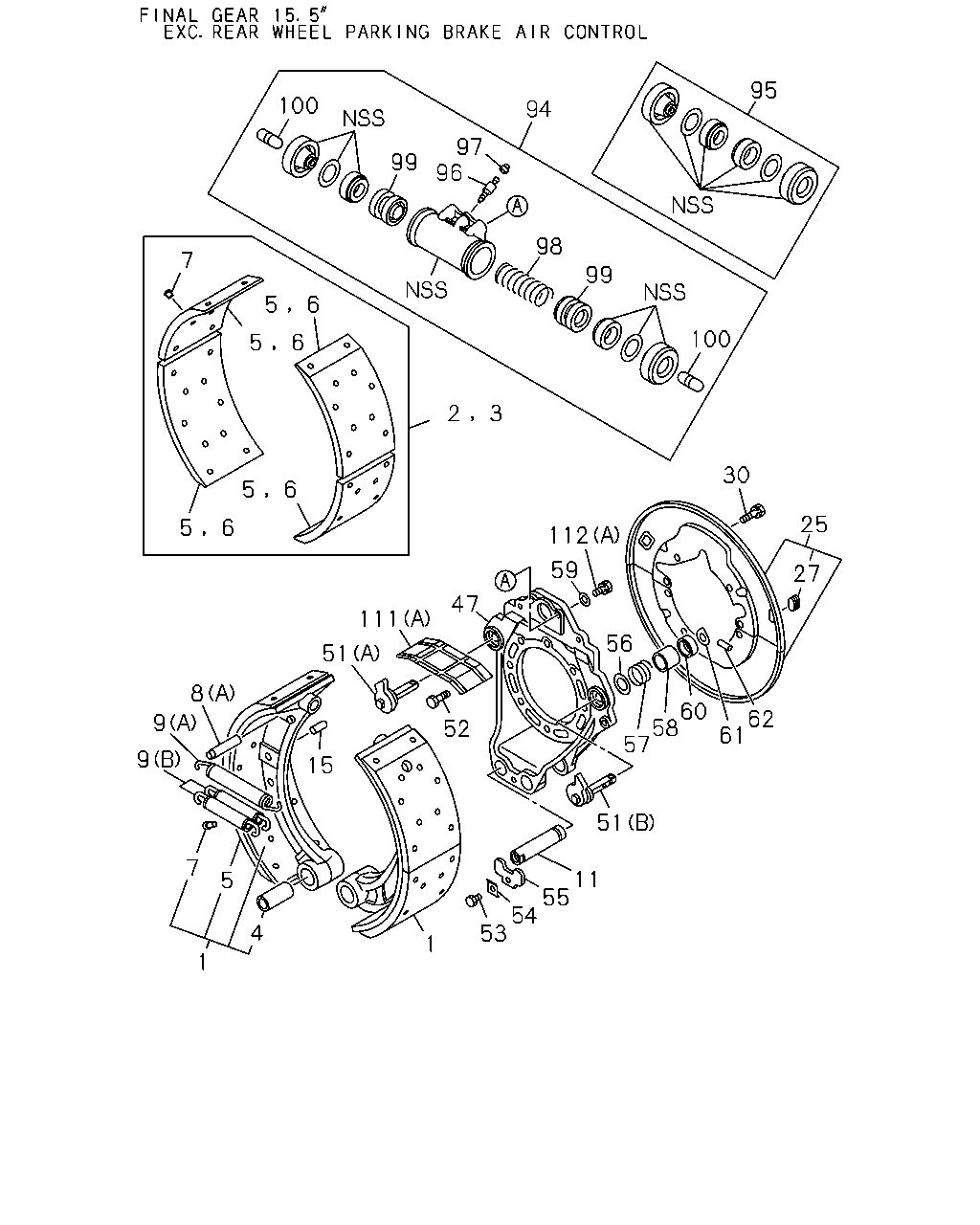

EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47110-962-0 |
04 |
1 |
9510-9802 |
● |
● |
| |
1 |
SHOE; BRK,RR
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47120-706-0 |
04 |
1 |
9803-0106 |
● |
● |
| |
1 |
SHOE; BRK,RR
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47120-706-0 |
04 |
1 |
0107-0210 |
● |
● |
| |
1 |
SHOE; BRK,RR
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47120-706-0 |
04 |
1 |
0211- |
● |
|
| |
2 |
LINING SET; RR BRK,STANDARD
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
T=16
|
1-88310-529-0 |
02 |
1 |
0107- |
● |
|
| |
2 |
LINING SET; RR BRK,STANDARD
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
LEADING
|
1-88310-521-0 |
01 |
1 |
0107-0211 |
● |
|
| |
2 |
LINING SET; RR BRK,STANDARD
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7
15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5"
HYPOID(W4H)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
LEADING
|
1-88310-521-0 |
01 |
1 |
0212- |
● |
|
| |
2 |
LINING SET; RR BRK,STANDARD
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TRAILING
|
1-88310-523-0 |
01 |
1 |
0107-0211 |
● |
|
| |
2 |
LINING SET; RR BRK,STANDARD
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7
15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5"
HYPOID(W4H)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TRAILING
|
1-88310-523-0 |
01 |
1 |
0212- |
● |
|
| |
2 |
LINING SET; RR BRK,STANDARD
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
T=16
|
1-88310-529-0 |
02 |
1 |
9910-0004 |
● |
● |
| |
2 |
LINING SET; RR BRK,STANDARD
|
1-88302-956-0 |
02 |
1 |
9510-9802 |
● |
● |
| |
2 |
LINING SET; RR BRK,STANDARD
|
1-88310-495-0 |
02 |
1 |
9803-9809 |
● |
● |
| |
2 |
LINING SET; RR BRK,STANDARD
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
|
1-88310-495-0 |
02 |
1 |
9810-0106 |
● |
● |
| |
2 |
LINING SET; RR BRK,STANDARD
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
1-88310-495-0 |
02 |
1 |
0107-0210 |
● |
● |
| |
2 |
LINING SET; RR BRK,STANDARD
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
1-88310-495-0 |
02 |
1 |
0211- |
● |
|
| |
2 |
LINING SET; RR BRK,STANDARD
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
LEADING,TRAILING
BEST VALUE PARTS
|
1-87610-125-0 |
01 |
1 |
9810-0106 |
● |
● |
| |
2 |
LINING SET; RR BRK,STANDARD
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
LEADING,TRAILING
BEST VALUE PARTS
|
1-87610-125-0 |
01 |
1 |
0107-0210 |
● |
● |
| |
2 |
LINING SET; RR BRK,STANDARD
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
LEADING,TRAILING
BEST VALUE PARTS
|
1-87610-125-0 |
01 |
1 |
0211- |
● |
|
| |
2 |
LINING SET; RR BRK,STANDARD
LEADING,TRAILING
BEST VALUE PARTS
|
1-87610-125-0 |
01 |
1 |
9803-9809 |
● |
● |
| |
2 |
LINING SET; RR BRK,STANDARD
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
BEST VALUE PARTS
|
1-87610-129-0 |
01 |
1 |
9910-0004 |
● |
● |
| |
2 |
LINING SET; RR BRK,STANDARD
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
BEST VALUE PARTS
|
1-87610-129-0 |
01 |
1 |
0107- |
● |
|
| |
2 |
LINING SET; RR BRK,STANDARD
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BEST VALUE PARTS
|
1-87610-129-0 |
01 |
1 |
0107-0110 |
● |
|
| |
2 |
LINING SET; RR BRK,STANDARD
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BEST VALUE PARTS
|
1-87610-129-0 |
01 |
1 |
0110-0211 |
● |
|
| |
2 |
LINING SET; RR BRK,STANDARD
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7
15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5"
HYPOID(W4H)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BEST VALUE PARTS
|
1-87610-129-0 |
01 |
1 |
0212- |
● |
|
| |
3 |
LINING SET; RR BRK,OVER SIZE
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
T=17
|
1-88310-530-1 |
02 |
1 |
0107- |
● |
|
| |
3 |
LINING SET; RR BRK,OVER SIZE
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
LEADING
|
1-88310-522-0 |
01 |
1 |
0107-0211 |
● |
|
| |
3 |
LINING SET; RR BRK,OVER SIZE
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7
15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5"
HYPOID(W4H)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
LEADING
|
1-88310-522-0 |
01 |
1 |
0212- |
● |
|
| |
3 |
LINING SET; RR BRK,OVER SIZE
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TRAILING
|
1-88310-524-0 |
01 |
1 |
0107-0211 |
● |
|
| |
3 |
LINING SET; RR BRK,OVER SIZE
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7
15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5"
HYPOID(W4H)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TRAILING
|
1-88310-524-0 |
01 |
1 |
0212- |
● |
|
| |
3 |
LINING SET; RR BRK,OVER SIZE
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
T=17
|
1-88310-530-1 |
02 |
1 |
9910-0004 |
● |
● |
| |
3 |
LINING SET; RR BRK,OVER SIZE
|
1-88310-001-0 |
02 |
1 |
9510-9802 |
● |
● |
| |
3 |
LINING SET; RR BRK,OVER SIZE
|
1-88310-496-0 |
02 |
1 |
9803-9809 |
● |
● |
| |
3 |
LINING SET; RR BRK,OVER SIZE
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
|
1-88310-496-0 |
02 |
1 |
9810-0106 |
● |
● |
| |
3 |
LINING SET; RR BRK,OVER SIZE
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
1-88310-496-0 |
02 |
1 |
0107-0210 |
● |
● |
| |
3 |
LINING SET; RR BRK,OVER SIZE
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
1-88310-496-0 |
02 |
1 |
0211- |
● |
|
| |
4 |
BUSHING; BRK SHOE,RR WHEEL
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-47112-012-0 |
08 |
1 |
0111-0111 |
● |
|
| |
4 |
BUSHING; BRK SHOE,RR WHEEL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47112-012-0 |
04 |
1 |
9510-9802 |
● |
● |
| |
4 |
BUSHING; BRK SHOE,RR WHEEL
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47112-012-0 |
04 |
1 |
9803-9909 |
● |
● |
| |
4 |
BUSHING; BRK SHOE,RR WHEEL
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47112-012-0 |
04 |
1 |
9910-0004 |
● |
● |
| |
4 |
BUSHING; BRK SHOE,RR WHEEL
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
|
1-47112-012-0 |
04 |
1 |
9910-0004 |
● |
● |
| |
4 |
BUSHING; BRK SHOE,RR WHEEL
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47112-012-0 |
04 |
1 |
0005-0106 |
● |
● |
| |
4 |
BUSHING; BRK SHOE,RR WHEEL
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47112-012-0 |
04 |
1 |
0107-0110 |
● |
● |
| |
4 |
BUSHING; BRK SHOE,RR WHEEL
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
|
1-47112-012-0 |
04 |
1 |
0107-0110 |
● |
● |
| |
4 |
BUSHING; BRK SHOE,RR WHEEL
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47112-012-0 |
04 |
1 |
0111-0111 |
● |
● |
| |
4 |
BUSHING; BRK SHOE,RR WHEEL
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
|
1-47112-012-0 |
04 |
1 |
0111-0111 |
● |
|
| |
4 |
BUSHING; BRK SHOE,RR WHEEL
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47112-012-0 |
04 |
1 |
0111- |
● |
● |
| |
4 |
BUSHING; BRK SHOE,RR WHEEL
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
|
1-47112-012-0 |
04 |
1 |
0111- |
● |
● |
| |
4 |
BUSHING; BRK SHOE,RR WHEEL
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47112-011-0 |
04 |
1 |
9510-9802 |
● |
● |
| |
4 |
BUSHING; BRK SHOE,RR WHEEL
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47112-011-0 |
04 |
1 |
9803-0106 |
● |
● |
| |
4 |
BUSHING; BRK SHOE,RR WHEEL
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47112-011-0 |
04 |
1 |
0107-0210 |
● |
● |
| |
4 |
BUSHING; BRK SHOE,RR WHEEL
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47112-011-0 |
04 |
1 |
0211- |
● |
|
| |
5 |
LINING; RR BRK SHOE,STANDARD
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
T=16
|
1-47125-813-0 |
08 |
1 |
0107- |
● |
|
| |
5 |
LINING; RR BRK SHOE,STANDARD
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)

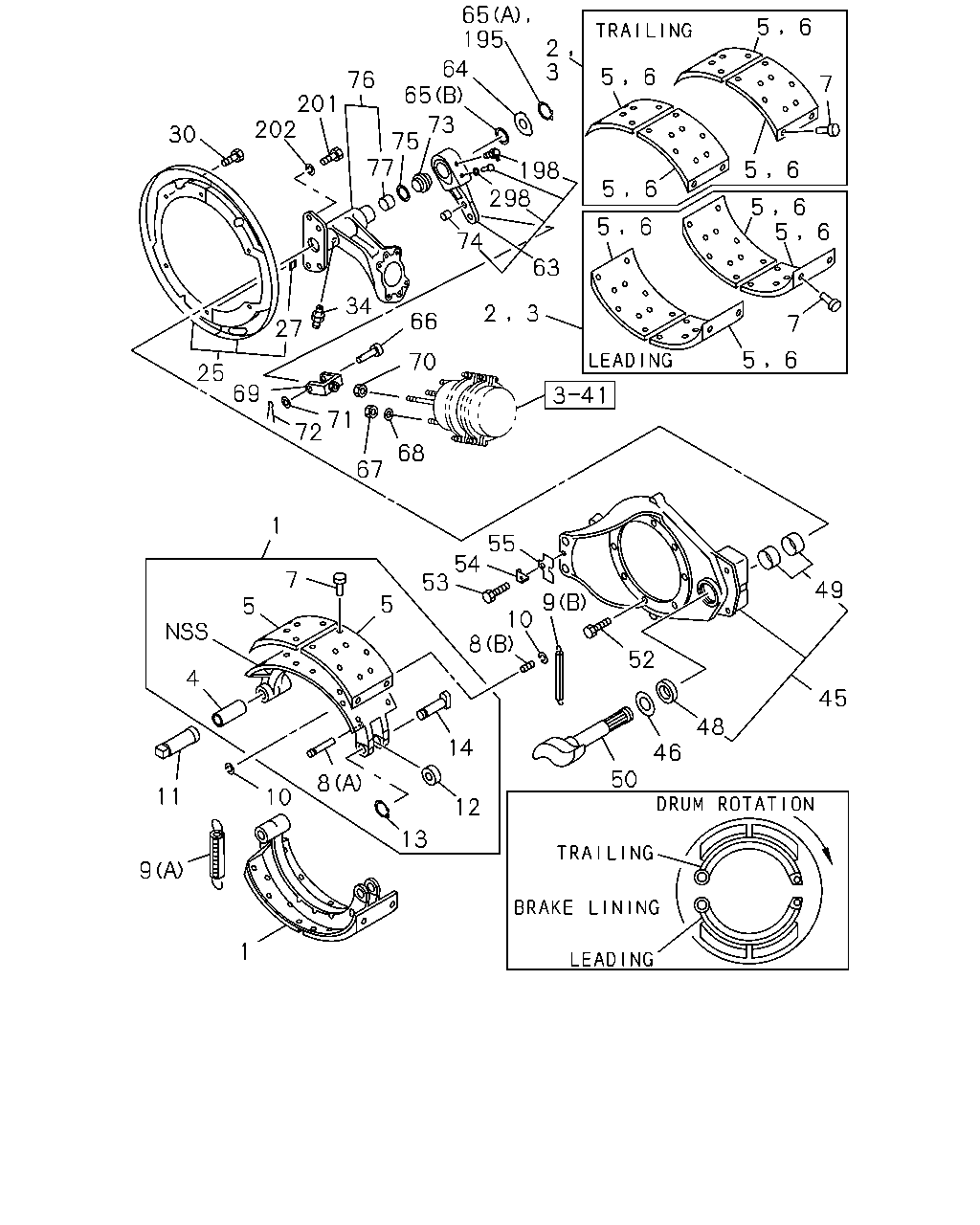

LEADING
|
1-47125-797-0 |
04 |
1 |
0107-0211 |
● |
|
| |
5 |
LINING; RR BRK SHOE,STANDARD
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7
15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5"
HYPOID(W4H)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
LEADING
|
1-47125-797-0 |
04 |
1 |
0212- |
● |
|
| |
5 |
LINING; RR BRK SHOE,STANDARD
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TRAILING
|
1-47125-799-0 |
04 |
1 |
0107-0211 |
● |
|
| |
5 |
LINING; RR BRK SHOE,STANDARD
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7
15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5"
HYPOID(W4H)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TRAILING
|
1-47125-799-0 |
04 |
1 |
0212- |
● |
|
| |
5 |
LINING; RR BRK SHOE,STANDARD
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
T=16
|
1-47125-813-0 |
08 |
1 |
9910-0004 |
● |
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
|
1-47115-867-0 |
08 |
1 |
9510-9802 |
● |
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
|
1-47125-811-0 |
08 |
1 |
9803-9809 |
● |
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
|
1-47125-811-0 |
08 |
1 |
9810-0106 |
● |
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
1-47125-811-0 |
08 |
1 |
0107-0210 |
● |
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
1-47125-811-0 |
08 |
1 |
0211- |
● |
|
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
T=17
|
1-47125-814-0 |
08 |
1 |
0107- |
● |
|
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
LEADING
|
1-47125-798-0 |
04 |
1 |
0107-0211 |
● |
|
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7
15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5"
HYPOID(W4H)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
LEADING
|
1-47125-798-0 |
04 |
1 |
0212- |
● |
|
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TRAILING
|
1-47125-800-0 |
04 |
1 |
0107-0211 |
● |
|
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7
15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5"
HYPOID(W4H)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TRAILING
|
1-47125-800-0 |
04 |
1 |
0212- |
● |
|
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
T=17
|
1-47125-814-0 |
08 |
1 |
9910-0004 |
● |
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
|
1-47115-869-0 |
08 |
1 |
9510-9802 |
● |
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
|
1-47125-812-0 |
08 |
1 |
9803-9809 |
● |
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
|
1-47125-812-0 |
08 |
1 |
9810-0106 |
● |
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
1-47125-812-0 |
08 |
1 |
0107-0210 |
● |
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
1-47125-812-0 |
08 |
1 |
0211- |
● |
|
| |
7 |
RIVET; LINING,RR BRK
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
L=18.5
|
1-09732-034-0 |
AR |
1 |
0107-0107 |
● |
|
| |
7 |
RIVET; LINING,RR BRK
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
L=18.5
|
1-09732-034-0 |
AR |
1 |
0107- |
● |
|
| |
7 |
RIVET; LINING,RR BRK
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
L=18.5
|
1-09732-034-0 |
AR |
1 |
0107- |
● |
|
| |
7 |
RIVET; LINING,RR BRK
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
L=18.5
|
1-09732-034-0 |
AR |
1 |
9910-0004 |
● |
● |
| |
7 |
RIVET; LINING,RR BRK
L=18.5
|
1-09732-034-0 |
80 |
1 |
9510-9809 |
● |
● |
| |
7 |

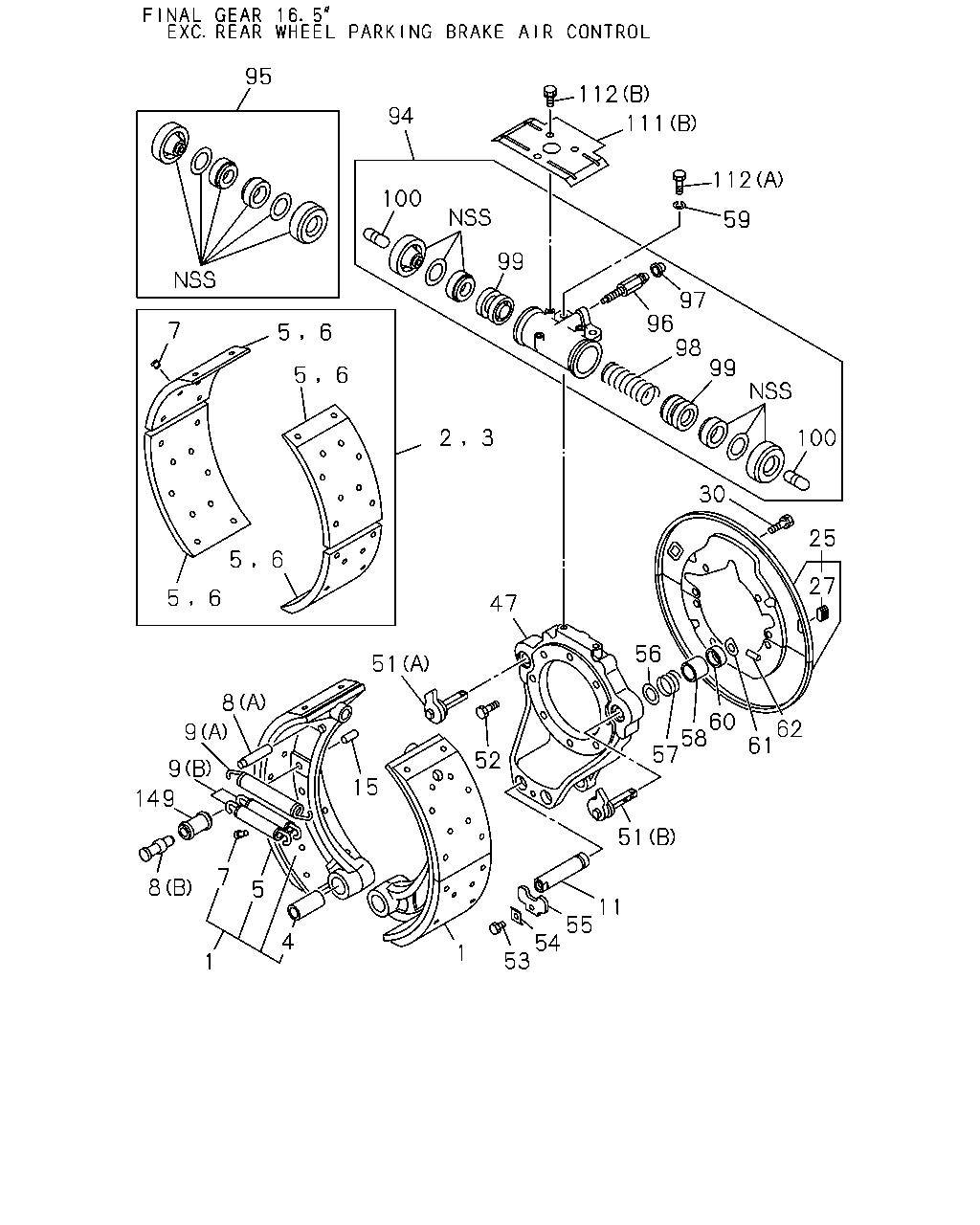

RIVET; LINING,RR BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
L=18.5
|
1-09732-034-0 |
80 |
1 |
9810-0106 |
● |
● |
| |
7 |
RIVET; LINING,RR BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
L=18.5
|
1-09732-034-0 |
80 |
1 |
0107-0210 |
● |
● |
| |
7 |
RIVET; LINING,RR BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
L=18.5
|
1-09732-034-0 |
80 |
1 |
0211- |
● |
|
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
(A)
|
1-09744-051-0 |
04 |
1 |
0107- |
● |
|
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
(B)
|
1-47119-025-0 |
04 |
1 |
0107- |
● |
|
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
|
1-47119-021-0 |
04 |
1 |
0107-0211 |
● |
|
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7
15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5"
HYPOID(W4H)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
|
1-47119-021-0 |
04 |
1 |
0212-1209 |
● |
|
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
|
1-47119-029-0 |
04 |
1 |
0107-0211 |
● |
|
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7
15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5"
HYPOID(W4H)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
|
1-47119-029-0 |
04 |
1 |
0212- |
● |
|
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
(A)
|
1-09744-051-0 |
04 |
1 |
9910-0004 |
● |
● |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
(B)
|
1-47119-025-0 |
04 |
1 |
9910-0004 |
● |
● |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
(A)
L=73.5
|
1-47119-017-1 |
04 |
1 |
9510-9809 |
● |
● |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
(A)
L=73.5
|
1-47119-017-1 |
04 |
1 |
9810-0106 |
● |
● |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
L=73.5
|
1-47119-017-1 |
04 |
1 |
0107-0210 |
● |
● |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
L=73.5
|
1-47119-017-1 |
04 |
1 |
0211- |
● |
|
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
(B)
|
1-09583-210-0 |
04 |
1 |
0107- |
● |
|
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
|
1-09583-196-0 |
02 |
1 |
0107-0211 |
● |
|
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7
15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5"
HYPOID(W4H)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
|
1-09583-196-0 |
02 |
1 |
0212-1209 |
● |
|
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7
15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5"
HYPOID(W4H)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
|
8-98219-175-0 |
02 |
1 |
1210- |
● |
|
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
(B)
|
1-09583-210-0 |
04 |
1 |
9910-0004 |
● |
● |
| |
9 |
SPRING; RETURN,BRK SHOE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
1-09583-236-0 |
02 |
1 |
9510-9802 |
● |
● |
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
1-09583-236-0 |
02 |
1 |
9803-0106 |
● |
● |
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
1-09583-236-0 |
02 |
1 |
0107- |
● |
● |
| |
9 |
SPRING; RETURN,BRK SHOE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
|
1-09583-237-1 |
02 |
1 |
9510-9802 |
● |
● |
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
|
1-09583-237-1 |
02 |
1 |
9803-0106 |
● |
● |
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
|
1-09583-237-1 |
02 |
1 |
0107- |
● |
● |
| |
9 |
SPRING; RETURN,BRK SHOE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
1-09583-175-0 |
02 |
1 |
9510-9802 |
● |
● |
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
1-09583-175-0 |
02 |
1 |
9803-9909 |
● |
● |
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
1-09583-175-0 |
02 |
1 |
9910-0004 |
● |
● |
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
(A)
|
1-09583-175-0 |
02 |
1 |
9910-0004 |
● |
● |
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
1-09583-175-0 |
02 |
1 |
0005-0106 |
● |
● |
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
1-09583-175-0 |
02 |
1 |
0107-0107 |
● |
● |
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
(A)
|
1-09583-175-0 |
02 |
1 |
0107-0107 |
● |
|
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
1-09583-175-0 |
02 |
1 |
0107-0110 |
● |
● |
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
(A)
|
1-09583-175-0 |
02 |
1 |
0107-0110 |
● |
|
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
1-09583-175-0 |
02 |
1 |
0107-0110 |
● |
|
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
1-09583-175-0 |
02 |
1 |
0111-0111 |
● |
● |
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
(A)
|
1-09583-175-0 |
02 |
1 |
0111-0111 |
● |
|
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
1-09583-175-0 |
02 |
1 |
0111-0210 |
● |
● |
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
(A)
|
1-09583-175-0 |
02 |
1 |
0111-0210 |
● |
|
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
1-09583-175-0 |
02 |
1 |
0111-0210 |
● |
|
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
1-09583-175-0 |
02 |
1 |
0211-1209 |
● |
|
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
(A)
|
1-09583-175-0 |
02 |
1 |
0211-1209 |
● |
|
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
1-09583-175-0 |
02 |
1 |
0211-1209 |
● |
|
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
1-09583-175-0 |
02 |
1 |
1210- |
● |
|
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
(A)
|
1-09583-175-0 |
02 |
1 |
1210- |
● |
|
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
L=121.5
|
1-47131-039-0 |
08 |
1 |
0111-0111 |
● |
|
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
L=121.5
|
1-47131-039-0 |
04 |
1 |
9510-9802 |
● |
● |
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
L=121.5
|
1-47131-039-0 |
04 |
1 |
9803-9909 |
● |
● |
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
L=121.5
|
1-47131-039-0 |
04 |
1 |
9910-0004 |
● |
● |
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
L=121.5
|
1-47131-039-0 |
04 |
1 |
9910-0004 |
● |
● |
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
L=121.5
|
1-47131-039-0 |
04 |
1 |
0005-0106 |
● |
● |
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
L=121.5
|
1-47131-039-0 |
04 |
1 |
0107-0110 |
● |
● |
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
L=121.5
|
1-47131-039-0 |
04 |
1 |
0107-0110 |
● |
● |
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
L=121.5
|
1-47131-039-0 |
04 |
1 |
0111-0111 |
● |
● |
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
L=121.5
|
1-47131-039-0 |
04 |
1 |
0111-0111 |
● |
|
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
L=121.5
|
1-47131-039-0 |
04 |
1 |
0111- |
● |
● |
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
L=121.5
|
1-47131-039-0 |
04 |
1 |
0111- |
● |
● |
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
L=106.5
|
1-47131-038-0 |
04 |
1 |
9510-9802 |
● |
● |
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
L=106.5
|
1-47131-038-0 |
04 |
1 |
9803-0106 |
● |
● |
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
L=106.5
|
1-47131-038-0 |
04 |
1 |
0107-0210 |
● |
● |
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
L=106.5
|
1-47131-038-0 |
04 |
1 |
0211- |
● |
|
| |
15 |
PIN; GUIDE,ADJ CAM,RR WHEEL BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47116-002-0 |
04 |
1 |
9510-9802 |
● |
● |
| |
15 |
PIN; GUIDE,ADJ CAM,RR WHEEL BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47116-002-0 |
04 |
1 |
9803-9909 |
● |
● |
| |
15 |
PIN; GUIDE,ADJ CAM,RR WHEEL BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47116-002-0 |
04 |
1 |
9910-0004 |
● |
● |
| |
15 |
PIN; GUIDE,ADJ CAM,RR WHEEL BRK
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
|
1-47116-002-0 |
04 |
1 |
9910-0004 |
● |
● |
| |
15 |
PIN; GUIDE,ADJ CAM,RR WHEEL BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47116-002-0 |
04 |
1 |
0005-0106 |
● |
● |
| |
15 |
PIN; GUIDE,ADJ CAM,RR WHEEL BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47116-002-0 |
04 |
1 |
0107-0107 |
● |
● |
| |
15 |
PIN; GUIDE,ADJ CAM,RR WHEEL BRK
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
|
1-47116-002-0 |
04 |
1 |
0107-0107 |
● |
|
| |
15 |
PIN; GUIDE,ADJ CAM,RR WHEEL BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47116-002-0 |
04 |
1 |
0107-0210 |
● |
● |
| |
15 |
PIN; GUIDE,ADJ CAM,RR WHEEL BRK
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
|
1-47116-002-0 |
04 |
1 |
0107-0210 |
● |
|
| |
15 |
PIN; GUIDE,ADJ CAM,RR WHEEL BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47116-002-0 |
04 |
1 |
0211- |
● |
|
| |
15 |
PIN; GUIDE,ADJ CAM,RR WHEEL BRK
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
|
1-47116-002-0 |
04 |
1 |
0211- |
● |
|
| |
25 |
COVER SET; RR BRK DRUM
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
|
1-47151-461-1 |
02 |
1 |
0107- |
● |
|
| |
25 |
COVER SET; RR BRK DRUM
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-47151-462-1 |
02 |
1 |
0107-0211 |
● |
|
| |
25 |
COVER SET; RR BRK DRUM
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7
15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5"
HYPOID(W4H)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-47151-462-1 |
02 |
1 |
0212- |
● |
|
| |
25 |
COVER SET; RR BRK DRUM
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
|
1-47151-461-1 |
02 |
1 |
9910-0004 |
● |
● |
| |
25 |
COVER SET; RR BRK DRUM
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47151-482-1 |
02 |
1 |
9510-9802 |
● |
● |
| |
25 |
COVER SET; RR BRK DRUM
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47151-482-1 |
02 |
1 |
9803-0106 |
● |
● |
| |
25 |
COVER SET; RR BRK DRUM
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47151-482-1 |
02 |
1 |
0107- |
● |
● |
| |
25 |
COVER SET; RR BRK DRUM
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47151-458-1 |
02 |
1 |
9510-9802 |
● |
● |
| |
25 |
COVER SET; RR BRK DRUM
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47151-458-1 |
02 |
1 |
9803-0106 |
● |
● |
| |
25 |
COVER SET; RR BRK DRUM
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47151-458-1 |
02 |
1 |
0107-0210 |
● |
● |
| |
25 |
COVER SET; RR BRK DRUM
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47151-458-1 |
02 |
1 |
0211- |
● |
|
| |
27 |
COVER; CHECK HOLE,DRUM COVER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-09333-095-0 |
04 |
1 |
9510-9802 |
● |
● |
| |
27 |
COVER; CHECK HOLE,DRUM COVER
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-09333-095-0 |
04 |
1 |
9803-0106 |
● |
● |
| |
27 |
COVER; CHECK HOLE,DRUM COVER
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-09333-095-0 |
04 |
1 |
0107- |
● |
● |
| |
27 |
COVER; CHECK HOLE,DRUM COVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-09333-151-0 |
04 |
1 |
9510-9802 |
● |
● |
| |
27 |
COVER; CHECK HOLE,DRUM COVER
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-09333-151-0 |
04 |
1 |
9803-9909 |
● |
● |
| |
27 |
COVER; CHECK HOLE,DRUM COVER
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-09333-151-0 |
04 |
1 |
9910-0004 |
● |
● |
| |
27 |
COVER; CHECK HOLE,DRUM COVER
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
|
1-09333-151-0 |
04 |
1 |
9910-0004 |
● |
● |
| |
27 |
COVER; CHECK HOLE,DRUM COVER
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-09333-151-0 |
04 |
1 |
0005-0106 |
● |
● |
| |
27 |
COVER; CHECK HOLE,DRUM COVER
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-09333-151-0 |
04 |
1 |
0107-0107 |
● |
● |
| |
27 |
COVER; CHECK HOLE,DRUM COVER
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
|
1-09333-151-0 |
04 |
1 |
0107-0107 |
● |
|
| |
27 |
COVER; CHECK HOLE,DRUM COVER
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-09333-151-0 |
04 |
1 |
0107-0210 |
● |
● |
| |
27 |
COVER; CHECK HOLE,DRUM COVER
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
|
1-09333-151-0 |
04 |
1 |
0107-0210 |
● |
|
| |
27 |
COVER; CHECK HOLE,DRUM COVER
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-09333-151-0 |
04 |
1 |
0211- |
● |
|
| |
27 |
COVER; CHECK HOLE,DRUM COVER
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
|
1-09333-151-0 |
04 |
1 |
0211- |
● |
|
| |
30 |
BOLT; DRUM COVER
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7
15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5"
HYPOID(W4H)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M10X12
|
1-47159-187-0 |
12 |
1 |
1210- |
● |
|
| |
30 |
BOLT; DRUM COVER
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M10X12
|
1-47159-187-0 |
12 |
1 |
0111-0111 |
● |
|
| |
30 |
BOLT; DRUM COVER
M10X16 W/LK WASHER
|
0-50041-016-0 |
12 |
1 |
9510-0210 |
● |
● |
| |
30 |
BOLT; DRUM COVER
M10X16 W/LK WASHER
|
0-50041-016-0 |
12 |
1 |
0211-0906 |
● |
|
| |
30 |
BOLT; DRUM COVER
M10X16 W/LK WASHER
|
0-50541-016-0 |
12 |
1 |
0907-1209 |
● |
|
| |
30 |
BOLT; DRUM COVER
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M10X16 W/LK WASHER
|
0-50541-016-0 |
12 |
1 |
1210- |
● |
|
| |
30 |
BOLT; DRUM COVER
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
M10X16 W/LK WASHER
|
0-50541-016-0 |
12 |
1 |
1210- |
● |
|
| |
47 |
BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
|
1-47137-151-0 |
02 |
1 |
0107- |
● |
|
| |
47 |
BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
|
1-47137-151-0 |
02 |
1 |
9910-0004 |
● |
● |
| |
47 |
BRACKET; ANCHOR PIN,RR WHEEL BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47130-088-1 |
02 |
1 |
9510-9802 |
● |
● |
| |
47 |
BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47130-088-1 |
02 |
1 |
9803-0106 |
● |
● |
| |
47 |
BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47130-088-1 |
02 |
1 |
0107- |
● |
● |
| |
47 |
BRACKET; ANCHOR PIN,RR WHEEL BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47137-112-3 |
02 |
1 |
9510-9802 |
● |
● |
| |
47 |
BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47137-112-3 |
02 |
1 |
9803-0106 |
● |
● |
| |
47 |
BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47137-112-3 |
02 |
1 |
0107-0210 |
● |
● |
| |
47 |
BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47137-112-4 |
02 |
1 |
0211- |
● |
|
| |
51 |
CAM ASM; SHOE ADJ,RR WHEEL BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
1-47165-058-1 |
02 |
1 |
9510-9802 |
● |
● |
| |
51 |
CAM ASM; SHOE ADJ,RR WHEEL BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
1-47165-058-1 |
02 |
1 |
9803-9909 |
● |
● |
| |
51 |
CAM ASM; SHOE ADJ,RR WHEEL BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
1-47165-058-1 |
02 |
1 |
9910-0004 |
● |
● |
| |
51 |
CAM ASM; SHOE ADJ,RR WHEEL BRK
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
(A)
|
1-47165-058-1 |
02 |
1 |
9910-0004 |
● |
● |
| |
51 |
CAM ASM; SHOE ADJ,RR WHEEL BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
1-47165-058-1 |
02 |
1 |
0005-0106 |
● |
● |
| |
51 |
CAM ASM; SHOE ADJ,RR WHEEL BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
1-47165-058-1 |
02 |
1 |
0107-0107 |
● |
● |
| |
51 |
CAM ASM; SHOE ADJ,RR WHEEL BRK
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
(A)
|
1-47165-058-1 |
02 |
1 |
0107-0107 |
● |
|
| |
51 |
CAM ASM; SHOE ADJ,RR WHEEL BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
1-47165-058-1 |
02 |
1 |
0107-0210 |
● |
● |
| |
51 |
CAM ASM; SHOE ADJ,RR WHEEL BRK
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
(A)
|
1-47165-058-1 |
02 |
1 |
0107-0210 |
● |
|
| |
51 |
CAM ASM; SHOE ADJ,RR WHEEL BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
1-47165-058-1 |
02 |
1 |
0211- |
● |
|
| |
51 |
CAM ASM; SHOE ADJ,RR WHEEL BRK
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
(A)
|
1-47165-058-1 |
02 |
1 |
0211- |
● |
|
| |
51 |
CAM ASM; SHOE ADJ,RR WHEEL BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
|
1-47165-059-1 |
02 |
1 |
9510-9802 |
● |
● |
| |
51 |
CAM ASM; SHOE ADJ,RR WHEEL BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
|
1-47165-059-1 |
02 |
1 |
9803-9909 |
● |
● |
| |
51 |
CAM ASM; SHOE ADJ,RR WHEEL BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
|
1-47165-059-1 |
02 |
1 |
9910-0004 |
● |
● |
| |
51 |
CAM ASM; SHOE ADJ,RR WHEEL BRK
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
(B)
|
1-47165-059-1 |
02 |
1 |
9910-0004 |
● |
● |
| |
51 |
CAM ASM; SHOE ADJ,RR WHEEL BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
|
1-47165-059-1 |
02 |
1 |
0005-0106 |
● |
● |
| |
51 |
CAM ASM; SHOE ADJ,RR WHEEL BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
|
1-47165-059-1 |
02 |
1 |
0107-0107 |
● |
● |
| |
51 |
CAM ASM; SHOE ADJ,RR WHEEL BRK
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
(B)
|
1-47165-059-1 |
02 |
1 |
0107-0107 |
● |
|
| |
51 |
CAM ASM; SHOE ADJ,RR WHEEL BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
|
1-47165-059-1 |
02 |
1 |
0107-0210 |
● |
● |
| |
51 |
CAM ASM; SHOE ADJ,RR WHEEL BRK
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
(B)
|
1-47165-059-1 |
02 |
1 |
0107-0210 |
● |
|
| |
51 |
CAM ASM; SHOE ADJ,RR WHEEL BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(B)
|
1-47165-059-1 |
02 |
1 |
0211- |
● |
|
| |
51 |
CAM ASM; SHOE ADJ,RR WHEEL BRK
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
(B)
|
1-47165-059-1 |
02 |
1 |
0211- |
● |
|
| |
52 |
BOLT; ANCHOR BRKT
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
M14X50
|
1-09040-066-0 |
02 |
1 |
0107-0107 |
● |
|
| |
52 |
BOLT; ANCHOR BRKT
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M14X50
|
1-09040-066-0 |
02 |
1 |
0107-0110 |
● |
|
| |
52 |
BOLT; ANCHOR BRKT
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
M14X50
|
1-09040-066-0 |
02 |
1 |
0107-0110 |
● |
|
| |
52 |
BOLT; ANCHOR BRKT
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
M14X50
|
1-09040-066-0 |
02 |
1 |
0111-0111 |
● |
|
| |
52 |
BOLT; ANCHOR BRKT
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
M14X50
|
1-09040-066-0 |
02 |
1 |
0111-0211 |
● |
|
| |
52 |
BOLT; ANCHOR BRKT
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M14X50
|
1-09040-066-0 |
02 |
1 |
0111-0211 |
● |
|
| |
52 |
BOLT; ANCHOR BRKT
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 41/8
15.5" HYPOID(W4H)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
M14X50
|
1-09040-066-0 |
02 |
1 |
0212-1209 |
● |
|
| |
52 |
BOLT; ANCHOR BRKT
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
M14X50
|
1-09040-066-0 |
02 |
1 |
0212-1209 |
● |
|
| |
52 |
BOLT; ANCHOR BRKT
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
M14X50
|
1-09040-066-0 |
02 |
1 |
1210- |
● |
|
| |
52 |
BOLT; ANCHOR BRKT
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
M14X50
|
1-09040-066-0 |
02 |
1 |
9910-0004 |
● |
● |
| |
53 |
BOLT; LOCK PLATE
FINAL GEAR 43/7 15.5" HYPOID(W1R),FINAL GEAR 39/7
15.5" HYPOID(W3K),FINAL GEAR 41/8 15.5"
HYPOID(W4H)
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M10X16
|
1-47139-173-0 |
02 |
1 |
1210- |
● |
|
| |
53 |
BOLT; LOCK PLATE
M10X16
|
0-20801-016-0 |
02 |
1 |
9510-0210 |
● |
● |
| |
53 |
BOLT; LOCK PLATE
M10X16
|
0-20801-016-0 |
02 |
1 |
0211-0512 |
● |
|
| |
53 |
BOLT; LOCK PLATE
M10X16
|
0-20851-016-0 |
02 |
1 |
0601-1209 |
● |
|
| |
53 |
BOLT; LOCK PLATE
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M10X16
|
0-20851-016-0 |
02 |
1 |
1210- |
● |
|
| |
53 |
BOLT; LOCK PLATE
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
M10X16
|
0-20851-016-0 |
02 |
1 |
1210- |
● |
|
| |
54 |
WASHER; LK,ANCHOR PIN,RR BRK
|
1-47133-011-0 |
02 |
1 |
9510-0210 |
● |
● |
| |
54 |
WASHER; LK,ANCHOR PIN,RR BRK
|
1-47133-011-0 |
02 |
1 |
0211- |
● |
|
| |
55 |
PLATE; LK,RR WHEEL CYL
|
1-47133-005-0 |
02 |
1 |
9510-0210 |
● |
● |
| |
55 |
PLATE; LK,RR WHEEL CYL
|
1-47133-005-0 |
02 |
1 |
0211- |
● |
|
| |
56 |
WASHER; ADJ CAM,RR WHEEL BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47169-033-0 |
04 |
1 |
9510-9802 |
● |
● |
| |
56 |
WASHER; ADJ CAM,RR WHEEL BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47169-033-0 |
04 |
1 |
9803-9909 |
● |
● |
| |
56 |
WASHER; ADJ CAM,RR WHEEL BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47169-033-0 |
04 |
1 |
9910-0004 |
● |
● |
| |
56 |
WASHER; ADJ CAM,RR WHEEL BRK
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
|
1-47169-033-0 |
04 |
1 |
9910-0004 |
● |
● |
| |
56 |
WASHER; ADJ CAM,RR WHEEL BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47169-033-0 |
04 |
1 |
0005-0106 |
● |
● |
| |
56 |
WASHER; ADJ CAM,RR WHEEL BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47169-033-0 |
04 |
1 |
0107-0107 |
● |
● |
| |
56 |
WASHER; ADJ CAM,RR WHEEL BRK
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
|
1-47169-033-0 |
04 |
1 |
0107-0107 |
● |
|
| |
56 |
WASHER; ADJ CAM,RR WHEEL BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47169-033-0 |
04 |
1 |
0107-0210 |
● |
● |
| |
56 |
WASHER; ADJ CAM,RR WHEEL BRK
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
|
1-47169-033-0 |
04 |
1 |
0107-0210 |
● |
|
| |
56 |
WASHER; ADJ CAM,RR WHEEL BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47169-033-0 |
04 |
1 |
0211- |
● |
|
| |
56 |
WASHER; ADJ CAM,RR WHEEL BRK
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
|
1-47169-033-0 |
04 |
1 |
0211- |
● |
|
| |
57 |
SPRING; ADJ CAM,RR WHEEL BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47169-046-0 |
04 |
1 |
9510-9802 |
● |
● |
| |
57 |
SPRING; ADJ CAM,RR WHEEL BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47169-046-0 |
04 |
1 |
9803-9909 |
● |
● |
| |
57 |
SPRING; ADJ CAM,RR WHEEL BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47169-046-0 |
04 |
1 |
9910-0004 |
● |
● |
| |
57 |
SPRING; ADJ CAM,RR WHEEL BRK
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
|
1-47169-046-0 |
04 |
1 |
9910-0004 |
● |
● |
| |
57 |
SPRING; ADJ CAM,RR WHEEL BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47169-046-0 |
04 |
1 |
0005-0106 |
● |
● |
| |
57 |
SPRING; ADJ CAM,RR WHEEL BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47169-046-0 |
04 |
1 |
0107-0107 |
● |
● |
| |
57 |
SPRING; ADJ CAM,RR WHEEL BRK
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
|
1-47169-046-0 |
04 |
1 |
0107-0107 |
● |
|
| |
57 |
SPRING; ADJ CAM,RR WHEEL BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47169-046-0 |
04 |
1 |
0107-0210 |
● |
● |
| |
57 |
SPRING; ADJ CAM,RR WHEEL BRK
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
|
1-47169-046-0 |
04 |
1 |
0107-0210 |
● |
|
| |
57 |
SPRING; ADJ CAM,RR WHEEL BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47169-046-0 |
04 |
1 |
0211- |
● |
|
| |
57 |
SPRING; ADJ CAM,RR WHEEL BRK
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
|
1-47169-046-0 |
04 |
1 |
0211- |
● |
|
| |
58 |
BOOT; ADJ CAM,RR WHEEL BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47169-034-0 |
04 |
1 |
9510-9802 |
● |
● |
| |
58 |
BOOT; ADJ CAM,RR WHEEL BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47169-034-0 |
04 |
1 |
9803-9909 |
● |
● |
| |
58 |
BOOT; ADJ CAM,RR WHEEL BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47169-034-0 |
04 |
1 |
9910-0004 |
● |
● |
| |
58 |
BOOT; ADJ CAM,RR WHEEL BRK
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
|
1-47169-034-0 |
04 |
1 |
9910-0004 |
● |
● |
| |
58 |
BOOT; ADJ CAM,RR WHEEL BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47169-034-0 |
04 |
1 |
0005-0106 |
● |
● |
| |
58 |
BOOT; ADJ CAM,RR WHEEL BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47169-034-0 |
04 |
1 |
0107-0107 |
● |
● |
| |
58 |
BOOT; ADJ CAM,RR WHEEL BRK
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
|
1-47169-034-0 |
04 |
1 |
0107-0107 |
● |
|
| |
58 |
BOOT; ADJ CAM,RR WHEEL BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47169-034-0 |
04 |
1 |
0107-0210 |
● |
● |
| |
58 |
BOOT; ADJ CAM,RR WHEEL BRK
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
|
1-47169-034-0 |
04 |
1 |
0107-0210 |
● |
|
| |
58 |
BOOT; ADJ CAM,RR WHEEL BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47169-034-0 |
04 |
1 |
0211- |
● |
|
| |
58 |
BOOT; ADJ CAM,RR WHEEL BRK
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
|
1-47169-034-0 |
04 |
1 |
0211- |
● |
|
| |
59 |
WASHER; LK,RR WHEEL CYL
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
ID=14.2
|
9-09150-514-0 |
04 |
1 |
0107-0603 |
● |
|
| |
59 |
WASHER; LK,RR WHEEL CYL
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
ID=14.2
|
0-91510-514-0 |
04 |
1 |
0604- |
● |
|
| |
59 |
WASHER; LK,RR WHEEL CYL
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
ID=14.2
|
9-09150-514-0 |
04 |
1 |
9910-0004 |
● |
● |
| |
59 |
WASHER; LK,RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
ID=12.2
|
9-09150-612-0 |
02 |
1 |
9510-9802 |
● |
● |
| |
59 |
WASHER; LK,RR WHEEL CYL
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
ID=12.2
|
9-09150-612-0 |
02 |
1 |
9803-0106 |
● |
● |
| |
59 |
WASHER; LK,RR WHEEL CYL
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
ID=12.2
|
9-09150-612-0 |
02 |
1 |
0107-0210 |
● |
● |
| |
59 |
WASHER; LK,RR WHEEL CYL
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
ID=12.2
|
9-09150-612-0 |
02 |
1 |
0211-0603 |
● |
|
| |
59 |
WASHER; LK,RR WHEEL CYL
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
ID=12.2
|
0-91510-612-0 |
02 |
1 |
0604- |
● |
|
| |
60 |
COVER; ADJ CAM BOOT,RR WHEEL BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47169-031-0 |
04 |
1 |
9510-9802 |
● |
● |
| |
60 |
COVER; ADJ CAM BOOT,RR WHEEL BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47169-031-0 |
04 |
1 |
9803-9909 |
● |
● |
| |
60 |
COVER; ADJ CAM BOOT,RR WHEEL BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47169-031-0 |
04 |
1 |
9910-0004 |
● |
● |
| |
60 |
COVER; ADJ CAM BOOT,RR WHEEL BRK
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
|
1-47169-031-0 |
04 |
1 |
9910-0004 |
● |
● |
| |
60 |
COVER; ADJ CAM BOOT,RR WHEEL BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47169-031-0 |
04 |
1 |
0005-0106 |
● |
● |
| |
60 |
COVER; ADJ CAM BOOT,RR WHEEL BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47169-031-0 |
04 |
1 |
0107-0107 |
● |
● |
| |
60 |
COVER; ADJ CAM BOOT,RR WHEEL BRK
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
|
1-47169-031-0 |
04 |
1 |
0107-0107 |
● |
|
| |
60 |
COVER; ADJ CAM BOOT,RR WHEEL BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47169-031-0 |
04 |
1 |
0107-0210 |
● |
● |
| |
60 |
COVER; ADJ CAM BOOT,RR WHEEL BRK
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
|
1-47169-031-0 |
04 |
1 |
0107-0210 |
● |
|
| |
60 |
COVER; ADJ CAM BOOT,RR WHEEL BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47169-031-0 |
04 |
1 |
0211- |
● |
|
| |
60 |
COVER; ADJ CAM BOOT,RR WHEEL BRK
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
|
1-47169-031-0 |
04 |
1 |
0211- |
● |
|
| |
61 |
INDICATOR; WEAR,RR BRK SHOE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47169-032-1 |
04 |
1 |
9510-9802 |
● |
● |
| |
61 |
INDICATOR; WEAR,RR BRK SHOE
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47169-032-1 |
04 |
1 |
9803-9909 |
● |
● |
| |
61 |
INDICATOR; WEAR,RR BRK SHOE
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47169-032-1 |
04 |
1 |
9910-0004 |
● |
● |
| |
61 |
INDICATOR; WEAR,RR BRK SHOE
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
|
1-47169-032-1 |
04 |
1 |
9910-0004 |
● |
● |
| |
61 |
INDICATOR; WEAR,RR BRK SHOE
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47169-032-1 |
04 |
1 |
0005-0106 |
● |
● |
| |
61 |
INDICATOR; WEAR,RR BRK SHOE
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47169-032-1 |
04 |
1 |
0107-0107 |
● |
● |
| |
61 |
INDICATOR; WEAR,RR BRK SHOE
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
|
1-47169-032-1 |
04 |
1 |
0107-0107 |
● |
|
| |
61 |
INDICATOR; WEAR,RR BRK SHOE
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47169-032-1 |
04 |
1 |
0107-0210 |
● |
● |
| |
61 |
INDICATOR; WEAR,RR BRK SHOE
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
|
1-47169-032-1 |
04 |
1 |
0107-0210 |
● |
|
| |
61 |
INDICATOR; WEAR,RR BRK SHOE
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47169-032-1 |
04 |
1 |
0211- |
● |
|
| |
61 |
INDICATOR; WEAR,RR BRK SHOE
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
|
1-47169-032-1 |
04 |
1 |
0211- |
● |
|
| |
62 |
PIN; ADJ CAM SPINDLE,RR WHEEL BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47169-030-0 |
04 |
1 |
9510-9802 |
● |
● |
| |
62 |
PIN; ADJ CAM SPINDLE,RR WHEEL BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47169-030-0 |
04 |
1 |
9803-9909 |
● |
● |
| |
62 |
PIN; ADJ CAM SPINDLE,RR WHEEL BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47169-030-0 |
04 |
1 |
9910-0004 |
● |
● |
| |
62 |
PIN; ADJ CAM SPINDLE,RR WHEEL BRK
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
|
1-47169-030-0 |
04 |
1 |
9910-0004 |
● |
● |
| |
62 |
PIN; ADJ CAM SPINDLE,RR WHEEL BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47169-030-0 |
04 |
1 |
0005-0106 |
● |
● |
| |
62 |
PIN; ADJ CAM SPINDLE,RR WHEEL BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47169-030-0 |
04 |
1 |
0107-0107 |
● |
● |
| |
62 |
PIN; ADJ CAM SPINDLE,RR WHEEL BRK
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
|
1-47169-030-0 |
04 |
1 |
0107-0107 |
● |
|
| |
62 |
PIN; ADJ CAM SPINDLE,RR WHEEL BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47169-030-0 |
04 |
1 |
0107-0210 |
● |
● |
| |
62 |
PIN; ADJ CAM SPINDLE,RR WHEEL BRK
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
|
1-47169-030-0 |
04 |
1 |
0107-0210 |
● |
|
| |
62 |
PIN; ADJ CAM SPINDLE,RR WHEEL BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47169-030-0 |
04 |
1 |
0211- |
● |
|
| |
62 |
PIN; ADJ CAM SPINDLE,RR WHEEL BRK
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
|
1-47169-030-0 |
04 |
1 |
0211- |
● |
|
| |
94 |
CYLINDER; WHEEL,RR BRK
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
|
1-47600-682-0 |
02 |
1 |
0107- |
● |
|
| |
94 |
CYLINDER; WHEEL,RR BRK
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
|
1-47600-682-0 |
02 |
1 |
9910-0004 |
● |
● |
| |
94 |
CYLINDER; WHEEL,RR BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47600-579-1 |
01 |
1 |
9510-9802 |
● |
● |
| |
94 |
CYLINDER; WHEEL,RR BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47600-579-1 |
01 |
1 |
9803-0106 |
● |
● |
| |
94 |
CYLINDER; WHEEL,RR BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47600-579-1 |
01 |
1 |
0107- |
● |
● |
| |
94 |
CYLINDER; WHEEL,RR BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47600-580-1 |
01 |
1 |
9510-9802 |
● |
● |
| |
94 |
CYLINDER; WHEEL,RR BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47600-580-1 |
01 |
1 |
9803-0106 |
● |
● |
| |
94 |
CYLINDER; WHEEL,RR BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47600-580-1 |
01 |
1 |
0107- |
● |
● |
| |
94 |
CYLINDER; WHEEL,RR BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47600-524-1 |
02 |
1 |
9510-9802 |
● |
● |
| |
94 |
CYLINDER; WHEEL,RR BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47600-524-1 |
02 |
1 |
9803-0106 |
● |
● |
| |
94 |
CYLINDER; WHEEL,RR BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47600-524-1 |
02 |
1 |
0107-0210 |
● |
● |
| |
94 |
CYLINDER; WHEEL,RR BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47600-524-1 |
02 |
1 |
0211- |
● |
|
| |
95 |
CUP SET; RR WHEEL CYL
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
|
1-87830-528-0 |
02 |
1 |
0107- |
● |
|
| |
95 |
CUP SET; RR WHEEL CYL
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
|
1-87830-528-0 |
02 |
1 |
9910-0004 |
● |
● |
| |
95 |
CUP SET; RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-87830-721-0 |
02 |
1 |
9510-9802 |
● |
● |
| |
95 |
CUP SET; RR WHEEL CYL
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-87830-721-0 |
02 |
1 |
9803-0106 |
● |
● |
| |
95 |
CUP SET; RR WHEEL CYL
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-87830-721-0 |
02 |
1 |
0107- |
● |
● |
| |
95 |
CUP SET; RR WHEEL CYL
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-87830-527-0 |
04 |
1 |
9510-9606 |
● |
● |
| |
95 |
CUP SET; RR WHEEL CYL
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-87830-527-0 |
02 |
1 |
9607-9802 |
● |
● |
| |
95 |
CUP SET; RR WHEEL CYL
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-87830-527-0 |
02 |
1 |
9803-0106 |
● |
● |
| |
95 |
CUP SET; RR WHEEL CYL
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-87830-527-0 |
02 |
1 |
0107-0210 |
● |
● |
| |
95 |
CUP SET; RR WHEEL CYL
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-87830-527-0 |
02 |
1 |
0211- |
● |
|
| |
96 |
SCREW; BLEEDER,RR BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47615-002-0 |
02 |
1 |
9510-9802 |
● |
● |
| |
96 |
SCREW; BLEEDER,RR BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47615-002-0 |
02 |
1 |
9803-9909 |
● |
● |
| |
96 |
SCREW; BLEEDER,RR BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47615-002-0 |
02 |
1 |
9910-0004 |
● |
● |
| |
96 |
SCREW; BLEEDER,RR BRK
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
|
1-47615-002-0 |
02 |
1 |
9910-0004 |
● |
● |
| |
96 |
SCREW; BLEEDER,RR BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47615-002-0 |
02 |
1 |
0005-0106 |
● |
● |
| |
96 |
SCREW; BLEEDER,RR BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47615-002-0 |
02 |
1 |
0107-0107 |
● |
● |
| |
96 |
SCREW; BLEEDER,RR BRK
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
|
1-47615-002-0 |
02 |
1 |
0107-0107 |
● |
● |
| |
96 |
SCREW; BLEEDER,RR BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47615-002-0 |
02 |
1 |
0107-0107 |
● |
● |
| |
96 |
SCREW; BLEEDER,RR BRK
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
|
1-47615-002-0 |
02 |
1 |
0107-0107 |
● |
|
| |
96 |
SCREW; BLEEDER,RR BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47615-002-0 |
02 |
1 |
0108-0210 |
● |
● |
| |
96 |
SCREW; BLEEDER,RR BRK
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
|
1-47615-002-0 |
02 |
1 |
0108-0210 |
● |
|
| |
96 |
SCREW; BLEEDER,RR BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47615-002-0 |
02 |
1 |
0211- |
● |
|
| |
96 |
SCREW; BLEEDER,RR BRK
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
|
1-47615-002-0 |
02 |
1 |
0211- |
● |
|
| |
96 |
SCREW; BLEEDER,RR BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
L=66.5
|
1-47615-005-0 |
02 |
1 |
9510-9802 |
● |
● |
| |
96 |
SCREW; BLEEDER,RR BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
L=66.5
|
1-47615-005-0 |
02 |
1 |
9803-0106 |
● |
● |
| |
96 |
SCREW; BLEEDER,RR BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
L=66.5
|
1-47615-005-0 |
02 |
1 |
0107-0210 |
● |
● |
| |
96 |
SCREW; BLEEDER,RR BRK
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
L=66.5
|
1-47615-005-0 |
02 |
1 |
0211- |
● |
|
| |
97 |
CAP; BLEEDER,RR WHEEL CYL
OD=12
|
1-47619-011-0 |
02 |
1 |
9510-0106 |
● |
● |
| |
97 |
CAP; BLEEDER,RR WHEEL CYL
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
OD=12
|
1-47619-011-0 |
02 |
1 |
0107-0210 |
● |
● |
| |
97 |
CAP; BLEEDER,RR WHEEL CYL
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
OD=12
|
1-47619-011-0 |
02 |
1 |
0107-0210 |
● |
|
| |
97 |
CAP; BLEEDER,RR WHEEL CYL
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
OD=12
|
1-47619-011-0 |
02 |
1 |
0211- |
● |
|
| |
97 |
CAP; BLEEDER,RR WHEEL CYL
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
OD=12
|
1-47619-011-0 |
02 |
1 |
0211- |
● |
|
| |
98 |
SPRING; RR WHEEL CYL
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-09580-019-0 |
02 |
1 |
9510-9802 |
● |
● |
| |
98 |
SPRING; RR WHEEL CYL
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-09580-019-0 |
02 |
1 |
9803-9909 |
● |
● |
| |
98 |
SPRING; RR WHEEL CYL
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-09580-019-0 |
02 |
1 |
9910-0004 |
● |
● |
| |
98 |
SPRING; RR WHEEL CYL
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
|
1-09580-019-0 |
02 |
1 |
9910-0004 |
● |
● |
| |
98 |
SPRING; RR WHEEL CYL
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-09580-019-0 |
02 |
1 |
0005-0106 |
● |
● |
| |
98 |
SPRING; RR WHEEL CYL
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-09580-019-0 |
02 |
1 |
0107-0107 |
● |
● |
| |
98 |
SPRING; RR WHEEL CYL
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
|
1-09580-019-0 |
02 |
1 |
0107-0107 |
● |
|
| |
98 |
SPRING; RR WHEEL CYL
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-09580-019-0 |
02 |
1 |
0107-0210 |
● |
● |
| |
98 |
SPRING; RR WHEEL CYL
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
|
1-09580-019-0 |
02 |
1 |
0107-0210 |
● |
|
| |
98 |
SPRING; RR WHEEL CYL
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-09580-019-0 |
02 |
1 |
0211- |
● |
|
| |
98 |
SPRING; RR WHEEL CYL
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
|
1-09580-019-0 |
02 |
1 |
0211- |
● |
|
| |
99 |
PISTON; RR WHEEL CYL
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
|
1-47624-303-0 |
04 |
1 |
0107- |
● |
|
| |
99 |
PISTON; RR WHEEL CYL
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
|
1-47624-303-0 |
04 |
1 |
9910-0004 |
● |
● |
| |
99 |
PISTON; RR WHEEL CYL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47624-210-0 |
04 |
1 |
9510-9802 |
● |
● |
| |
99 |
PISTON; RR WHEEL CYL
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47624-210-0 |
04 |
1 |
9803-0106 |
● |
● |
| |
99 |
PISTON; RR WHEEL CYL
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47624-210-0 |
04 |
1 |
0107- |
● |
● |
| |
99 |
PISTON; RR WHEEL CYL
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47624-043-0 |
04 |
1 |
9510-9701 |
● |
● |
| |
99 |
PISTON; RR WHEEL CYL
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47624-302-0 |
04 |
1 |
9702-9802 |
● |
● |
| |
99 |
PISTON; RR WHEEL CYL
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47624-302-0 |
04 |
1 |
9803-0106 |
● |
● |
| |
99 |
PISTON; RR WHEEL CYL
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47624-302-0 |
04 |
1 |
0107-0210 |
● |
● |
| |
99 |
PISTON; RR WHEEL CYL
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47624-302-0 |
04 |
1 |
0211- |
● |
|
| |
100 |
ROD; PUSH,RR WHEEL CYL
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47621-009-0 |
04 |
1 |
9510-9802 |
● |
● |
| |
100 |
ROD; PUSH,RR WHEEL CYL
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47621-009-0 |
04 |
1 |
9803-9909 |
● |
● |
| |
100 |
ROD; PUSH,RR WHEEL CYL
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47621-009-0 |
04 |
1 |
9910-0004 |
● |
● |
| |
100 |
ROD; PUSH,RR WHEEL CYL
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
|
1-47621-009-0 |
04 |
1 |
9910-0004 |
● |
● |
| |
100 |
ROD; PUSH,RR WHEEL CYL
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47621-009-0 |
04 |
1 |
0005-0106 |
● |
● |
| |
100 |
ROD; PUSH,RR WHEEL CYL
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47621-009-0 |
04 |
1 |
0107-0107 |
● |
● |
| |
100 |
ROD; PUSH,RR WHEEL CYL
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
|
1-47621-009-0 |
04 |
1 |
0107-0107 |
● |
|
| |
100 |
ROD; PUSH,RR WHEEL CYL
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47621-009-0 |
04 |
1 |
0107-0210 |
● |
● |
| |
100 |
ROD; PUSH,RR WHEEL CYL
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
|
1-47621-009-0 |
04 |
1 |
0107-0210 |
● |
|
| |
100 |
ROD; PUSH,RR WHEEL CYL
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
|
1-47621-009-0 |
04 |
1 |
0211- |
● |
|
| |
100 |
ROD; PUSH,RR WHEEL CYL
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
|
1-47621-009-0 |
04 |
1 |
0211- |
● |
|
| |
111 |
COVER; WHEEL CYL
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
(B)
|
1-47159-081-0 |
02 |
1 |
0107- |
● |
|
| |
111 |
COVER; WHEEL CYL
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
(B)
|
1-47159-081-0 |
02 |
1 |
9910-0004 |
● |
● |
| |
111 |
COVER; WHEEL CYL
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
1-47159-080-0 |
02 |
1 |
9510-9802 |
● |
● |
| |
111 |
COVER; WHEEL CYL
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
1-47159-080-0 |
02 |
1 |
9803-0106 |
● |
● |
| |
111 |
COVER; WHEEL CYL
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
1-47159-080-0 |
02 |
1 |
0107-0210 |
● |
● |
| |
111 |
COVER; WHEEL CYL
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
1-47159-080-0 |
02 |
1 |
0211- |
● |
|
| |
112 |
BOLT; WHEEL CYL SETTING
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
(A)
M14X35
|
0-20801-435-0 |
04 |
1 |
0107-0512 |
● |
|
| |
112 |
BOLT; WHEEL CYL SETTING
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
(A)
M14X35
|
0-20851-435-0 |
04 |
1 |
0601- |
● |
|
| |
112 |
BOLT; WHEEL CYL SETTING
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
(B)
M8X16 W/LK WASHER
|
0-50040-816-0 |
06 |
1 |
0107-0512 |
● |
|
| |
112 |
BOLT; WHEEL CYL SETTING
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
(B)
M8X16 W/LK WASHER
|
0-50540-816-0 |
06 |
1 |
0601- |
● |
|
| |
112 |
BOLT; WHEEL CYL SETTING
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
(A)
M14X35
|
0-20801-435-0 |
04 |
1 |
9910-0004 |
● |
● |
| |
112 |
BOLT; WHEEL CYL SETTING
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
(B)
M8X16 W/LK WASHER
|
0-50040-816-0 |
06 |
1 |
9910-0004 |
● |
● |
| |
112 |
BOLT; WHEEL CYL SETTING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
0-16806-270-0 |
04 |
1 |
9510-9802 |
● |
● |
| |
112 |
BOLT; WHEEL CYL SETTING
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
0-16806-270-0 |
04 |
1 |
9803-0106 |
● |
● |
| |
112 |
BOLT; WHEEL CYL SETTING
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
|
0-16806-270-0 |
04 |
1 |
0107- |
● |
● |
| |
112 |
BOLT; WHEEL CYL SETTING
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
M12X32 W/LK WASHER
|
0-50051-232-0 |
04 |
1 |
9510-9802 |
● |
● |
| |
112 |
BOLT; WHEEL CYL SETTING
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
M12X32 W/LK WASHER
|
0-50051-232-0 |
04 |
1 |
9803-0106 |
● |
● |
| |
112 |
BOLT; WHEEL CYL SETTING
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
M12X32 W/LK WASHER
|
0-50051-232-0 |
04 |
1 |
0107-0210 |
● |
● |
| |
112 |
BOLT; WHEEL CYL SETTING
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
M12X32 W/LK WASHER
|
0-50051-232-0 |
04 |
1 |
0211-0906 |
● |
|
| |
112 |
BOLT; WHEEL CYL SETTING
FINAL GEAR 41/6 15.5" HYPOID(W1Q),FINAL GEAR 43/7
15.5" HYPOID(W1R),FINAL GEAR 39/6 15.5"
HYPOID(W1T),FINAL GEAR 39/7 15.5" HYPOID(W3K),FINAL GEAR
41/7 15.5" HYPOID(W3S),FINAL GEAR 41/8 15.5"
HYPOID(W4H),FINAL GEAR 43/9 15.5" HYPOID(W4P)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
(A)
M12X32 W/LK WASHER
|
0-50551-232-0 |
04 |
1 |
0907- |
● |
|
| |
149 |
PIN; GUIDE RETURN
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
|
1-47119-024-0 |
04 |
1 |
0107- |
● |
|
| |
149 |
PIN; GUIDE RETURN
FINAL GEAR 39/7 16.5" HYPOID(W3B),FINAL GEAR 43/7
16.5" HYPOID(W3L),FINAL GEAR 41/8 16.5"
HYPOID(W3P)
|
1-47119-024-0 |
04 |
1 |
9910-0004 |
● |
● |
