◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11340 - FTR(MIDDLE EAST) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#60017) — 82 parça

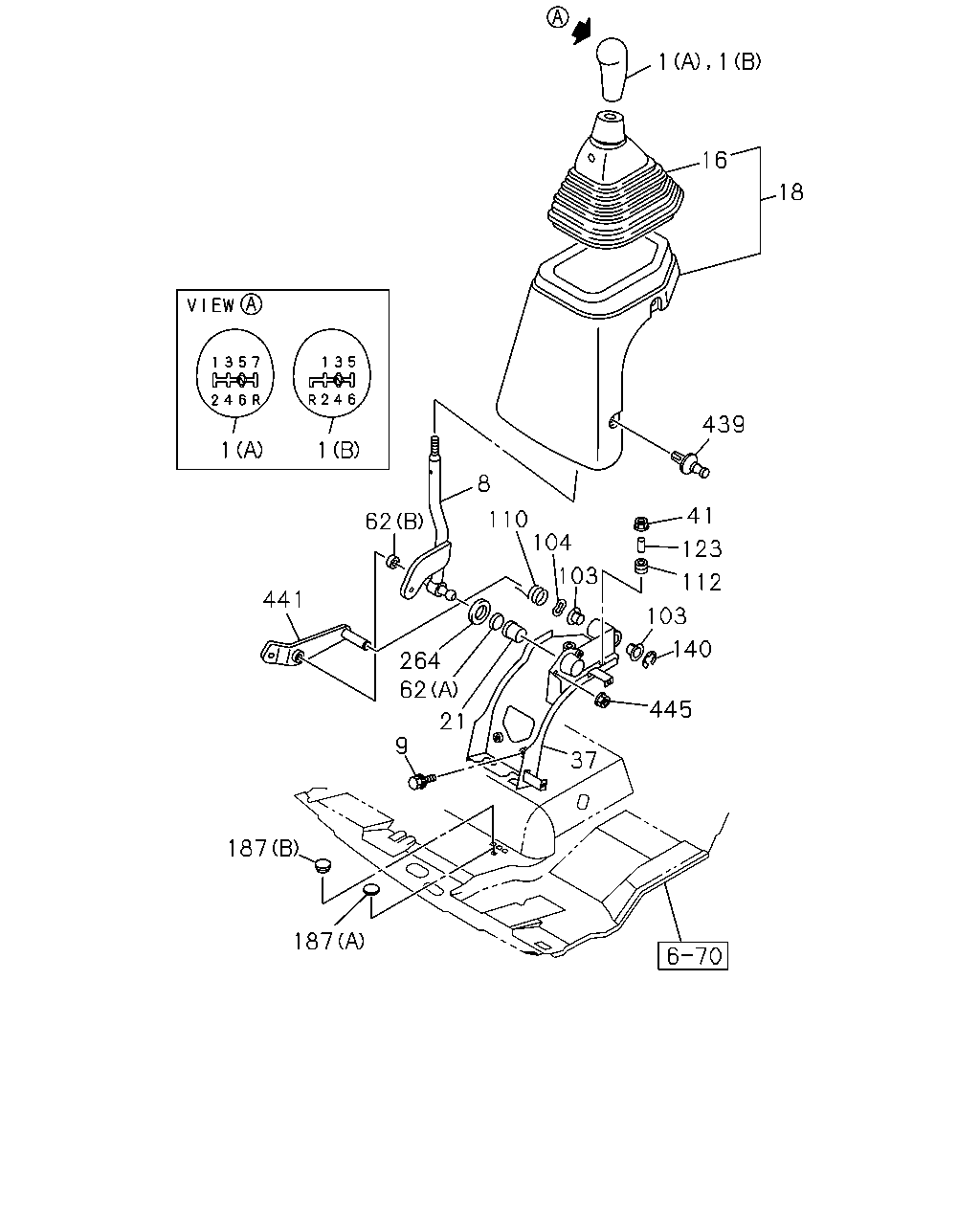

çizim 172951
1 1 16 18 439 1 1 8 41 110 104 62 123 103 112 441 103 140 264 62 445 21 37 9 187 187
BalonParca AdiParca NoAdetTipApplied Date A B
1 KNOB; CHANGE LEVER
MLD6 M/T<X9Y> (B) 		1-33611-070-1 01 1 9510-0210 ● ●
1 KNOB; CHANGE LEVER
MLD6 M/T<X9Y> (B) 		1-33611-070-1 01 1 0211- ●
1 KNOB; CHANGE LEVER
MLD7 M/T<X9Z> (A) 		1-33611-092-1 01 1 9510-0210 ● ●
1 KNOB; CHANGE LEVER
MLD7 M/T<X9Z> (A) 		1-33611-092-1 01 1 0211- ●
8 LEVER; CHANGE
ASSISTOR SHIFT CONTROL<WX8> MLD6 M/T<X9Y> 		1-33619-604-0 01 1 9803-0210 ● ●
8 LEVER; CHANGE
ASSISTOR SHIFT CONTROL<WX8> MLD6 M/T<X9Y> 		1-33619-604-0 01 1 0211- ●
8 LEVER; CHANGE 1-33619-462-0 01 1 9510-9802 ● ●
8 LEVER; CHANGE
MLD6 M/T<X9Y> EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-462-0 01 1 9803-0210 ● ●
8 LEVER; CHANGE
MLD7 M/T<X9Z> 		1-33619-462-0 01 1 9803-0210 ● ●
8 LEVER; CHANGE
MLD6 M/T<X9Y> EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-462-0 01 1 0211- ●
8 LEVER; CHANGE
MLD7 M/T<X9Z> 		1-33619-462-0 01 1 0211- ●
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 9510-0210 ● ●
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 0211- ●
16 BOOT; CHANGE LEVER 1-79998-913-1 01 1 9510-0210 ● ●
16 BOOT; CHANGE LEVER 1-79998-913-1 01 1 0211- ●
18 BOOT; CHANGE LEVER 1-79998-910-0 01 1 9510-0004 ● ●
18 BOOT; CHANGE LEVER 1-79996-415-1 01 1 0005-0210 ● ●
18 BOOT; CHANGE LEVER 1-79996-415-1 01 1 0211- ●
21 SEAT; CHANGE LEVER 1-33619-429-0 01 1 9510-9802 ● ●
21 SEAT; CHANGE LEVER 1-33619-429-0 01 1 9803-0210 ● ●
21 SEAT; CHANGE LEVER 1-33619-429-0 01 1 0211- ●
37 BRACKET; CHANGE LEVER SUPPORT
ASSISTOR SHIFT CONTROL<WX8> MLD6 M/T<X9Y> 		1-33619-603-0 01 1 9803-0210 ● ●
37 BRACKET; CHANGE LEVER SUPPORT
ASSISTOR SHIFT CONTROL<WX8> MLD6 M/T<X9Y> 		1-33619-603-0 01 1 0211- ●
37 BRACKET; CHANGE LEVER SUPPORT 1-33619-461-0 01 1 9510-9802 ● ●
37 BRACKET; CHANGE LEVER SUPPORT
MLD6 M/T<X9Y> EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-461-0 01 1 9803-0210 ● ●
37 BRACKET; CHANGE LEVER SUPPORT
MLD7 M/T<X9Z> 		1-33619-461-0 01 1 9803-0210 ● ●
37 BRACKET; CHANGE LEVER SUPPORT
MLD6 M/T<X9Y> EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-461-0 01 1 0211- ●
37 BRACKET; CHANGE LEVER SUPPORT
MLD7 M/T<X9Z> 		1-33619-461-0 01 1 0211- ●
41 NUT; CHANGE LEVER
M8 W/LK WASHER 		8-97065-435-0 02 1 9510-0107 ● ●
41 NUT; CHANGE LEVER
M8 FLANGE 		8-97046-127-0 02 1 0108-0210 ● ●
41 NUT; CHANGE LEVER
M8 FLANGE 		8-97046-127-0 02 1 0211-0805 ●
41 NUT; CHANGE LEVER
M8 W/DISHED WASHER 		8-97329-625-0 02 1 0806- ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 9510-9802 ● ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 9803-0210 ● ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 0211- ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 9510-9802 ● ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 9803-0210 ● ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 0211- ●
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 9510-9802 ● ●
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 9803-0210 ● ●
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 0211- ●
104 WASHER; WAVED 1-09550-009-0 01 1 9510-9802 ● ●
104 WASHER; WAVED 1-09550-009-0 01 1 9803-0210 ● ●
104 WASHER; WAVED 1-09550-009-0 01 1 0211- ●
110 SPRING; RETURN,CHANGE LEVER
ASSISTOR SHIFT CONTROL<WX8> MLD6 M/T<X9Y> 		1-33619-586-0 01 1 9803-0210 ● ●
110 SPRING; RETURN,CHANGE LEVER
ASSISTOR SHIFT CONTROL<WX8> MLD6 M/T<X9Y> 		1-33619-586-0 01 1 0211- ●
110 SPRING; RETURN,CHANGE LEVER 1-33619-435-0 01 1 9510-9802 ● ●
110 SPRING; RETURN,CHANGE LEVER
MLD6 M/T<X9Y> EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-435-0 01 1 9803-0210 ● ●
110 SPRING; RETURN,CHANGE LEVER
MLD7 M/T<X9Z> 		1-33619-435-0 01 1 9803-0210 ● ●
110 SPRING; RETURN,CHANGE LEVER
MLD6 M/T<X9Y> EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-435-0 01 1 0211- ●
110 SPRING; RETURN,CHANGE LEVER
MLD7 M/T<X9Z> 		1-33619-435-0 01 1 0211- ●
112 RUBBER; CUSHION 1-33619-442-0 04 1 9510-9802 ● ●
112 RUBBER; CUSHION 1-33619-442-0 04 1 9803-0210 ● ●
112 RUBBER; CUSHION 1-33619-442-0 04 1 0211- ●
123 COLLAR; DIST,CHANGE LEVER 1-33619-443-0 04 1 9510-9802 ● ●
123 COLLAR; DIST,CHANGE LEVER 1-33619-443-0 04 1 9803-0210 ● ●
123 COLLAR; DIST,CHANGE LEVER 1-33619-443-0 04 1 0211- ●
140 RING; SNAP
ID=10 		9-09185-410-0 01 1 9510-9802 ● ●
140 RING; SNAP
ID=10 		9-09185-410-0 01 1 9803-0210 ● ●
140 RING; SNAP
ID=10 		9-09185-410-0 01 1 0211-0604 ●
140 RING; SNAP
ID=10 		0-91805-510-0 01 1 0605- ●
187 GROMMET; HOLE,CHANGE LEVER
(A) 		1-09983-016-0 01 1 9510-0210 ● ●
187 GROMMET; HOLE,CHANGE LEVER
(A) 		1-09983-016-0 01 1 0211- ●
187 GROMMET; HOLE,CHANGE LEVER
(B) 		1-09983-098-0 01 1 9510-0210 ● ●
187 GROMMET; HOLE,CHANGE LEVER
(B) 		1-09983-098-0 01 1 0211- ●
264 PLATE; COVER 1-33619-430-0 01 1 9510-9802 ● ●
264 PLATE; COVER 1-33619-430-0 01 1 9803-0210 ● ●
264 PLATE; COVER 1-33619-430-0 01 1 0211- ●
439 FASTENER; COVER 1-09987-245-1 04 1 9510-0004 ● ●
439 FASTENER; COVER
D8X13.5 		1-09987-270-0 04 1 0005-0210 ● ●
439 FASTENER; COVER
D8X13.5 		1-09987-270-0 04 1 0211- ●
441 LEVER; SELECT
ASSISTOR SHIFT CONTROL<WX8> MLD6 M/T<X9Y> 		1-33619-551-1 01 1 9803-0210 ● ●
441 LEVER; SELECT
ASSISTOR SHIFT CONTROL<WX8> MLD6 M/T<X9Y> 		1-33619-551-1 01 1 0211- ●
441 LEVER; SELECT 1-33619-437-1 01 1 9510-9802 ● ●
441 LEVER; SELECT
MLD6 M/T<X9Y> EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-437-2 01 1 9803-0210 ● ●
441 LEVER; SELECT
MLD7 M/T<X9Z> 		1-33619-437-2 01 1 9803-0210 ● ●
441 LEVER; SELECT
MLD6 M/T<X9Y> EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-437-2 01 1 0211- ●
441 LEVER; SELECT
MLD7 M/T<X9Z> 		1-33619-437-2 01 1 0211- ●
445 NUT; PLATE
M6 FLANGE 		0-91150-106-0 02 1 9510-9802 ● ●
445 NUT; PLATE
M6 FLANGE 		0-91150-106-0 02 1 9803-0210 ● ●
445 NUT; PLATE
M6 FLANGE 		0-91150-106-0 02 1 0211-0602 ●
445 NUT; PLATE
M6 FLANGE 		0-91180-106-0 02 1 0603- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
