2-26 — MANUAL TRANSMISSION GEAR (#60015) — 212 parça

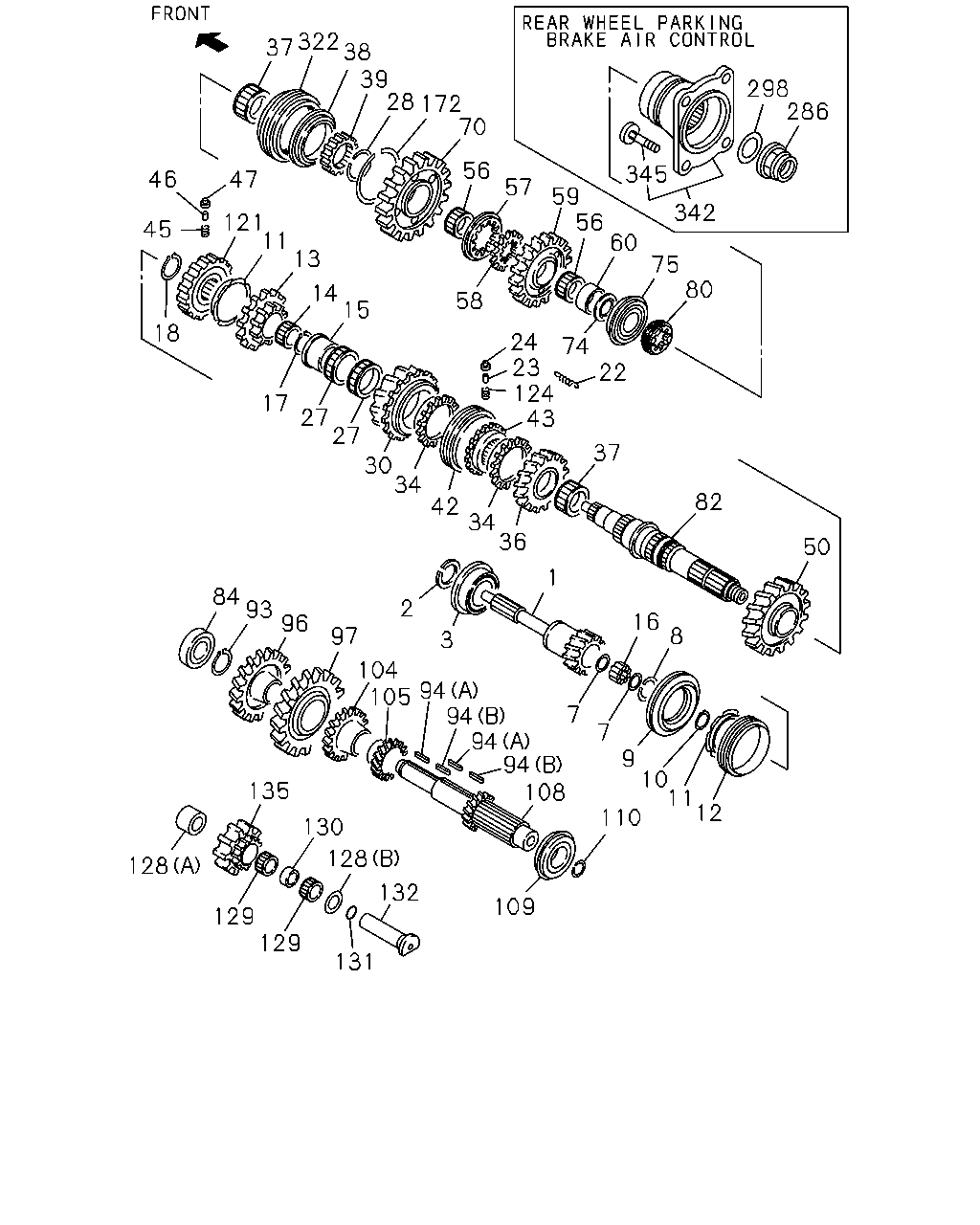

322 37 38 39 28 172 70 298 286 56 345 46 47 57 59 56 60 342 121 11 45 13 75 80 14 15 58 18 24 23 124 43 74 22 17 27 27 37 30 34 42 34 36 82 50 1 84 93 96 2 16 8 97 3 104 94 105 94 94 94 108 7 7 9 10 11 12 135 110 130 128 128 132 109 129 129 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-503-1	01	1	9510-0006	●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-985-0	01	1	0007-	●
1	SHAFT; TOP GEAR,TRANS Z=19	1-33211-502-1	01	1	9510-0006		●
1	SHAFT; TOP GEAR,TRANS Z=19	1-33211-984-0	01	1	0007-		●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9510-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9510-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9510-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9510-	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	9510-	●	●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	9510-	●	●
8	CLIP; DOG CLU	1-33219-020-0	01	1	9510-	●	●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	9510-	●	●
10	RING; SNAP,PILOT BRG OD=53.2	1-09587-072-0	01	1	9510-	●	●
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	9510-	●	●
12	SLEEVE; 5TH & 6TH Z=42	1-33262-136-0	01	1	9510-	●	●
13	GEAR; 5TH,MAINSHAFT Z=27	1-33253-572-0	01	1	9510-9908	●
13	GEAR; 5TH,MAINSHAFT Z=27	1-33253-712-0	01	1	9909-	●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-571-0	01	1	9510-9908		●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-711-0	01	1	9909-		●
14	BEARING; NEEDLE,5TH NSK	1-09811-298-0	01	1	9510-	●	●
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	9510-	●	●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-015-0	13	1	9510-	●	●
17	RING; SNAP,4TH GEAR	1-09588-151-1	01	1	9510-	●	●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	9510-	●	●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	9510-	●	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9510-	●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9510-	●	●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	9510-	●	●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	9510-	●	●
30	GEAR; 4TH,MAINSHAFT Z=35	1-33253-503-0	01	1	9510-	●
30	GEAR; 4TH,MAINSHAFT Z=36	1-33253-502-0	01	1	9510-		●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-372-1	02	1	9510-0312	●	●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-619-0	02	1	0401-	●	●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-374-1	01	1	9510-	●	●
37	BEARING; NEEDLE,2ND & 3RD JTEKT	1-09811-277-0	02	1	9510-	●	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-279-0	02	1	9510-	●	●
38	SYNCHRONIZER; LOW & 2ND	1-33265-372-1	01	1	9510-0312	●	●
38	SYNCHRONIZER; LOW & 2ND	1-33265-619-0	01	1	0401-	●	●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-217-0	01	1	9510-	●	●
42	SLEEVE Z=54	1-33262-154-0	01	1	9510-	●	●
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-218-0	01	1	9510-	●	●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	9510-	●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	9510-	●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	9510-	●	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-1	01	1	9510-	●	●
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-320-0	02	1	9510-	●	●
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	9510-	●	●
58	HUB; CLU,REV Z=26	1-33261-132-2	01	1	9510-	●	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-1	01	1	9510-	●	●
60	COLLAR; REV MAIN	1-33234-059-0	01	1	9510-0009	●	●
60	COLLAR; REV MAIN	1-33234-095-0	01	1	0010-	●	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	9510-	●	●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	9510-	●	●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	9510-	●	●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	9510-	●	●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	9510-	●	●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-271-0	01	1	9510-	●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	9510-		●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	9510-	●	●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	9510-	●	●
94	KEY; FEATHER,COUNTER SHAFT (A) L=47	1-09735-022-1	02	1	9510-	●	●
94	KEY; FEATHER,COUNTER SHAFT (B) L=55	1-09735-025-0	02	1	9510-	●	●
96	GEAR; COUNTER DRIVE Z=45	1-33331-214-1	01	1	9510-	●
96	GEAR; COUNTER DRIVE Z=46	1-33331-213-1	01	1	9510-		●
97	GEAR; 5TH,COUNTER Z=41	1-33332-114-0	01	1	9510-	●
97	GEAR; 5TH,COUNTER Z=40	1-33332-113-0	01	1	9510-		●
104	GEAR; 4TH,COUNTER Z=34	1-33332-098-0	01	1	9510-9805	●
104	GEAR; 4TH,COUNTER Z=34	1-33332-123-0	01	1	9806-1302	●
104	GEAR; 4TH,COUNTER Z=34	8-98240-188-0	01	1	1303-	●
104	GEAR; 4TH,COUNTER Z=33	1-33332-097-0	01	1	9510-9805		●
104	GEAR; 4TH,COUNTER Z=33	1-33332-122-0	01	1	9806-1302		●
104	GEAR; 4TH,COUNTER Z=33	8-98240-187-0	01	1	1303-		●
105	GEAR; 3RD,COUNTER Z=27	1-33333-124-0	01	1	9510-9805	●	●
105	GEAR; 3RD,COUNTER Z=27	1-33333-160-0	01	1	9806-1311	●	●
105	GEAR; 3RD,COUNTER Z=27	8-98256-802-0	01	1	1312-	●	●
108	SHAFT; COUNTER Z=19-13	1-33311-274-1	01	1	9510-	●
108	SHAFT; COUNTER Z=19-13	1-33311-235-1	01	1	9510-		●
109	BEARING; COUNTER SHAFT,RR JTEKT	1-09810-039-1	01	1	9510-	●	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	9510-	●	●
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	9510-	●	●
121	HUB; CLU,6TH	1-33261-156-2	01	1	9510-0212	●	●
121	HUB; CLU,6TH	1-33261-270-0	01	1	0301-	●	●
124	SPRING; PLUNGER,CLU HUB D=3.8	1-09580-395-0	03	1	9510-	●	●
128	WASHER; THRUST,REV SHAFT (A) ID=38.5 T=42	1-33239-079-1	01	1	9510-	●	●
128	WASHER; THRUST,REV SHAFT (B) ID=38.5 T=2	1-33363-024-1	01	1	9510-	●	●
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-102-0	02	1	9510-	●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	9510-	●	●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	9510-	●	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	9510-	●	●
132	SHAFT; REV	1-33351-017-0	01	1	9510-	●	●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	9510-	●	●
172	RING; SNAP,CLU HUB ID=130 T=2.5	1-09588-040-0	01	1	9510-	●	●
286	NUT; LK,MAINSHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M36 FLANGE	1-09449-063-0	01	1	9510-0805	●	●
286	NUT; LK,MAINSHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M36 FLANGE	8-98014-140-0	01	1	0806-	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=47 T=5	1-09623-380-0	01	1	9510-	●	●
322	SLEEVE; SYN,LOW & 2ND	1-33262-153-1	01	1	9510-	●	●
342	FLANGE; OUTPUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-37243-176-3	01	1	9510-9510	●	●
342	FLANGE; OUTPUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-37243-297-1	01	1	9511-	●	●
345	BOLT; FLANGE TO YOKE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16X51 W/MARK	1-46219-086-0	04	1	9510-	●	●

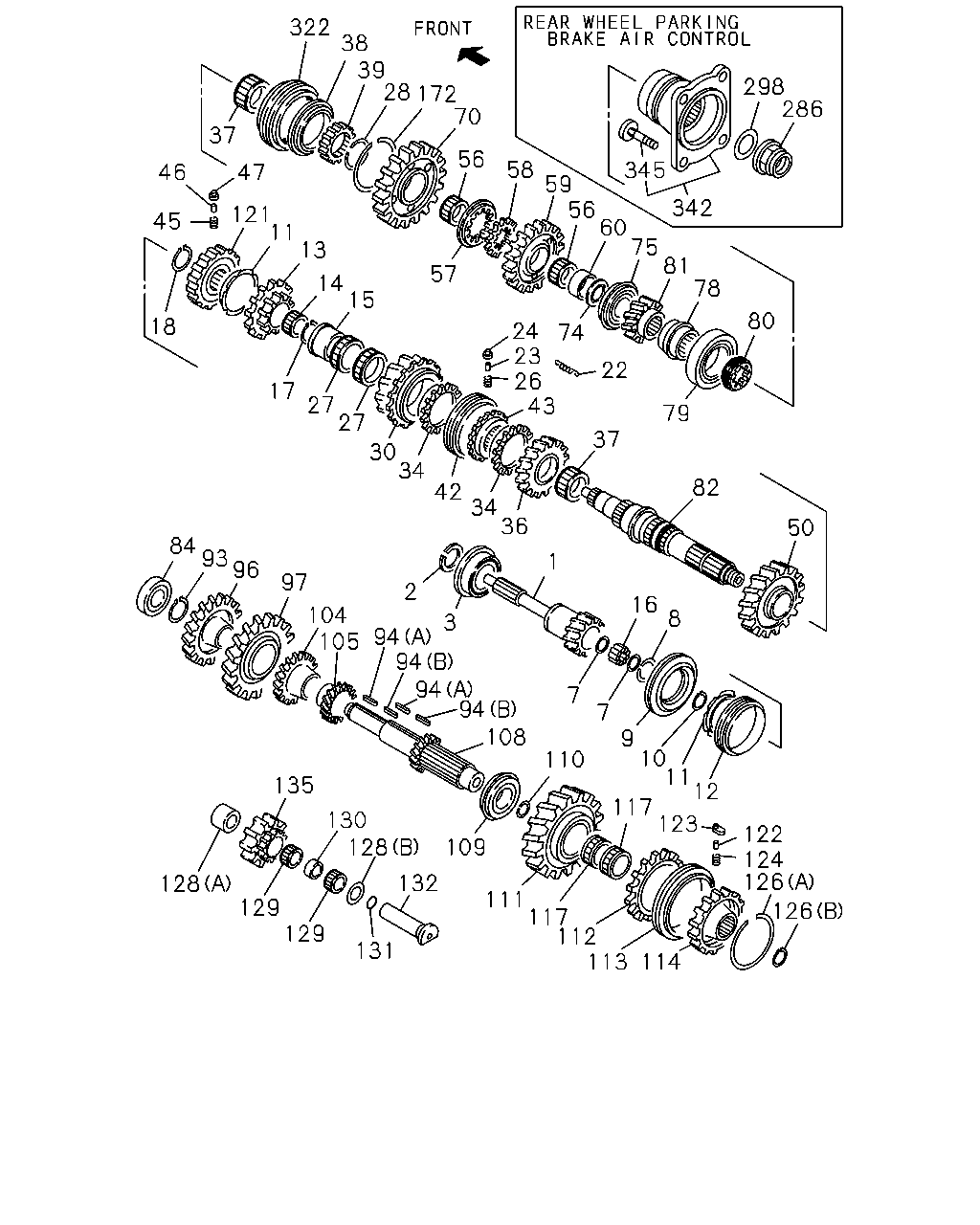

322 38 39 28 172 70 298 286 37 56 58 345 46 47 59 56 60 75 81 78 342 121 11 45 13 57 14 15 80 18 24 23 26 43 74 22 17 27 27 79 37 30 34 42 34 36 82 50 84 93 96 1 97 2 16 104 105 8 3 94 94 94 94 108 7 7 9 10 11 12 110 135 117 123 130 128 122 124 126 109 132 128 111 117 112 113 129 129 126 131 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-503-1	01	1	9510-0006	●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-985-0	01	1	0007-	●
1	SHAFT; TOP GEAR,TRANS Z=19	1-33211-502-1	01	1	9510-0006		●
1	SHAFT; TOP GEAR,TRANS Z=19	1-33211-984-0	01	1	0007-		●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9510-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9510-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9510-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9510-	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	9510-	●	●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	9510-	●	●
8	CLIP; DOG CLU	1-33219-020-0	01	1	9510-	●	●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	9510-	●	●
10	RING; SNAP,PILOT BRG OD=53.2	1-09587-072-0	01	1	9510-	●	●
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	9510-	●	●
12	SLEEVE; 5TH & 6TH Z=42	1-33262-136-0	01	1	9510-	●	●
13	GEAR; 5TH,MAINSHAFT Z=27	1-33253-572-0	01	1	9510-9908	●
13	GEAR; 5TH,MAINSHAFT Z=27	1-33253-712-0	01	1	9909-	●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-571-0	01	1	9510-9908		●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-711-0	01	1	9909-		●
14	BEARING; NEEDLE,5TH NSK	1-09811-298-0	01	1	9510-	●	●
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	9510-	●	●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-015-0	13	1	9510-	●	●
17	RING; SNAP,4TH GEAR	1-09588-151-1	01	1	9510-	●	●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	9510-	●	●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	9510-	●	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9510-	●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9510-	●	●
26	SPRING; BLOCK,INSERT D=3.8	1-09580-395-0	03	1	9510-	●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	9510-	●	●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	9510-	●	●
30	GEAR; 4TH,MAINSHAFT Z=35	1-33253-503-0	01	1	9510-	●
30	GEAR; 4TH,MAINSHAFT Z=36	1-33253-502-0	01	1	9510-		●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-372-1	02	1	9510-0312	●	●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-619-0	02	1	0401-	●	●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-374-1	01	1	9510-	●	●
37	BEARING; NEEDLE,2ND & 3RD JTEKT	1-09811-277-0	02	1	9510-	●	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-279-0	02	1	9510-	●	●
38	SYNCHRONIZER; LOW & 2ND	1-33265-372-1	01	1	9510-0312	●	●
38	SYNCHRONIZER; LOW & 2ND	1-33265-619-0	01	1	0401-	●	●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-217-0	01	1	9510-	●	●
42	SLEEVE Z=54	1-33262-154-0	01	1	9510-	●	●
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-218-0	01	1	9510-	●	●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	9510-	●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	9510-	●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	9510-	●	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-1	01	1	9510-	●	●
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-320-0	02	1	9510-	●	●
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	9510-	●	●
58	HUB; CLU,REV Z=26	1-33261-132-2	01	1	9510-	●	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-1	01	1	9510-	●	●
60	COLLAR; REV MAIN	1-33234-059-0	01	1	9510-0009	●	●
60	COLLAR; REV MAIN	1-33234-095-0	01	1	0010-	●	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	9510-	●	●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	9510-	●	●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	9510-	●	●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	9510-	●	●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-085-0	01	1	9510-	●
79	BEARING; BALL,MAINSHAFT JTEKT	1-09800-150-0	01	1	9510-	●
79	BEARING; BALL,MAINSHAFT NTN	1-09800-151-0	01	1	9510-	●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	9510-	●	●
81	GEAR; 7TH,MAIN Z=19	1-33254-013-0	01	1	9510-	●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-271-0	01	1	9510-	●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	9510-		●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	9510-	●	●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	9510-	●	●
94	KEY; FEATHER,COUNTER SHAFT (A) L=47	1-09735-022-1	02	1	9510-	●	●
94	KEY; FEATHER,COUNTER SHAFT (B) L=55	1-09735-025-0	02	1	9510-	●	●
96	GEAR; COUNTER DRIVE Z=45	1-33331-214-1	01	1	9510-	●
96	GEAR; COUNTER DRIVE Z=46	1-33331-213-1	01	1	9510-		●
97	GEAR; 5TH,COUNTER Z=41	1-33332-114-0	01	1	9510-	●
97	GEAR; 5TH,COUNTER Z=40	1-33332-113-0	01	1	9510-		●
104	GEAR; 4TH,COUNTER Z=34	1-33332-098-0	01	1	9510-9805	●
104	GEAR; 4TH,COUNTER Z=34	1-33332-123-0	01	1	9806-1302	●
104	GEAR; 4TH,COUNTER Z=34	8-98240-188-0	01	1	1303-	●
104	GEAR; 4TH,COUNTER Z=33	1-33332-097-0	01	1	9510-9805		●
104	GEAR; 4TH,COUNTER Z=33	1-33332-122-0	01	1	9806-1302		●
104	GEAR; 4TH,COUNTER Z=33	8-98240-187-0	01	1	1303-		●
105	GEAR; 3RD,COUNTER Z=27	1-33333-124-0	01	1	9510-9805	●	●
105	GEAR; 3RD,COUNTER Z=27	1-33333-160-0	01	1	9806-1311	●	●
105	GEAR; 3RD,COUNTER Z=27	8-98256-802-0	01	1	1312-	●	●
108	SHAFT; COUNTER Z=19-13	1-33311-274-1	01	1	9510-	●
108	SHAFT; COUNTER Z=19-13	1-33311-235-1	01	1	9510-		●
109	BEARING; COUNTER SHAFT,RR JTEKT	1-09810-039-1	01	1	9510-	●	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	9510-	●	●
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	9510-	●	●
111	GEAR; 7TH COUNTER SHAFT Z=45	1-33338-311-1	01	1	9510-	●
112	RING; BLOCK,7TH SYN Z=36	1-33265-281-1	01	1	9510-	●
113	SLEEVE; 7TH COUNTER SHAFT	1-33262-111-3	01	1	9510-	●
114	HUB; CLU,7TH	1-33261-159-1	01	1	9510-	●
117	BEARING; NEEDLE,7TH,COUNTER SHAFT NSK	1-09811-105-0	02	1	9510-	●
121	HUB; CLU,6TH	1-33261-156-2	01	1	9510-0212	●	●
121	HUB; CLU,6TH	1-33261-270-0	01	1	0301-	●	●
122	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9510-	●
123	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9510-	●
124	SPRING; PLUNGER,CLU HUB D=3.8	1-09580-395-0	03	1	9510-	●	●
126	RING; SNAP,CLU HUB (A) OD=121.2	1-09587-031-0	01	1	9510-	●
126	RING; SNAP,CLU HUB (B) OD=55.8	1-09588-043-0	01	1	9510-	●
128	WASHER; THRUST,REV SHAFT (A) ID=38.5 T=42	1-33239-079-1	01	1	9510-	●	●
128	WASHER; THRUST,REV SHAFT (B) ID=38.5 T=2	1-33363-024-1	01	1	9510-	●	●
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-102-0	02	1	9510-	●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	9510-	●	●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	9510-	●	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	9510-	●	●
132	SHAFT; REV	1-33351-017-0	01	1	9510-	●	●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	9510-	●	●
172	RING; SNAP,CLU HUB ID=130 T=2.5	1-09588-040-0	01	1	9510-	●	●
286	NUT; LK,MAINSHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M36 FLANGE	1-09449-063-0	01	1	9510-0805	●	●
286	NUT; LK,MAINSHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M36 FLANGE	8-98014-140-0	01	1	0806-	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=47 T=5	1-09623-380-0	01	1	9510-	●	●
322	SLEEVE; SYN,LOW & 2ND	1-33262-153-1	01	1	9510-	●	●
342	FLANGE; OUTPUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-37243-176-3	01	1	9510-9510	●	●
342	FLANGE; OUTPUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-37243-297-1	01	1	9511-	●	●
345	BOLT; FLANGE TO YOKE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16X51 W/MARK	1-46219-086-0	04	1	9510-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
