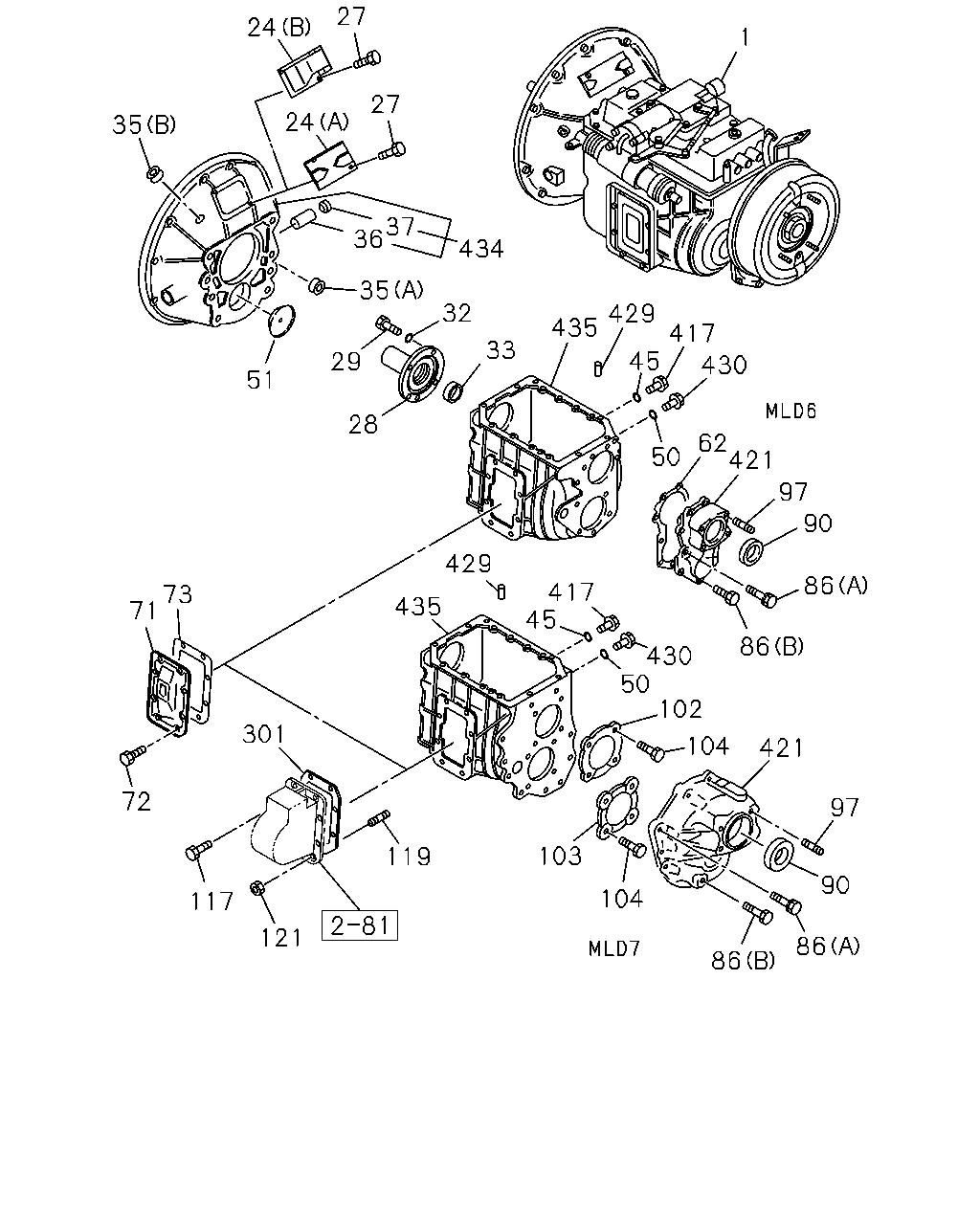

2-20 — MANUAL TRANSMISSION ASM AND CASE (#60013) — 103 parça

27 24 1 27 24 35 37 36 434 35 32 429 435 417 45 33 29 430 51 28 62 421 50 97 90 429 86 417 45 73 71 435 86 430 50 102 301 104 421 72 97 103 119 90 104 117 121 86 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 10"(B1T) AIR ASSIST CLUTCH<PK1> TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	1-33043-951-0	01	1	0506-	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 10"(B1T) AIR ASSIST CLUTCH<PK1> ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-951-0	01	1	0506-	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 10"(B1T) AIR ASSIST CLUTCH<PK1> TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33042-317-0	01	1	9811-	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 10"(B1T) AIR ASSIST CLUTCH<PK1> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8>	1-33042-317-0	01	1	9811-	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 10"(B1T) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	1-33040-443-0	01	1	9510-9802		●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 10"(B1T) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	1-33041-577-0	01	1	9803-9810		●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 10"(B1T) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8> EXC. AIR ASSIST CLUTCH<PK1>	1-33041-577-0	01	1	9811-		●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 10"(B1T) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33040-443-0	01	1	9510-9802		●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 10"(B1T) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33041-577-0	01	1	9803-9810		●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 10"(B1T) ASSISTOR SHIFT CONTROL<WX8> EXC. AIR ASSIST CLUTCH<PK1>,TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33041-577-0	01	1	9811-		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	1-33040-445-0	01	1	9510-9802		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	1-33041-579-0	01	1	9803-9810		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8> EXC. AIR ASSIST CLUTCH<PK1>	1-33041-579-0	01	1	9811-		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33040-445-0	01	1	9510-9802		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33041-579-0	01	1	9803-9810		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ASSISTOR SHIFT CONTROL<WX8> EXC. AIR ASSIST CLUTCH<PK1>,TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33041-579-0	01	1	9811-		●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 10"(B1T) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	1-33040-426-0	01	1	9510-9802	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 10"(B1T) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	1-33041-552-0	01	1	9803-9810	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 10"(B1T) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8> EXC. AIR ASSIST CLUTCH<PK1>	1-33041-552-0	01	1	9811-	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 10"(B1T) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33040-422-0	01	1	9510-9802	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 10"(B1T) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33041-548-0	01	1	9803-9810	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 10"(B1T) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. AIR ASSIST CLUTCH<PK1>,ASSISTOR SHIFT CONTROL<WX8>	1-33041-548-0	01	1	9811-	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 10"(B1T) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33040-426-0	01	1	9510-9802	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 10"(B1T) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33041-552-0	01	1	9803-9810	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 10"(B1T) ASSISTOR SHIFT CONTROL<WX8> EXC. AIR ASSIST CLUTCH<PK1>,TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33041-552-0	01	1	9811-	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 10"(B1T) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8>	1-33040-422-0	01	1	9510-9802	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 10"(B1T) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8>	1-33041-548-0	01	1	9803-9810	●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 10"(B1T) EXC. AIR ASSIST CLUTCH<PK1>,TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8>	1-33041-548-0	01	1	9811-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	1-33040-428-0	01	1	9510-9802	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	1-33041-554-0	01	1	9803-9810	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8> EXC. AIR ASSIST CLUTCH<PK1>	1-33041-554-0	01	1	9811-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33040-424-0	01	1	9510-9802	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33041-550-0	01	1	9803-9810	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. AIR ASSIST CLUTCH<PK1>,ASSISTOR SHIFT CONTROL<WX8>	1-33041-550-0	01	1	9811-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33040-428-0	01	1	9510-9802	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33041-554-0	01	1	9803-9810	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ASSISTOR SHIFT CONTROL<WX8> EXC. AIR ASSIST CLUTCH<PK1>,TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33041-554-0	01	1	9811-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8>	1-33040-424-0	01	1	9510-9802	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8>	1-33041-550-0	01	1	9803-9810	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AIR ASSIST CLUTCH<PK1>,TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8>	1-33041-550-0	01	1	9811-	●
24	COVER; CHECK HOLE,DUST (A)	1-31131-027-0	01	1	9510-9807	●	●
24	COVER; CHECK HOLE,DUST (B)	1-31131-041-0	01	1	9808-1410	●	●
24	COVER; CHECK HOLE,DUST (B)	8-98284-107-0	01	1	1411-	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9510-0104	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	02	1	0105-0512	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●
28	COVER; FRT,TRANS CASE	1-33121-105-0	01	1	9510-	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	04	1	9510-0805	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	8-97365-375-0	04	1	0806-	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	9510-	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-498-0	01	1	9510-	●	●
35	GROMMET; CLU HSG (A) OD=15 T=6.6	8-97037-246-0	01	1	9510-	●	●
35	GROMMET; CLU HSG (B) OD=31	9-09575-796-0	01	1	9510-	●	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	9510-	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9510-	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9510-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0510-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9510-9802		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9803-0509	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0510-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9510-9802	●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-1	01	1	9510-	●	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-045-2	01	1	9510-	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-033-0	01	1	9510-	●	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28181-016-0	08	1	9510-0512	●	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28151-016-0	08	1	0601-	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-036-0	01	1	9510-	●	●
86	BOLT; RR COVER (B) M17X35	1-09044-076-0	09	1	9510-		●
86	BOLT; RR COVER (A) M12X50	1-09044-085-0	02	1	9510-		●
86	BOLT; RR COVER (B) M17X35	1-09044-076-0	08	1	9510-	●
86	BOLT; RR COVER (A) M12X60	1-09044-084-0	01	1	9510-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	9510-	●	●
97	STUD; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X27 L=49	1-09302-099-1	03	1	9510-	●	●
97	STUD; PARKING BRK M14X27 L=49	1-09302-099-1	01	1	9510-	●	●
102	RETAINER; BRG UPR,MAINSHAFT	1-33151-036-0	01	1	9510-		●
103	RETAINER; BRG	1-33151-037-0	01	1	9510-		●
104	BOLT; BRG RET M10X25	1-09049-006-1	08	1	9510-		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE	0-28181-028-0	06	1	9510-0805	●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE	8-98044-944-0	06	1	0806-	●	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	9-04411-025-0	02	1	9510-0604	●	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	0-44011-025-0	02	1	0605-	●	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91150-210-0	02	1	9510-0602	●	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
301	PLATE; DIST,PTO TO TRANS TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38119-039-0	01	1	9510-		●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	9510-9802	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-064-1	01	1	9803-0201	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0202-	●	●
421	COVER; RR,TRANS	1-33131-087-4	01	1	9510-		●
421	COVER; RR,TRANS	1-33131-089-7	01	1	9510-9604	●
421	COVER; RR,TRANS	1-33131-177-1	01	1	9605-	●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	9510-	●	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0510-	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9510-9802		●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9803-0509	●	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0510-		●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9510-9802	●
434	HOUSING; CLU	1-31110-169-0	01	1	9510-	●	●
435	CASE; TRANS KEIREI	1-33111-355-0	01	1	0409-	●
435	CASE; TRANS	1-33111-236-1	01	1	9510-		●
435	CASE; TRANS	1-33111-235-0	01	1	9510-0201	●
435	CASE; TRANS	1-33111-323-0	01	1	0202-0303	●
435	CASE; TRANS	1-33111-342-0	01	1	0304-0406	●
435	CASE; TRANS JBK	8-97381-568-0	01	1	0407-0802	●
