Isuzu WW
▶
TRUCKS
▶
FVM
▶
11304 - FVM AUST/NZ EURO5
▶
0 - Engine, Emission, Engine Electrical
▶
0-39 - AIR COMPRESSOR; BRAKE
▶

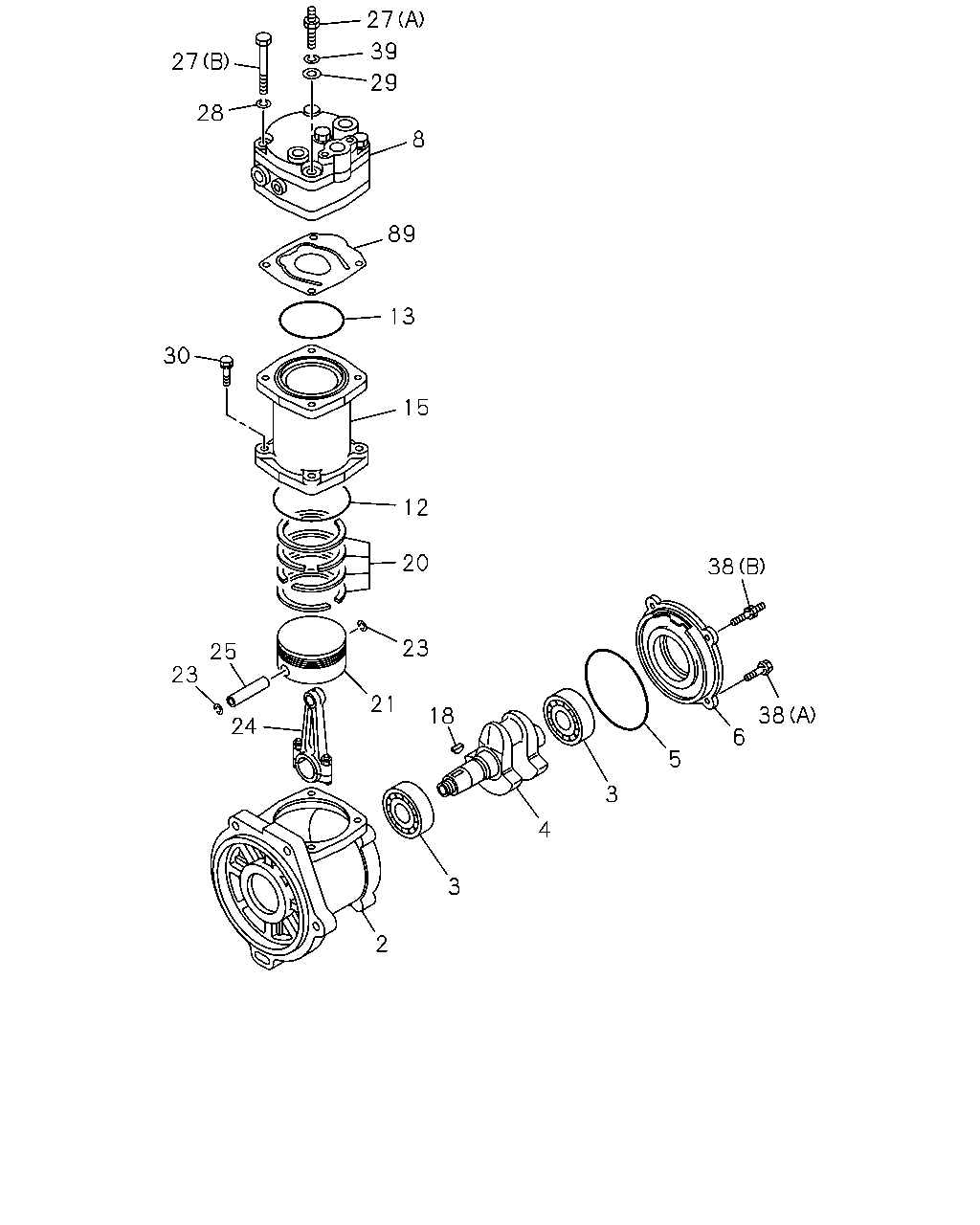

0-39 — AIR COMPRESSOR; BRAKE
(#60004) — 29 parça
2
3
4
3
5
38
6
38
18
21
23
20
12
15
13
89
8
29
39
27
24
23
25
30
28
27
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
CRANKCASE; AIR CMPR
8-97614-060-1
01
1
1010-
3
BEARING; AIR CMPR
1-09800-268-0
02
1
1010-
4
CRANKSHAFT; AIR CMPR
8-97614-059-1
01
1
1010-
5
GASKET; AIR CMPR
1-09623-613-0
01
1
1010-1107
5
GASKET; AIR CMPR
8-98192-463-0
01
1
1108-
6
COVER ASM; BRG,AIR CMPR
8-97614-058-1
01
1
1010-
8
HEAD ASM; CYL,AIR CMPR
8-97614-055-0
01
1
1010-1012
8
HEAD ASM; CYL,AIR CMPR
8-98167-012-0
01
1
1101-
12
GASKET; AIR CMPR
1-09623-614-0
01
1
1010-1107
12
GASKET; AIR CMPR
8-98048-641-0
01
1
1108-
13
GASKET; AIR CMPR
1-09623-615-0
01
1
1010-1107
13
GASKET; AIR CMPR
8-98048-640-0
01
1
1108-
15
CYLINDER; AIR CMPR
8-97614-056-0
01
1
1010-
18
KEY; AIR CMPR
9-08055-516-0
01
1
1010-
20
RING KIT; PISTON,AIR CMPR
1-19163-058-0
01
1
1010-
21
PISTON; AIR CMPR
1-19161-027-0
01
1
1010-
23
RING; SNAP,PISTON,AIR CMPR
1-19169-004-0
02
1
1010-
24
ROD ASM; CONN,AIR CMPR
8-97614-057-0
01
1
1010-
25
PIN; PISTON,AIR CMPR
1-19167-003-0
01
1
1010-
27
BOLT; HD
(A)
8-97614-054-0
01
1
1010-
27
BOLT; HD
(B) M10X80
8-98038-666-0
03
1
1010-1012
27
BOLT; HD
(B) M10X75
8-98167-018-0
03
1
1101-
28
WASHER; LK,HD BOLT
8-97613-694-0
01
1
1010-
29
WASHER; PL,HD BOLT
8-97613-686-0
01
1
1010-
30
BOLT; CYL TO CRANKCASE
M10X30
8-97613-704-0
04
1
1010-
38
BOLT; COVER FIX
(A) M10X30
8-97613-704-0
02
1
1010-
38
BOLT; COVER FIX
(B)
8-97617-310-0
02
1
1010-
39
WASHER; LK,COVER FIX
8-97613-694-0
02
1
1010-
89
VALVE; SUCTION
1-19119-045-0
01
1
1010-
