◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11304 - FVM AUST/NZ EURO5 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-36 - TURBOCHARGER SYSTEM ▶
0-36 — TURBOCHARGER SYSTEM (#60002) — 47 parça

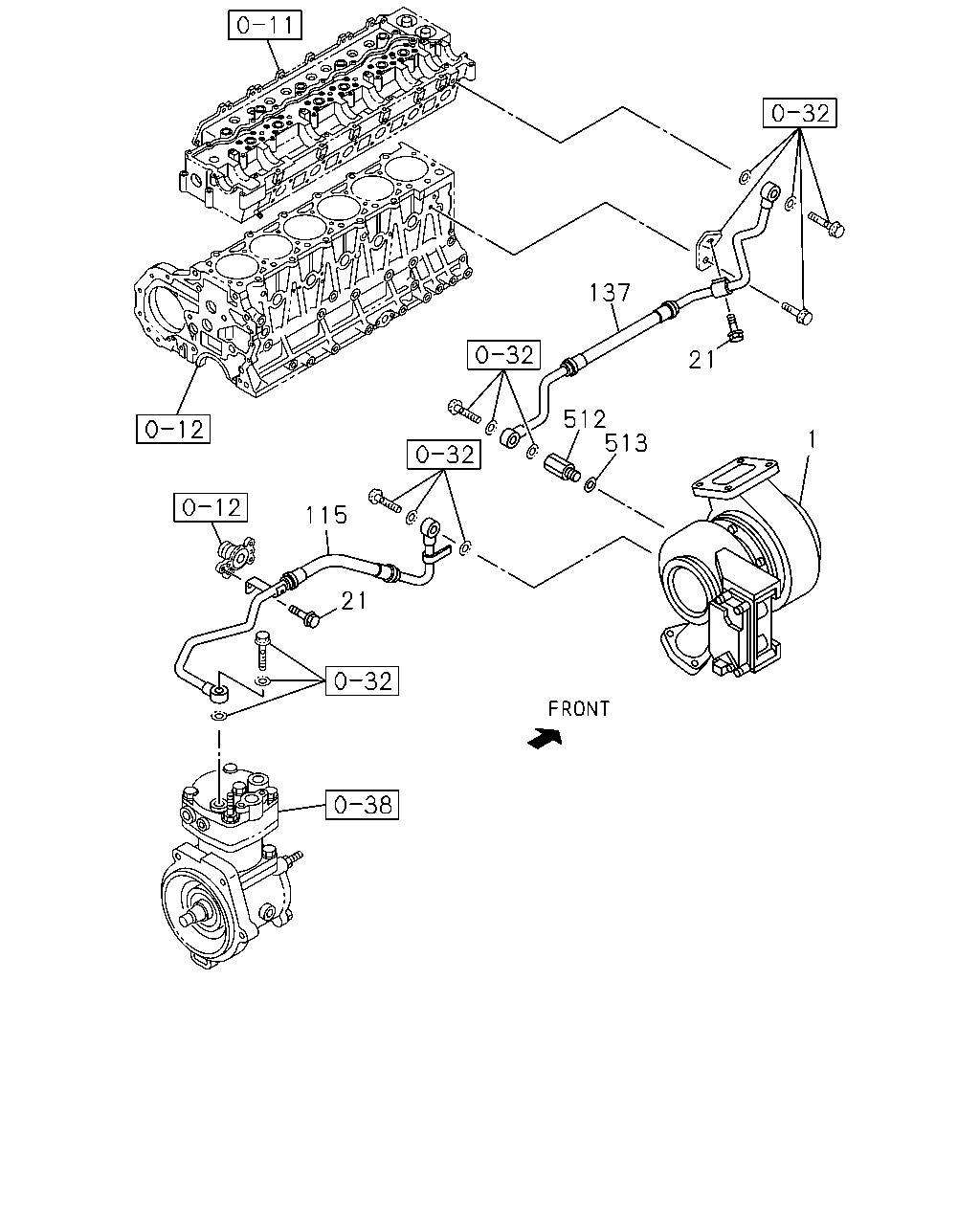

çizim 169411
21 115 513 512 21 137 1
BalonParca AdiParca NoAdetTipApplied Date
1 TURBOCHARGER ASM 8-97604-975-9 01 1 1010-
21 BOLT; PIPE
M8X16 FLANGE 		0-28050-816-0 02 1 1010-
115 PIPE; WATER,TURBOCHARGER OUT 8-97610-087-2 01 1 1010-
137 PIPE; WATER,TURBOCHARGER IN 8-98046-783-0 01 1 1010-
512 CONNECTOR; TURBO 8-98031-856-0 01 1 1010-
513 GASKET; CONNECTOR
ID=14.2 OD=19.2 		1-09630-085-0 01 1 1010-1312
513 GASKET; CONNECTOR
ID=14.2 OD=19.2 		8-98251-345-0 01 1 1401-

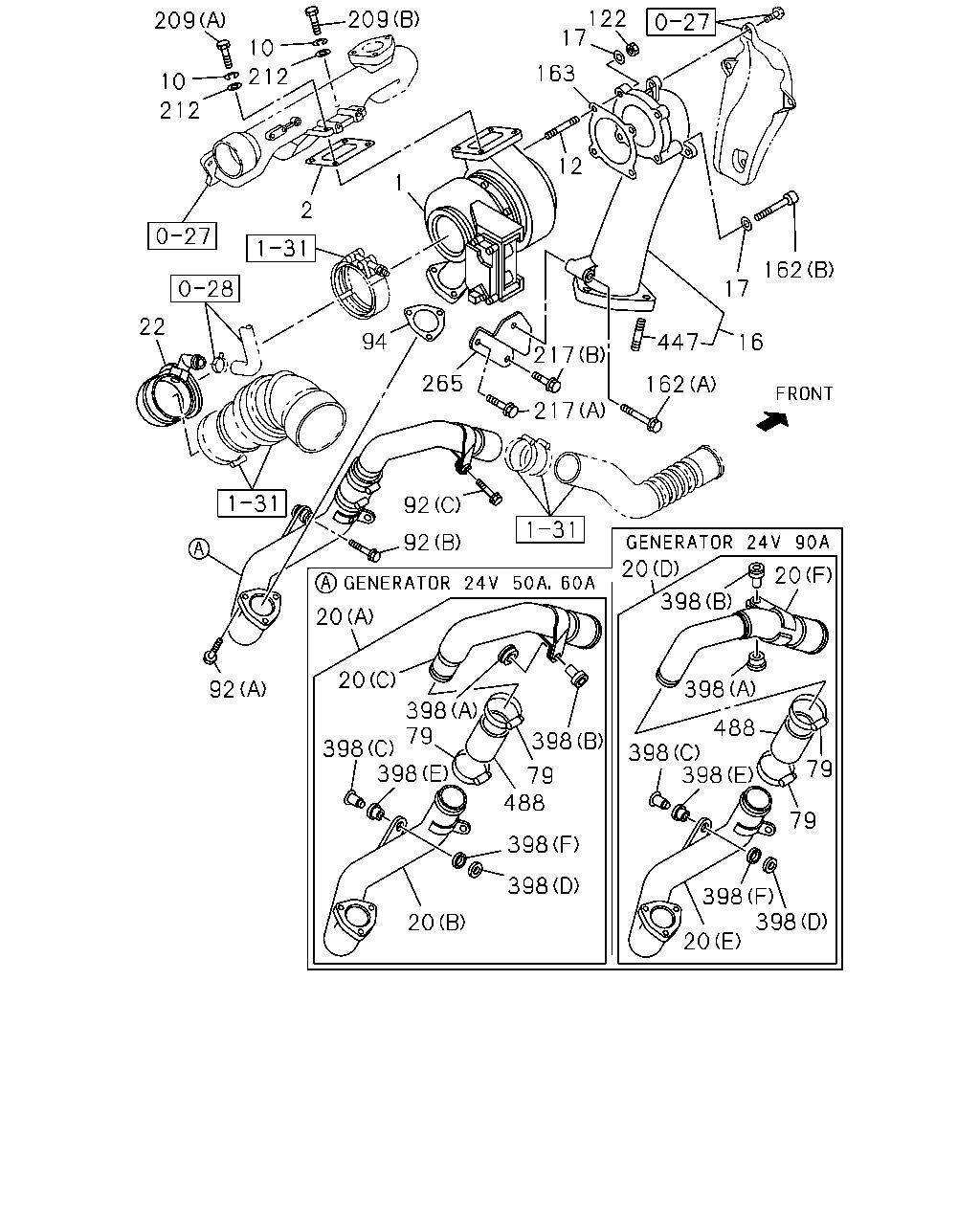

çizim 169415
398 398 398 398 398 398 398 398 398 398 398 398 20 20 79 79 488 79 79 20 20 20 92 92 92 265 94 217 217 162 447 16 17 162 12 163 17 122 2 1 212 10 209 10 22 212 209 20 488
BalonParca AdiParca NoAdetTipApplied Date
1 TURBOCHARGER ASM 8-97604-975-9 01 1 1010-
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97024-124-0 01 1 1010-
10 WASHER; LK,TURBOCHARGER
T=2.2 		1-09556-015-0 04 1 1010-
12 STUD; TURBOCHARGER
M8X25 L=36 		8-94476-282-0 02 1 1010-
16 ADAPTER; EXH PIPE 8-98018-241-1 01 1 1010-
17 WASHER; PL,ADAPTER
T=1.9 		5-09500-012-0 04 1 1010-
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) 		8-98046-167-4 01 1 1010-1408
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) 		8-98251-581-0 01 1 1409-
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B) 		8-98046-168-1 01 1 1010-
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (C) 		8-98046-169-2 01 1 1010-
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (D) 		8-97617-214-2 01 1 1010-1408
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (D) 		8-98251-580-0 01 1 1409-
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (E) 		8-97617-215-0 01 1 1010-
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (F) 		8-97617-216-0 01 1 1010-
22 DUCT; INL,ACL TO TURBOCHARGER 8-98036-164-1 01 1 1010-
79 CLIP; RUBBER HOSE
ID=58-79 		1-09707-136-0 02 1 1010-
92 BOLT; INL PIPE
(A) M8X30 FLANGE 		0-28650-830-0 03 1 1010-
92 BOLT; INL PIPE
(B) M8X35 FLANGE 		0-28650-835-0 01 1 1010-
92 BOLT; INL PIPE
(C) M8X40 FLANGE 		0-28650-840-0 01 1 1010-
94 GASKET; INL PIPE
ID=55 		8-98053-830-0 01 1 1010-
122 NUT; ADAPTER
M8 		1-09400-118-1 02 1 1010-
162 BOLT; ADAPTER
(A) M10X60 FLANGE 		0-28051-060-0 01 1 1010-
162 BOLT; ADAPTER
(B) M8X60 		8-98158-604-0 02 1 1010-
163 GASKET; ADAPTER TO EXH PIPE
ID=83 		8-94392-553-2 01 1 1010-
209 BOLT; BRACE,TURBOCHARGER
(B) M10X80 		8-98049-825-0 02 1 1010-
209 BOLT; BRACE,TURBOCHARGER
(A) M10X40 		9-09604-007-1 02 1 1010-
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 1010-
217 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1010-
217 BOLT; BRKT
(B) M10X25 FLANGE 		0-28751-025-0 01 1 1010-
265 BRACKET; EXH PIPE 8-98260-415-0 01 1 1307-
265 BRACKET; EXH PIPE 8-97609-517-1 01 1 1010-1306
398 MOUNTING
(F) ID=19 OD=26 		8-94160-177-0 01 1 1010-
398 MOUNTING
(C) OD=28 		8-94390-551-1 01 1 1010-
398 MOUNTING
(D) ID=13 OD=28 		8-94394-504-0 01 1 1010-
398 MOUNTING
(E) OD=26 		8-94394-529-0 01 1 1010-
398 MOUNTING
(A) OD=32 		8-94395-766-0 01 1 1010-
398 MOUNTING
(B) OD=23 		8-97105-689-6 01 1 1010-
447 STUD; ADAPTER
M12X30 L=48 		0-44011-230-0 03 1 1010-
488 HOSE; RUBBER 8-98046-356-0 01 1 1010-1408
488 HOSE; RUBBER
ID=52.5 L=70 		8-98245-242-0 01 1 1409-
