◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10624 - FSR-RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#60) — 63 parça

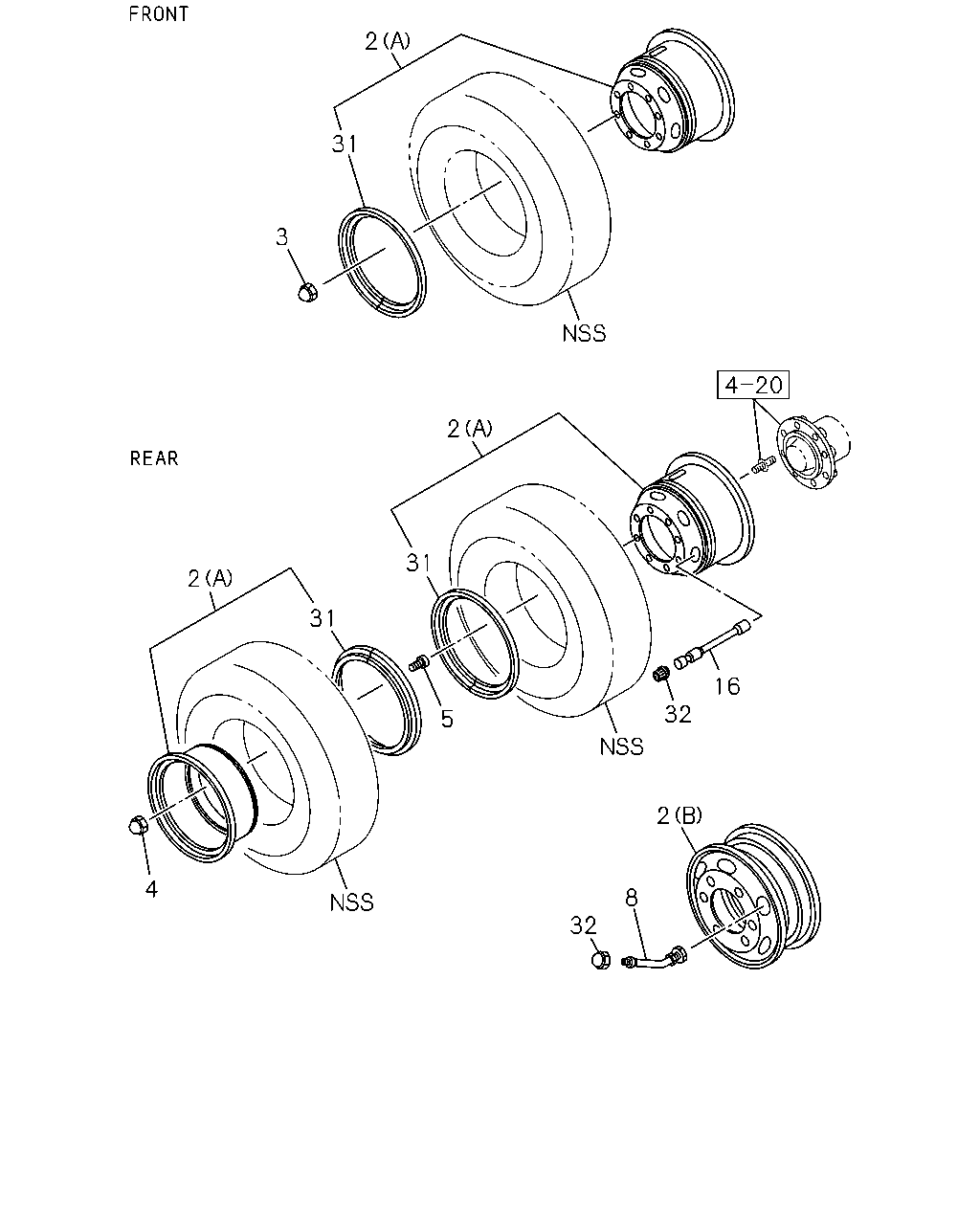

çizim 94910
2 31 3 2 31 2 31 16 32 5 2 4 8 32
BalonParca AdiParca NoAdetTipApplied Date A B
2 WHEEL; DISC
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL 6STUD 16X6.00GS 135-9(SG7) (A) 		1-42350-140-3 01 1 9202-9206 ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL 6STUD 16X6.00GS 135-9(SG7) (A) 6.00GSX16 OFFSET=135 BLACK 6-HOLE 		1-42350-417-0 01 1 9207- ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL 8STUD 20X6.00S 135-10(SBB) (A) 		1-42350-197-0 01 1 9202- ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL 8STUD 20X6.50T 145-10(Q47) (A) 8-STUD 		1-42350-302-2 01 1 9202- ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL 8STUD 22.5X6.75 145-11(PT1) CAB SUSPENSION SEMI FLOATING<SDK> (B) 		1-42350-322-0 01 1 9202-9204 ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL 8STUD 22.5X6.75 145-11(PT1) CAB SUSPENSION SEMI FLOATING<SDK> (B) 		1-42350-407-1 01 1 9205- ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL 6STUD 17.5X6.00 135-9(SBG) CAB SUSPENSION SEMI FLOATING<SDK> (B) 		1-42350-317-0 01 1 9202-9204 ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL 6STUD 17.5X6.00 135-9(SBG) CAB SUSPENSION SEMI FLOATING<SDK> (B) 		1-42350-399-2 01 1 9205-9408 ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL 6STUD 17.5X6.00 135-9(SBG) CAB SUSPENSION SEMI FLOATING<SDK> (B) 		1-42350-488-0 01 1 9409- ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL 8STUD 20X6.50T 152-11(Q50) (A) 		1-42350-268-2 01 1 9202- ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL 8STUD 22.5X6.75 152-11(SCB) (B) 		1-42350-325-0 01 1 9202-9204 ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL 8STUD 22.5X6.75 152-11(SCB) (B) 		1-42350-409-1 01 1 9205- ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL 8STUD 20X7.00T 162-12(Q54) (A) 		1-42350-131-3 01 1 9202-9402 ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL 8STUD 20X7.00T 162-12(Q54) (A) 		1-42350-478-0 01 1 9403- ● ●
2 WHEEL; DISC
DISC WHEEL 6STUD 16X6.00GS 135-9(SG7) (A) 		1-42350-140-3 06 1 9202-9206 ● ●
2 WHEEL; DISC
DISC WHEEL 6STUD 16X6.00GS 135-9(SG7) (A) 6.00GSX16 OFFSET=135 BLACK 6-HOLE 		1-42350-417-0 06 1 9207- ● ●
2 WHEEL; DISC
DISC WHEEL 8STUD 20X6.00S 135-10(SBB) (A) 		1-42350-197-0 06 1 9202- ● ●
2 WHEEL; DISC
DISC WHEEL 8STUD 20X6.50T 145-10(Q47) (A) 8-STUD 		1-42350-302-2 06 1 9202- ● ●
2 WHEEL; DISC
DISC WHEEL 8STUD 22.5X6.75 145-11(PT1) DISC WHEEL SPECIAL PAINTED LIGHT ARGENT<SKD> (B) 		1-42350-322-0 06 1 9202-9204 ● ●
2 WHEEL; DISC
DISC WHEEL 8STUD 22.5X6.75 145-11(PT1) DISC WHEEL SPECIAL PAINTED LIGHT ARGENT<SKD> (B) 		1-42350-407-1 06 1 9205- ● ●
2 WHEEL; DISC
DISC WHEEL 6STUD 17.5X6.00 135-9(SBG) DISC WHEEL SPECIAL PAINTED LIGHT ARGENT<SKD> (B) 		1-42350-317-0 06 1 9202-9204 ● ●
2 WHEEL; DISC
DISC WHEEL 6STUD 17.5X6.00 135-9(SBG) DISC WHEEL SPECIAL PAINTED LIGHT ARGENT<SKD> (B) 		1-42350-399-2 06 1 9205-9408 ● ●
2 WHEEL; DISC
DISC WHEEL 6STUD 17.5X6.00 135-9(SBG) DISC WHEEL SPECIAL PAINTED LIGHT ARGENT<SKD> (B) 		1-42350-488-0 06 1 9409- ● ●
2 WHEEL; DISC
DISC WHEEL 8STUD 20X6.50T 152-11(Q50) (A) 		1-42350-268-2 06 1 9202- ● ●
2 WHEEL; DISC
DISC WHEEL 8STUD 22.5X6.75 152-11(SCB) (B) 		1-42350-325-0 06 1 9202-9204 ● ●
2 WHEEL; DISC
DISC WHEEL 8STUD 22.5X6.75 152-11(SCB) (B) 		1-42350-409-1 06 1 9205- ● ●
2 WHEEL; DISC
DISC WHEEL 8STUD 20X7.00T 162-12(Q54) (A) 		1-42350-131-3 06 1 9202-9402 ● ●
2 WHEEL; DISC
DISC WHEEL 8STUD 20X7.00T 162-12(Q54) (A) 		1-42350-478-0 06 1 9403- ● ●
3 NUT; WHEEL,FRT AXLE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M24 LH THREAD 		1-42334-022-0 08 1 9202- ● ●
3 NUT; WHEEL,FRT AXLE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M24 		1-42333-022-0 08 1 9202- ● ●
3 NUT; WHEEL,FRT AXLE
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M24 LH THREAD 		1-42334-022-0 06 1 9202- ● ●
3 NUT; WHEEL,FRT AXLE
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M24 		1-42333-022-0 06 1 9202- ● ●
4 NUT; WHEEL,RR AXLE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M30 LH THREAD 		1-42334-023-0 08 1 9202- ● ●
4 NUT; WHEEL,RR AXLE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M30 		1-42333-023-0 08 1 9202- ● ●
4 NUT; WHEEL,RR AXLE
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M30 LH THREAD 		1-42334-023-0 06 1 9202- ● ●
4 NUT; WHEEL,RR AXLE
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M30 		1-42333-023-0 06 1 9202- ● ●
5 NUT; WHEEL,INNER,RR AXLE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) OUTER M30,INNER M20 LH THREAD 		1-42336-005-0 08 1 9202- ● ●
5 NUT; WHEEL,INNER,RR AXLE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) OUTER M30,INNER M20 RH THREAD 		1-42335-005-0 08 1 9202- ● ●
5 NUT; WHEEL,INNER,RR AXLE
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) OUTER M30,INNER M20 LH THREAD 		1-42336-005-0 06 1 9202- ● ●
5 NUT; WHEEL,INNER,RR AXLE
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) OUTER M30,INNER M20 RH THREAD 		1-42335-005-0 06 1 9202- ● ●
8 VALVE; TIRE
DISC WHEEL 8STUD 22.5X6.75 145-11(PT1),DISC WHEEL 8STUD 22.5X6.75 152-11(SCB) SPARE 		1-42370-022-3 01 1 9202-9306 ● ●
8 VALVE; TIRE
DISC WHEEL 8STUD 22.5X6.75 145-11(PT1),DISC WHEEL 8STUD 22.5X6.75 152-11(SCB) SPARE 		1-42370-020-3 01 1 9307- ● ●
8 VALVE; TIRE
DISC WHEEL 8STUD 22.5X6.75 145-11(PT1),DISC WHEEL 8STUD 22.5X6.75 152-11(SCB) 		1-42370-022-3 06 1 9202-9306 ● ●
8 VALVE; TIRE
DISC WHEEL 8STUD 22.5X6.75 145-11(PT1),DISC WHEEL 8STUD 22.5X6.75 152-11(SCB) 		1-42370-020-3 06 1 9307- ● ●
8 VALVE; TIRE
DISC WHEEL 6STUD 17.5X6.00 135-9(SBG) SPARE 		1-42370-019-3 01 1 9202- ● ●
8 VALVE; TIRE
DISC WHEEL 6STUD 17.5X6.00 135-9(SBG) 		1-42370-019-3 06 1 9202- ● ●
16 HOLDER; TIRE VALVE,DISC WHEEL
DISC WHEEL 8STUD 22.5X6.75 145-11(PT1),DISC WHEEL 6STUD 17.5X6.00 135-9(SBG),DISC WHEEL 8STUD 22.5X6.75 152-11(SCB) L=115 		1-42370-015-2 02 1 9202-9504 ● ●
16 HOLDER; TIRE VALVE,DISC WHEEL
L=115 		1-42370-015-2 02 1 9505- ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL 6STUD 16X6.00GS 135-9(SG7) 16X6.00GS STAMP, BLACK 		1-42355-015-2 01 1 9202- ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL 8STUD 20X6.00S 135-10(SBB) 		1-42355-002-0 01 1 9202- ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL 8STUD 20X6.50T 145-10(Q47) 		1-42355-012-1 01 1 9202-9204 ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 20X6.50T 145-10(Q47),DISC WHEEL 8STUD 20X6.50T 152-11(Q50) 		1-42355-012-1 01 1 9205- ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL 6STUD 16X6.00GS 135-9(SG7) 16X6.00GS STAMP, BLACK 		1-42355-015-2 06 1 9202- ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 20X6.00S 135-10(SBB) 		1-42355-002-0 06 1 9202- ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 20X6.50T 145-10(Q47) 		1-42355-012-1 06 1 9202-9204 ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 20X6.50T 145-10(Q47),DISC WHEEL 8STUD 20X6.50T 152-11(Q50) 		1-42355-012-1 06 1 9205- ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD 20X7.00T 162-12(Q54) 		1-42355-003-1 01 1 9202-9204 ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL 8STUD 20X7.00T 162-12(Q54) 		1-42355-003-1 01 1 9205- ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 20X6.50T 152-11(Q50),DISC WHEEL 8STUD 20X7.00T 162-12(Q54) 		1-42355-003-1 06 1 9202-9204 ● ●
31 RING; SIDE,DISC WHEEL
DISC WHEEL 8STUD 20X7.00T 162-12(Q54) 		1-42355-003-1 06 1 9205- ● ●
32 CAP; VALVE
DISC WHEEL SPARE<N79> 		1-42374-001-0 07 1 9304- ● ●
32 CAP; VALVE
SPARE TIRE & DISC WHEEL REAR<R46> EXC. DISC WHEEL SPARE<N79> 		1-42374-001-0 07 1 9304- ● ●
32 CAP; VALVE
EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEELREAR<R46> 		1-42374-001-0 06 1 9304- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
