2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#6) — 87 parça

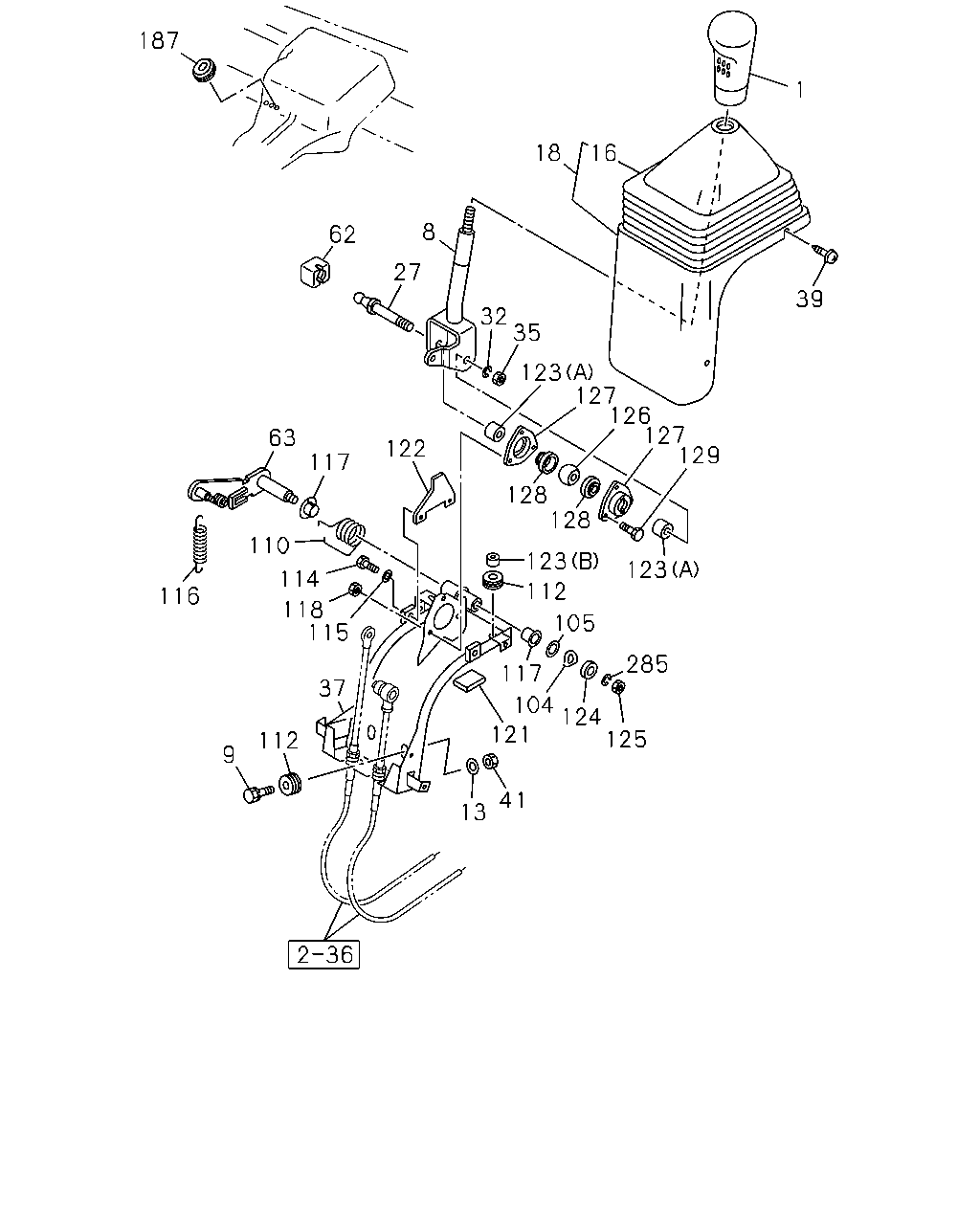

187 1 18 16 8 62 27 39 32 35 123 127 126 127 129 63 122 117 128 128 110 123 123 114 112 116 118 115 105 117 285 37 104 124 125 121 112 9 41 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	KNOB; CHANGE LEVER DARK GRAY	1-33611-050-1	01	1	9202-	●	●
1	KNOB; CHANGE LEVER DARK BLUE	1-33611-053-1	01	1	9202-			●
1	KNOB; CHANGE LEVER ASSISTER SHIFT CONTROL<WX8> DARK GRAY	1-33611-064-0	01	1	9202-				●
1	KNOB; CHANGE LEVER DARK GRAY	1-33611-064-0	01	1	9202-					●
1	KNOB; CHANGE LEVER EXC. ASSISTER SHIFT CONTROL<WX8> DARK GRAY	1-33611-054-1	01	1	9202-				●
8	LEVER; CHANGE	1-33613-331-0	01	1	9202-	●	●	●
8	LEVER; CHANGE ASSISTER SHIFT CONTROL<WX8>	1-33613-292-1	01	1	9202-				●
8	LEVER; CHANGE	1-33613-292-1	01	1	9202-					●
8	LEVER; CHANGE EXC. ASSISTER SHIFT CONTROL<WX8>	1-33613-303-0	01	1	9202-				●
9	BOLT; CHANGE LEVER M8X25 W/LK WASHER	9-01900-825-0	02	1	9202-9204	●	●	●	●	●
9	BOLT; CHANGE LEVER M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-	●	●	●	●	●
13	WASHER; PL,SUPER SHIFT LEVER ID=8.4 OD=22	9-09160-708-0	02	1	9202-	●	●	●	●	●
16	BOOT; CHANGE LEVER	1-79998-630-0	01	1	9202-	●	●	●	●	●
18	BOOT; CHANGE LEVER	1-79998-625-2	01	1	9202-	●	●	●	●	●
27	STUD; BALL,CHANGE LEVER	1-33619-259-0	01	1	9202-				●	●
32	WASHER; LK,BALL STUD,CHANGE LEVER ID=12.2	9-09150-512-0	01	1	9202-				●	●
35	NUT; BALL STUD,CHANGE LEVER M12	9-99111-412-0	01	1	9202-				●	●
37	BRACKET; CHANGE LEVER SUPPORT	1-33619-333-0	01	1	9202-	●	●	●
37	BRACKET; CHANGE LEVER SUPPORT ASSISTER SHIFT CONTROL<WX8>	1-33619-258-3	01	1	9202-				●
37	BRACKET; CHANGE LEVER SUPPORT	1-33619-258-3	01	1	9202-					●
37	BRACKET; CHANGE LEVER SUPPORT EXC. ASSISTER SHIFT CONTROL<WX8>	1-33619-267-3	01	1	9202-				●
39	SCREW; BOOT,CHANGE LEVER M5X16 TAPPING W/PL WASHER	0-74110-516-0	04	1	9202-	●	●	●	●	●
41	NUT; CHANGE LEVER M8 FLANGE	5-09440-005-0	02	1	9202-	●	●	●
41	NUT; CHANGE LEVER M8 FLANGE	1-09464-018-1	02	1	9202-				●	●
62	SEAT; BALL,CHANGE LEVER	8-94447-303-0	01	1	9202-				●	●
63	LEVER; RELAY,SELECT	1-33651-442-0	01	1	9202-				●	●
104	WASHER; WAVED	1-09550-009-0	02	1	9202-	●	●	●
104	WASHER; WAVED	1-09550-009-0	01	1	9202-				●	●
105	SHIM; CHANGE LEVER	9-41119-031-0	01	1	9202-				●	●
110	SPRING; RETURN,CHANGE LEVER	1-09583-303-0	01	1	9202-	●	●	●
110	SPRING; RETURN,CHANGE LEVER	1-09585-117-0	01	1	9202-				●	●
112	RUBBER; CUSHION	1-33619-337-0	01	1	9202-	●	●	●
112	RUBBER; CUSHION	1-33619-266-0	04	1	9202-				●	●
114	BOLT; STOPPER PLATE M6X10	9-02040-610-0	02	1	9202-9204				●	●
114	BOLT; STOPPER PLATE M6X10	0-20800-610-0	02	1	9205-				●	●
115	WASHER; LK,STOPPER PLATE ID=6.1	9-09150-506-0	02	1	9202-				●	●
116	SPRING; NEUTRAL	1-09583-251-0	01	1	9202-				●	●
117	BUSHING; RELAY LEVER ID=14 OD=16	8-94252-671-0	02	1	9202-				●	●
118	NUT; SUPPORT,CHANGE LEVER M6 FLANGE	0-91150-106-0	03	1	9202-				●	●
121	SEAL; CHANGE LEVER	1-33619-265-0	02	1	9202-				●	●
122	PLATE; STOPPER,RETURN SPRING	1-33619-262-0	01	1	9202-				●	●
123	COLLAR; DIST,CHANGE LEVER ASSISTER SHIFT CONTROL<WX8> (A)	1-33619-195-1	02	1	9202-				●
123	COLLAR; DIST,CHANGE LEVER (A)	1-33619-195-1	02	1	9202-					●
123	COLLAR; DIST,CHANGE LEVER EXC. ASSISTER SHIFT CONTROL<WX8> (A)	1-33619-195-1	01	1	9202-				●
123	COLLAR; DIST,CHANGE LEVER (B)	1-33619-238-0	04	1	9202-				●	●
124	WASHER; PL,RELAY LEVER ID=10.5 OD=22	9-09160-610-0	01	1	9202-				●	●
125	NUT; ARM M10	9-09110-410-0	01	1	9202-				●	●
126	BOSS; CHANGE LEVER	1-33615-028-0	01	1	9202-				●	●
127	SUPPORT; CHANGE LEVER T=10	1-33619-207-0	01	1	9202-				●	●
127	SUPPORT; CHANGE LEVER T=18	1-33619-260-0	01	1	9202-				●	●
128	GUIDE; LEVER BALL	1-33619-261-0	02	1	9202-				●	●
129	BOLT; SUPPORT,CHANGE LEVER M6X20	9-02040-620-0	03	1	9202-9204				●	●
129	BOLT; SUPPORT,CHANGE LEVER M6X20	0-20800-620-0	03	1	9205-				●	●
187	GROMMET; HOLE,CHANGE LEVER	1-09983-098-0	01	1	9202-	●	●	●	●	●
285	WASHER; LK,RELAY LEVER ID=10.2	9-09150-510-0	01	1	9202-				●	●

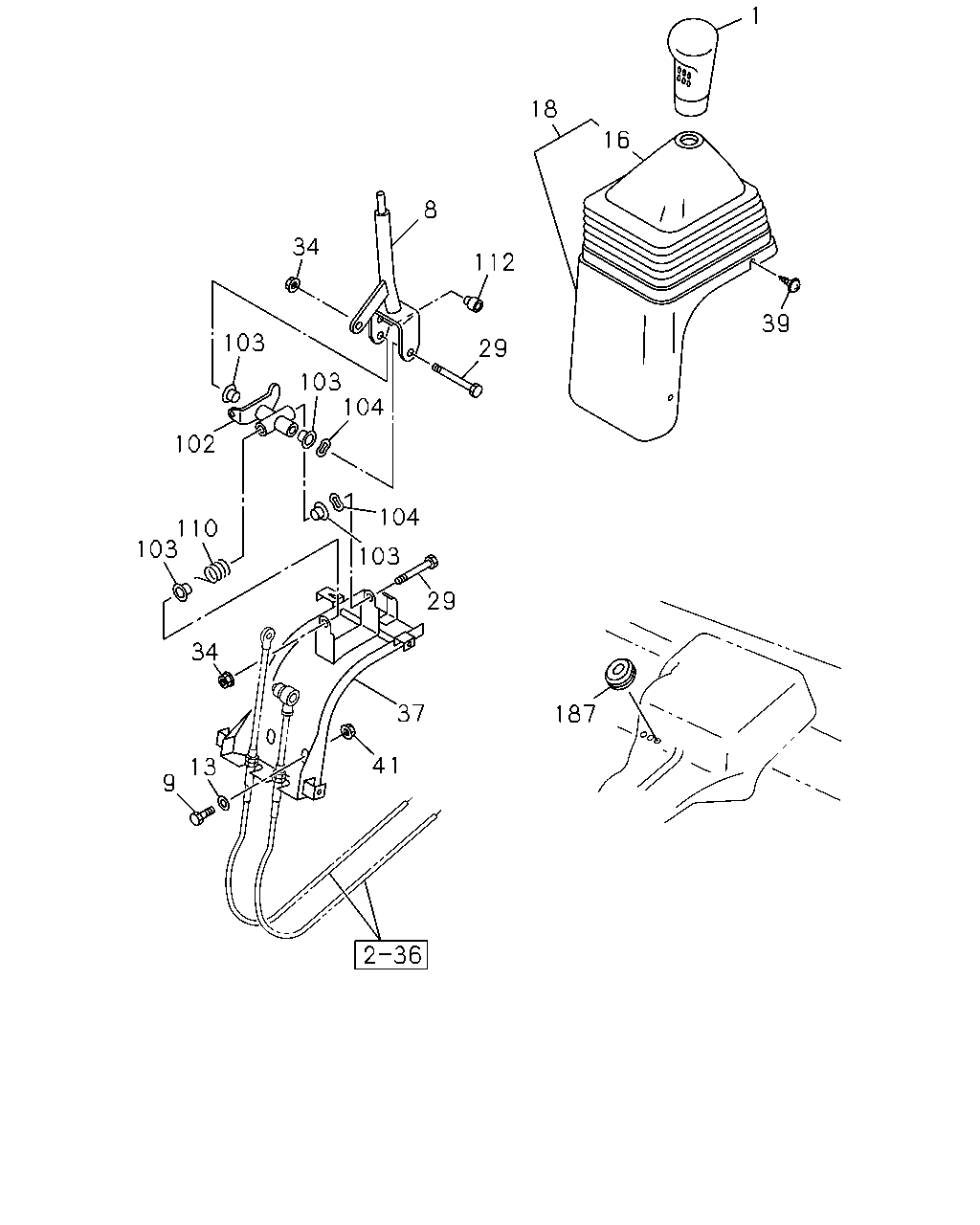

1 18 16 8 34 112 39 103 29 103 104 102 104 110 103 103 29 34 37 187 41 13 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	KNOB; CHANGE LEVER DARK GRAY	1-33611-050-1	01	1	9202-	●	●
1	KNOB; CHANGE LEVER DARK BLUE	1-33611-053-1	01	1	9202-			●
1	KNOB; CHANGE LEVER ASSISTER SHIFT CONTROL<WX8> DARK GRAY	1-33611-064-0	01	1	9202-				●
1	KNOB; CHANGE LEVER DARK GRAY	1-33611-064-0	01	1	9202-					●
1	KNOB; CHANGE LEVER EXC. ASSISTER SHIFT CONTROL<WX8> DARK GRAY	1-33611-054-1	01	1	9202-				●
8	LEVER; CHANGE	1-33613-331-0	01	1	9202-	●	●	●
8	LEVER; CHANGE ASSISTER SHIFT CONTROL<WX8>	1-33613-292-1	01	1	9202-				●
8	LEVER; CHANGE	1-33613-292-1	01	1	9202-					●
8	LEVER; CHANGE EXC. ASSISTER SHIFT CONTROL<WX8>	1-33613-303-0	01	1	9202-				●
9	BOLT; CHANGE LEVER M8X25 W/LK WASHER	9-01900-825-0	02	1	9202-9204	●	●	●	●	●
9	BOLT; CHANGE LEVER M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-	●	●	●	●	●
13	WASHER; PL,SUPER SHIFT LEVER ID=8.4 OD=22	9-09160-708-0	02	1	9202-	●	●	●	●	●
16	BOOT; CHANGE LEVER	1-79998-630-0	01	1	9202-	●	●	●	●	●
18	BOOT; CHANGE LEVER	1-79998-625-2	01	1	9202-	●	●	●	●	●
29	SHAFT	1-33619-336-0	02	1	9202-	●	●	●
34	NUT M10 FLANGE	0-91150-110-0	02	1	9202-	●	●	●
37	BRACKET; CHANGE LEVER SUPPORT	1-33619-333-0	01	1	9202-	●	●	●
37	BRACKET; CHANGE LEVER SUPPORT ASSISTER SHIFT CONTROL<WX8>	1-33619-258-3	01	1	9202-				●
37	BRACKET; CHANGE LEVER SUPPORT	1-33619-258-3	01	1	9202-					●
37	BRACKET; CHANGE LEVER SUPPORT EXC. ASSISTER SHIFT CONTROL<WX8>	1-33619-267-3	01	1	9202-				●
39	SCREW; BOOT,CHANGE LEVER M5X16 TAPPING W/PL WASHER	0-74110-516-0	04	1	9202-	●	●	●	●	●
41	NUT; CHANGE LEVER M8 FLANGE	5-09440-005-0	02	1	9202-	●	●	●
41	NUT; CHANGE LEVER M8 FLANGE	1-09464-018-1	02	1	9202-				●	●
102	SPIDER ASM	1-33619-335-0	01	1	9202-	●	●	●
103	BUSHING; RELAY LEVER ID=14 OD=16	8-94252-671-0	04	1	9202-	●	●	●
104	WASHER; WAVED	1-09550-009-0	02	1	9202-	●	●	●
104	WASHER; WAVED	1-09550-009-0	01	1	9202-				●	●
110	SPRING; RETURN,CHANGE LEVER	1-09583-303-0	01	1	9202-	●	●	●
110	SPRING; RETURN,CHANGE LEVER	1-09585-117-0	01	1	9202-				●	●
112	RUBBER; CUSHION	1-33619-337-0	01	1	9202-	●	●	●
112	RUBBER; CUSHION	1-33619-266-0	04	1	9202-				●	●
187	GROMMET; HOLE,CHANGE LEVER	1-09983-098-0	01	1	9202-	●	●	●	●	●
