0-12 — CYLINDER BLOCK (#59988) — 49 parça

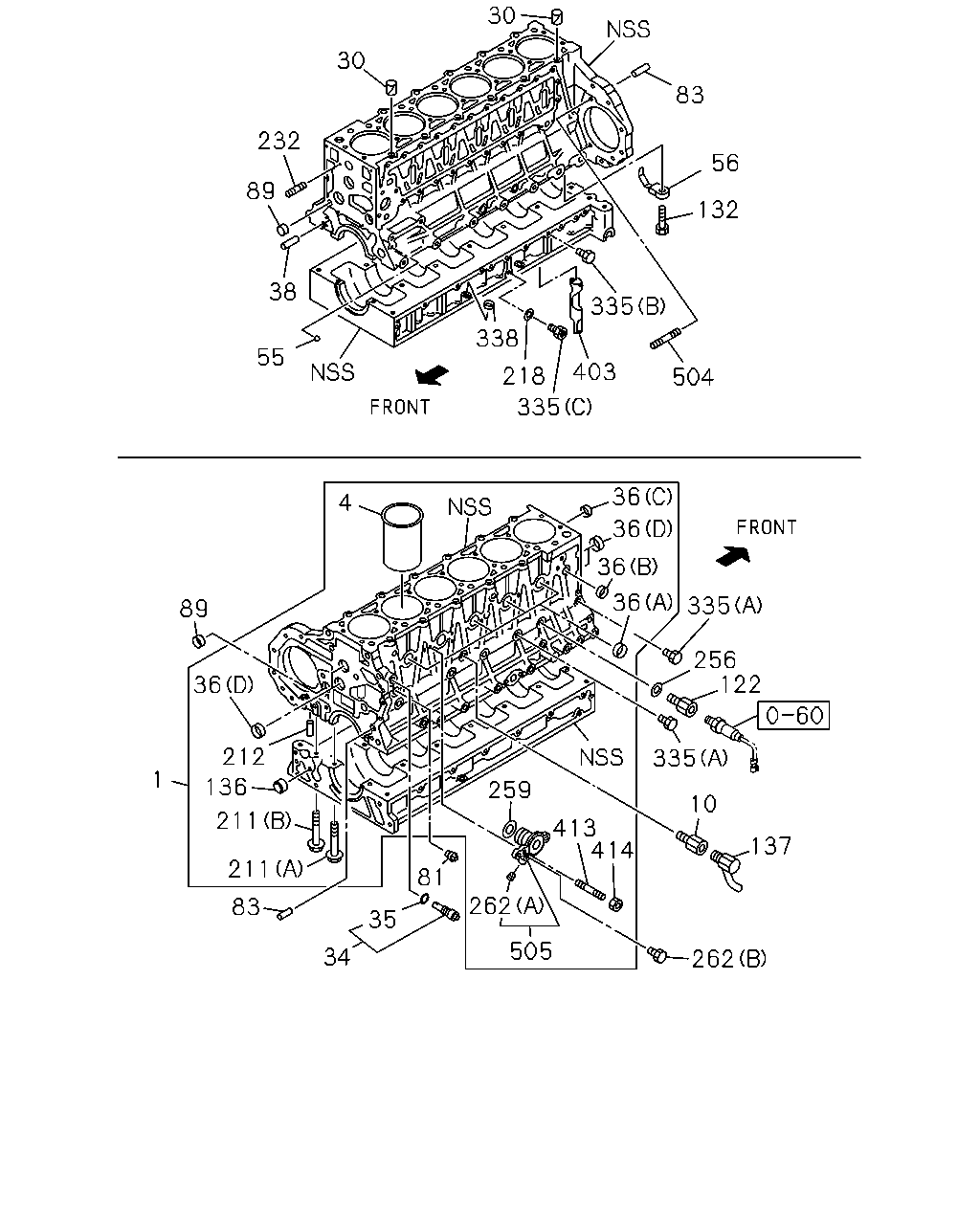

30 30 83 56 132 504 335 338 335 218 55 38 89 232 403 36 36 36 36 335 256 122 335 10 137 262 505 262 259 413 414 4 89 36 212 1 211 211 83 81 35 136 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BLOCK ASM; CYL	8-97618-664-3	01	1	1010-1209
1	BLOCK ASM; CYL	8-98206-967-0	01	1	1210-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-046-1	06	1	1010-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-047-1	06	1	1010-
10	CONNECTOR; WATER DRAIN	8-94396-378-0	01	1	1010-
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	1010-
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	1010-
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	1010-
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	04	1	1010-
36	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	01	1	1010-
36	CUP; SEALING,WATER JACKET (C) OD=25	8-94399-005-0	01	1	1010-
36	CUP; SEALING,WATER JACKET (D) OD=40	8-97096-824-0	04	1	1010-
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	1010-
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	01	1	1010-
56	JET; OIL,PISTON COOLING	8-98173-342-0	06	1	1010-
81	PLUG; WATER JACKET PT3/8	8-94397-338-0	01	1	1010-
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	1010-
89	CUP; SEALING,OIL GALLERY OD=20	9-11129-128-0	03	1	1010-
122	ADAPTER; OIL PRESSURE SWITCH	8-97603-667-0	01	1	1010-
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	1010-
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-98091-566-0	02	1	1010-
137	COCK; DRAIN,WATER	8-94393-716-1	01	1	1010-
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	1010-
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-97077-638-0	14	1	1010-
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	1010-
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2	1-09630-084-0	01	1	1010-1312
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2	8-98251-344-0	01	1	1401-
232	STUD; WATER PUMP M8X55 L=67	0-41010-855-0	03	1	1010-
256	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	01	1	1010-
259	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7	1-09623-184-0	01	1	1010-
262	PLUG; ADAPTER (A)	1-13163-002-0	01	1	1101-
262	PLUG; ADAPTER (B) M14	8-94399-225-0	01	1	1101-
335	PLUG; C/BL,SIDE (C) M12X10	5-13265-001-0	01	1	1010-
335	PLUG; C/BL,SIDE (A) M14X16.5	8-97329-617-0	02	1	1010-
335	PLUG; C/BL,SIDE (B) M8X10	8-98003-416-0	01	1	1010-
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	02	1	1010-
403	GUIDE; GALLERY	8-94395-351-1	01	1	1010-
413	STUD; ADAPTER M8X30 L=41	0-41010-830-0	02	1	1010-
414	NUT; ADAPTER M8 FLANGE	0-91180-208-0	02	1	1010-
504	STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	1010-
505	ADAPTER; WATER FEED	8-97607-409-0	01	1	1010-1012
505	ADAPTER; WATER FEED	8-98145-412-1	01	1	1101-

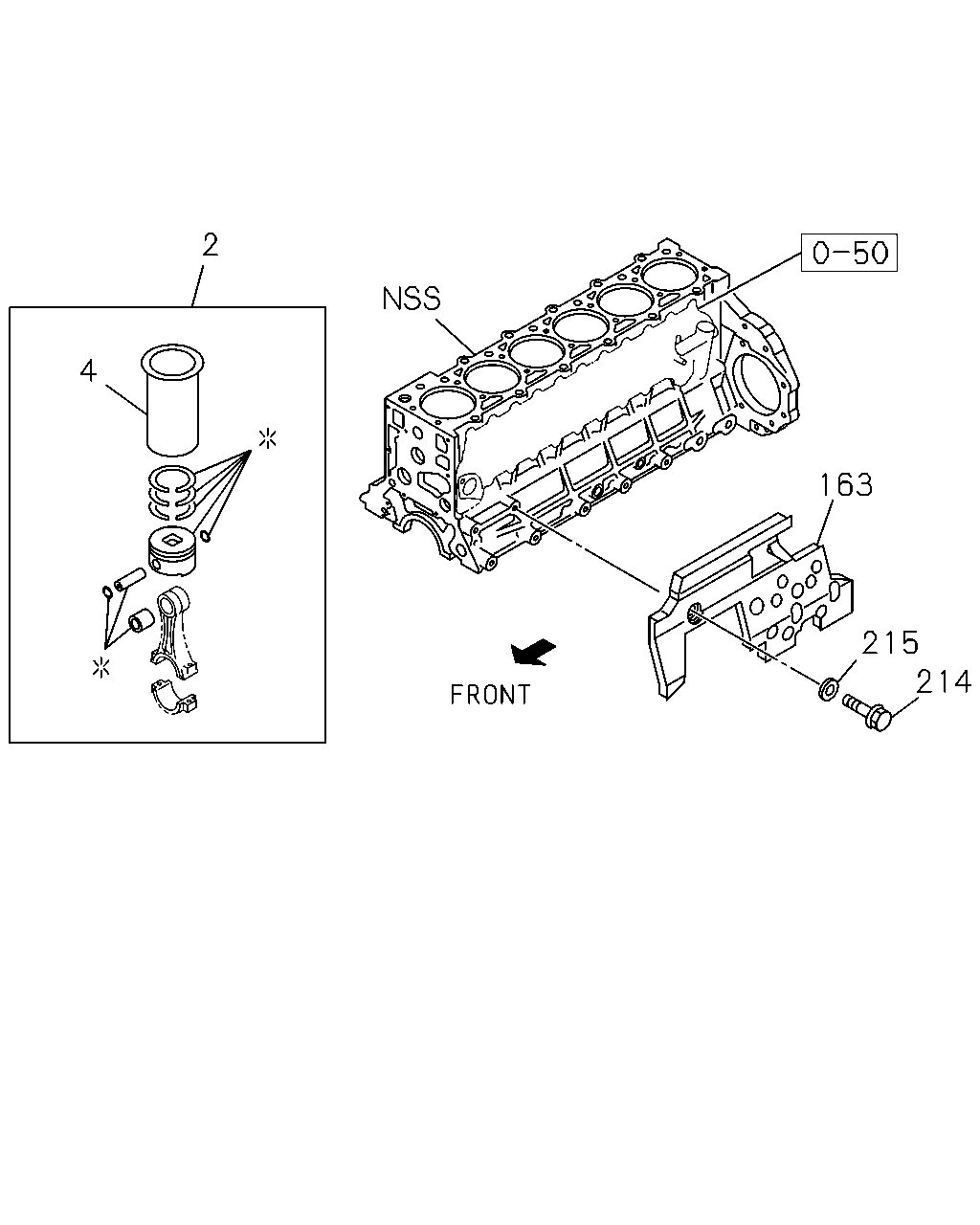

2 4 163 215 214

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	LINER SET; ENG CYL GRADE=1X	1-87813-119-6	06	1	1010-
2	LINER SET; ENG CYL GRADE=3X	1-87813-120-6	06	1	1010-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-046-1	06	1	1010-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-047-1	06	1	1010-
163	COVER ASM; C/BL SKIRT	8-97601-248-0	01	1	1010-
214	BOLT; NOISE COVER M10X16 FLANGE	0-28151-016-0	03	1	1010-
215	WASHER; PL,NOISE COVER ID=10.5 OD=32	0-91614-810-0	02	1	1010-
