Isuzu WW
▶
TRUCKS
▶
FVM
▶
11304 - FVM AUST/NZ EURO5
▶
0 - Engine, Emission, Engine Electrical
▶
0-10 - CYLINDER HEAD COVER
▶

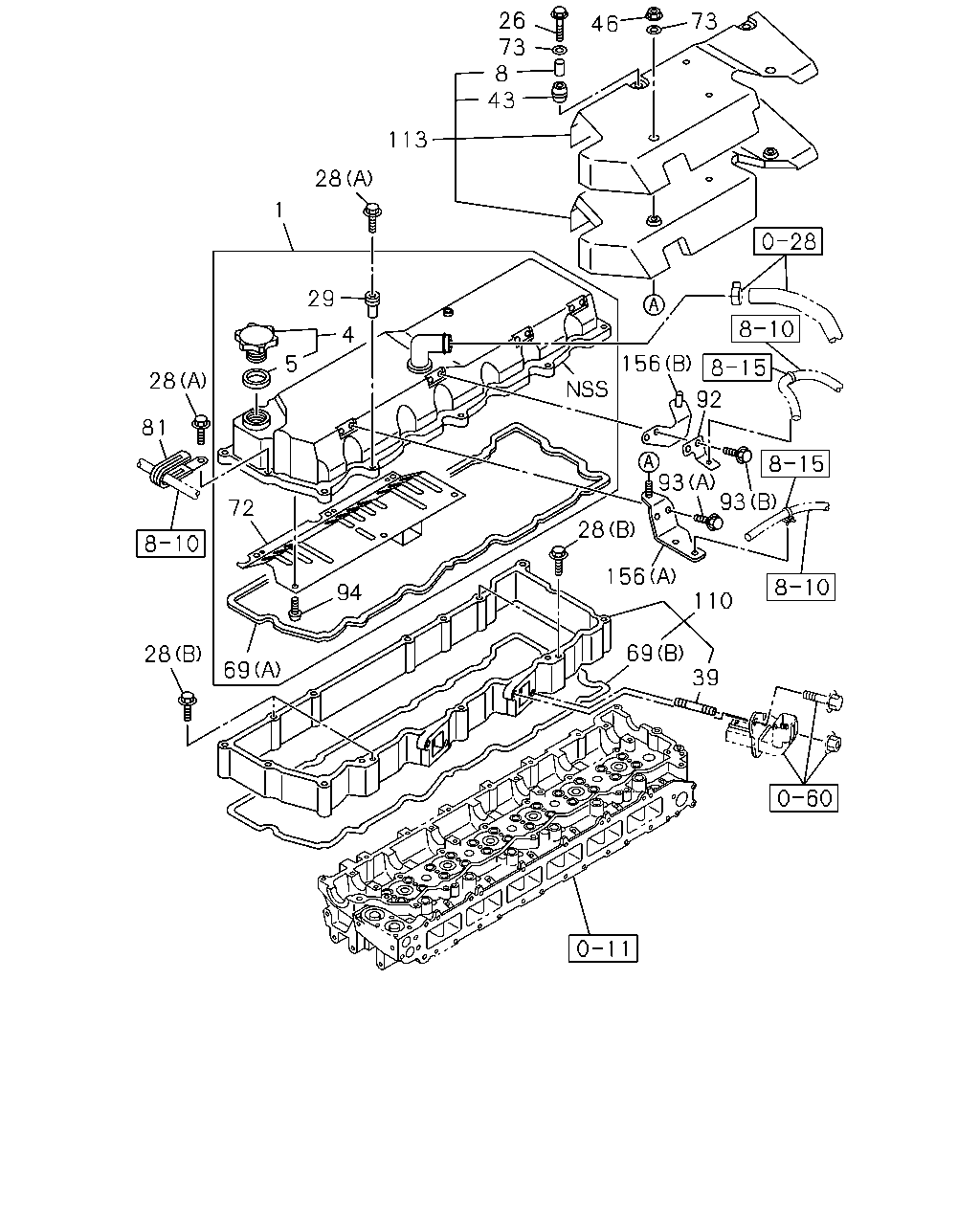

0-10 — CYLINDER HEAD COVER
(#59986) — 27 parça
26
46
73
73
43
8
113
28
1
29
5
28
81
72
94
28
69
110
156
28
69
39
93
156
93
4
92
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COVER; CYL HD
8-97602-825-2
01
1
1010-1112
1
COVER; CYL HD
8-98208-874-0
01
1
1201-
4
CAP; OIL FILLER
8-94399-723-0
01
1
1010-
5
GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58
8-94399-689-0
01
1
1010-
8
SPACER; HD COVER
OD=13 T=9.5
8-98164-239-0
04
1
1010-
26
BOLT; CYL HD COVER
M8X20 FLANGE
0-28050-820-0
02
1
1010-
28
BOLT; HD COVER
(B) M8X45 FLANGE
0-28050-845-0
04
1
1010-
28
BOLT; HD COVER
(A) M8X70 FLANGE
0-28050-870-0
11
1
1010-
29
RUBBER; MTG,HD COVER
8-94392-097-0
11
1
1010-
39
STUD; COVER,HD
M8X28 L=38
8-94396-512-0
04
1
1010-1011
39
STUD; COVER,HD
M8X28 L=38
8-94396-512-0
02
1
1012-
43
RUBBER; MTG,HD COVER,OUTER
OD=21.8
8-97325-051-0
04
1
1010-
46
NUT; HD COVER,OUTER
M8 FLANGE
0-91180-108-0
02
1
1010-
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)
8-94391-379-0
01
1
1010-
69
GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)
8-94391-380-0
01
1
1010-
72
PLATE; INNER HD COVER
8-94392-655-0
01
1
1010-
73
WASHER; PL,HD COVER
ID=8.4 OD=22
0-91610-708-0
04
1
1010-
81
CLIP; HARNESS
ID=18 L=44
8-97367-985-1
02
1
1010-
92
BRACKET; CLIP
8-97602-621-0
01
1
1010-1405
92
BRACKET; CLIP
8-98271-674-0
01
1
1406-
93
BOLT; BRKT
(A) M8X12 FLANGE
0-28050-812-0
02
1
1010-
93
BOLT; BRKT
(B) M8X16 FLANGE
0-28050-816-0
02
1
1010-
94
SCREW; BAFFLE PLATE,CYL HD COVER
M4X8
0-35050-408-0
06
1
1010-
110
COVER; CYL HEAD LWR
8-94390-862-3
01
1
1010-
113
COVER; CYL HEAD COVER
8-98044-128-2
01
1
1010-
156
BRACKET; ENGINE COVER
(B)
8-97602-747-0
01
1
1010-
156
BRACKET; ENGINE COVER
(A)
8-97616-751-0
01
1
1010-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
