Isuzu WW
▶
TRUCKS
▶
FRR
▶
11303 - FRR AUST/NZ EURO5 SPACECAB
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-26 - ELECTRICAL CONTROL AND OTHER PARTS
▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS
(#59969) — 88 parça
Tümü
A - FCD5CS
B - FCR5CS
◀
[826A] INST PANEL SIDE NO.2 (20 parça)
[826A] INST PANEL SIDE NO.1 (23 parça)
[826A] CONTROL UNIT;TURBOCHARGER AND CONNECTO (4 parça)
[826A] CAB SIDE NO.2 (6 parça)
[826A] SENSOR;VEHICLE SPEED (4 parça)
[826A] AIR TANK SIDE (8 parça)
[826A] CAB SIDE NO.1 (8 parça)
[826A10] (1 parça)

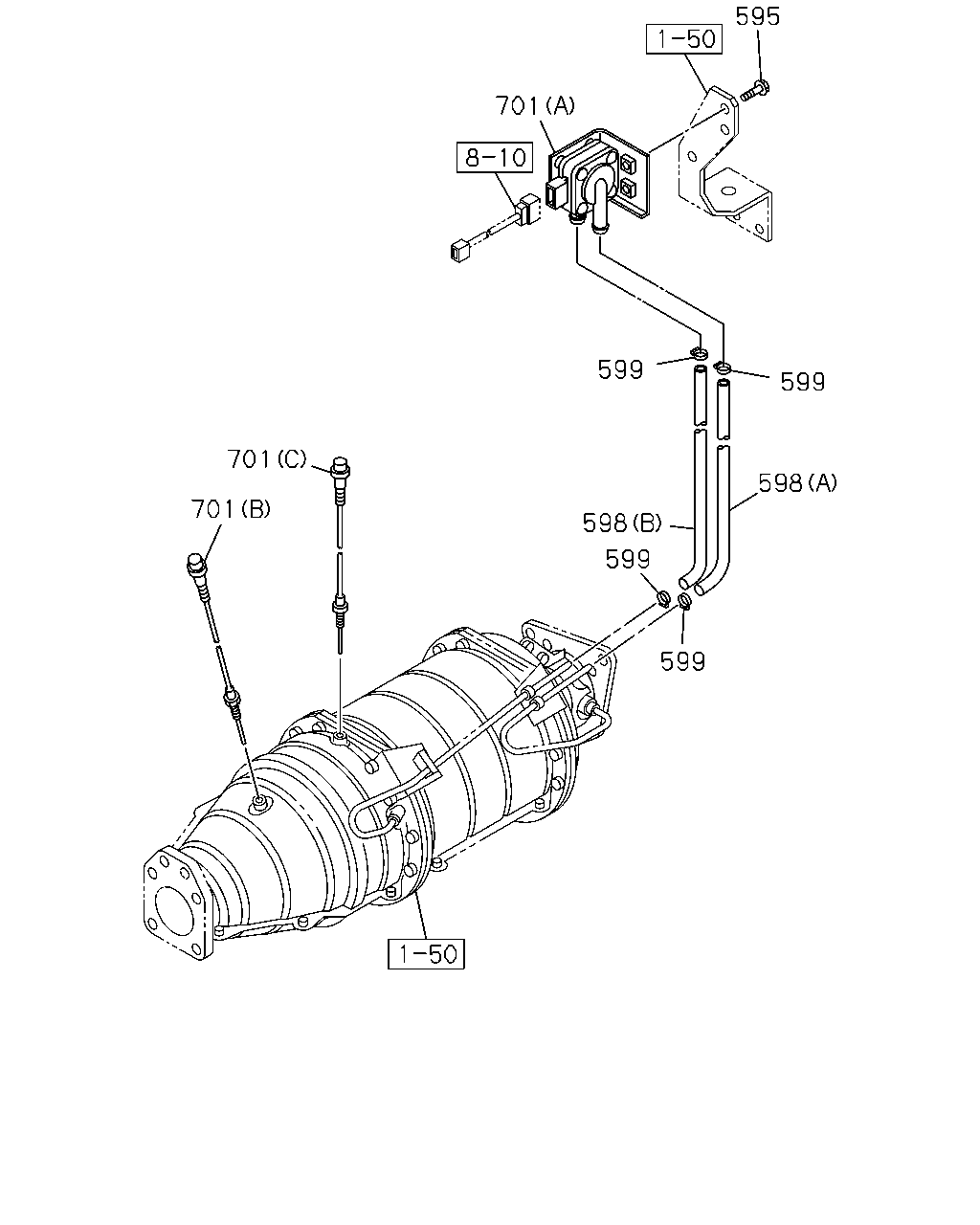

[826A] SENSOR;DPD (7 parça)
[826A] SENSOR;CRANK ANGLE AND COVER (7 parça)
▶

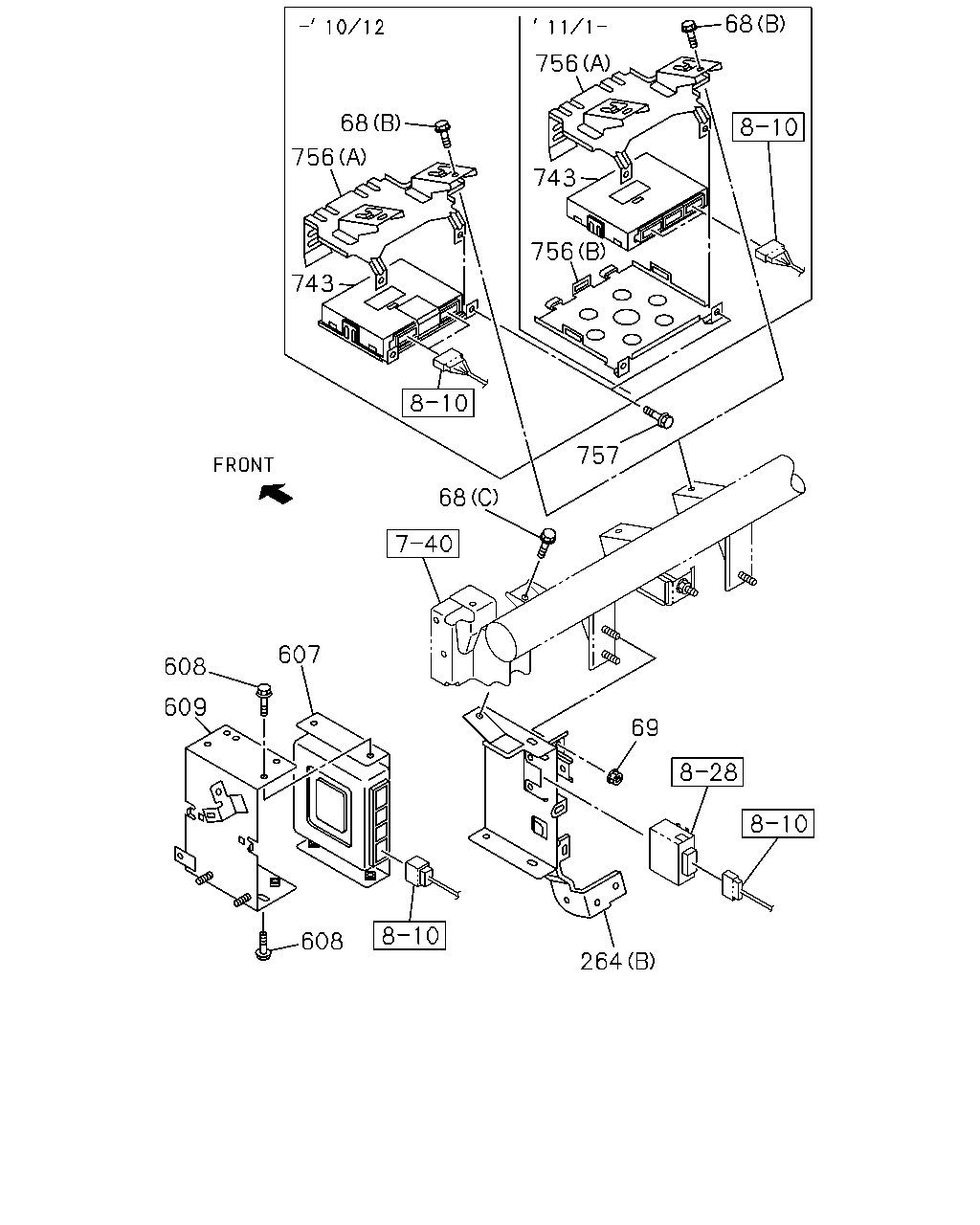

68
756
68
756
743
756
743
757
68
607
608
609
69
608
264
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
68
BOLT; BRKT
(C) M6X16 FLANGE
0-28650-616-0
01
1
1010-
●
●
68
BOLT; BRKT
(A) M8X25 FLANGE
0-28650-825-0
03
1
1010-
●
●
68
BOLT; BRKT
MULTI INFORMATION DISPLAY<7NY> (B) M6X16 W/LK&PL WASHER
1-09980-492-0
02
1
1010-
●
●
69
NUT; BRKT
M6 FLANGE
0-91180-106-0
01
1
1010-
●
●
264
BRACKET; CONT UNIT
(B)
8-97609-985-9
01
1
1010-
●
●
264
BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)
8-98064-901-0
01
1
1010-
●
●
264
BRACKET; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A)
8-98064-901-0
01
1
1010-
●
●
607
CONTROL UNIT; AIR SUSPENSION
8-98081-298-1
01
1
1010-
●
608
BOLT; CONT UNIT,AIR SUS
M6X16 FLANGE
0-28650-616-0
04
1
1010-
●
608
BOLT; CONT UNIT,AIR SUS
M6X16 FLANGE
0-28650-616-0
05
1
1010-
●
609
BRACKET ASM; ELEC UNIT,AIR SUS
8-98095-337-0
01
1
1010-1308
●
609
BRACKET ASM; ELEC UNIT,AIR SUS
8-98169-737-1
01
1
1309-
●
743
CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY>
8-98176-213-0
01
1
1010-1012
●
●
743
CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY>
8-98182-026-3
01
1
1101-
●
●
756
BRACKET; ECU,BCM
CAN INTERFACE FMS STD<8PG> (C)
8-98222-208-0
01
1
1210-
●
●
756
BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> (B)
8-98111-836-1
01
1
1101-
●
●
756
BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> (A)
8-98056-411-3
01
1
1010-
●
●
757
BOLT; BRKT,BCM
CAN INTERFACE FMS STD<8PG> M5X20 HEXALOBULAR SOCKET
8-98177-743-0
04
1
1210-1210
●
●
757
BOLT; BRKT,BCM
CAN INTERFACE FMS STD<8PG> M5X20 TAPPING HEXALOBULAR
0-72180-520-0
04
1
1211-
●
●
757
BOLT; BRKT,BCM
MULTI INFORMATION DISPLAY<7NY> M6X16 FLANGE
0-28650-616-0
02
1
1010-
●
●

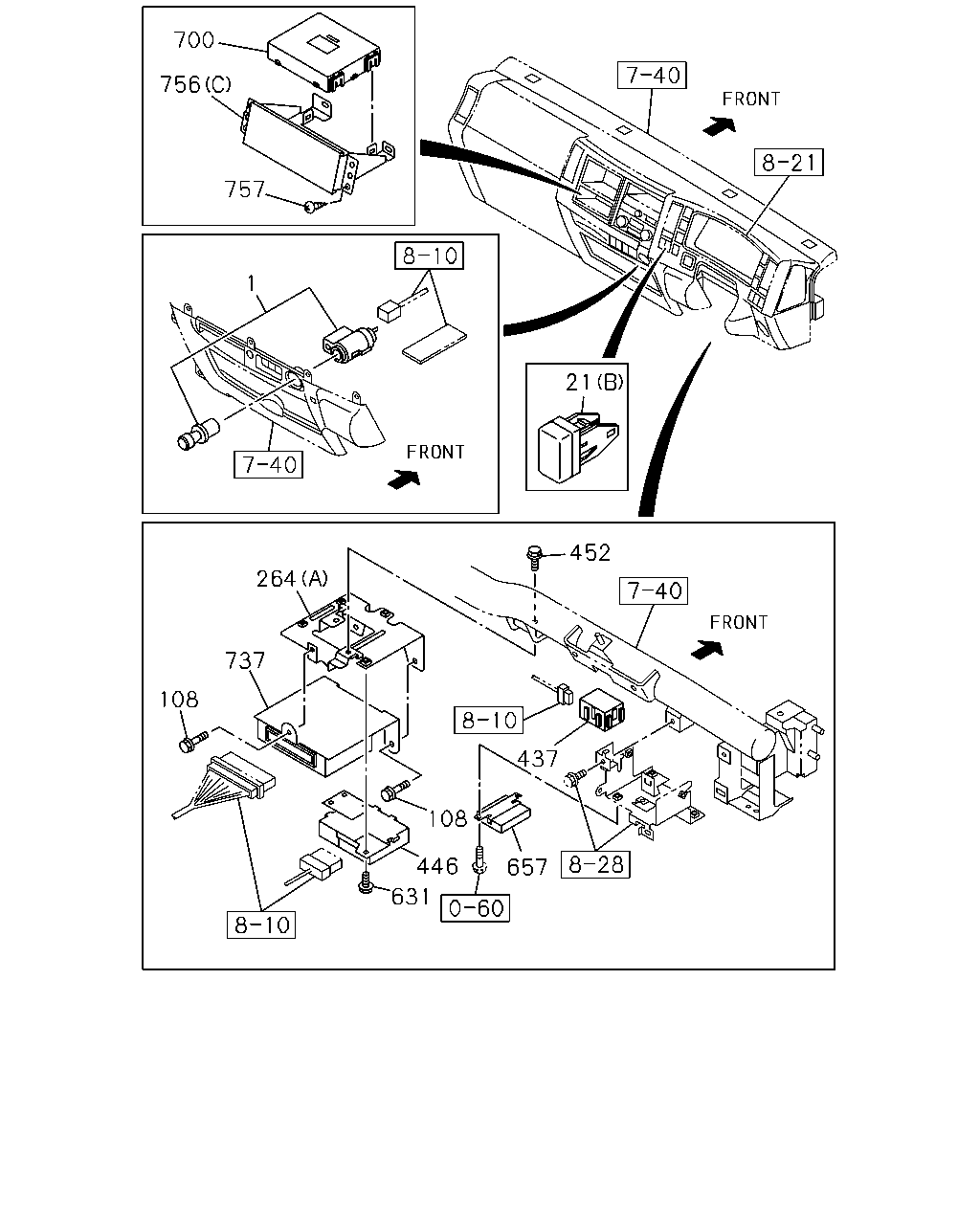

700
756
757
21
452
437
657
446
631
108
264
737
108
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
LIGHTER; CIGAR
8-98142-962-0
01
1
1010-
●
●
21
COVER; HOLE
POWER TAKE OFF-FLYWHEEL<6SZ> (A)
8-97101-974-0
01
1
1010-
●
21
COVER; HOLE
(B)
8-98025-954-1
01
1
1010-
●
●
108
BOLT; TRANS CONT MODULE
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE
0-28650-616-0
03
1
1010-
●
●
264
BRACKET; CONT UNIT
(B)
8-97609-985-9
01
1
1010-
●
●
264
BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)
8-98064-901-0
01
1
1010-
●
●
264
BRACKET; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A)
8-98064-901-0
01
1
1010-
●
●
437
CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO
8-97359-129-0
01
1
1010-
●
446
CONTROL UNIT; HSA
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98136-318-1
01
1
1010-
●
●
452
BOLT; BRKT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE
0-28650-616-0
02
1
1010-
●
●
452
BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE
0-28650-616-0
02
1
1010-
●
●
631
BOLT; CONT UNIT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE
0-28650-616-0
02
1
1010-
●
●
657
CONTROL UNIT; MIMAMORI
EXC. MULTI INFORMATION DISPLAY<7NY>
8-98013-144-8
01
1
1010-1401
●
●
657
CONTROL UNIT; MIMAMORI
EXC. MULTI INFORMATION DISPLAY<7NY>
8-98260-912-0
01
1
1402-
●
●
700
CONTROL UNIT; CAN CONVERTER
VIN MODEL YEAR 2013<VZD> CAN INTERFACE FMS STD<8PG>
8-98219-812-1
01
1
1210-
●
●
737
CONTROL UNIT; TRANSMISSION
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98095-623-9
01
1
1010-1411
●
●
737
CONTROL UNIT; TRANSMISSION
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98277-099-0
01
1
1412-
●
●
756
BRACKET; ECU,BCM
CAN INTERFACE FMS STD<8PG> (C)
8-98222-208-0
01
1
1210-
●
●
756
BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> (B)
8-98111-836-1
01
1
1101-
●
●
756
BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> (A)
8-98056-411-3
01
1
1010-
●
●
757
BOLT; BRKT,BCM
CAN INTERFACE FMS STD<8PG> M5X20 HEXALOBULAR SOCKET
8-98177-743-0
04
1
1210-1210
●
●
757
BOLT; BRKT,BCM
CAN INTERFACE FMS STD<8PG> M5X20 TAPPING HEXALOBULAR
0-72180-520-0
04
1
1211-
●
●
757
BOLT; BRKT,BCM
MULTI INFORMATION DISPLAY<7NY> M6X16 FLANGE
0-28650-616-0
02
1
1010-
●
●

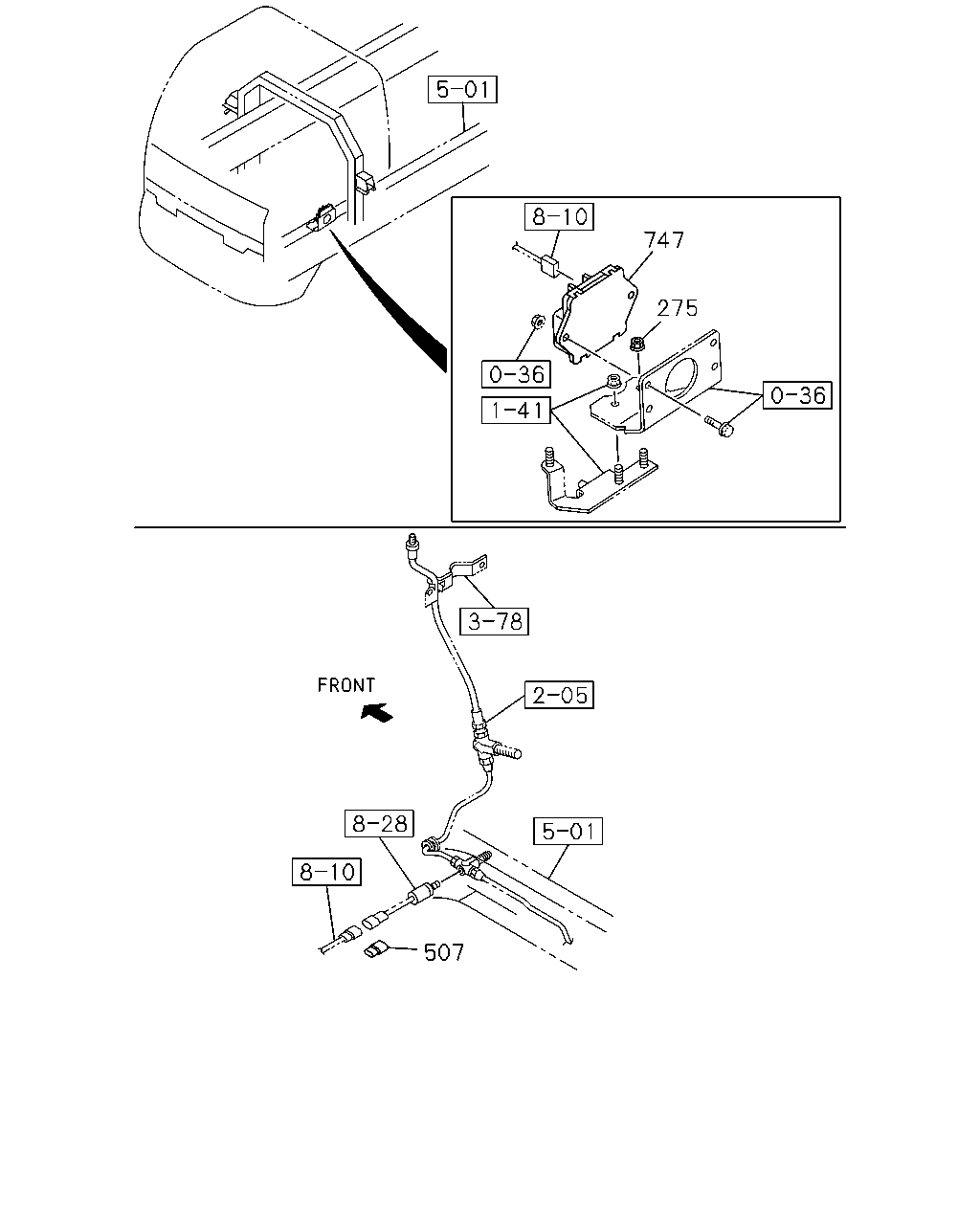

747
275
507
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
275
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
1010-
●
●
507
CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>
1-82690-666-0
01
1
1011-
●
●
747
CONTROL UNIT; TURBOCHARGER
8-98077-118-2
01
1
1010-1103
●
●
747
CONTROL UNIT; TURBOCHARGER
8-98162-807-0
01
1
1104-
●
●

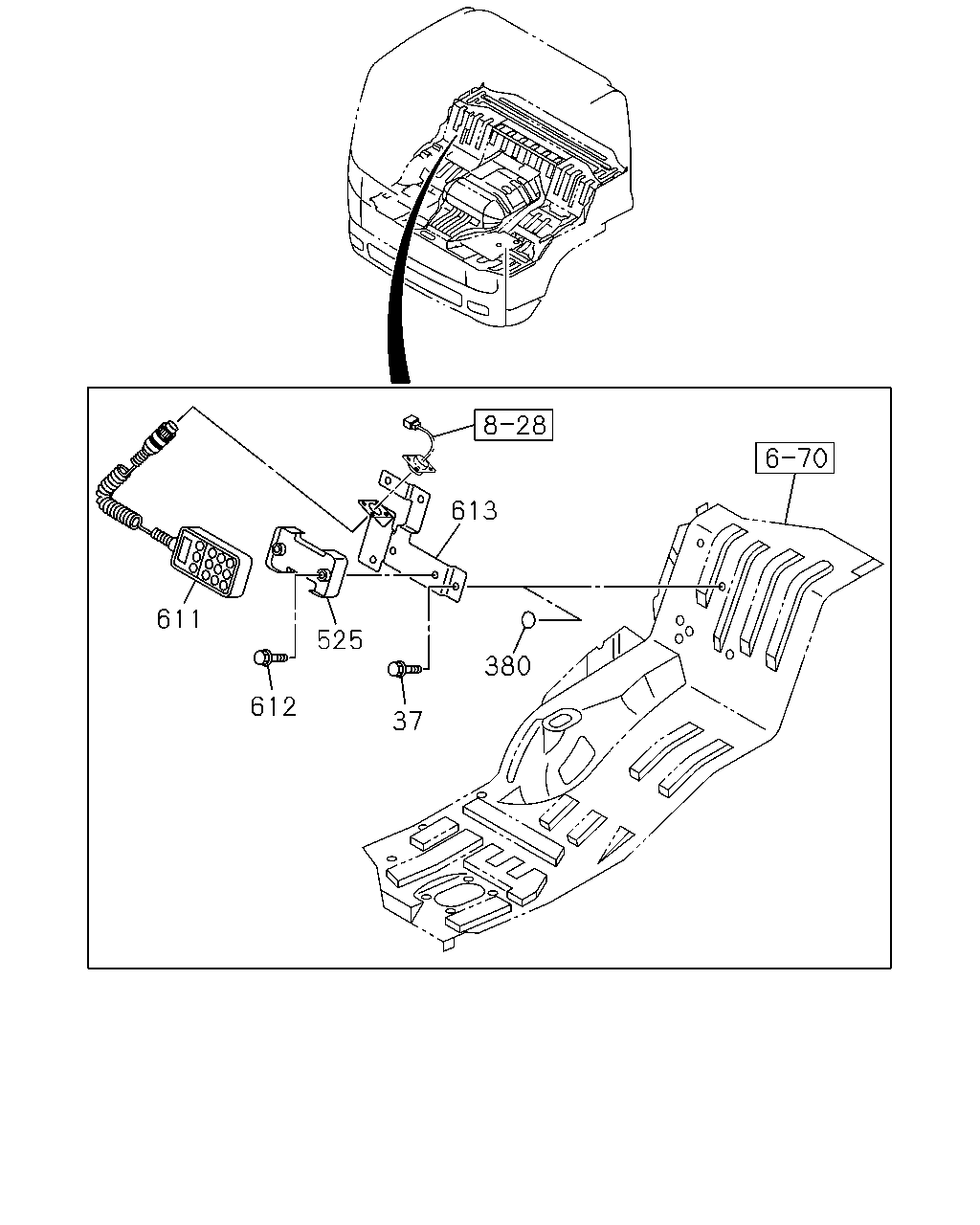

613
611
525
380
612
37
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
37
BOLT; BRKT FIX
M6X25 FLANGE
0-28650-625-0
02
1
1010-
●
380
SEAL
OD=25 BLACK
1-76798-019-0
01
1
1010-
●
●
525
HOLDER; SW
1-82389-018-0
01
1
1010-
●
611
SWITCH ASM; AIR SUS
1-82380-162-0
01
1
1010-
●
612
SCREW; HOLDER
M6X14 W/PL WASHER
0-36210-614-0
02
1
1010-
●
613
BRACKET; HOLDER,SW
8-97618-931-2
01
1
1010-
●

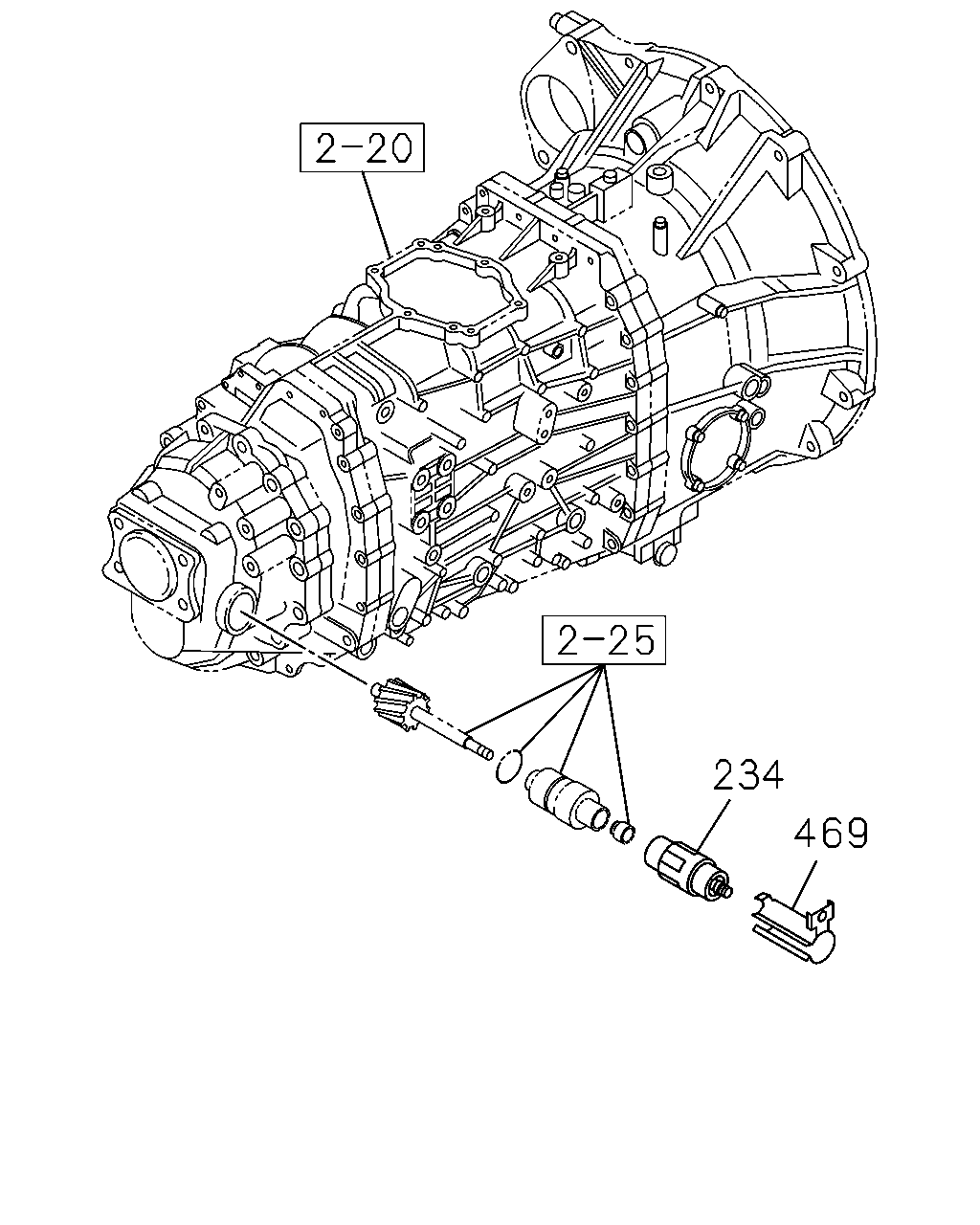

234
469
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
234
SENSOR; VEHICLE SPD
25 PULSE ALUMINUM
8-97328-058-1
01
1
1010-1109
●
●
234
SENSOR; VEHICLE SPD
25 PULSE ALUMINUM
8-97328-058-1
01
1
1110-
●
●
469
PROTECTOR; SPEED SENSOR
8-98119-901-0
01
1
1010-1109
●
●
469
PROTECTOR; SPEED SENSOR
8-98119-901-0
01
1
1110-
●
●

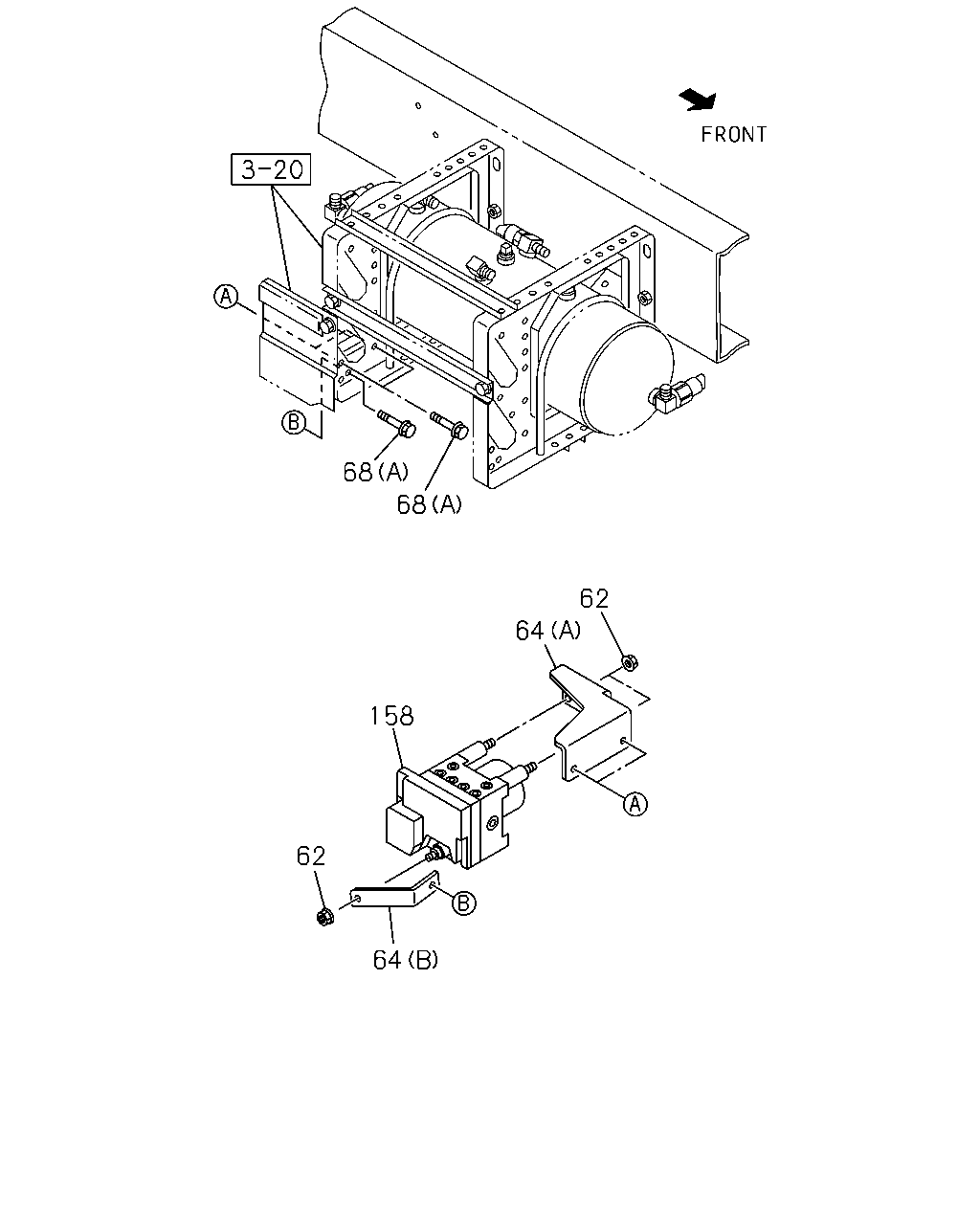

68
68
62
64
158
62
64
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
62
NUT; BRKT
M8 FLANGE
0-91180-108-0
03
1
1010-
●
●
64
BRACKET; CONTROLLER
(A)
8-98044-238-2
01
1
1010-
●
●
64
BRACKET; CONTROLLER
(B)
8-98044-239-1
01
1
1010-
●
●
68
BOLT; BRKT
(C) M6X16 FLANGE
0-28650-616-0
01
1
1010-
●
●
68
BOLT; BRKT
(A) M8X25 FLANGE
0-28650-825-0
03
1
1010-
●
●
68
BOLT; BRKT
MULTI INFORMATION DISPLAY<7NY> (B) M6X16 W/LK&PL WASHER
1-09980-492-0
02
1
1010-
●
●
158
CONTROLLER; ABS
THROTTLE CONTROL SYSTEM(6XH)
8-98157-999-1
01
1
1010-
●
●
158
CONTROLLER; ABS
EXC. THROTTLE CONTROL SYSTEM(6XH)
8-98157-993-1
01
1
1010-
●
●

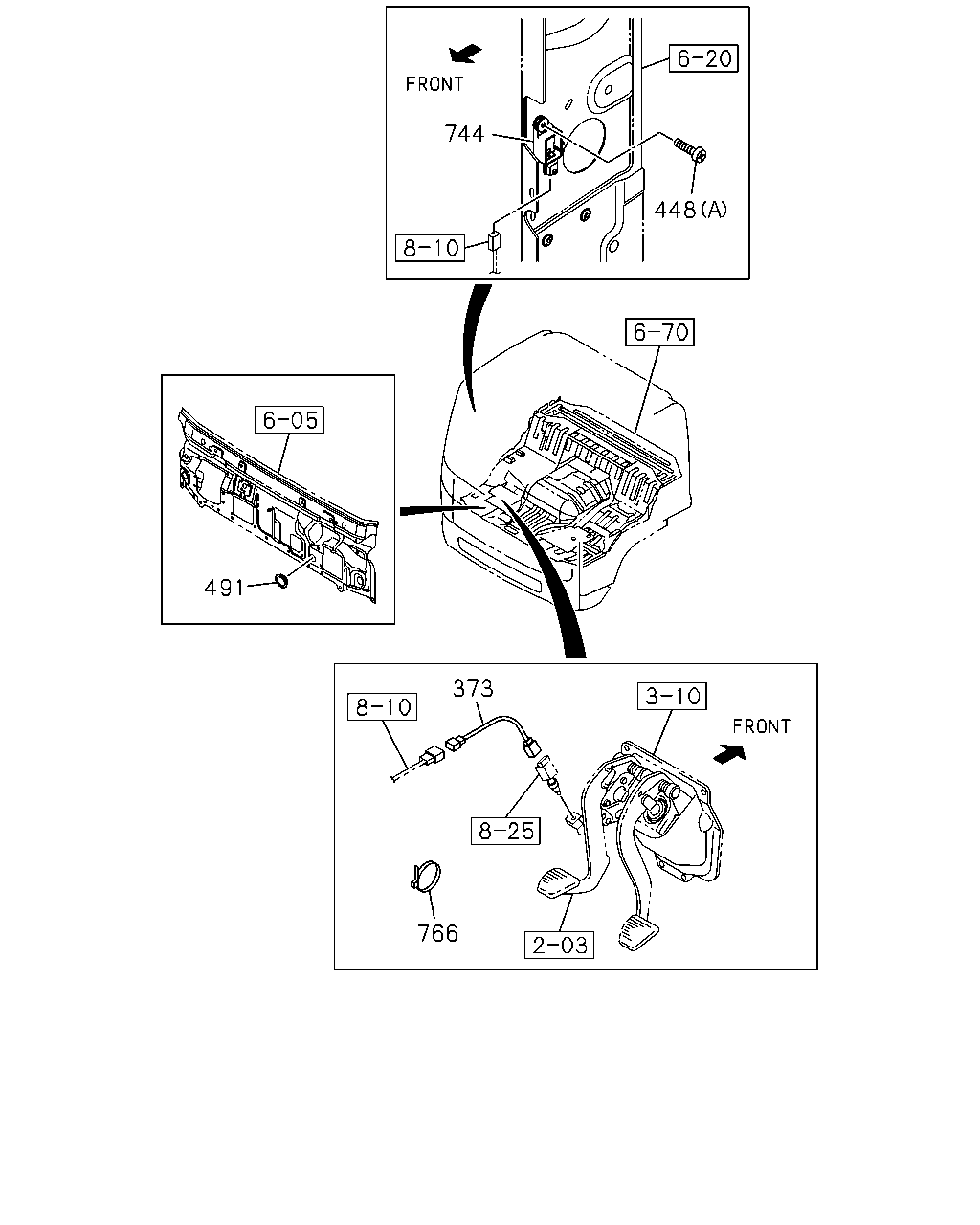

744
448
491
373
766
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
373
HARNESS; CLU SWITCH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98059-419-2
01
1
1010-
●
●
448
BOLT; SENSOR
(B) M6X16 FLANGE
0-28050-616-0
01
1
1010-
●
●
448
BOLT; SENSOR
POWER TAKE OFF-FLYWHEEL<6SZ> (B) M6X16 FLANGE
0-28050-616-0
01
1
1010-
●
448
BOLT; SENSOR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) M6X18 W/PL WASHER
8-97105-796-1
02
1
1010-
●
●
491
PLUG; HOLE,CONT UNIT
OD=60
8-98054-651-0
01
1
1010-
●
●
744
SENSOR; AIR BAG
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5)
8-97386-841-2
01
1
1010-
●
●
766
BAND; CLIP
EXC. H.S.A SYSTEM<6EP> L=140
5-09707-031-1
01
1
1010-1112
●
●
766
BAND; CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> L=140
5-09707-031-1
01
1
1201-
●
●
507
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
507
CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>
1-82690-666-0
01
1
1011-
●
●
701
599
599
701
598
701
598
599
599
595
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
595
BOLT; SENSOR
M8X20 FLANGE
0-28650-820-0
02
1
1010-
●
●
598
HOSE; RUBBER,SENSOR
(B)
8-98060-174-1
01
1
1010-
●
●
598
HOSE; RUBBER,SENSOR
(A)
8-98077-342-0
01
1
1010-
●
●
599
CLIP; HOSE
ID=13
8-97329-627-0
04
1
1010-
●
●
701
SENSOR; DPD
(B)
8-97359-987-5
01
1
1010-
●
●
701
SENSOR; DPD
(C)
8-97359-989-5
01
1
1010-
●
●
701
SENSOR; DPD
(A)
8-97360-368-2
01
1
1010-
●
●

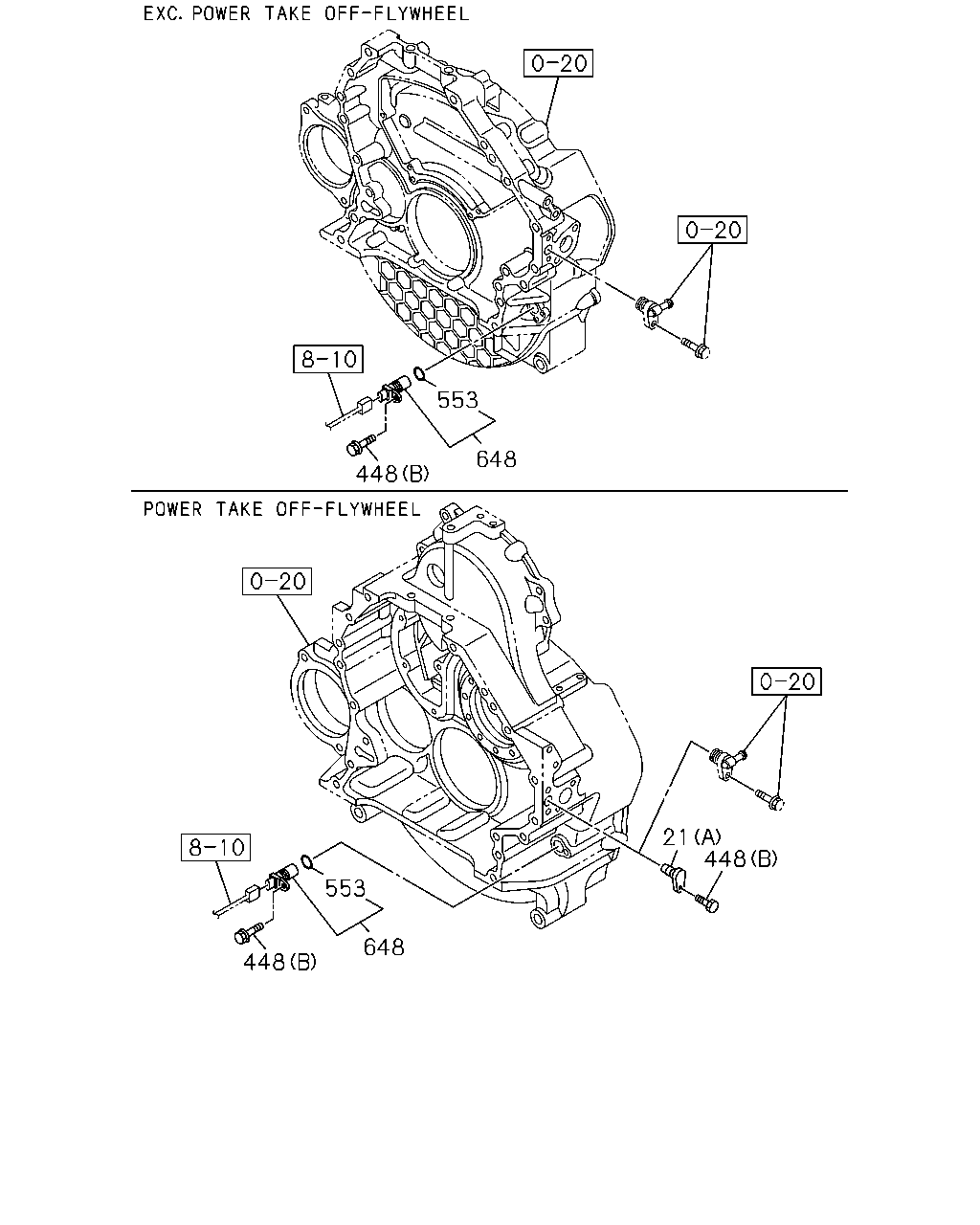

553
648
448
21
448
553
648
448
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
21
COVER; HOLE
POWER TAKE OFF-FLYWHEEL<6SZ> (A)
8-97101-974-0
01
1
1010-
●
21
COVER; HOLE
(B)
8-98025-954-1
01
1
1010-
●
●
448
BOLT; SENSOR
(B) M6X16 FLANGE
0-28050-616-0
01
1
1010-
●
●
448
BOLT; SENSOR
POWER TAKE OFF-FLYWHEEL<6SZ> (B) M6X16 FLANGE
0-28050-616-0
01
1
1010-
●
448
BOLT; SENSOR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) M6X18 W/PL WASHER
8-97105-796-1
02
1
1010-
●
●
553
GASKET
ID=14.2 OD=18.8
8-97369-404-0
01
1
1010-
●
●
648
SENSOR; CRANK ANGLE
8-97606-943-0
01
1
1010-
●
●
