◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11303 - FRR AUST/NZ EURO5 SPACECAB ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#59965) — 339 parça

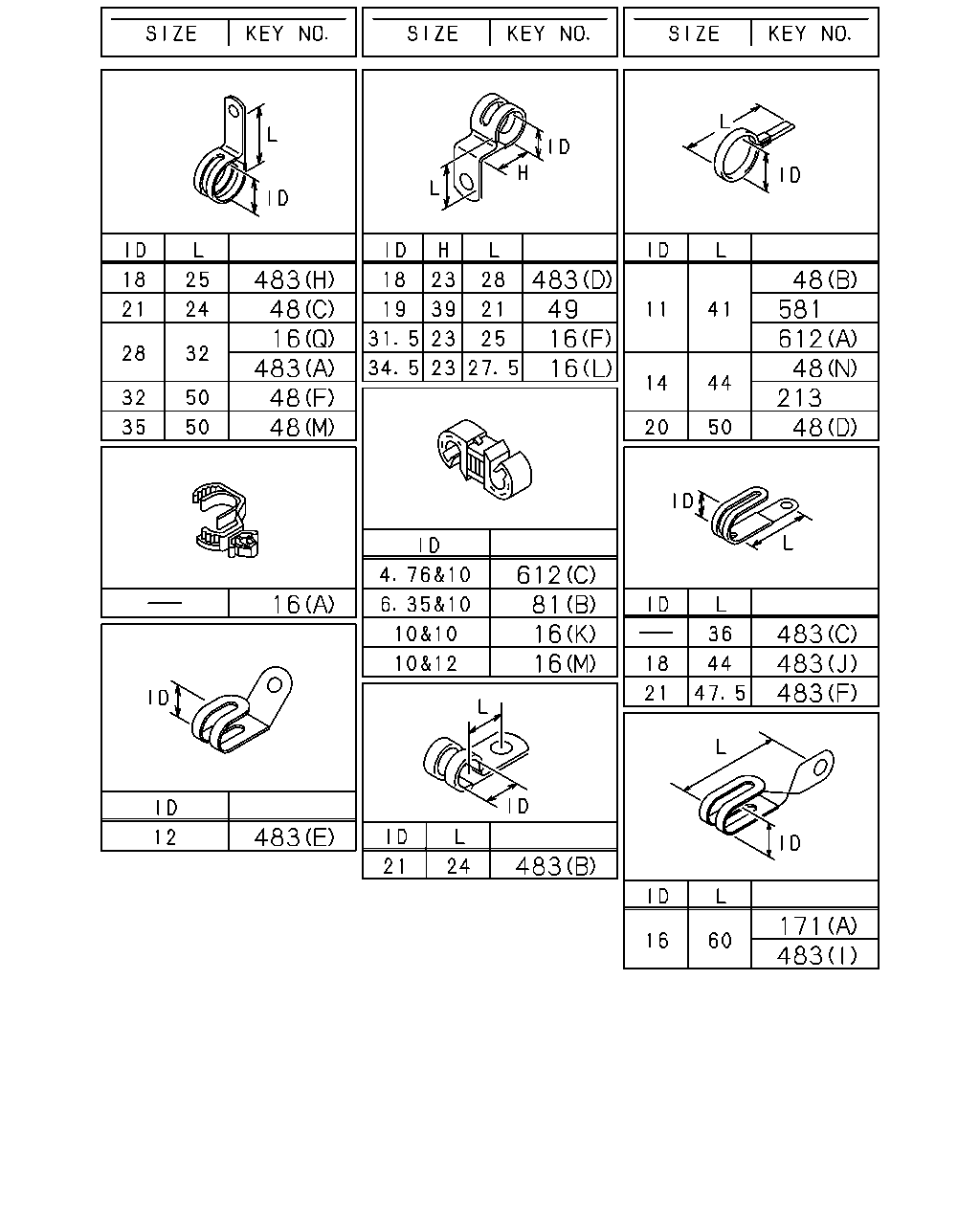

çizim 168879
483 48 16 483 48 48 483 49 16 16 48 581 612 48 213 48 612 81 16 16 16 483 483 483 483 483 171 483
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1010- ●
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1010- ●
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 02 1 1010- ●
16 CLIP; HARNESS
(P) ID=11 L=16 		0-95235-025-0 02 1 1010- ● ●
16 CLIP; HARNESS
(N) ID=11X2 L=16 		1-09700-734-0 01 1 1010- ● ●
16 CLIP; HARNESS
(Q) ID=28 L=32 		1-09701-107-1 02 1 1010- ● ●
16 CLIP; HARNESS
(O) L=250 		1-09707-126-0 02 1 1010- ● ●
16 CLIP; HARNESS
(K) ID=10 & 10 		1-09709-277-1 04 1 1010- ● ●
16 CLIP; HARNESS
(M) ID=10 & 12 		1-09709-278-1 01 1 1010- ● ●
16 CLIP; HARNESS
(I) ID=5-12 L=18 		1-09709-287-0 02 1 1010- ● ●
16 CLIP; HARNESS
(H) ID=5-12 L=14.5 		1-09987-221-0 03 1 1010- ● ●
16 CLIP; HARNESS
(J) ID=19 H=21 L=24 		5-09700-360-0 01 1 1010- ● ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1010- ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1010- ● ●
16 CLIP; HARNESS
(D) L=40.6 		8-97229-357-0 02 1 1010- ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1010- ● ●
16 CLIP; HARNESS
EXC. H.S.A SYSTEM<6EP> (G) OD=9 H=6 		1-09709-178-0 01 1 1010- ● ●
16 CLIP; HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1010- ●
48 CLIP; FRAME HARNESS
(J) OD=9 H=9.5 		1-09709-179-0 01 1 1010- ● ●
48 CLIP; FRAME HARNESS
(N) ID=14 L=44 		9-09917-427-0 02 1 1202- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (N) ID=14 L=44 		9-09917-427-0 05 1 1110- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (D) ID=20 L=50 		9-09917-430-0 12 1 1110-1201 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (D) ID=20 L=50 		9-09917-430-0 11 1 1202- ●
48 CLIP; FRAME HARNESS
(G) ID=11 L=20 		0-95235-035-0 02 1 1010- ●
48 CLIP; FRAME HARNESS
(I) ID=19 L=28 		0-95235-856-0 02 1 1010- ●
48 CLIP; FRAME HARNESS
(M) ID=35 L=50 		1-09701-214-0 01 1 1010- ●
48 CLIP; FRAME HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (M) ID=35 L=50 		1-09701-214-0 01 1 1010- ●
48 CLIP; FRAME HARNESS
(C) ID=21 L=24 		8-94176-807-1 03 1 1010- ●
48 CLIP; FRAME HARNESS
(N) ID=14 L=44 		9-09917-427-0 06 1 1010- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (N) ID=14 L=44 		9-09917-427-0 06 1 1010- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5300MM(53W) (O) ID=18-24 L=22 		1-09709-295-0 01 1 1010- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5300MM(53W) (D) ID=20 L=50 		9-09917-430-0 13 1 1010-1201 ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 12 1 1202- ●
48 CLIP; FRAME HARNESS
(K) L=600 		1-09707-107-1 01 1 1010- ● ●
48 CLIP; FRAME HARNESS
(E) L=350 		1-09707-183-0 01 1 1010-1010 ● ●
48 CLIP; FRAME HARNESS
(E) L=350 		1-09707-183-0 01 1 1011-1109 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (E) L=350 		1-09707-183-0 01 1 1011-1109 ●
48 CLIP; FRAME HARNESS
(E) L=350 		1-09707-183-0 01 1 1110- ● ●
48 CLIP; FRAME HARNESS
(L) ID=5-12 L=14.5 		1-09987-221-0 03 1 1010- ● ●
48 CLIP; FRAME HARNESS
(H) ID=17.5X2 L=25 		5-09700-358-0 01 1 1010- ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 1010- ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 1010- ● ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 1010- ●
48 CLIP; FRAME HARNESS
(N) ID=14 L=44 		9-09917-427-0 04 1 1010- ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 02 1 1010-1201 ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 02 1 1010-1201 ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 02 1 1202- ●
48 CLIP; FRAME HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=32 L=50 		1-09701-055-1 01 1 1010- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4000MM(40W) (N) ID=14 L=44 		9-09917-427-0 07 1 1010- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (N) ID=14 L=44 		9-09917-427-0 10 1 1010- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5300MM(53W) (N) ID=14 L=44 		9-09917-427-0 13 1 1010- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5300MM(53W) (P) ID=13-18 L=22 		1-09709-292-0 01 1 1010- ●
49 CLIP; GEN HARNESS
ID=19 L=39 H=21 		1-09700-972-1 01 1 1010- ● ●
81 CLIP; HARNESS
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6 		1-09709-178-0 01 1 1010-1010 ● ●
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6 		1-09709-178-0 01 1 1011- ● ●
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0 		1-09709-274-1 02 1 1010- ● ●
171 CLIP; STARTER HARNESS
(B) OD=8 H=3.8 		1-09709-309-0 01 1 1010-1102 ● ●
171 CLIP; STARTER HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) OD=8 H=3.8 		1-09709-309-0 01 1 1103- ● ●
171 CLIP; STARTER HARNESS
(A) 		8-97101-436-0 01 1 1010- ● ●
213 CLIP; END CROSS HARNESS
ID=14 L=44 		9-09917-427-0 03 1 1010- ● ●
483 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL<6SZ> (C) L=36 		8-94224-891-1 02 1 1010- ●
483 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL<6SZ> (I) 		8-97101-436-0 01 1 1010- ●
483 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL<6SZ> (J) ID=18 L=44 		8-97367-985-1 02 1 1010- ●
483 CLIP; ENG HARNESS
(D) ID=18 H=23 L=28 		1-09700-860-0 01 1 1010- ● ●
483 CLIP; ENG HARNESS
(A) ID=28 L=32 		1-09701-107-1 01 1 1010- ● ●
483 CLIP; ENG HARNESS
(B) ID=21 L=24 		1-09701-201-0 01 1 1010- ● ●
483 CLIP; ENG HARNESS
(G) 		1-09987-281-0 01 1 1010- ● ●
483 CLIP; ENG HARNESS
(E) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 1010- ● ●
483 CLIP; ENG HARNESS
(H) ID=18 L=25 		8-94121-004-1 01 1 1010- ● ●
483 CLIP; ENG HARNESS
(F) ID=21 L=47.5 		8-94178-108-0 01 1 1010- ● ●
483 CLIP; ENG HARNESS
(C) L=36 		8-94224-891-1 01 1 1010- ●
483 CLIP; ENG HARNESS
EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (C) L=36 		8-94224-891-1 01 1 1010- ●
581 CLIP; HARNESS,REAR SUSP
ID=11 L=41 		1-09700-403-0 03 1 1010- ●
612 CLIP; HARNESS DPD
(A) ID=11 L=41 		1-09700-403-0 01 1 1010- ● ●
612 CLIP; HARNESS DPD
(C) ID=4.76 & 10.0 		1-09709-305-0 03 1 1010- ● ●
612 CLIP; HARNESS DPD
(D) L=135 		1-09987-143-1 01 1 1010- ● ●
612 CLIP; HARNESS DPD
(B) L=250 		5-09707-030-1 01 1 1010- ● ●

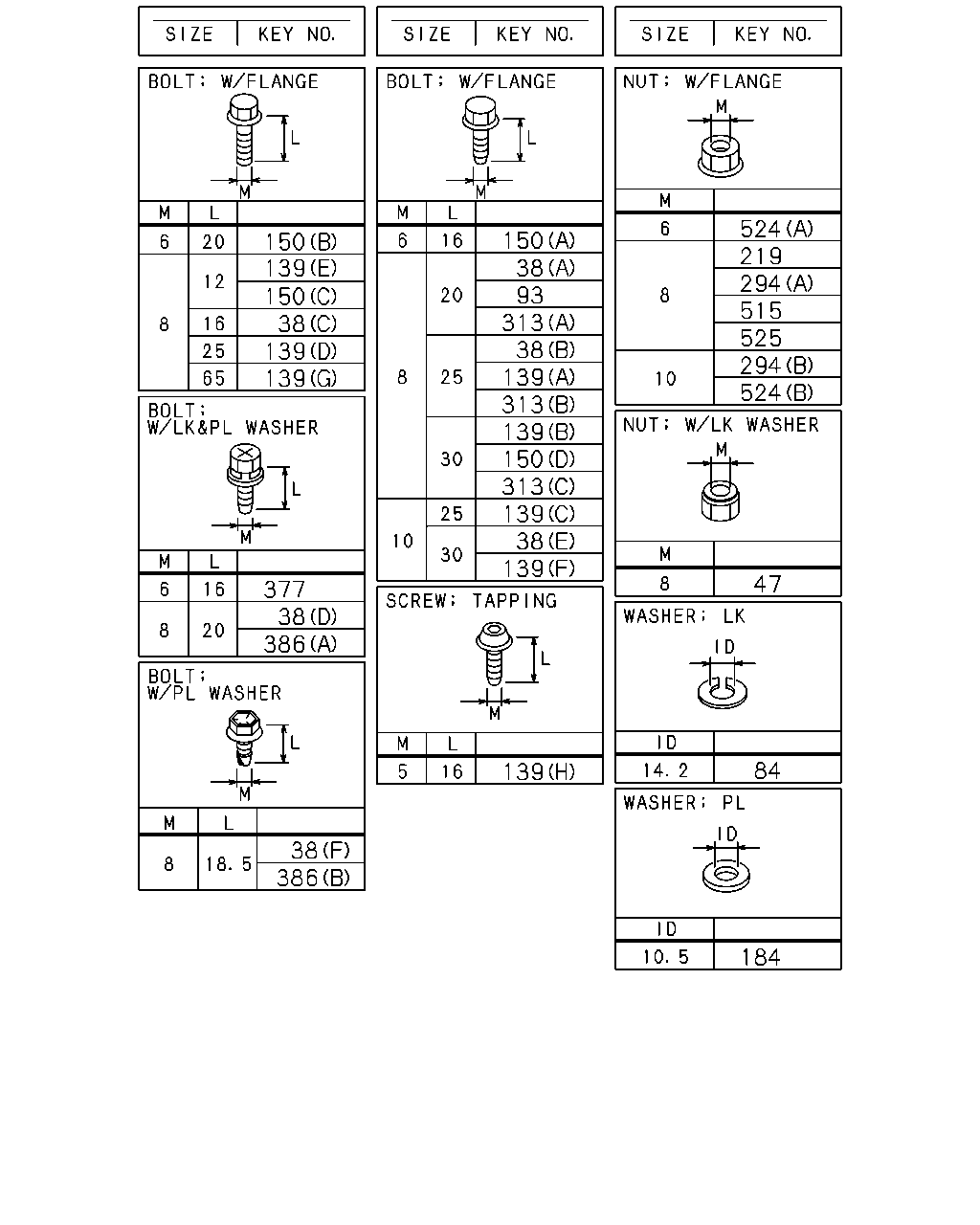

çizim 168880
150 150 139 38 139 139 377 38 386 38 386 139 139 139 313 150 139 313 139 38 313 93 38 150 184 84 47 524 294 525 515 294 219 524 38
BalonParca AdiParca NoAdetTipApplied Date A B
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 05 1 1010- ●
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE 		0-28050-816-0 03 1 1010- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1010- ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1010- ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1010- ●
38 BOLT; CLIP,HARNESS
(E) M10X30 FLANGE 		0-28651-030-0 01 1 1010- ● ●
38 BOLT; CLIP,HARNESS
(D) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 1010-1201 ● ●
38 BOLT; CLIP,HARNESS
(F) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1202- ● ●
47 NUT; GEN TERMINAL
M8 W/LK WASHER 		8-94279-050-0 01 1 1409- ● ●
84 WASHER; LK BRKT,HARNESS
ID=14.2 		0-91510-814-0 02 1 1010- ● ●
93 BOLT; ECM HARNESS CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1010- ● ●
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (H) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1101- ● ●
139 BOLT; BRKT
(E) M8X12 FLANGE 		0-28050-812-0 01 1 1010- ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1010- ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1010- ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1010- ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 04 1 1010- ● ●
139 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 02 1 1010- ● ●
139 BOLT; BRKT
(F) M10X30 FLANGE 		0-28651-030-0 01 1 1010-1010 ● ●
139 BOLT; BRKT
(F) M10X30 FLANGE 		0-28651-030-0 01 1 1010-1010 ● ●
139 BOLT; BRKT
(F) M10X30 FLANGE 		0-28651-030-0 01 1 1011-1109 ● ●
139 BOLT; BRKT
(F) M10X30 FLANGE 		0-28651-030-0 01 1 1011-1109 ● ●
139 BOLT; BRKT
WHEEL BASE 3700MM(37W) (F) M10X30 FLANGE 		0-28651-030-0 01 1 1011-1109 ●
139 BOLT; BRKT
(F) M10X30 FLANGE 		0-28651-030-0 01 1 1110- ● ●
139 BOLT; BRKT
(F) M10X30 FLANGE 		0-28651-030-0 01 1 1110- ● ●
139 BOLT; BRKT
(D) M8X25 FLANGE 		0-28050-825-0 02 1 1010- ● ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1010- ● ●
139 BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) M8X65 FLANGE 		1-09044-072-1 01 1 1010- ● ●
139 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X25 FLANGE 		0-28650-825-0 01 1 1010-1010 ● ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1010-1010 ● ●
139 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X25 FLANGE 		0-28650-825-0 01 1 1011- ● ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1011- ● ●
139 BOLT; BRKT
WHEEL BASE 3700MM(37W) (A) M8X25 FLANGE 		0-28650-825-0 01 1 1011- ●
150 BOLT; CLIP
(B) M6X20 FLANGE 		0-28050-620-0 02 1 1010- ● ●
150 BOLT; CLIP
(C) M8X12 FLANGE 		0-28050-812-0 01 1 1010- ● ●
150 BOLT; CLIP
POWER TAKE OFF-FLYWHEEL<6SZ> (C) M8X12 FLANGE 		0-28050-812-0 01 1 1010- ●
150 BOLT; CLIP
(A) M6X16 FLANGE 		0-28650-616-0 01 1 1010- ● ●
150 BOLT; CLIP
(D) M8X30 FLANGE 		0-28650-830-0 01 1 1010- ● ●
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1010- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 04 1 1010- ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1010- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1010- ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1010- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 1010- ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1010-1010 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1010-1010 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1010-1010 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1010-1010 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1011- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1011- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1011- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1011- ● ●
294 NUT
WHEEL BASE 3700MM(37W) (A) M8 FLANGE 		0-91180-108-0 01 1 1011- ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 03 1 1010- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 04 1 1010- ● ●
294 NUT
(B) M10 FLANGE 		0-91180-210-0 03 1 1010-1010 ● ●
294 NUT
(B) M10 FLANGE 		0-91180-210-0 01 1 1011- ● ●
294 NUT
(B) M10 FLANGE 		0-91180-210-0 02 1 1011- ● ●
313 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1010- ●
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 02 1 1010- ●
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1010- ● ●
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 01 1 1010- ● ●
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 1010- ● ●
386 BOLT; GRAND HARNESS
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 1010-1202 ● ●
386 BOLT; GRAND HARNESS
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1203- ● ●
515 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1010- ●
515 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1010- ● ●
524 NUT; HARNESS
(A) M6 FLANGE 		0-91180-106-0 04 1 1010- ● ●
524 NUT; HARNESS
(B) M10 FLANGE 		0-91180-110-0 01 1 1010- ● ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1010- ● ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1010- ● ●

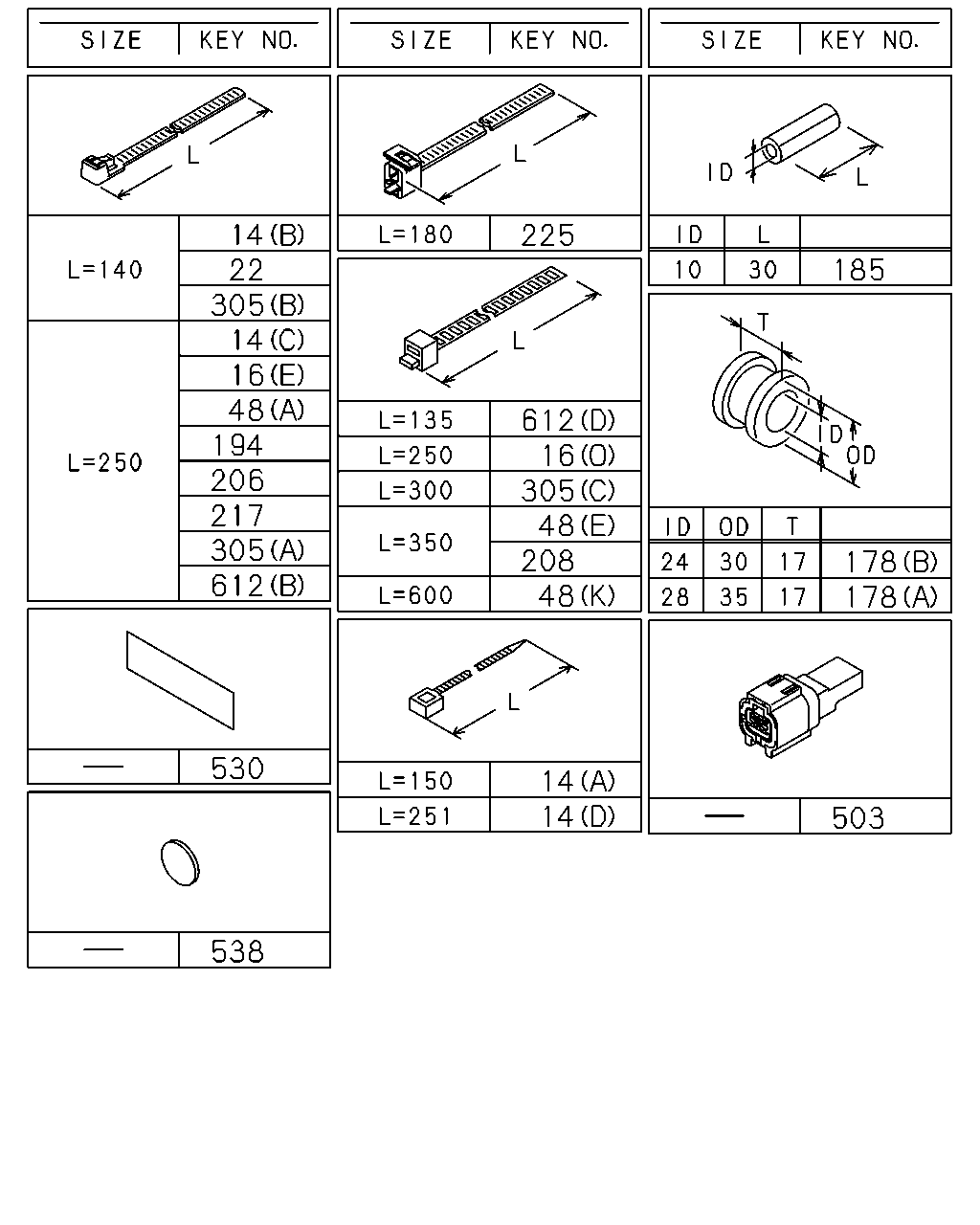

çizim 168883
14 22 305 14 16 48 194 206 217 305 612 225 185 612 16 305 48 208 48 178 178 530 14 14 503 538
BalonParca AdiParca NoAdetTipApplied Date A B
14 CLIP; BAND,HARNESS
POWER TAKE OFF-FLYWHEEL<6SZ> (B) L=140 		5-09707-031-1 05 1 1010- ●
14 CLIP; BAND,HARNESS
(C) L=250 		5-09707-030-1 01 1 1010- ●
14 CLIP; BAND,HARNESS
EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (C) L=250 		5-09707-030-1 01 1 1010- ●
14 CLIP; BAND,HARNESS
(A) L=150 		8-97355-273-0 02 1 1010- ●
14 CLIP; BAND,HARNESS
EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (A) L=150 		8-97355-273-0 02 1 1010- ●
14 CLIP; BAND,HARNESS
(D) L=251 		8-97619-917-0 01 1 1010- ● ●
14 CLIP; BAND,HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) L=140 		5-09707-031-1 02 1 1010-1107 ● ●
14 CLIP; BAND,HARNESS
(B) L=140 		5-09707-031-1 02 1 1010-1107 ●
14 CLIP; BAND,HARNESS
EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (B) L=140 		5-09707-031-1 02 1 1010-1107 ●
14 CLIP; BAND,HARNESS
(B) L=140 		5-09707-031-1 02 1 1108- ● ●
14 CLIP; BAND,HARNESS
(B) L=140 		5-09707-031-1 02 1 1108- ●
14 CLIP; BAND,HARNESS
EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (B) L=140 		5-09707-031-1 02 1 1108- ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1010- ●
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1010- ●
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 02 1 1010- ●
16 CLIP; HARNESS
(P) ID=11 L=16 		0-95235-025-0 02 1 1010- ● ●
16 CLIP; HARNESS
(N) ID=11X2 L=16 		1-09700-734-0 01 1 1010- ● ●
16 CLIP; HARNESS
(Q) ID=28 L=32 		1-09701-107-1 02 1 1010- ● ●
16 CLIP; HARNESS
(O) L=250 		1-09707-126-0 02 1 1010- ● ●
16 CLIP; HARNESS
(K) ID=10 & 10 		1-09709-277-1 04 1 1010- ● ●
16 CLIP; HARNESS
(M) ID=10 & 12 		1-09709-278-1 01 1 1010- ● ●
16 CLIP; HARNESS
(I) ID=5-12 L=18 		1-09709-287-0 02 1 1010- ● ●
16 CLIP; HARNESS
(H) ID=5-12 L=14.5 		1-09987-221-0 03 1 1010- ● ●
16 CLIP; HARNESS
(J) ID=19 H=21 L=24 		5-09700-360-0 01 1 1010- ● ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1010- ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1010- ● ●
16 CLIP; HARNESS
(D) L=40.6 		8-97229-357-0 02 1 1010- ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1010- ● ●
16 CLIP; HARNESS
EXC. H.S.A SYSTEM<6EP> (G) OD=9 H=6 		1-09709-178-0 01 1 1010- ● ●
16 CLIP; HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1010- ●
22 CLIP; ENG HARNESS
L=140 		5-09707-031-1 02 1 1010- ● ●
48 CLIP; FRAME HARNESS
(J) OD=9 H=9.5 		1-09709-179-0 01 1 1010- ● ●
48 CLIP; FRAME HARNESS
(N) ID=14 L=44 		9-09917-427-0 02 1 1202- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (N) ID=14 L=44 		9-09917-427-0 05 1 1110- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (D) ID=20 L=50 		9-09917-430-0 12 1 1110-1201 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (D) ID=20 L=50 		9-09917-430-0 11 1 1202- ●
48 CLIP; FRAME HARNESS
(G) ID=11 L=20 		0-95235-035-0 02 1 1010- ●
48 CLIP; FRAME HARNESS
(I) ID=19 L=28 		0-95235-856-0 02 1 1010- ●
48 CLIP; FRAME HARNESS
(M) ID=35 L=50 		1-09701-214-0 01 1 1010- ●
48 CLIP; FRAME HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (M) ID=35 L=50 		1-09701-214-0 01 1 1010- ●
48 CLIP; FRAME HARNESS
(C) ID=21 L=24 		8-94176-807-1 03 1 1010- ●
48 CLIP; FRAME HARNESS
(N) ID=14 L=44 		9-09917-427-0 06 1 1010- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (N) ID=14 L=44 		9-09917-427-0 06 1 1010- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5300MM(53W) (O) ID=18-24 L=22 		1-09709-295-0 01 1 1010- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5300MM(53W) (D) ID=20 L=50 		9-09917-430-0 13 1 1010-1201 ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 12 1 1202- ●
48 CLIP; FRAME HARNESS
(K) L=600 		1-09707-107-1 01 1 1010- ● ●
48 CLIP; FRAME HARNESS
(E) L=350 		1-09707-183-0 01 1 1010-1010 ● ●
48 CLIP; FRAME HARNESS
(E) L=350 		1-09707-183-0 01 1 1011-1109 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (E) L=350 		1-09707-183-0 01 1 1011-1109 ●
48 CLIP; FRAME HARNESS
(E) L=350 		1-09707-183-0 01 1 1110- ● ●
48 CLIP; FRAME HARNESS
(L) ID=5-12 L=14.5 		1-09987-221-0 03 1 1010- ● ●
48 CLIP; FRAME HARNESS
(H) ID=17.5X2 L=25 		5-09700-358-0 01 1 1010- ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 1010- ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 1010- ● ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 1010- ●
48 CLIP; FRAME HARNESS
(N) ID=14 L=44 		9-09917-427-0 04 1 1010- ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 02 1 1010-1201 ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 02 1 1010-1201 ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 02 1 1202- ●
48 CLIP; FRAME HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=32 L=50 		1-09701-055-1 01 1 1010- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4000MM(40W) (N) ID=14 L=44 		9-09917-427-0 07 1 1010- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (N) ID=14 L=44 		9-09917-427-0 10 1 1010- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5300MM(53W) (N) ID=14 L=44 		9-09917-427-0 13 1 1010- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5300MM(53W) (P) ID=13-18 L=22 		1-09709-292-0 01 1 1010- ●
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=17 		9-09956-092-1 01 1 1010- ● ●
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=17 		9-09956-092-1 02 1 1010- ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 04 1 1010- ● ●
185 SLEEVE; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 01 1 1010- ● ●
194 CLIP; BAND
L=250 		5-09707-030-1 02 1 1010- ●
206 CLIP; FUEL TANK HARNESS
L=250 		5-09707-030-1 03 1 1010- ● ●
208 CLIP; HARNESS,MAG VLV
L=350 		1-09707-183-0 01 1 1010- ● ●
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 1010- ● ●
225 CLIP; AIR TANK HARNESS
L=180 		1-09707-162-1 01 1 1010- ● ●
305 CLIP; ENG HARNESS
(C) L=300 		1-09707-001-1 01 1 1010- ● ●
305 CLIP; ENG HARNESS
(B) L=140 		5-09707-031-1 02 1 1010- ● ●
305 CLIP; ENG HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=250 		5-09707-030-1 01 1 1010- ● ●
305 CLIP; ENG HARNESS
(A) L=250 		5-09707-030-1 01 1 1010- ● ●
503 CONNECTOR
EXC. H.S.A SYSTEM<6EP> 		1-82691-191-0 01 1 1010- ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 14 1 1010-1305 ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 15 1 1306- ● ●
530 SEAL; HARNESS
100X40 		1-72498-022-1 06 1 1010-1305 ● ●
530 SEAL; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) 180X40 		1-72498-019-1 01 1 1306- ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 01 1 1306- ● ●
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 1010- ● ●
612 CLIP; HARNESS DPD
(A) ID=11 L=41 		1-09700-403-0 01 1 1010- ● ●
612 CLIP; HARNESS DPD
(C) ID=4.76 & 10.0 		1-09709-305-0 03 1 1010- ● ●
612 CLIP; HARNESS DPD
(D) L=135 		1-09987-143-1 01 1 1010- ● ●
612 CLIP; HARNESS DPD
(B) L=250 		5-09707-030-1 01 1 1010- ● ●

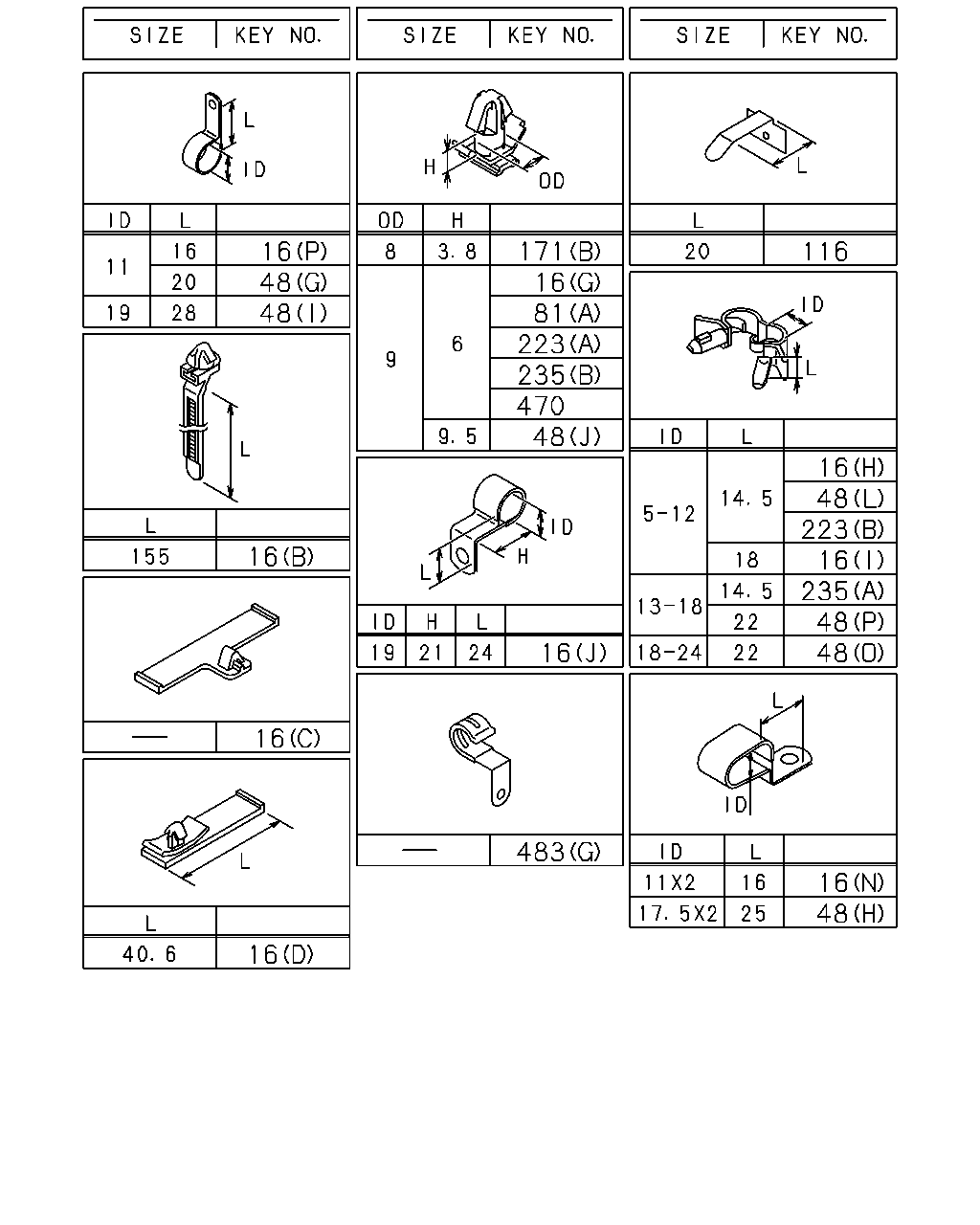

çizim 168884
16 48 48 171 16 81 223 235 470 48 116 16 48 223 16 235 48 48 16 16 16 483 16 48 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1010- ●
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1010- ●
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 02 1 1010- ●
16 CLIP; HARNESS
(P) ID=11 L=16 		0-95235-025-0 02 1 1010- ● ●
16 CLIP; HARNESS
(N) ID=11X2 L=16 		1-09700-734-0 01 1 1010- ● ●
16 CLIP; HARNESS
(Q) ID=28 L=32 		1-09701-107-1 02 1 1010- ● ●
16 CLIP; HARNESS
(O) L=250 		1-09707-126-0 02 1 1010- ● ●
16 CLIP; HARNESS
(K) ID=10 & 10 		1-09709-277-1 04 1 1010- ● ●
16 CLIP; HARNESS
(M) ID=10 & 12 		1-09709-278-1 01 1 1010- ● ●
16 CLIP; HARNESS
(I) ID=5-12 L=18 		1-09709-287-0 02 1 1010- ● ●
16 CLIP; HARNESS
(H) ID=5-12 L=14.5 		1-09987-221-0 03 1 1010- ● ●
16 CLIP; HARNESS
(J) ID=19 H=21 L=24 		5-09700-360-0 01 1 1010- ● ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1010- ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1010- ● ●
16 CLIP; HARNESS
(D) L=40.6 		8-97229-357-0 02 1 1010- ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1010- ● ●
16 CLIP; HARNESS
EXC. H.S.A SYSTEM<6EP> (G) OD=9 H=6 		1-09709-178-0 01 1 1010- ● ●
16 CLIP; HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1010- ●
48 CLIP; FRAME HARNESS
(J) OD=9 H=9.5 		1-09709-179-0 01 1 1010- ● ●
48 CLIP; FRAME HARNESS
(N) ID=14 L=44 		9-09917-427-0 02 1 1202- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (N) ID=14 L=44 		9-09917-427-0 05 1 1110- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (D) ID=20 L=50 		9-09917-430-0 12 1 1110-1201 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (D) ID=20 L=50 		9-09917-430-0 11 1 1202- ●
48 CLIP; FRAME HARNESS
(G) ID=11 L=20 		0-95235-035-0 02 1 1010- ●
48 CLIP; FRAME HARNESS
(I) ID=19 L=28 		0-95235-856-0 02 1 1010- ●
48 CLIP; FRAME HARNESS
(M) ID=35 L=50 		1-09701-214-0 01 1 1010- ●
48 CLIP; FRAME HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (M) ID=35 L=50 		1-09701-214-0 01 1 1010- ●
48 CLIP; FRAME HARNESS
(C) ID=21 L=24 		8-94176-807-1 03 1 1010- ●
48 CLIP; FRAME HARNESS
(N) ID=14 L=44 		9-09917-427-0 06 1 1010- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (N) ID=14 L=44 		9-09917-427-0 06 1 1010- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5300MM(53W) (O) ID=18-24 L=22 		1-09709-295-0 01 1 1010- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5300MM(53W) (D) ID=20 L=50 		9-09917-430-0 13 1 1010-1201 ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 12 1 1202- ●
48 CLIP; FRAME HARNESS
(K) L=600 		1-09707-107-1 01 1 1010- ● ●
48 CLIP; FRAME HARNESS
(E) L=350 		1-09707-183-0 01 1 1010-1010 ● ●
48 CLIP; FRAME HARNESS
(E) L=350 		1-09707-183-0 01 1 1011-1109 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (E) L=350 		1-09707-183-0 01 1 1011-1109 ●
48 CLIP; FRAME HARNESS
(E) L=350 		1-09707-183-0 01 1 1110- ● ●
48 CLIP; FRAME HARNESS
(L) ID=5-12 L=14.5 		1-09987-221-0 03 1 1010- ● ●
48 CLIP; FRAME HARNESS
(H) ID=17.5X2 L=25 		5-09700-358-0 01 1 1010- ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 1010- ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 02 1 1010- ● ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 1010- ●
48 CLIP; FRAME HARNESS
(N) ID=14 L=44 		9-09917-427-0 04 1 1010- ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 02 1 1010-1201 ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 02 1 1010-1201 ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 02 1 1202- ●
48 CLIP; FRAME HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=32 L=50 		1-09701-055-1 01 1 1010- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4000MM(40W) (N) ID=14 L=44 		9-09917-427-0 07 1 1010- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (N) ID=14 L=44 		9-09917-427-0 10 1 1010- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5300MM(53W) (N) ID=14 L=44 		9-09917-427-0 13 1 1010- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5300MM(53W) (P) ID=13-18 L=22 		1-09709-292-0 01 1 1010- ●
81 CLIP; HARNESS
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6 		1-09709-178-0 01 1 1010-1010 ● ●
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6 		1-09709-178-0 01 1 1011- ● ●
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0 		1-09709-274-1 02 1 1010- ● ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 04 1 1010- ● ●
171 CLIP; STARTER HARNESS
(B) OD=8 H=3.8 		1-09709-309-0 01 1 1010-1102 ● ●
171 CLIP; STARTER HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) OD=8 H=3.8 		1-09709-309-0 01 1 1103- ● ●
171 CLIP; STARTER HARNESS
(A) 		8-97101-436-0 01 1 1010- ● ●
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 03 1 1010- ● ●
223 CLIP; AIR TANK HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 04 1 1010- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) OD=9 H=6 		1-09709-178-0 02 1 1010- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) ID=13-18 L=14.5 		1-09709-290-0 01 1 1010- ● ●
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 1010-1205 ● ●
470 CLIP; HARNESS,LICENSE LAMP
COUNTRY NEW ZEALAND(CX6) OD=9 H=6 		1-09709-178-0 01 1 1206- ● ●
483 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL<6SZ> (C) L=36 		8-94224-891-1 02 1 1010- ●
483 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL<6SZ> (I) 		8-97101-436-0 01 1 1010- ●
483 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL<6SZ> (J) ID=18 L=44 		8-97367-985-1 02 1 1010- ●
483 CLIP; ENG HARNESS
(D) ID=18 H=23 L=28 		1-09700-860-0 01 1 1010- ● ●
483 CLIP; ENG HARNESS
(A) ID=28 L=32 		1-09701-107-1 01 1 1010- ● ●
483 CLIP; ENG HARNESS
(B) ID=21 L=24 		1-09701-201-0 01 1 1010- ● ●
483 CLIP; ENG HARNESS
(G) 		1-09987-281-0 01 1 1010- ● ●
483 CLIP; ENG HARNESS
(E) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 1010- ● ●
483 CLIP; ENG HARNESS
(H) ID=18 L=25 		8-94121-004-1 01 1 1010- ● ●
483 CLIP; ENG HARNESS
(F) ID=21 L=47.5 		8-94178-108-0 01 1 1010- ● ●
483 CLIP; ENG HARNESS
(C) L=36 		8-94224-891-1 01 1 1010- ●
483 CLIP; ENG HARNESS
EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (C) L=36 		8-94224-891-1 01 1 1010- ●

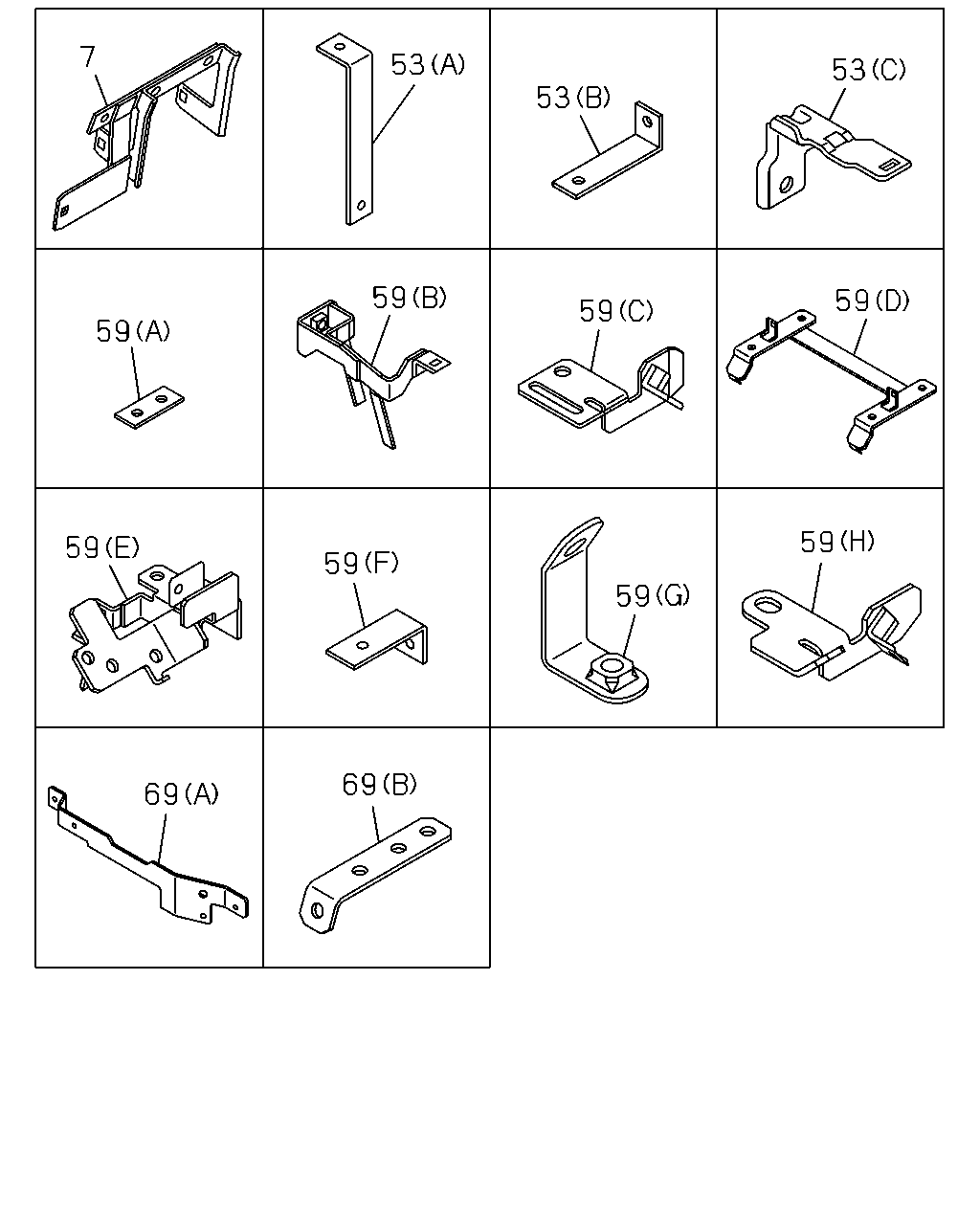

çizim 168887
7 53 53 53 59 59 59 59 59 59 59 59 69 69
BalonParca AdiParca NoAdetTipApplied Date A B
7 BRACKET; CONNECTOR 8-98049-798-1 01 1 1010- ● ●
53 BRACKET; HARNESS
(A) L=145 		1-47475-655-0 02 1 1010- ●
53 BRACKET; HARNESS
(A) L=145 		1-47475-655-0 02 1 1010- ●
53 BRACKET; HARNESS
(B) L=95 		1-82699-085-0 01 1 1010- ●
53 BRACKET; HARNESS
(C) 		8-98052-458-0 01 1 1010- ● ●
59 BRACKET; FRAME HARNESS
WHEEL BASE 3700MM(37W) (F) L=40 		1-47478-410-0 01 1 1011- ●
59 BRACKET; FRAME HARNESS
WHEEL BASE 3700MM(37W) (G) 		8-98117-686-0 01 1 1011-1109 ●
59 BRACKET; FRAME HARNESS
(C) 		8-97616-305-0 01 1 1010-1502 ● ●
59 BRACKET; FRAME HARNESS
(H) 		8-98254-592-0 01 1 1503- ● ●
59 BRACKET; FRAME HARNESS
(D) 		8-97619-533-0 01 1 1010- ● ●
59 BRACKET; FRAME HARNESS
(E) 		8-97619-535-0 01 1 1010- ● ●
59 BRACKET; FRAME HARNESS
(B) 		8-98099-963-0 01 1 1010- ● ●
59 BRACKET; FRAME HARNESS
(A) L=85 		8-98044-743-0 01 1 1010- ● ●
69 BRACKET; CLIP
(A) 		8-97614-738-0 01 1 1010- ● ●
69 BRACKET; CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		1-82698-167-0 01 1 1010- ● ●

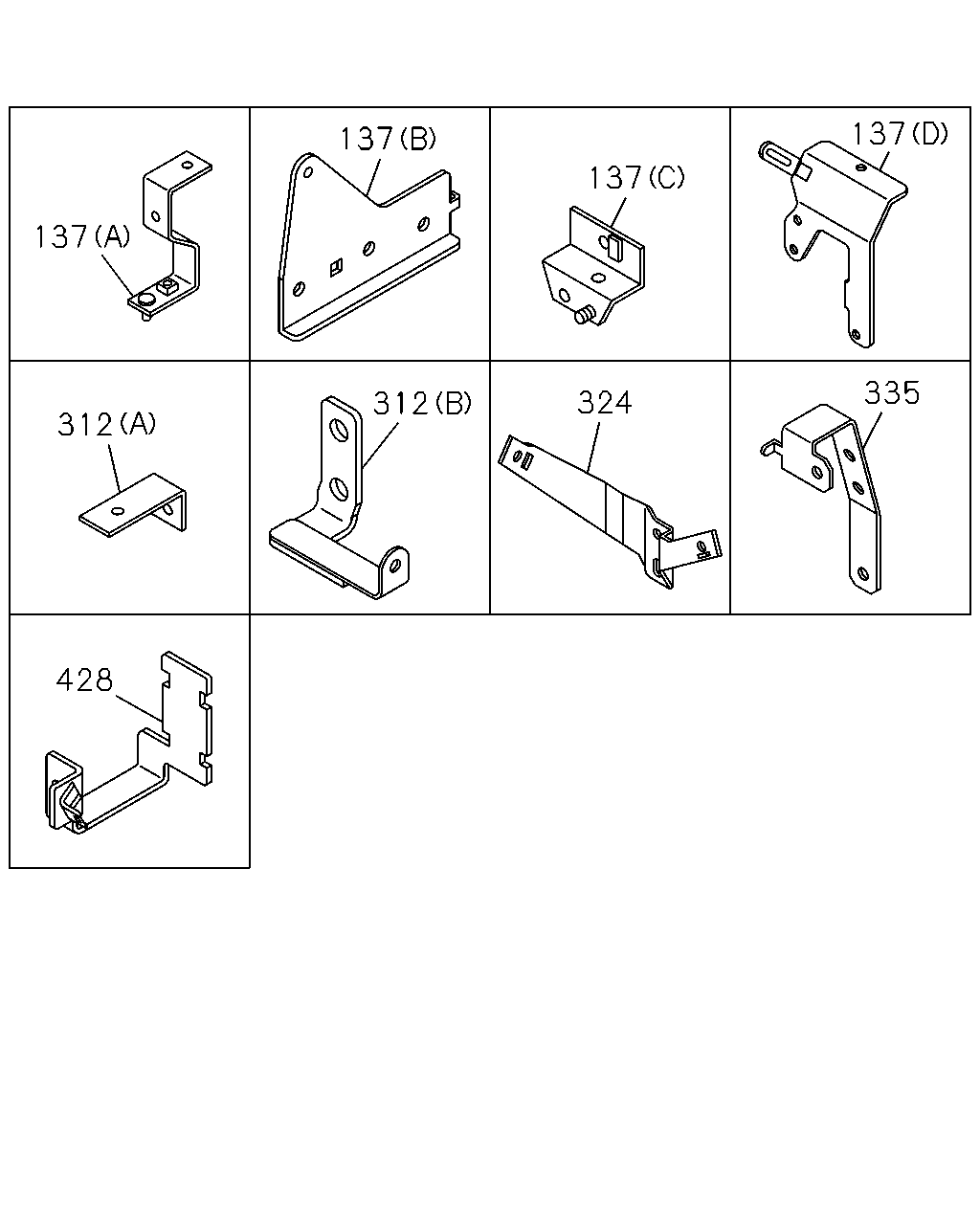

çizim 168958
137 137 137 137 335 324 312 428 312
BalonParca AdiParca NoAdetTipApplied Date A B
137 BRACKET; HARNESS CLAMP
(B) 		8-97624-016-0 01 1 1010- ● ●
137 BRACKET; HARNESS CLAMP
(A) 		8-98065-904-0 01 1 1010- ● ●
137 BRACKET; HARNESS CLAMP
(C) 		8-98058-354-1 01 1 1010- ● ●
137 BRACKET; HARNESS CLAMP
(D) 		8-97618-098-2 01 1 1010- ● ●
312 BRACKET; CLIP HARNESS
(A) L=55 		1-47475-304-0 01 1 1010- ● ●
312 BRACKET; CLIP HARNESS
(B) 		8-98094-804-0 01 1 1010- ● ●
324 BRACKET; CLIP 8-98061-654-2 01 1 1010- ● ●
324 BRACKET; CLIP 8-98061-653-2 01 1 1010- ● ●
335 BRACKET; CONNECTOR 8-97619-097-1 01 1 1010- ● ●
428 BRACKET 8-98116-461-0 01 1 1010- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
