◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11303 - FRR AUST/NZ EURO5 SPACECAB ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#59958) — 137 parça

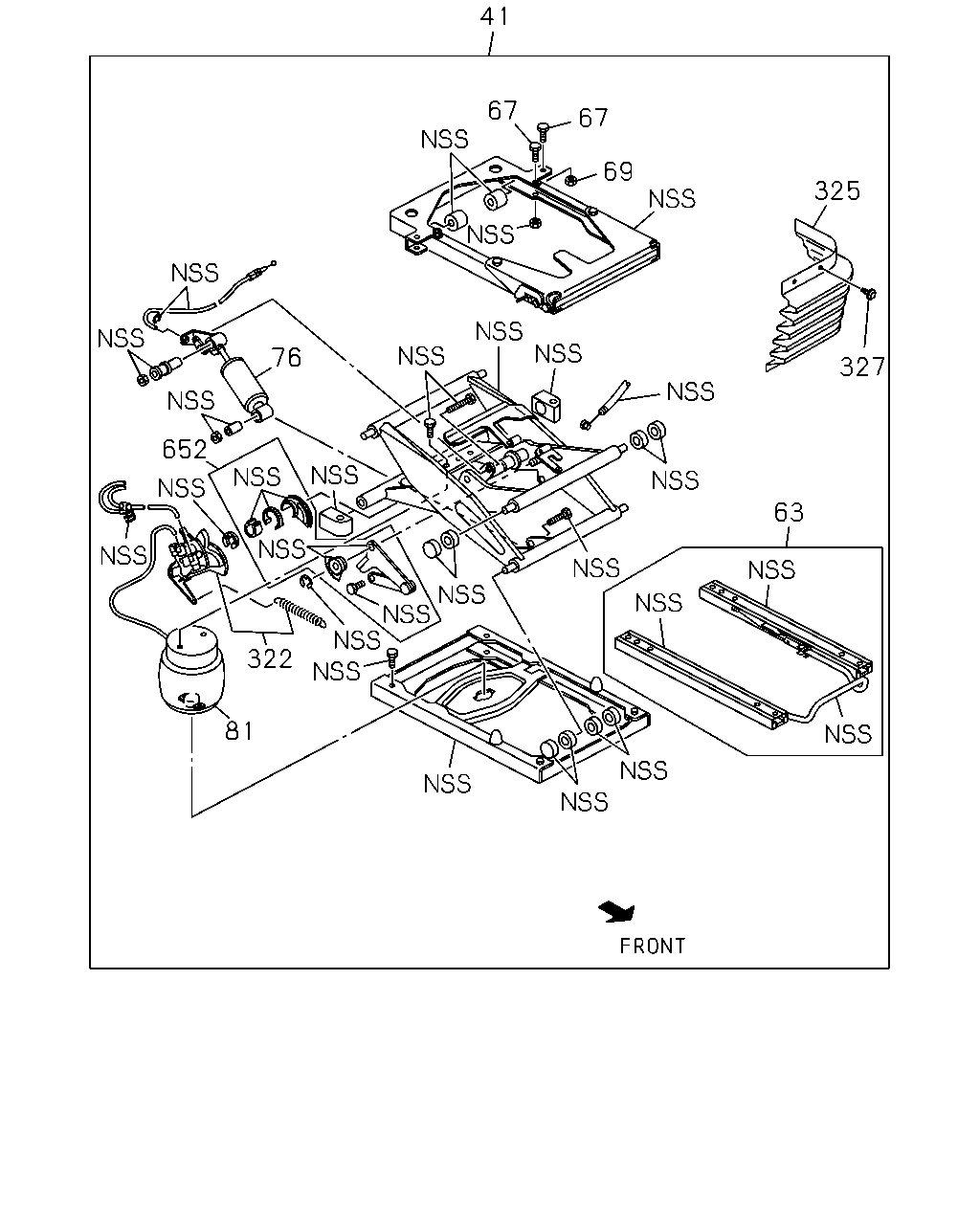

çizim 168829
41 67 67 69 325 327 63 1 652 76 322
BalonParca AdiParca NoAdetTipApplied Date A B
1 BACK ASM; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-964-0 01 1 1010-1508 ● ●
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98046-984-2 01 1 1010-1212 ● ●
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-063-0 01 1 1301-1508 ● ●
63 ADJUSTER; SEAT SLIDE
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-005-0 01 1 1010-1508 ● ●
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE 		0-28451-020-0 02 1 1010- ● ●
69 NUT; FRT SEAT
M10 FLANGE 		0-91180-110-0 02 1 1010- ● ●
76 DAMPER; AIR SUSP
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-999-0 01 1 1010-1508 ● ●
81 SPRING; AIR
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-000-0 01 1 1010-1508 ● ●
322 VALVE; AIR SPRING
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-001-0 01 1 1010-1508 ● ●
325 COVER; SUSPENSION DEVICE
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-003-0 01 1 1010-1508 ● ●
327 CLIP; COVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-004-0 01 1 1010-1508 ● ●
652 LOCK ASM; HEIGHT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-002-0 01 1 1010-1508 ● ●

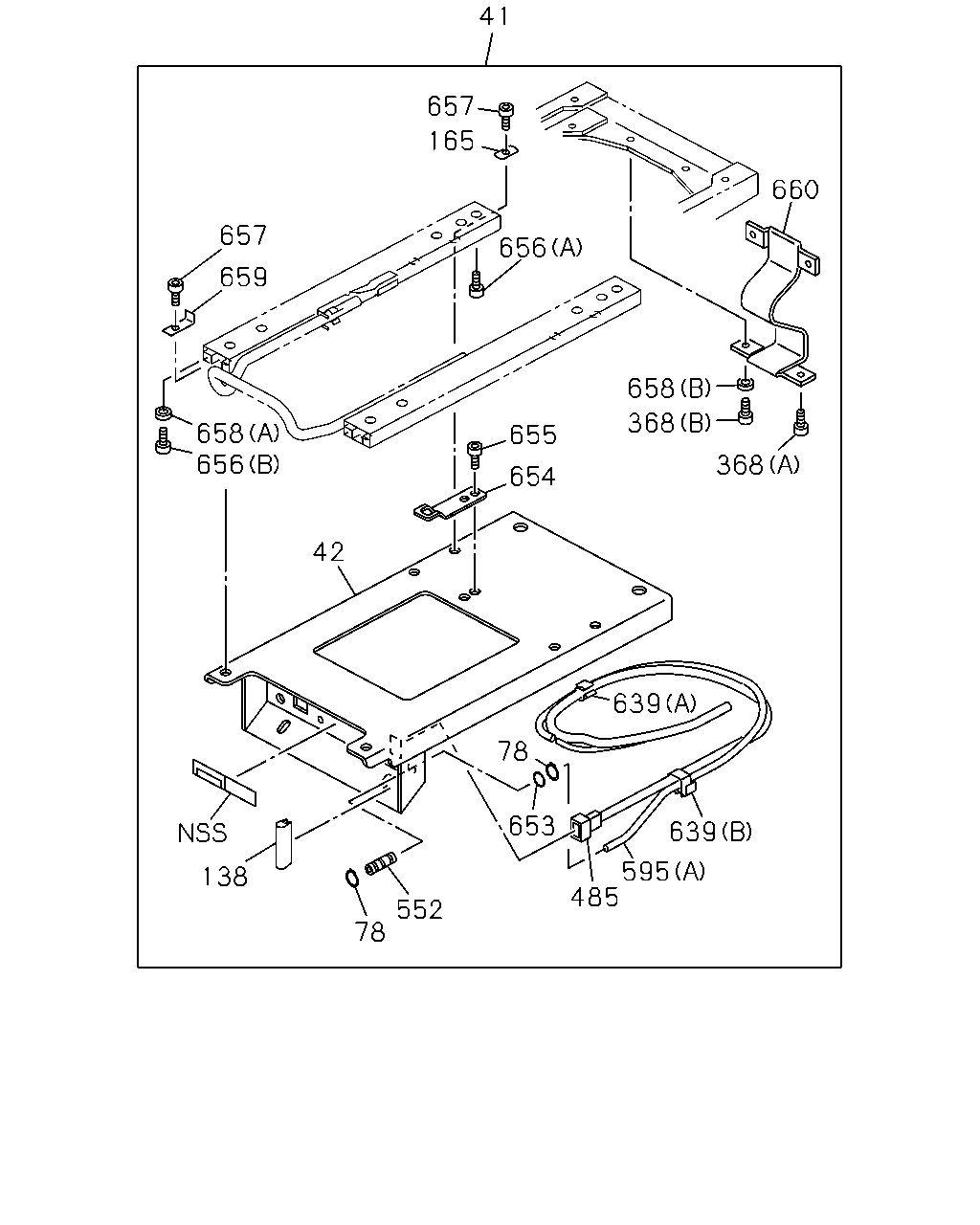

çizim 168835
595 485 639 653 78 639 552 78 138 42 654 655 368 658 368 660 656 165 657 41 656 658 659 657
BalonParca AdiParca NoAdetTipApplied Date A B
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98046-984-2 01 1 1010-1212 ● ●
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-063-0 01 1 1301-1508 ● ●
42 STAND; DRIVER SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-346-0 01 1 1010-1508 ● ●
78 RING; SNAP
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98101-900-0 02 1 1010-1508 ● ●
81 SPRING; AIR
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-000-0 01 1 1010-1508 ● ●
138 PROTECTOR; SEAT STAND
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-351-0 01 1 1010-1508 ● ●
165 WASHER; PL
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		1-75590-086-0 04 1 1010-1508 ● ●
368 BOLT; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98106-353-0 03 1 1010-1508 ● ●
368 BOLT; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (B) 		8-98106-358-0 01 1 1010-1508 ● ●
485 HARNESS; FRT SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-360-0 01 1 1010-1508 ● ●
552 CONNECTOR
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98101-902-0 01 1 1010-1508 ● ●
595 TUBE; NYLON
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98106-348-0 01 1 1010-1508 ● ●
595 TUBE; NYLON
(B) 		8-98067-762-0 01 1 1010- ● ●
639 CLIP; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98106-349-0 01 1 1010-1508 ● ●
639 CLIP; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (B) 		8-98106-350-0 01 1 1010-1508 ● ●
653 GASKET
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98101-901-0 01 1 1010-1508 ● ●
654 HOOK; STOPPER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-352-0 01 1 1010-1508 ● ●
655 BOLT; HOOK
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-353-0 02 1 1010-1508 ● ●
656 BOLT; SLIDER TO SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		1-75590-085-0 04 1 1010-1508 ● ●
656 BOLT; SLIDER TO SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (B) 		8-98106-354-0 02 1 1010-1508 ● ●
657 BOLT; SLIDER TO STAND
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		1-75590-085-0 06 1 1010-1508 ● ●
658 SPACER; BOLT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98106-355-0 02 1 1010-1508 ● ●
658 SPACER; BOLT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (B) 		8-98106-359-0 01 1 1010-1508 ● ●
659 STOPPER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-356-0 02 1 1010-1508 ● ●
660 BELT; TETHER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-357-0 01 1 1010-1508 ● ●

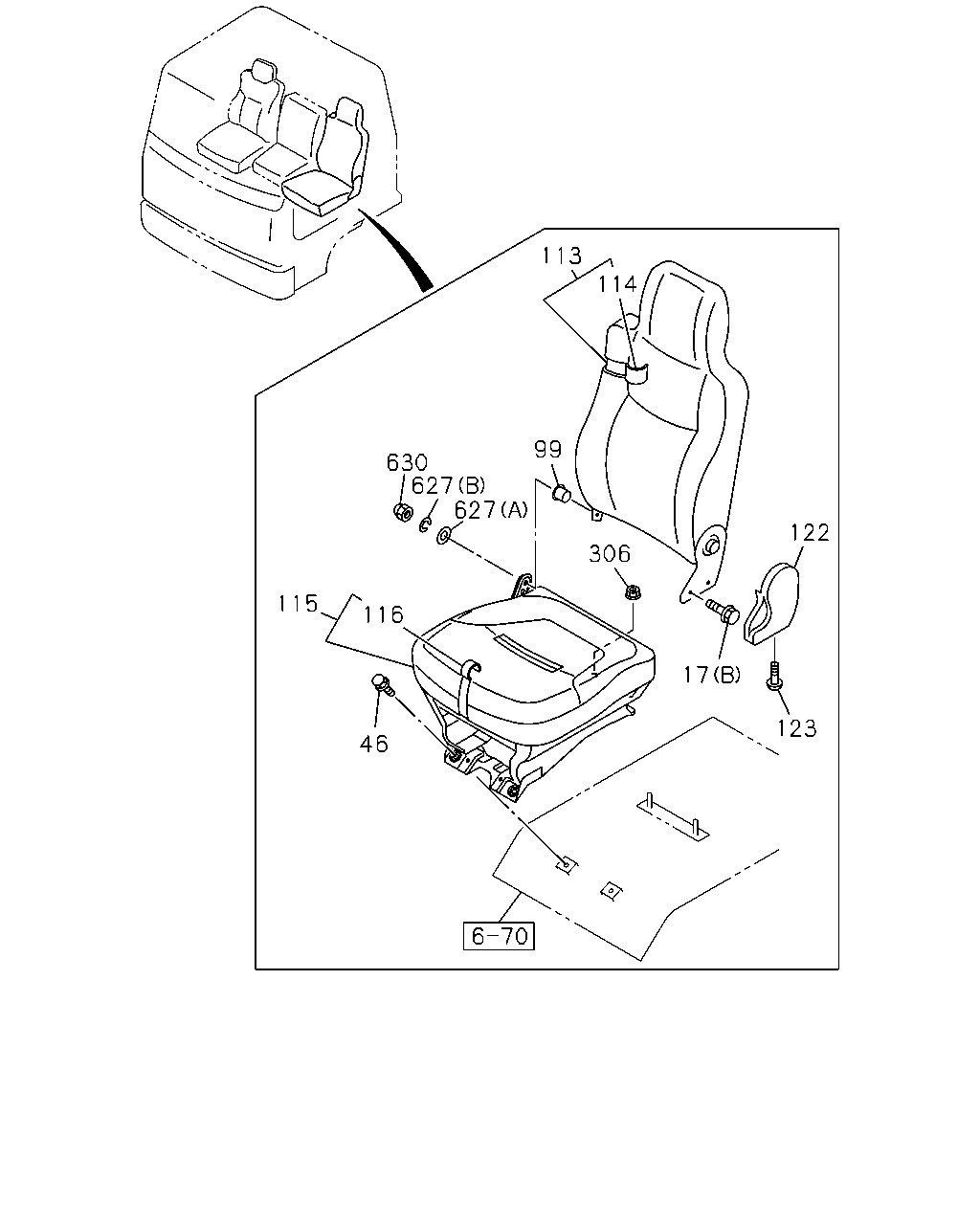

çizim 168838
113 99 114 630 627 306 122 123 17 46 115 116 627
BalonParca AdiParca NoAdetTipApplied Date A B
17 BOLT; RECLINING
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-974-0 02 1 1010-1508 ● ●
17 BOLT; RECLINING
(B) M8X20 		8-98092-334-0 02 1 1010- ● ●
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 1010- ● ●
81 SPRING; AIR
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-000-0 01 1 1010-1508 ● ●
99 BUSHING; SEAT BACK 8-98063-219-0 01 1 1010-1010 ● ●
99 BUSHING; SEAT BACK 8-98112-751-0 01 1 1010- ● ●
113 BACK ASM; SEAT
DARK GRAY 		8-97416-221-0 01 1 1010-1010 ● ●
113 BACK ASM; SEAT
DARK GRAY 		8-97421-422-0 01 1 1010- ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97416-223-0 01 1 1010-1010 ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97421-424-0 01 1 1010- ● ●
115 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97416-225-0 01 1 1010-1010 ● ●
115 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97421-418-1 01 1 1010- ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DARK GRAY 		8-97416-227-0 01 1 1010-1010 ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DARK GRAY 		8-97421-420-0 01 1 1010- ● ●
122 COVER; ADJ,RECLINING
GRAY 		8-97409-967-0 01 1 1010- ● ●
123 SCREW; COVER,RECLINING 8-98070-026-0 01 1 1010- ● ●
306 NUT; SEAT ADJ
M10 FLANGE 		0-91180-110-0 02 1 1010- ● ●
627 WASHER; FRT SEAT
(A) 		8-98063-223-0 01 1 1010- ● ●
627 WASHER; FRT SEAT
(B) 		8-98063-224-0 01 1 1010- ● ●
630 NUT; CAP
M8 		8-98063-225-0 01 1 1010- ● ●

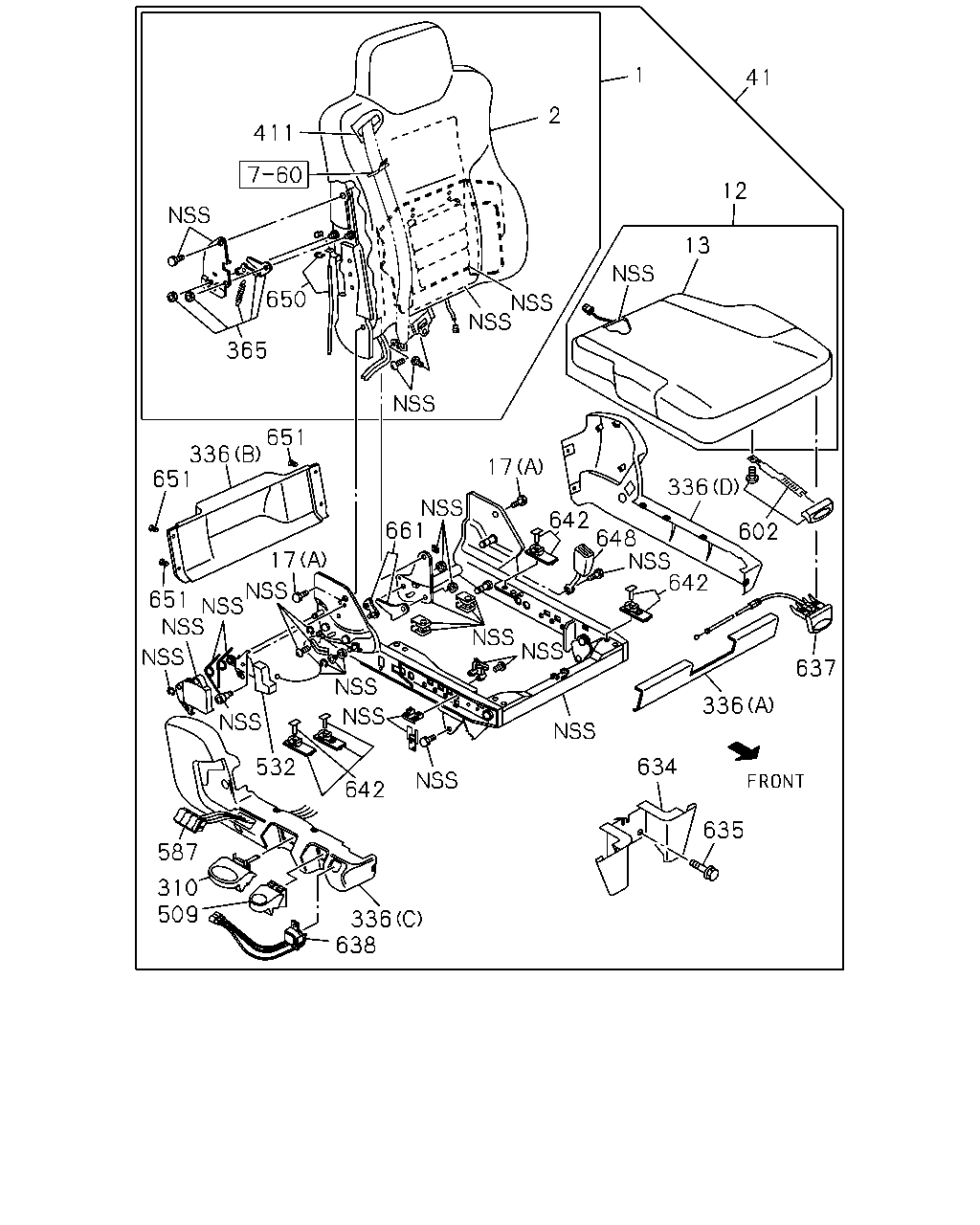

çizim 168839
41 12 1 2 13 336 642 602 637 336 635 634 648 642 17 411 365 650 651 336 651 17 661 642 532 651 587 310 336 638 509
BalonParca AdiParca NoAdetTipApplied Date A B
1 BACK ASM; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-964-0 01 1 1010-1508 ● ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-966-0 01 1 1010-1212 ● ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98232-353-0 01 1 1301-1508 ● ●
12 CUSHION; SEAT,FRT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-006-0 01 1 1010-1508 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-007-0 01 1 1010-1508 ● ●
17 BOLT; RECLINING
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-974-0 02 1 1010-1508 ● ●
17 BOLT; RECLINING
(B) M8X20 		8-98092-334-0 02 1 1010- ● ●
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98046-984-2 01 1 1010-1212 ● ●
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-063-0 01 1 1301-1508 ● ●
81 SPRING; AIR
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-000-0 01 1 1010-1508 ● ●
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-992-0 01 1 1010-1508 ● ●
336 COVER; DRIVER SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (D) 		8-98097-978-0 01 1 1010-1508 ● ●
336 COVER; DRIVER SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (C) 		8-98097-984-0 01 1 1010-1508 ● ●
336 COVER; DRIVER SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-995-0 01 1 1010-1508 ● ●
336 COVER; DRIVER SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (B) 		8-98097-996-0 01 1 1010-1508 ● ●
365 LOCK ASM; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-972-0 01 1 1010-1508 ● ●
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72538-312-0 01 1 1010- ● ●
411 GUIDE; SEAT BELT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-967-0 01 1 1010-1508 ● ●
509 LEVER; DAMPER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-988-0 01 1 1010-1508 ● ●
532 LEVER ASM; TILT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-982-0 01 1 1010-1508 ● ●
587 VALVE; LUMBAR SUPPORT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-986-0 01 1 1010-1508 ● ●
602 KNOB; ADJ,SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-008-0 01 1 1010-1508 ● ●
634 COVER; CONNECTOR,SEAT 8-98088-279-0 01 1 1010- ● ●
635 BOLT; COVER
M6X16 		0-52000-616-0 02 1 1010- ● ●
637 LEVER; SLOPE ADJ
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-989-0 01 1 1010-1508 ● ●
638 VALVE; LOWERING
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-994-0 01 1 1010-1508 ● ●
642 SLIDER; CUSHION
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98192-932-0 04 1 1010-1508 ● ●
648 BUCKLE; SEAT BELT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-976-0 01 1 1010-1508 ● ●
650 CABLE
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-973-0 01 1 1010-1212 ● ●
650 CABLE
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98232-354-0 01 1 1301-1508 ● ●
651 RIVET
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98194-075-0 04 1 1010-1508 ● ●
661 LOCK ASM; RECLINING
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-980-0 01 1 1010-1508 ● ●

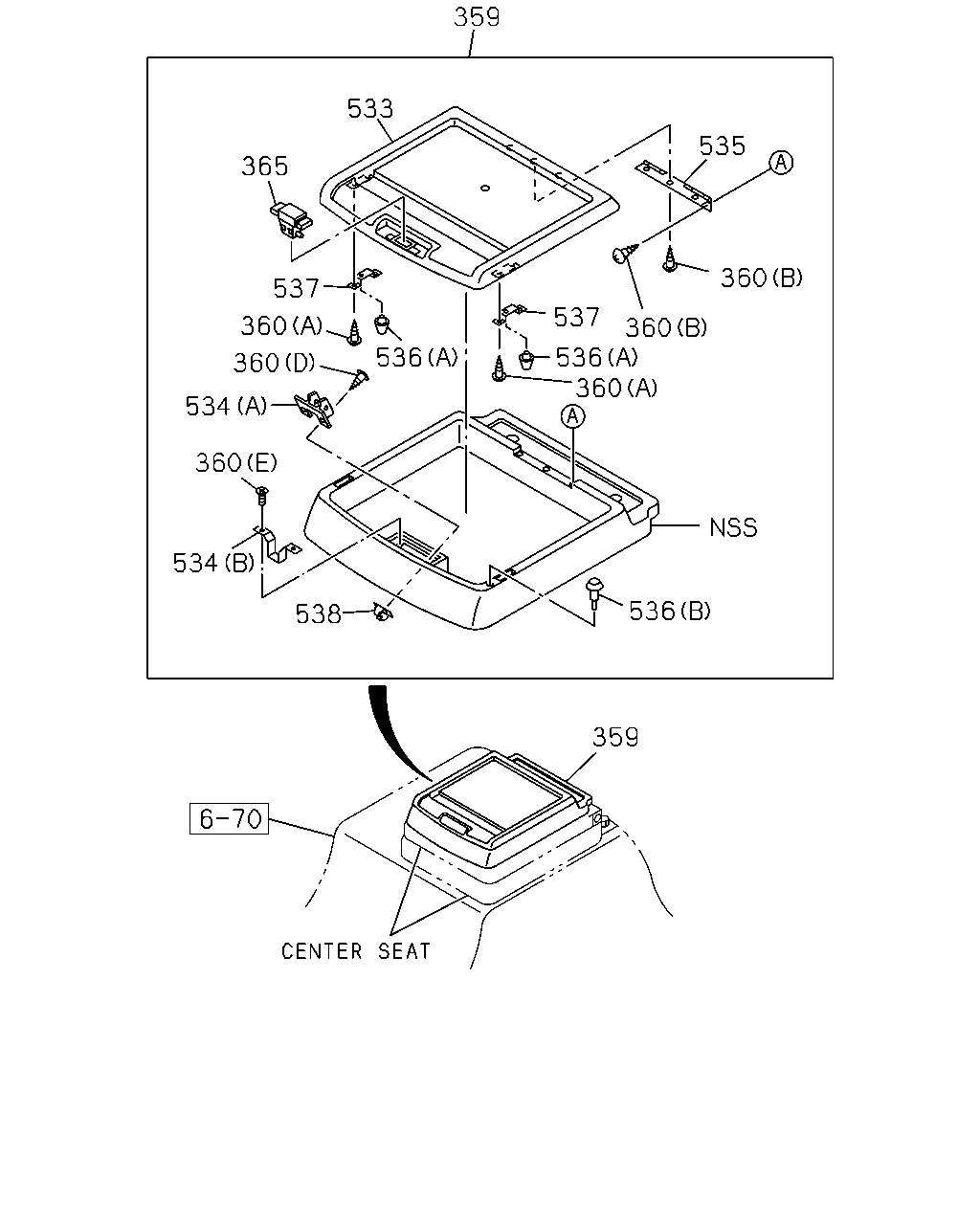

çizim 168848
359 535 360 360 537 536 360 536 533 365 537 360 360 534 360 534 538 536 359
BalonParca AdiParca NoAdetTipApplied Date A B
81 SPRING; AIR
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-000-0 01 1 1010-1508 ● ●
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-261-0 01 1 1010- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 1010-1010 ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1010- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 1010- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 1010-1110 ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5 		8-98062-663-0 04 1 1111- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (D) M5X20 		9-09829-324-1 02 1 1010-1010 ● ●
365 LOCK ASM; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-972-0 01 1 1010-1508 ● ●
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72538-312-0 01 1 1010- ● ●
533 LID; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-263-0 01 1 1010- ● ●
534 STRIKER; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> (A) 		1-72538-181-0 01 1 1010-1010 ● ●
534 STRIKER; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-190-0 01 1 1010- ● ●
535 HINGE; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72447-391-1 01 1 1010- ● ●
536 RUBBER; CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> (A) 		5-09983-002-1 02 1 1010-1010 ● ●
536 RUBBER; CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-187-0 02 1 1010- ● ●
537 BRACKET; RUBBER
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72548-057-1 02 1 1010-1010 ● ●
538 GROMMET; SCREW
SEAT ASM - WITH CENTER SEAT<7BC> 		1-09983-165-0 02 1 1010-1010 ● ●
çizim 168852
506 360 175 188 176 126 359 403 16 188 179 182 403
BalonParca AdiParca NoAdetTipApplied Date A B
16 ADJUSTER ASM; RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> 		1-75418-062-1 01 1 1010- ● ●
81 SPRING; AIR
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-000-0 01 1 1010-1508 ● ●
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> 		8-97854-900-0 01 1 1010- ● ●
175 BACK ASM; PASSENGER CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97416-233-0 01 1 1010-1010 ● ●
175 BACK ASM; PASSENGER CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-434-1 01 1 1010- ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97416-234-0 01 1 1010-1010 ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-435-1 01 1 1010- ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97416-237-0 01 1 1010-1010 ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-432-1 01 1 1010- ● ●
182 CUSHION ASM; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97416-235-0 01 1 1010-1010 ● ●
182 CUSHION ASM; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-430-3 01 1 1010- ● ●
188 BOLT; BACK TO CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE 		1-75198-053-0 04 1 1010- ● ●
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-261-0 01 1 1010- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 1010-1010 ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1010- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 1010- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 1010-1110 ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5 		8-98062-663-0 04 1 1111- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (D) M5X20 		9-09829-324-1 02 1 1010-1010 ● ●
403 NUT; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> M8 FLANGE 		0-91180-108-0 04 1 1010- ● ●
506 CAP; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-980-1 02 1 1010- ● ●

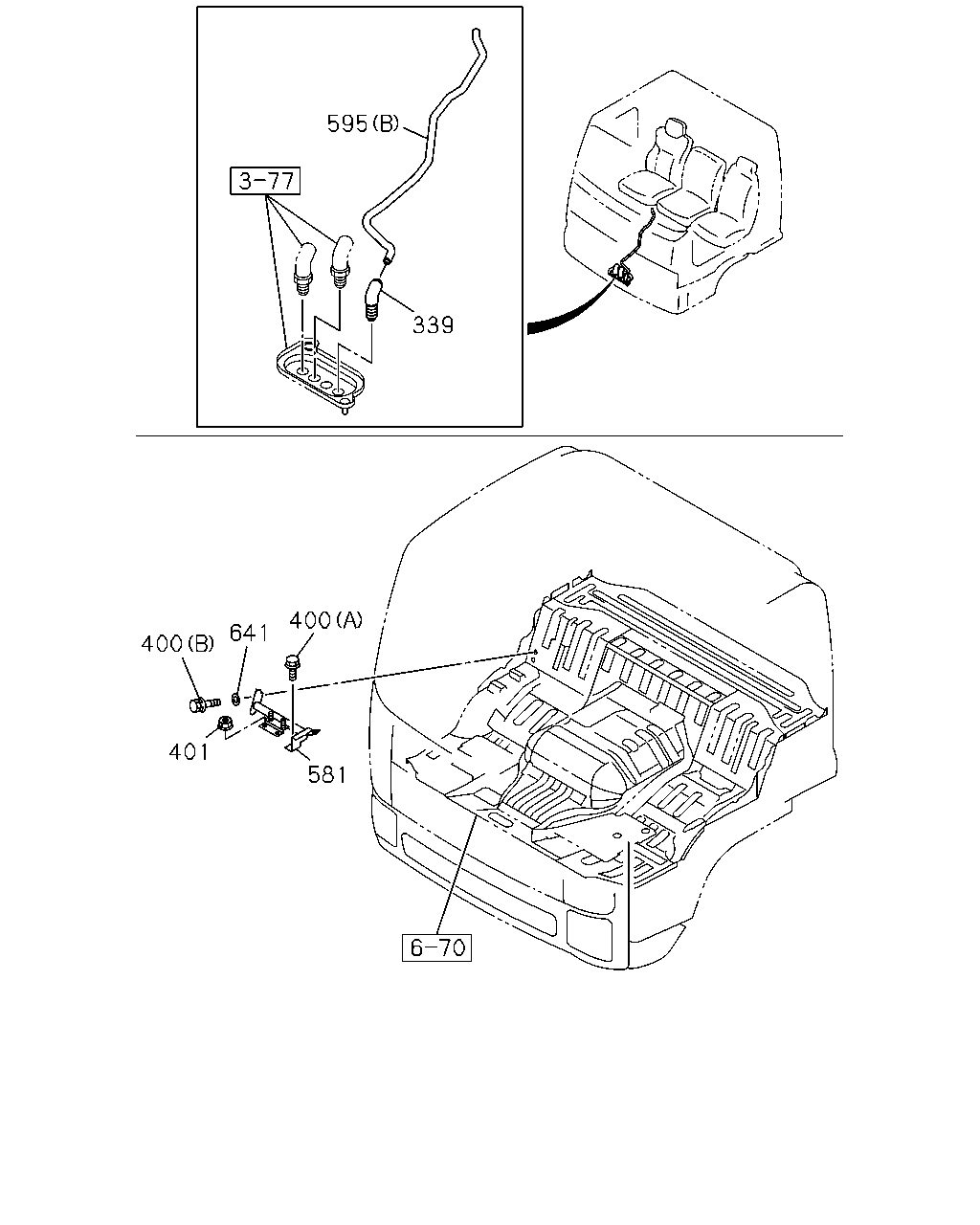

çizim 320068
595 339 400 641 400 401 581
BalonParca AdiParca NoAdetTipApplied Date A B
81 SPRING; AIR
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-000-0 01 1 1010-1508 ● ●
339 UNION; DRIVER SEAT 8-98014-971-0 01 1 1010- ● ●
400 BOLT; SUPPORT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1010- ● ●
400 BOLT; SUPPORT
(B) 		8-98098-996-0 02 1 1010- ● ●
401 NUT; SUPPORT
M10 FLANGE 		0-91180-110-0 02 1 1010- ● ●
581 PIPE; SEAT 8-97589-692-3 01 1 1010- ● ●
595 TUBE; NYLON
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98106-348-0 01 1 1010-1508 ● ●
595 TUBE; NYLON
(B) 		8-98067-762-0 01 1 1010- ● ●
641 WASHER; SUPPORT 8-98099-007-0 02 1 1010- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
