◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11303 - FRR AUST/NZ EURO5 SPACECAB ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶

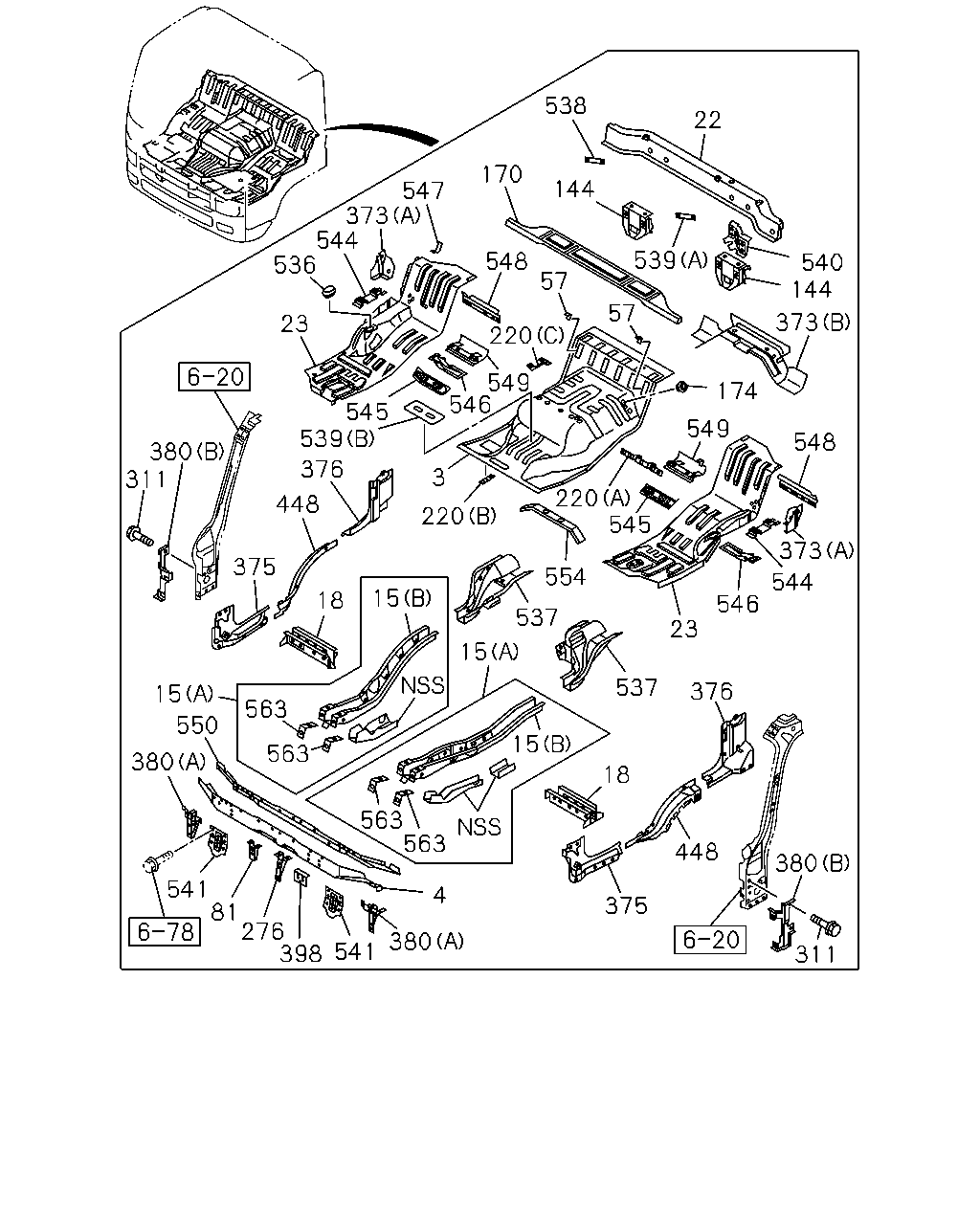

6-70 — FLOOR PANEL (#59942) — 59 parça
çizim 168939
4 380 541 398 276 81 541 380 550 15 563 563 563 563 15 15 18 375 448 380 311 376 537 23 546 544 373 548 549 545 220 174 373 144 540 22 539 57 144 538 170 548 57 220 549 546 3 220 554 537 15 18 375 311 380 448 376 539 545 23 536 544 373 547
BalonParca AdiParca NoAdetTipApplied Date A B
3 HOOD ASM; ENG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98081-356-4 01 1 1010- ● ●
3 HOOD ASM; ENG
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98167-037-0 01 1 1010- ● ●
4 FRAME; FLOOR,FRT 8-98073-692-1 01 1 1010- ● ●
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 1010- ● ●
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 1010- ● ●
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 1010- ● ●
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 1010- ● ●
18 FRAME; FLOOR,CENTER SIDE 8-97584-397-5 01 1 1010- ● ●
18 FRAME; FLOOR,CENTER SIDE 8-97584-420-4 01 1 1010- ● ●
22 FRAME; FLOOR REAR 8-97584-430-5 01 1 1010- ● ●
23 PANEL; FLOOR,SIDE 8-97584-371-7 01 1 1010- ● ●
23 PANEL; FLOOR,SIDE 8-98073-690-1 01 1 1010- ● ●
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 1010- ● ●
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1010- ● ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1010- ● ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1010- ● ●
170 EXTENSION; RR FLOOR 8-97589-204-3 01 1 1010- ● ●
174 GROMMET; AIR PIPE
OD=35 		8-94122-971-0 01 1 1010- ● ●
220 PATCH
(A) 		8-97588-840-4 01 1 1010- ● ●
220 PATCH
(B) 		8-97589-603-3 01 1 1010- ● ●
220 PATCH
(C) 		8-97589-627-2 01 1 1010- ● ●
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 1010- ● ●
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1010- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1010- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1010- ● ●
373 REINFORCEMENT; SEAT BELT
(B) 		8-98081-349-3 01 1 1010-1507 ● ●
373 REINFORCEMENT; SEAT BELT
(B) 		8-98228-266-0 01 1 1508- ● ●
375 CLOSING; PILLAR 8-98044-897-3 01 1 1010- ● ●
375 CLOSING; PILLAR 8-98044-898-3 01 1 1010- ● ●
376 CLOSING; PILLAR,LWR 8-97589-553-1 01 1 1010- ● ●
376 CLOSING; PILLAR,LWR 8-97589-555-1 01 1 1010- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 1010- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 1010- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 1010- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 1010- ● ●
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1010- ● ●
448 CLOSING; ROCKER 8-97589-551-2 01 1 1010- ● ●
448 CLOSING; ROCKER 8-97589-552-2 01 1 1010- ● ●
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1010- ● ●
537 SUPPORT ASM; MTG RR 8-97584-390-4 01 1 1010- ● ●
537 SUPPORT ASM; MTG RR 8-97584-416-4 01 1 1010- ● ●
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 1010- ● ●
539 PATCH ASM; SAFTY HOOK
KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98131-661-0 01 1 1406- ●
539 PATCH ASM; SAFTY HOOK
(A) 		8-97584-440-2 01 1 1010- ● ●
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1010- ● ●
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1010- ● ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1010- ● ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1010- ● ●
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 1010- ● ●
545 BRACKET; SEAT FRT 8-98050-186-0 01 1 1010- ● ●
546 REINFORCEMENT; FLOOR SIDE 8-97584-426-0 02 1 1010- ● ●
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 1010- ● ●
548 BRACKET; MUD GUARD 8-97588-964-1 01 1 1010- ● ●
548 BRACKET; MUD GUARD 8-97588-965-1 01 1 1010- ● ●
549 BRACKET; SEAT RR 8-97588-958-4 01 1 1010- ● ●
549 BRACKET; SEAT RR 8-98050-187-1 01 1 1010- ● ●
550 CLOSING ASM; MTG,FRT 8-97584-458-4 01 1 1010- ● ●
554 REINFORCEMENT; FLOOR CENTER 8-97584-351-2 01 1 1010- ● ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1010- ● ●
