◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11303 - FRR AUST/NZ EURO5 SPACECAB ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶
6-66 — HEAD LINING AND TRIM (#59941) — 13 parça

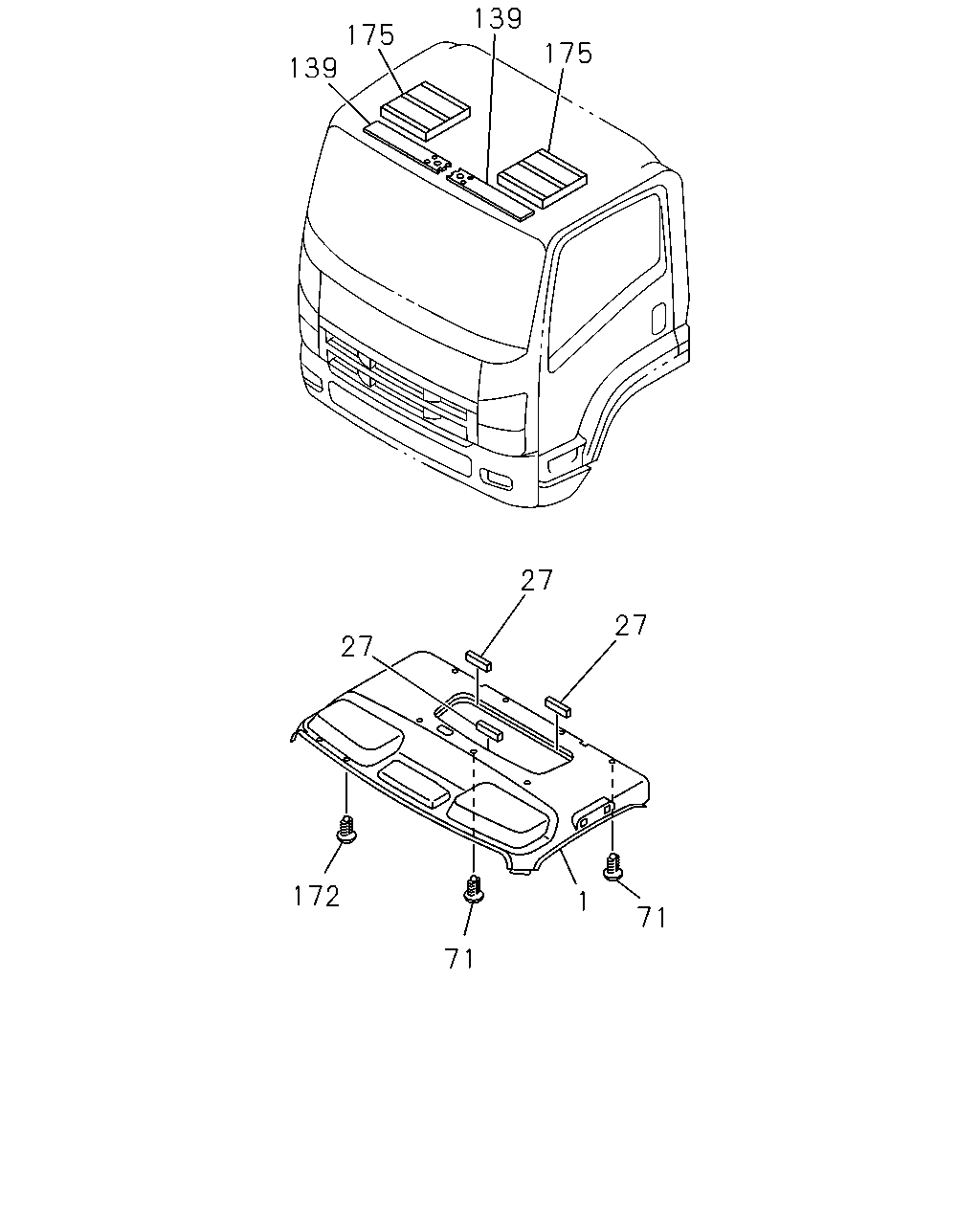

çizim 168943
139 175 139 175 27 27 27 172 1 71 71
BalonParca AdiParca NoAdetTipApplied Date A B
1 LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. RR VIEW MIRROR<D31>,3-SPEAKER SYSTEM FRT<NNR> DARK GRAY 		8-97416-353-0 01 1 1010-1306 ● ●
1 LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. RR VIEW MIRROR<D31>,3-SPEAKER SYSTEM FRT<NNR> DARK GRAY 		8-97426-674-0 01 1 1307- ● ●
1 LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> 3-SPEAKER SYSTEM FRT<NNR> EXC. RR VIEW MIRROR<D31> DARK GRAY 		8-97416-355-0 01 1 1010-1306 ● ●
1 LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> 3-SPEAKER SYSTEM FRT<NNR> EXC. RR VIEW MIRROR<D31> DARK GRAY 		8-97426-676-0 01 1 1307- ● ●
1 LINING; HD
RR VIEW MIRROR<D31> HEADER CONSOLE DRIVER & PASSENGER<EDG> 3-SPEAKER SYSTEM FRT<NNR> DARK GRAY 		8-97416-356-0 01 1 1010-1306 ● ●
1 LINING; HD
RR VIEW MIRROR<D31> HEADER CONSOLE DRIVER & PASSENGER<EDG> 3-SPEAKER SYSTEM FRT<NNR> DARK GRAY 		8-97426-677-0 01 1 1307- ● ●
1 LINING; HD
RR VIEW MIRROR<D31> HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. 3-SPEAKER SYSTEM FRT<NNR> DARK GRAY 		8-97416-351-0 01 1 1010-1306 ● ●
1 LINING; HD
RR VIEW MIRROR<D31> HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. 3-SPEAKER SYSTEM FRT<NNR> DARK GRAY 		8-97426-672-0 01 1 1307- ● ●
27 INSULATION; ROOF 8-98046-638-2 03 1 1010- ● ●
71 FASTENER; HD LINING
DARK GRAY 		8-97405-282-0 07 1 1010- ● ●
139 SEAL; ROOF 8-98169-116-0 02 1 1010- ● ●
172 RETAINER; HEAD LINING
DARK GRAY 		8-97411-875-0 14 1 1010- ● ●
175 CUSHION; HEAD LINING 8-98030-965-2 02 1 1010- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
