◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11303 - FRR AUST/NZ EURO5 SPACECAB ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-47 - MUD GUARD AND INSULATOR ▶
6-47 — MUD GUARD AND INSULATOR (#59939) — 50 parça

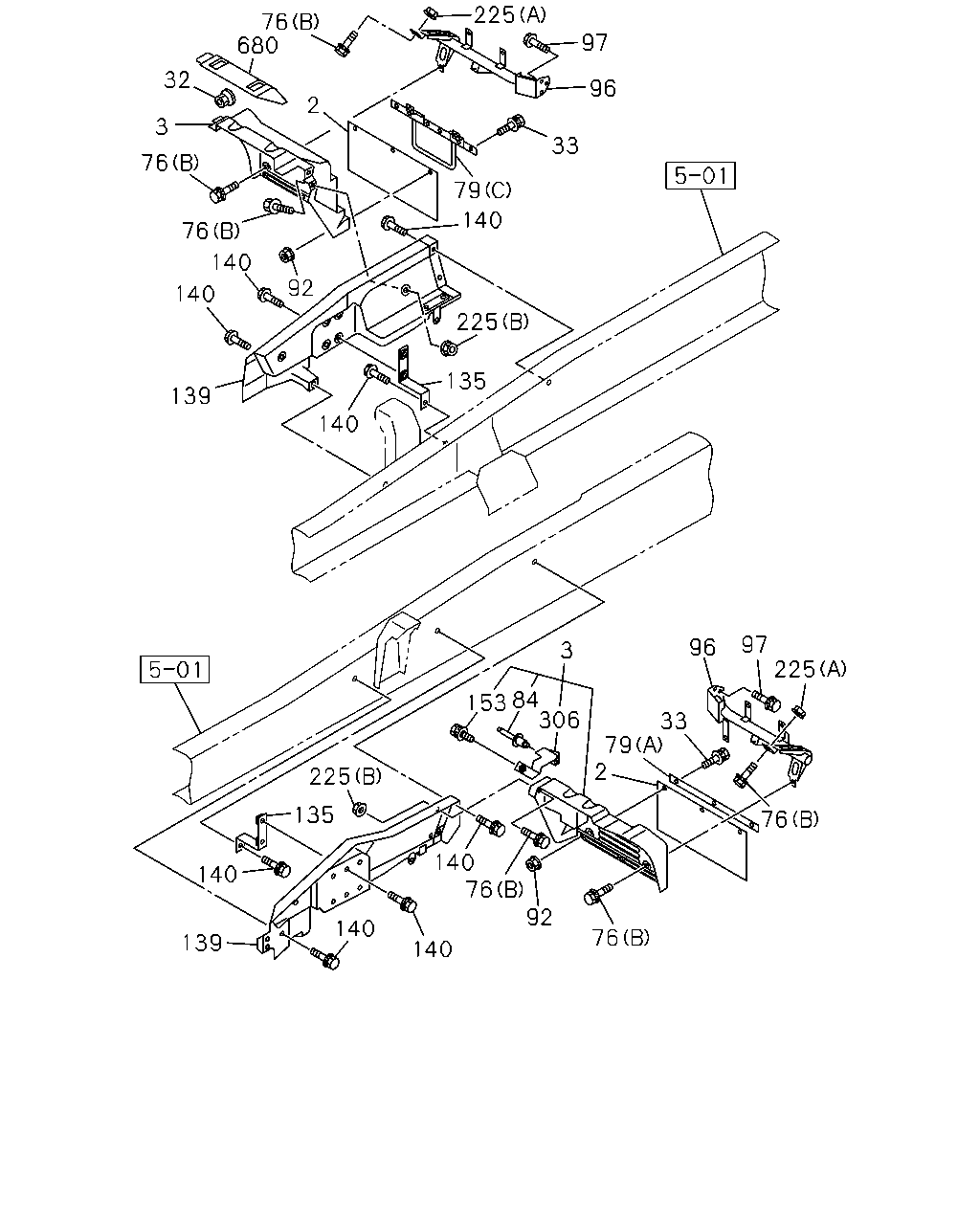

çizim 168897
76 680 32 3 2 76 76 140 139 140 225 97 96 33 79 140 225 135 140 3 96 225 97 33 79 2 76 92 76 76 140 140 140 140 135 225 153 306 84 92 139
BalonParca AdiParca NoAdetTipApplied Date A B
2 COVER; MUD,TIRE RR 1-79931-482-0 02 1 1010- ● ●
3 GUARD; MUD,RR 1-79931-471-0 01 1 1010-1212 ● ●
3 GUARD; MUD,RR 8-98196-103-0 01 1 1301- ● ●
3 GUARD; MUD,RR 1-79931-472-2 01 1 1010-1302 ● ●
3 GUARD; MUD,RR 8-98219-764-0 01 1 1303- ● ●
32 NUT; MUD GUARD
M8 W/DISHED WASHER 		8-97329-625-0 02 1 1010- ● ●
33 BOLT; MUD COVER
M6X20 W/LK&PL WASHER 		1-09980-495-0 06 1 1010- ● ●
76 BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 1010-1211 ● ●
76 BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER 		1-09030-095-0 08 1 1212- ● ●
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		8-94331-747-1 08 1 1010- ● ●
79 RETAINER; MUD COVER
(B) 		8-98041-217-1 02 1 1010- ● ●
79 RETAINER; MUD COVER
(A) 		1-79931-484-0 01 1 1010- ● ●
79 RETAINER; MUD COVER
(C) 		8-98105-000-0 01 1 1010- ● ●
84 RIVET; MUD GUARD 5-09734-006-1 02 1 1301- ● ●
92 NUT; MUD COVER
M6 FLANGE 		0-91180-106-0 06 1 1010- ● ●
96 STAY; MUD GUARD 8-98066-745-2 01 1 1010- ● ●
96 STAY; MUD GUARD 1-79931-479-3 01 1 1010- ● ●
97 BOLT; STAY TO FRAME
M10X30 FLANGE 		0-28651-030-0 07 1 1010- ● ●
135 BRACKET; SIDE PANEL 1-53457-191-0 02 1 1010- ● ●
139 PANEL; SIDE 8-98090-078-0 01 1 1010- ● ●
139 PANEL; SIDE 8-98090-077-0 01 1 1010- ● ●
140 BOLT; SIDE PANEL
M8X30 W/LK&PL WASHER 		1-09030-095-0 10 1 1010- ● ●
153 BOLT; BRKT
M8X25 W/LK&PL WASHER 		1-09030-093-0 01 1 1301- ● ●
225 NUT; MUD GUARD
(A) M8 FLANGE 		0-91180-108-0 02 1 1010- ● ●
225 NUT; MUD GUARD
(B) M8 W/DISHED WASHER 		8-97329-625-0 02 1 1010- ● ●
306 BRACKET; MUD GUARD 8-98196-125-0 01 1 1301- ● ●
680 GUARD; MUD,UPPER 1-79931-477-1 01 1 1010- ● ●

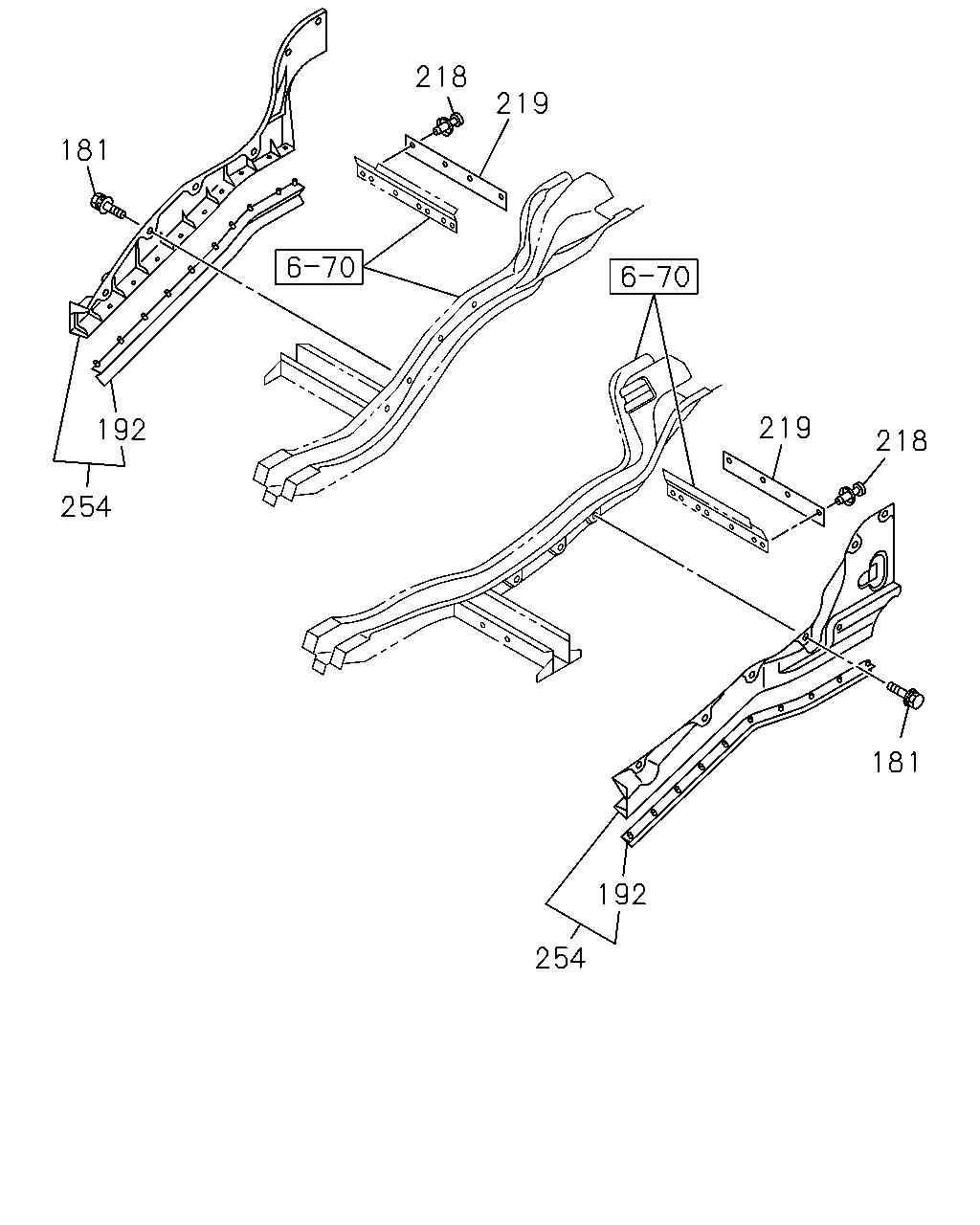

çizim 168899
218 219 181 219 192 218 254 181 192 254
BalonParca AdiParca NoAdetTipApplied Date A B
181 BOLT; COVER,SIDE
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 12 1 1010- ● ●
192 SEAL; MUD COVER 8-98041-157-2 01 1 1010- ● ●
192 SEAL; MUD COVER 8-98041-156-2 01 1 1010- ● ●
218 FASTENER; RUBBER
D8X13.5 		1-09987-248-1 08 1 1010- ● ●
219 FLAP; MUD GUARD 8-98041-148-1 02 1 1010- ● ●
254 COVER; MUD,VALANCE 8-98039-918-1 01 1 1010- ● ●
254 COVER; MUD,VALANCE 8-98039-917-2 01 1 1010- ● ●

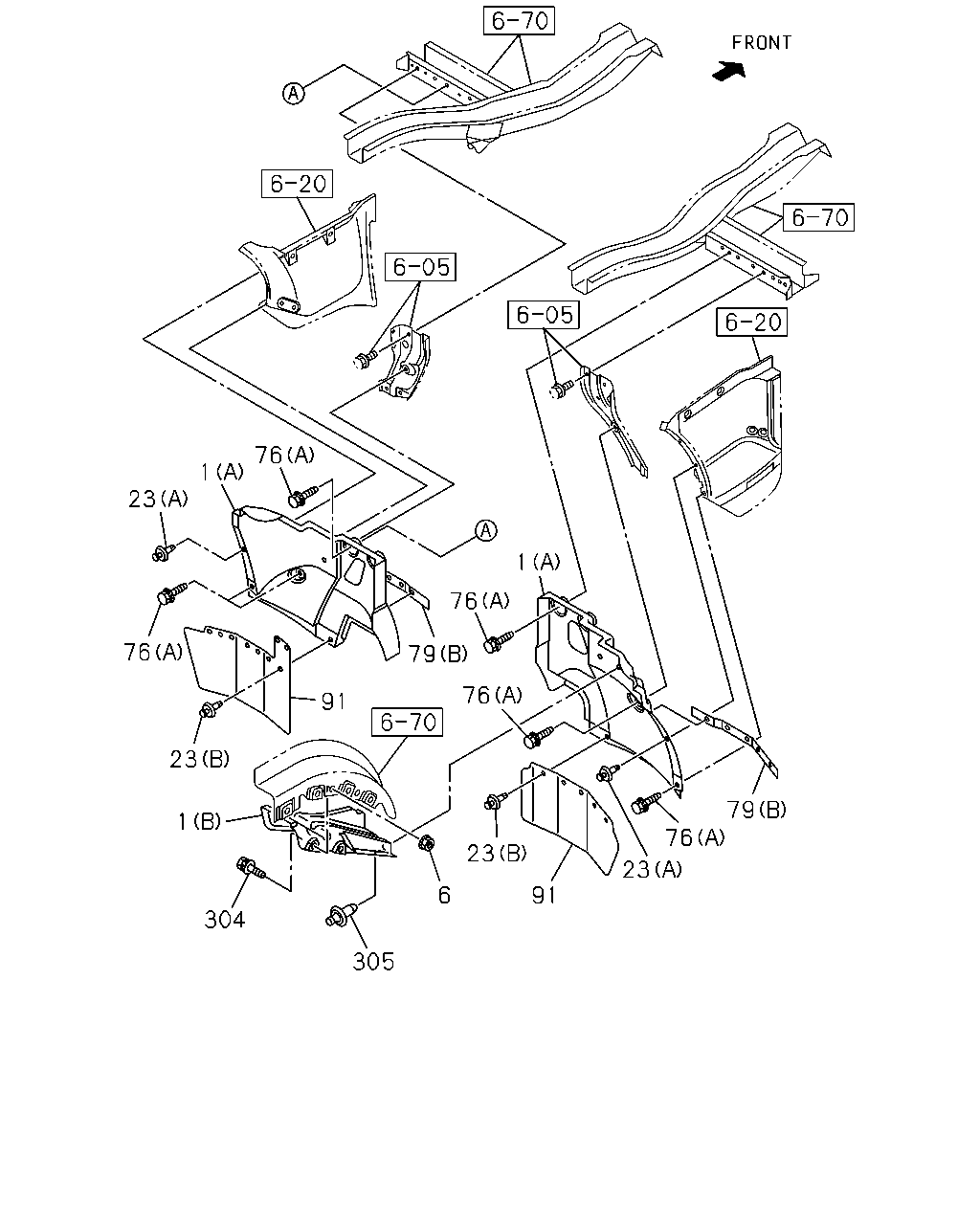

çizim 168902
76 1 23 1 76 76 79 76 91 23 79 1 76 23 23 6 91 304 305
BalonParca AdiParca NoAdetTipApplied Date A B
1 GUARD; MUD,FRT
DUMP CONTROL LEVER<RC4> (B) 		8-98075-188-0 01 1 1010- ● ●
1 GUARD; MUD,FRT
(A) 		8-98152-647-0 01 1 1010- ● ●
1 GUARD; MUD,FRT
(A) 		8-98152-646-0 01 1 1010- ● ●
6 NUT; SPLASH GUARD
DUMP CONTROL LEVER<RC4> M6 FLANGE 		8-94197-199-0 02 1 1010- ● ●
23 FASTENER; MUD COVER
(B) 		1-09470-001-0 08 1 1010- ● ●
23 FASTENER; MUD COVER
(A) D8X13.5 		1-09987-248-1 04 1 1010- ● ●
76 BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 1010-1211 ● ●
76 BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER 		1-09030-095-0 08 1 1212- ● ●
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		8-94331-747-1 08 1 1010- ● ●
79 RETAINER; MUD COVER
(B) 		8-98041-217-1 02 1 1010- ● ●
79 RETAINER; MUD COVER
(A) 		1-79931-484-0 01 1 1010- ● ●
79 RETAINER; MUD COVER
(C) 		8-98105-000-0 01 1 1010- ● ●
91 COVER; MUD,FRT 8-98093-464-0 01 1 1010- ● ●
91 COVER; MUD,FRT 8-98093-463-0 01 1 1010- ● ●
304 BOLT; SPLASH GUARD
DUMP CONTROL LEVER<RC4> M6X20 W/LK&PL WASHER 		1-09980-495-0 02 1 1010- ● ●
305 FASTENER; SPLASH GUARD
DUMP CONTROL LEVER<RC4> D8X13.5 		1-09987-248-1 02 1 1010- ● ●
