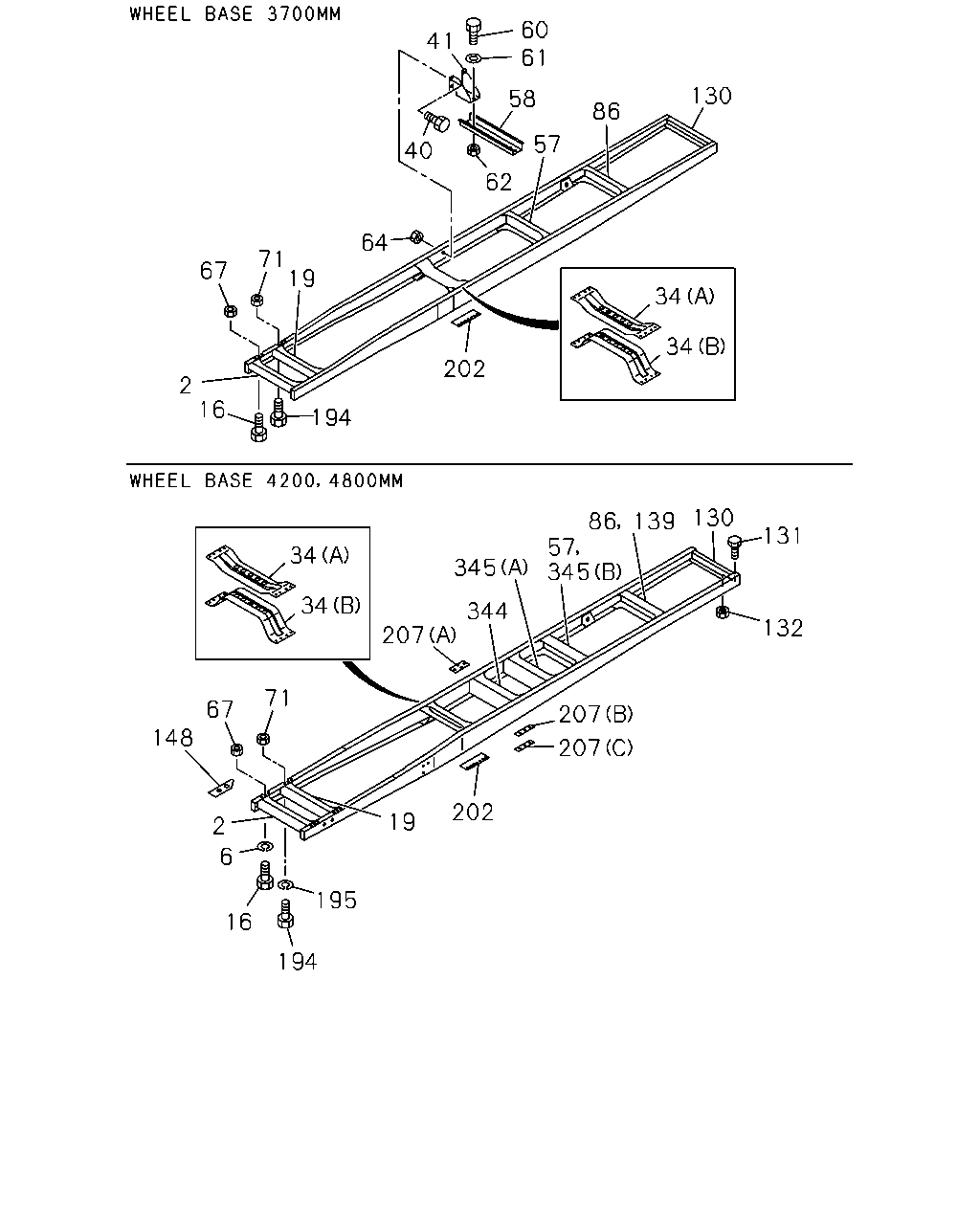

5-01 — FRAME AND OTHER PARTS (#5993) — 176 parça

60 61 41 130 58 86 57 40 62 64 71 19 67 34 34 202 2 16 194 130 86 139 131 57 345 34 345 34 344 132 207 71 67 207 148 207 202 19 2 6 195 16 194

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MEMBER; CROSS,1ST	1-53181-487-7	01	1	9606-9609	●	●	●
2	MEMBER; CROSS,1ST	1-53181-487-7	01	1	9610-9810	●	●
2	MEMBER; CROSS,1ST EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-53181-487-7	01	1	9610-9810			●
2	MEMBER; CROSS,1ST HEAVY DUTY PACKAGE TRUCK<RD2>	1-53181-457-6	01	1	9610-9810			●
2	MEMBER; CROSS,1ST	1-53181-460-9	01	1	9811-0407			●
2	MEMBER; CROSS,1ST	1-53181-892-4	01	1	0408-			●
6	WASHER; LK,1ST C/MBR ID=10.2	9-09150-510-0	01	1	9606-9609		●	●
6	WASHER; LK,1ST C/MBR ID=10.2	9-09150-510-0	01	1	9610-9810		●
6	WASHER; LK,1ST C/MBR EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=10.2	9-09150-510-0	01	1	9610-9810			●
6	WASHER; LK,1ST C/MBR HEAVY DUTY PACKAGE TRUCK<RD2> ID=10.2	9-09150-510-0	03	1	9610-9810			●
6	WASHER; LK,1ST C/MBR HEAVY DUTY PACKAGE TRUCK<RD2> ID=12.2	9-09150-512-0	04	1	9610-9810			●
6	WASHER; LK,1ST C/MBR HEAVY DUTY PACKAGE TRUCK<RD2> ID=14.2	9-09150-514-0	07	1	9610-9810			●
16	BOLT; 1ST C/MBR TO S/MBR M10X25 FLANGE	0-28681-025-0	08	1	9606-9609	●	●	●
16	BOLT; 1ST C/MBR TO S/MBR M10X25 FLANGE	0-28681-025-0	08	1	9610-9810	●	●
16	BOLT; 1ST C/MBR TO S/MBR EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M10X25 FLANGE	0-28681-025-0	08	1	9610-9810			●
16	BOLT; 1ST C/MBR TO S/MBR M14X25 FLANGE	0-28681-425-0	04	1	9606-9609	●	●	●
16	BOLT; 1ST C/MBR TO S/MBR M14X25 FLANGE	0-28681-425-0	04	1	9610-9810	●	●
16	BOLT; 1ST C/MBR TO S/MBR EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14X25 FLANGE	0-28681-425-0	04	1	9610-9810			●
16	BOLT; 1ST C/MBR TO S/MBR HEAVY DUTY PACKAGE TRUCK<RD2> M10X30	0-20801-030-0	03	1	9610-9810			●
16	BOLT; 1ST C/MBR TO S/MBR HEAVY DUTY PACKAGE TRUCK<RD2> M12X35	0-20801-235-0	04	1	9610-9810			●
16	BOLT; 1ST C/MBR TO S/MBR HEAVY DUTY PACKAGE TRUCK<RD2> M14X35	0-20801-435-0	07	1	9610-9810			●
19	MEMBER; CROSS,2ND	1-53181-432-4	01	1	9606-9609	●	●	●
19	MEMBER; CROSS,2ND	1-53181-432-4	01	1	9610-9810	●	●
19	MEMBER; CROSS,2ND EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-53181-432-4	01	1	9610-9810			●
19	MEMBER; CROSS,2ND	1-53181-716-8	01	1	9811-			●
19	MEMBER; CROSS,2ND HEAVY DUTY PACKAGE TRUCK<RD2>	1-53181-431-4	01	1	9610-9810			●
34	MEMBER; CROSS,3RD (A)	1-53175-350-1	01	1	9606-9810	●	●	●
34	MEMBER; CROSS,3RD (B)	1-53175-351-3	01	1	9606-9810	●	●	●
34	MEMBER; CROSS,3RD (A)	1-53175-358-1	01	1	9811-			●
34	MEMBER; CROSS,3RD (B)	1-53175-359-1	01	1	9811-			●
40	BOLT; BRKT TO FRAME M10X35 FLANGE	0-28681-035-0	08	1	9606-9810	●
41	BRACKET; CENTER BRG,FRAME SIDE	1-37515-086-0	02	1	9606-9810	●
57	MEMBER; CROSS,RR SUSP FRT	1-53181-476-1	01	1	9606-9810	●	●
57	MEMBER; CROSS,RR SUSP FRT	1-53171-906-0	01	1	9606-9609			●
57	MEMBER; CROSS,RR SUSP FRT EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-53171-906-0	01	1	9610-9810			●
57	MEMBER; CROSS,RR SUSP FRT HEAVY DUTY PACKAGE TRUCK<RD2>	1-53181-129-2	01	1	9610-9810			●
58	MEMBER; CENTER BRG	1-37529-052-2	01	1	9606-9810	●
60	BOLT; MBR M10X30 FLANGE	0-28681-030-0	08	1	9606-9810	●
61	WASHER; PL,MBR ID=10.5 OD=22	9-09164-610-0	08	1	9606-9810	●
62	NUT; MBR M10	9-09110-410-0	08	1	9606-9810	●
64	NUT; BRKT TO FRAME M10	9-09110-410-0	08	1	9606-9810	●
67	NUT; C/MBR M10	9-09110-410-0	08	1	9606-9609	●	●	●
67	NUT; C/MBR M10	9-09110-410-0	08	1	9610-9810	●	●
67	NUT; C/MBR EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M10	9-09110-410-0	08	1	9610-9810			●
67	NUT; C/MBR M14	9-99110-414-0	02	1	9606-9609	●	●	●
67	NUT; C/MBR M14	9-99110-414-0	02	1	9610-9810	●	●
67	NUT; C/MBR EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14	9-99110-414-0	02	1	9610-9810			●
67	NUT; C/MBR HEAVY DUTY PACKAGE TRUCK<RD2> M10	9-09110-410-0	02	1	9610-9810			●
67	NUT; C/MBR HEAVY DUTY PACKAGE TRUCK<RD2> M12	9-99110-412-0	04	1	9610-9810			●
67	NUT; C/MBR HEAVY DUTY PACKAGE TRUCK<RD2> M14	9-99110-414-0	03	1	9610-9810			●
71	NUT; 2ND C/MBR M10	9-09110-410-0	08	1	9606-9609	●	●	●
71	NUT; 2ND C/MBR M10	9-09110-410-0	08	1	9610-9810	●	●
71	NUT; 2ND C/MBR EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M10	9-09110-410-0	08	1	9610-9810			●
71	NUT; 2ND C/MBR M12	9-99110-412-0	02	1	9606-9609	●	●	●
71	NUT; 2ND C/MBR M12	9-99110-412-0	02	1	9610-9810	●	●
71	NUT; 2ND C/MBR EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M12	9-99110-412-0	02	1	9610-9810			●
71	NUT; 2ND C/MBR HEAVY DUTY PACKAGE TRUCK<RD2> M12	9-99110-412-0	10	1	9610-9810			●
86	MEMBER; CROSS,RR SUSP RR	1-53181-018-0	01	1	9606-9810	●	●
86	MEMBER; CROSS,RR SUSP RR	1-53181-019-0	01	1	9606-9609			●
86	MEMBER; CROSS,RR SUSP RR EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-53181-019-0	01	1	9610-9810			●
86	MEMBER; CROSS,RR SUSP RR HEAVY DUTY PACKAGE TRUCK<RD2>	1-53181-269-1	01	1	9610-9810			●
130	MEMBER; CROSS,END	1-53171-905-5	01	1	9606-9810	●	●
130	MEMBER; CROSS,END	1-53181-516-2	01	1	9811-			●
130	MEMBER; CROSS,END	1-53171-907-4	01	1	9606-9810			●
131	BOLT; END C/MBR M10X25 W/LK WASHER	0-50041-025-0	04	1	9811-0512			●
131	BOLT; END C/MBR M10X25 W/LK WASHER	0-50541-025-0	04	1	0601-			●
132	NUT; END C/MBR M10	9-09110-410-0	04	1	9811-0512			●
132	NUT; END C/MBR M10	0-91110-510-0	04	1	0601-			●
139	MEMBER; CROSS,6TH	1-53181-465-9	01	1	9811-			●
148	SPACER; C/MBR HEAVY DUTY PACKAGE TRUCK<RD2>	1-53168-282-0	02	1	9610-9810			●
194	BOLT; 2ND C/MBR M12X35 FLANGE	0-28681-235-0	02	1	9606-9810	●
194	BOLT; 2ND C/MBR M10X25 FLANGE	0-28681-025-0	08	1	9606-9609	●	●	●
194	BOLT; 2ND C/MBR M10X25 FLANGE	0-28681-025-0	08	1	9610-9810	●	●
194	BOLT; 2ND C/MBR EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M10X25 FLANGE	0-28681-025-0	08	1	9610-9810			●
194	BOLT; 2ND C/MBR M12X35 FLANGE	0-28681-235-0	08	1	9606-9609		●	●
194	BOLT; 2ND C/MBR M12X35 FLANGE	0-28681-235-0	08	1	9610-9810		●
194	BOLT; 2ND C/MBR EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M12X35 FLANGE	0-28681-235-0	08	1	9610-9810			●
194	BOLT; 2ND C/MBR HEAVY DUTY PACKAGE TRUCK<RD2> M12X35	0-20801-235-0	10	1	9610-9810			●
195	WASHER; LK,2ND C/MBR HEAVY DUTY PACKAGE TRUCK<RD2> ID=12.2	9-09150-512-0	10	1	9610-9810			●
202	SPACER; 3RD C/MBR	1-53178-001-0	02	1	9606-9609	●	●	●
202	SPACER; 3RD C/MBR	1-53178-001-0	02	1	9610-9810	●	●
202	SPACER; 3RD C/MBR EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-53178-001-0	02	1	9610-9810			●
207	SPACER; 4TH C/MBR (A) T=4.5	1-53178-002-0	02	1	9606-9609			●
207	SPACER; 4TH C/MBR EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) T=4.5	1-53178-002-0	02	1	9610-9810			●
207	SPACER; 4TH C/MBR (B) T=7.0	1-53168-321-0	02	1	9811-			●
207	SPACER; 4TH C/MBR (C) T=4.5	1-53168-357-0	02	1	9811-			●
344	MEMBER; CROSS,4TH	1-53181-458-0	01	1	9606-9810		●
344	MEMBER; CROSS,4TH	1-53181-604-3	01	1	9811-			●
344	MEMBER; CROSS,4TH	1-53181-459-0	01	1	9606-9810			●
345	MEMBER; CROSS,5TH HEAVY DUTY PACKAGE TRUCK<RD2> (A)	1-53181-459-0	01	1	9610-9810			●
345	MEMBER; CROSS,5TH (B)	1-53181-465-9	01	1	9811-			●

26 25 46 25 46 39 27 25 25 27 26 39 26 25 23 25 18 24 18 12 12 13 12 13 27 25 25 27 26 11 23 11 24 101 82 118 138 82 103 98 118 103 101 98 117 138 117 106 106 105 82 103 118 82 103 98 138 118 105 117 138 117 98 106 106

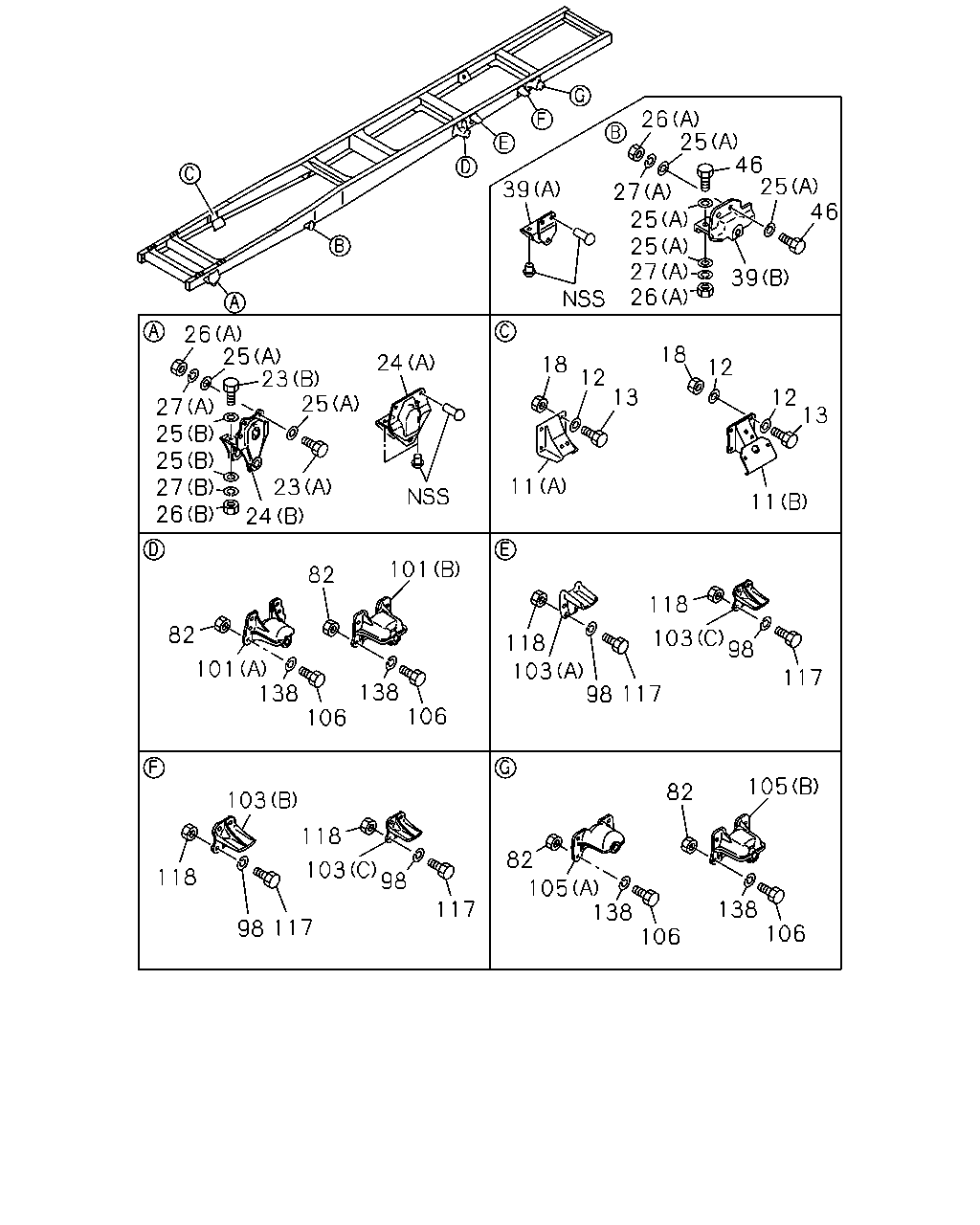

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
11	BRACKET; ENG MTG (A)	1-53211-185-0	02	1	9606-9609	●	●	●
11	BRACKET; ENG MTG (A)	1-53211-185-0	02	1	9610-9810	●	●
11	BRACKET; ENG MTG EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A)	1-53211-185-0	02	1	9610-9810			●
11	BRACKET; ENG MTG HEAVY DUTY PACKAGE TRUCK<RD2> (A)	1-53211-184-0	01	1	9610-9810			●
11	BRACKET; ENG MTG HEAVY DUTY PACKAGE TRUCK<RD2> (A)	1-53211-183-0	01	1	9610-9810			●
11	BRACKET; ENG MTG (B)	1-53211-197-0	02	1	9811-			●
12	WASHER; PL,BRKT,ENG MTG ID=12.5	1-09503-171-0	08	1	9606-9810	●	●	●
12	WASHER; PL,BRKT,ENG MTG ID=12.5	1-09503-171-0	16	1	9811-			●
13	BOLT; BRKT,ENG MTG M12X30 FLANGE	0-28791-230-0	08	1	9606-9609	●	●	●
13	BOLT; BRKT,ENG MTG M12X30 FLANGE	0-28791-230-0	08	1	9610-9810	●	●
13	BOLT; BRKT,ENG MTG EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M12X30 FLANGE	0-28791-230-0	08	1	9610-9810			●
13	BOLT; BRKT,ENG MTG HEAVY DUTY PACKAGE TRUCK<RD2> M12X28	9-92061-228-0	08	1	9610-9810			●
13	BOLT; BRKT,ENG MTG M12X40	9-92061-240-0	08	1	9811-0512			●
13	BOLT; BRKT,ENG MTG M12X40	0-20951-240-0	08	1	0601-			●
18	NUT; BRKT,ENG MTG M12	9-99110-512-0	08	1	9606-9810	●	●	●
18	NUT; BRKT,ENG MTG M12	9-99110-512-0	08	1	9811-0512			●
18	NUT; BRKT,ENG MTG M12	0-91110-512-0	08	1	0601-			●
23	BOLT; BRKT,SPR HEAVY DUTY PACKAGE TRUCK<RD2> (A) M14X60	9-91066-460-0	08	1	9610-9810			●
23	BOLT; BRKT,SPR HEAVY DUTY PACKAGE TRUCK<RD2> (B) M16X60	9-91066-660-0	04	1	9610-9810			●
24	BRACKET; FRT SPR,FRT (A)	1-53351-166-0	02	1	9606-9609	●	●	●
24	BRACKET; FRT SPR,FRT (A)	1-53351-166-0	02	1	9610-9810	●	●
24	BRACKET; FRT SPR,FRT EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A)	1-53351-166-0	02	1	9610-9810			●
24	BRACKET; FRT SPR,FRT HEAVY DUTY PACKAGE TRUCK<RD2> (B)	1-53351-115-5	02	1	9610-9810			●
24	BRACKET; FRT SPR,FRT (A)	1-53351-166-0	02	1	9811-			●
25	WASHER; PL,BRKT HEAVY DUTY PACKAGE TRUCK<RD2> (B) ID=16.2	1-09503-223-0	08	1	9610-9810			●
25	WASHER; PL,BRKT HEAVY DUTY PACKAGE TRUCK<RD2> (A) ID=15	9-09651-069-0	32	1	9610-9810			●
26	NUT; BRKT,SPR HEAVY DUTY PACKAGE TRUCK<RD2> (A) M14	9-99110-514-0	16	1	9610-9810			●
26	NUT; BRKT,SPR HEAVY DUTY PACKAGE TRUCK<RD2> (B) M16	9-99110-516-0	04	1	9610-9810			●
27	WASHER; LK,BRKT,FRT SPR HEAVY DUTY PACKAGE TRUCK<RD2> (A) ID=14.2	9-09150-614-0	16	1	9610-9810			●
27	WASHER; LK,BRKT,FRT SPR HEAVY DUTY PACKAGE TRUCK<RD2> (B) ID=16.2	9-09150-616-0	04	1	9610-9810			●
39	BRACKET; FRT SPR,RR (A)	1-53352-126-1	02	1	9606-9609	●	●	●
39	BRACKET; FRT SPR,RR (A)	1-53352-126-1	02	1	9610-9810	●	●
39	BRACKET; FRT SPR,RR EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A)	1-53352-126-1	02	1	9610-9810			●
39	BRACKET; FRT SPR,RR HEAVY DUTY PACKAGE TRUCK<RD2> (B)	1-53352-141-0	01	1	9610-9810			●
39	BRACKET; FRT SPR,RR HEAVY DUTY PACKAGE TRUCK<RD2> (B)	1-53352-140-0	01	1	9610-9810			●
39	BRACKET; FRT SPR,RR (A)	1-53352-154-2	02	1	9811-			●
46	BOLT; BRKT FIX HEAVY DUTY PACKAGE TRUCK<RD2> M14X50	9-92061-450-0	08	1	9610-9810			●
82	NUT; BRKT M14	9-99110-414-0	04	1	9606-9609	●	●	●
82	NUT; BRKT M14	9-99110-414-0	04	1	9610-9810	●	●
82	NUT; BRKT EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14	9-99110-414-0	04	1	9610-9810			●
82	NUT; BRKT HEAVY DUTY PACKAGE TRUCK<RD2> M14	9-99110-414-0	20	1	9610-9810			●
82	NUT; BRKT M14	9-99110-414-0	22	1	9811-0512			●
82	NUT; BRKT M14	0-91110-514-0	22	1	0601-			●
98	WASHER; LK,STOPPER ID=14.2	9-09150-614-0	16	1	9606-9609	●	●	●
98	WASHER; LK,STOPPER ID=14.2	9-09150-614-0	16	1	9610-9810	●	●
98	WASHER; LK,STOPPER EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=14.2	9-09150-614-0	16	1	9610-9810			●
98	WASHER; LK,STOPPER ID=14.2	9-09150-614-0	16	1	9811-0603			●
98	WASHER; LK,STOPPER ID=14.2	0-91510-614-0	16	1	0604-			●
101	BRACKET; RR SPR,FRT (B)	1-53353-060-2	02	1	9606-9609	●	●	●
101	BRACKET; RR SPR,FRT (B)	1-53353-060-2	02	1	9610-9810	●	●
101	BRACKET; RR SPR,FRT EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B)	1-53353-060-2	02	1	9610-9810			●
101	BRACKET; RR SPR,FRT HEAVY DUTY PACKAGE TRUCK<RD2> (B)	1-53353-072-1	02	1	9610-9810			●
101	BRACKET; RR SPR,FRT (A)	1-53353-090-4	02	1	9811-			●
103	STOPPER; SUB SPR (A)	1-53356-037-1	02	1	9606-9609	●	●	●
103	STOPPER; SUB SPR (A)	1-53356-037-1	02	1	9610-9810	●	●
103	STOPPER; SUB SPR EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A)	1-53356-037-1	02	1	9610-9810			●
103	STOPPER; SUB SPR (C)	1-53356-059-1	04	1	9811-			●
103	STOPPER; SUB SPR (B)	1-53357-028-1	02	1	9606-9609	●	●	●
103	STOPPER; SUB SPR (B)	1-53357-028-1	02	1	9610-9810	●	●
103	STOPPER; SUB SPR EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B)	1-53357-028-1	02	1	9610-9810			●
105	BRACKET; RR SPR,RR (B)	1-53353-060-2	02	1	9606-9609	●	●	●
105	BRACKET; RR SPR,RR (B)	1-53353-060-2	02	1	9610-9810	●	●
105	BRACKET; RR SPR,RR EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B)	1-53353-060-2	02	1	9610-9810			●
105	BRACKET; RR SPR,RR HEAVY DUTY PACKAGE TRUCK<RD2> (B)	1-53353-072-1	02	1	9610-9810			●
105	BRACKET; RR SPR,RR (A)	1-53354-074-0	02	1	9811-			●
106	BOLT; BRKT M14X40 FLANGE	0-28681-440-0	04	1	9606-9609	●	●	●
106	BOLT; BRKT M14X40 FLANGE	0-28681-440-0	04	1	9610-9810	●	●
106	BOLT; BRKT EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14X40 FLANGE	0-28681-440-0	04	1	9610-9810			●
106	BOLT; BRKT HEAVY DUTY PACKAGE TRUCK<RD2> M14X50	0-20801-450-0	20	1	9610-9810			●
106	BOLT; BRKT M14X45	0-20801-445-0	22	1	9811-			●
117	BOLT; STOPPER M14X40 FLANGE	0-28681-440-0	16	1	9606-9609	●	●	●
117	BOLT; STOPPER M14X40 FLANGE	0-28681-440-0	16	1	9610-9810	●	●
117	BOLT; STOPPER EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14X40 FLANGE	0-28681-440-0	16	1	9610-9810			●
117	BOLT; STOPPER M14X45	0-20801-445-0	16	1	9811-			●
118	NUT; STOPPER M14	9-99110-414-0	16	1	9606-9609	●	●	●
118	NUT; STOPPER M14	9-99110-414-0	16	1	9610-9810	●	●
118	NUT; STOPPER EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14	9-99110-414-0	16	1	9610-9810			●
118	NUT; STOPPER M14	9-99110-414-0	16	1	9811-0512			●
118	NUT; STOPPER M14	0-91110-514-0	16	1	0601-			●
138	WASHER; LK,BRKT ID=14.2	9-09150-614-0	04	1	9606-9609	●	●	●
138	WASHER; LK,BRKT ID=14.2	9-09150-614-0	04	1	9610-9810	●	●
138	WASHER; LK,BRKT EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=14.2	9-09150-614-0	04	1	9610-9810			●
138	WASHER; LK,BRKT HEAVY DUTY PACKAGE TRUCK<RD2> ID=14.2	9-09150-614-0	20	1	9610-9810			●
138	WASHER; LK,BRKT ID=14.2	9-09150-614-0	22	1	9811-0603			●
138	WASHER; LK,BRKT ID=14.2	0-91510-614-0	22	1	0604-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
