Sayfa 4-80 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10739 - FSR-LHD(BUS CHASSIS) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶

4-80 — ROAD WHEEL (#5992) — 83 parça

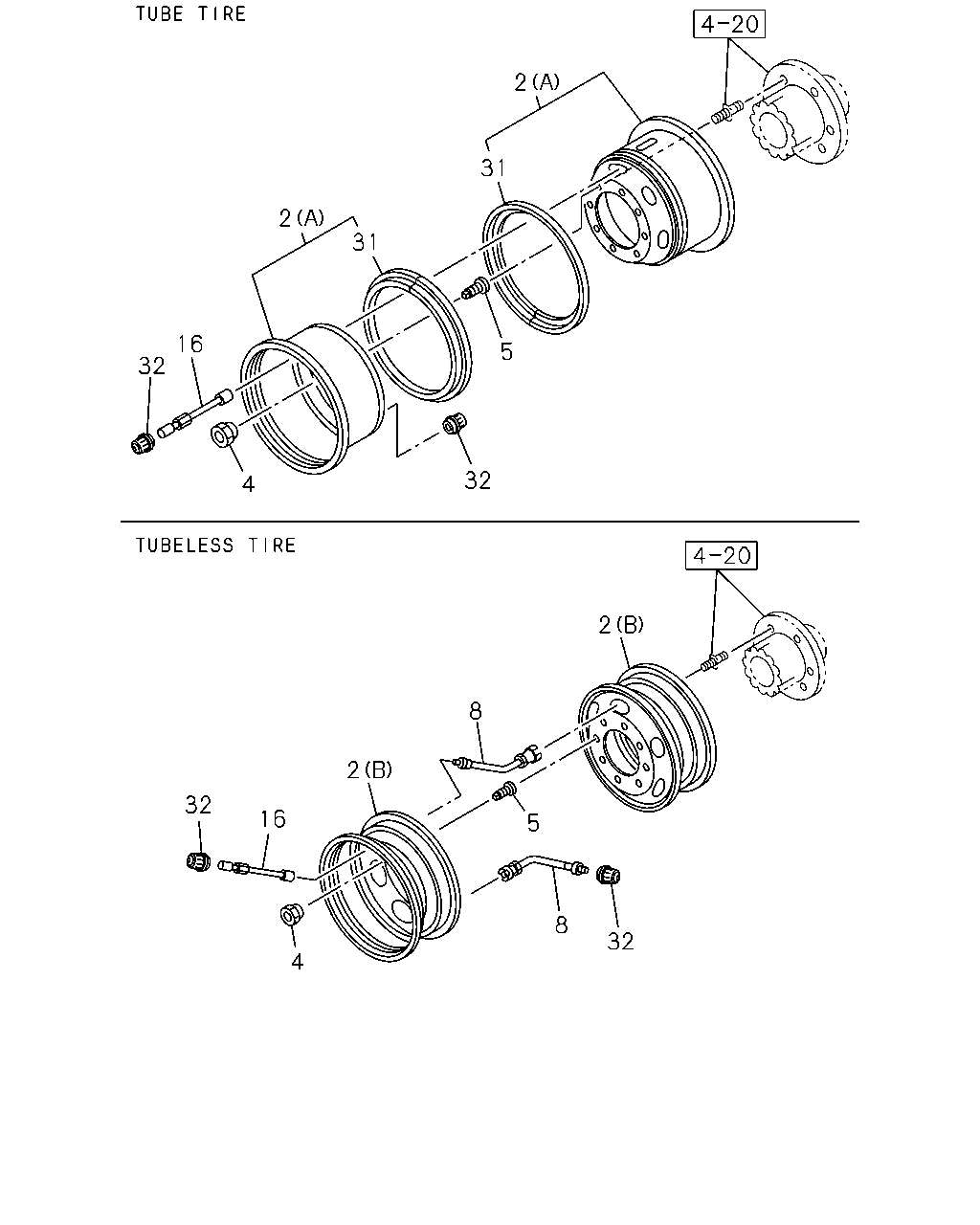

2 31 2 31 16 5 32 32 4 2 8 2 32 16 5 8 32 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X7.00T 162-12(Q54) (A)	1-42350-478-0	01	1	9610-9810
2	WHEEL; DISC DISC WHEEL 8STUD 20X7.00T 162-12(Q54) SPARE TIRE & DISC WHEEL REAR<R46> EXC. DISC WHEEL SPARE<N79> (A)	1-42350-478-0	01	1	9610-9810
2	WHEEL; DISC DISC WHEEL 8STUD 20X6.00S 135-10(SBB) (A)	1-42350-197-0	06	1	9606-9810
2	WHEEL; DISC DISC WHEEL 8STUD 20X6.00S 135-10(SBB) DISC WHEEL SPARE<N79> (A)	1-42350-197-0	01	1	9606-9810
2	WHEEL; DISC DISC WHEEL 8STUD 20X6.00S 135-10(SBB) SPARE TIRE & DISC WHEEL REAR<R46> (A)	1-42350-197-0	01	1	9606-9810
2	WHEEL; DISC DISC WHEEL 8STUD 20X6.50T 145-10(Q47) (A) 8-STUD	1-42350-302-2	06	1	9606-9810
2	WHEEL; DISC (A) 8-STUD	1-42350-302-2	06	1	9811-0203
2	WHEEL; DISC (A)	1-42350-641-0	06	1	0204-
2	WHEEL; DISC DISC WHEEL 8STUD 20X6.50T 145-10(Q47) DISC WHEEL SPARE<N79> (A) 8-STUD	1-42350-302-2	01	1	9606-9810
2	WHEEL; DISC DISC WHEEL 8STUD 20X6.50T 145-10(Q47) SPARE TIRE & DISC WHEEL REAR<R46> (A) 8-STUD	1-42350-302-2	01	1	9606-9810
2	WHEEL; DISC SPARE TIRE & DISC WHEEL REAR<R46> (A) 8-STUD	1-42350-302-2	01	1	9811-0203
2	WHEEL; DISC SPARE TIRE & DISC WHEEL REAR<R46> (A)	1-42350-641-0	01	1	0204-
2	WHEEL; DISC DISC WHEEL 8STUD 20X7.00T 162-12(Q54) (A)	1-42350-478-0	06	1	9610-9810
2	WHEEL; DISC DISC WHEEL 8STUD 22.5X6.75 145-11(PT1) (B)	1-42350-407-1	06	1	9606-9810
2	WHEEL; DISC DISC WHEEL 8STUD 22.5X6.75 145-11(PT1) DISC WHEEL SPARE<N79> (B)	1-42350-407-1	01	1	9606-9810
2	WHEEL; DISC DISC WHEEL 8STUD 22.5X6.75 145-11(PT1) SPARE TIRE & DISC WHEEL REAR<R46> (B)	1-42350-407-1	01	1	9606-9810
4	NUT; WHEEL,RR AXLE M30 LH THREAD	1-42334-023-0	08	1	9606-0610
4	NUT; WHEEL,RR AXLE M30 LH THREAD	8-97359-810-0	08	1	0611-
4	NUT; WHEEL,RR AXLE M30	1-42333-023-0	08	1	9606-0610
4	NUT; WHEEL,RR AXLE M30 RH THREAD	8-97359-809-0	08	1	0611-
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD	1-42336-005-1	08	1	9606-0610
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD	8-97359-806-0	08	1	0611-
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD	1-42335-005-1	08	1	9606-0610
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD	8-97359-805-0	08	1	0611-
8	VALVE; TIRE DISC WHEEL 8STUD 22.5X6.75 145-11(PT1)	1-42370-020-3	06	1	9606-9810
8	VALVE; TIRE DISC WHEEL 8STUD 22.5X6.75 145-11(PT1) DISC WHEEL SPARE<N79>	1-42370-020-3	01	1	9606-9810
8	VALVE; TIRE DISC WHEEL 8STUD 22.5X6.75 145-11(PT1) SPARE TIRE & DISC WHEEL REAR<R46>	1-42370-020-3	01	1	9606-9810
16	HOLDER; TIRE VALVE,DISC WHEEL L=115	1-42370-015-2	02	1	9606-
31	RING; SIDE,DISC WHEEL SPARE TIRE & DISC WHEEL REAR<R46>	1-42355-012-1	01	1	0205-
31	RING; SIDE,DISC WHEEL	1-42355-012-1	06	1	0205-
31	RING; SIDE,DISC WHEEL DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X7.00T 162-12(Q54)	1-42355-003-1	01	1	9610-9810
31	RING; SIDE,DISC WHEEL DISC WHEEL 8STUD 20X7.00T 162-12(Q54) SPARE TIRE & DISC WHEEL REAR<R46> EXC. DISC WHEEL SPARE<N79>	1-42355-003-1	01	1	9610-9810
31	RING; SIDE,DISC WHEEL DISC WHEEL 8STUD 20X6.00S 135-10(SBB)	1-42355-002-0	06	1	9606-9810
31	RING; SIDE,DISC WHEEL DISC WHEEL 8STUD 20X6.00S 135-10(SBB) DISC WHEEL SPARE<N79>	1-42355-002-0	01	1	9606-9810
31	RING; SIDE,DISC WHEEL DISC WHEEL 8STUD 20X6.00S 135-10(SBB) SPARE TIRE & DISC WHEEL REAR<R46>	1-42355-002-0	01	1	9606-9810
31	RING; SIDE,DISC WHEEL DISC WHEEL 8STUD 20X6.50T 145-10(Q47)	1-42355-012-1	06	1	9606-9810
31	RING; SIDE,DISC WHEEL	1-42355-012-1	06	1	9811-0203
31	RING; SIDE,DISC WHEEL DISC WHEEL 8STUD 20X6.50T 145-10(Q47) DISC WHEEL SPARE<N79>	1-42355-012-1	01	1	9606-9810
31	RING; SIDE,DISC WHEEL DISC WHEEL 8STUD 20X6.50T 145-10(Q47) SPARE TIRE & DISC WHEEL REAR<R46>	1-42355-012-1	01	1	9606-9810
31	RING; SIDE,DISC WHEEL SPARE TIRE & DISC WHEEL REAR<R46>	1-42355-012-1	01	1	9811-0203
31	RING; SIDE,DISC WHEEL DISC WHEEL 8STUD 20X7.00T 162-12(Q54)	1-42355-003-1	06	1	9610-9810
32	CAP; VALVE DISC WHEEL SPARE<N79>	1-42374-001-0	07	1	9606-9810
32	CAP; VALVE SPARE TIRE & DISC WHEEL REAR<R46> EXC. DISC WHEEL SPARE<N79>	1-42374-001-0	07	1	9606-9810
32	CAP; VALVE SPARE TIRE & DISC WHEEL REAR<R46>	1-42374-001-0	05	1	9811-
32	CAP; VALVE EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL REAR<R46>	1-42374-001-0	06	1	9606-9810

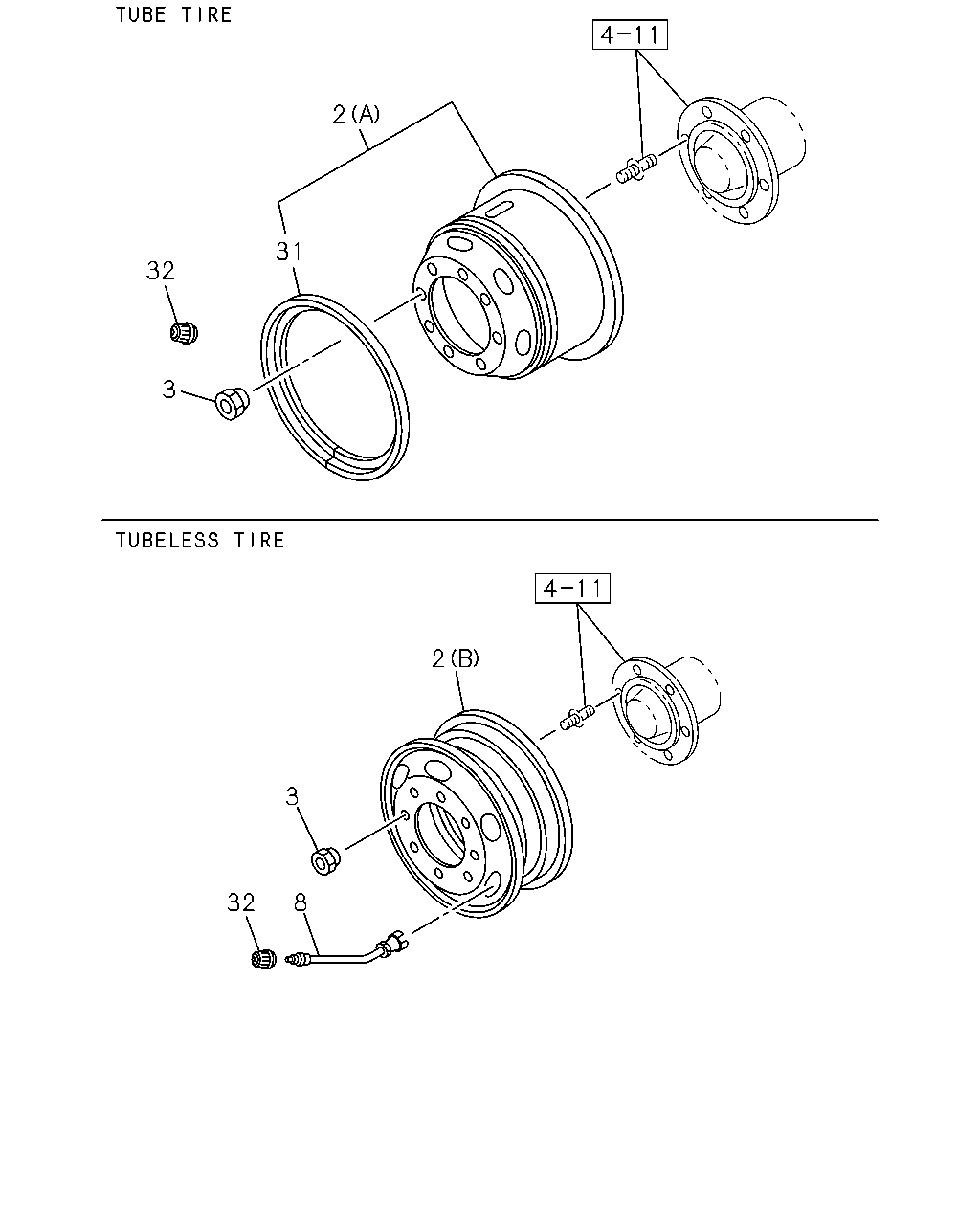

2 31 32 3 2 3 32 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X7.00T 162-12(Q54) (A)	1-42350-478-0	01	1	9610-9810
2	WHEEL; DISC DISC WHEEL 8STUD 20X7.00T 162-12(Q54) SPARE TIRE & DISC WHEEL REAR<R46> EXC. DISC WHEEL SPARE<N79> (A)	1-42350-478-0	01	1	9610-9810
2	WHEEL; DISC DISC WHEEL 8STUD 20X6.00S 135-10(SBB) (A)	1-42350-197-0	06	1	9606-9810
2	WHEEL; DISC DISC WHEEL 8STUD 20X6.00S 135-10(SBB) DISC WHEEL SPARE<N79> (A)	1-42350-197-0	01	1	9606-9810
2	WHEEL; DISC DISC WHEEL 8STUD 20X6.00S 135-10(SBB) SPARE TIRE & DISC WHEEL REAR<R46> (A)	1-42350-197-0	01	1	9606-9810
2	WHEEL; DISC DISC WHEEL 8STUD 20X6.50T 145-10(Q47) (A) 8-STUD	1-42350-302-2	06	1	9606-9810
2	WHEEL; DISC (A) 8-STUD	1-42350-302-2	06	1	9811-0203
2	WHEEL; DISC (A)	1-42350-641-0	06	1	0204-
2	WHEEL; DISC DISC WHEEL 8STUD 20X6.50T 145-10(Q47) DISC WHEEL SPARE<N79> (A) 8-STUD	1-42350-302-2	01	1	9606-9810
2	WHEEL; DISC DISC WHEEL 8STUD 20X6.50T 145-10(Q47) SPARE TIRE & DISC WHEEL REAR<R46> (A) 8-STUD	1-42350-302-2	01	1	9606-9810
2	WHEEL; DISC SPARE TIRE & DISC WHEEL REAR<R46> (A) 8-STUD	1-42350-302-2	01	1	9811-0203
2	WHEEL; DISC SPARE TIRE & DISC WHEEL REAR<R46> (A)	1-42350-641-0	01	1	0204-
2	WHEEL; DISC DISC WHEEL 8STUD 20X7.00T 162-12(Q54) (A)	1-42350-478-0	06	1	9610-9810
2	WHEEL; DISC DISC WHEEL 8STUD 22.5X6.75 145-11(PT1) (B)	1-42350-407-1	06	1	9606-9810
2	WHEEL; DISC DISC WHEEL 8STUD 22.5X6.75 145-11(PT1) DISC WHEEL SPARE<N79> (B)	1-42350-407-1	01	1	9606-9810
2	WHEEL; DISC DISC WHEEL 8STUD 22.5X6.75 145-11(PT1) SPARE TIRE & DISC WHEEL REAR<R46> (B)	1-42350-407-1	01	1	9606-9810
3	NUT; WHEEL,FRT AXLE M24 LH THREAD	1-42334-022-2	08	1	9606-
3	NUT; WHEEL,FRT AXLE M24	1-42333-022-2	08	1	9606-
8	VALVE; TIRE DISC WHEEL 8STUD 22.5X6.75 145-11(PT1)	1-42370-020-3	06	1	9606-9810
8	VALVE; TIRE DISC WHEEL 8STUD 22.5X6.75 145-11(PT1) DISC WHEEL SPARE<N79>	1-42370-020-3	01	1	9606-9810
8	VALVE; TIRE DISC WHEEL 8STUD 22.5X6.75 145-11(PT1) SPARE TIRE & DISC WHEEL REAR<R46>	1-42370-020-3	01	1	9606-9810
31	RING; SIDE,DISC WHEEL SPARE TIRE & DISC WHEEL REAR<R46>	1-42355-012-1	01	1	0205-
31	RING; SIDE,DISC WHEEL	1-42355-012-1	06	1	0205-
31	RING; SIDE,DISC WHEEL DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 20X7.00T 162-12(Q54)	1-42355-003-1	01	1	9610-9810
31	RING; SIDE,DISC WHEEL DISC WHEEL 8STUD 20X7.00T 162-12(Q54) SPARE TIRE & DISC WHEEL REAR<R46> EXC. DISC WHEEL SPARE<N79>	1-42355-003-1	01	1	9610-9810
31	RING; SIDE,DISC WHEEL DISC WHEEL 8STUD 20X6.00S 135-10(SBB)	1-42355-002-0	06	1	9606-9810
31	RING; SIDE,DISC WHEEL DISC WHEEL 8STUD 20X6.00S 135-10(SBB) DISC WHEEL SPARE<N79>	1-42355-002-0	01	1	9606-9810
31	RING; SIDE,DISC WHEEL DISC WHEEL 8STUD 20X6.00S 135-10(SBB) SPARE TIRE & DISC WHEEL REAR<R46>	1-42355-002-0	01	1	9606-9810
31	RING; SIDE,DISC WHEEL DISC WHEEL 8STUD 20X6.50T 145-10(Q47)	1-42355-012-1	06	1	9606-9810
31	RING; SIDE,DISC WHEEL	1-42355-012-1	06	1	9811-0203
31	RING; SIDE,DISC WHEEL DISC WHEEL 8STUD 20X6.50T 145-10(Q47) DISC WHEEL SPARE<N79>	1-42355-012-1	01	1	9606-9810
31	RING; SIDE,DISC WHEEL DISC WHEEL 8STUD 20X6.50T 145-10(Q47) SPARE TIRE & DISC WHEEL REAR<R46>	1-42355-012-1	01	1	9606-9810
31	RING; SIDE,DISC WHEEL SPARE TIRE & DISC WHEEL REAR<R46>	1-42355-012-1	01	1	9811-0203
31	RING; SIDE,DISC WHEEL DISC WHEEL 8STUD 20X7.00T 162-12(Q54)	1-42355-003-1	06	1	9610-9810
32	CAP; VALVE DISC WHEEL SPARE<N79>	1-42374-001-0	07	1	9606-9810
32	CAP; VALVE SPARE TIRE & DISC WHEEL REAR<R46> EXC. DISC WHEEL SPARE<N79>	1-42374-001-0	07	1	9606-9810
32	CAP; VALVE SPARE TIRE & DISC WHEEL REAR<R46>	1-42374-001-0	05	1	9811-
32	CAP; VALVE EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL REAR<R46>	1-42374-001-0	06	1	9606-9810

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
