Isuzu WW
▶
TRUCKS
▶
CYH
▶
11318 - CYH MIDDLE EAST WITH 2STEPS
▶
0 - Engine, Emission, Engine Electrical
▶
0-42 - FUEL PUMP AND PIPE
▶

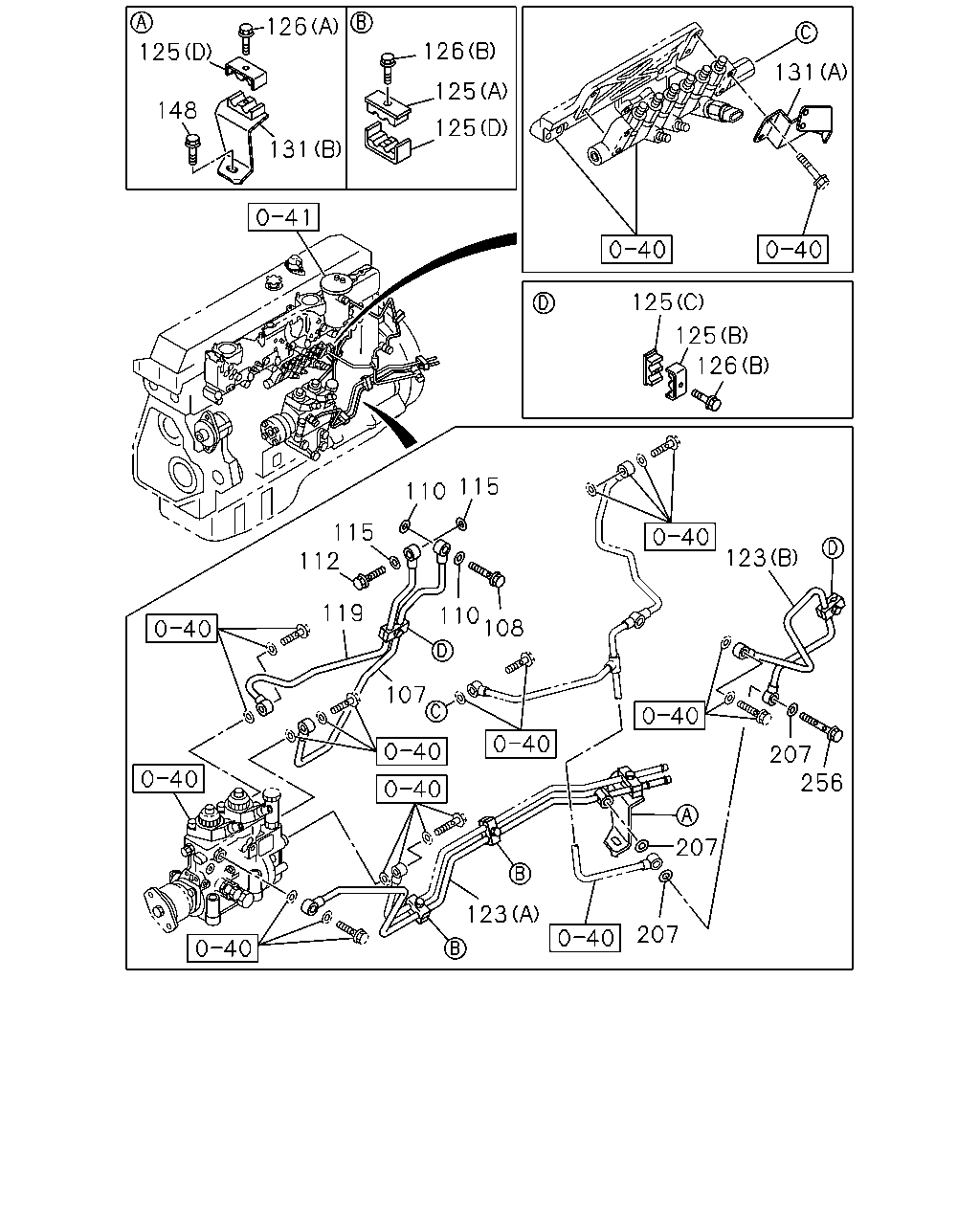

0-42 — FUEL PUMP AND PIPE
(#59916) — 39 parça
◀
[042A] -'12/5 (19 parça)
[042A] '12/6- (20 parça)
▶
207
207
256
207
123
119
107
110
108
123
115
110
115
112
126
125
125
131
125
125
126
126
131
148
125
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
107
PIPE; FUEL,FEED PUMP TO FUEL FILTER
1-15416-848-0
01
1
0812-
108
BOLT; JOINT,FUEL FILTER
M14X27 FLANGE
1-09675-086-0
01
1
0812-
110
GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25
1-09630-141-0
02
1
0812-
112
BOLT; JOINT,FUEL FILTER
M14X27 FLANGE
1-09675-086-0
01
1
0812-
115
GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25
1-09630-141-0
02
1
0812-
119
PIPE; FUEL,FUEL FILTER TO INJ PUMP
1-15416-849-0
01
1
0812-
123
PIPE; FUEL,FUEL FILTER LEAK OFF
(A)
8-97607-213-0
01
1
0812-
123
PIPE; FUEL,FUEL FILTER LEAK OFF
(B)
8-97610-542-0
01
1
0812-
125
CLIP; FUEL PIPE
(C)
1-09701-180-0
02
1
0812-
125
CLIP; FUEL PIPE
(D)
1-09701-193-1
03
1
0812-
125
CLIP; FUEL PIPE
(A)
1-09701-194-1
02
1
0812-
125
CLIP; FUEL PIPE
(B) ID=10 & 10 L=25
8-94393-280-3
02
1
0812-
126
BOLT; CLIP,FUEL PIPE
(A) M6X30 FLANGE
0-28050-630-0
01
1
0812-
126
BOLT; CLIP,FUEL PIPE
(B) M6X40 FLANGE
0-28050-640-0
04
1
0812-
131
BRACKET; FUEL PIPE CLIP
(A)
1-15419-725-0
01
1
0812-
131
BRACKET; FUEL PIPE CLIP
(B)
8-97606-142-0
01
1
0812-
148
BOLT; BRKT
M10X20 FLANGE
0-28151-020-0
01
1
0812-
207
GASKET; EYE BOLT
ID=14.2 OD=25
1-09630-141-0
03
1
0812-
256
BOLT; EYE,FUEL PIPE
M14X43
8-98037-829-0
01
1
0812-
207
123
107
108
110
119
112
115
110
115
123
121
207
256
207
126
125
125
131
125
125
126
126
131
148
125
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
107
PIPE; FUEL,FEED PUMP TO FUEL FILTER
1-15416-848-0
01
1
0812-
108
BOLT; JOINT,FUEL FILTER
M14X27 FLANGE
1-09675-086-0
01
1
0812-
110
GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25
1-09630-141-0
02
1
0812-
112
BOLT; JOINT,FUEL FILTER
M14X27 FLANGE
1-09675-086-0
01
1
0812-
115
GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25
1-09630-141-0
02
1
0812-
119
PIPE; FUEL,FUEL FILTER TO INJ PUMP
1-15416-849-0
01
1
0812-
121
BOLT; CLIP
M6X35 FLANGE
0-28050-635-0
01
1
1206-
123
PIPE; FUEL,FUEL FILTER LEAK OFF
(A)
8-97607-213-0
01
1
0812-
123
PIPE; FUEL,FUEL FILTER LEAK OFF
(B)
8-97610-542-0
01
1
0812-
125
CLIP; FUEL PIPE
(C)
1-09701-180-0
02
1
0812-
125
CLIP; FUEL PIPE
(D)
1-09701-193-1
03
1
0812-
125
CLIP; FUEL PIPE
(A)
1-09701-194-1
02
1
0812-
125
CLIP; FUEL PIPE
(B) ID=10 & 10 L=25
8-94393-280-3
02
1
0812-
126
BOLT; CLIP,FUEL PIPE
(A) M6X30 FLANGE
0-28050-630-0
01
1
0812-
126
BOLT; CLIP,FUEL PIPE
(B) M6X40 FLANGE
0-28050-640-0
04
1
0812-
131
BRACKET; FUEL PIPE CLIP
(A)
1-15419-725-0
01
1
0812-
131
BRACKET; FUEL PIPE CLIP
(B)
8-97606-142-0
01
1
0812-
148
BOLT; BRKT
M10X20 FLANGE
0-28151-020-0
01
1
0812-
207
GASKET; EYE BOLT
ID=14.2 OD=25
1-09630-141-0
03
1
0812-
256
BOLT; EYE,FUEL PIPE
M14X43
8-98037-829-0
01
1
0812-
