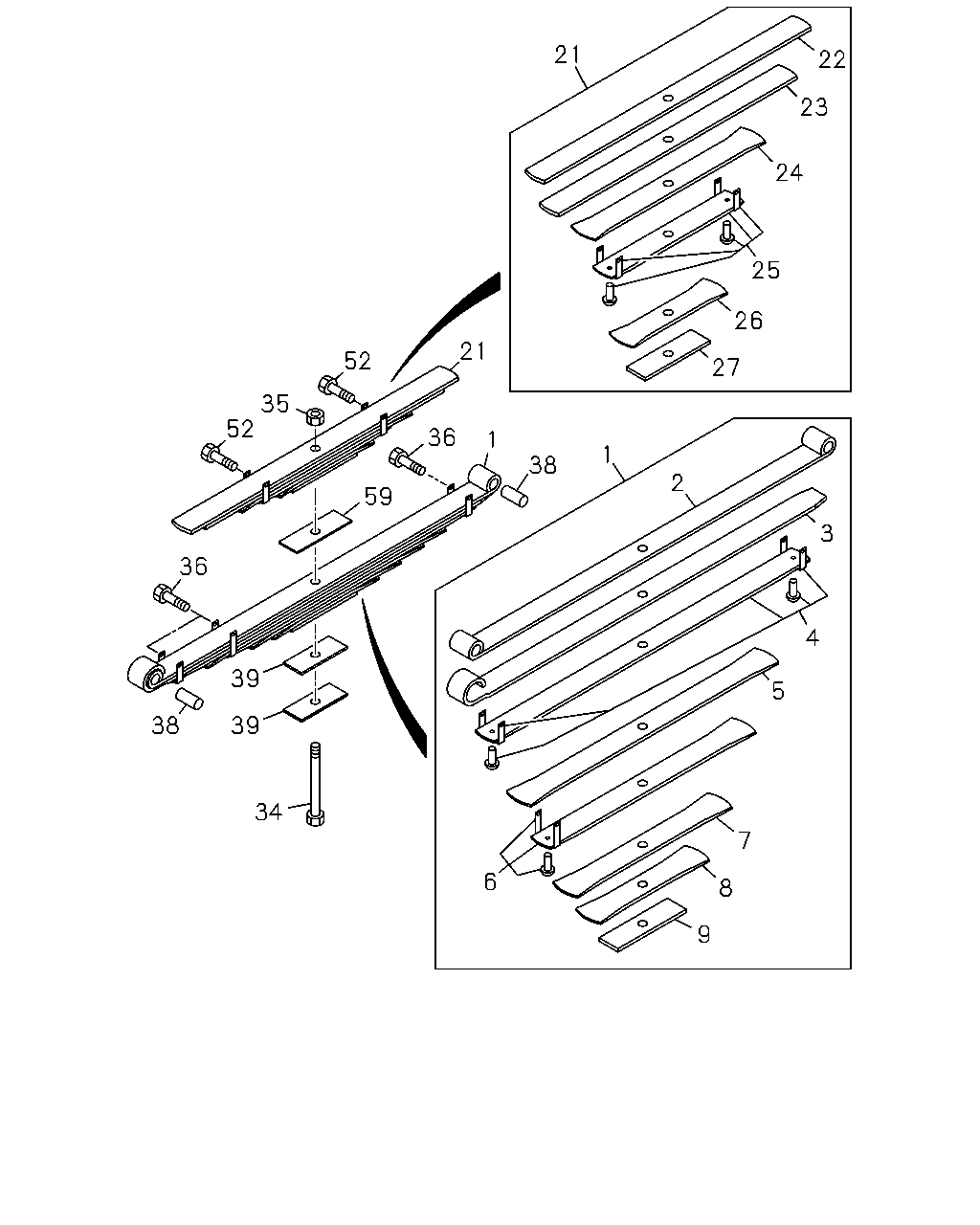

4-65 — REAR LEAF SPRING (#5991) — 78 parça

21 22 23 24 25 26 21 52 27 35 52 36 1 1 38 2 59 3 36 4 39 5 38 39 34 7 6 8 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING ASM; LEAF,RR MAIN ASM PART: A = 1-51300-331-1, B = 1-51300-524-1	1-51310-715-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 1-51300-331-1, B = 1-51300-524-1	1-51311-715-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: C = 1-51410-138-0	1-51411-138-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 1-51300-331-1, B = 1-51300-524-1	1-51312-715-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: C = 1-51410-138-0	1-51412-138-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 1-51300-331-1	1-51313-686-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN W/CLIP ASM PART: B = 1-51300-524-1	1-51313-715-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: C = 1-51410-138-0	1-51413-138-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: A = 1-51300-331-1	1-51314-686-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: B = 1-51300-524-1	1-51314-715-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: C = 1-51410-138-0	1-51414-138-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: A = 1-51300-331-1	1-51315-686-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN W/CLIP ASM PART: B = 1-51300-524-1	1-51315-715-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: C = 1-51410-138-0	1-51415-138-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: A = 1-51300-331-1	1-51316-686-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: B = 1-51300-524-1	1-51316-715-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: C = 1-51410-138-0	1-51416-138-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN ASM PART: A = 1-51300-331-1	1-51317-686-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN ASM PART: B = 1-51300-524-1	1-51317-715-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN ASM PART: C = 1-51410-138-0	1-51417-138-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN ASM PART: A = 1-51300-331-1	1-51318-686-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN ASM PART: B = 1-51300-524-1	1-51318-715-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN ASM PART: C = 1-51410-138-0	1-51418-138-0	01	1	-
21	SPRING ASM; LEAF,RR SUB ASM PART: A = 1-51300-331-1, B = 1-51300-524-1	1-51340-431-0	01	1	-
22	SPRING; LEAF,NO 1,RR SUB ASM PART: A = 1-51300-331-1, B = 1-51300-524-1	1-51341-431-0	01	1	-
23	SPRING; LEAF,NO 2,RR SUB ASM PART: A = 1-51300-331-1, B = 1-51300-524-1	1-51342-431-0	01	1	-
24	SPRING; LEAF,NO 3,RR SUB ASM PART: A = 1-51300-331-1, B = 1-51300-524-1	1-51343-431-0	01	1	-
25	SPRING; LEAF,NO 4,RR SUB W/CLIP ASM PART: A = 1-51300-331-1, B = 1-51300-524-1	1-51344-431-0	01	1	-
26	SPRING; LEAF,NO 5,RR SUB ASM PART: A = 1-51300-331-1, B = 1-51300-524-1	1-51345-431-0	01	1	-
27	SPRING; LEAF,NO 6,RR SUB ASM PART: A = 1-51300-331-1, B = 1-51300-524-1	1-51346-431-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=205 ASM PART: A = 1-51300-331-1	1-51356-187-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=195 ASM PART: B = 1-51300-524-1	1-51356-189-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=150 ASM PART: C = 1-51410-138-0	1-51356-221-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M12 ASM PART: A = 1-51300-331-1, B = 1-51300-524-1, C = 1-51410-138-0	9-99110-512-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR M10X99 ASM PART: C = 1-51410-138-0	1-09000-328-0	02	1	-
36	BOLT; CLIP,LEAF SPR,RR M8X87 ASM PART: A = 1-51300-331-1, B = 1-51300-524-1	1-09000-335-0	03	1	-
38	BUSHING; LEAF SPR,RR ID=25 ASM PART: A = 1-51300-331-1, B = 1-51300-524-1	9-51151-032-0	02	1	-
38	BUSHING; LEAF SPR,RR ASM PART: C = 1-51410-138-0	9-51351-019-0	02	1	-
39	SEAT; LEAF SPR,RR MAIN T=9 ASM PART: A = 1-51300-331-1	1-51377-139-0	02	1	-
39	SEAT; LEAF SPR,RR MAIN T=9 ASM PART: B = 1-51300-524-1	1-51377-139-0	01	1	-
39	SEAT; LEAF SPR,RR MAIN T=12 ASM PART: C = 1-51410-138-0	1-51377-175-0	01	1	-
52	BOLT; CLIP,LEAF SPR,RR SUB M8X87 ASM PART: A = 1-51300-331-1, B = 1-51300-524-1	1-09000-335-0	02	1	-
59	SEAT; RR SPRING,SUB T=4.5 ASM PART: A = 1-51300-331-1, B = 1-51300-524-1	1-51377-140-0	01	1	-

38 35 37 39 37 3 2 37 4 38 37 5 36 37 6 36 37 7 37 8 37 9 10 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 1-51300-331-1, B = 1-51300-524-1	1-51311-715-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: C = 1-51410-138-0	1-51411-138-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 1-51300-331-1, B = 1-51300-524-1	1-51312-715-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: C = 1-51410-138-0	1-51412-138-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 1-51300-331-1	1-51313-686-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN W/CLIP ASM PART: B = 1-51300-524-1	1-51313-715-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: C = 1-51410-138-0	1-51413-138-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: A = 1-51300-331-1	1-51314-686-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: B = 1-51300-524-1	1-51314-715-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: C = 1-51410-138-0	1-51414-138-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: A = 1-51300-331-1	1-51315-686-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN W/CLIP ASM PART: B = 1-51300-524-1	1-51315-715-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: C = 1-51410-138-0	1-51415-138-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: A = 1-51300-331-1	1-51316-686-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: B = 1-51300-524-1	1-51316-715-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: C = 1-51410-138-0	1-51416-138-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN ASM PART: A = 1-51300-331-1	1-51317-686-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN ASM PART: B = 1-51300-524-1	1-51317-715-0	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN ASM PART: C = 1-51410-138-0	1-51417-138-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN ASM PART: A = 1-51300-331-1	1-51318-686-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN ASM PART: B = 1-51300-524-1	1-51318-715-0	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN ASM PART: C = 1-51410-138-0	1-51418-138-0	01	1	-
10	SPRING; LEAF,NO 9,RR MAIN ASM PART: C = 1-51410-138-0	1-51419-138-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=205 ASM PART: A = 1-51300-331-1	1-51356-187-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=195 ASM PART: B = 1-51300-524-1	1-51356-189-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=150 ASM PART: C = 1-51410-138-0	1-51356-221-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M12 ASM PART: A = 1-51300-331-1, B = 1-51300-524-1, C = 1-51410-138-0	9-99110-512-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR M10X99 ASM PART: C = 1-51410-138-0	1-09000-328-0	02	1	-
36	BOLT; CLIP,LEAF SPR,RR M8X87 ASM PART: A = 1-51300-331-1, B = 1-51300-524-1	1-09000-335-0	03	1	-
37	SPACER; CENTER,LEAF SPR,RR ASM PART: C = 1-51410-138-0	1-51377-363-0	08	1	-
38	BUSHING; LEAF SPR,RR ID=25 ASM PART: A = 1-51300-331-1, B = 1-51300-524-1	9-51151-032-0	02	1	-
38	BUSHING; LEAF SPR,RR ASM PART: C = 1-51410-138-0	9-51351-019-0	02	1	-
39	SEAT; LEAF SPR,RR MAIN T=9 ASM PART: A = 1-51300-331-1	1-51377-139-0	02	1	-
39	SEAT; LEAF SPR,RR MAIN T=9 ASM PART: B = 1-51300-524-1	1-51377-139-0	01	1	-
39	SEAT; LEAF SPR,RR MAIN T=12 ASM PART: C = 1-51410-138-0	1-51377-175-0	01	1	-
