◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10585 - CXH RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-50 - AIR CONDITIONING SYSTEM; FRONT ▶
8-50 — AIR CONDITIONING SYSTEM; FRONT (#599) — 120 parça

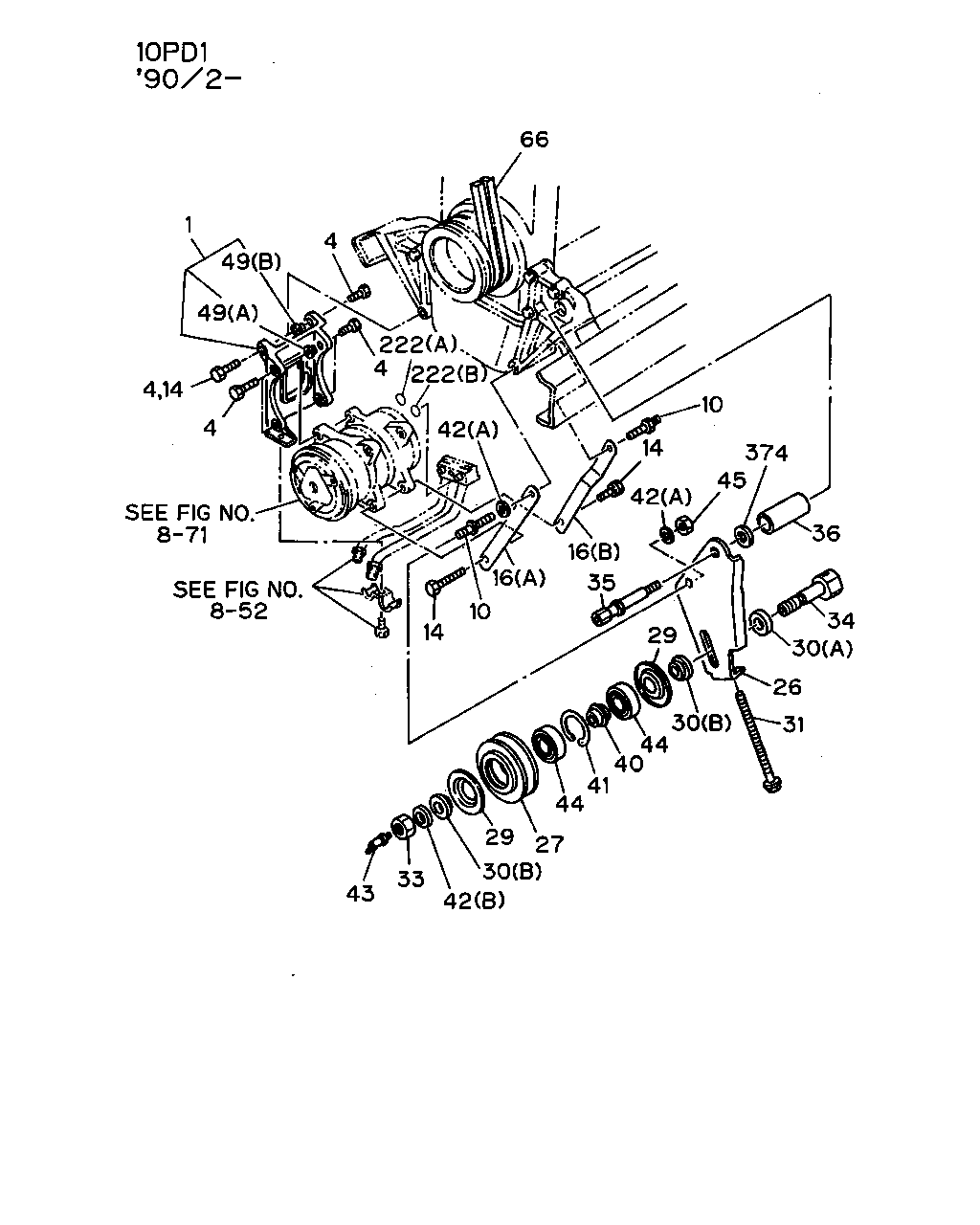

çizim 27642
1 66 4 49 49 4 14 4 4 222 222 42 10 14 374 45 42 36 16 16 10 14 35 29 34 30 26 31 30 44 40 41 44 27 29 30 42 33 43
BalonParca AdiParca NoAdetTipApplied Date
1 BRACKET; A/C
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-434-0 01 1 8712-9306
1 BRACKET; A/C
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-327-0 01 1 8712-8802
1 BRACKET; A/C
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-590-0 01 1 8803-
4 BOLT; A/C CMPR BRKT
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) M12X35 		9-01911-235-0 01 1 8712-9001
4 BOLT; A/C CMPR BRKT
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) M10X35 W/LK WASHER 		9-01991-035-0 04 1 8712-9001
4 BOLT; A/C CMPR BRKT
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) M10X30 W/LK WASHER 		9-01911-030-0 02 1 9002-9306
4 BOLT; A/C CMPR BRKT
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) M10X40 W/LK WASHER 		9-01911-040-0 02 1 9002-9306
4 BOLT; A/C CMPR BRKT
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) M12X45 		9-01911-245-0 01 1 9002-9306
4 BOLT; A/C CMPR BRKT
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) M10X25 		9-01971-025-0 02 1 9002-9306
4 BOLT; A/C CMPR BRKT
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) M12X45 		9-01971-245-0 01 1 9002-9306
4 BOLT; A/C CMPR BRKT
10PC1 STD ENG(10L) AIR CONDITIONER MANUAL CONTROL(C60) M10X30 W/LK WASHER 		9-01911-030-0 02 1 8712-8802
4 BOLT; A/C CMPR BRKT
10PC1 STD ENG(10L) AIR CONDITIONER MANUAL CONTROL(C60) M10X40 W/LK WASHER 		9-01911-040-0 02 1 8712-8802
4 BOLT; A/C CMPR BRKT
10PC1 STD ENG(10L) AIR CONDITIONER MANUAL CONTROL(C60) M12X45 		9-01911-245-0 01 1 8803-9001
4 BOLT; A/C CMPR BRKT
10PC1 STD ENG(10L) AIR CONDITIONER MANUAL CONTROL(C60) M10X25 		9-01971-025-0 02 1 8803-9001
4 BOLT; A/C CMPR BRKT
10PC1 STD ENG(10L) AIR CONDITIONER MANUAL CONTROL(C60) M12X45 		9-01971-245-0 01 1 8803-9001
4 BOLT; A/C CMPR BRKT
10PD1 STD ENG(40L) M12X35 		9-01911-235-0 01 1 9002-
4 BOLT; A/C CMPR BRKT
10PD1 STD ENG(40L) M10X35 W/LK WASHER 		9-01991-035-0 04 1 9002-
10 BOLT; ADJ PLATE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) M12X25 		9-01911-225-0 02 1 8712-9001
10 BOLT; ADJ PLATE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) M12X19,M12X19 L=60 		1-09029-055-2 02 1 9002-
14 BOLT; CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M10X70 		9-01056-070-0 01 1 8712-
14 BOLT; CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M10X45 		9-01911-045-0 02 1 8712-
16 PLATE; ADJ,CMPR
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-13674-162-1 01 1 8712-9306
16 PLATE; ADJ,CMPR
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-13674-112-0 01 1 8712-9001
16 PLATE; ADJ,CMPR
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-13674-113-0 01 1 8712-9001
16 PLATE; ADJ,CMPR
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-13674-189-1 01 1 9002-
16 PLATE; ADJ,CMPR
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-13674-190-1 01 1 9002-
26 BRACKET; IDLE PULLEY,A/C
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-13668-023-2 02 1 8712-
27 PULLEY; IDLE,A/C
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-13663-057-0 01 1 8712-
29 COVER; DUST,IDLE PULLEY
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-13669-126-0 02 1 8712-
30 COLLAR; IDLE PULLEY
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-13666-021-1 02 1 8712-
30 COLLAR; IDLE PULLEY
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-13666-022-0 04 1 8712-
31 BOLT; ADJ,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) M10X135 		1-09009-113-0 01 1 8712-9306
33 NUT; IDLER PULLEY
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) M18 		9-99111-518-0 01 1 8712-
34 SHAFT; IDLE PULLEY
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-13665-026-1 01 1 8712-
35 BOLT; IDLER PULLEY TO C/BL
V TYPE ENG<91L> M12X94 		1-13669-132-0 01 1 8712-
36 PIECE; DIST,PULLEY TO C/BL
V TYPE ENG<91L> 		1-13666-023-1 01 1 8712-
40 BUSHING; IDLE PULLEY
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-13669-128-0 01 1 8712-
41 RING; SNAP,IDLE PULLEY
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) OD=56.2 		9-09180-152-0 01 1 8712-
42 WASHER; PULLEY
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 		9-09150-512-0 02 1 8712-
42 WASHER; PULLEY
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=18.2 		9-09150-818-0 01 1 8712-
43 NIPPLE; IDLE PULLEY
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) PT1/8 ELBOW 		9-09031-210-0 01 1 8712-
44 BEARING; IDLE PULLEY
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-09800-217-0 02 1 8712-
45 NUT; BOLT,IDLE PULLEY
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) M12 		9-99110-412-0 01 1 8712-
49 COLLAR; BRKT,CMPR
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83571-601-0 02 1 8712-
49 COLLAR; BRKT,CMPR
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83571-602-0 01 1 8712-
66 BELT; A/C CMPR
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) L=1082 		1-13671-256-0 01 1 8712-8812
66 BELT; A/C CMPR
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) L=1061 		1-13671-127-0 01 1 8901-9306
66 BELT; A/C CMPR
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) MITSUBOSHI OR L=1081 		1-13671-154-0 01 1 8712-9001
66 BELT; A/C CMPR
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) BANDO L=1081 		1-13671-161-0 01 1 8712-9001
66 BELT; A/C CMPR
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) L=1356 		1-13671-119-0 01 1 9002-
222 GASKET; CONNECTOR
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-09623-514-0 01 1 8712-
222 GASKET; CONNECTOR
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-09623-515-0 01 1 8712-
374 SPACER; STAY
V TYPE ENG<91L> 		9-09851-211-0 01 1 8712-

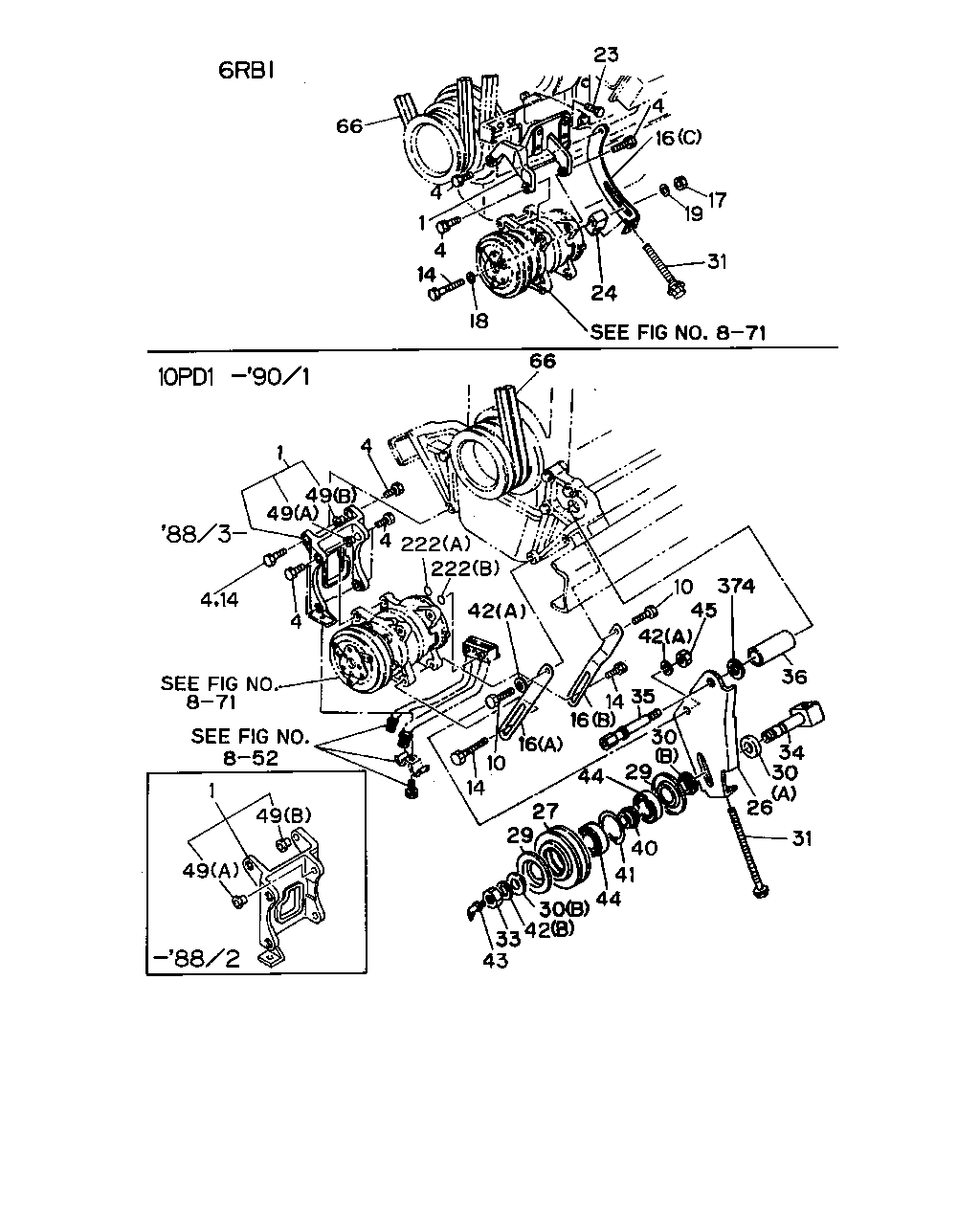

çizim 27819
66 23 4 16 17 19 31 24 18 14 4 1 4 66 4 1 49 49 4 14 4 4 222 222 42 10 374 45 42 35 36 34 30 26 31 30 14 16 16 10 14 29 44 27 29 40 41 44 30 42 33 43 49 49 1
BalonParca AdiParca NoAdetTipApplied Date
1 BRACKET; A/C
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-434-0 01 1 8712-9306
1 BRACKET; A/C
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-327-0 01 1 8712-8802
1 BRACKET; A/C
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-590-0 01 1 8803-
4 BOLT; A/C CMPR BRKT
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) M12X35 		9-01911-235-0 01 1 8712-9001
4 BOLT; A/C CMPR BRKT
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) M10X35 W/LK WASHER 		9-01991-035-0 04 1 8712-9001
4 BOLT; A/C CMPR BRKT
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) M10X30 W/LK WASHER 		9-01911-030-0 02 1 9002-9306
4 BOLT; A/C CMPR BRKT
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) M10X40 W/LK WASHER 		9-01911-040-0 02 1 9002-9306
4 BOLT; A/C CMPR BRKT
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) M12X45 		9-01911-245-0 01 1 9002-9306
4 BOLT; A/C CMPR BRKT
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) M10X25 		9-01971-025-0 02 1 9002-9306
4 BOLT; A/C CMPR BRKT
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) M12X45 		9-01971-245-0 01 1 9002-9306
4 BOLT; A/C CMPR BRKT
10PC1 STD ENG(10L) AIR CONDITIONER MANUAL CONTROL(C60) M10X30 W/LK WASHER 		9-01911-030-0 02 1 8712-8802
4 BOLT; A/C CMPR BRKT
10PC1 STD ENG(10L) AIR CONDITIONER MANUAL CONTROL(C60) M10X40 W/LK WASHER 		9-01911-040-0 02 1 8712-8802
4 BOLT; A/C CMPR BRKT
10PC1 STD ENG(10L) AIR CONDITIONER MANUAL CONTROL(C60) M12X45 		9-01911-245-0 01 1 8803-9001
4 BOLT; A/C CMPR BRKT
10PC1 STD ENG(10L) AIR CONDITIONER MANUAL CONTROL(C60) M10X25 		9-01971-025-0 02 1 8803-9001
4 BOLT; A/C CMPR BRKT
10PC1 STD ENG(10L) AIR CONDITIONER MANUAL CONTROL(C60) M12X45 		9-01971-245-0 01 1 8803-9001
4 BOLT; A/C CMPR BRKT
10PD1 STD ENG(40L) M12X35 		9-01911-235-0 01 1 9002-
4 BOLT; A/C CMPR BRKT
10PD1 STD ENG(40L) M10X35 W/LK WASHER 		9-01991-035-0 04 1 9002-
10 BOLT; ADJ PLATE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) M12X25 		9-01911-225-0 02 1 8712-9001
10 BOLT; ADJ PLATE
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) M12X19,M12X19 L=60 		1-09029-055-2 02 1 9002-
14 BOLT; CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M10X70 		9-01056-070-0 01 1 8712-
14 BOLT; CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M10X45 		9-01911-045-0 02 1 8712-
16 PLATE; ADJ,CMPR
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-13674-162-1 01 1 8712-9306
16 PLATE; ADJ,CMPR
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-13674-112-0 01 1 8712-9001
16 PLATE; ADJ,CMPR
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-13674-113-0 01 1 8712-9001
16 PLATE; ADJ,CMPR
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-13674-189-1 01 1 9002-
16 PLATE; ADJ,CMPR
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-13674-190-1 01 1 9002-
17 NUT; CMPR
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) M10 		9-09110-510-0 01 1 8712-9306
18 WASHER; LK,CMPR
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) ID=10.2 		9-09150-510-0 01 1 8712-9306
19 WASHER; PL,ADJ PLATE TO CMPR
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) ID=10.5 OD=26 		9-09160-710-0 01 1 8712-9306
23 BOLT; ADJ PLATE TO BRKT
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) M12X35 		9-01911-235-0 01 1 8712-9005
23 BOLT; ADJ PLATE TO BRKT
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) M12X35 W/LK WASHER 		0-50041-235-0 01 1 9006-9306
24 PIECE; SLIDING
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-13679-008-1 01 1 8712-9306
26 BRACKET; IDLE PULLEY,A/C
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-13668-023-2 02 1 8712-
27 PULLEY; IDLE,A/C
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-13663-057-0 01 1 8712-
29 COVER; DUST,IDLE PULLEY
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-13669-126-0 02 1 8712-
30 COLLAR; IDLE PULLEY
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-13666-021-1 02 1 8712-
30 COLLAR; IDLE PULLEY
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-13666-022-0 04 1 8712-
31 BOLT; ADJ,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) M10X135 		1-09009-113-0 01 1 8712-9306
33 NUT; IDLER PULLEY
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) M18 		9-99111-518-0 01 1 8712-
34 SHAFT; IDLE PULLEY
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-13665-026-1 01 1 8712-
35 BOLT; IDLER PULLEY TO C/BL
V TYPE ENG<91L> M12X94 		1-13669-132-0 01 1 8712-
36 PIECE; DIST,PULLEY TO C/BL
V TYPE ENG<91L> 		1-13666-023-1 01 1 8712-
40 BUSHING; IDLE PULLEY
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-13669-128-0 01 1 8712-
41 RING; SNAP,IDLE PULLEY
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) OD=56.2 		9-09180-152-0 01 1 8712-
42 WASHER; PULLEY
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=12.2 		9-09150-512-0 02 1 8712-
42 WASHER; PULLEY
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=18.2 		9-09150-818-0 01 1 8712-
43 NIPPLE; IDLE PULLEY
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) PT1/8 ELBOW 		9-09031-210-0 01 1 8712-
44 BEARING; IDLE PULLEY
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) 		1-09800-217-0 02 1 8712-
45 NUT; BOLT,IDLE PULLEY
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) M12 		9-99110-412-0 01 1 8712-
49 COLLAR; BRKT,CMPR
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83571-601-0 02 1 8712-
49 COLLAR; BRKT,CMPR
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83571-602-0 01 1 8712-
66 BELT; A/C CMPR
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) L=1082 		1-13671-256-0 01 1 8712-8812
66 BELT; A/C CMPR
L TYPE ENG<90L> AIR CONDITIONER MANUAL CONTROL(C60) L=1061 		1-13671-127-0 01 1 8901-9306
66 BELT; A/C CMPR
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) MITSUBOSHI OR L=1081 		1-13671-154-0 01 1 8712-9001
66 BELT; A/C CMPR
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) BANDO L=1081 		1-13671-161-0 01 1 8712-9001
66 BELT; A/C CMPR
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) L=1356 		1-13671-119-0 01 1 9002-
222 GASKET; CONNECTOR
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-09623-514-0 01 1 8712-
222 GASKET; CONNECTOR
V TYPE ENG<91L> AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-09623-515-0 01 1 8712-
374 SPACER; STAY
V TYPE ENG<91L> 		9-09851-211-0 01 1 8712-

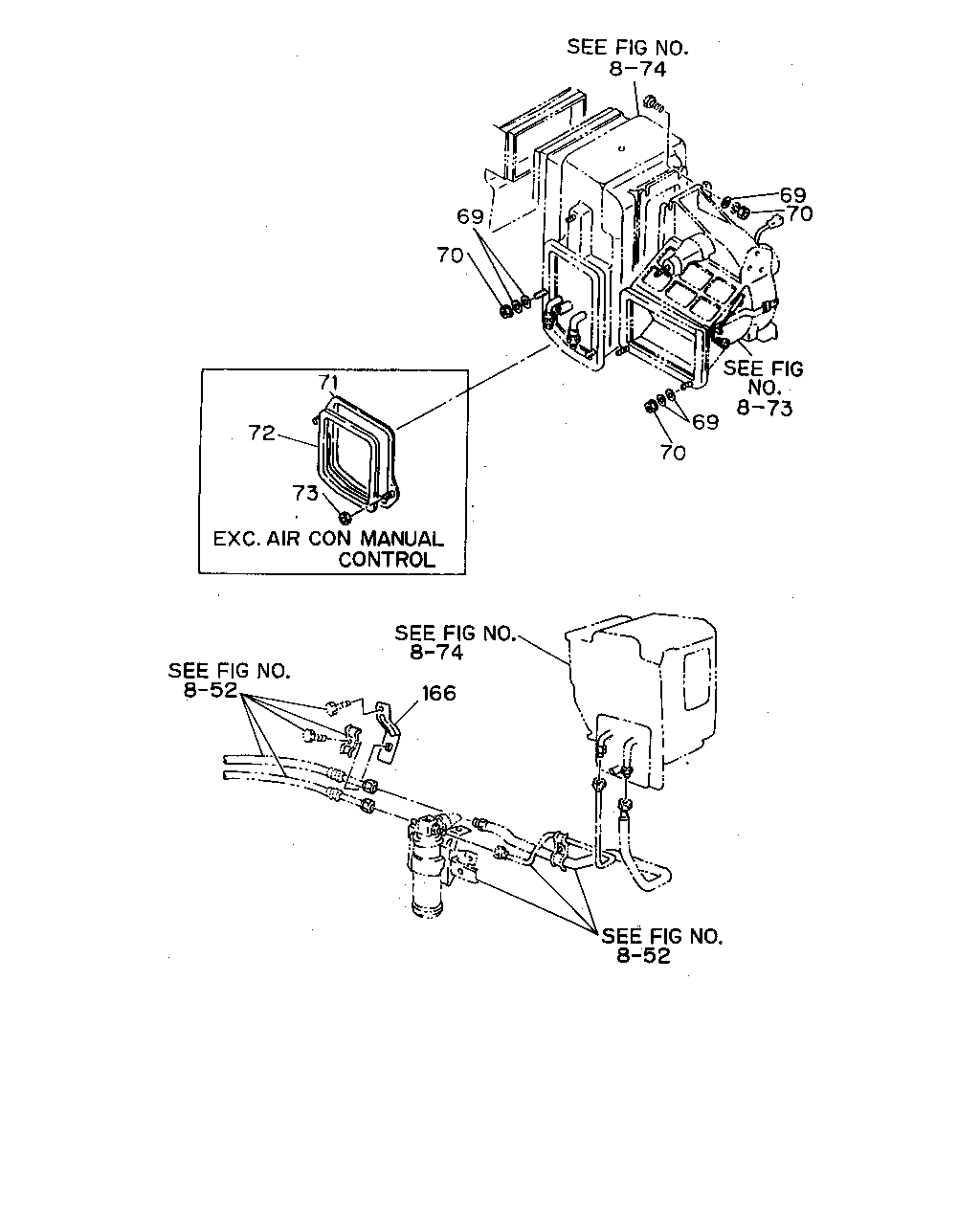

çizim 94827
69 70 71 72 73 69 70 69 70 166
BalonParca AdiParca NoAdetTipApplied Date
69 WASHER; PL,EVAP
AIR CONDITIONER MANUAL CONTROL(C60) OD=20 		1-09509-047-0 01 1 8712-
69 WASHER; PL,EVAP
AIR CONDITIONER MANUAL CONTROL(C60) OD=14 		1-09509-048-0 02 1 8712-
70 NUT; EVAP,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M6 FLANGE 		1-09984-141-0 03 1 8712-
71 COVER; EVAP,A/C
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-71997-460-1 01 1 8712-
72 SEAL; COVER,EVAP
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-71997-462-1 01 1 8712-9210
72 SEAL; COVER,EVAP
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-71998-221-0 01 1 9211-
73 NUT; COVER,A/C EVAP
EXC. AIR CONDITIONER MANUAL CONTROL(C60) M6 FLANGE 		1-09984-141-0 02 1 8712-
166 BRACKET; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83571-266-1 01 1 8712-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
