11318 - CYH MIDDLE EAST WITH 2STEPS
▶
0 - Engine, Emission, Engine Electrical
▶
0-13 - OIL PAN AND LEVEL GAUGE
▶
0-13 — OIL PAN AND LEVEL GAUGE
(#59897) — 33 parça
◀

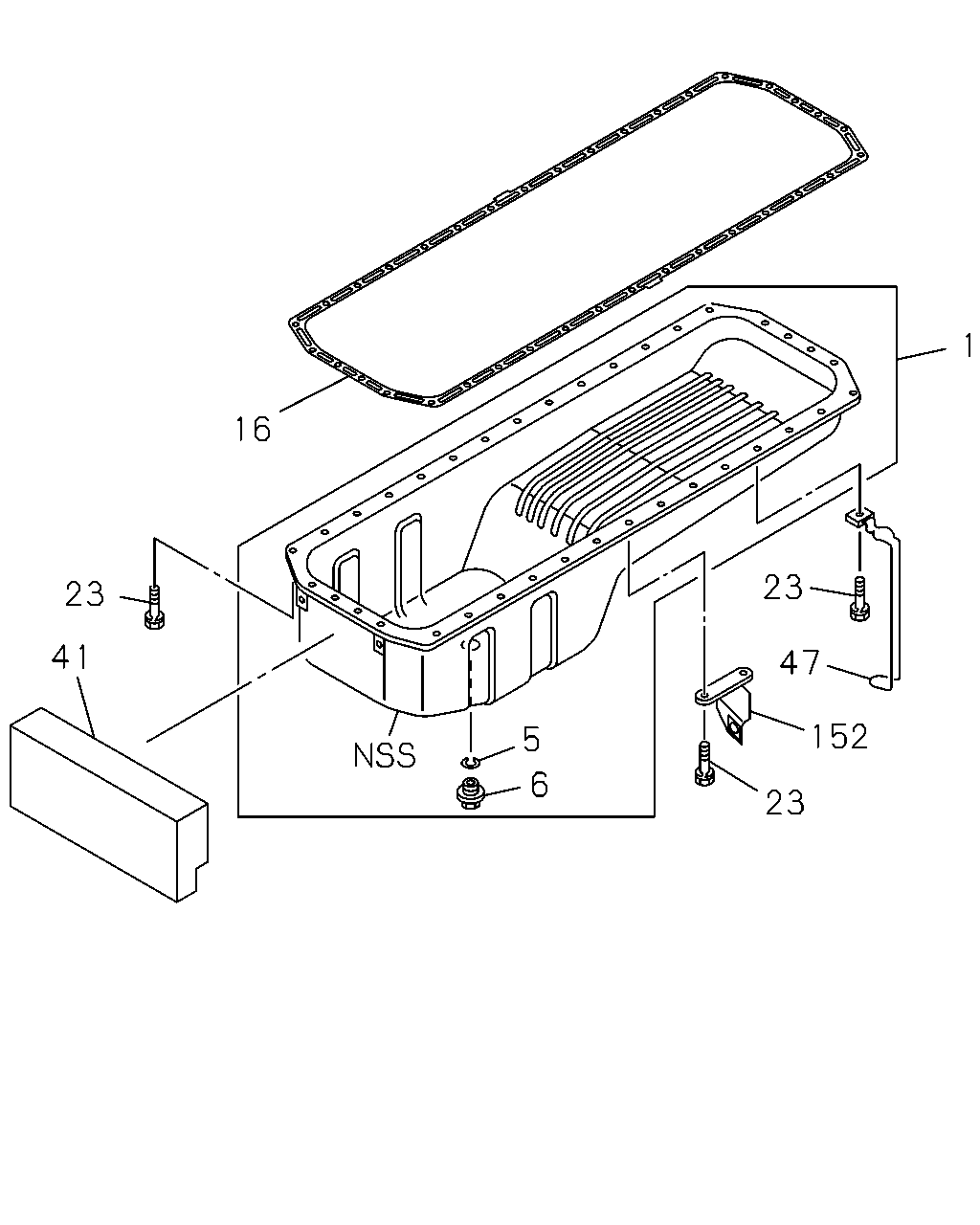

[013A] OIL PAN (12 parça)
[013A] LEVEL GAUGE (21 parça)
▶
1
16
23
23
41
47
152
5
6
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PAN ASM; OIL
1-11360-912-0
01
1
0812-
5
GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4
1-09623-057-0
01
1
0812-
6
PLUG; OIL DRAIN
9-09662-012-0
01
1
0812-
16
GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
1-11367-130-0
01
1
0812-
23
BOLT; OIL PAN
M10X28 W/LK&PL WASHER
0-50151-028-0
36
1
0812-0906
23
BOLT; OIL PAN
M10X28 W/LK&PL WASHER
0-50651-028-0
36
1
0907-0909
23
BOLT; OIL PAN
M10X20 FLANGE
0-28151-020-0
36
1
0910-0912
23
BOLT; OIL PAN
M10X20 FLANGE
0-28151-020-0
34
1
1001-
23
BOLT; OIL PAN
M10X30 FLANGE
0-28151-030-0
02
1
1001-
41
RUBBER; SPACE
1-19389-209-0
01
1
0812-
47
CLIP; HOSE,AIR BREATHER
1-11369-147-1
01
1
0812-
152
BRACKET; CLIP POWER STRG PIPE
1-21119-130-1
01
1
0812-
225
256
193
192
193
270
203
256
216
12
10
44
193
192
193
49
2
8
10
8
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
GAUGE; OIL LEVEL
1-11760-405-0
01
1
0811-1305
2
GAUGE; OIL LEVEL
1-11760-427-0
01
1
1306-
8
TUBE; GUIDE,OIL LEVEL GAUGE
(A)
1-11766-604-2
01
1
0811-
8
TUBE; GUIDE,OIL LEVEL GAUGE
(B)
1-11766-608-0
01
1
0812-
10
BOLT; GUIDE TUBE
(A) M8X20 FLANGE
0-28650-820-0
01
1
0811-
10
BOLT; GUIDE TUBE
(B) M10X20 FLANGE
0-28051-020-0
01
1
0812-
10
BOLT; GUIDE TUBE
(C) M10X20 FLANGE
0-28151-020-0
02
1
0812-
12
BRACKET; TUBE,OIL LEVEL GAUGE
1-11769-204-1
01
1
0812-
44
PLUG
1-09604-098-0
01
1
0812-
49
NUT; GUIDE TUBE
M8 FLANGE
0-91180-108-0
01
1
0811-
192
HOSE; GUIDE TUBE
L=620 SERVICED BY L=3000
0-02361-300-0
01
1
0811-
193
CLIP; HOSE,GUIDE TUBE
(C) ID=19 L=28
0-95235-856-0
01
1
0811-
193
CLIP; HOSE,GUIDE TUBE
(B) ID=20 H=23 L=27
1-09700-861-0
01
1
0811-
193
CLIP; HOSE,GUIDE TUBE
(B) ID=19 L=39 H=21
1-09700-972-1
01
1
0811-
193
CLIP; HOSE,GUIDE TUBE
(A) ID=17
1-09707-158-0
02
1
0811-
203
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
01
1
0811-
216
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
01
1
0811-
225
WASHER; PL
ID=8.4 OD=22
0-91610-708-0
01
1
0811-
256
NUT; CLIP
M8 FLANGE
0-91180-108-0
01
1
0811-
256
NUT; CLIP
M8 FLANGE
0-91180-108-0
01
1
0811-
270
BRACKET ASM; TUBE,OIL LEVEL GAUGE
1-47471-382-0
01
1
0811-
