Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11312 - FVZ(MIDDLE EAST)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶

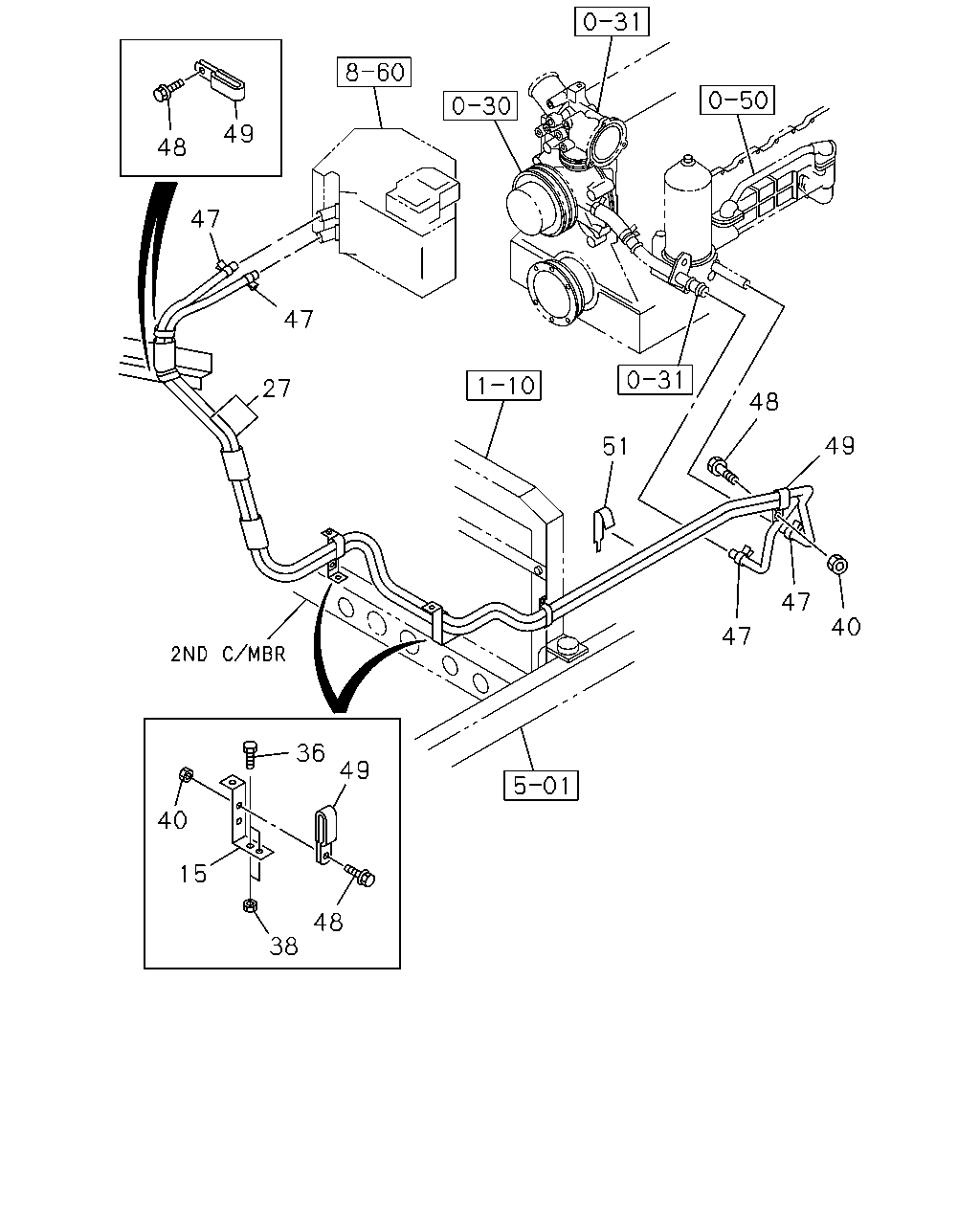

8-45 - HEATER PIPING
▶
8-45 — HEATER PIPING
(#59885) — 18 parça
49
48
47
47
27
48
49
51
47
40
47
36
49
40
15
48
38
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
15
BRACKET; WATER HOSE
HEATER & DEFROSTER(C41)
1-83571-927-1
02
1
0006-
27
HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41)
1-83565-655-2
01
1
0006-
36
BOLT; BRKT
HEATER & DEFROSTER(C41) M8X20 FLANGE
0-28680-820-0
04
1
0006-0512
36
BOLT; BRKT
HEATER & DEFROSTER(C41) M8X20 FLANGE
0-28650-820-0
04
1
0601-
38
NUT; BRKT
HEATER & DEFROSTER(C41) M8 FLANGE
0-91150-108-0
04
1
0006-0602
38
NUT; BRKT
HEATER & DEFROSTER(C41) M8 FLANGE
0-91180-108-0
04
1
0603-
40
NUT; CLIP
HEATER & DEFROSTER(C41) M8 FLANGE
0-91150-108-0
03
1
0006-0602
40
NUT; CLIP
HEATER & DEFROSTER(C41) M8 FLANGE
0-91180-108-0
03
1
0603-
47
CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41) ID=22
8-94382-401-0
04
1
0006-0611
47
CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41) ID=22
8-97359-141-0
04
1
0612-
48
BOLT; CLIP FIX
HEATER & DEFROSTER(C41) M8X20 FLANGE
0-28680-820-0
02
1
0006-0512
48
BOLT; CLIP FIX
HEATER & DEFROSTER(C41) M8X20 FLANGE
0-28650-820-0
02
1
0601-
48
BOLT; CLIP FIX
HEATER & DEFROSTER(C41) M8X20 FLANGE
0-28680-820-0
03
1
0006-0512
48
BOLT; CLIP FIX
HEATER & DEFROSTER(C41) M8X20 FLANGE
0-28650-820-0
03
1
0601-
49
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41) ID=24X2 L=25
1-09700-710-0
02
1
0006-
49
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41) ID=24X2 L=25
1-09700-710-0
03
1
0006-
51
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41) L=170
1-83574-139-0
01
1
0006-1205
51
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41) L=170
8-98166-021-0
01
1
1206-
