9 |

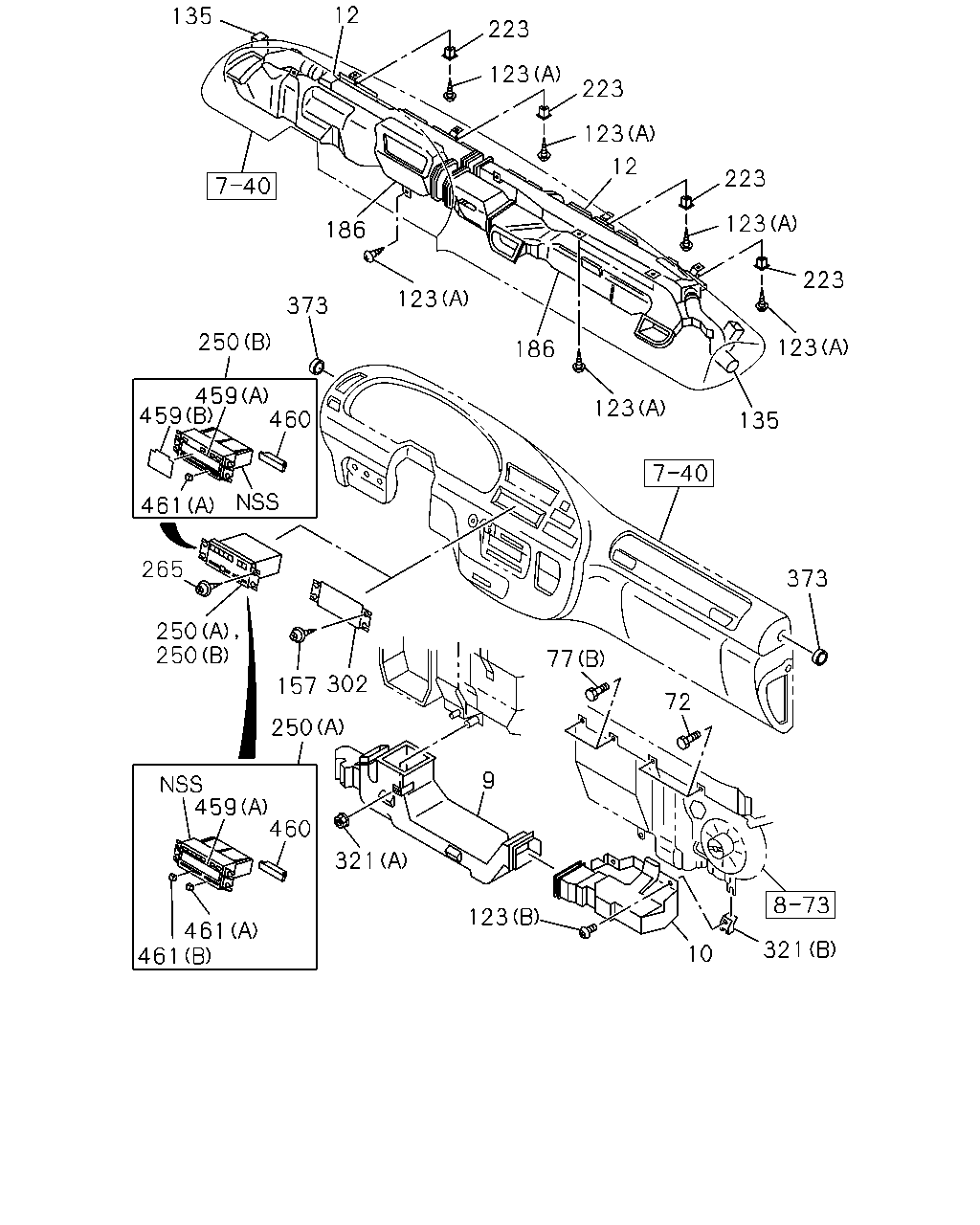

DUCT; HTR AIR,FOOT CENTER
HEATER & DEFROSTER(C41)
|
1-76378-377-3 |
01 |
1 |
0006-0006 |
| |
9 |
DUCT; HTR AIR,FOOT CENTER
HEATER & DEFROSTER(C41)
|
1-76378-431-2 |
01 |
1 |
0007- |
| |
10 |
DUCT; HTR AIR,ASSIST FOOT
HEATER & DEFROSTER(C41)
|
1-76378-368-2 |
01 |
1 |
0006- |
| |
12 |
NOZZLE; DEFROSTER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER
WO/HEATER(SAZ)
|
1-76378-360-2 |
01 |
1 |
0006- |
| |
12 |
NOZZLE; DEFROSTER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER
WO/HEATER(SAZ)
|
1-76378-359-2 |
01 |
1 |
0006- |
| |
72 |
BOLT; BLOWER UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER
WO/HEATER(SAZ)
M6X19.5 W/LK&PL WASHER
|
8-94279-201-0 |
02 |
1 |
0006- |
| |
77 |
BOLT; HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER
WO/HEATER(SAZ)
(A)
M6X16
|
1-09980-598-1 |
02 |
1 |
0006- |
| |
77 |
BOLT; HTR UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER
WO/HEATER(SAZ)
(B)
M6X19.5 W/LK&PL WASHER
|
8-94279-201-0 |
02 |
1 |
0006- |
| |
123 |
SCREW; DUCT
HEATER & DEFROSTER(C41)
(B)
M5X14
|
8-94279-325-0 |
02 |
1 |
0006- |
| |
123 |
SCREW; DUCT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER
WO/HEATER(SAZ)
(A)
M5X14
|
8-94279-325-0 |
08 |
1 |
0006- |
| |
135 |
HOSE; DEFROSTER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER
WO/HEATER(SAZ)
|
1-76378-364-3 |
01 |
1 |
0006- |
| |
135 |
HOSE; DEFROSTER
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER
WO/HEATER(SAZ)
|
1-76378-363-2 |
01 |
1 |
0006- |
| |
157 |
SCREW
EXC. HEATER & DEFROSTER(C41),VENTILATOR &
DEFROSTERWO/HEATER(SAZ)
M6X20 TAPPING W/PL WASHER
|
0-74110-620-0 |
02 |
1 |
0006-0604 |
| |
157 |
SCREW
EXC. HEATER & DEFROSTER(C41),VENTILATOR &
DEFROSTERWO/HEATER(SAZ)
M6X20 TAPPING W/PL WASHER
|
0-74160-620-0 |
02 |
1 |
0605- |
| |
186 |
DUCT; VENTILATOR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER
WO/HEATER(SAZ)
|
1-76378-362-4 |
01 |
1 |
0006- |
| |
186 |
DUCT; VENTILATOR
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER
WO/HEATER(SAZ)
|
1-76378-361-3 |
01 |
1 |
0006- |
| |
223 |
GROMMET; SCREW
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER
WO/HEATER(SAZ)
D=7.8X7.8 L 13 M6 NATURAL
|
8-94279-084-2 |
04 |
1 |
0006- |
| |
250 |
CONTROL ASM; A/C
HEATER & DEFROSTER(C41)
(A)
|
1-83543-050-0 |
01 |
1 |
0006- |
| |
250 |
CONTROL ASM; A/C
VENTILATOR & DEFROSTER WO/HEATER(SAZ)
(B)
|
1-83543-034-1 |
01 |
1 |
0006- |
| |
265 |
SCREW; A/C CONT UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER
WO/HEATER(SAZ)
M6X20 TAPPING W/PL WASHER
|
0-74110-620-0 |
02 |
1 |
0006-0604 |
| |
265 |
SCREW; A/C CONT UNIT
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER
WO/HEATER(SAZ)
M6X20 TAPPING W/PL WASHER
|
0-74160-620-0 |
02 |
1 |
0605- |
| |
302 |
COVER; AIR HOLE
EXC. HEATER & DEFROSTER(C41),VENTILATOR &
DEFROSTERWO/HEATER(SAZ)
|
1-72438-140-1 |
01 |
1 |
0006- |
| |
321 |
NUT; DUCT FIX
HEATER & DEFROSTER(C41)
(A)
M6 FLANGE
|
0-91150-106-0 |
01 |
1 |
0006-0602 |
| |
321 |
NUT; DUCT FIX
HEATER & DEFROSTER(C41)
(A)
M6 FLANGE
|
0-91180-106-0 |
01 |
1 |
0603- |
| |
321 |
NUT; DUCT FIX
HEATER & DEFROSTER(C41)
(B)
M5
|
1-09984-150-0 |
01 |
1 |
0006-0409 |
| |
321 |
NUT; DUCT FIX
HEATER & DEFROSTER(C41)
(B)
M5
|
1-09984-196-0 |
01 |
1 |
0410- |
| |
373 |
RUBBER; JOINT
|
1-76378-291-0 |
02 |
1 |
0006- |
| |
459 |
PANEL; CONTROL ASM,A/C
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER
WO/HEATER(SAZ)
(A)
|
1-83549-013-0 |
01 |
1 |
0006- |
| |
459 |
PANEL; CONTROL ASM,A/C
VENTILATOR & DEFROSTER WO/HEATER(SAZ)
(B)
|
1-83549-017-0 |
01 |
1 |
0006- |
| |
460 |
SWITCH; CONTROL ASM,A/C
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER
WO/HEATER(SAZ)
|
1-82489-006-0 |
01 |
1 |
0006- |
| |
461 |
KNOB; CONTROL ASM,A/C
HEATER & DEFROSTER(C41)
(B)
|
1-83549-015-0 |
01 |
1 |
0006- |
| |
461 |
KNOB; CONTROL ASM,A/C
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER
WO/HEATER(SAZ)
(A)
|
1-83549-016-0 |
01 |
1 |
0006- |
