◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11312 - FVZ(MIDDLE EAST) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#59882) — 14 parça

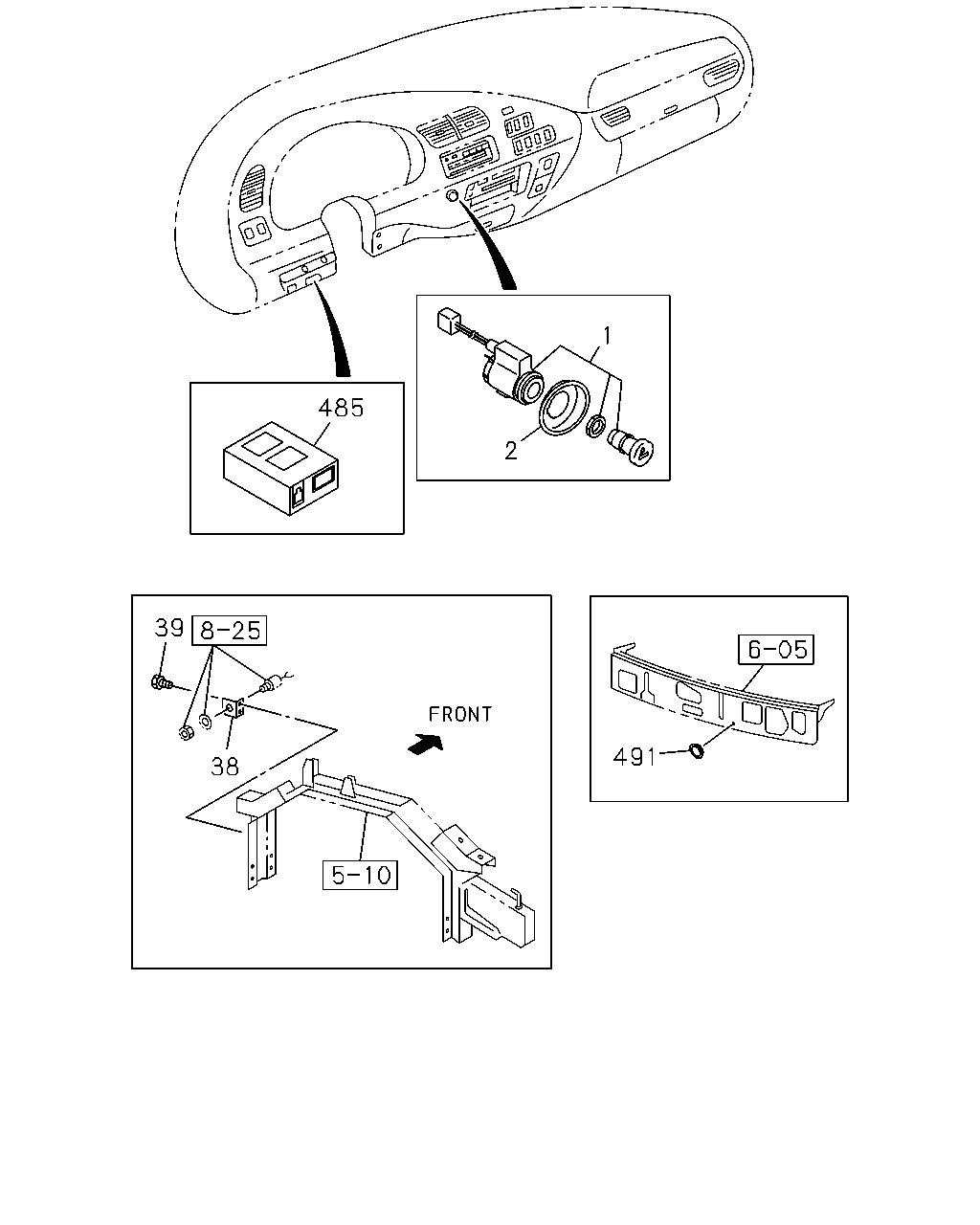

çizim 177069
1 485 2 39 491 38
BalonParca AdiParca NoAdetTipApplied Date
1 LIGHTER; CIGAR 8-97064-970-1 01 1 0006-0108
1 LIGHTER; CIGAR 8-97320-325-0 01 1 0109-
2 BEZEL; CIGAR LIGHTER 1-73998-883-2 01 1 0006-
38 BRACKET; SW,STARTER SUB 1-82698-232-0 01 1 0006-0211
38 BRACKET; SW,STARTER SUB
EXC. STARTER SWITCH DELETION<E5D> 		1-82698-232-0 01 1 0212-
39 BOLT; BRKT,STARTER SUB SW
M8X20 FLANGE 		0-28680-820-0 02 1 0006-0211
39 BOLT; BRKT,STARTER SUB SW
EXC. STARTER SWITCH DELETION<E5D> M8X20 FLANGE 		0-28680-820-0 02 1 0212-0512
39 BOLT; BRKT,STARTER SUB SW
EXC. STARTER SWITCH DELETION<E5D> M8X20 FLANGE 		0-28650-820-0 02 1 0601-
485 CONTROL UNIT; SPEED SENSOR 1-80190-038-1 01 1 0006-0402
485 CONTROL UNIT; SPEED SENSOR 1-80190-149-0 01 1 0403-0410
485 CONTROL UNIT; SPEED SENSOR 1-80190-158-0 01 1 0411-
491 PLUG; HOLE,CONT UNIT
OD=54.5 		1-73907-309-0 01 1 0006-

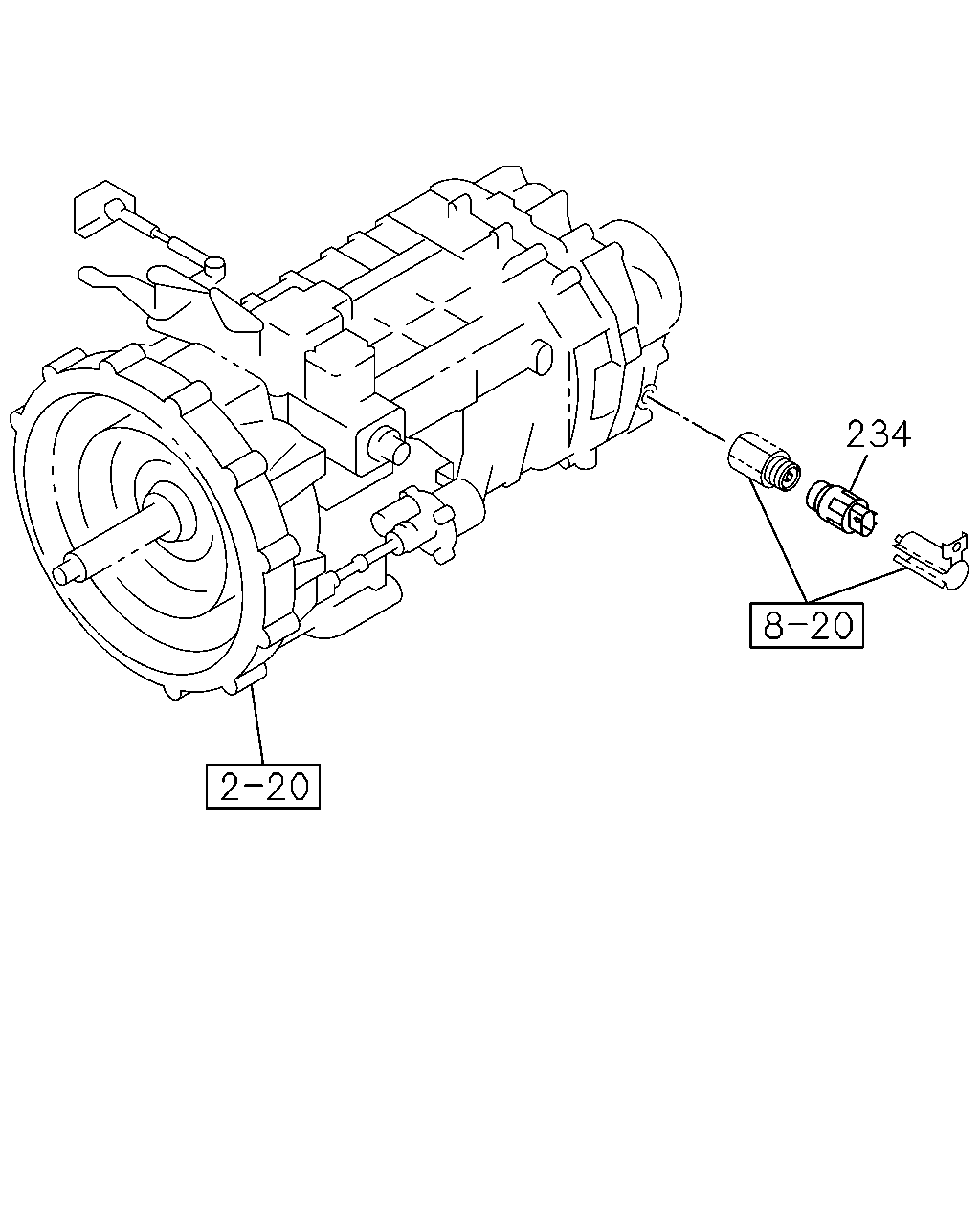

çizim 177074
234
BalonParca AdiParca NoAdetTipApplied Date
234 SENSOR; VEHICLE SPD 1-80240-001-1 01 1 0006-0202
234 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 0203-
