8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#59881) — 24 parça

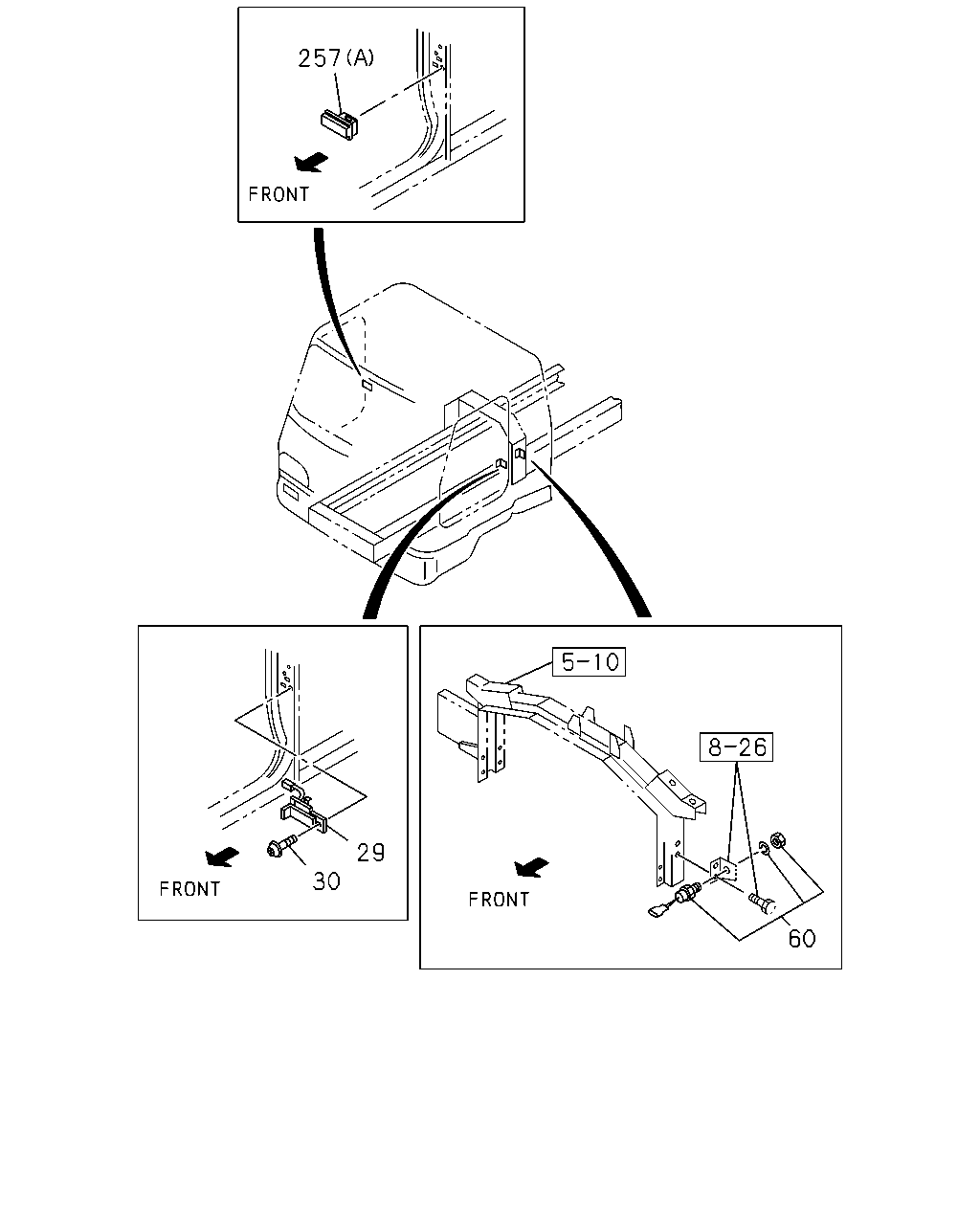

çizim 177066
257 29 30 60
BalonParca AdiParca NoAdetTipApplied Date
29 SWITCH; DOOR 8-97855-032-3 01 1 0006-
30 SCREW; DOOR SW
M5X11 		1-09981-536-1 01 1 0006-
60 SWITCH; STARTER SUB 1-82380-107-1 01 1 0006-0211
60 SWITCH; STARTER SUB
EXC. STARTER SWITCH DELETION<E5D> 		1-82380-107-1 01 1 0212-
257 COVER; HOLE,SW
(B) 		1-82389-011-2 01 1 0006-
257 COVER; HOLE,SW
(B) 		1-82389-012-2 01 1 0006-
257 COVER; HOLE,SW
(A) 		8-94229-914-1 01 1 0006-

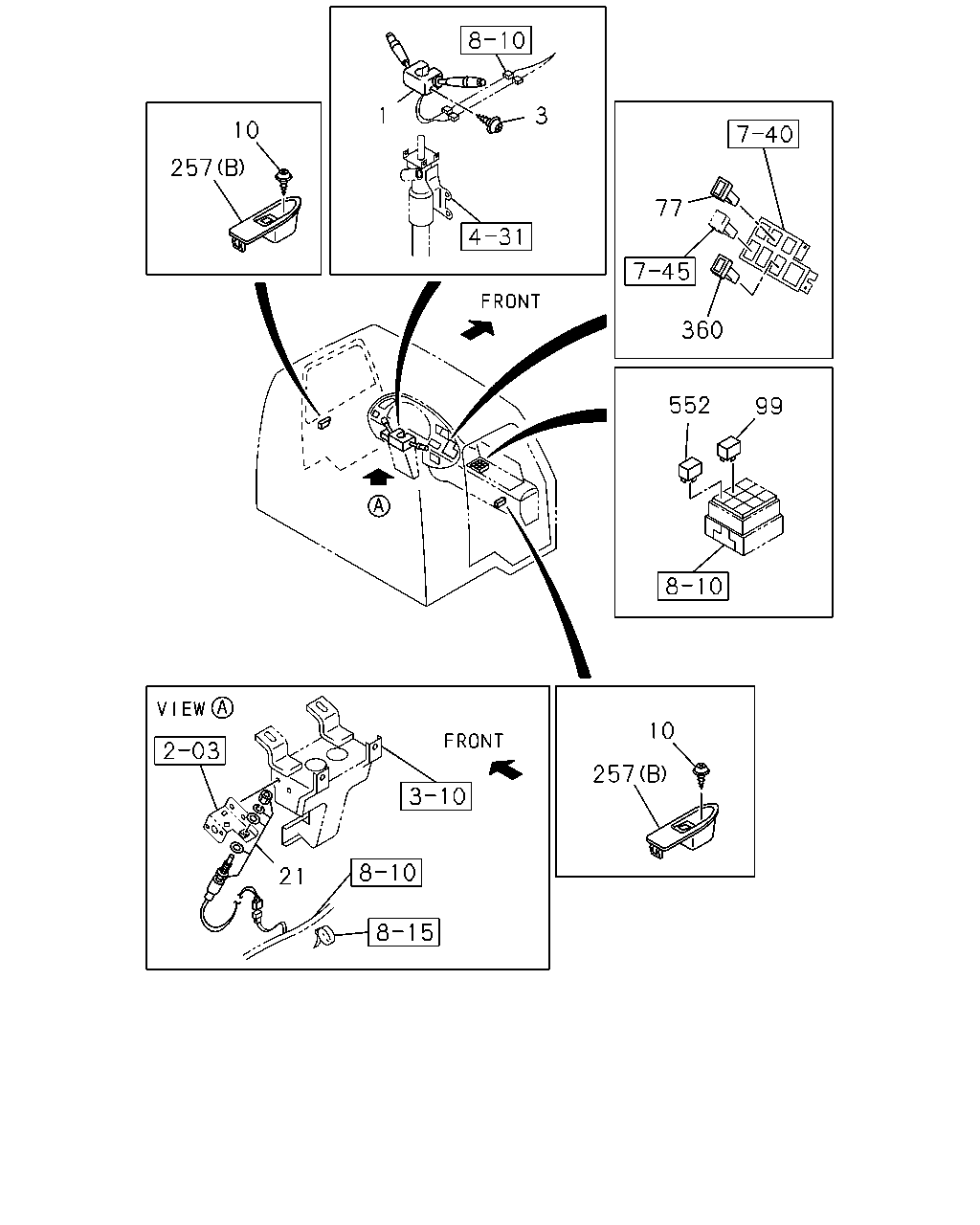

çizim 177067
3 1 10 257 77 360 552 99 10 257 21
BalonParca AdiParca NoAdetTipApplied Date
1 SWITCH; COMB 1-82360-405-4 01 1 0006-0103
1 SWITCH; COMB 1-82360-647-0 01 1 0104-0312
1 SWITCH; COMB 1-82360-734-0 01 1 0401-
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74105-512-0 04 1 0006-0604
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74165-512-0 04 1 0605-
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0006-0604
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605-
21 SWITCH; CLU 1-82380-114-3 01 1 0006-
77 SWITCH; PTO
PTO CONTROL<SV6> 		1-82340-403-0 01 1 0006-
99 RELAY; FOG LAMP
24V 12.5A MITUBA 		8-97062-815-1 01 1 0006-0111
99 RELAY; FOG LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112-
257 COVER; HOLE,SW
(B) 		1-82389-011-2 01 1 0006-
257 COVER; HOLE,SW
(B) 		1-82389-012-2 01 1 0006-
257 COVER; HOLE,SW
(A) 		8-94229-914-1 01 1 0006-
360 SWITCH ASM; DIFF LK 1-82340-404-0 01 1 0006-
552 RELAY; CIGAR LIGHTER
24V 12.5A MITUBA 		8-97062-815-1 01 1 0006-0111
552 RELAY; CIGAR LIGHTER
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0112-
