Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11312 - FVZ(MIDDLE EAST)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶

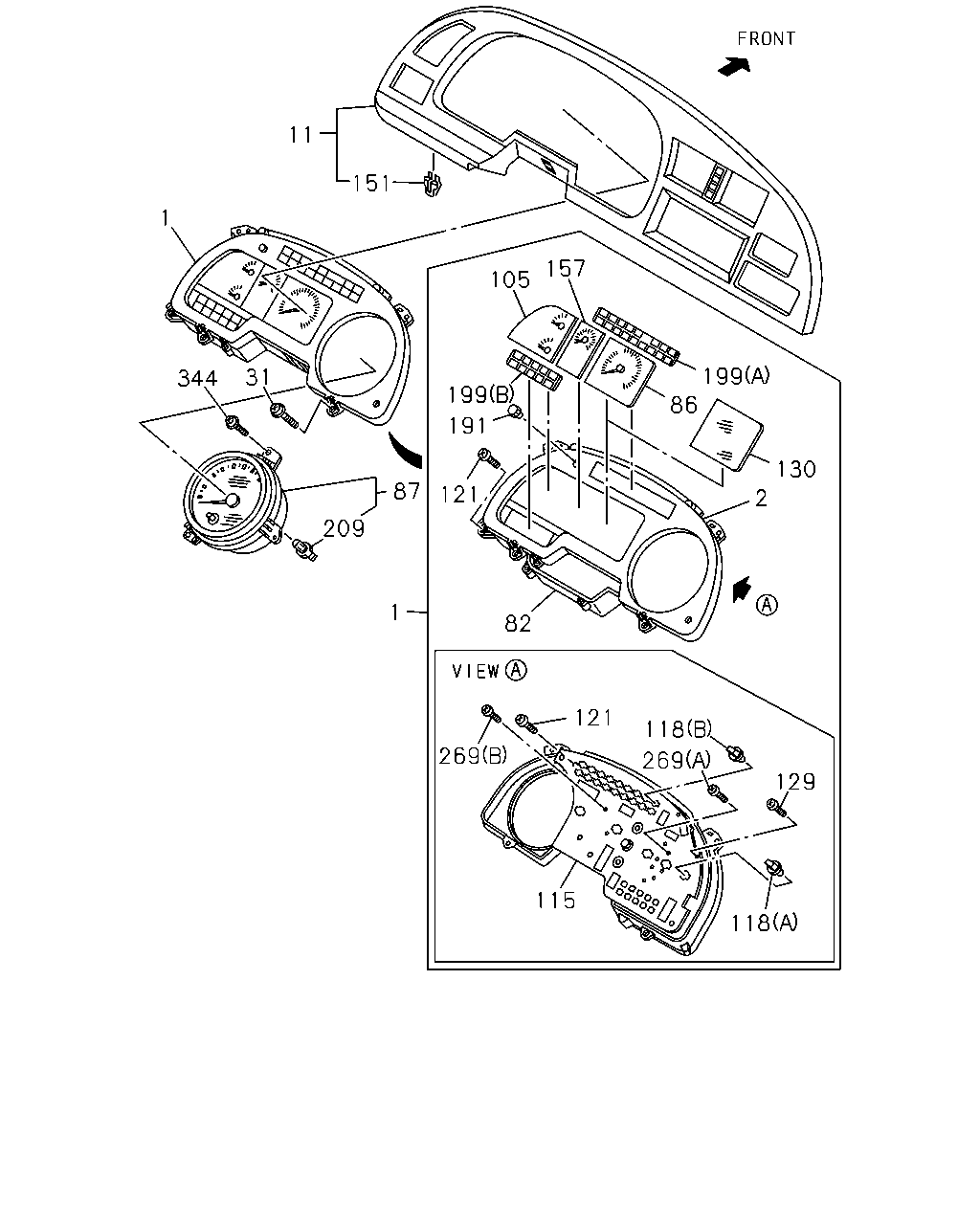

8-21 - METER ASM
▶
8-21 — METER ASM
(#59880) — 28 parça
11
151
1
157
105
31
199
344
199
86
191
130
87
121
2
209
1
82
121
118
269
269
129
115
118
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
METER COMPL; CLUSTER
TACHOMETER<UD7>
1-83114-978-0
01
1
0006-
1
METER COMPL; CLUSTER
EXC. TACHOMETER<UD7>
1-83114-973-0
01
1
0006-
2
PANEL; CLUSTER
1-83119-499-0
01
1
0006-
11
CLUSTER ASM; METER
1-72418-022-7
01
1
0006-
31
SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER
0-74110-620-0
03
1
0006-0604
31
SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER
0-74160-620-0
03
1
0605-
82
CASE ASM; CLUSTER METER
1-83119-432-0
01
1
0006-
86
TACHOMETER; CLUSTER METER
TACHOMETER<UD7>
1-83120-835-0
01
1
0006-
87
SPEEDOMETER
1-83120-490-1
01
1
0006-
105
GAUGE; THERMO & FUEL,CLUSTER METER
1-83180-274-0
01
1
0006-
115
CIRCUIT; PRINTED,CLUSTER METER
TACHOMETER<UD7>
1-83189-320-0
01
1
0006-
115
CIRCUIT; PRINTED,CLUSTER METER
EXC. TACHOMETER<UD7>
1-83189-307-0
01
1
0006-
118
BULB; CLUSTER METER
(B) 24V 1.8W BROWN SOCKET
1-82194-062-0
13
1
0006-
118
BULB; CLUSTER METER
TACHOMETER<UD7> (A) 24V 3W GREEN SOCKET
1-82194-061-0
04
1
0006-
118
BULB; CLUSTER METER
EXC. TACHOMETER<UD7> (A) 24V 3W GREEN SOCKET
1-82194-061-0
03
1
0006-
121
SCREW; PANEL FIX,CLUSTER METER
M4 TAPPING
1-83119-442-0
08
1
0006-
129
SCREW; PRINTED CIRCUIT,CLUSTER METER
M3 TAPPING
1-83119-052-0
10
1
0006-
130
COVER; METER HOLE,CLUSTER METER
EXC. TACHOMETER<UD7>
1-83119-523-0
01
1
0006-
151
CLIP; METER CLUSTER
8-97217-066-0
10
1
0006-
157
METER; AIR PRESSURE,CLUSTER METER
1-83150-187-0
01
1
0006-
191
KNOB; BULB CHECK
1-83119-500-0
01
1
0006-
199
LENS; WARNING LAMP
(B)
1-83119-435-0
01
1
0006-
199
LENS; WARNING LAMP
(A)
1-83119-526-0
01
1
0006-
209
BULB; SPEEDOMETER
24V 3W GREEN SOCKET
1-82194-061-0
02
1
0006-
269
SCREW; METER CLUSTER
(A) M3 TAPPING
1-83119-441-0
06
1
0006-
269
SCREW; METER CLUSTER
TACHOMETER<UD7> (B) M3 TAPPING
1-83119-439-0
03
1
0006-
344
SCREW; SPEEDOMETER
M6X20 TAPPING W/PL WASHER
0-74110-620-0
03
1
0006-0604
344
SCREW; SPEEDOMETER
M6X20 TAPPING W/PL WASHER
0-74160-620-0
03
1
0605-
