◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11312 - FVZ(MIDDLE EAST) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#59878) — 192 parça
çizim 177054
171 171 171 335 312 59
BalonParca AdiParca NoAdetTipApplied Date
59 BRACKET; FRAME HARNESS
L=95 		1-82699-085-0 01 1 0006-
171 CLIP; STARTER HARNESS
(A) L=300 		1-09707-001-1 01 1 0006-
171 CLIP; STARTER HARNESS
(C) ID=18 L=44 		8-94225-185-0 01 1 0006-0209
171 CLIP; STARTER HARNESS
(B) ID=19 L=28 		9-09525-856-0 03 1 0006-0606
171 CLIP; STARTER HARNESS
(B) ID=19 L=28 		0-95235-856-0 03 1 0607-
171 CLIP; STARTER HARNESS
(D) ID=10 & 16.5 		8-94360-745-0 01 1 0201-
171 CLIP; STARTER HARNESS
(E) ID=5-12 L=14.5 		1-09987-221-0 01 1 0402-
312 BRACKET; CLIP HARNESS 1-82699-109-0 01 1 0006-
335 BRACKET; CONNECTOR 1-82698-167-0 01 1 0006-

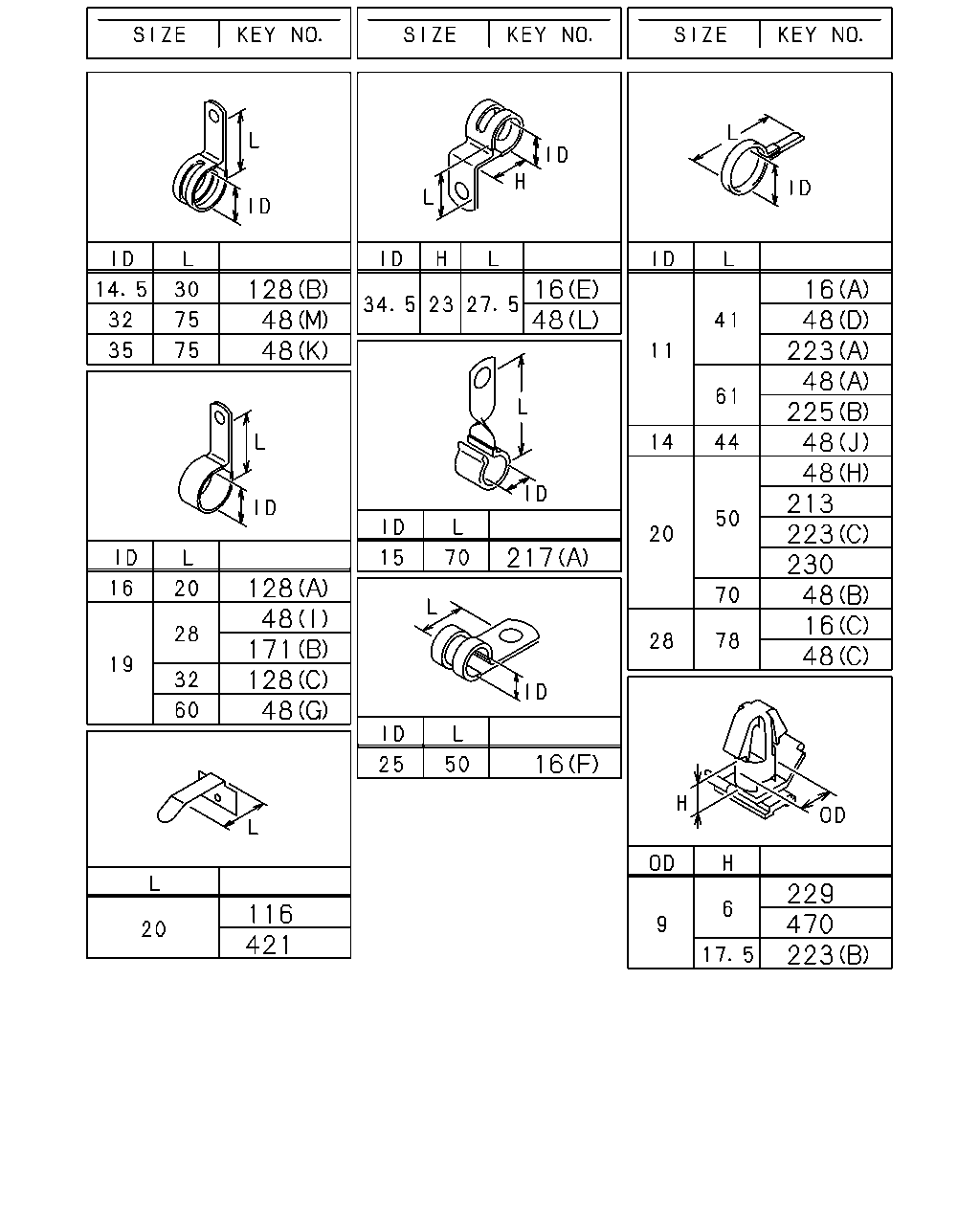

çizim 177059
128 48 48 16 48 16 48 223 48 225 48 48 213 223 230 48 16 48 217 128 48 171 128 48 16 229 470 223 116 421
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 0006-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 03 1 0006-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 03 1 0006-
16 CLIP; HARNESS
(C) ID=28 L=78 		1-09700-858-0 01 1 0006-
16 CLIP; HARNESS
(C) ID=28 L=78 		1-09700-858-0 01 1 0006-
16 CLIP; HARNESS
(E) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0006-
16 CLIP; HARNESS
(F) ID=25 L=50 		1-09701-019-0 01 1 0006-
16 CLIP; HARNESS
(G) L=300 		1-09707-001-1 01 1 0006-
16 CLIP; HARNESS
(D) L=250 		5-09707-030-1 01 1 0006-
16 CLIP; HARNESS
(D) L=250 		5-09707-030-1 01 1 0006-
16 CLIP; HARNESS
(B) L=140 		5-09707-031-1 01 1 0006-
48 CLIP; FRAME HARNESS
(D) ID=11 L=41 		1-09700-403-0 01 1 0006-
48 CLIP; FRAME HARNESS
(A) ID=11 L=61 		1-09700-484-0 07 1 0006-
48 CLIP; FRAME HARNESS
(B) ID=20 L=70 		1-09700-485-0 03 1 0006-
48 CLIP; FRAME HARNESS
(B) ID=20 L=70 		1-09700-485-0 07 1 0006-
48 CLIP; FRAME HARNESS
(C) ID=28 L=78 		1-09700-858-0 03 1 0006-
48 CLIP; FRAME HARNESS
(F) L=180 		1-09707-162-1 01 1 0006-0104
48 CLIP; FRAME HARNESS
(E) L=300 		1-09707-001-1 01 1 0105-0209
48 CLIP; FRAME HARNESS
(G) ID=19 L=60 		9-09525-896-0 01 1 0006-0606
48 CLIP; FRAME HARNESS
(G) ID=19 L=60 		0-95235-896-0 01 1 0607-
48 CLIP; FRAME HARNESS
(H) ID=20 L=50 		9-09917-430-0 01 1 0006-
48 CLIP; FRAME HARNESS
(H) ID=20 L=50 		9-09917-430-0 01 1 0006-
48 CLIP; FRAME HARNESS
(H) ID=20 L=50 		9-09917-430-0 01 1 0006-
48 CLIP; FRAME HARNESS
(K) ID=35 L=75 		1-09700-608-2 01 1 0006-
48 CLIP; FRAME HARNESS
(M) ID=32 L=75 		1-09700-704-1 02 1 0006-
48 CLIP; FRAME HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0006-
48 CLIP; FRAME HARNESS
(I) ID=19 L=28 		9-09525-856-0 01 1 0006-0606
48 CLIP; FRAME HARNESS
(I) ID=19 L=28 		0-95235-856-0 01 1 0607-
48 CLIP; FRAME HARNESS
(J) ID=14 L=44 		9-09917-427-0 02 1 0006-
48 CLIP; FRAME HARNESS
(F) L=180 		1-09707-162-1 01 1 0202-
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (H) ID=20 L=50 		9-09917-430-0 13 1 0006-
48 CLIP; FRAME HARNESS
WHEEL BASE 6300MM(63W) (H) ID=20 L=50 		9-09917-430-0 21 1 0006-
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 05 1 0006-0009
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 06 1 0010-0112
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 05 1 0201-1409
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 06 1 1410-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 0006-0606
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0607-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(C) ID=19 L=32 		9-09525-862-0 01 1 0006-0011
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0012-
171 CLIP; STARTER HARNESS
(A) L=300 		1-09707-001-1 01 1 0006-
171 CLIP; STARTER HARNESS
(C) ID=18 L=44 		8-94225-185-0 01 1 0006-0209
171 CLIP; STARTER HARNESS
(B) ID=19 L=28 		9-09525-856-0 03 1 0006-0606
171 CLIP; STARTER HARNESS
(B) ID=19 L=28 		0-95235-856-0 03 1 0607-
171 CLIP; STARTER HARNESS
(D) ID=10 & 16.5 		8-94360-745-0 01 1 0201-
171 CLIP; STARTER HARNESS
(E) ID=5-12 L=14.5 		1-09987-221-0 01 1 0402-
213 CLIP; END CROSS HARNESS
ID=20 L=50 		9-09917-430-0 03 1 0006-
217 CLIP; RR BODY HARNESS
(A) ID=15 L=70 		1-09700-980-0 02 1 0006-0208
217 CLIP; RR BODY HARNESS
(B) L=250 		5-09707-030-1 02 1 0006-
223 CLIP; AIR TANK HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0006-
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=17.5 		1-09709-181-0 01 1 0006-
223 CLIP; AIR TANK HARNESS
(C) ID=20 L=50 		9-09917-430-0 04 1 0006-0305
223 CLIP; AIR TANK HARNESS
(C) ID=20 L=50 		9-09917-430-0 05 1 0306-
225 CLIP; AIR TANK HARNESS
(A) L=180 		1-09707-162-1 01 1 0006-0112
225 CLIP; AIR TANK HARNESS
EXC. AIR DRYER<PS7> (A) L=180 		1-09707-162-1 01 1 0201-
225 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> (B) ID=11 L=61 		1-09700-484-0 02 1 0110-
225 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> (C) L=600 		1-09707-107-1 01 1 0201-
229 CLIP; STARTER SUB SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 0006-
230 CLIP; C/MBR HARNESS
ID=20 L=50 		9-09917-430-0 02 1 0006-
421 CLIP; FLOOR HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 05 1 0006-0101
421 CLIP; FLOOR HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 01 1 0102-0406
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 0006-

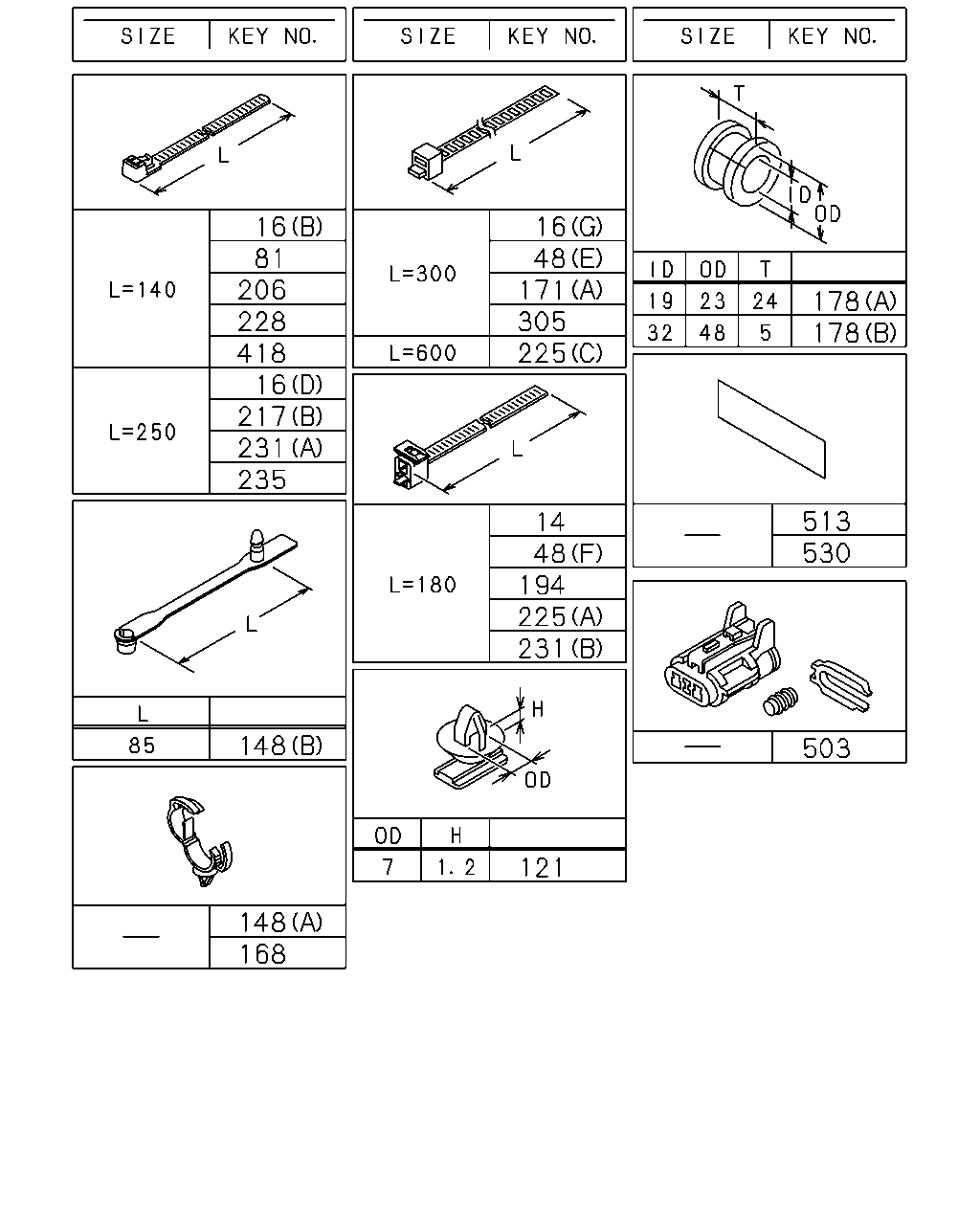

çizim 177060
16 81 206 228 418 16 217 231 235 16 48 171 305 225 178 178 513 530 14 48 194 225 231 148 503 121 148 168
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
L=180 		1-09707-162-1 01 1 0006-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 0006-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 03 1 0006-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 03 1 0006-
16 CLIP; HARNESS
(C) ID=28 L=78 		1-09700-858-0 01 1 0006-
16 CLIP; HARNESS
(C) ID=28 L=78 		1-09700-858-0 01 1 0006-
16 CLIP; HARNESS
(E) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0006-
16 CLIP; HARNESS
(F) ID=25 L=50 		1-09701-019-0 01 1 0006-
16 CLIP; HARNESS
(G) L=300 		1-09707-001-1 01 1 0006-
16 CLIP; HARNESS
(D) L=250 		5-09707-030-1 01 1 0006-
16 CLIP; HARNESS
(D) L=250 		5-09707-030-1 01 1 0006-
16 CLIP; HARNESS
(B) L=140 		5-09707-031-1 01 1 0006-
48 CLIP; FRAME HARNESS
(D) ID=11 L=41 		1-09700-403-0 01 1 0006-
48 CLIP; FRAME HARNESS
(A) ID=11 L=61 		1-09700-484-0 07 1 0006-
48 CLIP; FRAME HARNESS
(B) ID=20 L=70 		1-09700-485-0 03 1 0006-
48 CLIP; FRAME HARNESS
(B) ID=20 L=70 		1-09700-485-0 07 1 0006-
48 CLIP; FRAME HARNESS
(C) ID=28 L=78 		1-09700-858-0 03 1 0006-
48 CLIP; FRAME HARNESS
(F) L=180 		1-09707-162-1 01 1 0006-0104
48 CLIP; FRAME HARNESS
(E) L=300 		1-09707-001-1 01 1 0105-0209
48 CLIP; FRAME HARNESS
(G) ID=19 L=60 		9-09525-896-0 01 1 0006-0606
48 CLIP; FRAME HARNESS
(G) ID=19 L=60 		0-95235-896-0 01 1 0607-
48 CLIP; FRAME HARNESS
(H) ID=20 L=50 		9-09917-430-0 01 1 0006-
48 CLIP; FRAME HARNESS
(H) ID=20 L=50 		9-09917-430-0 01 1 0006-
48 CLIP; FRAME HARNESS
(H) ID=20 L=50 		9-09917-430-0 01 1 0006-
48 CLIP; FRAME HARNESS
(K) ID=35 L=75 		1-09700-608-2 01 1 0006-
48 CLIP; FRAME HARNESS
(M) ID=32 L=75 		1-09700-704-1 02 1 0006-
48 CLIP; FRAME HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0006-
48 CLIP; FRAME HARNESS
(I) ID=19 L=28 		9-09525-856-0 01 1 0006-0606
48 CLIP; FRAME HARNESS
(I) ID=19 L=28 		0-95235-856-0 01 1 0607-
48 CLIP; FRAME HARNESS
(J) ID=14 L=44 		9-09917-427-0 02 1 0006-
48 CLIP; FRAME HARNESS
(F) L=180 		1-09707-162-1 01 1 0202-
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (H) ID=20 L=50 		9-09917-430-0 13 1 0006-
48 CLIP; FRAME HARNESS
WHEEL BASE 6300MM(63W) (H) ID=20 L=50 		9-09917-430-0 21 1 0006-
81 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 0006-
121 CLIP; FACIA HARNESS
OD=7 H=1.2 		8-94364-750-0 02 1 0006-
148 CLIP; BAND,HEADLAMP HARNESS
(B) L=85 		8-94232-611-0 01 1 0006-
148 CLIP; BAND,HEADLAMP HARNESS
(A) ID=6 & 10-13 		8-97069-515-0 01 1 0006-
168 CLIP; DASH HARNESS
ID=6 & 10-13 		8-97069-515-0 05 1 0006-
171 CLIP; STARTER HARNESS
(A) L=300 		1-09707-001-1 01 1 0006-
171 CLIP; STARTER HARNESS
(C) ID=18 L=44 		8-94225-185-0 01 1 0006-0209
171 CLIP; STARTER HARNESS
(B) ID=19 L=28 		9-09525-856-0 03 1 0006-0606
171 CLIP; STARTER HARNESS
(B) ID=19 L=28 		0-95235-856-0 03 1 0607-
171 CLIP; STARTER HARNESS
(D) ID=10 & 16.5 		8-94360-745-0 01 1 0201-
171 CLIP; STARTER HARNESS
(E) ID=5-12 L=14.5 		1-09987-221-0 01 1 0402-
178 GROMMET; HARNESS
(A) ID=19 OD=23 T=24 		1-09332-103-0 03 1 0006-
178 GROMMET; HARNESS
(B) ID=32 OD=48 T=5 		9-09575-232-0 01 1 0006-
194 CLIP; BAND
L=180 		1-09707-162-1 03 1 0006-
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 0006-
217 CLIP; RR BODY HARNESS
(A) ID=15 L=70 		1-09700-980-0 02 1 0006-0208
217 CLIP; RR BODY HARNESS
(B) L=250 		5-09707-030-1 02 1 0006-
225 CLIP; AIR TANK HARNESS
(A) L=180 		1-09707-162-1 01 1 0006-0112
225 CLIP; AIR TANK HARNESS
EXC. AIR DRYER<PS7> (A) L=180 		1-09707-162-1 01 1 0201-
225 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> (B) ID=11 L=61 		1-09700-484-0 02 1 0110-
225 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> (C) L=600 		1-09707-107-1 01 1 0201-
228 CLIP; COOLER HARNESS
L=140 		5-09707-031-1 01 1 0006-
231 CLIP; BAND,OIL PRESS
(A) L=250 		5-09707-030-1 01 1 0006-0104
231 CLIP; BAND,OIL PRESS
(B) L=180 		1-09707-162-1 01 1 0105-
235 CLIP; HARNESS,SPD SENSOR,SSPS
L=140 		5-09707-031-1 01 1 0006-0104
235 CLIP; HARNESS,SPD SENSOR,SSPS
L=140 		5-09707-031-1 02 1 0105-
305 CLIP; ENG HARNESS
L=300 		1-09707-001-1 01 1 0006-
418 CLIP; LAMP HARNESS
RADIO CLARION<SK2> L=140 		5-09707-031-1 01 1 0703-
503 CONNECTOR 1-82690-668-0 01 1 0006-0105
503 CONNECTOR 1-82690-668-0 01 1 0106-0109
503 CONNECTOR 1-82690-668-0 01 1 0106-0109
503 CONNECTOR 1-82690-668-0 01 1 0110-
503 CONNECTOR
EXC. AIR DRYER<PS7> 		1-82690-668-0 01 1 0110-
503 CONNECTOR
STARTER SWITCH DELETION<E5D> 		1-82690-666-0 01 1 0212-
513 TAPE; SOFT,HARNESS
100X40 		1-72498-022-0 02 1 0006-0101
530 SEAL; HARNESS
180X40 		1-72498-019-1 06 1 0102-
530 SEAL; HARNESS
180X40 		1-72498-019-1 01 1 0407-

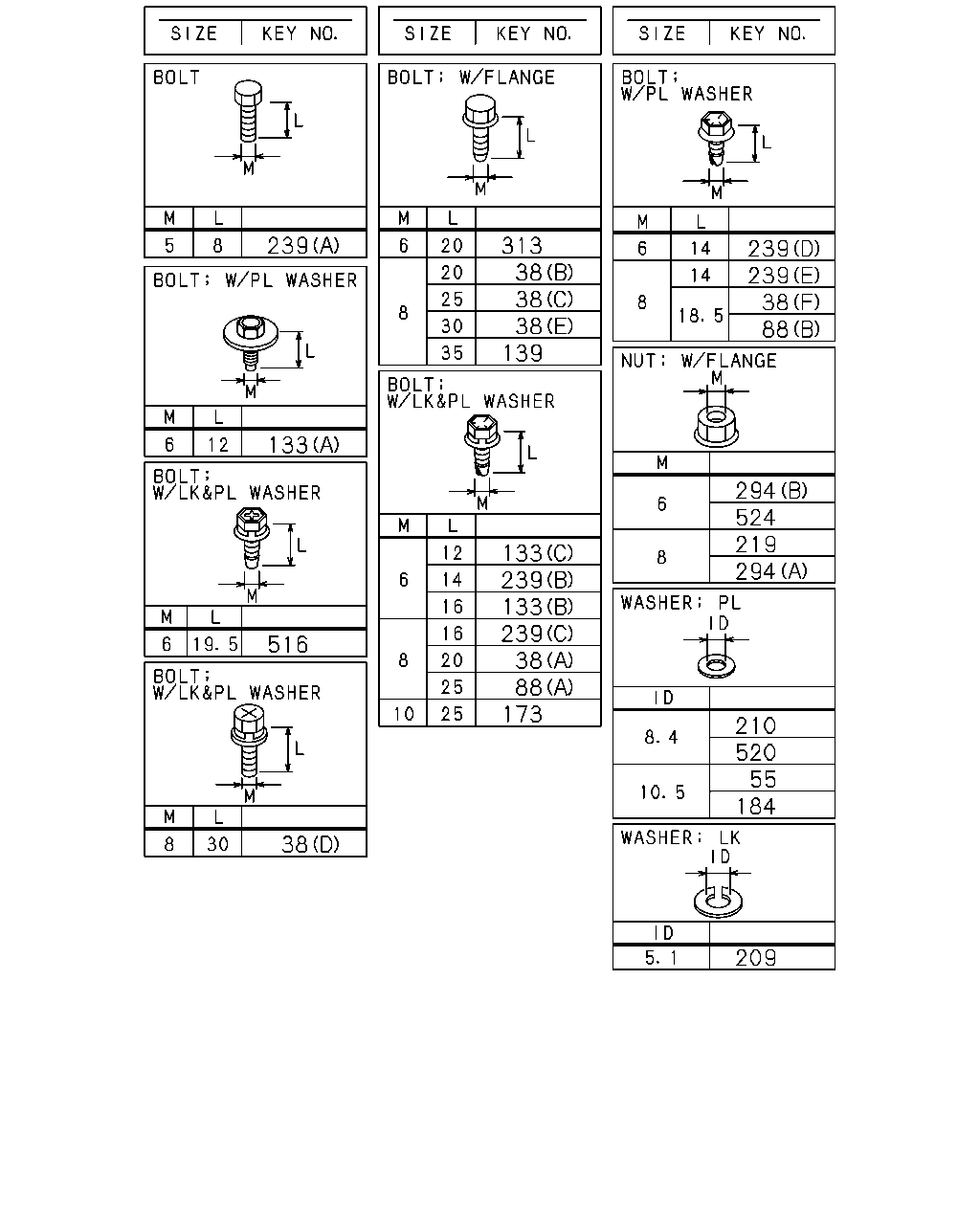

çizim 177062
239 313 38 38 38 139 239 239 38 88 133 294 524 219 294 133 239 133 239 38 88 173 516 210 520 55 184 38 209
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 03 1 0006-0512
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 03 1 0601-
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE 		0-28680-825-0 02 1 0006-0512
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(E) M8X30 FLANGE 		0-28680-830-0 06 1 0006-0512
38 BOLT; CLIP,HARNESS
(E) M8X30 FLANGE 		0-28650-830-0 06 1 0601-0604
38 BOLT; CLIP,HARNESS
(E) M8X30 FLANGE 		0-28650-830-0 01 1 0605-
38 BOLT; CLIP,HARNESS
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0006-1201
38 BOLT; CLIP,HARNESS
(F) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1202-
38 BOLT; CLIP,HARNESS
(D) M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 0006-0512
38 BOLT; CLIP,HARNESS
(D) M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(E) M8X30 FLANGE 		0-28650-830-0 05 1 0605-
55 WASHER; PL,CLIP
ID=8.4 OD=18 		9-09160-608-0 01 1 0006-0605
55 WASHER; PL,CLIP
ID=8.4 OD=18 		0-91610-608-0 01 1 0606-
88 BOLT; DOOR HARNESS EARTH
(A) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0006-1007
88 BOLT; DOOR HARNESS EARTH
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1008-
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X16 W/LK&PL WASHER 		8-94279-402-0 01 1 0006-0110
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0111-
133 SCREW; HARNESS CLIP,STRG COLUMN
(C) M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0107-0210
139 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 02 1 0006-0512
139 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 0601-
173 BOLT; STARTER EARTH
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0006-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 0006-
209 WASHER; LK,GEN,EARTH
ID=5.1 		9-09150-505-0 01 1 0006-0603
209 WASHER; LK,GEN,EARTH
ID=5.1 		0-91510-505-0 01 1 0604-
210 WASHER; PL,GEN
ID=8.4 		1-09503-264-0 01 1 0006-
219 NUT
M8 FLANGE 		0-91150-108-0 02 1 0006-0602
219 NUT
M8 FLANGE 		0-91150-108-0 02 1 0006-0602
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 0603-
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 0603-
219 NUT
M8 FLANGE 		0-91150-108-0 03 1 0006-0602
219 NUT
M8 FLANGE 		0-91150-108-0 03 1 0006-0602
219 NUT
M8 FLANGE 		0-91180-108-0 03 1 0603-
219 NUT
M8 FLANGE 		0-91180-108-0 03 1 0603-
239 BOLT; GRAND
(A) M5X8 		0-20800-508-0 01 1 0006-
239 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 0006-1007
239 BOLT; GRAND
(D) M6X14 W/PL WASHER 		8-98164-836-0 01 1 1008-
239 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0006-1007
239 BOLT; GRAND
(D) M6X14 W/PL WASHER 		8-98164-836-0 02 1 1008-
239 BOLT; GRAND
(C) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0006-1201
239 BOLT; GRAND
(E) M8X14 W/PL WASHER 		8-98164-837-0 01 1 1202-
294 NUT
(B) M6 FLANGE 		0-91150-106-0 01 1 0006-0602
294 NUT
(B) M6 FLANGE 		0-91180-106-0 01 1 0603-
294 NUT
(A) M8 FLANGE 		0-91150-108-0 02 1 0006-0602
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0603-
313 BOLT; BRKT
M6X20 FLANGE 		0-28680-620-0 01 1 0006-0512
313 BOLT; BRKT
M6X20 FLANGE 		0-28650-620-0 01 1 0601-
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0006-
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 0006-
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 0006-0602
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 01 1 0603-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
