4-50 — FRONT SUSPENSION (#5987) — 313 parça

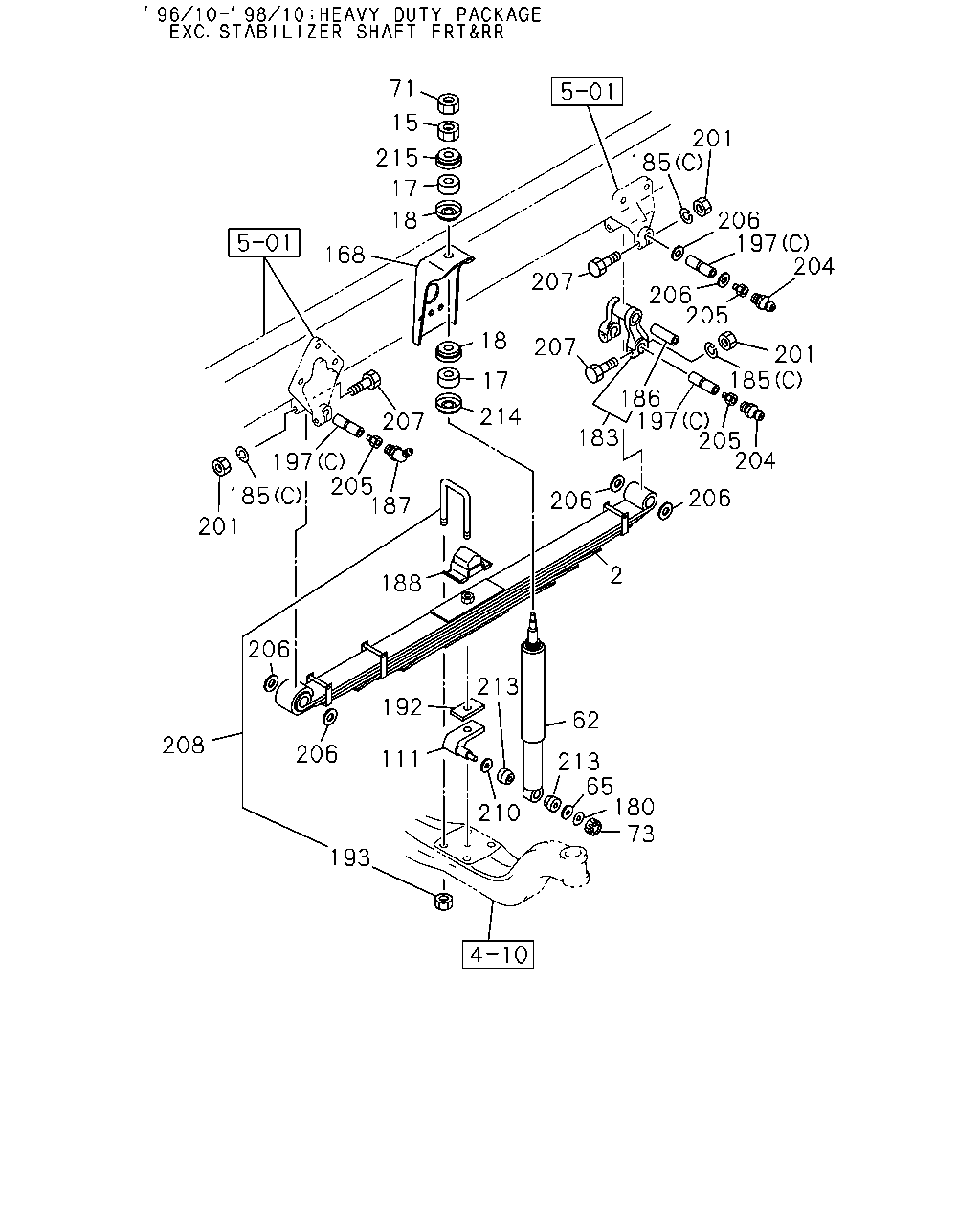

çizim 10264
71 15 201 185 215 17 18 206 197 204 168 207 206 205 18 207 201 185 17 186 197 205 204 214 207 183 197 205 185 187 206 206 201 2 188 206 213 192 62 208 206 111 213 65 180 73 210 193
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 7-LEAF 		1-51130-156-1 01 1 9606-9609
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 7-LEAF 		1-51130-156-1 01 1 9610-9810
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 7-LEAF 		1-51130-155-1 01 1 9606-9609
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 7-LEAF 		1-51130-155-1 01 1 9610-9810
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 7-LEAF 		1-51130-433-0 02 1 9811-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. SUSPENSION HEAVY DUTY VAR1<F40> 7-LEAF 		1-51130-265-0 01 1 9610-9810
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. SUSPENSION HEAVY DUTY VAR1<F40> 7-LEAF 		1-51130-264-0 01 1 9610-9810
15 NUT; S/ABS,UPR
M12 		1-09400-006-0 02 1 9606-
17 BUSHING; RUBBER,S/ABS 9-51631-050-0 04 1 9606-
18 WASHER; CENTERING,S/ABS
ID=16.8 		1-51631-022-0 04 1 9606-9810
62 ABSORBER ASM; SHOCK,FRT 1-51630-302-0 02 1 9606-9609
62 ABSORBER ASM; SHOCK,FRT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-51630-302-0 02 1 9610-9810
62 ABSORBER ASM; SHOCK,FRT 1-51630-302-0 02 1 9811-
62 ABSORBER ASM; SHOCK,FRT
SUSPENSION HEAVY DUTY VAR1<F40> HEAVY DUTY PACKAGE TRUCK<RD2> 		1-51630-180-3 02 1 9610-9810
65 WASHER; S/ABS
ID=23 		1-51631-019-0 02 1 9606-
71 NUT; LK,S/ABS,UPR
M12 		1-09400-006-0 02 1 9606-
73 NUT; BRKT,SHOCK
M16 		9-99110-416-0 02 1 9606-9810
73 NUT; BRKT,SHOCK
M16 		9-99110-516-0 02 1 9811-0512
73 NUT; BRKT,SHOCK
M16 		0-91110-516-0 02 1 0601-
111 SUPPORTER; S/ABS,FRT SUSP
STABILIZER SHAFT FRT & RR(FE6) 		1-51681-655-1 01 1 9606-9609
111 SUPPORTER; S/ABS,FRT SUSP
STABILIZER SHAFT FRT & RR(FE6) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-51681-655-1 01 1 9610-9810
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-655-1 01 1 9811-
111 SUPPORTER; S/ABS,FRT SUSP
STABILIZER SHAFT FRT & RR(FE6) 		1-51681-654-1 01 1 9606-9609
111 SUPPORTER; S/ABS,FRT SUSP
STABILIZER SHAFT FRT & RR(FE6) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-51681-654-1 01 1 9610-9810
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-654-1 01 1 9811-
111 SUPPORTER; S/ABS,FRT SUSP
STABILIZER SHAFT FRT & RR(FE6) SUSPENSION HEAVY DUTY VAR1<F40> 		1-51681-452-0 01 1 9610-9810
111 SUPPORTER; S/ABS,FRT SUSP
STABILIZER SHAFT FRT & RR(FE6) SUSPENSION HEAVY DUTY VAR1<F40> 		1-51681-451-0 01 1 9610-9810
111 SUPPORTER; S/ABS,FRT SUSP
EXC. STABILIZER SHAFT FRT & RR(FE6) 		1-51681-642-1 01 1 9606-9609
111 SUPPORTER; S/ABS,FRT SUSP
EXC. STABILIZER SHAFT FRT & RR(FE6),HEAVY DUTY PACKAGE TRUCK<RD2> 		1-51681-642-1 01 1 9610-9810
111 SUPPORTER; S/ABS,FRT SUSP
EXC. STABILIZER SHAFT FRT & RR(FE6) 		1-51681-641-1 01 1 9606-9609
111 SUPPORTER; S/ABS,FRT SUSP
EXC. STABILIZER SHAFT FRT & RR(FE6),HEAVY DUTY PACKAGE TRUCK<RD2> 		1-51681-641-1 01 1 9610-9810
111 SUPPORTER; S/ABS,FRT SUSP
SUSPENSION HEAVY DUTY VAR1<F40> HEAVY DUTY PACKAGE TRUCK<RD2> EXC. STABILIZER SHAFT FRT & RR(FE6) 		1-51681-559-1 01 1 9610-9810
111 SUPPORTER; S/ABS,FRT SUSP
SUSPENSION HEAVY DUTY VAR1<F40> HEAVY DUTY PACKAGE TRUCK<RD2> EXC. STABILIZER SHAFT FRT & RR(FE6) 		1-51681-558-1 01 1 9610-9810
168 BRACKET; S/ABS,FRT SUSP 1-51681-306-0 02 1 9606-9810
168 BRACKET; S/ABS,FRT SUSP
6HE1 TC ENG(57L) 		1-51681-306-0 02 1 9811-9902
168 BRACKET; S/ABS,FRT SUSP
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) 		1-51681-306-0 02 1 9903-0203
168 BRACKET; S/ABS,FRT SUSP
6HE1 TCC ENG(76L) 		1-51681-306-0 02 1 0204-
180 WASHER; PL,PIN
ID=17 		9-09160-516-0 02 1 9606-0605
180 WASHER; PL,PIN
ID=17 OD=30 		0-91610-516-0 02 1 0606-
183 SHACKLE; FRT SUSP 1-51162-037-0 02 1 9606-9609
183 SHACKLE; FRT SUSP
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-51162-037-0 02 1 9610-9810
183 SHACKLE; FRT SUSP 1-51162-037-0 02 1 9811-
183 SHACKLE; FRT SUSP
SUSPENSION HEAVY DUTY VAR1<F40> HEAVY DUTY PACKAGE TRUCK<RD2> 		1-51162-029-4 02 1 9610-9810
185 WASHER; LK,PIN
(B) ID=25.5 		1-09503-011-0 04 1 9606-9609
185 WASHER; LK,PIN
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) ID=25.5 		1-09503-011-0 04 1 9610-9810
185 WASHER; LK,PIN
(B) ID=25.5 		1-09503-011-0 04 1 9811-
185 WASHER; LK,PIN
(A) ID=23 		1-51169-003-0 02 1 9606-9609
185 WASHER; LK,PIN
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) ID=23 		1-51169-003-0 02 1 9610-9810
185 WASHER; LK,PIN
(A) ID=23 		1-51169-003-0 02 1 9811-
185 WASHER; LK,PIN
SUSPENSION HEAVY DUTY VAR1<F40> HEAVY DUTY PACKAGE TRUCK<RD2> (C) ID=12.2 		9-09150-612-0 12 1 9610-9810
186 BUSHING; SHACKLE
SUSPENSION HEAVY DUTY VAR1<F40> HEAVY DUTY PACKAGE TRUCK<RD2> OD=38 		1-51351-009-0 02 1 9610-9810
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		9-09031-210-0 02 1 9606-0512
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 0601-
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-107-0 02 1 9606-9609
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-51172-107-0 02 1 9610-9810
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-107-0 02 1 9811-0308
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-124-0 02 1 0309-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
SUSPENSION HEAVY DUTY VAR1<F40> HEAVY DUTY PACKAGE TRUCK<RD2> 		1-51172-085-0 02 1 9610-9810
192 PIECE; DIST
T=4.5 		1-51177-149-0 AR 1 9606-9609
192 PIECE; DIST
EXC. SUSPENSION HEAVY DUTY VAR1<F40> T=4.5 		1-51177-149-0 AR 1 9610-9810
192 PIECE; DIST
SUSPENSION HEAVY DUTY VAR1<F40> HEAVY DUTY PACKAGE TRUCK<RD2> 80X144 ID=17.5 		1-51177-284-1 AR 1 9610-9810
193 NUT; U BOLT
M16 		1-09440-028-1 08 1 9606-9609
193 NUT; U BOLT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M16 		1-09440-028-1 08 1 9610-9810
193 NUT; U BOLT
M16 		1-09440-028-1 08 1 9811-0503
193 NUT; U BOLT
M16 		8-94107-767-0 08 1 0504-
193 NUT; U BOLT
SUSPENSION HEAVY DUTY VAR1<F40> HEAVY DUTY PACKAGE TRUCK<RD2> M22 		9-09112-822-0 08 1 9610-9810
197 PIN; FRT SPR,FRT
(A) 		1-51161-004-3 02 1 9606-9609
197 PIN; FRT SPR,FRT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) 		1-51161-004-3 02 1 9610-9810
197 PIN; FRT SPR,FRT
(A) 		1-51161-004-3 02 1 9811-
197 PIN; FRT SPR,FRT
(B) 		1-51161-005-3 04 1 9606-9609
197 PIN; FRT SPR,FRT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) 		1-51161-005-3 04 1 9610-9810
197 PIN; FRT SPR,FRT
(B) 		1-51161-005-3 04 1 9811-
197 PIN; FRT SPR,FRT
SUSPENSION HEAVY DUTY VAR1<F40> HEAVY DUTY PACKAGE TRUCK<RD2> (C) 		1-51161-031-0 06 1 9610-9810
201 NUT; PIN LK
M22 		9-09111-522-0 06 1 9606-9609
201 NUT; PIN LK
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M22 		9-09111-522-0 06 1 9610-9810
201 NUT; PIN LK
M22 		9-09111-522-0 06 1 9811-0512
201 NUT; PIN LK
M22 		0-91111-522-0 06 1 0601-
201 NUT; PIN LK
SUSPENSION HEAVY DUTY VAR1<F40> HEAVY DUTY PACKAGE TRUCK<RD2> M12 		9-99110-512-0 12 1 9610-9810
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		9-09031-010-0 04 1 9606-0512
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		0-90301-410-0 04 1 0601-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 04 1 9606-9609
205 ATTACHMENT; GREASE NIPPLE
SUSPENSION HEAVY DUTY VAR1<F40> HEAVY DUTY PACKAGE TRUCK<RD2> 		9-43165-001-0 06 1 9610-9810
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 04 1 9811-
205 ATTACHMENT; GREASE NIPPLE
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		9-43165-001-0 04 1 9610-9810
206 WASHER; LK,SPRING PIN
SUSPENSION HEAVY DUTY VAR1<F40> HEAVY DUTY PACKAGE TRUCK<RD2> ID=32.4 		1-51169-018-0 12 1 9610-9810
207 BOLT; SPR TO SHACKLE
SUSPENSION HEAVY DUTY VAR1<F40> HEAVY DUTY PACKAGE TRUCK<RD2> M12X80 		0-28081-280-0 12 1 9610-9810
208 U-BOLT SET; FRT SPRING
L=190 		1-87870-361-0 04 1 9606-9609
208 U-BOLT SET; FRT SPRING
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=190 		1-87870-361-0 04 1 9610-9810
208 U-BOLT SET; FRT SPRING
SUSPENSION HEAVY DUTY VAR1<F40> HEAVY DUTY PACKAGE TRUCK<RD2> L=230 		1-87870-269-1 04 1 9610-9810
208 U-BOLT SET; FRT SPRING
L=175 		1-87870-350-0 04 1 9811-0503
208 U-BOLT SET; FRT SPRING
L=175 		1-87870-455-0 04 1 0504-
210 WASHER; S/ABS,OUTER
ID=17 		1-51631-020-0 02 1 9606-
213 BUSHING; RUBBER,LWR 1-51631-009-1 04 1 9606-
214 WASHER; S/ABS,UPR,INNER
ID=14.5 		9-51631-051-0 02 1 9606-9810
214 WASHER; S/ABS,UPR,INNER
ID=16.8 		1-51631-022-0 04 1 9811-
215 WASHER; S/ABS,UPR,OUTER
ID=14.5 		9-51631-051-0 02 1 9606-9810
215 WASHER; S/ABS,UPR,OUTER
ID=14.5 		9-51631-051-0 04 1 9811-

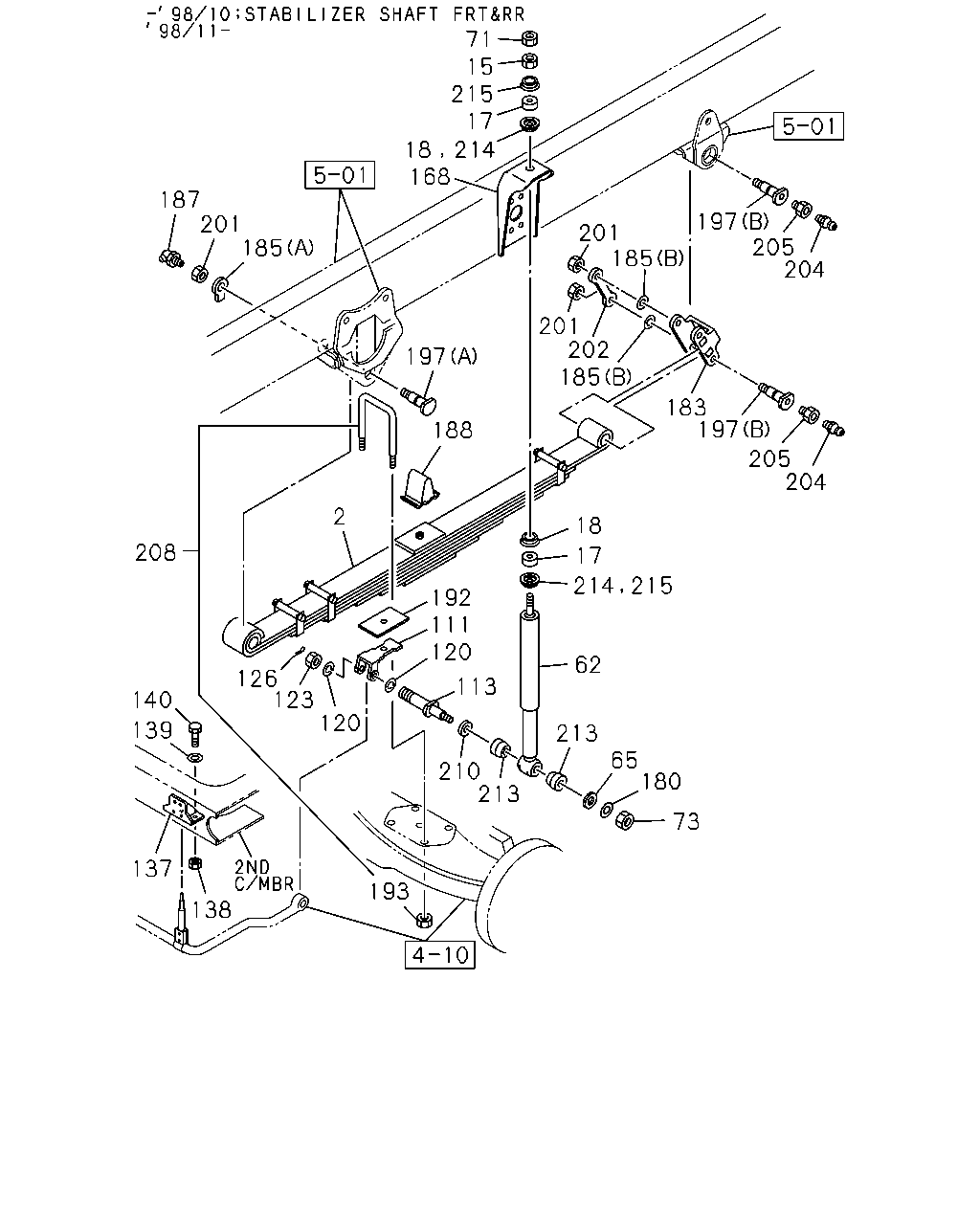

çizim 10265
71 15 215 17 214 168 187 201 185 197 205 204 201 185 201 202 185 197 183 197 188 205 204 2 18 208 17 214 192 111 120 62 126 123 120 113 140 139 213 65 180 210 213 73 138 137 193 215 18
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 7-LEAF 		1-51130-156-1 01 1 9606-9609
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 7-LEAF 		1-51130-156-1 01 1 9610-9810
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 7-LEAF 		1-51130-155-1 01 1 9606-9609
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 7-LEAF 		1-51130-155-1 01 1 9610-9810
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 7-LEAF 		1-51130-433-0 02 1 9811-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. SUSPENSION HEAVY DUTY VAR1<F40> 7-LEAF 		1-51130-265-0 01 1 9610-9810
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. SUSPENSION HEAVY DUTY VAR1<F40> 7-LEAF 		1-51130-264-0 01 1 9610-9810
15 NUT; S/ABS,UPR
M12 		1-09400-006-0 02 1 9606-
17 BUSHING; RUBBER,S/ABS 9-51631-050-0 04 1 9606-
18 WASHER; CENTERING,S/ABS
ID=16.8 		1-51631-022-0 04 1 9606-9810
62 ABSORBER ASM; SHOCK,FRT 1-51630-302-0 02 1 9606-9609
62 ABSORBER ASM; SHOCK,FRT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-51630-302-0 02 1 9610-9810
62 ABSORBER ASM; SHOCK,FRT 1-51630-302-0 02 1 9811-
62 ABSORBER ASM; SHOCK,FRT
SUSPENSION HEAVY DUTY VAR1<F40> HEAVY DUTY PACKAGE TRUCK<RD2> 		1-51630-180-3 02 1 9610-9810
65 WASHER; S/ABS
ID=23 		1-51631-019-0 02 1 9606-
71 NUT; LK,S/ABS,UPR
M12 		1-09400-006-0 02 1 9606-
73 NUT; BRKT,SHOCK
M16 		9-99110-416-0 02 1 9606-9810
73 NUT; BRKT,SHOCK
M16 		9-99110-516-0 02 1 9811-0512
73 NUT; BRKT,SHOCK
M16 		0-91110-516-0 02 1 0601-
111 SUPPORTER; S/ABS,FRT SUSP
STABILIZER SHAFT FRT & RR(FE6) 		1-51681-655-1 01 1 9606-9609
111 SUPPORTER; S/ABS,FRT SUSP
STABILIZER SHAFT FRT & RR(FE6) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-51681-655-1 01 1 9610-9810
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-655-1 01 1 9811-
111 SUPPORTER; S/ABS,FRT SUSP
STABILIZER SHAFT FRT & RR(FE6) 		1-51681-654-1 01 1 9606-9609
111 SUPPORTER; S/ABS,FRT SUSP
STABILIZER SHAFT FRT & RR(FE6) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-51681-654-1 01 1 9610-9810
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-654-1 01 1 9811-
111 SUPPORTER; S/ABS,FRT SUSP
STABILIZER SHAFT FRT & RR(FE6) SUSPENSION HEAVY DUTY VAR1<F40> 		1-51681-452-0 01 1 9610-9810
111 SUPPORTER; S/ABS,FRT SUSP
STABILIZER SHAFT FRT & RR(FE6) SUSPENSION HEAVY DUTY VAR1<F40> 		1-51681-451-0 01 1 9610-9810
111 SUPPORTER; S/ABS,FRT SUSP
EXC. STABILIZER SHAFT FRT & RR(FE6) 		1-51681-642-1 01 1 9606-9609
111 SUPPORTER; S/ABS,FRT SUSP
EXC. STABILIZER SHAFT FRT & RR(FE6),HEAVY DUTY PACKAGE TRUCK<RD2> 		1-51681-642-1 01 1 9610-9810
111 SUPPORTER; S/ABS,FRT SUSP
EXC. STABILIZER SHAFT FRT & RR(FE6) 		1-51681-641-1 01 1 9606-9609
111 SUPPORTER; S/ABS,FRT SUSP
EXC. STABILIZER SHAFT FRT & RR(FE6),HEAVY DUTY PACKAGE TRUCK<RD2> 		1-51681-641-1 01 1 9610-9810
111 SUPPORTER; S/ABS,FRT SUSP
SUSPENSION HEAVY DUTY VAR1<F40> HEAVY DUTY PACKAGE TRUCK<RD2> EXC. STABILIZER SHAFT FRT & RR(FE6) 		1-51681-559-1 01 1 9610-9810
111 SUPPORTER; S/ABS,FRT SUSP
SUSPENSION HEAVY DUTY VAR1<F40> HEAVY DUTY PACKAGE TRUCK<RD2> EXC. STABILIZER SHAFT FRT & RR(FE6) 		1-51681-558-1 01 1 9610-9810
113 PIN; SUPPORTER
STABILIZER SHAFT FRT & RR(FE6) 		1-51682-127-1 02 1 9606-9810
113 PIN; SUPPORTER 1-51682-127-1 02 1 9811-
120 WASHER; PL,SUPPORT BRKT TO BODY
STABILIZER SHAFT FRT & RR(FE6) 		9-09160-522-0 02 1 9606-9810
120 WASHER; PL,SUPPORT BRKT TO BODY 9-09160-522-0 02 1 9811-
123 NUT; PIN TO SUPPORTER
STABILIZER SHAFT FRT & RR(FE6) M22 		9-09116-522-0 02 1 9606-9810
123 NUT; PIN TO SUPPORTER
M22 		9-09116-522-0 02 1 9811-0512
123 NUT; PIN TO SUPPORTER
M22 		0-91116-522-0 02 1 0601-
126 PIN; SPLIT,STAB
STABILIZER SHAFT FRT & RR(FE6) OD=4.6 L=45 		9-08115-045-0 02 1 9606-9810
126 PIN; SPLIT,STAB
OD=4.6 L=45 		9-08115-045-0 02 1 9811-0606
126 PIN; SPLIT,STAB
OD=4.6 L=45 		0-81125-045-0 02 1 0607-
137 BRACKET; STAB BAR TO FRAME
STABILIZER SHAFT FRT & RR(FE6) 		1-51781-060-1 02 1 9606-9609
137 BRACKET; STAB BAR TO FRAME
STABILIZER SHAFT FRT & RR(FE6) EXC. SUSPENSION HEAVY DUTY VAR1<F40> 		1-51781-060-1 02 1 9610-9810
137 BRACKET; STAB BAR TO FRAME 1-51781-060-2 02 1 9811-
137 BRACKET; STAB BAR TO FRAME
STABILIZER SHAFT FRT & RR(FE6) SUSPENSION HEAVY DUTY VAR1<F40> 		1-51781-046-2 02 1 9610-9810
138 NUT; BRKT
STABILIZER SHAFT FRT & RR(FE6) M10 		9-09110-510-0 08 1 9606-9810
138 NUT; BRKT
M10 		9-09110-510-0 08 1 9811-0512
138 NUT; BRKT
M10 		0-91110-510-0 08 1 0601-
139 WASHER; PL,BRKT
STABILIZER SHAFT FRT & RR(FE6) ID=10.5 OD=26 		9-09160-710-0 08 1 9606-9810
140 BOLT; BRKT
STABILIZER SHAFT FRT & RR(FE6) M10X25 FLANGE 		0-28081-025-0 08 1 9606-9609
140 BOLT; BRKT
STABILIZER SHAFT FRT & RR(FE6) M10X30 FLANGE 		0-28681-030-0 08 1 9610-9810
140 BOLT; BRKT
M10X25 FLANGE 		0-28081-025-0 08 1 9811-0512
140 BOLT; BRKT
M10X25 FLANGE 		0-28051-025-0 08 1 0601-
168 BRACKET; S/ABS,FRT SUSP 1-51681-306-0 02 1 9606-9810
168 BRACKET; S/ABS,FRT SUSP
6HE1 TC ENG(57L) 		1-51681-306-0 02 1 9811-9902
168 BRACKET; S/ABS,FRT SUSP
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) 		1-51681-306-0 02 1 9903-0203
168 BRACKET; S/ABS,FRT SUSP
6HE1 TCC ENG(76L) 		1-51681-306-0 02 1 0204-
180 WASHER; PL,PIN
ID=17 		9-09160-516-0 02 1 9606-0605
180 WASHER; PL,PIN
ID=17 OD=30 		0-91610-516-0 02 1 0606-
183 SHACKLE; FRT SUSP 1-51162-037-0 02 1 9606-9609
183 SHACKLE; FRT SUSP
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-51162-037-0 02 1 9610-9810
183 SHACKLE; FRT SUSP 1-51162-037-0 02 1 9811-
183 SHACKLE; FRT SUSP
SUSPENSION HEAVY DUTY VAR1<F40> HEAVY DUTY PACKAGE TRUCK<RD2> 		1-51162-029-4 02 1 9610-9810
185 WASHER; LK,PIN
(B) ID=25.5 		1-09503-011-0 04 1 9606-9609
185 WASHER; LK,PIN
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) ID=25.5 		1-09503-011-0 04 1 9610-9810
185 WASHER; LK,PIN
(B) ID=25.5 		1-09503-011-0 04 1 9811-
185 WASHER; LK,PIN
(A) ID=23 		1-51169-003-0 02 1 9606-9609
185 WASHER; LK,PIN
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) ID=23 		1-51169-003-0 02 1 9610-9810
185 WASHER; LK,PIN
(A) ID=23 		1-51169-003-0 02 1 9811-
185 WASHER; LK,PIN
SUSPENSION HEAVY DUTY VAR1<F40> HEAVY DUTY PACKAGE TRUCK<RD2> (C) ID=12.2 		9-09150-612-0 12 1 9610-9810
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		9-09031-210-0 02 1 9606-0512
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 0601-
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-107-0 02 1 9606-9609
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-51172-107-0 02 1 9610-9810
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-107-0 02 1 9811-0308
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-124-0 02 1 0309-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
SUSPENSION HEAVY DUTY VAR1<F40> HEAVY DUTY PACKAGE TRUCK<RD2> 		1-51172-085-0 02 1 9610-9810
192 PIECE; DIST
T=4.5 		1-51177-149-0 AR 1 9606-9609
192 PIECE; DIST
EXC. SUSPENSION HEAVY DUTY VAR1<F40> T=4.5 		1-51177-149-0 AR 1 9610-9810
192 PIECE; DIST
SUSPENSION HEAVY DUTY VAR1<F40> HEAVY DUTY PACKAGE TRUCK<RD2> 80X144 ID=17.5 		1-51177-284-1 AR 1 9610-9810
193 NUT; U BOLT
M16 		1-09440-028-1 08 1 9606-9609
193 NUT; U BOLT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M16 		1-09440-028-1 08 1 9610-9810
193 NUT; U BOLT
M16 		1-09440-028-1 08 1 9811-0503
193 NUT; U BOLT
M16 		8-94107-767-0 08 1 0504-
193 NUT; U BOLT
SUSPENSION HEAVY DUTY VAR1<F40> HEAVY DUTY PACKAGE TRUCK<RD2> M22 		9-09112-822-0 08 1 9610-9810
197 PIN; FRT SPR,FRT
(A) 		1-51161-004-3 02 1 9606-9609
197 PIN; FRT SPR,FRT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) 		1-51161-004-3 02 1 9610-9810
197 PIN; FRT SPR,FRT
(A) 		1-51161-004-3 02 1 9811-
197 PIN; FRT SPR,FRT
(B) 		1-51161-005-3 04 1 9606-9609
197 PIN; FRT SPR,FRT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) 		1-51161-005-3 04 1 9610-9810
197 PIN; FRT SPR,FRT
(B) 		1-51161-005-3 04 1 9811-
197 PIN; FRT SPR,FRT
SUSPENSION HEAVY DUTY VAR1<F40> HEAVY DUTY PACKAGE TRUCK<RD2> (C) 		1-51161-031-0 06 1 9610-9810
201 NUT; PIN LK
M22 		9-09111-522-0 06 1 9606-9609
201 NUT; PIN LK
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M22 		9-09111-522-0 06 1 9610-9810
201 NUT; PIN LK
M22 		9-09111-522-0 06 1 9811-0512
201 NUT; PIN LK
M22 		0-91111-522-0 06 1 0601-
201 NUT; PIN LK
SUSPENSION HEAVY DUTY VAR1<F40> HEAVY DUTY PACKAGE TRUCK<RD2> M12 		9-99110-512-0 12 1 9610-9810
202 PLATE; LK,SPR PIN 1-51169-016-0 02 1 9606-9609
202 PLATE; LK,SPR PIN
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-51169-016-0 02 1 9610-9810
202 PLATE; LK,SPR PIN 1-51169-016-0 02 1 9811-
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		9-09031-010-0 04 1 9606-0512
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		0-90301-410-0 04 1 0601-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 04 1 9606-9609
205 ATTACHMENT; GREASE NIPPLE
SUSPENSION HEAVY DUTY VAR1<F40> HEAVY DUTY PACKAGE TRUCK<RD2> 		9-43165-001-0 06 1 9610-9810
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 04 1 9811-
205 ATTACHMENT; GREASE NIPPLE
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		9-43165-001-0 04 1 9610-9810
208 U-BOLT SET; FRT SPRING
L=190 		1-87870-361-0 04 1 9606-9609
208 U-BOLT SET; FRT SPRING
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=190 		1-87870-361-0 04 1 9610-9810
208 U-BOLT SET; FRT SPRING
SUSPENSION HEAVY DUTY VAR1<F40> HEAVY DUTY PACKAGE TRUCK<RD2> L=230 		1-87870-269-1 04 1 9610-9810
208 U-BOLT SET; FRT SPRING
L=175 		1-87870-350-0 04 1 9811-0503
208 U-BOLT SET; FRT SPRING
L=175 		1-87870-455-0 04 1 0504-
210 WASHER; S/ABS,OUTER
ID=17 		1-51631-020-0 02 1 9606-
213 BUSHING; RUBBER,LWR 1-51631-009-1 04 1 9606-
214 WASHER; S/ABS,UPR,INNER
ID=14.5 		9-51631-051-0 02 1 9606-9810
214 WASHER; S/ABS,UPR,INNER
ID=16.8 		1-51631-022-0 04 1 9811-
215 WASHER; S/ABS,UPR,OUTER
ID=14.5 		9-51631-051-0 02 1 9606-9810
215 WASHER; S/ABS,UPR,OUTER
ID=14.5 		9-51631-051-0 04 1 9811-

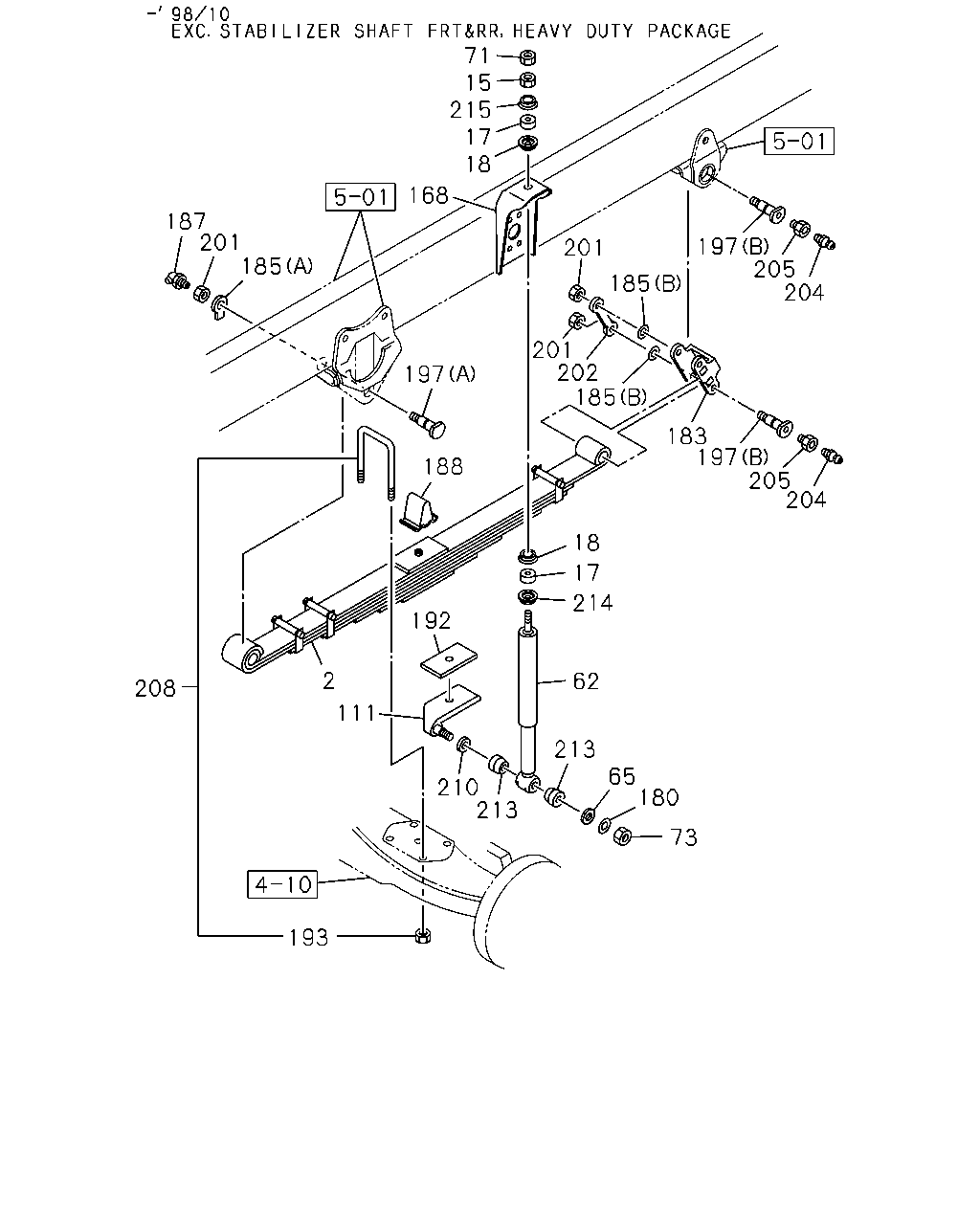

çizim 44358
71 15 215 17 18 168 187 201 185 197 205 204 201 185 201 202 185 197 183 197 205 204 188 18 17 214 192 2 62 208 111 213 65 180 210 213 73 193
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 7-LEAF 		1-51130-156-1 01 1 9606-9609
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 7-LEAF 		1-51130-156-1 01 1 9610-9810
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 7-LEAF 		1-51130-155-1 01 1 9606-9609
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 7-LEAF 		1-51130-155-1 01 1 9610-9810
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 7-LEAF 		1-51130-433-0 02 1 9811-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. SUSPENSION HEAVY DUTY VAR1<F40> 7-LEAF 		1-51130-265-0 01 1 9610-9810
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. SUSPENSION HEAVY DUTY VAR1<F40> 7-LEAF 		1-51130-264-0 01 1 9610-9810
15 NUT; S/ABS,UPR
M12 		1-09400-006-0 02 1 9606-
17 BUSHING; RUBBER,S/ABS 9-51631-050-0 04 1 9606-
18 WASHER; CENTERING,S/ABS
ID=16.8 		1-51631-022-0 04 1 9606-9810
62 ABSORBER ASM; SHOCK,FRT 1-51630-302-0 02 1 9606-9609
62 ABSORBER ASM; SHOCK,FRT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-51630-302-0 02 1 9610-9810
62 ABSORBER ASM; SHOCK,FRT 1-51630-302-0 02 1 9811-
62 ABSORBER ASM; SHOCK,FRT
SUSPENSION HEAVY DUTY VAR1<F40> HEAVY DUTY PACKAGE TRUCK<RD2> 		1-51630-180-3 02 1 9610-9810
65 WASHER; S/ABS
ID=23 		1-51631-019-0 02 1 9606-
71 NUT; LK,S/ABS,UPR
M12 		1-09400-006-0 02 1 9606-
73 NUT; BRKT,SHOCK
M16 		9-99110-416-0 02 1 9606-9810
73 NUT; BRKT,SHOCK
M16 		9-99110-516-0 02 1 9811-0512
73 NUT; BRKT,SHOCK
M16 		0-91110-516-0 02 1 0601-
111 SUPPORTER; S/ABS,FRT SUSP
STABILIZER SHAFT FRT & RR(FE6) 		1-51681-655-1 01 1 9606-9609
111 SUPPORTER; S/ABS,FRT SUSP
STABILIZER SHAFT FRT & RR(FE6) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-51681-655-1 01 1 9610-9810
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-655-1 01 1 9811-
111 SUPPORTER; S/ABS,FRT SUSP
STABILIZER SHAFT FRT & RR(FE6) 		1-51681-654-1 01 1 9606-9609
111 SUPPORTER; S/ABS,FRT SUSP
STABILIZER SHAFT FRT & RR(FE6) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-51681-654-1 01 1 9610-9810
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-654-1 01 1 9811-
111 SUPPORTER; S/ABS,FRT SUSP
STABILIZER SHAFT FRT & RR(FE6) SUSPENSION HEAVY DUTY VAR1<F40> 		1-51681-452-0 01 1 9610-9810
111 SUPPORTER; S/ABS,FRT SUSP
STABILIZER SHAFT FRT & RR(FE6) SUSPENSION HEAVY DUTY VAR1<F40> 		1-51681-451-0 01 1 9610-9810
111 SUPPORTER; S/ABS,FRT SUSP
EXC. STABILIZER SHAFT FRT & RR(FE6) 		1-51681-642-1 01 1 9606-9609
111 SUPPORTER; S/ABS,FRT SUSP
EXC. STABILIZER SHAFT FRT & RR(FE6),HEAVY DUTY PACKAGE TRUCK<RD2> 		1-51681-642-1 01 1 9610-9810
111 SUPPORTER; S/ABS,FRT SUSP
EXC. STABILIZER SHAFT FRT & RR(FE6) 		1-51681-641-1 01 1 9606-9609
111 SUPPORTER; S/ABS,FRT SUSP
EXC. STABILIZER SHAFT FRT & RR(FE6),HEAVY DUTY PACKAGE TRUCK<RD2> 		1-51681-641-1 01 1 9610-9810
111 SUPPORTER; S/ABS,FRT SUSP
SUSPENSION HEAVY DUTY VAR1<F40> HEAVY DUTY PACKAGE TRUCK<RD2> EXC. STABILIZER SHAFT FRT & RR(FE6) 		1-51681-559-1 01 1 9610-9810
111 SUPPORTER; S/ABS,FRT SUSP
SUSPENSION HEAVY DUTY VAR1<F40> HEAVY DUTY PACKAGE TRUCK<RD2> EXC. STABILIZER SHAFT FRT & RR(FE6) 		1-51681-558-1 01 1 9610-9810
168 BRACKET; S/ABS,FRT SUSP 1-51681-306-0 02 1 9606-9810
168 BRACKET; S/ABS,FRT SUSP
6HE1 TC ENG(57L) 		1-51681-306-0 02 1 9811-9902
168 BRACKET; S/ABS,FRT SUSP
6HE1 TC ENG(57L),6HE1 TCC ENG(76L) 		1-51681-306-0 02 1 9903-0203
168 BRACKET; S/ABS,FRT SUSP
6HE1 TCC ENG(76L) 		1-51681-306-0 02 1 0204-
180 WASHER; PL,PIN
ID=17 		9-09160-516-0 02 1 9606-0605
180 WASHER; PL,PIN
ID=17 OD=30 		0-91610-516-0 02 1 0606-
183 SHACKLE; FRT SUSP 1-51162-037-0 02 1 9606-9609
183 SHACKLE; FRT SUSP
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-51162-037-0 02 1 9610-9810
183 SHACKLE; FRT SUSP 1-51162-037-0 02 1 9811-
183 SHACKLE; FRT SUSP
SUSPENSION HEAVY DUTY VAR1<F40> HEAVY DUTY PACKAGE TRUCK<RD2> 		1-51162-029-4 02 1 9610-9810
185 WASHER; LK,PIN
(B) ID=25.5 		1-09503-011-0 04 1 9606-9609
185 WASHER; LK,PIN
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) ID=25.5 		1-09503-011-0 04 1 9610-9810
185 WASHER; LK,PIN
(B) ID=25.5 		1-09503-011-0 04 1 9811-
185 WASHER; LK,PIN
(A) ID=23 		1-51169-003-0 02 1 9606-9609
185 WASHER; LK,PIN
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) ID=23 		1-51169-003-0 02 1 9610-9810
185 WASHER; LK,PIN
(A) ID=23 		1-51169-003-0 02 1 9811-
185 WASHER; LK,PIN
SUSPENSION HEAVY DUTY VAR1<F40> HEAVY DUTY PACKAGE TRUCK<RD2> (C) ID=12.2 		9-09150-612-0 12 1 9610-9810
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		9-09031-210-0 02 1 9606-0512
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 0601-
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-107-0 02 1 9606-9609
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-51172-107-0 02 1 9610-9810
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-107-0 02 1 9811-0308
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-124-0 02 1 0309-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
SUSPENSION HEAVY DUTY VAR1<F40> HEAVY DUTY PACKAGE TRUCK<RD2> 		1-51172-085-0 02 1 9610-9810
192 PIECE; DIST
T=4.5 		1-51177-149-0 AR 1 9606-9609
192 PIECE; DIST
EXC. SUSPENSION HEAVY DUTY VAR1<F40> T=4.5 		1-51177-149-0 AR 1 9610-9810
192 PIECE; DIST
SUSPENSION HEAVY DUTY VAR1<F40> HEAVY DUTY PACKAGE TRUCK<RD2> 80X144 ID=17.5 		1-51177-284-1 AR 1 9610-9810
193 NUT; U BOLT
M16 		1-09440-028-1 08 1 9606-9609
193 NUT; U BOLT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M16 		1-09440-028-1 08 1 9610-9810
193 NUT; U BOLT
M16 		1-09440-028-1 08 1 9811-0503
193 NUT; U BOLT
M16 		8-94107-767-0 08 1 0504-
193 NUT; U BOLT
SUSPENSION HEAVY DUTY VAR1<F40> HEAVY DUTY PACKAGE TRUCK<RD2> M22 		9-09112-822-0 08 1 9610-9810
197 PIN; FRT SPR,FRT
(A) 		1-51161-004-3 02 1 9606-9609
197 PIN; FRT SPR,FRT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) 		1-51161-004-3 02 1 9610-9810
197 PIN; FRT SPR,FRT
(A) 		1-51161-004-3 02 1 9811-
197 PIN; FRT SPR,FRT
(B) 		1-51161-005-3 04 1 9606-9609
197 PIN; FRT SPR,FRT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) 		1-51161-005-3 04 1 9610-9810
197 PIN; FRT SPR,FRT
(B) 		1-51161-005-3 04 1 9811-
197 PIN; FRT SPR,FRT
SUSPENSION HEAVY DUTY VAR1<F40> HEAVY DUTY PACKAGE TRUCK<RD2> (C) 		1-51161-031-0 06 1 9610-9810
201 NUT; PIN LK
M22 		9-09111-522-0 06 1 9606-9609
201 NUT; PIN LK
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M22 		9-09111-522-0 06 1 9610-9810
201 NUT; PIN LK
M22 		9-09111-522-0 06 1 9811-0512
201 NUT; PIN LK
M22 		0-91111-522-0 06 1 0601-
201 NUT; PIN LK
SUSPENSION HEAVY DUTY VAR1<F40> HEAVY DUTY PACKAGE TRUCK<RD2> M12 		9-99110-512-0 12 1 9610-9810
202 PLATE; LK,SPR PIN 1-51169-016-0 02 1 9606-9609
202 PLATE; LK,SPR PIN
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-51169-016-0 02 1 9610-9810
202 PLATE; LK,SPR PIN 1-51169-016-0 02 1 9811-
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		9-09031-010-0 04 1 9606-0512
204 NIPPLE; GREASE,RR
PT1/8 STRAIGHT 		0-90301-410-0 04 1 0601-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 04 1 9606-9609
205 ATTACHMENT; GREASE NIPPLE
SUSPENSION HEAVY DUTY VAR1<F40> HEAVY DUTY PACKAGE TRUCK<RD2> 		9-43165-001-0 06 1 9610-9810
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 04 1 9811-
205 ATTACHMENT; GREASE NIPPLE
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		9-43165-001-0 04 1 9610-9810
208 U-BOLT SET; FRT SPRING
L=190 		1-87870-361-0 04 1 9606-9609
208 U-BOLT SET; FRT SPRING
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=190 		1-87870-361-0 04 1 9610-9810
208 U-BOLT SET; FRT SPRING
SUSPENSION HEAVY DUTY VAR1<F40> HEAVY DUTY PACKAGE TRUCK<RD2> L=230 		1-87870-269-1 04 1 9610-9810
208 U-BOLT SET; FRT SPRING
L=175 		1-87870-350-0 04 1 9811-0503
208 U-BOLT SET; FRT SPRING
L=175 		1-87870-455-0 04 1 0504-
210 WASHER; S/ABS,OUTER
ID=17 		1-51631-020-0 02 1 9606-
213 BUSHING; RUBBER,LWR 1-51631-009-1 04 1 9606-
214 WASHER; S/ABS,UPR,INNER
ID=14.5 		9-51631-051-0 02 1 9606-9810
214 WASHER; S/ABS,UPR,INNER
ID=16.8 		1-51631-022-0 04 1 9811-
215 WASHER; S/ABS,UPR,OUTER
ID=14.5 		9-51631-051-0 02 1 9606-9810
215 WASHER; S/ABS,UPR,OUTER
ID=14.5 		9-51631-051-0 04 1 9811-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
