5-01 — FRAME AND OTHER PARTS (#59862) — 90 parça

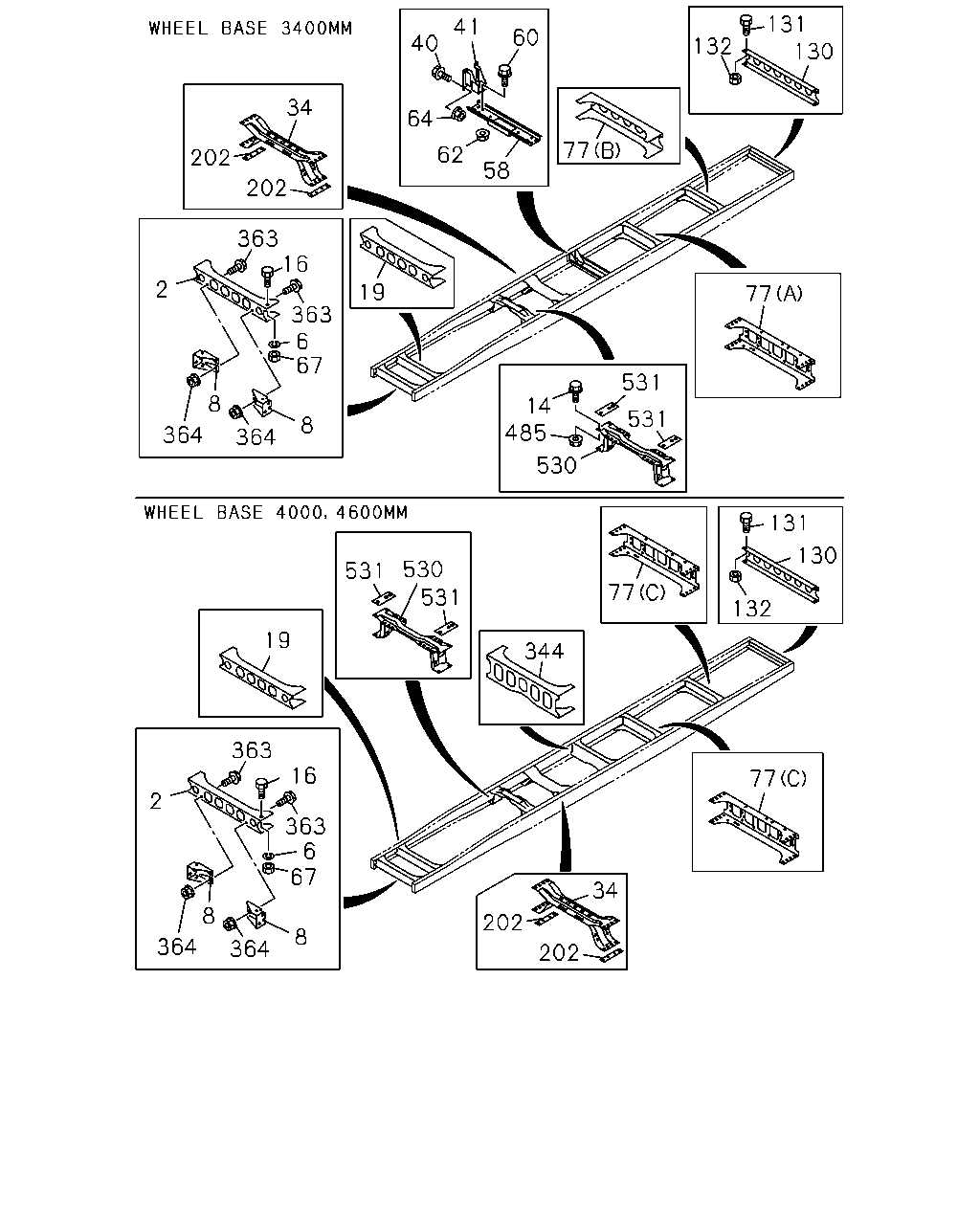

çizim 165042
131 132 130 41 60 40 34 64 77 62 202 58 202 363 16 2 19 77 363 6 67 531 8 14 485 531 8 364 364 530 131 130 530 531 531 77 132 19 344 363 16 77 2 363 6 67 34 8 202 8 364 364 202
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 MEMBER; CROSS,1ST 8-97609-462-9 01 1 0906- ● ● ● ●
6 WASHER; LK,1ST C/MBR
ID=12.2 		0-91510-512-0 02 1 0906- ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-578-2 01 1 0906- ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-579-3 01 1 0906- ● ● ● ●
14 BOLT; TRANS MTG MBR,FRAME
MLD6S M/T(X7W) M12X35 FLANGE 		0-28661-235-0 04 1 0906- ●
14 BOLT; TRANS MTG MBR,FRAME
MLD6S M/T(X7W) M12X40 FLANGE 		0-28661-240-0 02 1 0906- ●
16 BOLT; 1ST C/MBR TO S/MBR
M12X30 		0-20851-230-0 02 1 0906- ● ● ● ●
19 MEMBER; CROSS,2ND 8-97609-463-5 01 1 0906-0907 ● ● ●
19 MEMBER; CROSS,2ND
MZW6P M/T(RSZ) 		8-97609-463-5 01 1 0906-0907 ●
19 MEMBER; CROSS,2ND 8-97609-463-5 01 1 0908-0909 ● ● ●
19 MEMBER; CROSS,2ND
MZW6P M/T(RSZ) 		8-97609-463-5 01 1 0908-0909 ●
19 MEMBER; CROSS,2ND 8-97609-463-9 01 1 0910- ● ● ● ●
19 MEMBER; CROSS,2ND
MLD6S M/T(X7W) 		8-97629-428-1 01 1 0906-0909 ●
34 MEMBER; CROSS,3RD 8-97609-501-2 01 1 0906- ● ● ● ●
40 BOLT; BRKT TO FRAME
MLD6S M/T(X7W) M10X30 FLANGE 		0-28651-030-0 08 1 0906- ●
41 BRACKET; CENTER BRG,FRAME SIDE
MLD6S M/T(X7W) 		8-97615-973-2 01 1 0906- ●
41 BRACKET; CENTER BRG,FRAME SIDE
MLD6S M/T(X7W) 		8-97615-974-2 01 1 0906- ●
58 MEMBER; CENTER BRG
MLD6S M/T(X7W) 		8-97619-112-0 01 1 0906- ●
60 BOLT; MBR
MLD6S M/T(X7W) M10X25 FLANGE 		0-28651-025-0 08 1 0906- ●
62 NUT; MBR
MLD6S M/T(X7W) M10 FLANGE 		0-91180-110-0 08 1 0906- ●
64 NUT; BRKT TO FRAME
MLD6S M/T(X7W) M10 FLANGE 		0-91180-110-0 08 1 0906- ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 0906- ● ● ● ●
77 MEMBER; CROSS,TRUNNION RR
(B) 		8-97609-475-2 01 1 0906- ●
77 MEMBER; CROSS,TRUNNION RR
(A) 		8-97609-478-4 01 1 0906- ●
77 MEMBER; CROSS,TRUNNION RR
(C) 		8-97610-935-1 02 1 0906- ● ● ●
130 MEMBER; CROSS,END 8-97609-471-0 01 1 0906- ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 0906- ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 0906- ● ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 0906- ● ● ● ●
202 SPACER; 3RD C/MBR 8-97609-756-1 02 1 0906- ● ● ● ●
344 MEMBER; CROSS,4TH 8-97609-472-2 01 1 0906- ● ●
344 MEMBER; CROSS,4TH 8-97609-473-2 01 1 0906- ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 0906- ● ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 0906- ● ● ● ●
485 NUT; TRANS MTG MBR,FRAME
MLD6S M/T(X7W) M12 FLANGE 		0-91180-212-0 06 1 0906- ●
530 MEMBER; CROSS,T/M
MLD6S M/T(X7W) 		8-97627-753-0 01 1 0906- ● ● ● ●
530 MEMBER; CROSS,T/M
MZW6P M/T(RSZ) 		8-97609-809-3 01 1 0906- ● ● ● ●
531 SPACER; C/MBR,T/M 8-97616-461-1 02 1 0906- ● ● ● ●

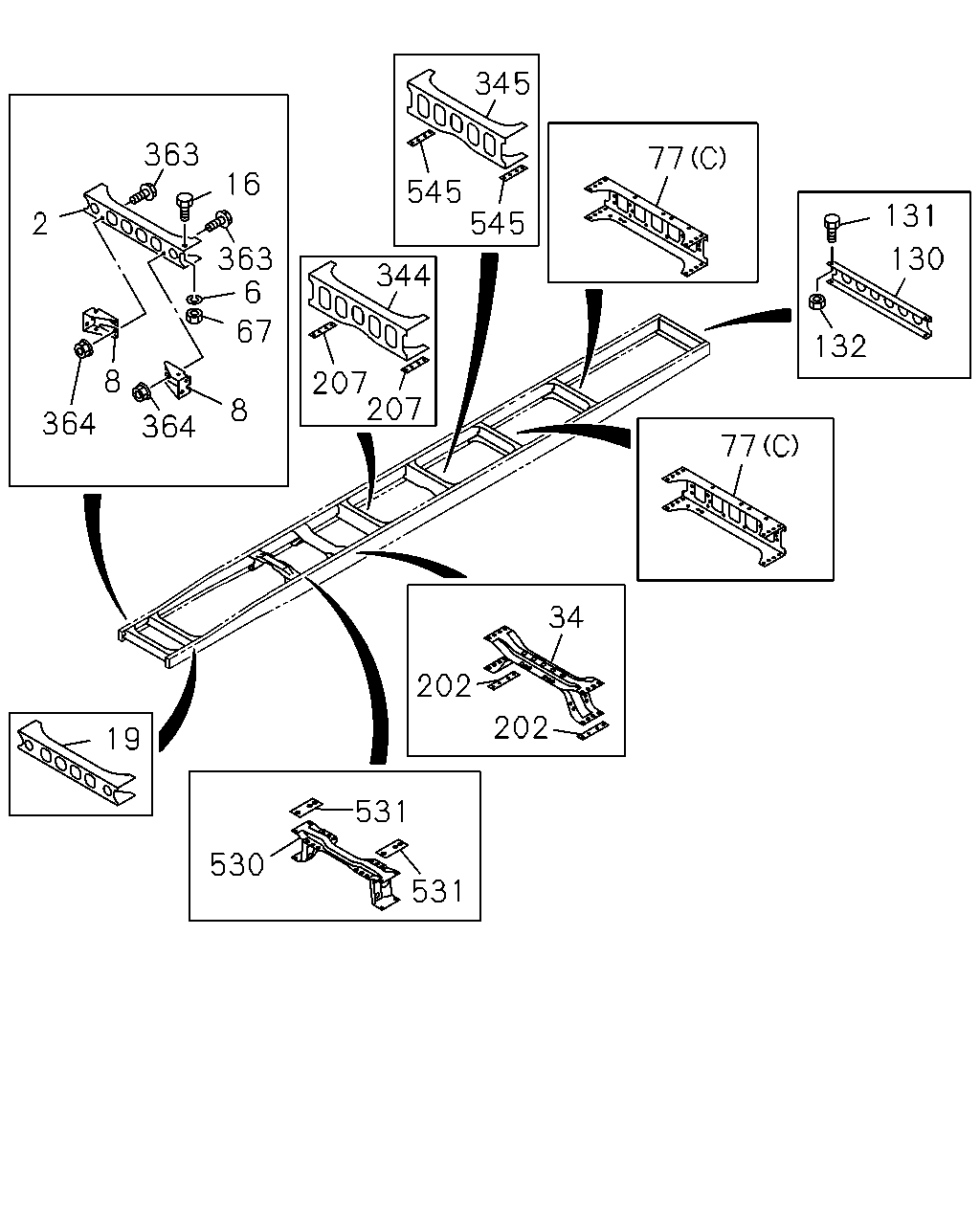

çizim 165054
345 363 77 16 545 545 131 2 363 6 130 344 67 132 8 207 207 8 364 364 77 34 202 202 19 531 530 531
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 MEMBER; CROSS,1ST 8-97609-462-9 01 1 0906- ● ● ● ●
6 WASHER; LK,1ST C/MBR
ID=12.2 		0-91510-512-0 02 1 0906- ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-578-2 01 1 0906- ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-579-3 01 1 0906- ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M12X30 		0-20851-230-0 02 1 0906- ● ● ● ●
19 MEMBER; CROSS,2ND 8-97609-463-5 01 1 0906-0907 ● ● ●
19 MEMBER; CROSS,2ND
MZW6P M/T(RSZ) 		8-97609-463-5 01 1 0906-0907 ●
19 MEMBER; CROSS,2ND 8-97609-463-5 01 1 0908-0909 ● ● ●
19 MEMBER; CROSS,2ND
MZW6P M/T(RSZ) 		8-97609-463-5 01 1 0908-0909 ●
19 MEMBER; CROSS,2ND 8-97609-463-9 01 1 0910- ● ● ● ●
19 MEMBER; CROSS,2ND
MLD6S M/T(X7W) 		8-97629-428-1 01 1 0906-0909 ●
34 MEMBER; CROSS,3RD 8-97609-501-2 01 1 0906- ● ● ● ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 0906- ● ● ● ●
77 MEMBER; CROSS,TRUNNION RR
(B) 		8-97609-475-2 01 1 0906- ●
77 MEMBER; CROSS,TRUNNION RR
(A) 		8-97609-478-4 01 1 0906- ●
77 MEMBER; CROSS,TRUNNION RR
(C) 		8-97610-935-1 02 1 0906- ● ● ●
130 MEMBER; CROSS,END 8-97609-471-0 01 1 0906- ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 0906- ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 0906- ● ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 0906- ● ● ● ●
202 SPACER; 3RD C/MBR 8-97609-756-1 02 1 0906- ● ● ● ●
207 SPACER; 4TH C/MBR 8-97609-758-0 02 1 0906- ●
344 MEMBER; CROSS,4TH 8-97609-472-2 01 1 0906- ● ●
344 MEMBER; CROSS,4TH 8-97609-473-2 01 1 0906- ●
345 MEMBER; CROSS,5TH 8-97609-473-2 01 1 0906- ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 0906- ● ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 0906- ● ● ● ●
530 MEMBER; CROSS,T/M
MLD6S M/T(X7W) 		8-97627-753-0 01 1 0906- ● ● ● ●
530 MEMBER; CROSS,T/M
MZW6P M/T(RSZ) 		8-97609-809-3 01 1 0906- ● ● ● ●
531 SPACER; C/MBR,T/M 8-97616-461-1 02 1 0906- ● ● ● ●
545 SPACER; 5TH C/MBR 8-97609-758-0 02 1 0906- ●

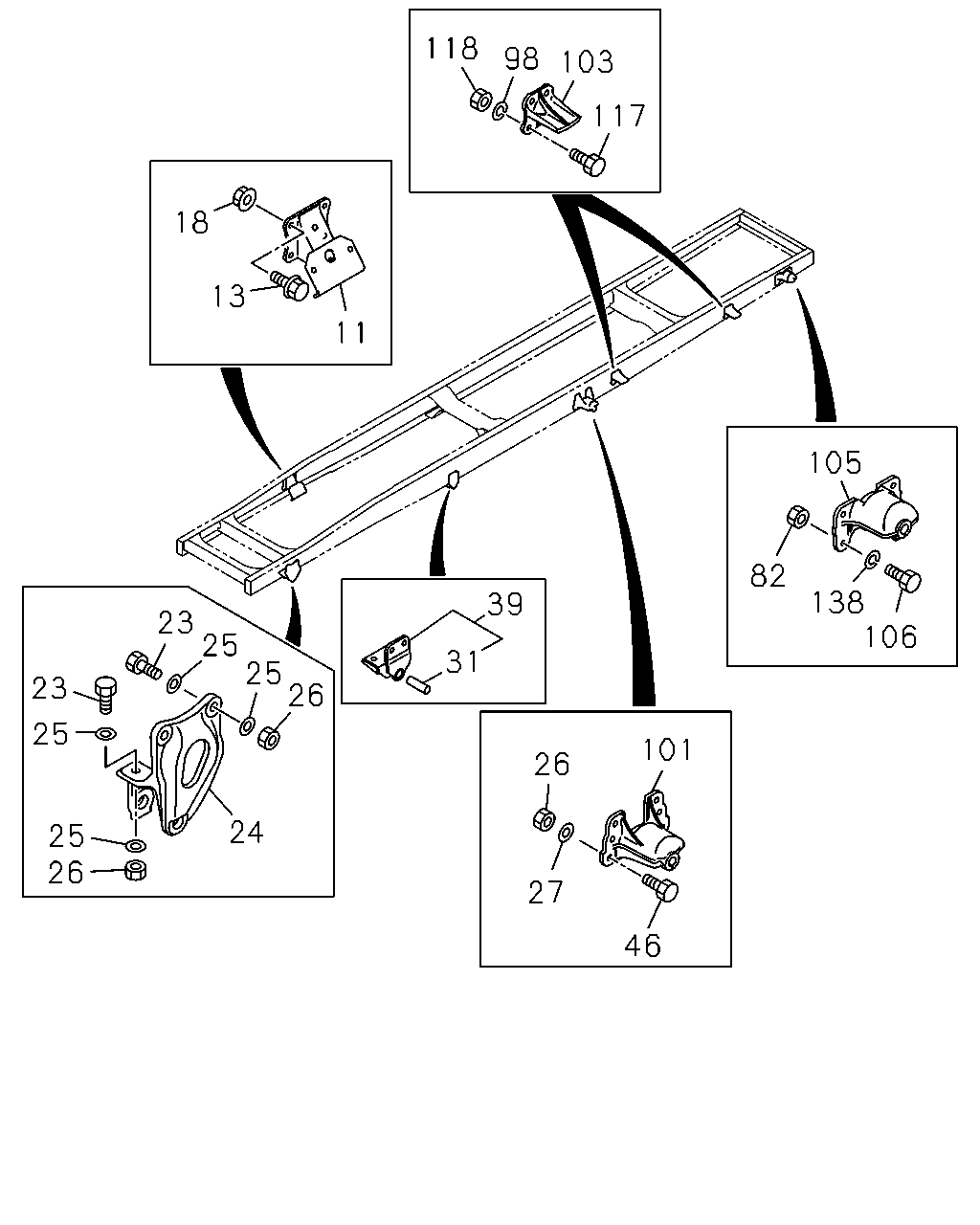

çizim 165056
118 98 103 117 18 13 11 105 82 138 106 39 23 25 25 26 31 23 25 101 26 24 25 26 27 46
BalonParca AdiParca NoAdetTipApplied Date A B C D
11 BRACKET; ENG MTG 8-97604-129-0 02 1 0906- ● ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 0906- ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 0906- ● ● ● ●
23 BOLT; BRKT,SPR
M14X50 		0-20951-450-0 08 1 0906- ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98059-201-0 01 1 0906- ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98059-203-0 01 1 0906- ● ● ● ●
25 WASHER; PL,BRKT
ID=15 		8-98010-627-1 16 1 0906- ● ● ● ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 20 1 0906- ● ● ● ●
27 WASHER; LK,BRKT,FRT SPR
ID=14.2 		0-91510-614-0 12 1 0906- ● ● ● ●
31 BUSHING; FRT SPR,RR
ID=25 		8-98082-176-0 02 1 0906- ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-154-2 02 1 0906- ● ● ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 12 1 0906- ● ● ● ●
82 NUT; BRKT
M14 		0-91110-514-0 10 1 0906- ● ● ● ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-614-0 16 1 0906- ● ● ● ●
101 BRACKET; RR SPR,FRT 1-53353-090-4 02 1 0906- ● ● ● ●
103 STOPPER; SUB SPR 1-53356-059-1 04 1 0906- ● ● ● ●
105 BRACKET; RR SPR,RR 1-53354-074-0 02 1 0906- ● ● ● ●
106 BOLT; BRKT
M14X50 		0-20951-450-0 10 1 0906- ● ● ● ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 0906- ● ● ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 0906- ● ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 10 1 0906- ● ● ● ●
