Isuzu WW
▶
TRUCKS
▶
FRR
▶
11236 - FRR RHD EUROPE EURO5 SPACECAB
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-35 - POWER STEERING CONTROL; CHASSIS SIDE
▶

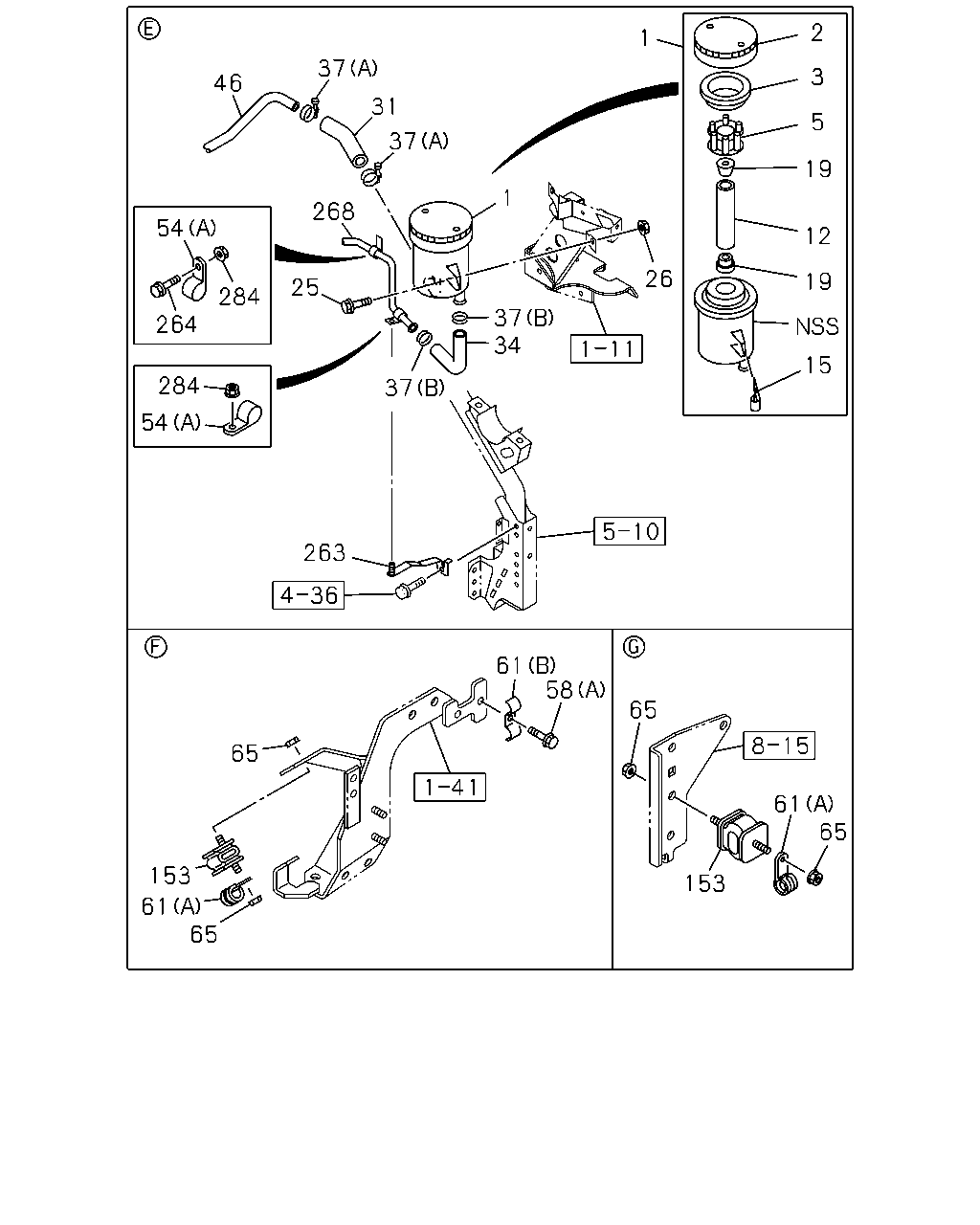

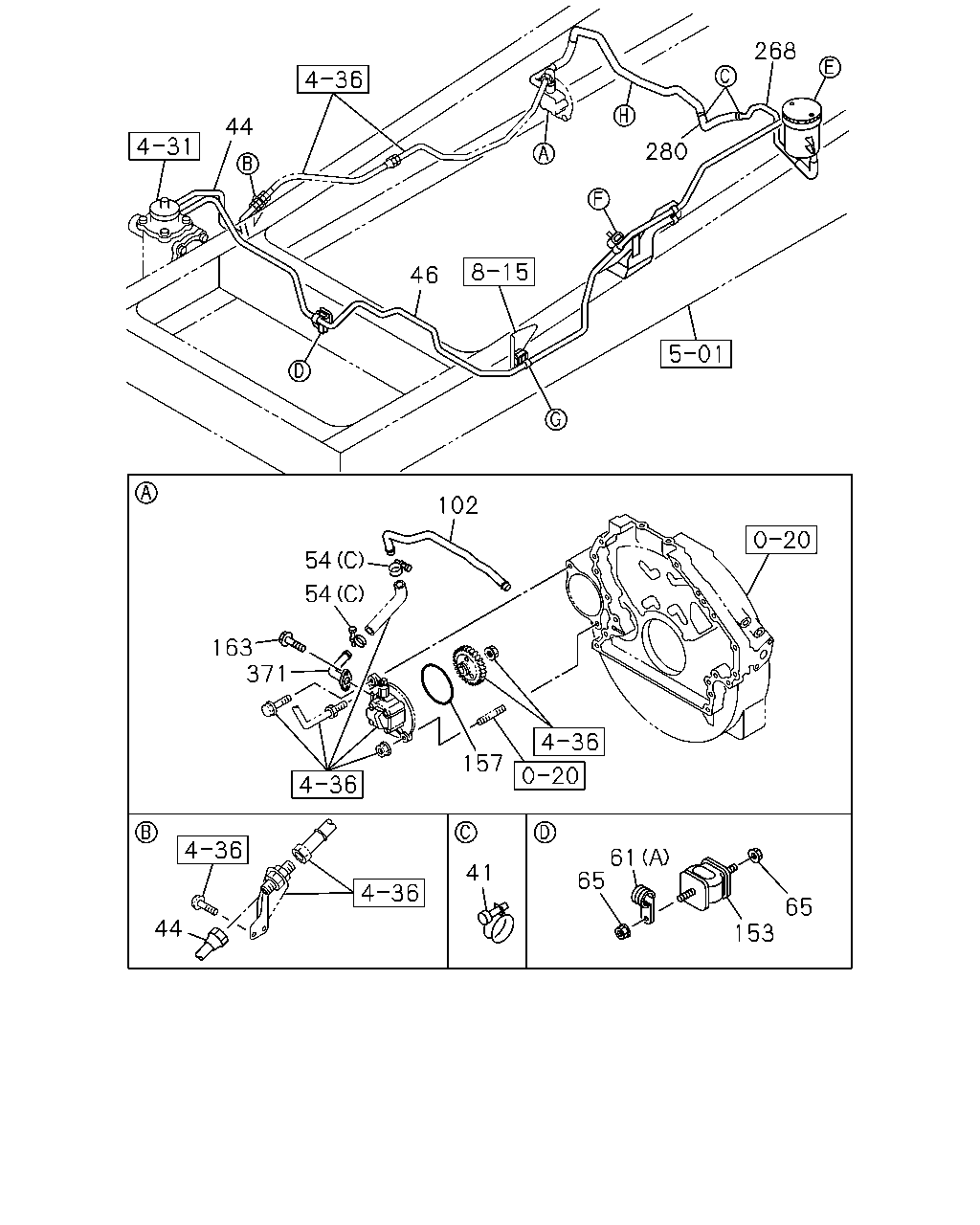

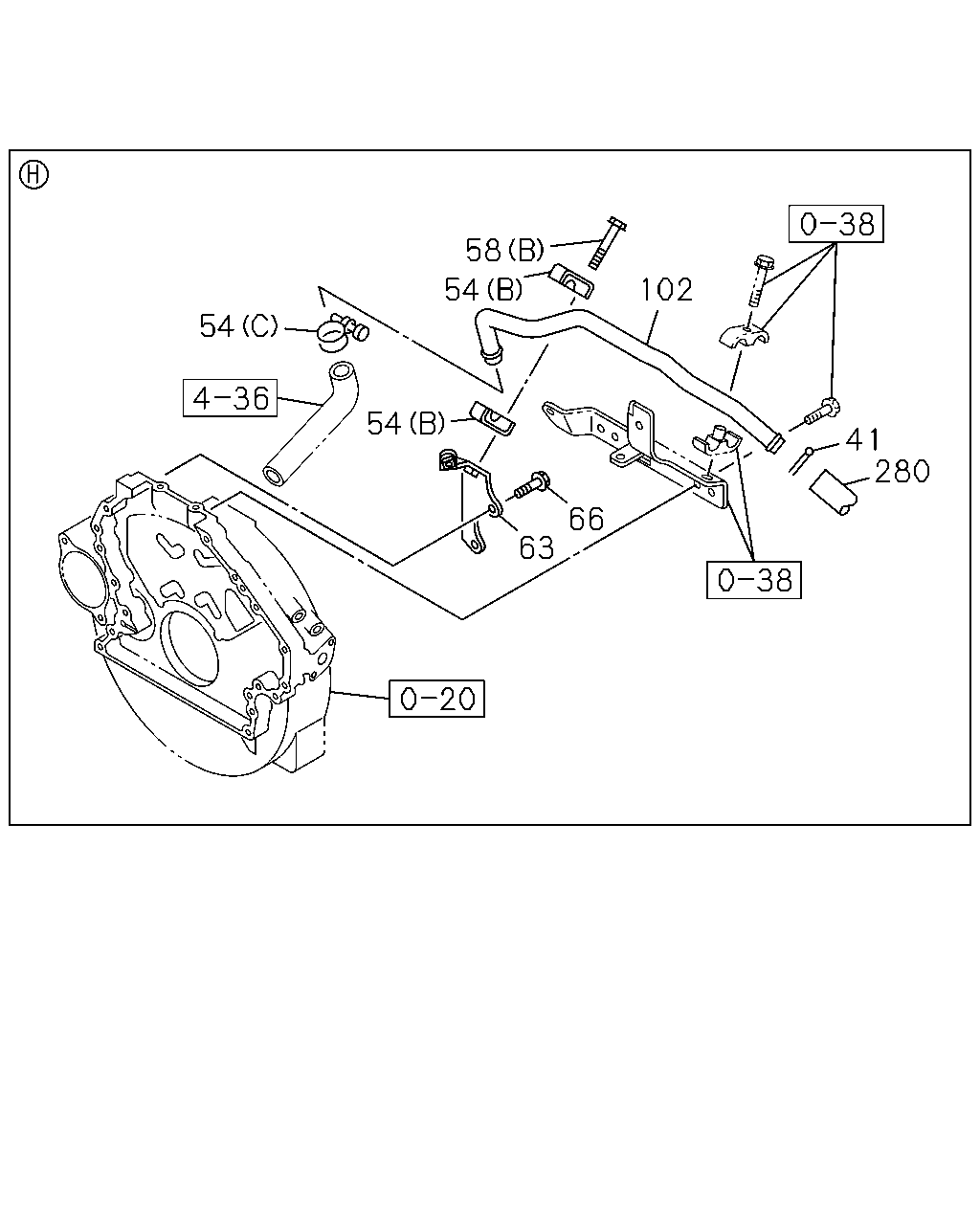

4-35 — POWER STEERING CONTROL; CHASSIS SIDE
(#59853) — 57 parça
◀
[435A] NO.2 (30 parça)
[435A] NO.3 (10 parça)
[435A] NO.1 (17 parça)
▶
2
1
37
3
46
31
5
37
19
1
268
54
12
26
19
25
284
37
34
264
15
284
37
54
263
61
58
65
65
61
65
153
153
61
65
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK ASM; OIL,P/S
1-21210-238-1
01
1
0906-1006
1
TANK ASM; OIL,P/S
8-98166-928-0
01
1
1007-
2
CAP; OIL TANK,P/S
1-21241-004-4
01
1
0906-1006
2
CAP; OIL TANK,P/S
8-98166-876-0
01
1
1007-
3
GASKET; OIL TANK,P/S
1-21249-003-1
01
1
0906-
5
STRAINER; OIL TANK,P/S
1-21235-007-1
01
1
0906-
12
FILTER; MICROBON,OIL TANK,P/S
1-21235-011-0
01
1
0906-
15
PLATE; FILTER,OIL TANK
1-21249-016-0
02
1
0906-
19
SEAT; OIL TANK
1-21249-004-0
02
1
0906-
25
BOLT; OIL TANK BRKT
M8X25 FLANGE
0-28650-825-0
02
1
0906-
26
NUT; OIL TANK TO BRKT
M8 FLANGE
0-91180-108-0
02
1
0906-
31
HOSE; P/S OIL TANK,INL
8-98131-108-0
01
1
0906-
34
HOSE; P/S OIL TANK,OUTLET
8-98021-827-0
01
1
0906-
37
CLIP; HOSE,P/S
(A) ID=26
1-09704-082-0
02
1
0906-
37
CLIP; HOSE,P/S
(B) ID=32
1-09704-085-0
02
1
0906-
46
PIPE; OIL,P/S UNIT TO OIL TANK
L=2493
8-98126-594-0
01
1
0906-
54
CLIP; OIL PIPE
(A) ID=19 L=20
0-95235-836-0
02
1
0906-
54
CLIP; OIL PIPE
(B) ID=17 L=17
1-09701-284-0
02
1
0906-
54
CLIP; OIL PIPE
(C) ID=32
1-09704-085-0
02
1
0906-
58
BOLT; CLIP
(A) M8X16 FLANGE
0-28050-816-0
01
1
0906-
58
BOLT; CLIP
(B) M8X45 FLANGE
0-28050-845-0
01
1
0906-
61
CLIP; OIL PIPE
(A) ID=16 L=20
0-95235-536-0
03
1
0906-
61
CLIP; OIL PIPE
(B) ID=16 & 13 L=21.5 & 21.5
1-09700-668-0
01
1
0906-
65
NUT; BRKT
M8 FLANGE
0-91180-108-0
06
1
0906-
153
RUBBER; CUSHION,POWER STRG PIPE
8-94158-156-1
03
1
0906-
263
BRACKET; P/S PIPE
8-98130-274-0
01
1
0906-
264
BOLT; PIPE BRKT
M8X20 FLANGE
0-28650-820-0
02
1
0906-1008
264
BOLT; PIPE BRKT
M8X20 FLANGE
0-28650-820-0
01
1
1009-
268
PIPE; OIL,FLEX HOSE TO FLEX HOSE
8-98077-739-2
01
1
0906-
284
NUT; PIPE
M8 FLANGE
0-91180-108-0
02
1
0906-
58
102
54
54
54
41
280
66
63
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
41
CLIP; HOSE,P/S
ID=32
1-09704-085-0
02
1
0906-
54
CLIP; OIL PIPE
(A) ID=19 L=20
0-95235-836-0
02
1
0906-
54
CLIP; OIL PIPE
(B) ID=17 L=17
1-09701-284-0
02
1
0906-
54
CLIP; OIL PIPE
(C) ID=32
1-09704-085-0
02
1
0906-
58
BOLT; CLIP
(A) M8X16 FLANGE
0-28050-816-0
01
1
0906-
58
BOLT; CLIP
(B) M8X45 FLANGE
0-28050-845-0
01
1
0906-
63
BRACKET; CLIP,P/S
8-98075-954-0
01
1
0906-
66
BOLT; BRKT,OIL PIPE
M8X16 FLANGE
0-28050-816-0
02
1
0906-
102
PIPE; SUCTION,P/S
8-98057-017-4
01
1
0906-
280
HOSE; P/S OIL PUMP,INL
8-98053-040-1
01
1
0906-
268
44
280
46
102
54
54
163
371
157
61
65
41
65
44
153
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
41
CLIP; HOSE,P/S
ID=32
1-09704-085-0
02
1
0906-
44
PIPE; OIL,P/S UNIT TO NIPPLE
GENERATOR 24V90A(K44)
8-98079-094-0
01
1
0906-
44
PIPE; OIL,P/S UNIT TO NIPPLE
EXC. GENERATOR 24V90A(K44)
8-98077-661-0
01
1
0906-
46
PIPE; OIL,P/S UNIT TO OIL TANK
L=2493
8-98126-594-0
01
1
0906-
54
CLIP; OIL PIPE
(A) ID=19 L=20
0-95235-836-0
02
1
0906-
54
CLIP; OIL PIPE
(B) ID=17 L=17
1-09701-284-0
02
1
0906-
54
CLIP; OIL PIPE
(C) ID=32
1-09704-085-0
02
1
0906-
61
CLIP; OIL PIPE
(A) ID=16 L=20
0-95235-536-0
03
1
0906-
61
CLIP; OIL PIPE
(B) ID=16 & 13 L=21.5 & 21.5
1-09700-668-0
01
1
0906-
65
NUT; BRKT
M8 FLANGE
0-91180-108-0
06
1
0906-
102
PIPE; SUCTION,P/S
8-98057-017-4
01
1
0906-
153
RUBBER; CUSHION,POWER STRG PIPE
8-94158-156-1
03
1
0906-
157
GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6
8-97386-295-0
01
1
0906-
163
BOLT; OIL PIPE
M8X16 FLANGE
0-28050-816-0
02
1
0906-
268
PIPE; OIL,FLEX HOSE TO FLEX HOSE
8-98077-739-2
01
1
0906-
280
HOSE; P/S OIL PUMP,INL
8-98053-040-1
01
1
0906-
371
PIPE; OIL,INLET
8-98072-089-1
01
1
0906-
