◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10739 - FSR-LHD(BUS CHASSIS) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#5985) — 190 parça

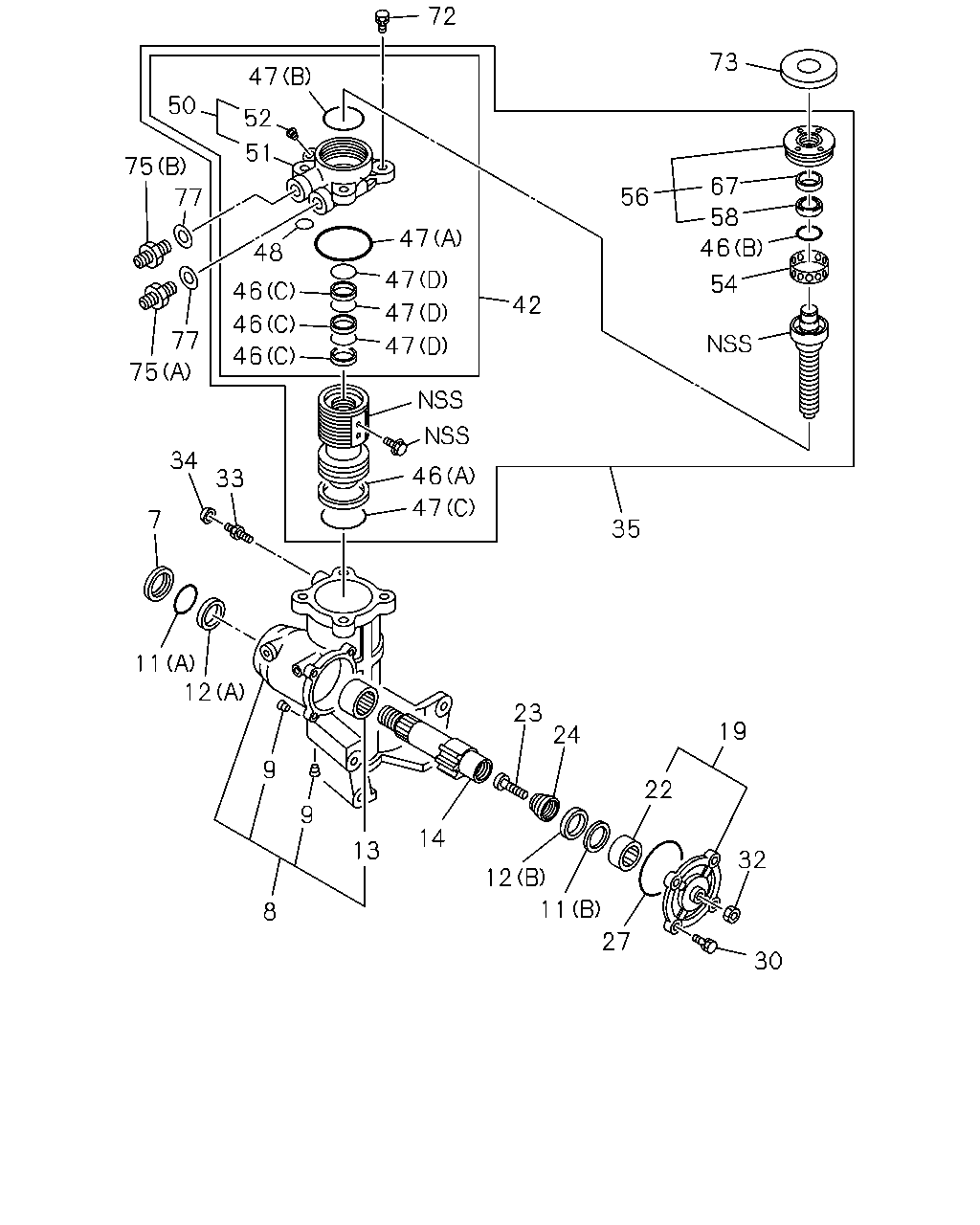

çizim 9921
72 73 47 50 52 51 75 67 56 77 58 47 48 46 47 54 46 42 47 46 77 47 46 75 34 46 33 47 7 35 11 12 23 19 24 9 22 9 14 13 32 12 11 8 27 30
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-721-3 		1-09625-247-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44519-157-1 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: B = 1-44000-773-4 		1-44240-078-1 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: C = 1-44000-842-2 		1-44240-108-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: D = 1-44000-887-1 		1-44240-130-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-721-3 		1-44241-119-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44519-071-0 02 1 -
9 PLUG; FILLER,STRG UNIT
M24 ASM PART: A = 1-44000-721-3 		9-99202-024-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44519-158-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44519-163-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44519-159-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44519-162-1 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: A = 1-44000-721-3 		1-09811-287-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: B = 1-44000-773-4, C = 1-44000-842-2 		1-44519-160-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-721-3 		1-44321-018-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44321-029-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: B = 1-44000-773-4, C = 1-44000-842-2 		1-44260-015-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: D = 1-44000-887-1 		1-44260-027-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-721-3 		1-44261-027-1 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: B = 1-44000-773-4, C = 1-44000-842-2 		1-44519-164-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: A = 1-44000-721-3 		9-00096-071-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44277-006-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-721-3 		9-44277-010-0 01 1 -
24 RETAINER; STRG UNIT
ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44279-015-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44519-161-0 01 1 -
30 BOLT; COVER STRG UNIT
ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44569-103-0 04 1 -
30 BOLT; COVER STRG UNIT
M14X30 ASM PART: A = 1-44000-721-3 		9-92051-430-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
M14 ASM PART: A = 1-44000-721-3 		9-99110-414-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
M12 ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		9-99110-512-0 01 1 -
33 PLUG; DRAIN,STRG UNIT
ASM PART: B = 1-44000-773-4 		9-83331-704-0 01 1 -
34 PROTECTOR; STRG UNIT
ASM PART: B = 1-44000-773-4 		9-83335-044-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 1-44000-773-4 		1-44150-040-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: C = 1-44000-842-2, D = 1-44000-887-1 		1-44150-056-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44560-071-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44159-161-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44519-152-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44519-155-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44519-153-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44519-154-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44519-156-0 03 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44519-165-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44519-262-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44560-070-0 01 1 -
51 HOUSING; VALVE STRG UNIT
ASM PART: B = 1-44000-773-4 		1-44561-018-0 01 1 -
52 PLUG; HSG STRG UNIT
ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44241-127-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44250-007-0 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44259-058-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44259-057-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44519-110-0 04 1 -
73 COVER; DUST,STRG UNIT
ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44159-062-0 01 1 -
75 CONNECTOR; HSG STRG UNIT
(A), M20X1.5 ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44259-034-1 01 1 -
75 CONNECTOR; HSG STRG UNIT
(B), M22X1.5 ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44259-035-1 01 1 -
77 GASKET; CONNECTOR,STRG UNIT
ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		9-89970-787-0 02 1 -

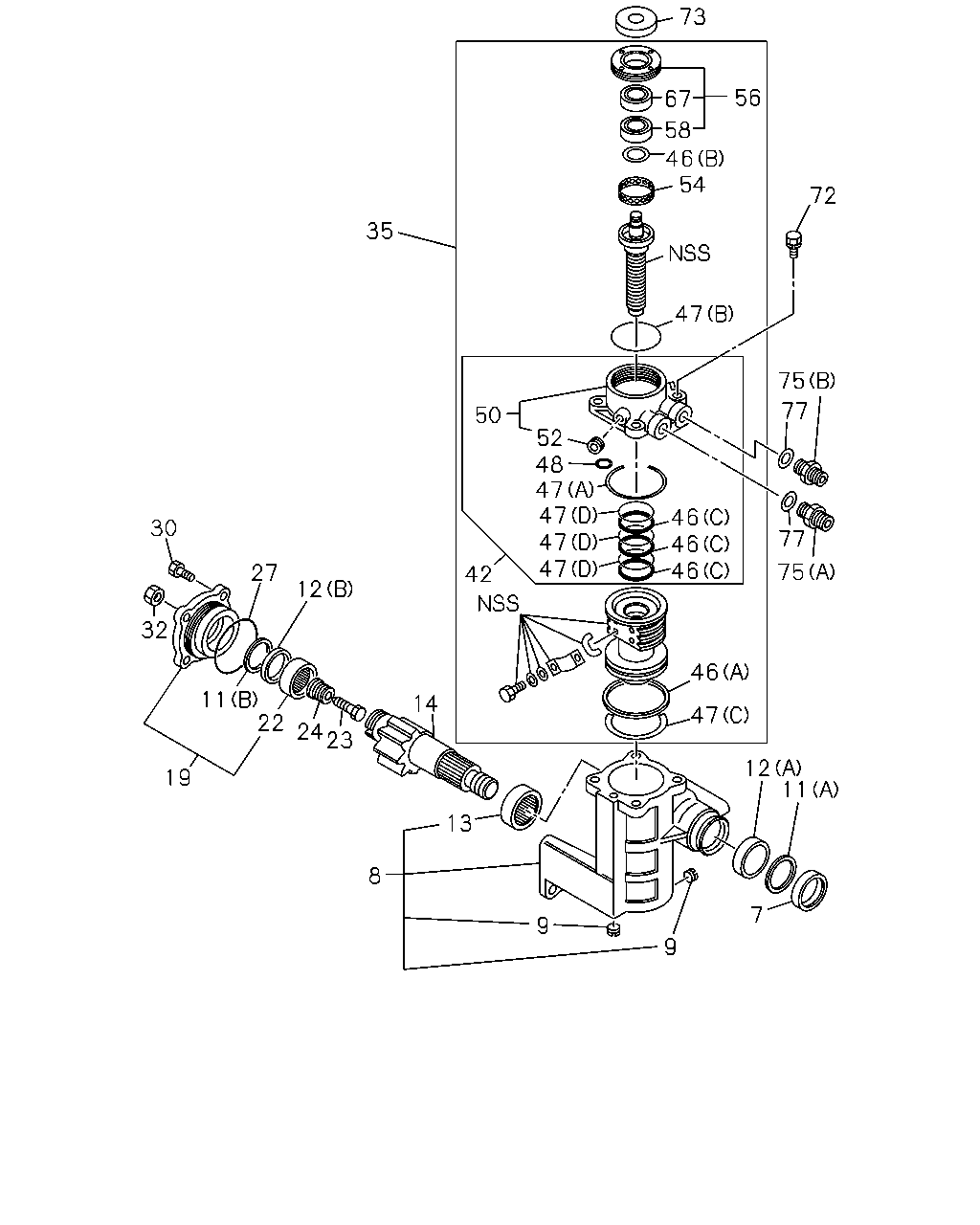

çizim 10262
73 56 67 58 46 54 72 35 47 75 77 50 52 48 47 47 47 47 46 46 46 30 77 75 27 42 12 32 46 11 22 14 47 24 23 12 11 19 13 8 7 9 9
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-721-3 		1-09625-247-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44519-157-1 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: B = 1-44000-773-4 		1-44240-078-1 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: C = 1-44000-842-2 		1-44240-108-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: D = 1-44000-887-1 		1-44240-130-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-721-3 		1-44241-119-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44519-071-0 02 1 -
9 PLUG; FILLER,STRG UNIT
M24 ASM PART: A = 1-44000-721-3 		9-99202-024-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44519-158-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44519-163-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44519-159-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44519-162-1 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: A = 1-44000-721-3 		1-09811-287-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: B = 1-44000-773-4, C = 1-44000-842-2 		1-44519-160-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-721-3 		1-44321-018-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44321-029-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: B = 1-44000-773-4, C = 1-44000-842-2 		1-44260-015-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: D = 1-44000-887-1 		1-44260-027-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-721-3 		1-44261-027-1 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: B = 1-44000-773-4, C = 1-44000-842-2 		1-44519-164-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: A = 1-44000-721-3 		9-00096-071-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44277-006-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-721-3 		9-44277-010-0 01 1 -
24 RETAINER; STRG UNIT
ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44279-015-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44519-161-0 01 1 -
30 BOLT; COVER STRG UNIT
ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44569-103-0 04 1 -
30 BOLT; COVER STRG UNIT
M14X30 ASM PART: A = 1-44000-721-3 		9-92051-430-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
M14 ASM PART: A = 1-44000-721-3 		9-99110-414-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
M12 ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		9-99110-512-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 1-44000-773-4 		1-44150-040-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: C = 1-44000-842-2, D = 1-44000-887-1 		1-44150-056-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44560-071-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44159-161-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44519-152-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44519-155-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44519-153-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44519-154-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44519-156-0 03 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44519-165-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44519-262-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44560-070-0 01 1 -
52 PLUG; HSG STRG UNIT
ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44241-127-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44250-007-0 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44259-058-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44259-057-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44519-110-0 04 1 -
73 COVER; DUST,STRG UNIT
ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44159-062-0 01 1 -
75 CONNECTOR; HSG STRG UNIT
(A), M20X1.5 ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44259-034-1 01 1 -
75 CONNECTOR; HSG STRG UNIT
(B), M22X1.5 ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44259-035-1 01 1 -
77 GASKET; CONNECTOR,STRG UNIT
ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		9-89970-787-0 02 1 -

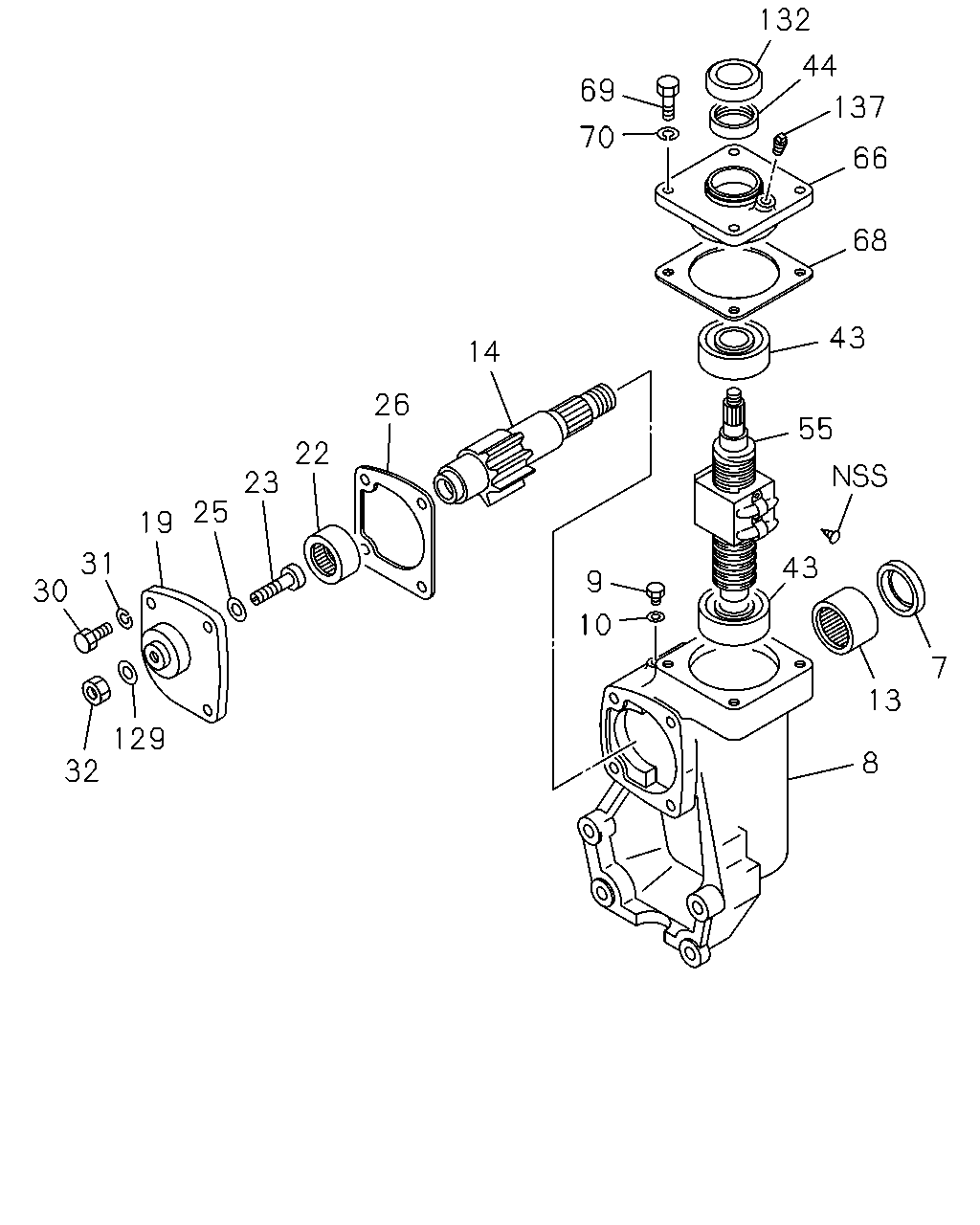

çizim 40549
132 44 69 137 70 66 68 43 14 26 55 22 23 25 19 31 30 43 9 10 7 13 129 8 32
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-721-3 		1-09625-247-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44519-157-1 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: B = 1-44000-773-4 		1-44240-078-1 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: C = 1-44000-842-2 		1-44240-108-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: D = 1-44000-887-1 		1-44240-130-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-721-3 		1-44241-119-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44519-071-0 02 1 -
9 PLUG; FILLER,STRG UNIT
M24 ASM PART: A = 1-44000-721-3 		9-99202-024-0 01 1 -
10 GASKET; PLUG,STRG UNIT
ID=24.5 OD=32.5 ASM PART: A = 1-44000-721-3 		9-09920-392-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: A = 1-44000-721-3 		1-09811-287-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: B = 1-44000-773-4, C = 1-44000-842-2 		1-44519-160-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-721-3 		1-44321-018-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44321-029-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: B = 1-44000-773-4, C = 1-44000-842-2 		1-44260-015-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: D = 1-44000-887-1 		1-44260-027-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-721-3 		1-44261-027-1 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: B = 1-44000-773-4, C = 1-44000-842-2 		1-44519-164-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: A = 1-44000-721-3 		9-00096-071-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44277-006-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-721-3 		9-44277-010-0 01 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=2.5 +0.035 +0.015 ASM PART: A = 1-44000-721-3 		9-44279-013-0 AR 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=2.5 +0.065 +0.045 ASM PART: A = 1-44000-721-3 		9-44279-014-0 AR 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=2.5 +0.095 +0.075 ASM PART: A = 1-44000-721-3 		9-44279-015-0 AR 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=2.5 +0.125 +0.105 ASM PART: A = 1-44000-721-3 		9-44279-016-0 AR 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=2.5 +0.155 +0.135 ASM PART: A = 1-44000-721-3 		9-44279-017-0 AR 1 -
26 GASKET; COVER,STRG UNIT
ASM PART: A = 1-44000-721-3 		1-44262-005-1 01 1 -
30 BOLT; COVER STRG UNIT
ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44569-103-0 04 1 -
30 BOLT; COVER STRG UNIT
M14X30 ASM PART: A = 1-44000-721-3 		9-92051-430-0 04 1 -
31 WASHER; COVER STRG UNIT
ID=14.2 ASM PART: A = 1-44000-721-3 		9-09150-514-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
M14 ASM PART: A = 1-44000-721-3 		9-99110-414-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
M12 ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		9-99110-512-0 01 1 -
43 BEARING; WORM SHAFT,STRG UNIT
ASM PART: A = 1-44000-721-3 		1-09803-001-0 02 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-721-3 		1-09625-353-0 01 1 -
55 WORM & BALL NUT ASM; STRG UNIT
ASM PART: A = 1-44000-721-3 		1-44130-370-0 01 1 -
66 COVER; REAR STRG UNIT
ASM PART: A = 1-44000-721-3 		1-44251-062-0 01 1 -
68 SHIM; COVER STRG UNIT
T=0.04 ASM PART: A = 1-44000-721-3 		1-44253-014-0 AR 1 -
68 SHIM; COVER STRG UNIT
T=0.05 ASM PART: A = 1-44000-721-3 		1-44253-015-0 AR 1 -
68 SHIM; COVER STRG UNIT
T=0.06 ASM PART: A = 1-44000-721-3 		1-44253-016-0 AR 1 -
68 SHIM; COVER STRG UNIT
T=0.07 ASM PART: A = 1-44000-721-3 		1-44253-017-0 AR 1 -
68 SHIM; COVER STRG UNIT
T=0.08 ASM PART: A = 1-44000-721-3 		1-44253-018-0 AR 1 -
68 SHIM; COVER STRG UNIT
T=0.10 ASM PART: A = 1-44000-721-3 		1-44253-019-0 AR 1 -
68 SHIM; COVER STRG UNIT
T=0.20 ASM PART: A = 1-44000-721-3 		1-44253-020-0 AR 1 -
68 SHIM; COVER STRG UNIT
T=0.50 ASM PART: A = 1-44000-721-3 		1-44253-021-0 AR 1 -
69 BOLT; COVER FIX STRG UNIT
M14X35 ASM PART: A = 1-44000-721-3 		9-92051-435-0 04 1 -
70 WASHER; COVER FIX STRG UNIT
ID=14.2 ASM PART: A = 1-44000-721-3 		9-09150-514-0 04 1 -
129 WASHER; ADJ SCREW,STRG UNIT
ASM PART: A = 1-44000-721-3 		1-44279-014-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-721-3 		1-44139-053-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: C = 1-44000-842-2, D = 1-44000-887-1 		1-44159-119-0 01 1 -
137 PLUG; BREATHER STRG UNIT
PT3/8 ASM PART: A = 1-44000-721-3 		9-09204-517-0 01 1 -

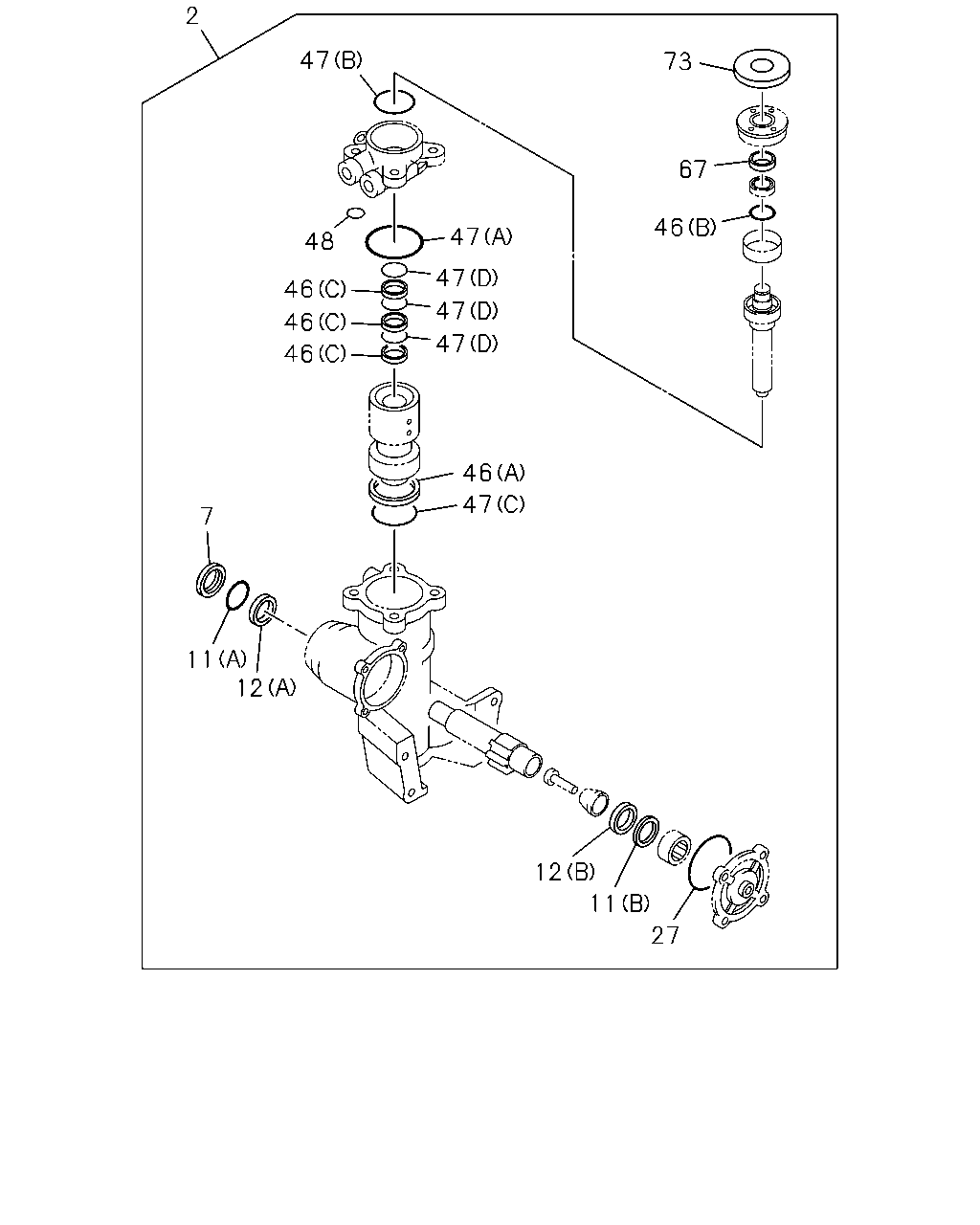

çizim 42412
2 47 73 67 46 47 48 47 46 47 46 47 46 46 47 7 11 12 12 11 27
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-85574-043-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-721-3 		1-09625-247-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44519-157-1 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44519-158-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44519-163-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44519-159-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44519-162-1 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44519-161-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44159-161-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44519-152-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44519-155-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44519-153-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44519-154-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44519-156-0 03 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44519-165-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44519-262-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44259-057-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44159-062-0 01 1 -

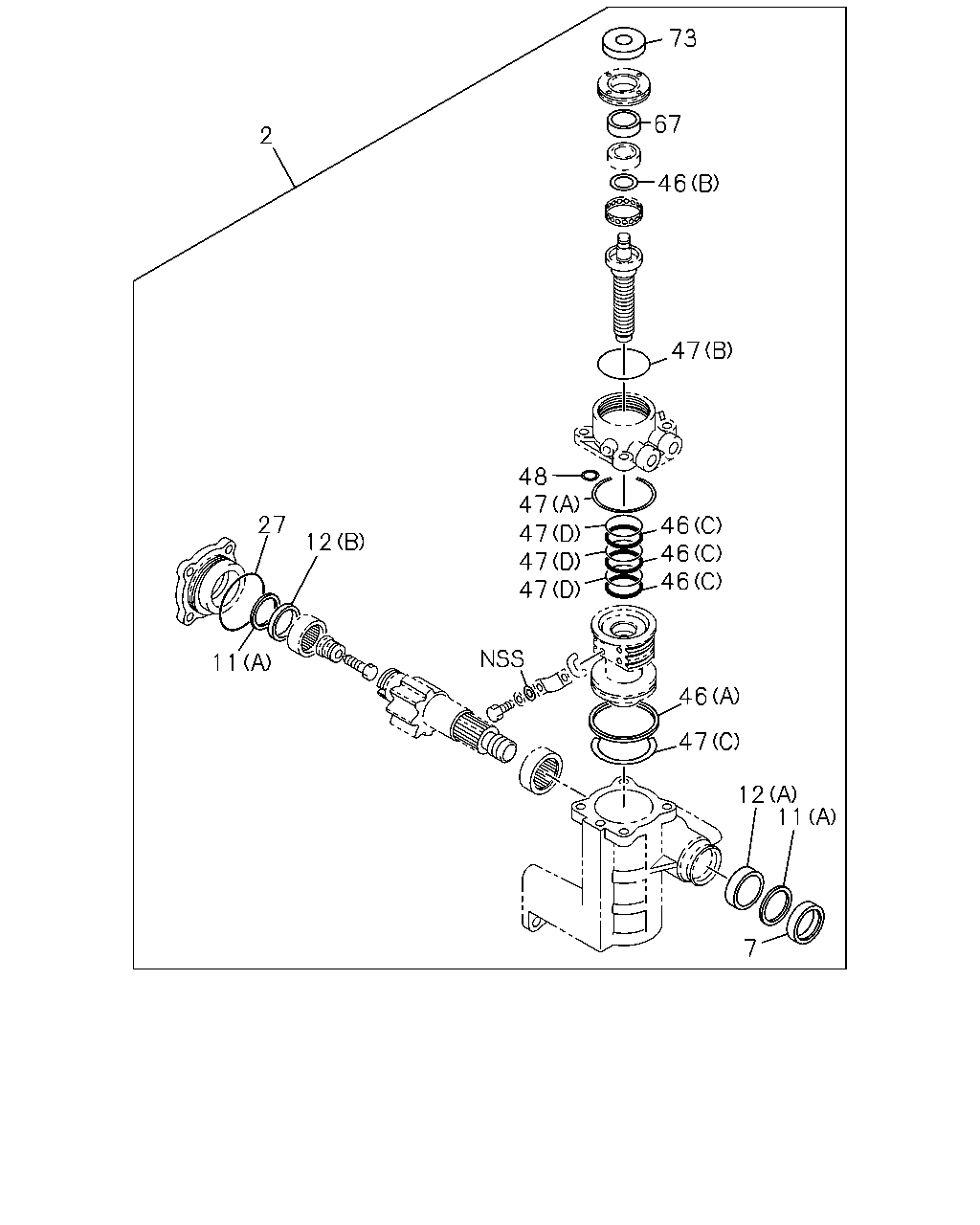

çizim 44357
73 67 2 46 47 48 47 47 47 47 27 46 46 46 12 11 46 47 12 11 7
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-85574-043-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-721-3 		1-09625-247-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44519-157-1 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44519-158-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44519-163-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44519-159-1 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44519-162-1 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44519-161-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44159-161-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44519-152-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44519-155-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44519-153-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44519-154-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44519-156-0 03 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44519-165-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44519-262-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44259-057-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: B = 1-44000-773-4, C = 1-44000-842-2, D = 1-44000-887-1 		1-44159-062-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
