3-77 — BRAKE PIPING; AIR,REAR (#59843) — 83 parça

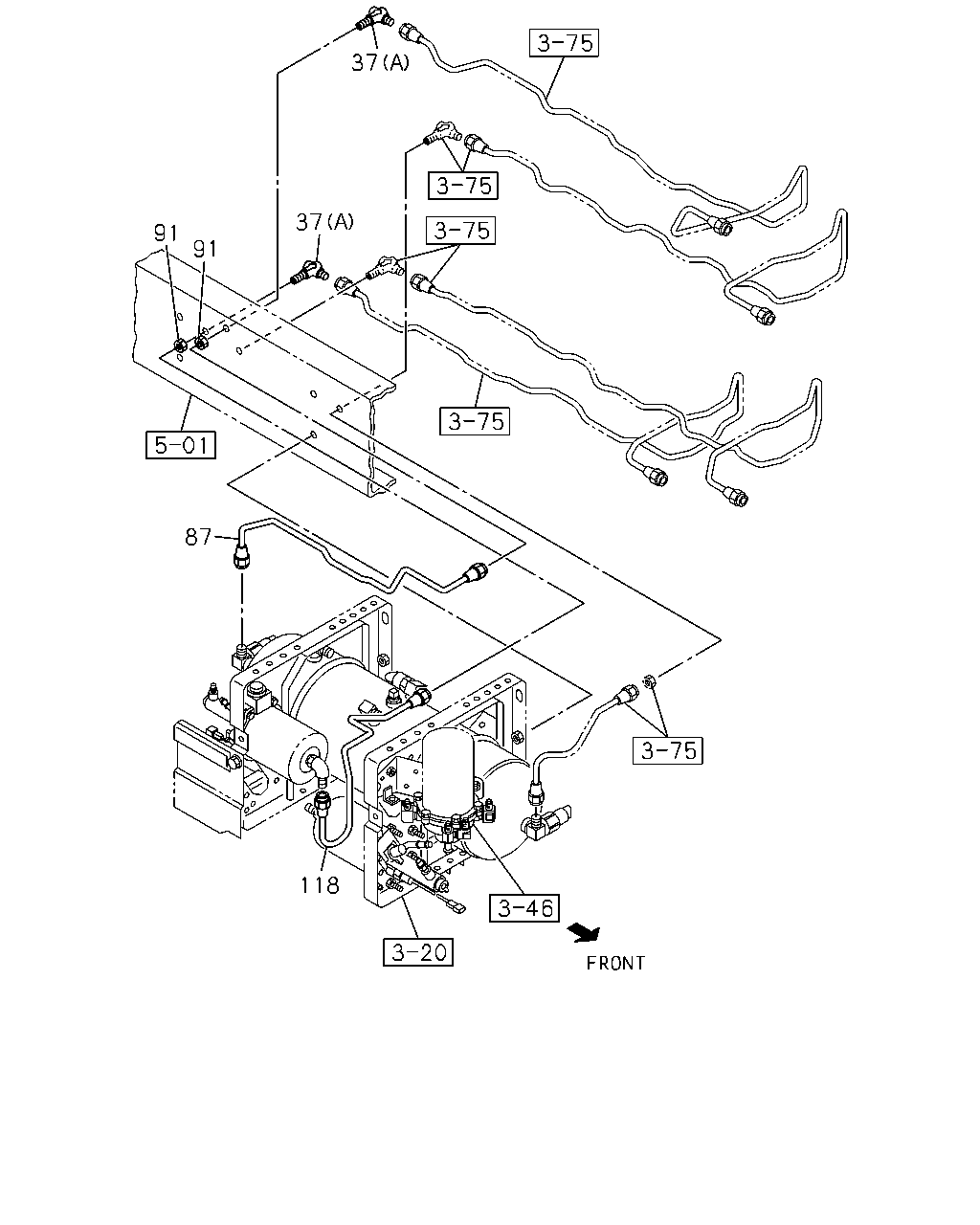

çizim 165041
37 37 91 91 87 118
BalonParca AdiParca NoAdetTipApplied Date
37 UNION; AIR PIPE
(A) M16 ELBOW 		0-92135-210-0 02 1 0906-
37 UNION; AIR PIPE
MLD6S M/T(X7W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW 		0-92135-210-0 01 1 0906-
37 UNION; AIR PIPE
MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 L=74 		0-92123-310-0 01 1 0906-
87 PIPE; AIR,AIR TANK TO UNION
L=700 SERVICED BY L=700 		1-47428-870-0 01 1 0906-
91 NUT; PIPE UNION
M16 		0-91111-516-0 02 1 0906-
118 PIPE; AIR,UNION TO AIR MASTER
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) L=692 SERVICED BY L=700 		1-47428-870-0 01 1 0906-

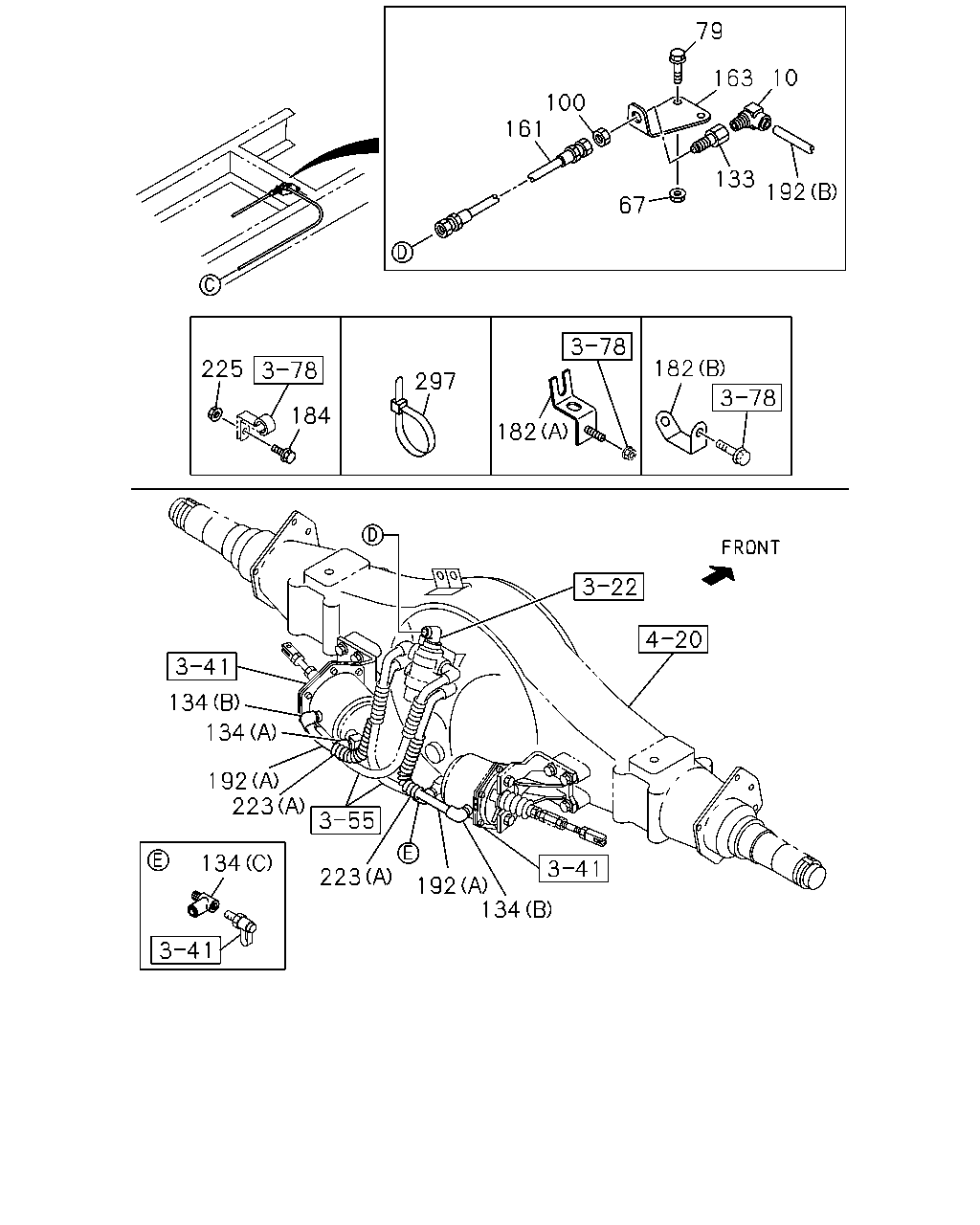

çizim 165073
182 182 297 184 225 134 134 192 223 223 134 192 134 133 67 100 161 79 10 163 192
BalonParca AdiParca NoAdetTipApplied Date
10 CONNECTOR; FLEX HOSE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0906-
67 NUT; HOSE BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 02 1 0906-
79 BOLT; HOSE BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28650-825-0 02 1 0906-
100 NUT; UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16 		0-91111-516-0 01 1 0906-
133 UNION; NIPPLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09654-258-2 01 1 0906-1111
133 UNION; NIPPLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PT3/8 & M16 STRAIGHT 		8-98202-001-0 01 1 1112-
134 CONNECTOR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN12 & R3/8 & RC1/4 3WAY 		1-09660-845-0 01 1 0906-
134 CONNECTOR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0906-
134 CONNECTOR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN6 & R3/8 ELBOW 		1-09661-234-0 02 1 0906-
161 HOSE; FLEX,QUICK RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=460 		1-09363-963-0 01 1 0906-
163 BRACKET; FLEX HOSE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98044-842-0 01 1 0906-
182 BRACKET; TUBE CLIP
WHEEL BASE 4600MM(46W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98096-272-0 01 1 0906-
182 BRACKET; TUBE CLIP
WHEEL BASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98096-272-0 02 1 0906-0910
182 BRACKET; TUBE CLIP
WHEEL BASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98117-686-0 01 1 0906-0909
184 BOLT; TUBE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE 		0-28650-820-0 01 1 0906-
192 TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=6 		1-87411-001-0 02 1 0906-
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0906-
192 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0906-
192 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 0906-
223 TUBE; CORRUGATE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 ID=7 		1-87411-016-0 02 1 0906-
223 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0906-
223 TUBE; CORRUGATE
(B) SERVICED BY L=4000 ID=15 		1-87411-026-0 AR 1 0906-
223 TUBE; CORRUGATE
(B) SERVICED BY L=6000 ID=15 		1-87411-037-0 AR 1 0906-
225 NUT; TUBE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 01 1 0906-
297 CLIP; BAND
WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250 		1-09707-126-0 04 1 0906-1008
297 CLIP; BAND
WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350 		1-09707-183-0 05 1 0906-1008
297 CLIP; BAND
WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350 		1-09707-183-0 04 1 1009-
297 CLIP; BAND
WHEEL BASE 4000MM(40W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250 		1-09707-126-0 05 1 0906-1008
297 CLIP; BAND
WHEEL BASE 4000MM(40W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350 		1-09707-183-0 08 1 0906-
297 CLIP; BAND
WHEEL BASE 4600MM(46W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350 		1-09707-183-0 09 1 0906-
297 CLIP; BAND
WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250 		1-09707-126-0 10 1 0906-1008
297 CLIP; BAND
WHEEL BASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350 		1-09707-183-0 11 1 0906-
çizim 165092
318 97 144 37 98 37 223 192
BalonParca AdiParca NoAdetTipApplied Date
37 UNION; AIR PIPE
(A) M16 ELBOW 		0-92135-210-0 02 1 0906-
37 UNION; AIR PIPE
MLD6S M/T(X7W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW 		0-92135-210-0 01 1 0906-
37 UNION; AIR PIPE
MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 L=74 		0-92123-310-0 01 1 0906-
97 UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16 L=42 		0-92123-010-0 01 1 0906-
98 NUT; PIPE UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16 		0-91111-516-0 01 1 0906-
144 PIPE; AIR,UNION TO UNION
MLD6S M/T(X7W) WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1059 SERVICED BY L=1100 		1-47428-875-0 01 1 0906-
144 PIPE; AIR,UNION TO UNION
MLD6S M/T(X7W) WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1454 SERVICED BY L=1550 		1-47428-879-0 01 1 0906-
144 PIPE; AIR,UNION TO UNION
MZW6P M/T(RSZ) WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=850 SERVICED BY L=900 		1-47428-873-0 01 1 0906-
144 PIPE; AIR,UNION TO UNION
MZW6P M/T(RSZ) WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1204 SERVICED BY L=1250 		1-47428-876-0 01 1 0906-
192 TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=6 		1-87411-001-0 02 1 0906-
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0906-
192 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0906-
192 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 0906-
223 TUBE; CORRUGATE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 ID=7 		1-87411-016-0 02 1 0906-
223 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0906-
223 TUBE; CORRUGATE
(B) SERVICED BY L=4000 ID=15 		1-87411-026-0 AR 1 0906-
223 TUBE; CORRUGATE
(B) SERVICED BY L=6000 ID=15 		1-87411-037-0 AR 1 0906-
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 3400MM(34W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=593 SERVICED BY L=600 		1-47428-868-0 01 1 0906-
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 4000MM(40W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=858 SERVICED BY L=900 		1-47428-873-0 01 1 0906-
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 4600MM(46W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1458 SERVICED BY L=1550 		1-47428-879-0 01 1 0906-
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1788 SERVICED BY L=1900 		1-47428-881-0 01 1 0906-

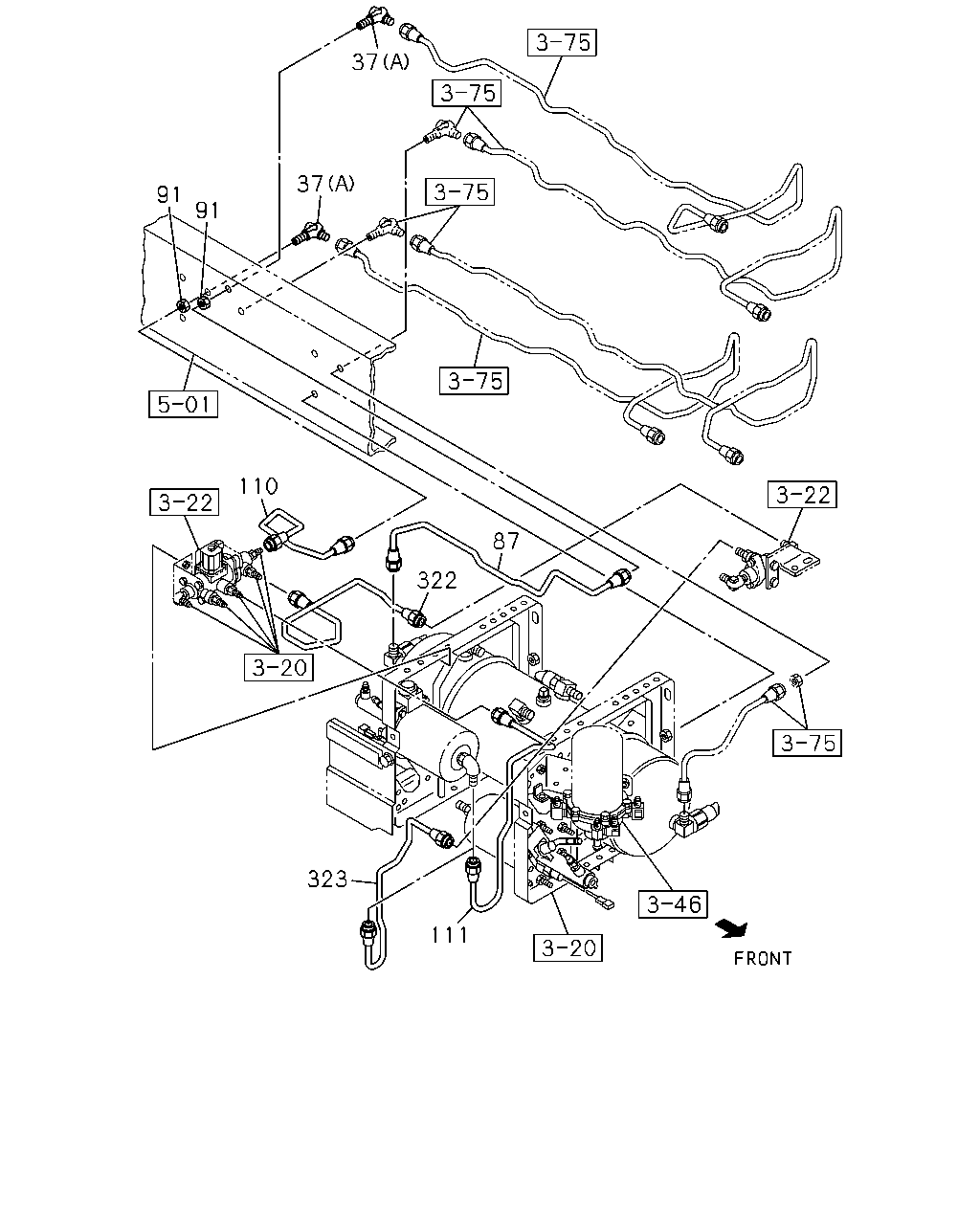

çizim 165103
37 37 91 91 110 87 322 323 111
BalonParca AdiParca NoAdetTipApplied Date
37 UNION; AIR PIPE
(A) M16 ELBOW 		0-92135-210-0 02 1 0906-
37 UNION; AIR PIPE
MLD6S M/T(X7W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 ELBOW 		0-92135-210-0 01 1 0906-
37 UNION; AIR PIPE
MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 L=74 		0-92123-310-0 01 1 0906-
87 PIPE; AIR,AIR TANK TO UNION
L=700 SERVICED BY L=700 		1-47428-870-0 01 1 0906-
91 NUT; PIPE UNION
M16 		0-91111-516-0 02 1 0906-
110 PIPE; AIR,UNION TO VLV
H.S.A SYSTEM<6EP> L=473 		8-98067-756-0 01 1 0906-
111 PIPE; AIR,VLV TO AIR MASTER
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) L=554 SERVICED BY L=600 		1-47428-868-0 01 1 0906-
322 PIPE; AIR,HSA VLV TO DBL CHK VLV
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) L=673 SERVICED BY L=700 		1-47428-870-0 01 1 0906-
323 PIPE; AIR,DBL CHK VLV
THROTTLE CONTROL SYSTEM(6XH) L=574 SERVICED BY L=600 		1-47428-868-0 01 1 0906-

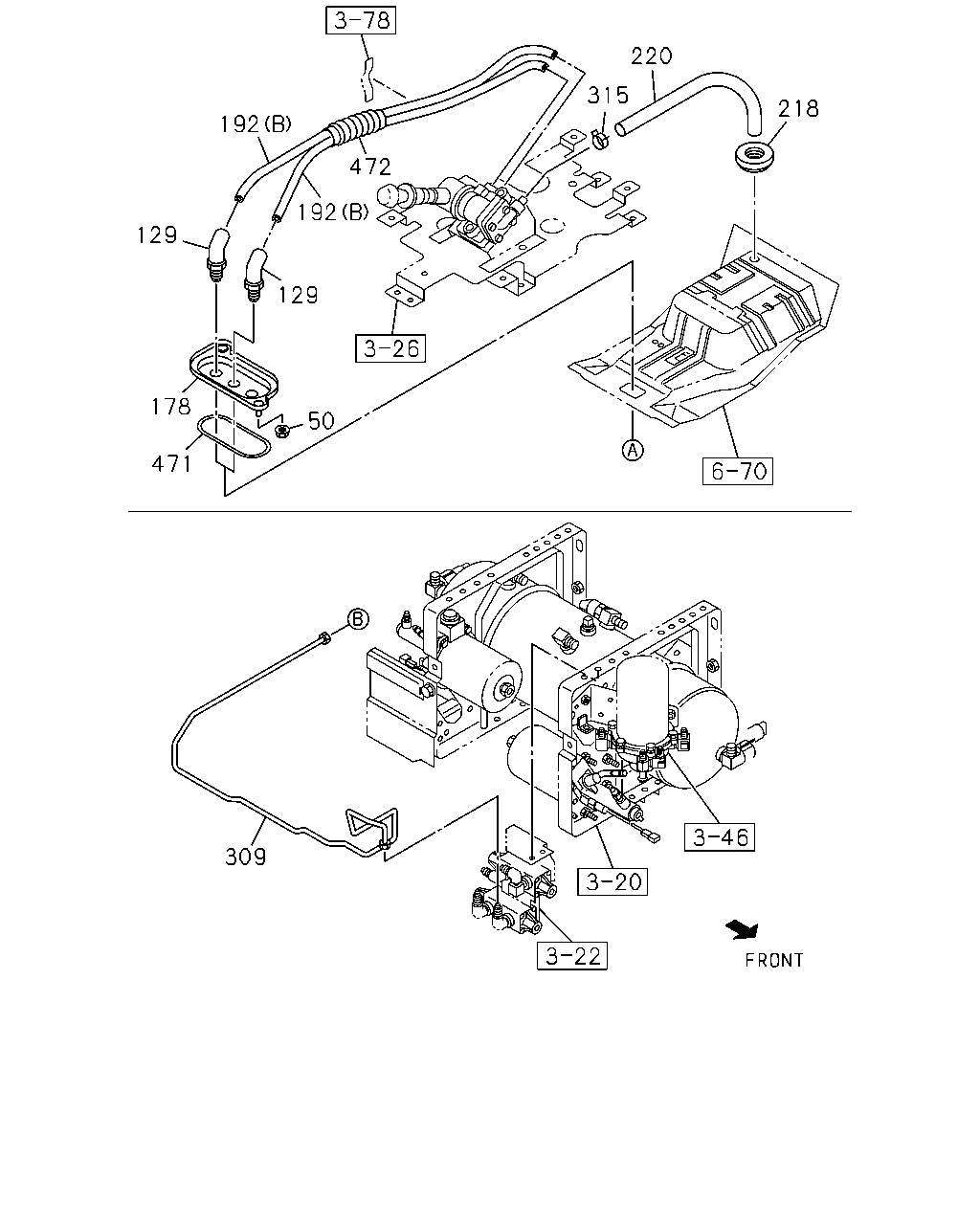

çizim 165184
218 220 315 192 472 192 129 129 178 50 471 309
BalonParca AdiParca NoAdetTipApplied Date
50 NUT; UNION BRKT
M8 FLANGE 		0-91180-108-0 02 1 0906-
129 CONNECTOR; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN13 & M18 ELBOW 		8-97611-963-1 02 1 0906-
178 BRACKET; UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98017-054-1 01 1 0906-
178 BRACKET; UNION
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98017-052-1 01 1 0906-
192 TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=6 		1-87411-001-0 02 1 0906-
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0906-
192 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0906-
192 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 0906-
218 GROMMET; VINYL HOSE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=24 		9-61166-007-0 01 1 0906-
220 HOSE; VINYL,EXH,PARKING BRK VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=260 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 0906-
309 PIPE; AIR,MPV TO UNION
MLD6S M/T(X7W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=626 SERVICED BY L=660 		1-47428-869-0 01 1 0906-
309 PIPE; AIR,MPV TO UNION
MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1428 SERVICED BY L=1550 		1-47428-879-0 01 1 0906-
315 CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14 		8-94238-572-0 01 1 0906-
471 SEAL; BRKT 1-79738-832-0 01 1 0906-
472 TUBE; SPUTTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98067-708-0 01 1 0906-
