Isuzu WW
▶
TRUCKS
▶
FRR
▶
11236 - FRR RHD EUROPE EURO5 SPACECAB
▶
3 - Brakes, Brake System
▶
3-58 - FIXING PARTS; OIL PIPING
▶
3-58 — FIXING PARTS; OIL PIPING
(#59840) — 21 parça
◀

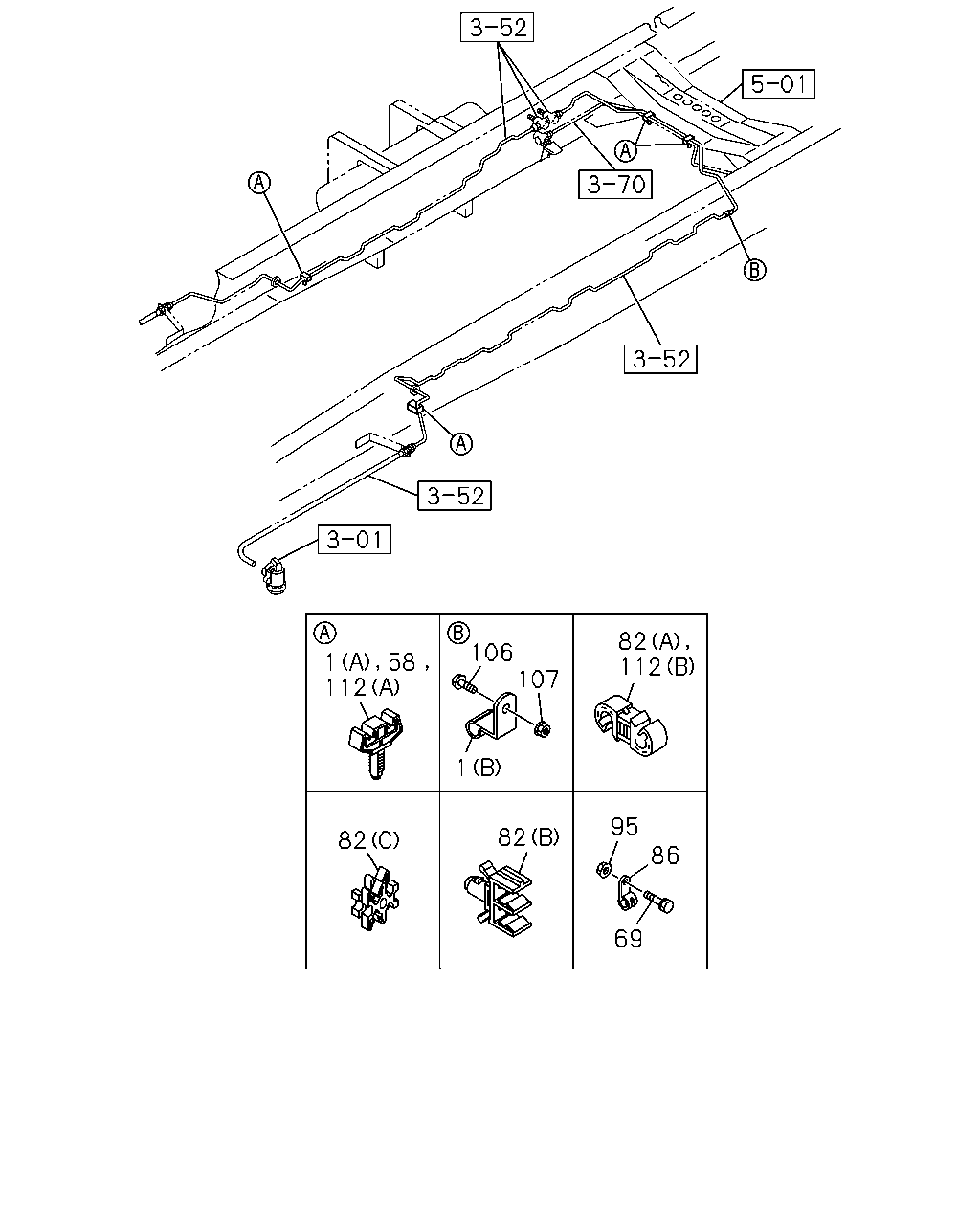

[358A] FRAME SIDE (18 parça)

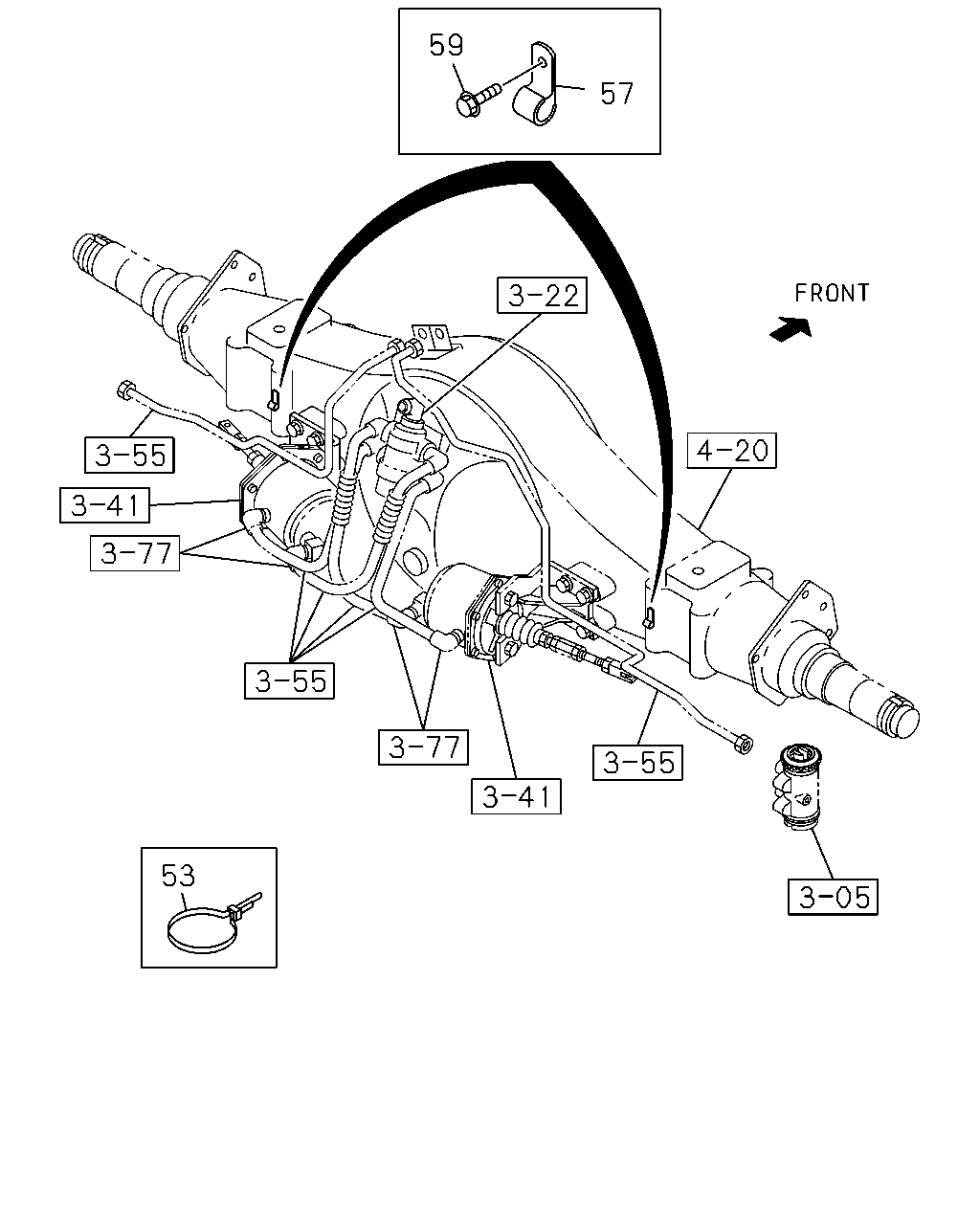

[358A] REAR AXLE SIDE (3 parça)
▶
106
107
82
112
112
1
95
82
82
86
69
1
58
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CLIP; OIL PIPE TO BODY
(A)
8-98012-254-1
03
1
0906-
1
CLIP; OIL PIPE TO BODY
(B) ID=6 H=20 L=20
8-98040-714-0
04
1
0906-
1
CLIP; OIL PIPE TO BODY
(A)
8-98012-254-1
04
1
0906-
58
CLIP; OIL PIPE
8-98012-254-1
05
1
0906-
69
BOLT; CLIP
M8X16 FLANGE
0-28050-816-0
02
1
0906-
82
CLIP; OIL PIPE
(C) ID=4.7X4
1-09701-304-0
03
1
0906-
82
CLIP; OIL PIPE
(C) ID=4.76 & 6.35
1-09709-304-0
03
1
0906-
82
CLIP; OIL PIPE
(A) ID=4.76 & 10.0
1-09709-305-0
01
1
0906-
82
CLIP; OIL PIPE
(B) ID=4.8X2
8-94316-410-0
01
1
0906-
86
CLIP; OIL PIPE
8-98085-372-0
02
1
0906-
95
NUT; CLIP
M8 FLANGE
0-91180-108-0
01
1
0906-0909
106
BOLT; CLIP,OIL PIPE
M8X25 FLANGE
0-28650-825-0
04
1
0906-
107
NUT; CLIP,OIL PIPE
M8 FLANGE
0-91180-108-0
04
1
0906-
112
CLIP; OIL PIPE
WHEEL BASE 3400MM(34W) (B) ID=4.76 & 4.76
1-09709-303-0
01
1
0906-
112
CLIP; OIL PIPE
WHEEL BASE 3400MM(34W) (A)
8-98012-254-1
02
1
0906-
112
CLIP; OIL PIPE
WHEEL BASE 4000MM(40W) (A)
8-98012-254-1
04
1
0906-
112
CLIP; OIL PIPE
WHEEL BASE 4600MM(46W) (A)
8-98012-254-1
06
1
0906-
112
CLIP; OIL PIPE
WHEEL BASE 4900MM(49W) (A)
8-98012-254-1
07
1
0906-
59
57
53
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
53
CLIP; UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250
1-09707-126-0
05
1
0906-
57
CLIP; BRK PIPE,RR AXLE
ID=7 L=20
0-95234-635-0
02
1
0906-
59
BOLT; BRK PIPE,RR AXLE
M8X10 FLANGE
0-28050-810-0
02
1
0906-
