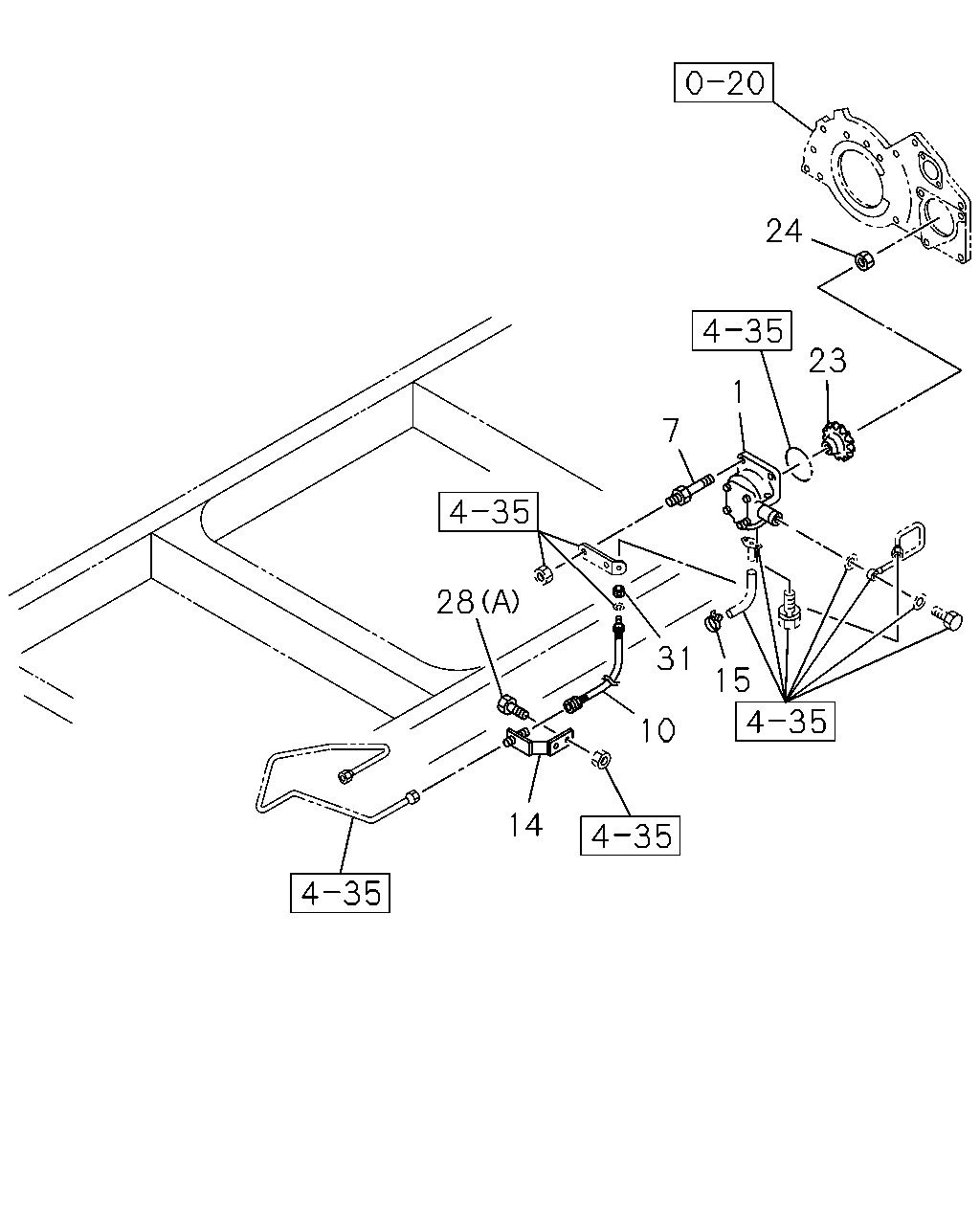

4-36 — POWER STEERING CONTROL; ENGINE SIDE (#5984) — 51 parça

24 23 1 7 15 15 14 28 28 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING(N40)	1-19500-456-0	01	1	9606-9810
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT.	1-19500-465-0	01	1	9811-0202
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT.	1-19500-589-1	01	1	0203-
7	BOLT; OIL PUMP,P/S POWER STEERING(N40) M10X18,M10X28 L=53	1-09302-135-1	01	1	9606-9810
7	BOLT; OIL PUMP,P/S POWER STEERING(N40) M10X18,M10X58 L=83 W/LK WASHER	1-09302-136-1	01	1	9606-9810
7	BOLT; OIL PUMP,P/S POWER STEERING(N40) M10X55 FLANGE	8-94399-863-1	01	1	9606-9810
7	BOLT; OIL PUMP,P/S M10X55 FLANGE	8-94399-863-1	02	1	9811-9905
7	BOLT; OIL PUMP,P/S M10X55 FLANGE	8-94399-863-1	02	1	9906-0203
7	BOLT; OIL PUMP,P/S M10X55 FLANGE	8-94399-863-1	02	1	0204-0805
7	BOLT; OIL PUMP,P/S M10X55 FLANGE	8-97365-449-0	02	1	0806-
10	HOSE; FLEX,P/S OIL PUMP,INL POWER STEERING(N40)	1-09364-713-0	01	1	9606-9810
10	HOSE; FLEX,P/S OIL PUMP,INL L=810	1-09364-808-2	01	1	9811-
14	UNION; FLEX HOSE,P/S POWER STEERING(N40)	1-47470-274-2	01	1	9606-9810
14	UNION; FLEX HOSE,P/S	1-47470-394-3	01	1	9811-
15	CLIP; OIL PIPE SUCTION POWER STEERING(N40) ID=32	1-09704-085-0	02	1	9606-9810
15	CLIP; OIL PIPE SUCTION ID=32	1-09704-085-0	02	1	9811-
23	GEAR; OIL PUMP POWER STEERING(N40) Z=30	8-94396-957-3	01	1	9606-9810
23	GEAR; OIL PUMP Z=30	8-94396-957-3	01	1	9811-
24	NUT; GEAR,P/S PUMP POWER STEERING(N40) M14 FLANGE	0-91150-114-0	01	1	9606-9810
24	NUT; GEAR,P/S PUMP M14 FLANGE	0-91150-114-0	01	1	9811-0712
24	NUT; GEAR,P/S PUMP M14 FLANGE	0-91180-114-0	01	1	0801-
28	BOLT; BRKT,FLEX HOSE,P/S (B) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	9811-
28	BOLT; BRKT,FLEX HOSE,P/S POWER STEERING(N40) (A) M8X25 FLANGE	0-28680-825-0	02	1	9606-9810
28	BOLT; BRKT,FLEX HOSE,P/S (A) M8X25 FLANGE	0-28680-825-0	02	1	9811-0512
28	BOLT; BRKT,FLEX HOSE,P/S (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-

24 23 1 7 28 31 15 10 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING(N40)	1-19500-456-0	01	1	9606-9810
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT.	1-19500-465-0	01	1	9811-0202
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT.	1-19500-589-1	01	1	0203-
7	BOLT; OIL PUMP,P/S POWER STEERING(N40) M10X18,M10X28 L=53	1-09302-135-1	01	1	9606-9810
7	BOLT; OIL PUMP,P/S POWER STEERING(N40) M10X18,M10X58 L=83 W/LK WASHER	1-09302-136-1	01	1	9606-9810
7	BOLT; OIL PUMP,P/S POWER STEERING(N40) M10X55 FLANGE	8-94399-863-1	01	1	9606-9810
7	BOLT; OIL PUMP,P/S M10X55 FLANGE	8-94399-863-1	02	1	9811-9905
7	BOLT; OIL PUMP,P/S M10X55 FLANGE	8-94399-863-1	02	1	9906-0203
7	BOLT; OIL PUMP,P/S M10X55 FLANGE	8-94399-863-1	02	1	0204-0805
7	BOLT; OIL PUMP,P/S M10X55 FLANGE	8-97365-449-0	02	1	0806-
10	HOSE; FLEX,P/S OIL PUMP,INL POWER STEERING(N40)	1-09364-713-0	01	1	9606-9810
10	HOSE; FLEX,P/S OIL PUMP,INL L=810	1-09364-808-2	01	1	9811-
14	UNION; FLEX HOSE,P/S POWER STEERING(N40)	1-47470-274-2	01	1	9606-9810
14	UNION; FLEX HOSE,P/S	1-47470-394-3	01	1	9811-
15	CLIP; OIL PIPE SUCTION POWER STEERING(N40) ID=32	1-09704-085-0	02	1	9606-9810
15	CLIP; OIL PIPE SUCTION ID=32	1-09704-085-0	02	1	9811-
23	GEAR; OIL PUMP POWER STEERING(N40) Z=30	8-94396-957-3	01	1	9606-9810
23	GEAR; OIL PUMP Z=30	8-94396-957-3	01	1	9811-
24	NUT; GEAR,P/S PUMP POWER STEERING(N40) M14 FLANGE	0-91150-114-0	01	1	9606-9810
24	NUT; GEAR,P/S PUMP M14 FLANGE	0-91150-114-0	01	1	9811-0712
24	NUT; GEAR,P/S PUMP M14 FLANGE	0-91180-114-0	01	1	0801-
28	BOLT; BRKT,FLEX HOSE,P/S (B) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	9811-
28	BOLT; BRKT,FLEX HOSE,P/S POWER STEERING(N40) (A) M8X25 FLANGE	0-28680-825-0	02	1	9606-9810
28	BOLT; BRKT,FLEX HOSE,P/S (A) M8X25 FLANGE	0-28680-825-0	02	1	9811-0512
28	BOLT; BRKT,FLEX HOSE,P/S (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-
31	NUT; FLEX HOSE POWER STEERING(N40) M20	9-99111-420-0	01	1	9606-9810
