3-41 — REAR BRAKE POWER CHAMBER
(#59836) — 22 parça
◀

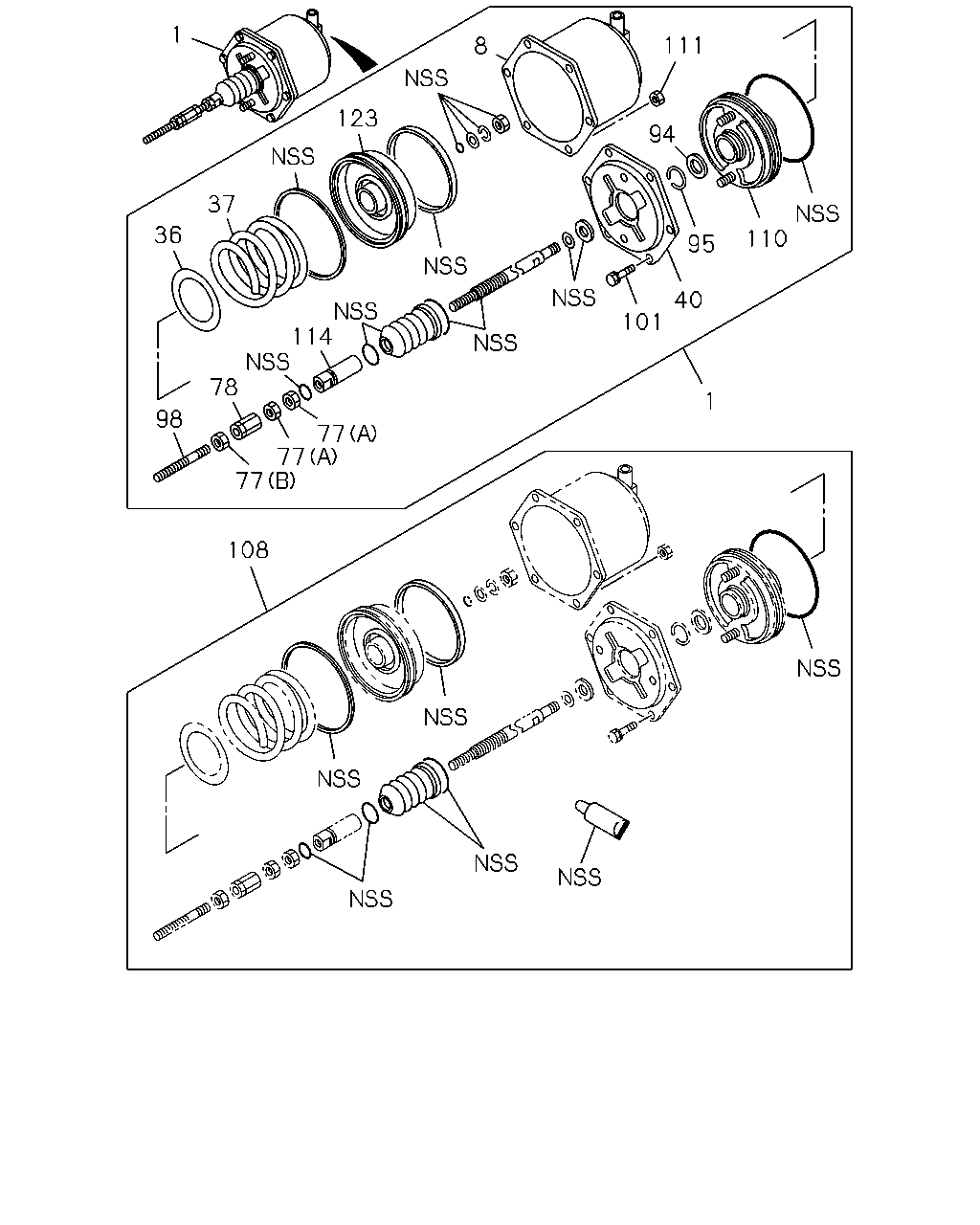

[341A] COMPONENT (18 parça)
[341A] FIXING (4 parça)
▶
1
111
8
123
94
37
110
36
95
40
114
78
101
1
98
77
77
77
108
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CHAMBER ASM; SPRING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48250-920-1
01
1
0906-
1
CHAMBER ASM; SPRING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48250-921-1
01
1
0906-
8
SHELL; CYL,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48251-190-1
02
1
0906-
36
RETAINER; SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48269-099-0
02
1
0906-
37
SPRING; LWR,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48265-009-0
02
1
0906-
40
COVER ASM; LWR,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48266-013-1
02
1
0906-
77
NUT; SPR CHAMBER BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)
1-48269-105-0
04
1
0906-
77
NUT; SPR CHAMBER BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)
1-48269-114-0
02
1
0906-
78
TURNBACKLE; SPR CHAMBER BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48269-113-0
02
1
0906-
94
PLATE; RELEASE,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48269-097-1
02
1
0906-
95
RING; RELEASE,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48269-098-0
02
1
0906-
98
ROD; CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48263-038-0
02
1
0906-
101
BOLT; SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48269-102-0
12
1
0906-
108
REPAIR KIT; SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-85576-442-0
02
1
0906-
110
PLATE; MOUNTING,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48251-189-0
02
1
0906-
111
NUT; SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48269-101-0
12
1
0906-
114
HOLDER; ROD,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48269-250-0
02
1
0906-
123
PISTON ASM; SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48262-024-2
02
1
0906-

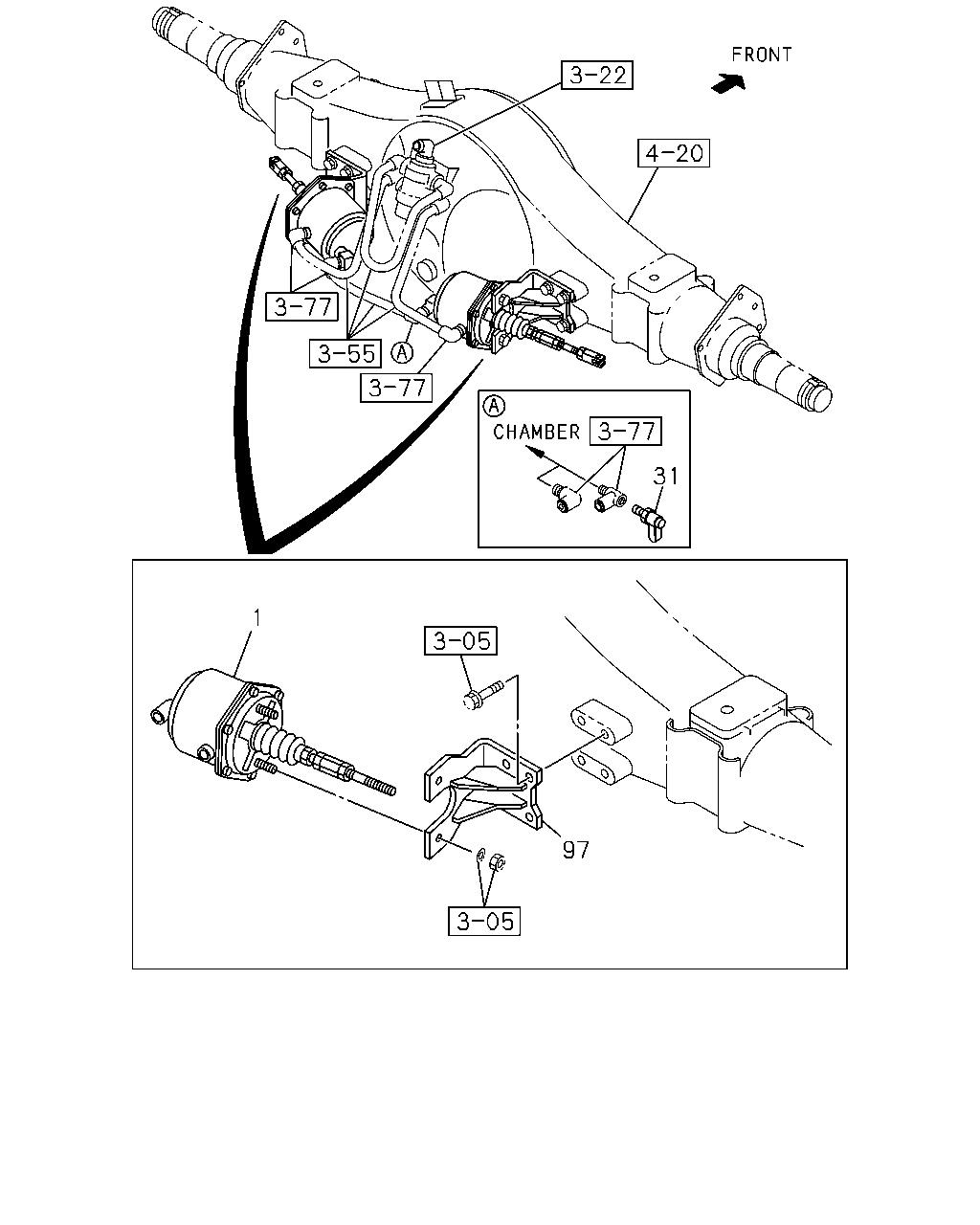

31
1
97
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CHAMBER ASM; SPRING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48250-920-1
01
1
0906-
1
CHAMBER ASM; SPRING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48250-921-1
01
1
0906-
31
CONNECTOR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) R1/4 & M16 TEST CONNECTOR
1-47459-013-1
01
1
0906-
97
BRACKET; CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48258-242-0
02
1
0906-
