3-20 — AIR TANK (#59831) — 148 parça

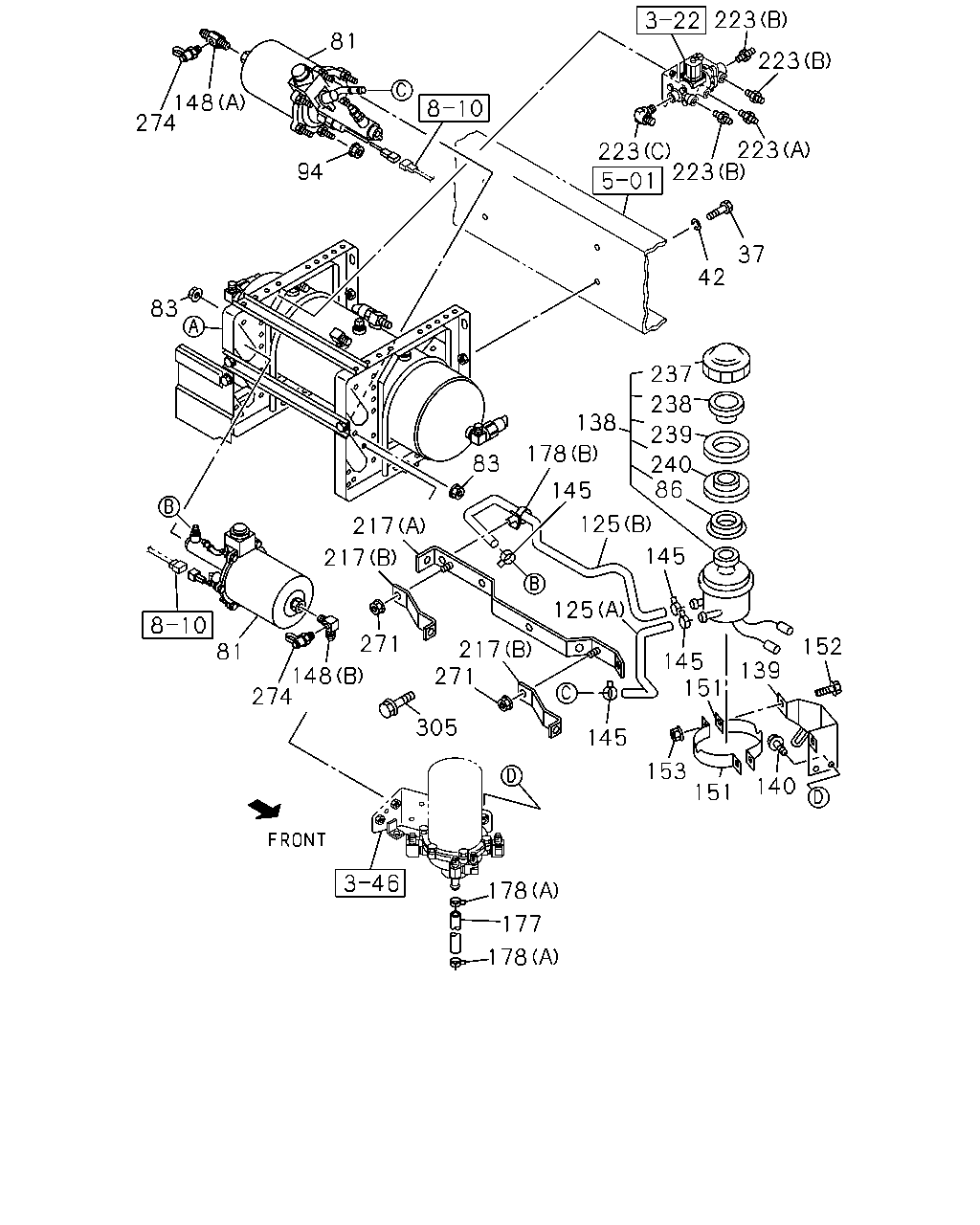

223 81 223 148 274 223 223 223 94 37 42 83 237 238 138 239 178 83 240 86 145 125 217 145 217 125 217 271 271 152 81 145 151 139 148 274 305 145 153 151 140 178 177 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	BOLT; AIR TANK M12X40 FLANGE	0-28651-240-0	04	1	0906-
42	WASHER; PL ID=12.5 OD=32	0-91614-712-0	04	1	0906-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT.	1-47800-826-0	02	1	0906-
83	NUT; AIR MASTER M8 FLANGE	0-91180-108-0	09	1	0906-
86	SEAL; DUST	1-47529-019-0	01	1	0906-
94	NUT; BRKT FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91180-210-0	04	1	0906-
125	HOSE; OIL TANK TO AIR MASTER (A)	8-98051-217-0	01	1	0906-
125	HOSE; OIL TANK TO AIR MASTER (B)	8-98051-218-1	01	1	0906-
138	TANK ASM; OIL,AIR MASTER	1-47530-186-0	01	1	0906-
139	BRACKET; OIL TANK	8-98051-105-0	01	1	0906-
140	BOLT; OIL TANK TO BRKT M8X20 FLANGE	0-28650-820-0	02	1	0906-
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14	1-09704-102-0	04	1	0906-
148	CONNECTOR; AIR MASTER (A) M16 & PT3/8 STRAIGHT	1-09656-643-1	01	1	0906-
148	CONNECTOR; AIR MASTER (B) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	0906-
151	BAND; OIL TANK,AIR MASTER	1-47537-056-2	02	1	0906-
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28650-820-0	02	1	0906-
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91180-108-0	02	1	0906-
177	HOSE; RUBBER,DRAIN L=60 SERVICED BY L=3000	0-03566-300-0	01	1	0906-
178	CLIP; HOSE (B) ID=13-18 L=14.5	1-09709-290-0	08	1	0906-
178	CLIP; HOSE (A) ID=21	8-94242-034-0	02	1	0906-
217	BRACKET; RUBBER HOSE (A)	8-98082-871-0	01	1	0906-
217	BRACKET; RUBBER HOSE (B)	8-98085-273-1	02	1	0906-
223	UNION H.S.A SYSTEM<6EP> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0906-
223	UNION H.S.A SYSTEM<6EP> (B) M16 & PT3/8 STRAIGHT	1-09650-179-1	03	1	0906-
223	UNION H.S.A SYSTEM<6EP> (C) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	0906-
237	CAP; OIL TANK	1-47525-030-0	01	1	0906-
238	PLATE; BAFFLE	1-47529-022-0	01	1	0906-
239	FILTER; DUST	1-47529-017-0	01	1	0906-
240	HOLDER; FILTER	1-47529-018-0	01	1	0906-
271	NUT; BRKT,HOSE M8 FLANGE	0-91180-108-0	02	1	0906-
274	CONNECTOR; VLV R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	0906-
305	BOLT; BRKT,HOSE M8X16 FLANGE	0-28050-816-0	01	1	0906-1008

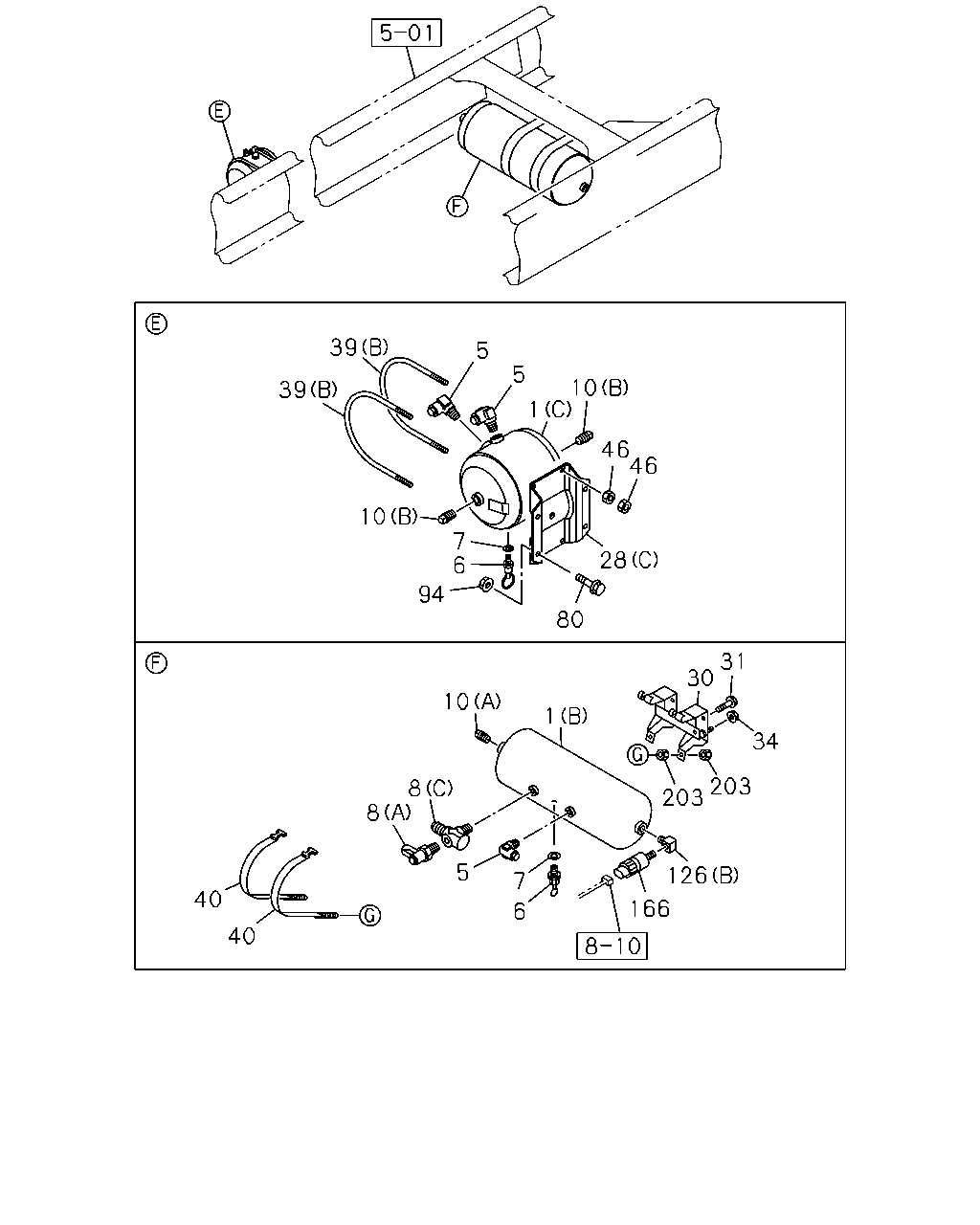

39 5 5 10 1 39 46 46 10 7 6 28 94 80 31 30 10 1 34 203 203 8 8 5 126 7 40 166 6 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR (A)	8-98056-178-1	01	1	0906-
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98056-183-2	01	1	0906-
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	8-98081-872-2	01	1	0906-1301
1	TANK ASM; AIR WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	8-98081-872-2	01	1	1302-1302
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	8-98081-872-2	01	1	1302-
5	UNION; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0906-
5	UNION; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0906-1301
5	UNION; AIR TANK WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1302-1302
5	UNION; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1302-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	03	1	0906-
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48312-015-0	01	1	0906-1301
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48312-015-0	01	1	0906-1301
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48312-015-0	01	1	1302-1302
6	COCK; DRAIN,AIR TANK WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48312-015-0	01	1	1302-1302
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48312-015-0	01	1	1302-
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48312-015-0	01	1	1302-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	0906-
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	1-09630-145-0	01	1	0906-1301
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	1-09630-145-0	01	1	0906-1301
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	1-09630-145-0	01	1	1302-1302
7	GASKET; DRAIN COCK WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	1-09630-145-0	01	1	1302-1302
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	1-09630-145-0	01	1	1302-
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	1-09630-145-0	01	1	1302-
8	CONNECTOR; AIR TANK (B)	1-09656-759-0	01	1	0906-
8	CONNECTOR; AIR TANK (A) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	0906-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-09656-462-1	01	1	0906-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	0906-
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	0906-
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT3/8	9-09204-517-0	02	1	0906-1301
10	PLUG; AIR TANK WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT3/8	9-09204-517-0	02	1	1302-1302
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT3/8	9-09204-517-0	02	1	1302-
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) PT3/4	9-09204-526-0	01	1	0906-
28	BRACKET; AIR TANK (A)	8-98021-918-5	01	1	0906-
28	BRACKET; AIR TANK (B)	8-98044-509-5	01	1	0906-
28	BRACKET; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	8-98100-165-3	01	1	0906-1301
28	BRACKET; AIR TANK WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	8-98100-165-3	01	1	1302-1302
28	BRACKET; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	8-98100-165-3	01	1	1302-
30	BRACKET; AIR TANK,SUB REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48317-894-1	01	1	0906-
31	BOLT; BRKT TO FRAME REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28651-030-0	02	1	0906-
34	NUT; BRKT,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91180-210-0	02	1	0906-
39	U-BOLT; AIR TANK (A)	8-98022-041-0	02	1	0906-
39	U-BOLT; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=210	1-48317-458-1	02	1	0906-1301
39	U-BOLT; AIR TANK WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=210	1-48317-458-1	02	1	1302-1302
39	U-BOLT; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=210	1-48317-458-1	02	1	1302-
40	BAND ASM; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48317-893-1	02	1	0906-
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0906-1301
46	NUT; U-BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	0-91110-508-0	08	1	0906-1301
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1302-1302
46	NUT; U-BOLT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	0-91110-508-0	08	1	1302-1302
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1302-
46	NUT; U-BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	0-91110-508-0	08	1	1302-
80	BOLT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28651-030-0	03	1	0906-
94	NUT; BRKT FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91180-210-0	04	1	0906-
126	CONNECTOR; ELBOW (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	0906-
126	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0906-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) STAMP 5.5	8-97609-249-0	01	1	0906-
203	NUT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	0-91110-508-0	04	1	0906-

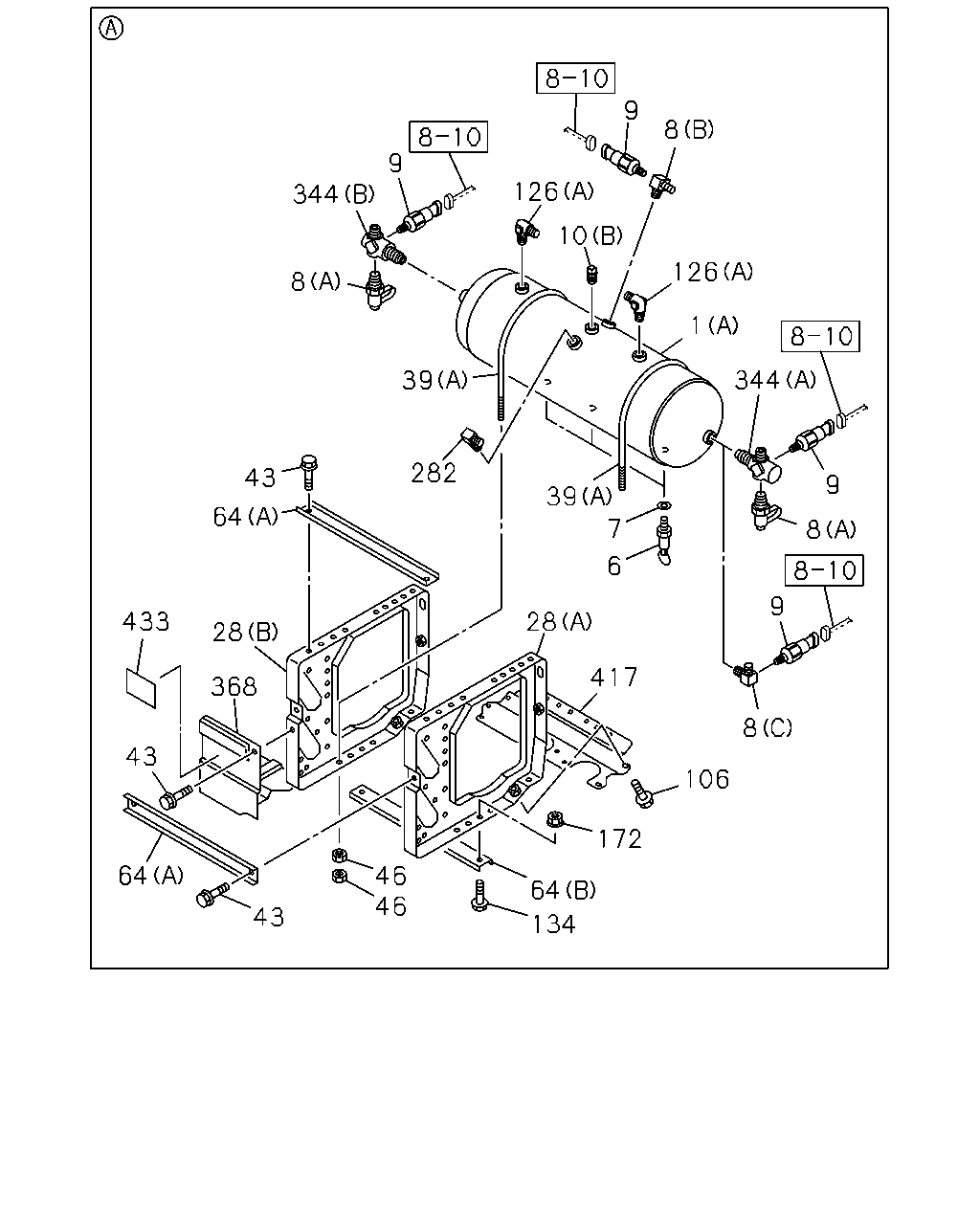

8 10 9 8 8 10 9 126 344 10 126 8 1 8 10 344 39 282 43 9 39 64 7 8 6 8 10 9 433 28 28 417 368 8 43 106 172 64 46 46 64 43 134

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR (A)	8-98056-178-1	01	1	0906-
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98056-183-2	01	1	0906-
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	8-98081-872-2	01	1	0906-1301
1	TANK ASM; AIR WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	8-98081-872-2	01	1	1302-1302
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	8-98081-872-2	01	1	1302-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	03	1	0906-
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48312-015-0	01	1	0906-1301
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48312-015-0	01	1	0906-1301
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48312-015-0	01	1	1302-1302
6	COCK; DRAIN,AIR TANK WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48312-015-0	01	1	1302-1302
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48312-015-0	01	1	1302-
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48312-015-0	01	1	1302-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	0906-
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	1-09630-145-0	01	1	0906-1301
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	1-09630-145-0	01	1	0906-1301
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	1-09630-145-0	01	1	1302-1302
7	GASKET; DRAIN COCK WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	1-09630-145-0	01	1	1302-1302
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	1-09630-145-0	01	1	1302-
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14	1-09630-145-0	01	1	1302-
8	CONNECTOR; AIR TANK (B)	1-09656-759-0	01	1	0906-
8	CONNECTOR; AIR TANK (A) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	0906-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-09656-462-1	01	1	0906-
8	CONNECTOR; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	0906-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK STAMP 5.5	8-97609-249-0	03	1	0906-
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	0906-
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT3/8	9-09204-517-0	02	1	0906-1301
10	PLUG; AIR TANK WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT3/8	9-09204-517-0	02	1	1302-1302
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT3/8	9-09204-517-0	02	1	1302-
10	PLUG; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) PT3/4	9-09204-526-0	01	1	0906-
28	BRACKET; AIR TANK (A)	8-98021-918-5	01	1	0906-
28	BRACKET; AIR TANK (B)	8-98044-509-5	01	1	0906-
28	BRACKET; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	8-98100-165-3	01	1	0906-1301
28	BRACKET; AIR TANK WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	8-98100-165-3	01	1	1302-1302
28	BRACKET; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	8-98100-165-3	01	1	1302-
39	U-BOLT; AIR TANK (A)	8-98022-041-0	02	1	0906-
39	U-BOLT; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=210	1-48317-458-1	02	1	0906-1301
39	U-BOLT; AIR TANK WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=210	1-48317-458-1	02	1	1302-1302
39	U-BOLT; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=210	1-48317-458-1	02	1	1302-
43	BOLT; STAY,AIR TANK,MAIN M8X16 FLANGE	0-28050-816-0	06	1	0906-
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0906-1301
46	NUT; U-BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	0-91110-508-0	08	1	0906-1301
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1302-1302
46	NUT; U-BOLT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	0-91110-508-0	08	1	1302-1302
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1302-
46	NUT; U-BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	0-91110-508-0	08	1	1302-
64	STAY; AIR TANK,MAIN (A)	8-98044-510-3	02	1	0906-
64	STAY; AIR TANK,MAIN (B)	8-98044-511-2	01	1	0906-
106	BOLT; COVER M8X16 FLANGE	0-28050-816-0	04	1	0906-
126	CONNECTOR; ELBOW (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	0906-
126	CONNECTOR; ELBOW REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0906-
134	BOLT; COVER FIX M8X16 FLANGE	0-28050-816-0	04	1	0906-
172	NUT; STAY,AIR TANK,MAIN M8 FLANGE	0-91180-108-0	02	1	0906-
282	UNION; 2 WAY M20 & PT3/4 ELBOW	8-98067-083-1	01	1	0906-
344	CONNECTOR; 4WAY (A)	1-09656-726-0	01	1	0906-
344	CONNECTOR; 4WAY (B)	1-09656-767-0	01	1	0906-
368	COVER; AIR TANK	8-98061-625-3	01	1	0906-
417	COVER; HARNESS	8-98111-401-0	01	1	0906-
433	PLATE; NAME	8-98121-999-0	01	1	0906-

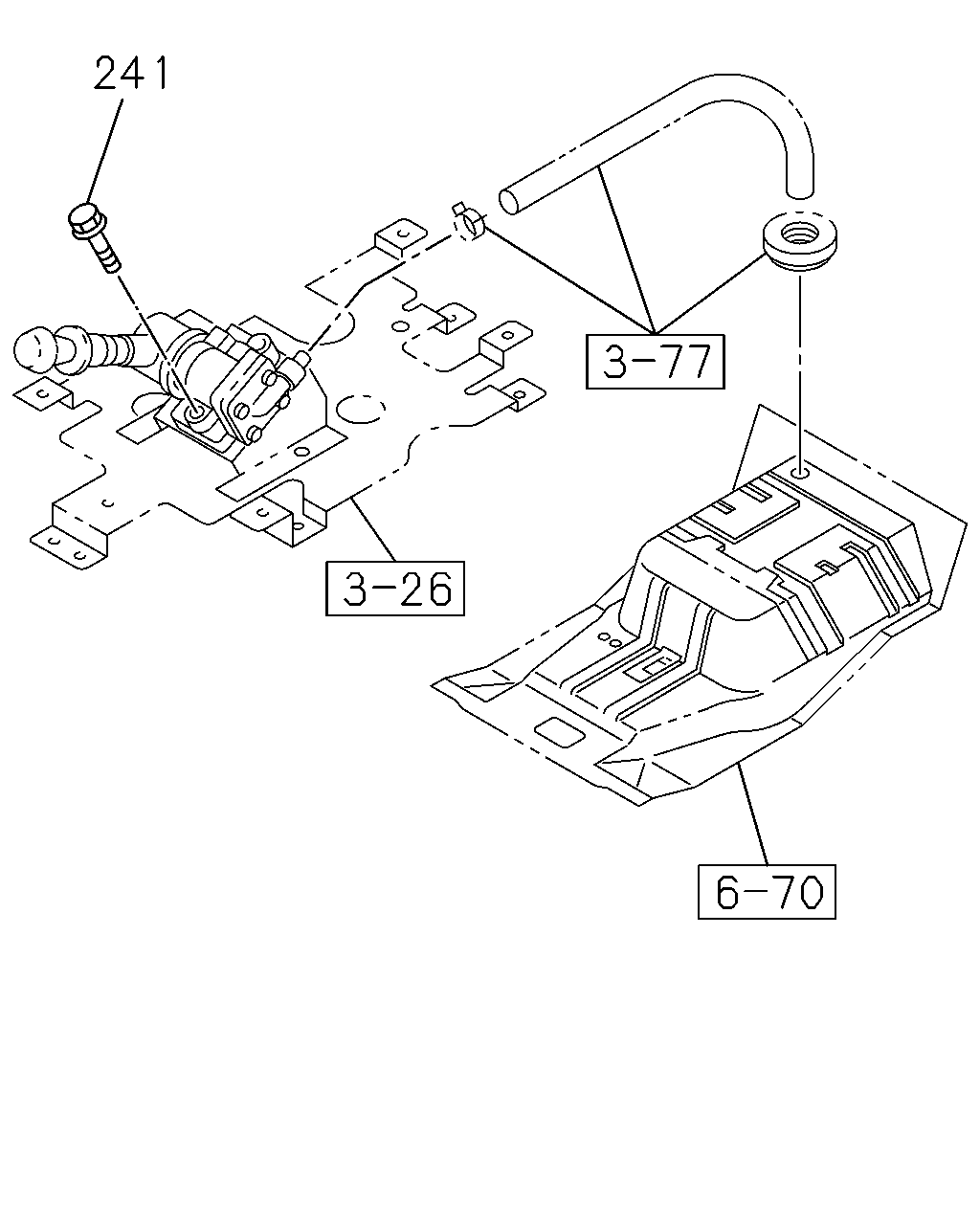

241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	241	BOLT; SET,CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X70 FLANGE	0-28050-870-0	02	1	0906-
