4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#5983) — 193 parça

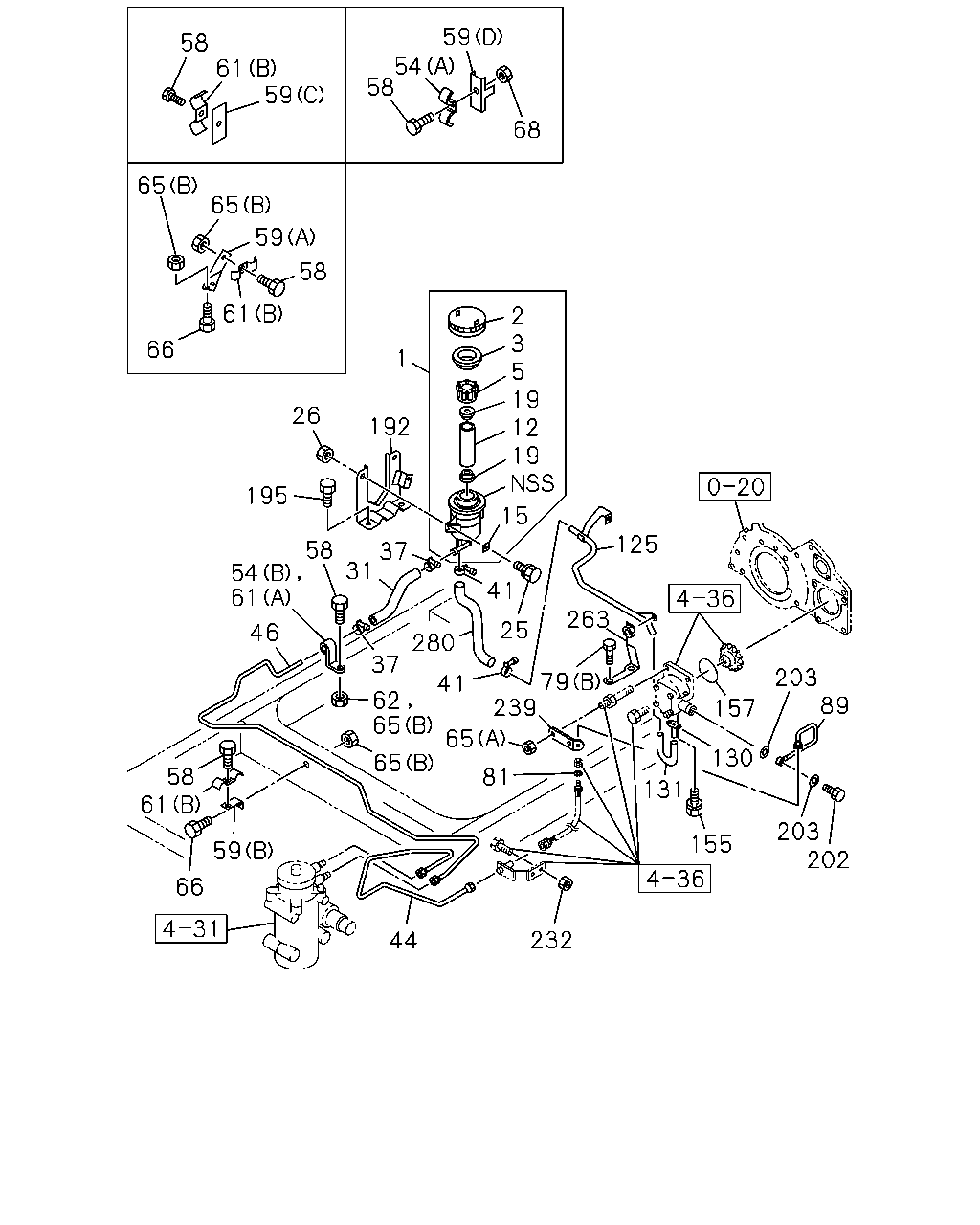

59 58 61 59 54 58 68 65 65 59 58 61 2 3 5 19 12 19 66 1 26 192 195 15 125 58 37 31 54 61 41 263 280 25 46 37 79 239 203 89 41 62 65 157 65 130 65 58 61 81 131 203 202 155 59 66 232 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S POWER STEERING(N40)	1-21210-205-0	01	1	9606-9810
1	TANK ASM; OIL,P/S	1-21210-205-0	01	1	9811-0508
1	TANK ASM; OIL,P/S	1-21210-238-1	01	1	0509-
2	CAP; OIL TANK,P/S POWER STEERING(N40)	1-21241-004-3	01	1	9606-9810
2	CAP; OIL TANK,P/S	1-21241-004-4	01	1	9811-
3	GASKET; OIL TANK,P/S POWER STEERING(N40)	1-21249-003-1	01	1	9606-9810
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	9811-
5	STRAINER; OIL TANK,P/S POWER STEERING(N40)	1-21235-007-1	01	1	9606-9810
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	9811-
12	FILTER; MICROBON,OIL TANK,P/S POWER STEERING(N40)	1-21235-011-0	01	1	9606-9810
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	9811-
15	PLATE; FILTER,OIL TANK POWER STEERING(N40)	1-21249-007-1	02	1	9606-9810
15	PLATE; FILTER,OIL TANK	1-21249-007-1	02	1	9811-0508
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	0509-
19	SEAT; OIL TANK POWER STEERING(N40)	1-21249-004-0	02	1	9606-9810
19	SEAT; OIL TANK	1-21249-004-0	02	1	9811-
25	BOLT; OIL TANK BRKT POWER STEERING(N40) M8X20 FLANGE	0-28680-820-0	02	1	9606-9810
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28680-825-0	02	1	9811-0512
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-
26	NUT; OIL TANK TO BRKT POWER STEERING(N40) M8	9-09110-408-0	02	1	9606-9810
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91150-108-0	02	1	9811-0602
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
31	HOSE; P/S OIL TANK,INL POWER STEERING(N40)	1-21113-591-1	01	1	9606-9810
31	HOSE; P/S OIL TANK,INL	1-21113-591-1	01	1	9811-
37	CLIP; HOSE,P/S POWER STEERING(N40) ID=26	1-09704-082-0	02	1	9606-9810
37	CLIP; HOSE,P/S ID=26	1-09704-082-0	02	1	9811-
41	CLIP; HOSE,P/S POWER STEERING(N40) ID=32	1-09704-085-0	02	1	9606-9810
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	9811-
44	PIPE; OIL,P/S UNIT TO NIPPLE POWER STEERING(N40)	1-21114-571-0	01	1	9606-9609
44	PIPE; OIL,P/S UNIT TO NIPPLE POWER STEERING(N40) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-21114-571-0	01	1	9610-9810
44	PIPE; OIL,P/S UNIT TO NIPPLE	1-21115-426-0	01	1	9811-
44	PIPE; OIL,P/S UNIT TO NIPPLE POWER STEERING(N40) HEAVY DUTY PACKAGE TRUCK<RD2>	1-21115-738-0	01	1	9610-9810
46	PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING(N40)	1-21114-981-0	01	1	9606-9609
46	PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING(N40) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-21114-981-0	01	1	9610-9810
46	PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING(N40) HEAVY DUTY PACKAGE TRUCK<RD2>	1-21115-737-0	01	1	9610-9810
46	PIPE; OIL,P/S UNIT TO OIL TANK	1-21116-021-1	01	1	9811-
54	CLIP; OIL PIPE HEAVY DUTY PACKAGE TRUCK<RD2> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9610-9810
54	CLIP; OIL PIPE HEAVY DUTY PACKAGE TRUCK<RD2> (B) D=15 L=45	5-09700-076-0	01	1	9610-9810
58	BOLT; CLIP HEAVY DUTY PACKAGE TRUCK<RD2> M8X40 FLANGE	0-28680-840-0	01	1	9610-9810
58	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	9811-0512
58	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	0601-
58	BOLT; CLIP POWER STEERING(N40) M8X16 FLANGE	0-28080-816-0	02	1	9606-9609
58	BOLT; CLIP POWER STEERING(N40) M8X16 FLANGE	0-28080-816-0	02	1	9610-9810
58	BOLT; CLIP HEAVY DUTY PACKAGE TRUCK<RD2> M8X16 FLANGE	0-28080-816-0	02	1	9610-9810
58	BOLT; CLIP POWER STEERING(N40) M8X25 FLANGE	0-28680-825-0	01	1	9606-9810
58	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	02	1	9811-0512
58	BOLT; CLIP M8X30 FLANGE	0-28650-830-0	02	1	0601-
59	BRACKET; CLIP,OIL PIPE HEAVY DUTY PACKAGE TRUCK<RD2> (C) L=50	1-47475-299-2	01	1	9610-9810
59	BRACKET; CLIP,OIL PIPE (B) L=60	1-47475-455-0	01	1	9811-
59	BRACKET; CLIP,OIL PIPE HEAVY DUTY PACKAGE TRUCK<RD2> (D)	1-47475-427-1	01	1	9610-9810
59	BRACKET; CLIP,OIL PIPE POWER STEERING(N40) (A)	1-21119-091-0	01	1	9606-9810
59	BRACKET; CLIP,OIL PIPE POWER STEERING(N40) (B) L=60	1-47475-455-0	01	1	9606-9810
61	CLIP; OIL PIPE POWER STEERING(N40) (A) ID=15 H=24 L=20	1-09700-606-0	01	1	9606-9810
61	CLIP; OIL PIPE (A) ID=15 H=24 L=20	1-09700-606-0	02	1	9811-
61	CLIP; OIL PIPE POWER STEERING(N40) (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9606-9609
61	CLIP; OIL PIPE POWER STEERING(N40) (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9610-9810
61	CLIP; OIL PIPE HEAVY DUTY PACKAGE TRUCK<RD2> (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9610-9810
61	CLIP; OIL PIPE (C) ID=12 & 15	1-09709-281-1	01	1	9811-
61	CLIP; OIL PIPE POWER STEERING(N40) (B) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9606-9810
61	CLIP; OIL PIPE (B) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9811-
62	NUT; CLIP FIX HEAVY DUTY PACKAGE TRUCK<RD2> M8 FLANGE	0-91150-108-0	01	1	9610-9810
65	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	03	1	9811-0602
65	NUT; BRKT (C) M8 FLANGE	0-91180-108-0	03	1	0603-
65	NUT; BRKT POWER STEERING(N40) (A) M10 FLANGE	5-09440-006-0	02	1	9606-9810
65	NUT; BRKT POWER STEERING(N40) (B) M8	9-09110-408-0	05	1	9606-9810
66	BOLT; BRKT,OIL PIPE POWER STEERING(N40) M8X20 FLANGE	0-28680-820-0	01	1	9606-9810
66	BOLT; BRKT,OIL PIPE POWER STEERING(N40) M8X25 FLANGE	0-28680-825-0	02	1	9606-9810
68	NUT; CLIP,OIL PIPE HEAVY DUTY PACKAGE TRUCK<RD2> M8 FLANGE	0-91150-108-0	02	1	9610-9810
79	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	01	1	9811-0512
79	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-
79	BOLT; BRKT POWER STEERING(N40) (B) M8X12 FLANGE	0-28080-812-0	02	1	9606-9810
79	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	02	1	9811-0512
79	BOLT; BRKT (B) M8X12 FLANGE	0-28050-812-0	02	1	0601-
81	WASHER; LK,FLEX HOSE POWER STEERING(N40) ID=20.2	9-09150-520-0	01	1	9606-9810
89	PIPE; OIL,P/S OIL PUMP TO FLEX HOSE POWER STEERING(N40)	1-21114-561-0	01	1	9606-9810
125	CONNECTOR; P/S PUMP POWER STEERING(N40)	8-94394-614-0	01	1	9606-9810
125	CONNECTOR; P/S PUMP	8-94390-310-0	01	1	9811-9901
125	CONNECTOR; P/S PUMP	8-97600-113-0	01	1	9902-
130	ADAPTER; P/S PUMP POWER STEERING(N40)	8-94396-340-1	01	1	9606-9810
131	HOSE; RUBBER,P/S POWER STEERING(N40)	8-94396-331-1	01	1	9606-9810
131	HOSE; RUBBER,P/S	8-94396-331-1	01	1	9811-
155	BOLT; CONNECTOR POWER STEERING(N40) M8X16 FLANGE	0-28080-816-0	02	1	9606-9810
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). POWER STEERING(N40)	8-94396-678-0	01	1	9606-9810
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-178-0	01	1	9811-
192	BRACKET; P/S OIL TANK POWER STEERING(N40)	1-21119-115-5	01	1	9606-9810
192	BRACKET; P/S OIL TANK	1-21119-129-0	01	1	9811-
195	BOLT; BRKT POWER STEERING(N40) M10X25 FLANGE	0-28681-025-0	02	1	9606-9810
195	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	02	1	9811-0512
195	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	02	1	0601-
202	BOLT; EYE,OIL PIPE POWER STEERING(N40) M18X36	1-09675-205-0	01	1	9606-9810
203	GASKET; EYE BOLT POWER STEERING(N40) ID=18	9-09571-418-0	02	1	9606-9810
232	NUT; BRKT POWER STEERING(N40) M8	9-09110-408-0	02	1	9606-9810
232	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9811-0602
232	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
239	BRACKET; FLEX HOSE POWER STEERING(N40)	1-21119-131-0	01	1	9606-9810
263	BRACKET; P/S PIPE POWER STEERING(N40)	8-94393-981-0	01	1	9606-9810
263	BRACKET; P/S PIPE	8-94393-981-0	01	1	9811-9901
263	BRACKET; P/S PIPE	8-97600-117-0	01	1	9902-
280	HOSE; P/S OIL PUMP,INL POWER STEERING(N40)	1-21113-592-2	01	1	9606-9810
280	HOSE; P/S OIL PUMP,INL	1-21115-230-1	01	1	9811-

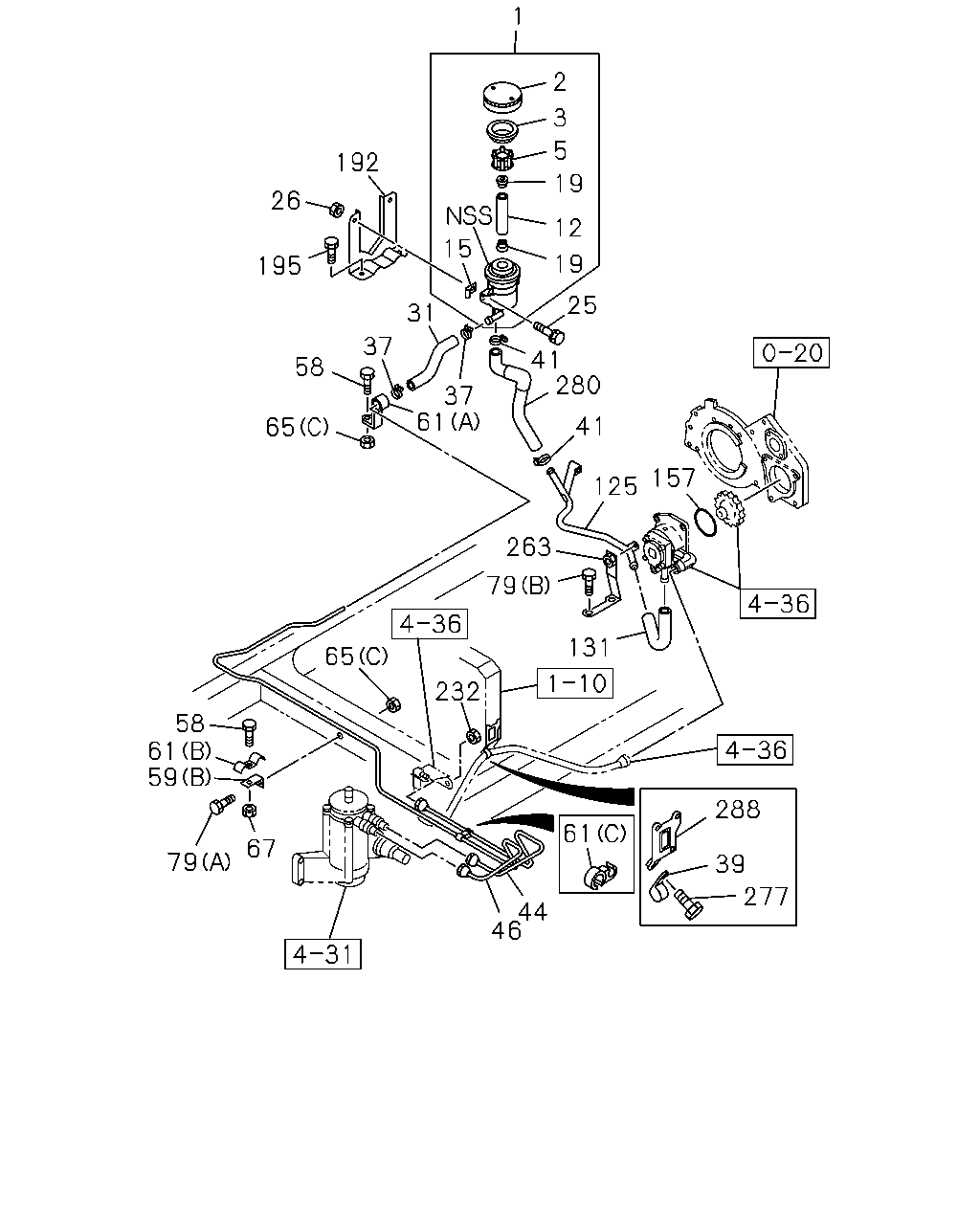

1 2 3 5 192 19 26 12 15 19 195 25 31 37 41 280 58 37 61 157 41 65 125 263 79 131 65 232 58 61 59 288 61 67 79 39 277 44 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S POWER STEERING(N40)	1-21210-205-0	01	1	9606-9810
1	TANK ASM; OIL,P/S	1-21210-205-0	01	1	9811-0508
1	TANK ASM; OIL,P/S	1-21210-238-1	01	1	0509-
2	CAP; OIL TANK,P/S POWER STEERING(N40)	1-21241-004-3	01	1	9606-9810
2	CAP; OIL TANK,P/S	1-21241-004-4	01	1	9811-
3	GASKET; OIL TANK,P/S POWER STEERING(N40)	1-21249-003-1	01	1	9606-9810
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	9811-
5	STRAINER; OIL TANK,P/S POWER STEERING(N40)	1-21235-007-1	01	1	9606-9810
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	9811-
12	FILTER; MICROBON,OIL TANK,P/S POWER STEERING(N40)	1-21235-011-0	01	1	9606-9810
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	9811-
15	PLATE; FILTER,OIL TANK POWER STEERING(N40)	1-21249-007-1	02	1	9606-9810
15	PLATE; FILTER,OIL TANK	1-21249-007-1	02	1	9811-0508
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	0509-
19	SEAT; OIL TANK POWER STEERING(N40)	1-21249-004-0	02	1	9606-9810
19	SEAT; OIL TANK	1-21249-004-0	02	1	9811-
25	BOLT; OIL TANK BRKT POWER STEERING(N40) M8X20 FLANGE	0-28680-820-0	02	1	9606-9810
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28680-825-0	02	1	9811-0512
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-
26	NUT; OIL TANK TO BRKT POWER STEERING(N40) M8	9-09110-408-0	02	1	9606-9810
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91150-108-0	02	1	9811-0602
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
31	HOSE; P/S OIL TANK,INL POWER STEERING(N40)	1-21113-591-1	01	1	9606-9810
31	HOSE; P/S OIL TANK,INL	1-21113-591-1	01	1	9811-
37	CLIP; HOSE,P/S POWER STEERING(N40) ID=26	1-09704-082-0	02	1	9606-9810
37	CLIP; HOSE,P/S ID=26	1-09704-082-0	02	1	9811-
39	CLIP; FLEX HOSE ID=40	8-94226-553-0	01	1	9811-
41	CLIP; HOSE,P/S POWER STEERING(N40) ID=32	1-09704-085-0	02	1	9606-9810
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	9811-
44	PIPE; OIL,P/S UNIT TO NIPPLE POWER STEERING(N40)	1-21114-571-0	01	1	9606-9609
44	PIPE; OIL,P/S UNIT TO NIPPLE POWER STEERING(N40) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-21114-571-0	01	1	9610-9810
44	PIPE; OIL,P/S UNIT TO NIPPLE	1-21115-426-0	01	1	9811-
44	PIPE; OIL,P/S UNIT TO NIPPLE POWER STEERING(N40) HEAVY DUTY PACKAGE TRUCK<RD2>	1-21115-738-0	01	1	9610-9810
46	PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING(N40)	1-21114-981-0	01	1	9606-9609
46	PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING(N40) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-21114-981-0	01	1	9610-9810
46	PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING(N40) HEAVY DUTY PACKAGE TRUCK<RD2>	1-21115-737-0	01	1	9610-9810
46	PIPE; OIL,P/S UNIT TO OIL TANK	1-21116-021-1	01	1	9811-
58	BOLT; CLIP HEAVY DUTY PACKAGE TRUCK<RD2> M8X40 FLANGE	0-28680-840-0	01	1	9610-9810
58	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	9811-0512
58	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	0601-
58	BOLT; CLIP POWER STEERING(N40) M8X16 FLANGE	0-28080-816-0	02	1	9606-9609
58	BOLT; CLIP POWER STEERING(N40) M8X16 FLANGE	0-28080-816-0	02	1	9610-9810
58	BOLT; CLIP HEAVY DUTY PACKAGE TRUCK<RD2> M8X16 FLANGE	0-28080-816-0	02	1	9610-9810
58	BOLT; CLIP POWER STEERING(N40) M8X25 FLANGE	0-28680-825-0	01	1	9606-9810
58	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	02	1	9811-0512
58	BOLT; CLIP M8X30 FLANGE	0-28650-830-0	02	1	0601-
59	BRACKET; CLIP,OIL PIPE HEAVY DUTY PACKAGE TRUCK<RD2> (C) L=50	1-47475-299-2	01	1	9610-9810
59	BRACKET; CLIP,OIL PIPE (B) L=60	1-47475-455-0	01	1	9811-
59	BRACKET; CLIP,OIL PIPE HEAVY DUTY PACKAGE TRUCK<RD2> (D)	1-47475-427-1	01	1	9610-9810
59	BRACKET; CLIP,OIL PIPE POWER STEERING(N40) (A)	1-21119-091-0	01	1	9606-9810
59	BRACKET; CLIP,OIL PIPE POWER STEERING(N40) (B) L=60	1-47475-455-0	01	1	9606-9810
61	CLIP; OIL PIPE POWER STEERING(N40) (A) ID=15 H=24 L=20	1-09700-606-0	01	1	9606-9810
61	CLIP; OIL PIPE (A) ID=15 H=24 L=20	1-09700-606-0	02	1	9811-
61	CLIP; OIL PIPE POWER STEERING(N40) (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9606-9609
61	CLIP; OIL PIPE POWER STEERING(N40) (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9610-9810
61	CLIP; OIL PIPE HEAVY DUTY PACKAGE TRUCK<RD2> (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9610-9810
61	CLIP; OIL PIPE (C) ID=12 & 15	1-09709-281-1	01	1	9811-
61	CLIP; OIL PIPE POWER STEERING(N40) (B) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9606-9810
61	CLIP; OIL PIPE (B) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9811-
65	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	03	1	9811-0602
65	NUT; BRKT (C) M8 FLANGE	0-91180-108-0	03	1	0603-
65	NUT; BRKT POWER STEERING(N40) (A) M10 FLANGE	5-09440-006-0	02	1	9606-9810
65	NUT; BRKT POWER STEERING(N40) (B) M8	9-09110-408-0	05	1	9606-9810
67	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9811-0602
67	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-
79	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	01	1	9811-0512
79	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-
79	BOLT; BRKT POWER STEERING(N40) (B) M8X12 FLANGE	0-28080-812-0	02	1	9606-9810
79	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	02	1	9811-0512
79	BOLT; BRKT (B) M8X12 FLANGE	0-28050-812-0	02	1	0601-
125	CONNECTOR; P/S PUMP POWER STEERING(N40)	8-94394-614-0	01	1	9606-9810
125	CONNECTOR; P/S PUMP	8-94390-310-0	01	1	9811-9901
125	CONNECTOR; P/S PUMP	8-97600-113-0	01	1	9902-
131	HOSE; RUBBER,P/S POWER STEERING(N40)	8-94396-331-1	01	1	9606-9810
131	HOSE; RUBBER,P/S	8-94396-331-1	01	1	9811-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). POWER STEERING(N40)	8-94396-678-0	01	1	9606-9810
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-178-0	01	1	9811-
192	BRACKET; P/S OIL TANK POWER STEERING(N40)	1-21119-115-5	01	1	9606-9810
192	BRACKET; P/S OIL TANK	1-21119-129-0	01	1	9811-
195	BOLT; BRKT POWER STEERING(N40) M10X25 FLANGE	0-28681-025-0	02	1	9606-9810
195	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	02	1	9811-0512
195	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	02	1	0601-
232	NUT; BRKT POWER STEERING(N40) M8	9-09110-408-0	02	1	9606-9810
232	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9811-0602
232	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
263	BRACKET; P/S PIPE POWER STEERING(N40)	8-94393-981-0	01	1	9606-9810
263	BRACKET; P/S PIPE	8-94393-981-0	01	1	9811-9901
263	BRACKET; P/S PIPE	8-97600-117-0	01	1	9902-
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28080-816-0	01	1	9811-0512
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28050-816-0	01	1	0601-
280	HOSE; P/S OIL PUMP,INL POWER STEERING(N40)	1-21113-592-2	01	1	9606-9810
280	HOSE; P/S OIL PUMP,INL	1-21115-230-1	01	1	9811-
288	BRACKET; CLIP,P/S	1-82659-149-0	01	1	9811-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
